IR5RK886EXNotebook Computer with 802.11 a/b/g radio

NOTEBOOK COMPUTER RK886EX USER’S GUIDE Copyright © 2007 All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, or computer language, in any form, or by any means, electronic, mechanical, magnetic, optical, chemical, or other, without the prior written permission of the manufacturer. The manufacturer reserves the right to revise this publication and to make changes to the contents hereof without obligation to notify any person of such revision or changes. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the software described in this manual is sold or licensed "as is". Should the programs prove defective following purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any software defects. Trademark Acknowledgments IBM, PC, AT, XT are registered trademarks of International Business Machines Corp. MS-DOS and Windows are registered trademarks of Microsoft Corp. Pentium is the registered trademark of Intel Corp. All product and company names are trademarks or registered trademarks of their respective holders. EMC and Safety Notice Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory information / Disclaimers Installation and use of this RK886EX must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. IMPORTANT NOTE (CO-LOCATION) FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device is restricted to INDOOR USE due to its operation in the 5.15 to 5.25GHz frequency range. According to FCC 15.407(e), requires this product to be used indoors for the frequency range 5.15 to 5.25GHz to reduce the potential for harmful interference to co-channel of the Mobile Satellite Systems. CE ! 0984 Products with the CE Marking comply with both the EMC Directive (2004/104/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: EN 300 328 V.1.6.1 (2004)y EN 301 489-1 V.1.6.1 (2005) / EN 301 489-17 V.1.2.1 (2002) EN 301 893 V.1.2.3 (2003) EN 50371: 2002 EN 60950-1: 2002 EN 55022 / EN 55024 R&TTE (CE) MANUAL REGULATORY REQUIREMENT (WLAN - IEEE 802.11b/g) 802.11b/g Restrictions: European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz. In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. D=0.0178m is the minimum distance between the EUT and human body to meet the E-field strength of 61V/m UL, TÜV AC Adapter (TÜV includes EN60950 LVD) Power Conservation This computer consumes much less power than conventional computers; however, power consumption may be reduced by properly configuring the Power Management Setups. It is recommended that the power saving functions be enabled even when not running on battery power. Power Management generally does not degrade system performance while saving power. Material Safety and Recycling All materials used in the construction of this unit are recyclable or environmentally friendly. No CFC or related materials were used in the manufacturing process or inside the product. Please recycle the packing materials, and at the end of the computer's life, all other …

Text truncated - open the document above for the full version.

CRETE SYSTEMS INC. 7F,No.250,Sec.3,Pei Shen Rd.,Shen Keng Hsiang, Taipei County,Taiwan. Date: May 29, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Willie / Manager CRETE SYSTEMS INC. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

CRETE SYSTEMS INC. 7F,No.250,Sec.3,Pei Shen Rd.,Shen Keng Hsiang, Taipei County,Taiwan. June 12, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: IR5RK886EX Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Willie / Manager CRETE SYSTEMS INC.

http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk CReTE SYSTEMS INC., FCC ID: IR5RK886EX, Assessment NO.: AN07T6980, Notice#1 Inbox Reply from "[email protected]" <[email protected]> hide details Jul 10 (2 days ago) to Jessica Ho <[email protected]> cc [email protected] date Jul 10, 2007 6:24 PM subject CReTE SYSTEMS INC., FCC ID: IR5RK886EX, Assessment NO.: AN07T6980, Notice#1 Dear Jessica, The review of this application is complete. Please reply to the following items. Please note that items Q1-Q3 are common to composite Application AN07T6981 and you will receive a separate notice. If you have questions, please ask. Q1: The statements on user manual page 3 of 59 must include specific instructions that a minimum separation of 20 cm must be maintained between the user and the transmitter antennas. In support of this statement, the user manual must also describe the location of the transmit antennas. Please revise the user manual to include this information. Q2: In the MPE evaluation or user instructions or operation description, please provide additional explanation regarding how the RF exposure requirements will be met when the notebook is in the closed position possibly in a person's lap or while being transported by the carry handle close to the body. The 20 cm separation must be maintained in all cases when the transmitter (s) are operating. Q3: The exhibits for the wireless module indicate that it is capable of MIMO operation. Two antennas are shown. In the test report, power and other measurements appear to have been made only on one port. Please provide additional information concerning use of the MIMO capability of the module in this notebook computer. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward Invite [email protected] to Gmail Reply from "gina.lo" <[email protected]> hide details 5:42 am (2 hours ago) to [email protected] date Jul 13, 2007 5:42 AM subject Re:CReTE SYSTEMS INC., FCC ID: IR5RK886EX, Assessment NO.: AN07T6980, Notice#1 Dear Sir, Please see my reply, thank you. Best Regards, Gina http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk (1 of 2)7/13/2007 8:26:52 AM http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk <tim.dwyer@ccsemc. com> 2007/07/11 06:24 AM "Jessica Ho" <[email protected]> <[email protected]> CReTE SYSTEMS INC., FCC ID: IR5RK886EX, Assessment NO.: AN07T6980, Notice#1 Dear Jessica, The review of this application is complete. Please reply to the following items. Please note that items Q1-Q3 are common to composite Application AN07T6981 and you will receive a separate notice. If you have questions, please ask. Q1: The statements on user manual page 3 of 59 must include specific instructions that a minimum separation of 20 cm must be maintained between the user and the transmitter antennas. In support of this statement, the user manual must also describe the location of the transmit antennas. Please revise the user manual to include this information. Ans: Please see the revised user manual(page 3) Q2: In the MPE evaluation or user instructions or operation description, please provide additional explanation regarding how the RF exposure requirements will be met when the notebook is in the closed position possibly in a person's lap or while being transported by the carry handle close to the body. The 20 cm separation must be maintained in all cases when the transmitter(s) are operating. Ans: Please see the revised user manual(page 3) Q3: The exhibits for the wireless module indicate that it is capable of MIMO operation. Two antennas are shown. In the test report, power and other measurements appear to have been made only on one port. Please provide additional information concerning use of the MIMO capability of the module in this notebook computer. Ans: Please see the revised Block Diagram for module, Operation Description & Schematic for module. - Show quoted text - 4 attachments — Download all attachments RK886EX User manual revised 0713.pdf 734K View as HTML Download RK886EX Block Diagram for module.pdf 51K View as HTML Download RK886EX Operation Description.pdf 303K View as HTML Download RK886EX Schematic for module.pdf 563K View as HTML Download http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk (2 of 2)7/13/2007 8:26:52 AM

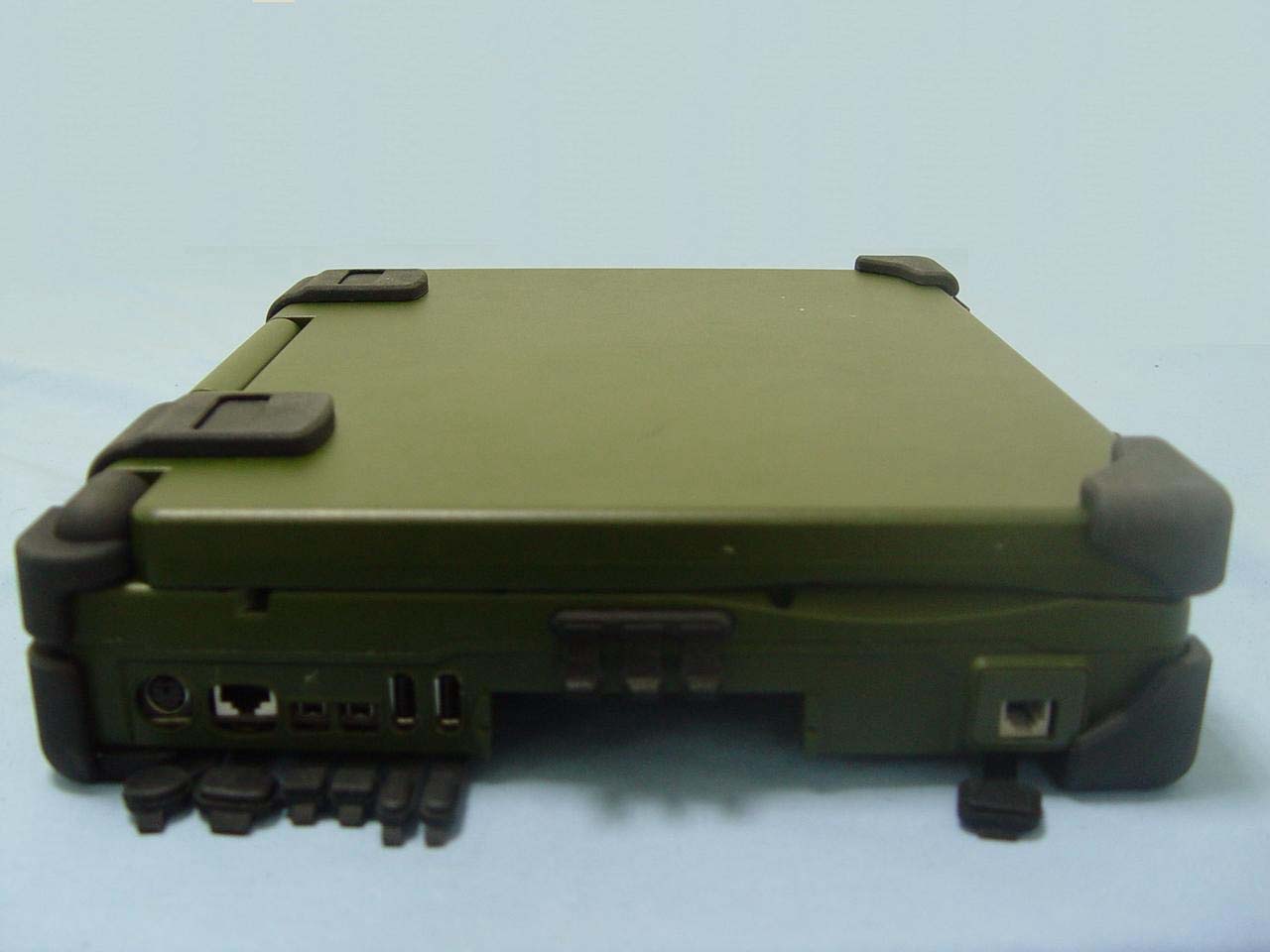

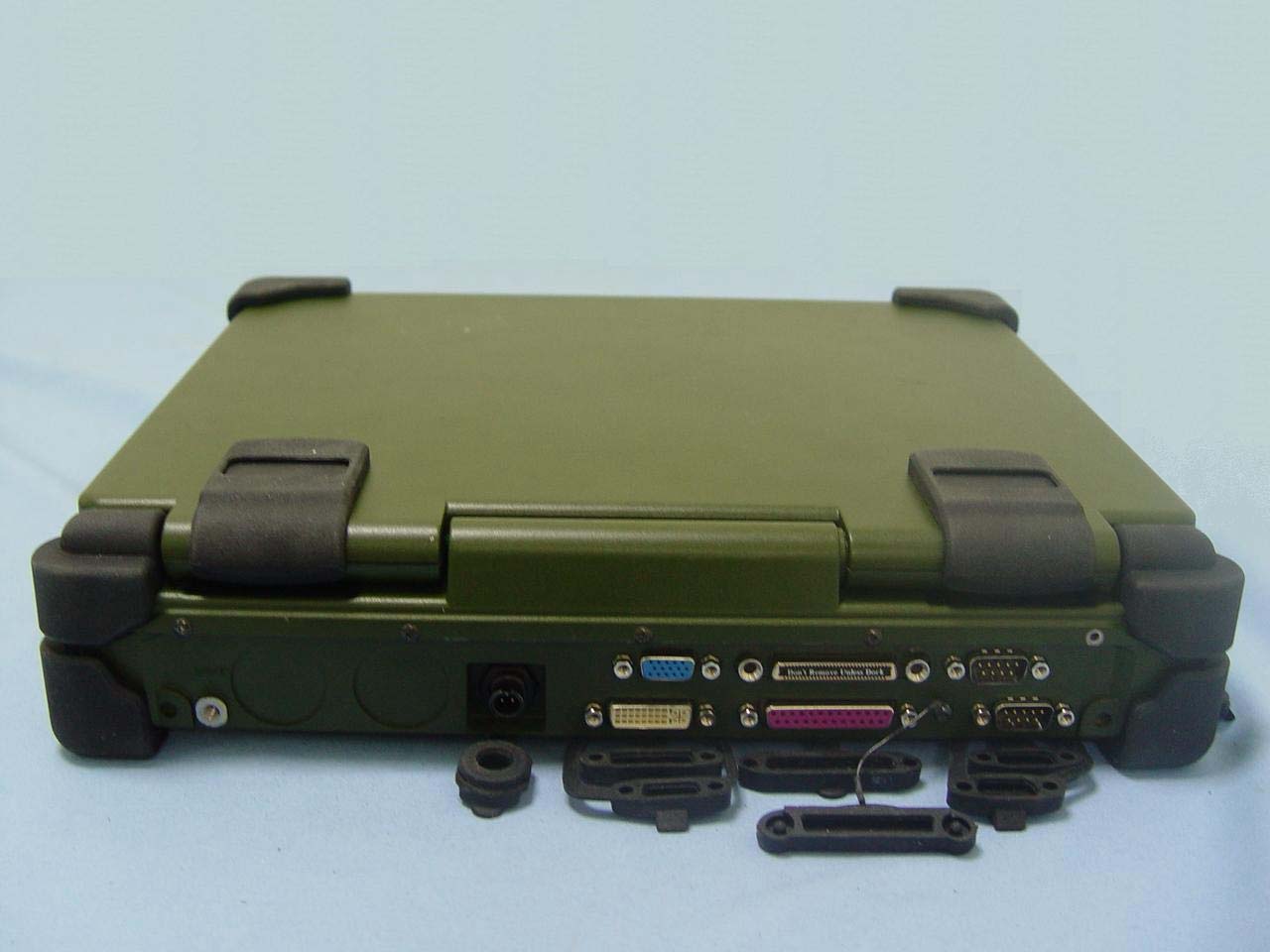

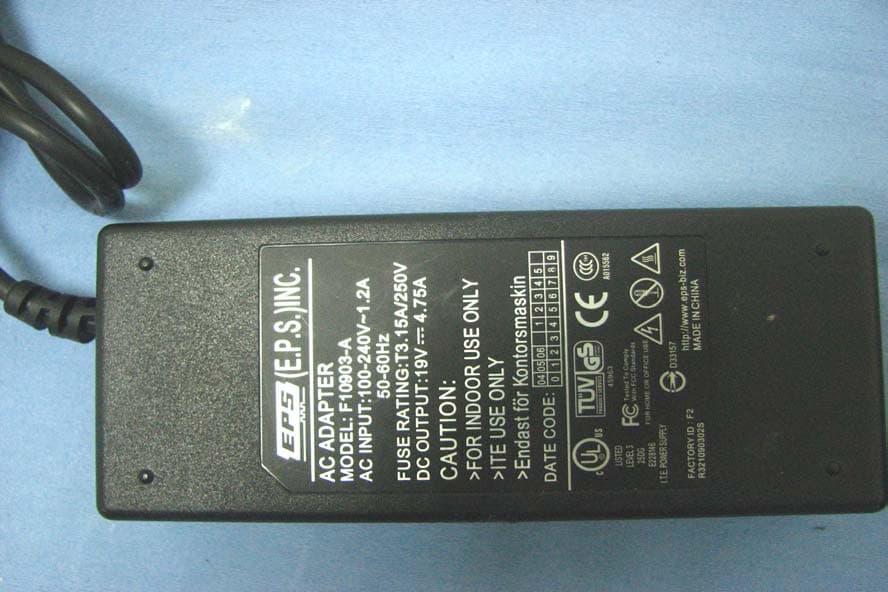

Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 1 Total Page: 17 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 2 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 6 Rev.00

FCC ID: IR5RK886EX

Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 7 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 10 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 12 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 13 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 14 Rev.00 WLAN Module Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 15 Rev.00 Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 16 Rev.00 WLAN Antenna Compliance Certification Services Inc. Report No.: 70517001 Date of Issue: June 29, 2007 Page 17 Rev.00

Antenna Antenna Gain(dBi) Antenna Type Frequency (GHz) Horizontal Vertical Hor+Ver 2.4 -4.85 -7.50 * -4.29 PIFA 5 -3.33 -5.10 * -2.53 For 802.11b/g Polarization : H Plane For 802.11b/g Polarization : E Plane For 802.11a Polarization : H Plane For 802.11a Polarization : E Plane

Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 71 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Notebook Computer Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.745GHz ~ 5.825GHz Others: Bluetooth: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 14.77 dBm (29.99mW) IEEE 802.11g mode: 15.64 dBm (36.64mW) Antenna gain (Max) IEEE 802.11b/g: -4.29 dBi (Numeric gain: 0.37) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 15.64dBm (36.64mW) at 2462MHz (with 0.37 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 72 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 36.64mW Numeric Antenna gain = 0.37 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.00269 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 73 Rev. 00 EUT Notebook Computer Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.745GHz ~ 5.825GHz Others: Bluetooth: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11a mode: 18.15 dBm (65.31mW) Antenna gain (Max) IEEE 802.11a: -2.53 dBi (Numeric gain: 0.56) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 18.15dBm (65.31mW) at 5785MHz (with 0.56 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 74 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 65.31mW Numeric Antenna gain = 0.56 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.00727 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 77 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Notebook Computer Model: RK886EX Trade Name: CReTE Issued to CRETE SYSTEMS INC. 7F, No. 250, Sec. 3, Pei Shen Rd., Shen Keng Hsiang, Ta i p e i C o u n t y, Ta i w a n . Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................3 2. EUT DESCRIPTION..............................................................................................................................4 3. TEST METHODOLOGY.......................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION...........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..............................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST...........................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS................................................................................................12 7.1 6 DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................19 7.3 A VERAGE POWER............................................................................................................................26 7.4 BAND EDGES MEASUREMENT ................................................................................................33 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................42 7.6 SPURIOUS EMISSIONS ................................................................................................................49 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................68 APPENDIX I RADIO FREQUENCY EXPOSURE ...................................................................................71 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..................................................................................75 Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Notebook Computer Trade Name CReTE Model Number RK886EX Model Discrepancy N/A Power Supply 1. Power Adapter: Trade Name / Model Number: EPS / F10903-A I/P: 100-240V, 50-60Hz, 1.2A FUSE RATING: T3.15A, 250V O/P: 19V, 4.75A 2. Rechargeable Lithium-lon Battery: Model Number: BR83A 11.1V, 6600mAH Frequency Range IEEE 802.11a mode: 5.745~5.825 GHz IEEE 802.11b/g mode: 2.412~2.462 GHz Transmit Power IEEE 802.11a mode: 14.77 dBm IEEE 802.11b mode: 15.64 dBm IEEE 802.11g mode: 18.15 dBm Modulation Technique IEEE 802.11a: OFDM (QPSK, BPSK, 16-QAM, 64-QAM) IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11a: 108, 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1Mbps Number of Channels IEEE 802.11a mode: 5 Channels IEEE 802.11b/g mode: 11 Channels Enclosure Material Type Magnesium-aluminum Antenna Specification IEEE 802.11a: -2.53 dBi IEEE 802.11b/g: -4.29 dBi Antenna Designation IEEE 802.11a: PIFA Antenna IEEE 802.11b/g: PIFA …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 75 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 76 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70517001-RP1 FCC ID: IR5RK886EX Date of Issue: June 28, 2007 Page 77 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
