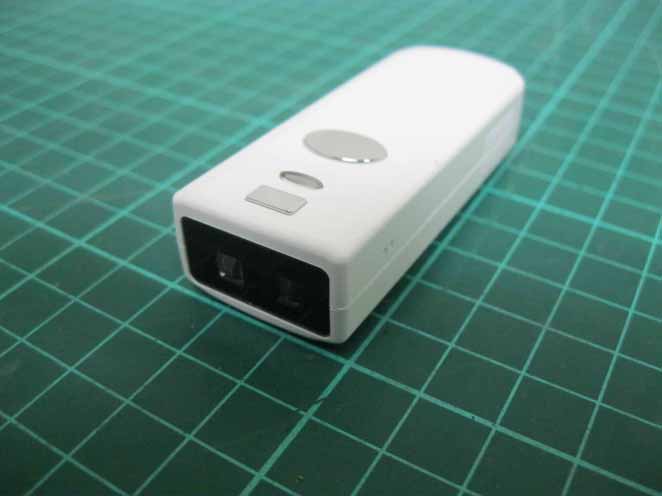

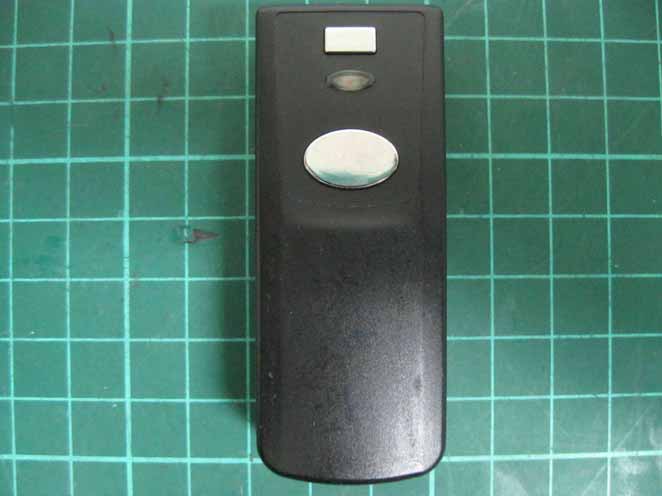

Report No.T140313D04 Page 1 of 6 External Photo(Model: MT1197M) Report No.T140313D04 Page 2 of 6 Report No.T140313D04 Page 3 of 6 Report No.T140313D04 Page 4 of 6 External Photo(Model: MT1197MW) Report No.T140313D04 Page 5 of 6 Report No.T140313D04 Page 6 of 6

RoHS S/N:F6XXXXXX MT1197M MT1197M Label Location Mini Wireless Barcode Reader FCC ID: IRJ-MT1197 Bottom housing Made In Taiwan

Report No.T140313D04 Page 1 of 6 Internal Photo Report No.T140313D04 Page 2 of 6 Report No.T140313D04 Page 3 of 6 Report No.T140313D04 Page 4 of 6 Report No.T140313D04 Page 5 of 6 Report No.T140313D04 Page 6 of 6 Battery

FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 79 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I RADIO FREQUENCY EXPOSURE PROCEDURES According to § 15.247 (i) and § 1.1307(b)(1), system operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. KDB 447498 D01: Approximate SAR test exclusion power thresholds at selected frequencies and test separation distances are illustrated in the following table: MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] = 3.4/5*√2.402 = 1.05 ≤ 3.0 Threshold at which no SAR required is 10mW and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion : The SAR measurement is exempt.

FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 1 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2009 TEST REPORT For Mini Wireless Barcode Reader Model : MT1197M Data Applies To : MT1197MW Trade Name : Marson Issued for Marson Technology Co., Ltd. 9F., No.108-3, Mincyuan Rd., Sindian Dist.,New Taipei City 23141, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: April 21, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 2 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 04/14/2014 Initial Issue All Page 82 Michelle Chiu 01 04/21/2014 Revised P.1 , 4, 5, 58-65, 77-78 Michelle Chiu FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 3 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6-7 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS ................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 11 7.1 DUTY CYCLE CORRECTION FACTOR ................................................................ 11-12 7.2 20dB BANDWIDTH FOR HOPPING ...................................................................... 13-18 7.3 MAXIMUM PEAK OUTPUT POWER ..................................................................... 19-20 7.4 AVERAGE POWER ............................................................................................... 21-22 7.5 HOPPING CHANNEL SEPARATION ..................................................................... 23-28 7.6 NUMBER OF HOPPING FREQUENCY USED ...................................................... 29-31 7.7 DWELL TIME ON EACH CHANNEL ...................................................................... 32-46 7.8 CONDUCTED SPURIOUS EMISSION .................................................................. 47-53 7.9 RADIATED EMISSION ........................................................................................... 54-73 7.10 CONDUCTED EMISSION .................................................................................... 74-78 APPENDIX I RADIO FREQUENCY EXPOSURE PROCEDURES .................................. 79 APPENDIX II SETUP PHOTOS ....................................................................................... 80-82 FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 4 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Marson Technology Co., Ltd. Address 9F., No.108-3, Mincyuan Rd., Sindian Dist.,New Taipei City 23141, Taiwan Equipment Under Test Mini Wireless Barcode Reader Model MT1197M Data Applies To MT1197MW Trade Name Marson Tested Date March 13 ~ April 14, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Rex Liao Jacky Chen Deputy Manager Section Manager FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 5 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Mini Wireless Barcode Reader Model Number MT1197M Data Applies To MT1197MW Identify Number T140313D04 Received Date March 13, 2014 Frequency Range 2402MHz to 2480MHz f = 2402 + nMHz, n = 0, .....78 Transmit Power 5.27 dBm (0.0034W) Channel Spacing 1MHz Channel Number 79 Channels Transmit Data Rate GFSK (1Mbps), π/4-DQPSK (2Mbps), 8-DPSK (3Mbps) Type of Modulation Frequency Hopping Spread Spectrum Frequency Selection by software / firmware Antenna Type Chip Antenna, Antenna Gain 2.66 dBi Power Rating 3.7Vdc (EUT actual vo…

Text truncated - open the document above for the full version.

FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 80 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 81 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC ID :IRJ-MT1197 Report No.T140313D04-RP1 Page 82 / 82 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
