IRJ-MT1297Mini Wireless Barcode Reader

Mi ni Wir eless Bar code Read er Q ui ck Guide (Rev1) P/N: 8002-0057*00 Mini Wireless Barcode Reader Quick Guide Full user’s manual is available on the enclosed CD. FCC WARNING STATEMENT This equipment has been tes ted and found to comply with t he limits for a Class B digital de vice, pursuant to Par t 1 5 of the FCC Rules. These limits are designed to provide reasonable prot ection against harmful inter fer ence in a residential installation. This equipment generat es, uses and can radiate radio frequency energy and, if not installed and used in accordance with t he instr uctions, may cause harmful inter fer ence to radio communications. However , t here is no guarantee that inter fer ence will not occur in a particular installation. If this equipment does cause harmful inter fer ence to radio or television reception, which can be deter mined by turning the equipment off and on, the user is encouraged to try to correct the inter fer ence by one of the following measures: • Reorient or relocate t he receiving antenna. • Increase the separation between the equipment and receiver . • Connect the equipment into an outlet on a circuit differ ent from that to which t he receiver is connected. • Consult the dealer or an experienced radio/TV tec hnician for help. CANADIAN DOC STATEMENT This digital apparatus does not exceed the Class B limits for radio noise for digital apparatus set out in the Radio Inter fer ence Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de las classe B prescrites dans le Réglement sur le brouillage radioélectrique édicté par les ministèr e des Communica- tions du Canada. CE MARKING AND EUROPEAN UNION COMPLIANCE Tes ting for compliance to CE requirements was performed by an independent laboratory. The unit under tes t was found compliant with all the applicable Directives, 2004/ 108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturer s and importer s to tak e-back electronic products at the end of their useful life. ROHS STATEMENT OF COMPLIANCE This product is compliant to Directive 2002/95/EC. NON-MODIFICATION STATEMENT Changes or modifications not expressly approved by t he party responsible for compliance RoHS - 1 - 1. T ak e any metals into contact with t he ter minals in connectors. 2. Use the scanner where any inflammable gases. If following condition occur, immediately power off t he host computer , disconnect the inter face cable, and contact your neares t dealer. 1. Smoke, abnormal odors or noises come from the scanner. 2. Drop the scanner so as to affect the operation or damage its housing. Do Not Do not do behavior below. 1. Put the scanner in places excessively high temperatures such as expose under direct sunlight. 2. Use the scanner in extr emely humid area or dras tic temperature changes. 3. Place the scanner in oily smoke or steam environment such as cooking range. 4. Be cover ed or wrapped up the scanner in bad-ventilated area such as under cloth or blanket. 5. Insert or drop foreign mater ials or wat er into scanning window or vents. 6. Using the scanner while hand is wet or damp. 7. Use the scanner with anti-slip gloves containing plasticizer and chemicals or organic solvents such as benzene, thinner, insecticide etc to clean the housing. Otherwise, it could not result fire and electrical shock but housing may be brok en and injured. 8. Scratch or modify the scanner and bend, twist, pull or heat its inter face cable. 9. Put heavy objects on inter face cable. Do not star e t he light source from the scanning window or do not point the scanning window at other people’s eyes or eyesight may be damaged by direct exposure under the light. Do not put the scanner on an unstable or inclined plane. The scanner may drop, creating injuries. Once the inter face cable is damaged such as exposed or brok en copper wires, stop using immediately and contact your dealer. Otherwise, it could result fire or electrical shock. WARNING AND CAUTION - 2 - OUT OF THE BOX - 3 - INTRODUCTION SPECIFICATIONS Light source 525nm green LED & 635nm red LED Scan rat e 200 scans/sec Sensor 2500 pixels CCD sensor Resolution 4mil/ 0.1mm PCS 30% Housing Plastic(PC) Prof ile SPP, HID Batter y Life 10000 scans Charge Time 3 hours (fully charged) Cover age 10M/33ft. (line of sight) Operating Temp 0 to 55 ̊C (32 ̊F to 131 ̊F) Symbologies All major 1D barcodes incl. GS1 Databar - 4 - Neck Str ap Mini Wireless Barcode Reader CD USB Charger Cable Scanner T ools Quick GuideQuick Connection Card 3 2 1 4 5 NUMERIC BARCODES *1* *2* *3* *4* *5* 1 2 Mini Wirele ss Bar code Reade r Quic k Guid e LED Indicator Micro USB port Exit Window Trigger Button (w/ Prot ective Cover) (1) iOS Hotkey Button (2) Delete Button CHARGING THE BATTERY 1. Flip open the micro USB port on the scanner. 2. Insert t he micro USB connector into the port on the scanner and USB A connector into a USB port on the host PC or smartphone/tablet adapter. - 5 -- 6 - BEEPER INDICATION LED INDICATION Single long beep Power up Single beep Good read Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps i. Wireless connection ii. The scanner successfully r eads a configuration barcode Two short beeps Good read (Batch mode/Memory mode) Four beeps (Hi-Lo-Hi-Lo) Out of range/Poor connection Five beeps Low power Three beeps Wireless disconnection Three short beeps i. The scanner reads a barcodes while disconnected. ii. The scanner reads an unexpected barcode during configuration procedure. (scan [ABORT] to abort and star t o ver) Se ver al short beeps The scanner switches from one communication mode to another Off Flashing Blue Green for 2 sec Flashing Red Solid Red Standby or Power off Disconnected or Discover able Good Read Lo w power Charging Scanner Micro USB USB A Host GETTING STARTED To scan…

Text truncated - open the document above for the full version.

Report No.T141103D07 Page 1 of 4 External Photo Report No.T141103D07 Page 2 of 4 Report No.T141103D07 Page 3 of 4 Report No.T141103D07 Page 4 of 4 Cable

25*20 cm

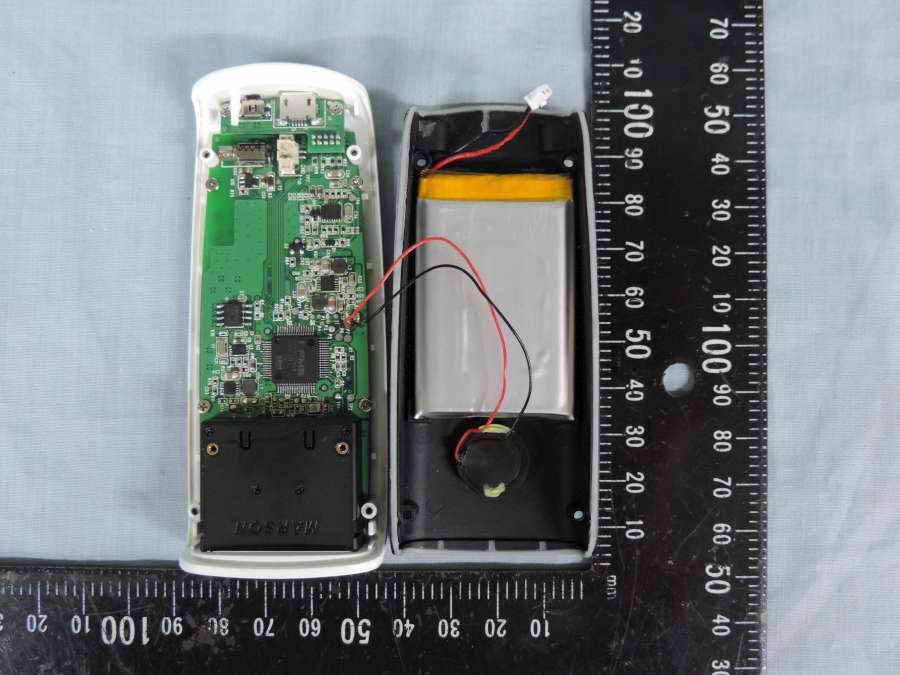

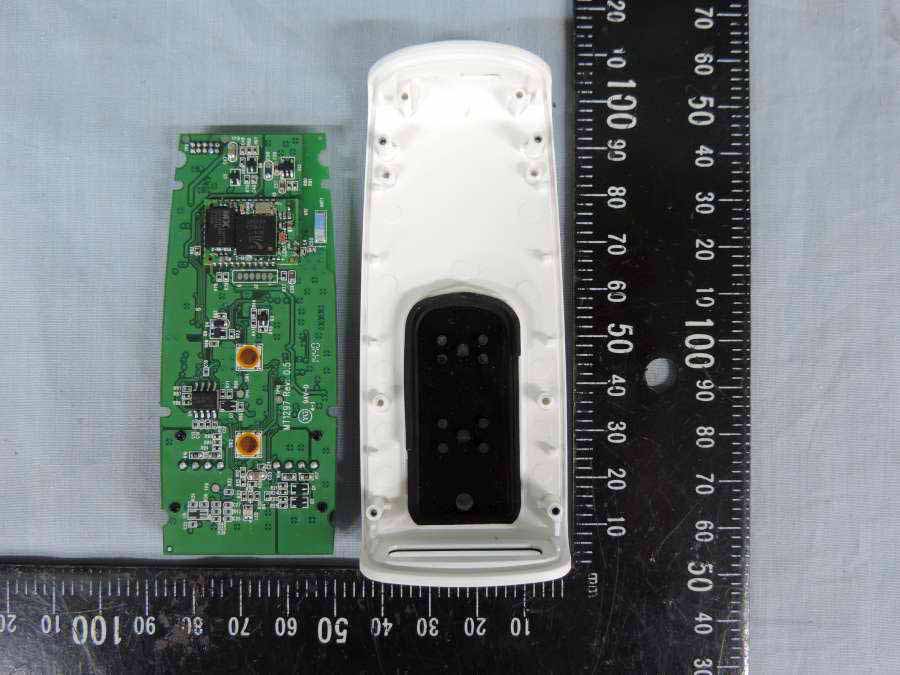

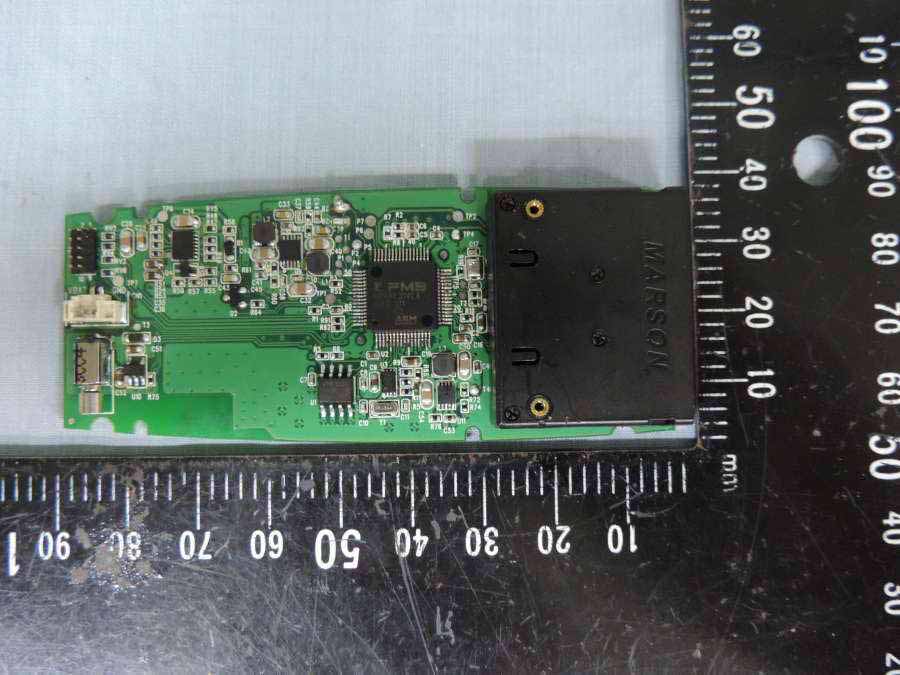

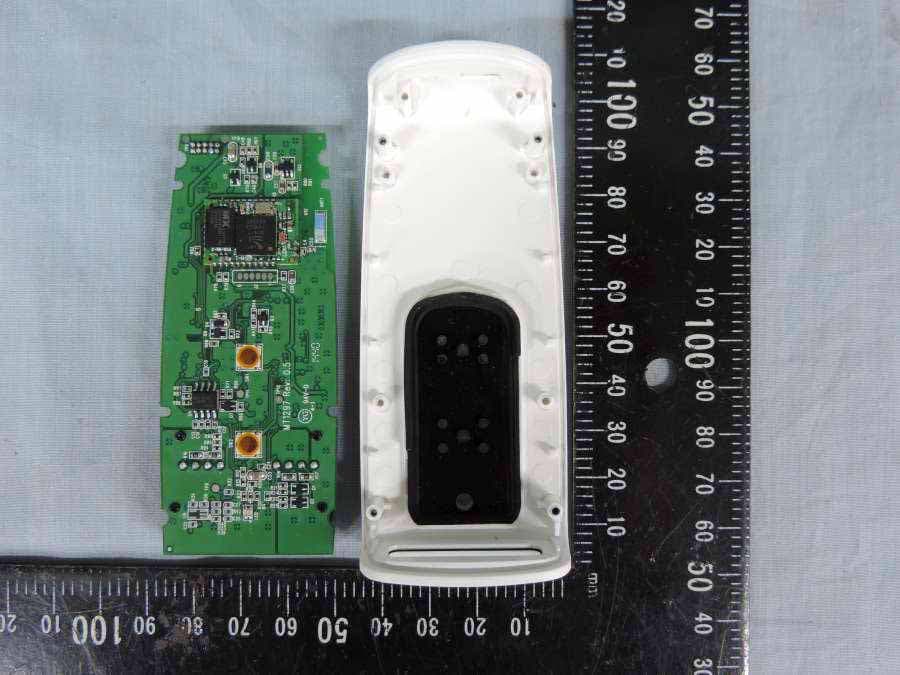

Report No.T141103D07 Page 1 of 6 Internal Photo Report No.T141103D07 Page 2 of 6 Report No.T141103D07 Page 3 of 6 Report No.T141103D07 Page 4 of 6 Report No.T141103D07 Page 5 of 6 Battery Report No.T141103D07 Page 6 of 6 Antenna

Compliance Certification Services Inc. Report No.: T141103D07-RP1-1 Date of Issue: December 03, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[f(GHz)] ≤ 3.0 The tune-up power is 6 dBm +/- 2dB, therefore the highest tune-up power is 2.83 dBm(1.92 mW)@ 2402 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (1.92mW / 5mm)* (2.402GHz ^0.5 )= 0.6 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [f(GHz)] = 0.6 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 1 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2009 TEST REPORT For Mini Wireless Barcode Reader Model : MT1297 Trade Name : Marson Issued for Marson Technology Co., Ltd. 9F., No.108-3, Mincyuan Rd., Sindian Dist.,New Taipei City 23141, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: December 05, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 2 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 12/05/2014 Initial Issue All Page 81 Dola Hsieh FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 3 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 11 7.1 DUTY CYCLE CORRECTION FACTOR ................................................................ 11 7.2 20dB BANDWIDTH FOR HOPPING...................................................................... 13 7.3 MAXIMUM PEAK OUTPUT POWER ..................................................................... 19 7.4 AVERAGE POWER ............................................................................................... 21 7.5 HOPPING CHANNEL SEPARATION..................................................................... 23 7.6 NUMBER OF HOPPING FREQUENCY USED...................................................... 29 7.7 DWELL TIME ON EACH CHANNEL ...................................................................... 32 7.8 CONDUCTED SPURIOUS EMISSION .................................................................. 47 7.9 RADIATED EMISSION........................................................................................... 55 7.10 CONDUCTED EMISSION .................................................................................... 74 APPENDIX SETUP PHOTOS .......................................................................................... 79 FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 4 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Marson Technology Co., Ltd. Address 9F., No.108-3, Mincyuan Rd., Sindian Dist.,New Taipei City 23141, Taiwan Equipment Under Test Mini Wireless Barcode Reader Model MT1297 Trade Name Marson Tested Date November 03 ~ December 03, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 5 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Mini Wireless Barcode Reader Model Number MT1297 Identify Number T141103D07 Received Date November 03, 2014 Frequency Range 2402MHz to 2480MHz f = 2402 + nMHz, n = 0, .....78 Transmit Power 2.83 dBm (0.0019W) Channel Spacing 1MHz Channel Number 79 Channels Transmit Data Rate GFSK (1Mbps), π/4-DQPSK (2Mbps), 8-DPSK (3Mbps) Type of Modulation Frequency Hopping Spread Spectrum Antenna Type Chip Antenna , Antenna Gain : 2.66 dBi Power Rating 3.7Vdc,1100mAh (For Battery) 5.0Vdc (For Charging) Test Voltage 120Vac, 60Hz DC Power Cable Type Shielded micro cable, 1.5m × 1 (Detachable) I/O Port Micro Port × 1 Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more detai…

Text truncated - open the document above for the full version.

FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 79 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 80 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC ID : IRJ-MT1297 Report No.T141103D07-RP1 Page 81 / 81 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
