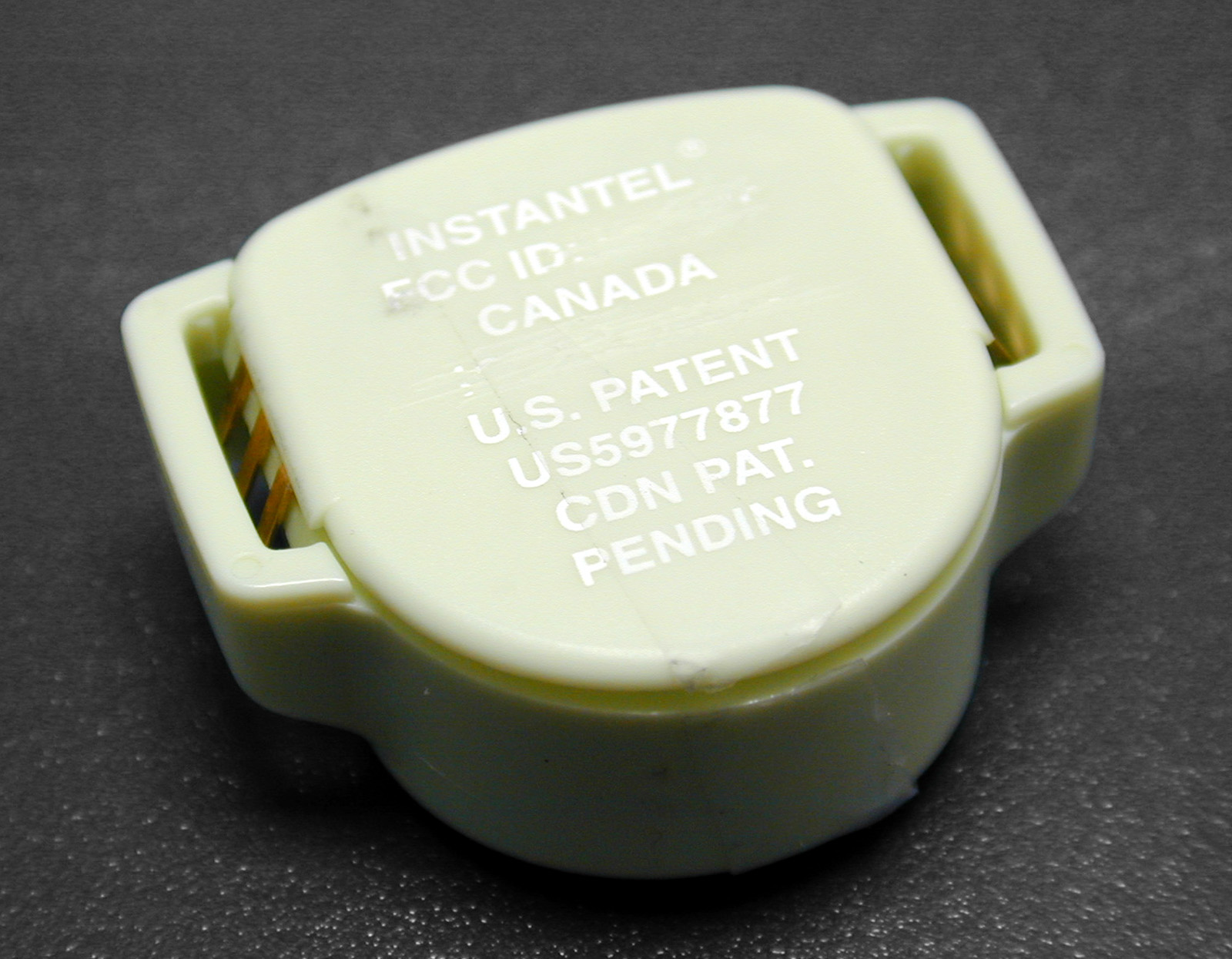

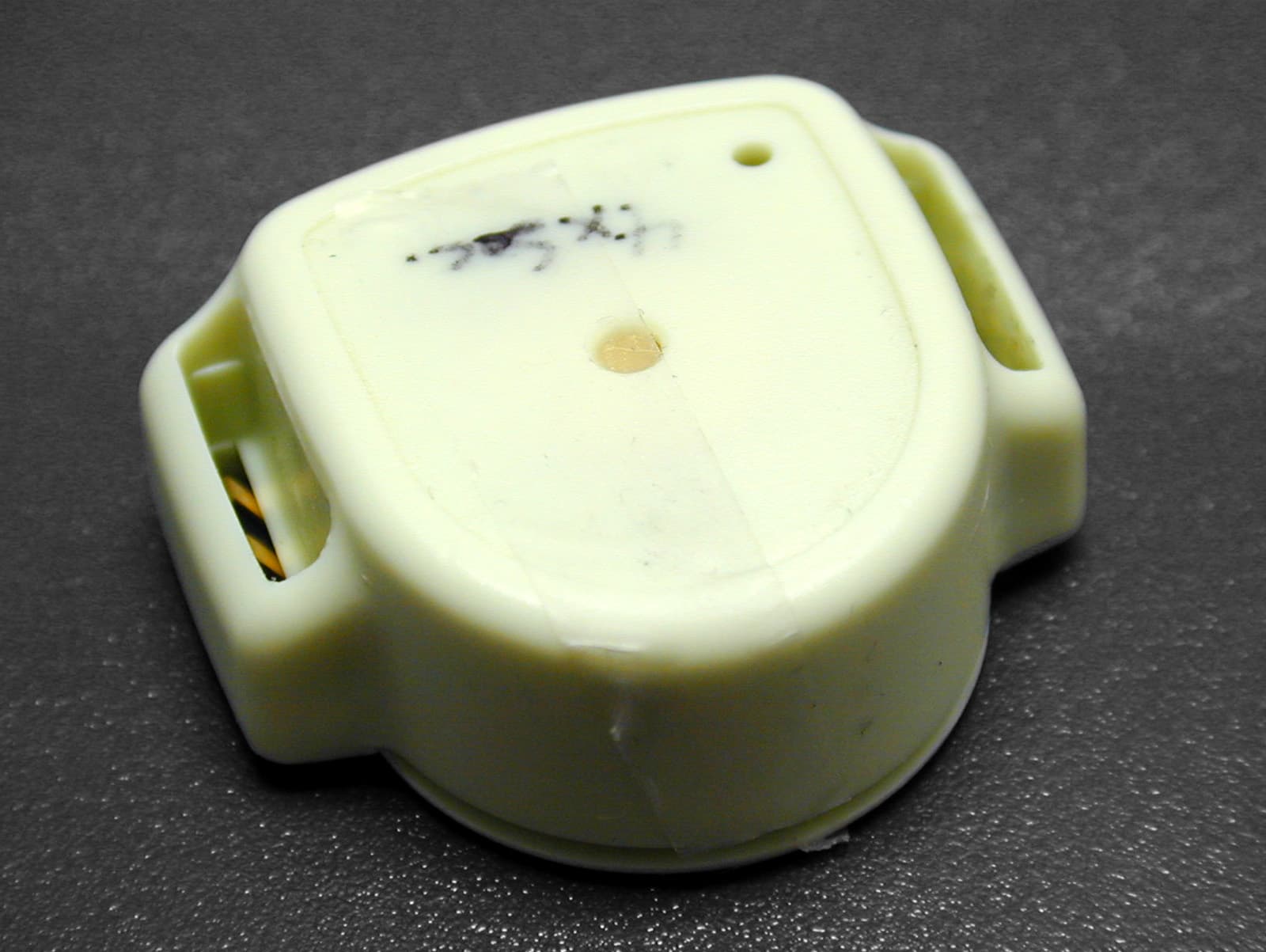

ISEBTGInfant Tag

Hugs Tag Instructions 309 Legget Drive Kanata, Ontario, Canada K2K 3A3, or 808 Commerce Park Drive Ogdensburg, NY USA 13669Telephone: 1-613-592-4642 Facsimile: 1-613-592-4296 Web Site: www.xmarksystems.com © 2002 Instantel Inc. All Rights Reserved. Instantel and Hugs are registered trademarks of Instantel Inc. in North America. Kisses, the hearts logo, Xmark and Heartbeat are trademarks of Instantel Inc. Xmark is a division of Instantel Inc. Printed in Canada. June 2002. 806U2401 Rev A.Certifi ed to the ISO 9001 Quality Standard Part Number 806A2401 false reports of infant abductions and/or mother/infant mismatches. Instantel hereby disclaims all warranties, express or implied, arising out of or in connection with any of its Products of the use or performance thereof, including but not limited to, where allowable by law, all other implied warranties or conditions of merchantable quality and fi tness for a par- ticular purpose and those arising by statute or otherwise in law or from a course of dealing or usage of trade. Instantel’s liability to you or anyone claim- ing through or on behalf of you with respect to any claim or loss arising out of the use or misuse of Instantel’s Product, defective products or materials, improper installa- tion or maintenance of Instantel’s Product or products or the system in which they are incorporated, or alleged to have resulted from an act or omission of Instantel or any person, negligent or otherwise, shall be limited to: A) the repair or replacement of defective Product or materials supplied by Instantel during the warranty period as set out in the Product documentation; or, at the option of Instantel, B) refund of the purchase price of the Prod- uct supplied by Instantel. In no event shall Instantel be liable for general, specifi c, indirect, consequential, incidental, exemplary or punitive damages or any losses or expenses suffered by you or anyone else, whether or not Instantel, or its employees, offi cers, agents, resellers or installers has been informed of the risk of such loss or expense and whether or not such losses or expenses were foreseeable. Preliminary Introduction The Hugs tag is part of the Hugs Infant Protection System. The tag is attached to the infant using a Hugs tamper-proof strap. From the moment of attachment, the infant is automatically enrolled in the system, and protected against abduction. Cutting the band or attempting to remove the infant without authorization from the protected area will immediately cause an alarm. The Hugs tag is also used with the Kisses Mother/Infant Matching addition to the Hugs System. Kisses is designed to confi rm that the correct infant is matched with the correct mother each time they are brought together. The Hugs tag emits an audible beep to indicate either a correct or incor- rect match. The tag is reusable, and does not interfere with other hospital or personal medical equipment. The patented asymmetrical shape of the tag ensures that it does not pinch or irritate the baby’s skin, and also helps prevent it from being kicked off, while still allowing the ankle joint to move freely. The tag is water proof which allows bath- ing of the infant. It is also resistant to soiling and UV light. Please refer to the instructions included with the Hugs straps for details on attach- ing the tag to an infant. Note: The tag is not sterilized at the fac- tory. You may wish to clean the tag prior to fi rst use. Cleaning the Tag The Hugs tag can be cleaned using a soft- bristle brush and a disinfectant soap or similar solution with no more than 20% alcohol content (for example, Butcher’s Heptagon Disinfectant Cleaner, or Kleen- Aseptic from Metrex Research Corp.). Dry the tag thoroughly before use. A small soft-bristle brush can be used to clean the tag slots. Pass the brush care- fully through the tag slot moving from the bottom to top of the tag. Notes: • Do not use an autoclave to clean the tag or serious damage may result. • Do not soak the tag in alcohol or alco- hol-based cleaners. • Do not immerse the tag when cleaning. Handling Information Battery Handling - this device contains a lithium battery. Do not force open, heat to 100° C, or dispose of in fi re. X-Rays - Do not directly expose the tag to X-rays. (The tag is not affected by stray radiation.) Storage Store Hugs tags at room temperature. Statements United States—Federal Communication Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer- ence received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm- ful interference when the equipment is oper- ated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interfer- ence at his own expense. Canada—Industry Canada The term “IC:” before the certifi cation/ registration number only signifies that Industry Canada technical specifi cations were met. Warranty Xmark’s products are warranted against defects in materials and workmanship and shall perform in accordance with pub- lished specifi cations for a period of one year. Xmark reserves the right to change specifi cations without notice. Limitation of Liability This Product has been designed for use to assist in the prevention of infant abduction and/or mother/infant mismatching. The range, accuracy, function and per- formance of this Product may vary from…

Text truncated - open the document above for the full version.

Barry Quinlan From: "Ruby Dulmage" <[email protected]> To: "Barry Quinlan - Curtis-Straus" <[email protected]> Sent: Friday, June 28, 2002 9:43 AM Attach: Hugs tag FCC response.pdf Sub ject: Fw: Instantel FCC ID: ISEBTG Page 1 of 2 6/28/2002 Hi Barry: Below is the response to your questions regarding Instantel, FCC ID: ISEBTG Thanks, Ruby -----Original Message----- From: Chris Bisaillion <[email protected] > To: Kevin Carr (E-mail) <[email protected] > Cc: Rob McCulloch <[email protected] >; Peter Rousseau <[email protected]> Date: June 27, 2002 4:11 PM Subject: re: Instantel FCC ID: ISEBTG Hello Kevin, Here are the responses to the questions posed by Curtis-Straus TCB. 1. The duration of the (longest) message is 286 msec. 2. The 15000uV/m is a typo. It should read 3750uV/m. Let me clarify that the tag transmitter has a fixed peak power level. Measurements of these emissions have been submitted. This security product does have an emergency mode with increased average power levels brought about by increased duty cycle. Here is a description of the emergency mode of this security product: When the tag detects a situation where an infant is at risk, then it sends transmissions promptly, using double the duty cycle used in (worst case) normal operation. Specifically, when the tag detects that an infant has come in close contact with an incorrect Mother (and is therefore at risk of fatal disease transfer through breastfeeding), the tag sends ID information without waiting for the usual 11.79 second quiet time to elapse. Further, the duty cycle of this information (measured in the 'worst' 100 ms period) doubles. The attached diagrams show the timing of these messages. The "duty cycle factor" (used to calculate average power) is therefore 6 dB lower for these . This effectively increases the (strongest orientation) average power from 59.7 dB uV/m for (worst case) normal messages, to 65.7 dB uV/m for emergency messages. Once the initial indication of the emergency situation has been sent (as described here), the tag continues to transmit 14 ms of ID information approximately every 1 second while the emergency persists. These transmissions end (up to) 3 seconds after the emergency ends with the separation of the infant from the incorrect mother. Here are the timing diagrams: <<Hugs tag FCC response.pdf>> If you have any more question please don't hesitate to call. Regards Chris Bisaillion, P.Eng. Senior RF Engineer Instantel Inc. 309 Legget Drive Kanata, Ontario Canada, K2K 3A3 Phone: (613) 592-6997 x 122 Fax: (613) 592-4296 [email protected] www.instantel.com Page 2 of 2 6/28/2002

26.02 7.60 1.44 AA INCREASE FLAT AREATO DIMENSIONS SHOWNBOTH SIDES(.2MM ADDED TO BOTHENDS) 1.32 3.22 OUTSIDE SURFACE INSIDE SURFACE 28.91 SECTION A-A FCC ID: ISEBTG IC:1606B-BTG U.S. PATENT US5977877 CDN PAT. PENDING INSTANTEL  INSTANTEL FCC ID: ISEBTG IC:1606B-BTG SEE NOTE 5 U.S. PATENT US5977877 ALIGN TEXTTHIS EDGE CENTER TEXTON CASE CDN. PAT. PENDING  1. ALL DIMENSIONS ARE IN MM.2. TOLERANCES: 0.1 VARIANCE FROM CAD FILE 80507401.IGS3. MATERIAL: ABS, GENERAL ELECTRIC GRADE GPM5500 COLOUR: LIGHT GREEN, PANTONE NO. 580C4. FINISH: INSIDE SURFACE, TO BE POLISHED, OUTSIDE SURFACE EDM EQUIV. TO MOLTEC TEXTURE MT-11010. NO SINK MARKS ALLOWED ON OUTSIDE SURFACES5. PAD PRINT TEXT USING ARTWORK 806M9201 REV 1 WITH PERMANENT, NON ALLERGENIC WHITE INK.6. SCALE: 2:1NOTES: D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 32 1 REV ECO# DATE INC DATE 30-MAY-02 DRAWN BY D.MC DESIGNED BY D.MC PRODUCT TITLE DWG NO. SHEET 1 1 of CAP KISSES TAG 80609201 XMARK Instantel INFORMATION CONTAINEDON THIS DRAWING IS THEPROPERTY OF INSTANTELINC. AND SHALL NOT BEREPRODUCED FORMANUFACTURE OR ANYOTHER PURPOSE WITHOUTPRIOR WRITTEN CONSENTFROM INSTANTEL INC. 1 02072 30-MAY-02 DM

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report:2W06152 Applicant:Instantel Inc. 309 Legget Drive Kanata, Ontario K2K 3A3 Equipment Under Test:Baby Tag (EUT) FCC ID:ISEBTG In Accordance With:FCC Part 15, Subpart C, 15.231 Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Technologist Date:24 June 2002 Total Number of Pages:18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 2 of 18 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. Equipment Under Test.........................................................................................5 Section 3. Transmission Requirements.................................................................................7 Section 4. Occupied Bandwidth..........................................................................................10 Section 5. Periodic Alternate Field Strength Requirements...............................................12 Section 6. Block Diagrams...................................................................................................17 Section 7. Test Equipment List...........................................................................................18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 3 of 18 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. TESTED BY: ______________________________DATE: 24 June 2002 Kevin Carr, EMC Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 4 of 18 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)N/A Radiated Emissions15.231(b)Complied Occupied Bandwidth15.231(c)Complied Frequency Tolerance15.231(d)N/A Periodic Alternate Field Strength Requirements15.231(e)Complied Powerline Conducted Emissions15.207N/A Test Conditions: IndoorTemperature:22°C Humidity:45% OutdoorTemperature:17°C Humidity:55% Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 5 of 18 Section 2.Equipment Under Test General Equipment Information Manufacturer: Instantel Inc. Model No.: 806A2401 Serial No.: None Date Received In Laboratory: 20 June 2002 Nemko Identification No.: 1 Transmit Frequency (fixed) 217.003MHz 20 dB Bandwidth: 37.5kHz Type of Modulation: FSK Emission designator: 37k5P0D Occupied Bandwidth (99% BW): 37.5kHz Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 6 of 18 99% Occupied Band Width Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 7 of 18 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Kevin CarrDate of Test: 20 June 2002 Minimum Standard:15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results:Not Compliant. EUT was tested to 15.231(e), Reduced Field Strengths. Test Data:Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 8 of 18 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : N/A, EUT is not manually operated 15.231(a)(2) : Complied to 15.231(e) 15.231(a)(3) : Complied, EUT is Polled 15.231(a)(4) : Complied. EUT transmits during the pendancy of the alarm. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 9 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06152 EQUIPMENT: Baby Tag Page 10 of 18 Section 4.Occupied Bandwidth Para. No.: 15.231(c) Test Performed By: Kevin CarrDate of Test: 21 June 2002 Minimum Standard:15.231(c) The bandwidth of the emission shall be no wider than 0.25% of the center frequency for de…

Text truncated - open the document above for the full version.

Onset of emergency situation Emergency situation continues 11.8 s periodic message Initial indication of emergency situation Worst case of 100 ms shows 56 ms of transmission
