ISEESCSecurity/Remote Control Transmitter

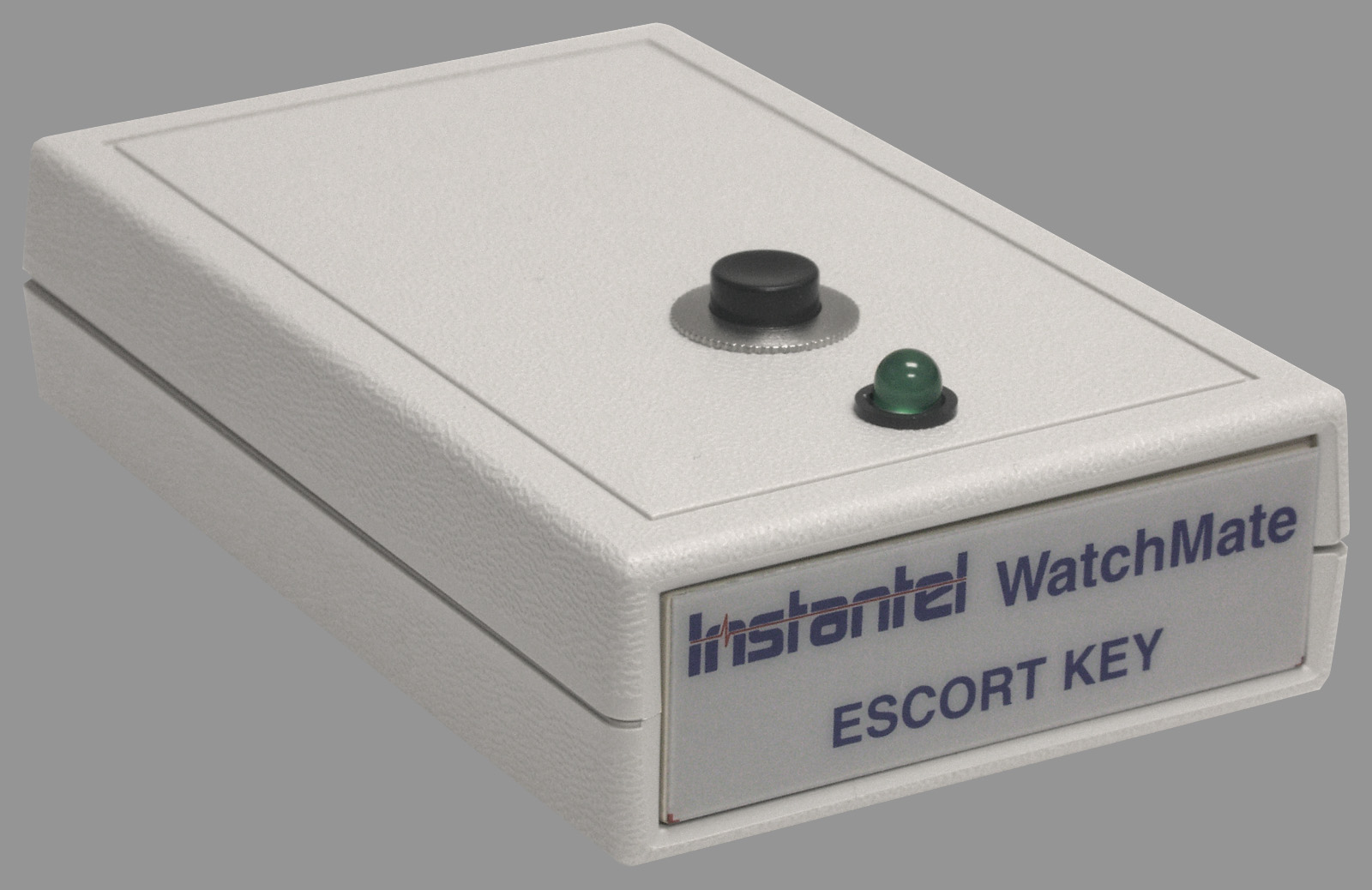

Escort Key User Instructions 309 Legget Drive, Ottawa, ON K2K 3A3, Canada or 808 Commerce Park Drive, Ogdensburg, NY 13669 USA Telephone: 1-800-267-9111 Facsimile: 1-613-592-4296 Web Site: www.xmarksystems.com © 2001-2002 Instantel Inc. All Rights Reserved. Instantel and WatchMate are registered trademarks of Instantel Inc. in North America. Xmark and Watchlet are trademarks of Instantel Inc. Xmark is a division of Instantel Inc. Printed in Canada. November 2002. 803U0901 Rev 02. Certifi ed to the ISO 9001 Quality Standard What is the Escort Key? The Escort Key temporarily disarms a WatchMate Monitor to allow you to escort one or more residents through a protected area with- out triggering an alarm. The Escort Key can also be used to clear an alarm. Note: The ID and MR Monitor must be confi gured to use an Escort Key. Ask your Authorized Dealer for assistance. Escorting Residents 1 Enter the protected area. If the resident is with you make sure that the door is closed or an alarm will result. 2 Press the button on the Escort Key once (the green light will fl ash to indicate that the Escort Key is operating). Caution: Once the protected area has been temporarily disarmed, other monitored residents may pass through undetected. The Escort Key should only be used when exits are under continuous staff supervision. 3 Check that the Monitor has disarmed: A ID or MR Monitor The Monitor display will show the disarm time remaining (in seconds), as in the example below. Note: The disarm time is a confi gurable setting on the Moni- tor, and is typically 20 seconds. Ask your facility director for the actual disarm times of the Monitors in your facility. B LC Monitor The yellow LED on the Monitor will activate. You have 20 seconds to escort the resident(s) through the protected area before the Monitor rearms. 4 You may now escort the resident through the protected area. Clearing an Alarm 1 Investigate the cause of the alarm. Locate the resident and make sure he or she is safe. 2 Escort all monitored residents away from the protected area. 3 While inside the protected area, press the button on the Escort Key to clear the alarm. The Monitor will automatically rearm. Low Battery Indication The Watchlet low battery alert feature in the Monitor can be used to provide early warning of falling battery power in the Escort Key. 1 Enter the protected area, and press and hold the button on the Escort Key. 2 If the Escort Key has a low battery: the ID or MR Monitor dis- plays the message Tx: Low Batt, and the LC Monitor emits an intermittent beeping sound. The Escort Key may continue to work for some time with a low bat- tery. The battery cannot be replaced. To order a replacement Escort Key, contact your Authorized Dealer. DISARMED TEMPORARILY FOR: 020 ? FOR HELP ! Figure 1: The Escort Key Part Number 803A0901 2 803U0901 Rev 02803U0901 Rev 02 Warranty Xmark’s products are warranted against defects in materials and work- manship and shall perform in accordance with published specifi cations for a period of one year from the date of shipment from the dealer. Limitation of Liability This Product has been designed for use to reduce the risk of resident wandering through remote detection. The range, accuracy, function and performance of this Product may vary from the published specifi cations due to many factors, including, without limitation, site impairments from structural effects, metal objects in the vicinity, placement of the receiver and transmitter, interference from other electrical devices, atmospheric effects, instal- lation, and maintenance. There may be other factors, which also affect performance of this Product. Instantel does not guarantee that this Product will detect 100% of resident wanderings. Instantel does not guarantee that this Product will not return false reports of resident wandering. Weekly testing and maintenance of this Product, as described in the Product documentation, is essential to verify the system is operating correctly and to ensure that the probability of detecting an alarm and/or locating the transmitter are maximized. The failure to undertake regular testing and maintenance will increase the risk of system failure and failure to detect resident wandering. The failure to undertake regular testing and maintenance will increase the risk of false reports of resident wandering. Instantel hereby disclaims all warranties, express or implied, arising out of or in connection with any of its Products or the use or performance thereof, including but not limited to, where allowable by law, all other implied warranties or conditions of merchantable quality and fi tness for a particular purpose and those arising by statute or otherwise in law or from a course of dealing or usage of trade. Instantel’s liability to you or anyone claiming through or on behalf of you with respect to any claim or loss arising out of the use or misuse of Instantel’s Product, defective products or materials, improper installa- tion or maintenance of Instantel’s Product or products or the system in which they are incorporated, or alleged to have resulted from an act or omission of Instantel or any person, negligent or otherwise, shall be limited to: A) the repair or replacement of defective Product or materials supplied by Instantel during the warranty period as set out in the Product documentation; or, at the option of Instantel, B) refund of the purchase price of the Product supplied by Instan- tel. In no event shall Instantel be liable for general, specifi c, indirect, con- sequential, incidental, exemplary or punitive damages or any losses or expenses suffered by you or anyone else, whether or not Instantel, or its employees, offi cers, agents, resellers or installers has been informed of the risk of such loss or expense and whether or not such losses or expenses were foreseeable. Statements United States—Federal Communication Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is sub…

Text truncated - open the document above for the full version.

IC:1606B-ESC SERIAL#XXXXXX FCCID:ISEESC INSTANTELINC. MADEINCANADA ESCORTKEYFCC,ISCLABEL 803M4101REV01 EscortKey

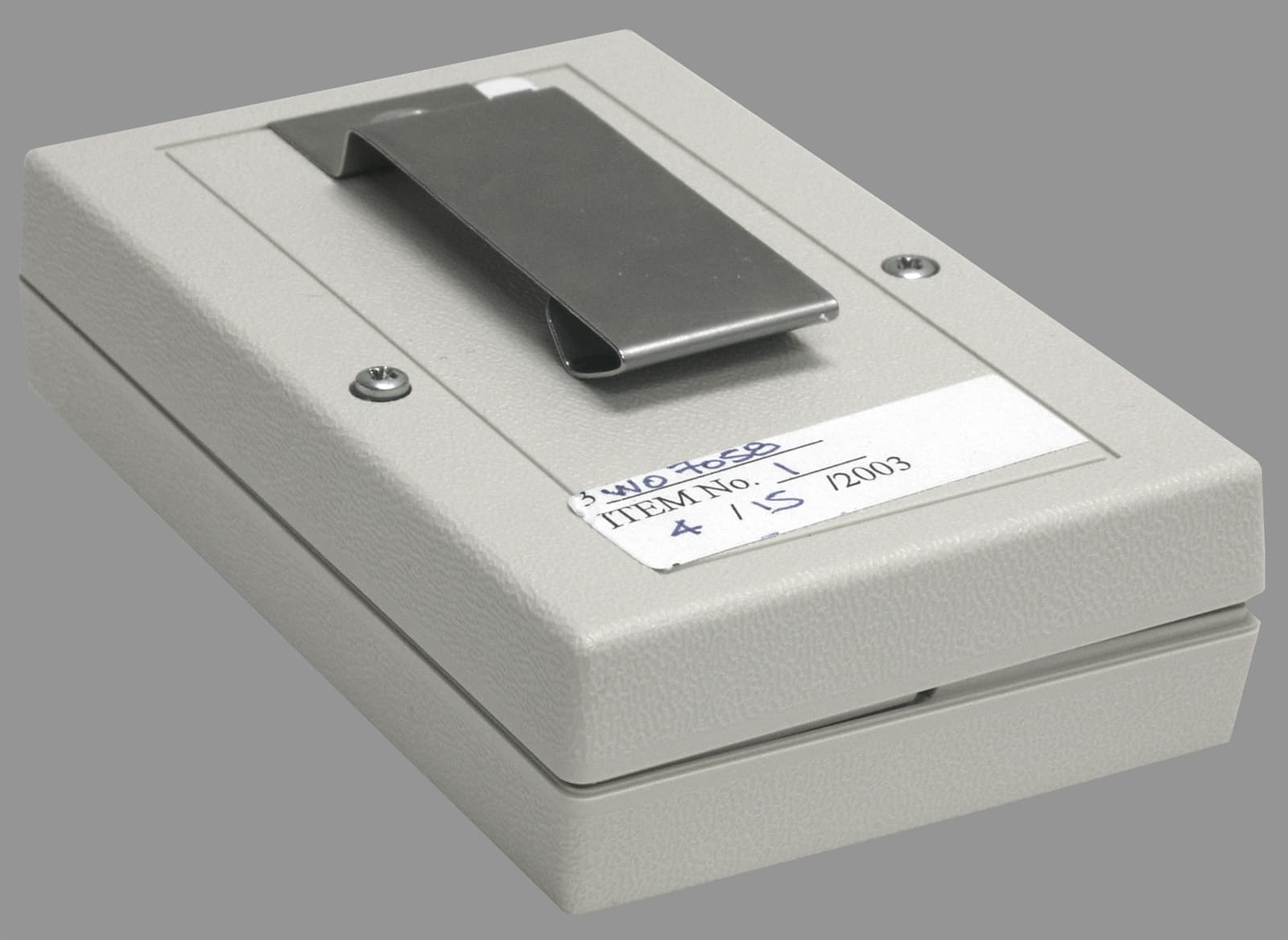

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report: 3W07058 Applicant: Instantel Inc. 309 Legget Drive Kanata Ont. K2K 3A3 Equipment Under Test: WatchMate (EUT) 217MHz Transmitter FCC ID: ISEESC In Accordance With: FCC Part 15, Subpart C, 15.231 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date: 21 April 2003 Total Number of Pages: 16 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 2 of 16 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. Equipment Under Test .......................................................................................5 Section 3. Transmission Requirements ..............................................................................7 Section 4. Radiated Emissions ...........................................................................................10 Section 5. Occupied Bandwidth ........................................................................................13 Section 6. Block Diagrams .................................................................................................15 Section 7. Test Equipment List ..........................................................................................16 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 3 of 16 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: __________________________ DATE: 15 April 2003 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 4 of 16 Summary Of Test Data Name of Test Para. Number Results Transmission Requirements 15.231(a) Complies Radiated Emissions 15.231(b) Complies Occupied Bandwidth 15.231(c) Complies Frequency Tolerance 15.231(d) NA Periodic Alternate Field Strength Requirements 15.231(e) NA Powerline Conducted Emissions 15.207 NA Note: This device is powered by a 3.6Vdc lithium cell. Test Conditions: Indoor Temperature: 20°C Humidity: 20% Outdoor Temperature: 15°C Humidity: 5% Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 5 of 16 Section 2. Equipment Under Test General Equipment Information Manufacturer: Instantel Inc. Model No.: 803A0901 Serial No.: A3 Date Received In Laboratory: 15 April 2003 Nemko Identification No.: 1 Modulation: FSK Emission Designator: 7K3L1D Transmit Frequency: 217.003 MHz Fixed Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 6 of 16 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 7 of 16 Section 3. Transmission Requirements Para. No.: 15.231(a) Test Performed By: Glen Westwell Date of Test: 15 April 2003 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 8 of 16 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : The transmitter is deactivated immediately after release of push button. 15.231(a)(2) : No automatic activation. 15.231(a)(3) : There is no provision for regular periodic transmission. 15.231(a)(4) : N/A. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 9 of 16 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 10 of 16 Section 4. Radiated Emissions Para. No.: 15.231(b) Test Performed By: Glen Westwell Date of Test: 15 April 2003 Mini…

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 3W07058 EQUIPMENT: WatchMate, 217MHz Transmitter Page 12 of 16
