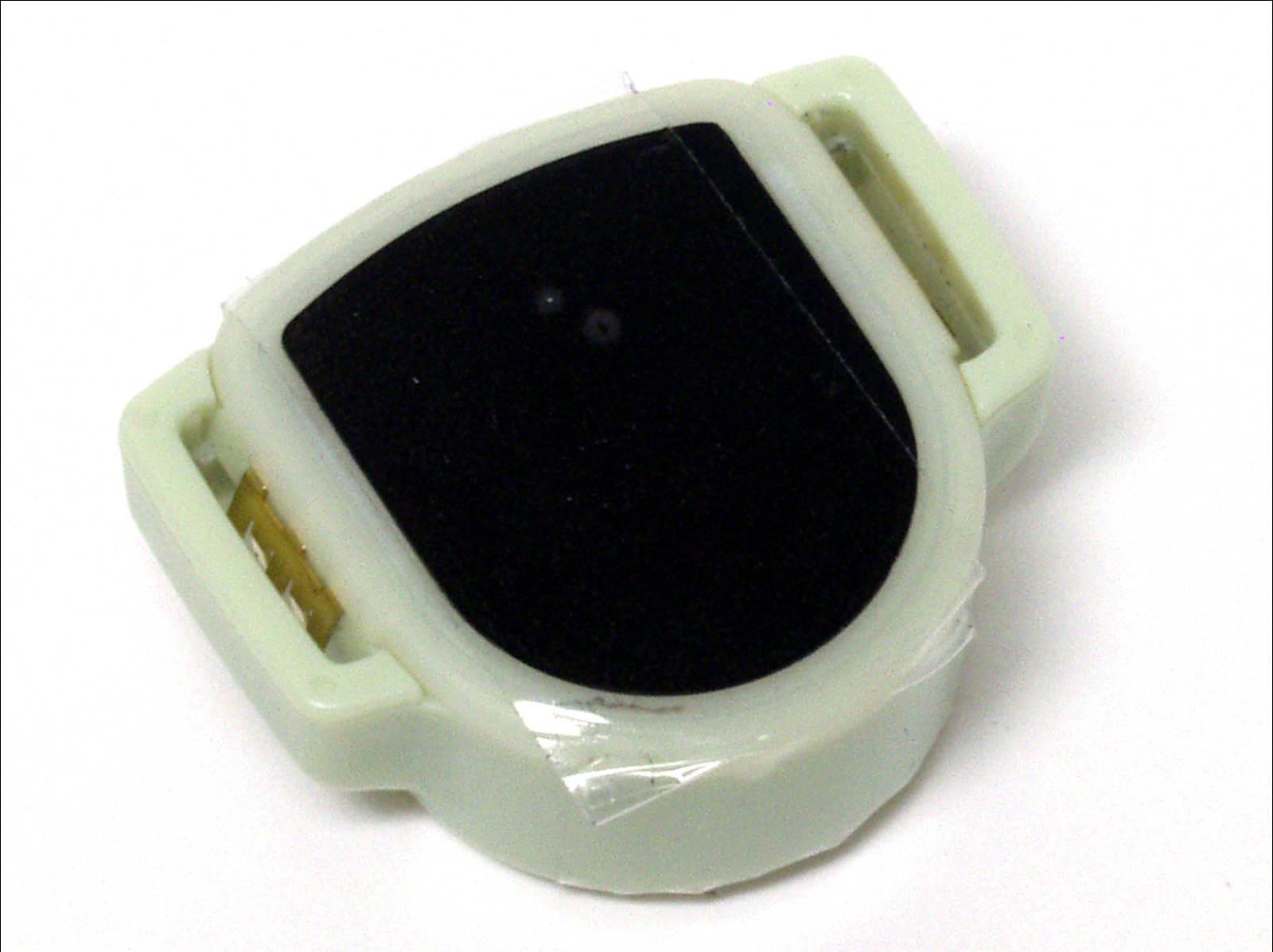

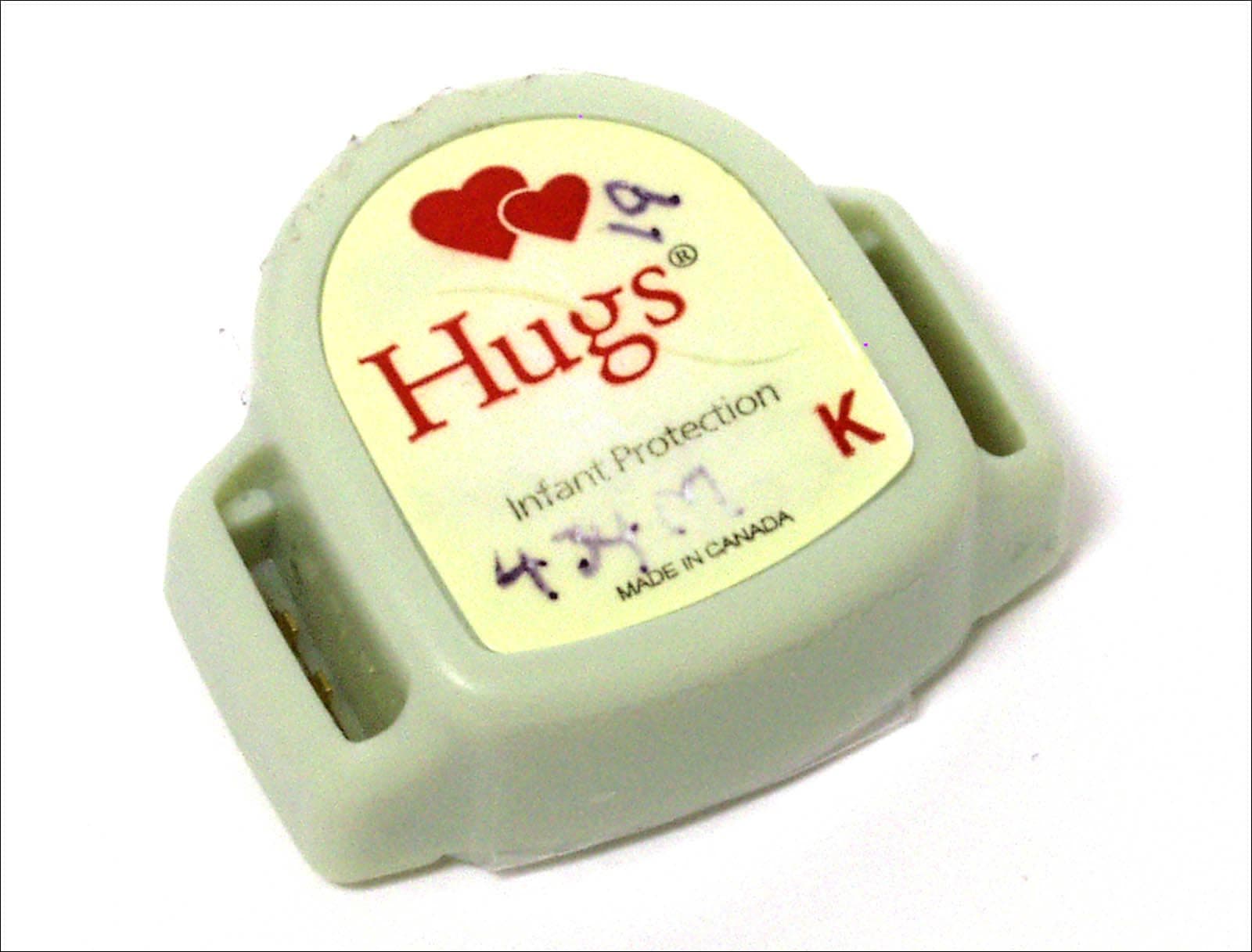

ISEITGInternational Hugs Tag 806A5201

Warranty Xmark’s products are warranted against defects in materials and workmanship and shall perform in accordance with published specifi cations for a period of one year. Xmark reserves the right to change specifi cations without notice. Statements United States—Federal Communication Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harm- ful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful inter- ference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications not expressly approved by Xmark could void the user’s authority to operate the equipment. Canada—Industry Canada The term “IC:” before the certifi cation/registra- tion number only signifi es that Industry Canada technical specifi cations were met. European Union—CE declaration Xmark hereby declares that this radio frequency transceiver tag is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Limitation of Liability This Product has been designed for use to assist in the prevention of infant abduction and/or mother/infant mismatching. The range, accuracy, function and performance of this Product may vary from the published specifi cations due to many factors, including, without limitation, site impairments from structural effects, metal objects in the vicin- ity, placement of the receiver and transmitter, interference from other electrical devices, atmo- spheric effects, installation, and maintenance. There may be other factors, which also affect performance of this Product. Instantel does not guarantee that this Product will detect 100% of infant abductions and/or mother/infant mismatches. Instantel does not guarantee that this Product will not return false reports of infant abductions and/or mother/ infant mismatches. Monthly testing and maintenance of this Prod- uct, as described in the Product documentation, is essential to verify the system is operating correctly and to ensure that the probability of detecting an alarm and/or locating the transmit- ter are maximized. The failure to undertake regular testing and maintenance will increase the risk of system failure and failure to detect infant abductions and/or mother/infant mismatches. The failure to undertake regular testing and maintenance will increase the risk of false reports of infant abduc- tions and/or mother/infant mismatches. Instantel hereby disclaims all warranties, express or implied, arising out of or in connection with any of its Products of the use or performance thereof, including but not limited to, where allowable by law, all other implied warranties or conditions of merchantable quality and fi tness for a particular purpose and those arising by statute or otherwise in law or from a course of dealing or usage of trade. Instantel’s liability to you or anyone claiming through or on behalf of you with respect to any claim or loss arising out of the use or misuse of Instantel’s Product, defective products or mate- rials, improper installation or maintenance of Instantel’s Product or products or the system in which they are incorporated, or alleged to have resulted from an act or omission of Instantel or any person, negligent or otherwise, shall be limited to: A) the repair or replacement of defective Product or materials supplied by Instantel during the warranty period as set out in the Product documentation; or, at the option of Instantel, B) refund of the purchase price of the Product supplied by Instantel. In no event shall Instantel be liable for general, specific, indirect, consequential, incidental, exemplary or punitive damages or any losses or expenses suffered by you or anyone else, whether or not Instantel, or its employees, officers, agents, resellers or installers has been informed of the risk of such loss or expense and whether or not such losses or expenses were foreseeable. Hugs ® Tag with BabySense ™ © 2005 Xmark, a division of Instantel Inc. All Rights Reserved. Hugs, the Hugs logo and Kisses are registered trademarks of Instantel Inc. in North America. Xmark, the Xmark logo and BabySense are trademarks of Instantel Inc. Printed in Canada. February 2005. 806U5201 Rev 01.Certifi ed to the ISO 9001 Quality Standard 808 Commerce Park Drive Ogdensburg, NY 13669 USA or 309 Legget Drive Ottawa, ON K2K 3A3 Canada Telephone: 1-866-55-XMARK International : +1 613-592-6997 Facsimile: 1-613-592-4296 Web Site: www.xmarksystems.com Part Number 806A5201 DRAFT Introduction The Hugs ® tag with BabySense™ func- tionality is part of the Hugs infant pro- tection system. The tag is attached to the infant using a tamper-proof strap. From the moment of attachment, the infant is automatically enrolled in the system, and protected against abduction. The Hugs tag incorporates a special sensor to detect if: • the tag is removed from the infant; or • the strap is cut. In addition, attempting to remove the infant without authorization from the protected area will immediately cause an alarm. The Hugs tag is also used with the optional Kisses ® mother/infant matching component of the Hugs system to confi rm that the correct infant is matched with the correct mother. The Hugs tag automatically emits an audible beep to i…

Text truncated - open the document above for the full version.

23.500 R1.30 19.500 R9.75 R30.30 7. ALL MATERIALS MUST BE NON ALLERGENIC.6. LABEL TO BE PRINTED USING ARTW ORK 816M7701 REV 1 USING PERMANENT WHITE INK ON TO MATTE SIDE OF POLYCARBONATE. 5. TEST OF ELECTRICAL PROPERTIES TO QUALIFY CPCG CONDUCTIVE POLYCARBONATE: A. RESISTANCE IS MEASURED BY MAKING AN ASSEMBLY OF THE CAP, PROXIMITY TAG (81606801), A LENGTH OF 30AWG WIRE THAT IS STRIPPED FOR 12mm AND THIS PART, THE HUGS TAG ELECTRODE LABEL (81607701). COVER THE EXPOSED SURFACE OF THIS LABEL WITH 3M 9713 ADHESIVE TAPE, ATTACH ANOTHER 30AWG WIRE, STRIPPED FOR 15mm AND A PIECE OF BARE ALUMINUM FOIL TO COMPLETELY COVER THE LABEL. MEASURE THE RESISTANCE BETWEEN THE TWO WIRES. B. THE RESISTANCE MUST REMAIN LESS THAN 20 kohms FOR ONE YEAR OF SERVICE.4. LABELS ARE TO BE KISS CUT ON ROLL OR SHEET.3. ALL DIMENSIONS ARE IN MILLIMETERS2. TOLERANCES UNLESS OTHERWISE SPECIFIED: .X= 0.5 .XX= 0.2 .XXX= .0.11. MATERIAL: LABEL MATERIAL: ACCU-TECH PLASTICS CPCG CONDUCTIVE POLYCARBONATE FILM .25MM THK ADHESIVE: 3M XYZ CONDUCTIVE ADHESIVE TRANSFER TAPE. P/N 9713. ADHESIVE TO BE APPLIED TO THE GLOSSY SIDE OF POLYCARBONATE FILMNOTES: 1 1 AB 2 C D E 12 34567 A B PRODUCT DESIGNED BYDRAWN BYDATE FROM INSTANTEL INC.PRIOR WRITTEN CONSENTOTHER PURPOSE WITHOUTMANUFACTURE OR ANY REPRODUCED FORINC. AND SHALL NOT BEPROPERTY OF INSTANTELON THIS DRAWING IS THEINFORMATION CONTAINED ECO# REV DATE INC DWG NO.TITLE SHEET of 345 C D 67 E 1 DM DM 31-JAN-05 XMARK 81607701 ELECTRODE LABEL INTL TAG 1 31386 31 JAN-05 DM FCC ID: ISEITG IC:1606B - ITG XMARK ™

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report: 5W36823.6 Issue 2 Applicant: Instantel Inc. 309 Legget Drive Kanata, Ontario K2K 3A3 Equipment Under Test: International Hugs Tags (EUT) FCC ID: ISEITG In Accordance With: FCC Part 15, Subpart C, 15.231 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Sim Jagpal, Resource Manager Date: March 29, 2005 Total Number of Pages: 18 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 5W36823.6 Issue 2 EQUIPMENT: International Hugs Tags Page 2 of 18 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. Equipment Under Test .......................................................................................5 Section 3. Transmission Requirements ..............................................................................6 Section 4. Occupied Bandwidth ........................................................................................10 Section 5. Periodic Alternate Field Strength Requirements ..........................................11 Section 6. Block Diagrams .................................................................................................17 Section 7. Test Equipment List ..........................................................................................18 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 5W36823.6 Issue 2 EQUIPMENT: International Hugs Tags Page 3 of 18 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. March 29, 2005 TESTED BY: ______________________________ DATE: ___________________ Jason Nixon, Telecom Specialist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 5W36823.6 Issue 2 EQUIPMENT: International Hugs Tags Page 4 of 18 Summary Of Test Data Name of Test Para. Number Results Transmission Requirements 15.231(a) Complies Radiated Emissions 15.231(b) N/A (1) Occupied Bandwidth 15.231(c) Complies Frequency Tolerance 15.231(d) N/A (2) Periodic Alternate Field Strength Requirements 15.231(e) Complies Powerline Conducted Emissions 15.207 N/A (3) Justification of N/A’s: (1) The EUT transmits periodically, therefore it was required to comply with the limits of 15.231(e). (2) The EUT does not operate in the frequency range of 40.66 – 40.70 MHz. (3) The EUT is battery powered. Test Conditions: Indoor Temperature: 22°C Humidity: 16% Outdoor Temperature: 10°C Humidity: 78% Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 5W36823.6 Issue 2 EQUIPMENT: International Hugs Tags Page 5 of 18 Section 2. Equipment Under Test General Equipment Information Manufacturer: Instantel Inc. Model No.: 806A5201 Serial No.: None Date Received In Laboratory: January 21, 2005 Nemko Identification No.: 7 Frequency Range (or fixed frequency): 433.42-434.42MHz RF Power in Watts: N/A Field Strength (distance): 61.0dBuV/m @ 434.17MHz @ 3m Occupied Bandwidth (99% BW): 650kHz Type of Modulation: PCM Emission Designator (TRC-43:) 650K0L1D Transmitter Spurious (worst case): 26.2dBuV/m @ 1302.51MHz @ 3m Receiver Spurious (worst case): N/A Antenna: Integral Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 5W36823.6 Issue 2 EQUIPMENT: International Hugs Tags Page 6 of 18 Section 3. Transmission Requirements Para. No.: 15.231(a) Test Performed By: Jason Nixon Date of Test: January 24, 2005 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 5W36823.6 Issue 2 EQUIPMENT: International Hugs Tags Page 7 of 18 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : The apparatus is not manually controlled. 15.231(a)(2) : The apparatus does transmit automatically to report an alarm condition. See plots below. Each Alarm transmission consists of a 6 pulses…

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 5W36823.6 EQUIPMENT: International Hugs Tags Page 16 of 18 Setup Photo’s (worst case) Vertical Polarization Horizontal Polarization
