ISEKTGMother Tag

Kisses Tag Instructions 309 Legget Drive Kanata, ON K2K 3A3 Canada or 808 Commerce Park Drive Ogdensburg, NY 13669 USA Telephone: 1-613-592-4642 Facsimile: 1-613-592-4296 Web Site: www.xmarksystems.com © 2002 Instantel Inc. All Rights Reserved. Instantel and Hugs are registered trademarks of Instantel Inc. in North America. Kisses, the hearts logo and Xmark and are trademarks of Instantel Inc. Xmark is a division of Instantel Inc. Printed in Canada. May 2002. 806U2201 Rev B.Certifi ed to the ISO 9001 Quality Standard Part Number 806A2201 Statements United States—Federal Communication Com- mission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment gen- erates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equip- ment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifi cations not expressly approved by Xmark could void the user’s authority to operate the equipment. Canada—Industry Canada The term “IC:” before the certifi cation/registration number only signifi es that Industry Canada technical specifi cations were met. Warranty Instantel’s products are warranted against defects in materials and workmanship and shall perform in accordance with published specifi cations for a period of one year. Instantel Inc. reserves the right to change specifi cations without notice. Limitation of Liability This Product has been designed for use to assist in the prevention of infant abduction and/or mother/infant mismatching. The range, accuracy, function and performance of this Product may vary from the published specifi cations due to many factors, including, without limitation, site impairments from structural effects, metal objects in the vicinity, placement of the receiver and transmit- ter, interference from other electrical devices, atmo- spheric effects, installation, and maintenance. There may be other factors, which also affect performance of this Product. Instantel does not guarantee that this Product will detect 100% of infant abductions and/or mother/ infant mismatches. Instantel does not guarantee that this Product will not return false reports of infant abductions and/or mother/infant mismatches. Monthly testing and maintenance of this Product, as described in the Product documentation, is essential to verify the system is operating correctly and to ensure that the probability of detecting an alarm and/or locating the transmitter are maximized. The failure to undertake regular testing and main- tenance will increase the risk of system failure and failure to detect infant abductions and/or mother/ infant mismatches. The failure to undertake regular testing and maintenance will increase the risk of false reports of infant abductions and/or mother/infant mismatches. Instantel hereby disclaims all warranties, express or implied, arising out of or in connection with any of its Products of the use or performance thereof, including but not limited to, where allowable by law, all other implied warranties or conditions of merchantable quality and fi tness for a particular purpose and those arising by statute or otherwise in law or from a course of dealing or usage of trade. Instantel’s liability to you or anyone claiming through or on behalf of you with respect to any claim or loss arising out of the use or misuse of Instantel’s Product, defective products or materials, improper installation or maintenance of Instantel’s Product or products or the system in which they are incorporated, or alleged to have resulted from an act or omission of Instantel or any person, negligent or otherwise, shall be lim- ited to: A) the repair or replacement of defective Product or materials supplied by Instantel during the warranty period as set out in the Product documentation; or, at the option of Instantel, B) refund of the purchase price of the Product sup- plied by Instantel. In no event shall Instantel be liable for general, spe- cifi c, indirect, consequential, incidental, exemplary or punitive damages or any losses or expenses suffered by you or anyone else, whether or not Instantel, or its employees, offi cers, agents, resellers or installers has been informed of the risk of such loss or expense and whether or not such losses or expenses were foreseeable. Preliminary Introduction The Kisses tag is part of the Kisses Mother/ Infant Matching compo- nent of the Hugs Infant Protection System. Kisses is designed to confi rm that the correct infant is matched with the correct mother each time they are brought together. The Kisses tag is given to a new mother after it has been bonded with the Hugs tag attached to her baby. The two tags remain bonded throughout the mother’s and infant’s stay in hospital, until the Hugs tag is discharged from the Hugs System. Note: The tag is not sterilized at the fac- tory. You may wish to clean the tag prior to fi rst use. Bonding the Tags The Hugs tag and Kisses tag can be bonded any time during the one-hour period after the Hugs tag is attached to the infant. 1 Attach the Hugs tag to the infant. 2 With no other Kisses tags in the area, bring the Kisses tag within 16 inches of the Hugs tag. 3 The Hugs tag gives a bonding indica- tion within a few seconds: 2 short beeps, 1 long beep (Brahm’s…

Text truncated - open the document above for the full version.

lr't5tante1@ November 19,2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA Dear Sir or Madam, We respectfully request that the following documents, contained in our submission, for the item known as ill # ISEKTG for FCC certification, to be kept confidential. All the following information is considered to be confidential. 1. 2. 3. 4. 5. Instantellnc. 6. 309 Legget Drive Kanata Ontario Canada K2K 3A3This information has not been disclosed to the public or to a third party. This information Phone pertains to a product that is subject to competition in a highly competitive market and (613) 592-4642disclosure of this information might enable a competitor to benefit improperly from our Fax hard-won intellectual property. Additionally this product will only be sold to Hospital (613) 592-4296matemity and pediatric wards and will not be sold directly to the general public. The !:~~)e2e67-9111product is professionally installed through a dealer network and is not viewable by, the general public. We would request a period of ten (10) years of protection. www.instantel.com Operational Description 1 Page Parts ListITune Up Info (Bill of Materials) 2 Pages Schematics 1 Page Assembly Drawing 2 Pages Block Diagram 1 Page Internal Photographs Should you have any questions on this matter, please do not hesitate to contact us. Thank you for your attention is this matter. Sincerely d. ~.~. Chris Bisaillion Senior RF Engineer Certified to the ISO 9001 Quality Standard

Master: PT15209 Date: December 12, 2001 Test Report:2W06678 Applicant:Instantel Inc. 309 Legget Drive Kanata, Ontario K2K 3A3 Equipment Under Test:806A2201, Mother Tag (EUT)125KHz Low PowerTransmitter In Accordance With:FCC Part 15, Subpart C, 15.209 FCC I.D. :ISEKTG Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date:12 November 2002 Total Number of Pages:11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 2 of 11 Table Of Contents Section 1. Summary Of Test Results.....................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................7 Section 4. Block Diagrams...................................................................................................10 Section 5. Test Equipment List...........................................................................................11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 3 of 11 Section 1.Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. A description of the test facility in on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: _______________________________DATE: 11 November 2002 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 4 of 11 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions15.207N/A Radiated Emissions15.209Complies Footnotes For N/A’s: • This device is powered by a 3 Vdc Lithium cell. • This device has been previously certified under FCC ID ISEMTG (Ref. Nemko test report 2W04940) The original test data has been included for completeness. • This application for a new FCC ID is based on original test results. No performance changes have been incorporated from the original application. The frequency of operation has been changed from a fixed frequency of 125KHz to a range from 117-129KHz. See Customer statement of change below. • The power consumption from the battery is optimised for battery longevity by operating the three separate antenna windings slightly off each of their resonant points. The tag firmware has been designed with the capability of transmitting on slightly different frequencies, determined during the production testing of the tag. Each optimised frequency is stored in non-volatile memory. This means that the tag transmits on up to three distinct frequencies as the firmware sequences through the three antennas in time. The frequency range will be 117 kHz to 129 kHz. There is also an LED (for low-battery indication) and a phototransistor (to keep the product inactive during shipping). Test Conditions: IndoorTemperature:24 °C Humidity:38 % OutdoorTemperature:15 °C Humidity:44 % Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 5 of 11 Section 2.General Equipment Specification Manufacturer: Instantel Inc. Model No.: 806A2201 Serial No.: None Date Received In Laboratory: 7 May 2002 Nemko Identification No.: #1 Frequency: 117-129 kHz Modulation: Pulse Modulated (on/off keying) Emission Designator: 32K3POD Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 6 of 11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 7 of 11 Section 3.Radiated Emissions Para. No.: 15.209 Test Performed By: Glen WestwellDate of Test: 13 May 2002 Minimum Standard: Fundamental (MHz) Field Strength (μμV/m) Field Strength (dBμμV) 0.009 - 0.4902400/F(kHz) @ 300m— 0.490 - 1.70524000/F(kHz) @ 30m— 1.705 - 3030 @ 30m— 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 Test Results:Complies. Measurement Data:See attached table. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 8 of 11 Test Data - Radiated Emissions Frequency of Emission (MHz) Received Signal (dBuV/[email protected]) Received Signal (dBuV/m@1m) Extrapolated Signal (dBuV/m@300m) Limit (dBuV/m@300m) Margin (dB) 0.125--45.3 -53.725.679.4 0.25035.0N.D. -104.119.6123.7 0.37529.0N.D. -110.116.1126.2 0.50028.7N.D. -110.433.6143.9 0.62530.0N.D. -109.131.7140.4 Notes: Field strength emissions were measured at 0.1m and 1m due to the very low power of the device. All emissions measured were extrapolated using 40 dB/decade extrapolation factor. N.D. = Not Detected. All harmonic and spurious emissions were searched up to the 10 th harmonic. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 9 of 11 Radiated Emissions- Photographs Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT N…

Text truncated - open the document above for the full version.

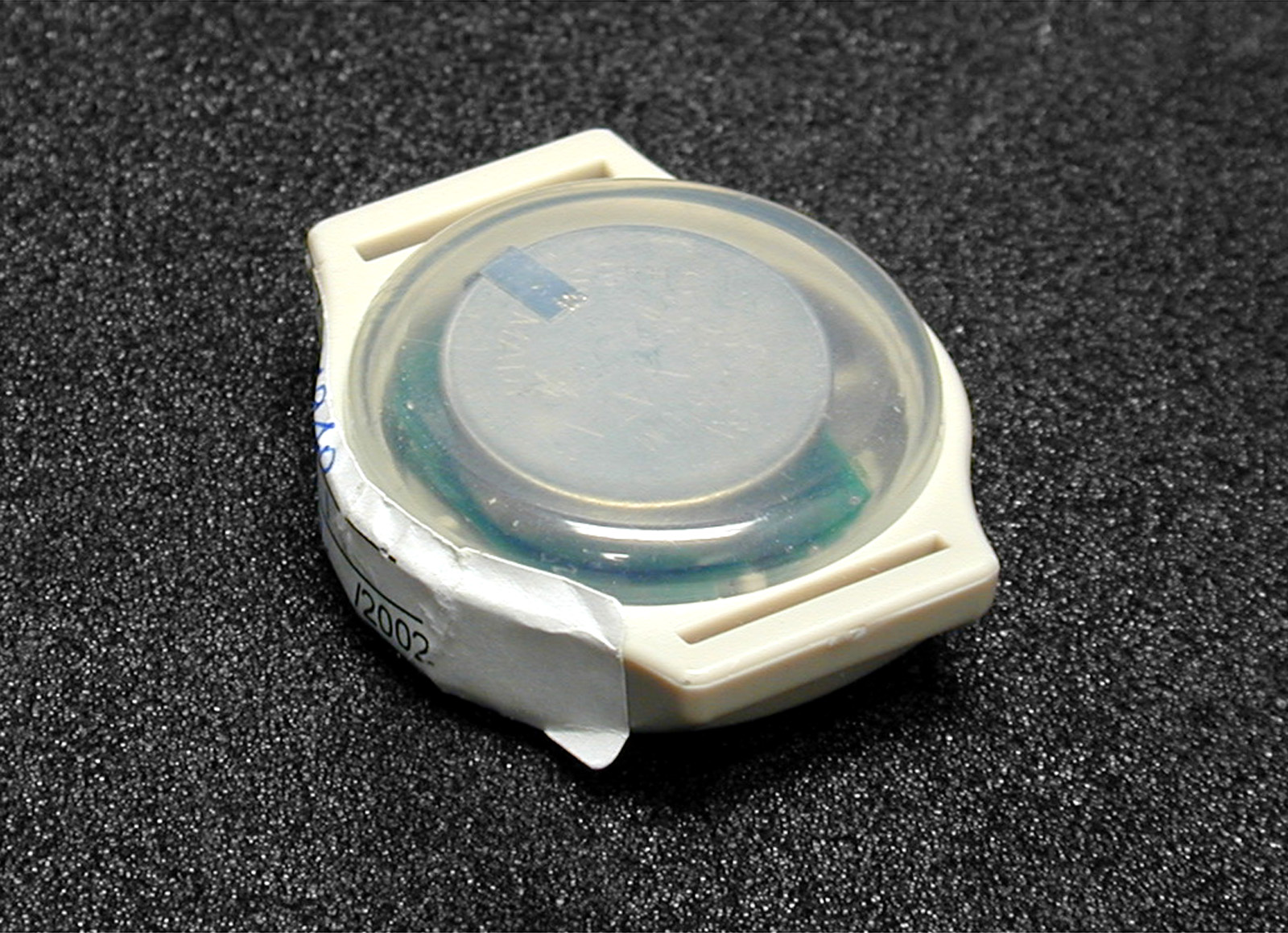

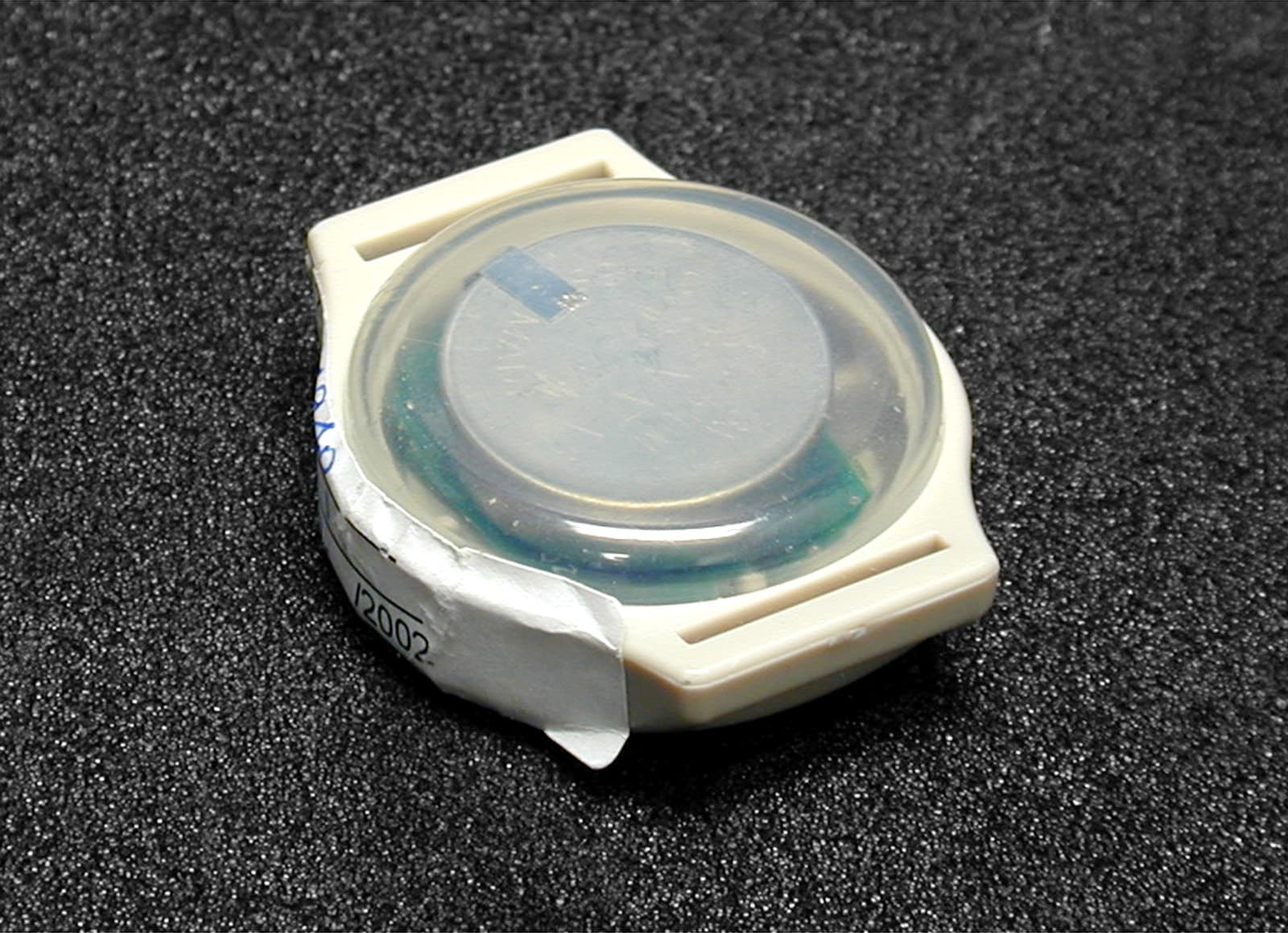

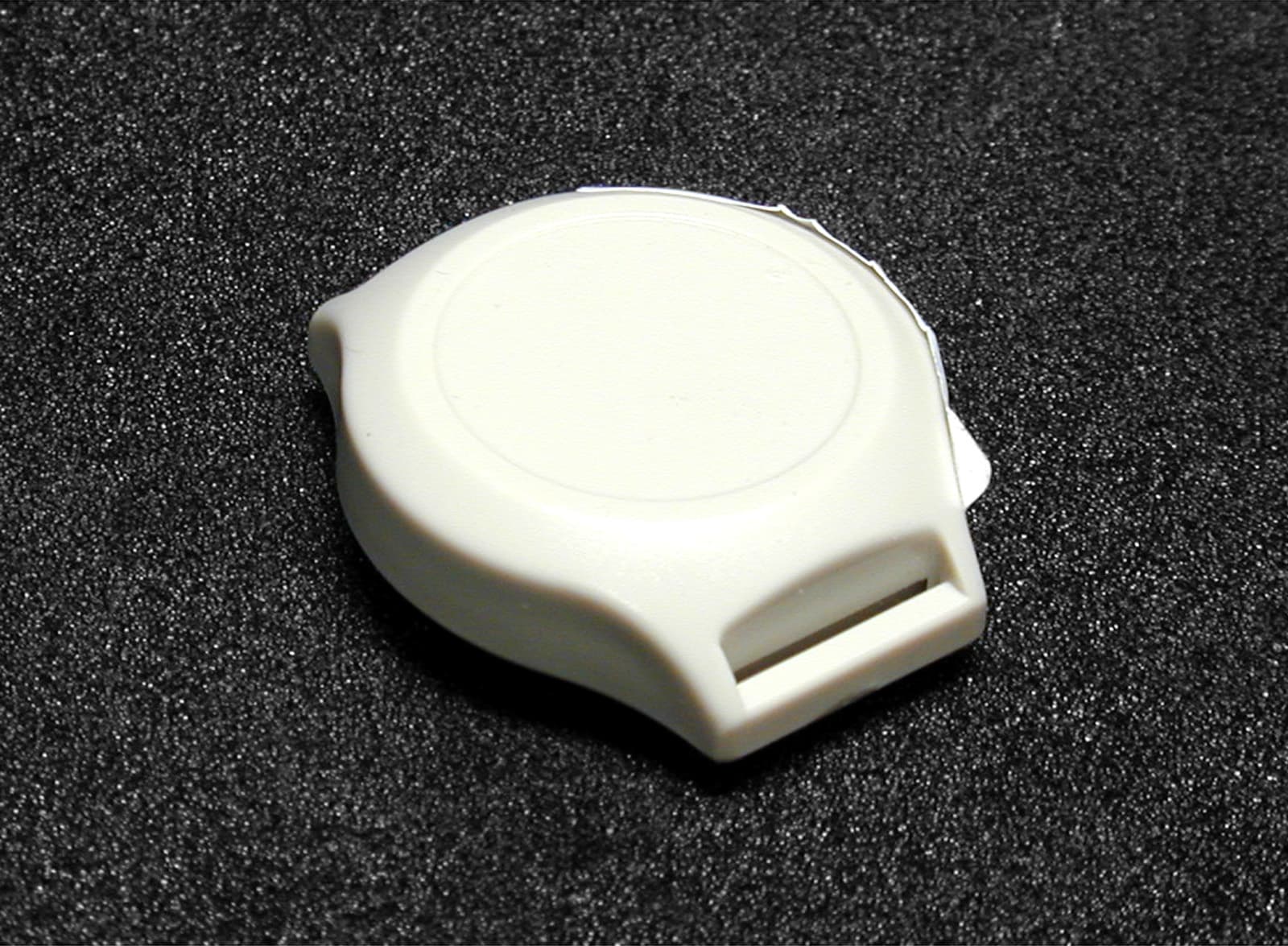

Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W06678 EQUIPMENT: 806A2201 Mother Tag Page 9 of 11 Radiated Emissions- Photographs
