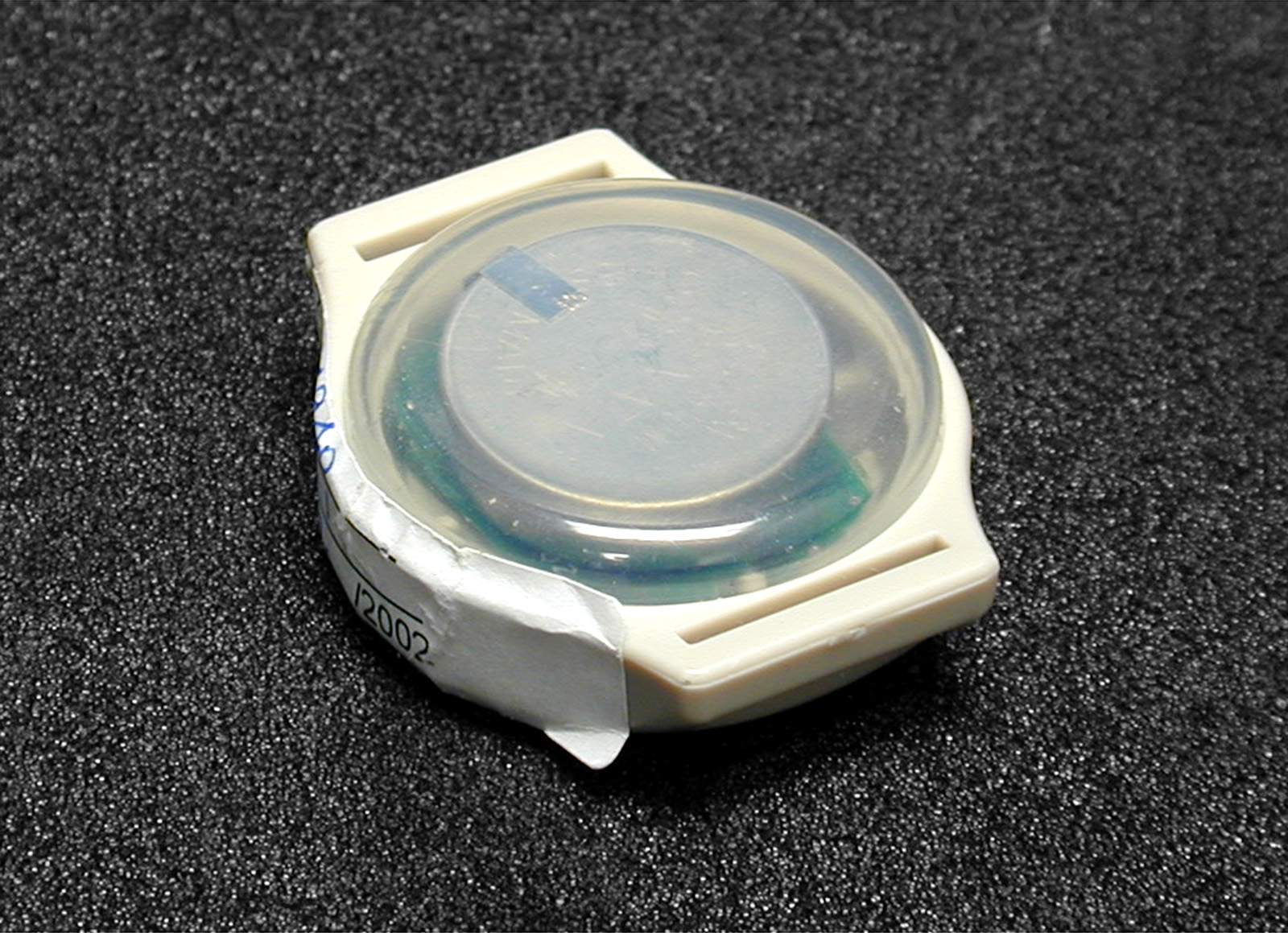

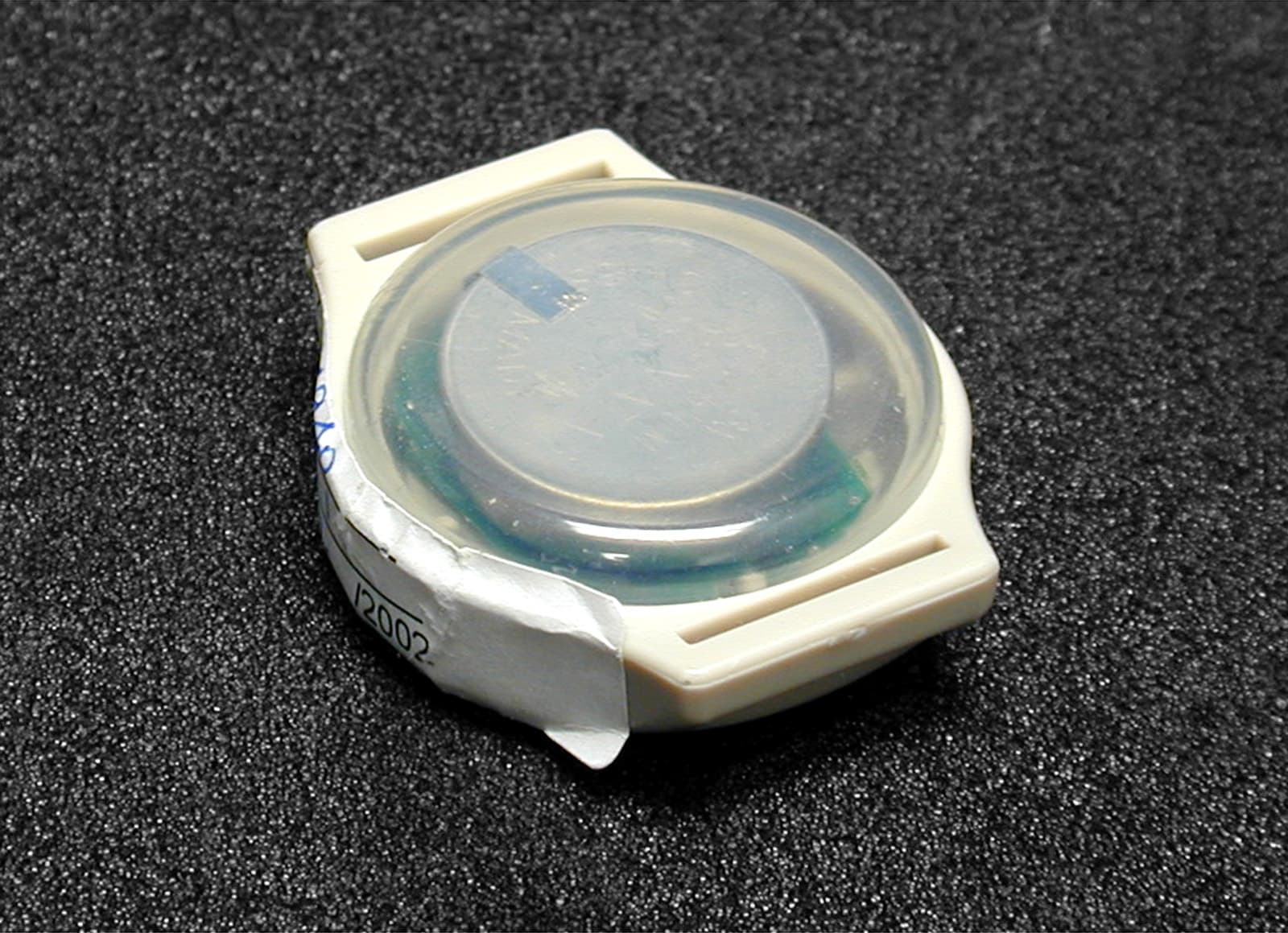

ISEMTGLow Power Transmitter

Kisses Tag Instructions 309 Legget Drive Kanata, ON K2K 3A3 Canada or 808 Commerce Park Drive Ogdensburg, NY 13669 USA Telephone: 1-613-592-4642 Facsimile: 1-613-592-4296 Web Site: www.xmarksystems.com © 2002 Instantel Inc. All Rights Reserved. Instantel and Hugs are registered trademarks of Instantel Inc. in North America. Kisses, the hearts logo and Xmark and are trademarks of Instantel Inc. Xmark is a division of Instantel Inc. Printed in Canada. May 2002. 806U2201 Rev A.Certifi ed to the ISO 9001 Quality Standard Part Number 806A2201 Statements United States—Federal Communication Com- mission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment gen- erates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equip- ment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Canada—Industry Canada The term “IC:” before the certifi cation/registration number only signifi es that Industry Canada technical specifi cations were met. Warranty Instantel’s products are warranted against defects in materials and workmanship and shall perform in accordance with published specifi cations for a period of one year. Instantel Inc. reserves the right to change specifi cations without notice. Limitation of Liability This Product has been designed for use to assist in the prevention of infant abduction and/or mother/infant mismatching. The range, accuracy, function and performance of this Product may vary from the published specifi cations due to many factors, including, without limitation, site impairments from structural effects, metal objects in the vicinity, placement of the receiver and transmit- ter, interference from other electrical devices, atmo- spheric effects, installation, and maintenance. There may be other factors, which also affect performance of this Product. Instantel does not guarantee that this Product will detect 100% of infant abductions and/or mother/ infant mismatches. Instantel does not guarantee that this Product will not return false reports of infant abductions and/or mother/infant mismatches. Monthly testing and maintenance of this Product, as described in the Product documentation, is essential to verify the system is operating correctly and to ensure that the probability of detecting an alarm and/or locating the transmitter are maximized. The failure to undertake regular testing and main- tenance will increase the risk of system failure and failure to detect infant abductions and/or mother/ infant mismatches. The failure to undertake regular testing and maintenance will increase the risk of false reports of infant abductions and/or mother/infant mismatches. Instantel hereby disclaims all warranties, express or implied, arising out of or in connection with any of its Products of the use or performance thereof, including but not limited to, where allowable by law, all other implied warranties or conditions of merchantable quality and fi tness for a particular purpose and those arising by statute or otherwise in law or from a course of dealing or usage of trade. Instantel’s liability to you or anyone claiming through or on behalf of you with respect to any claim or loss arising out of the use or misuse of Instantel’s Product, defective products or materials, improper installation or maintenance of Instantel’s Product or products or the system in which they are incorporated, or alleged to have resulted from an act or omission of Instantel or any person, negligent or otherwise, shall be lim- ited to: A) the repair or replacement of defective Product or materials supplied by Instantel during the warranty period as set out in the Product documentation; or, at the option of Instantel, B) refund of the purchase price of the Product sup- plied by Instantel. In no event shall Instantel be liable for general, spe- cifi c, indirect, consequential, incidental, exemplary or punitive damages or any losses or expenses suffered by you or anyone else, whether or not Instantel, or its employees, offi cers, agents, resellers or installers has been informed of the risk of such loss or expense and whether or not such losses or expenses were foreseeable. Preliminary Introduction The Kisses tag is part of the Kisses Mother/ Infant Matching compo- nent of the Hugs Infant Protection System. Kisses is designed to confi rm that the correct infant is matched with the correct mother each time they are brought together. The Kisses tag is given to a new mother after it has been bonded with the Hugs tag attached to her baby. The two tags remain bonded throughout the mother’s and infant’s stay in hospital, until the Hugs tag is discharged from the Hugs System. Note: The tag is not sterilized at the fac- tory. You may wish to clean the tag prior to fi rst use. Bonding the Tags The Hugs tag and Kisses tag can be bonded any time during the one-hour period after the Hugs tag is attached to the infant. 1 Attach the Hugs tag to the infant. 2 With no other Kisses tags in the area, bring the Kisses tag within 16 inches of the Hugs tag. 3 The Hugs tag gives a bonding indica- tion within a few seconds: 2 short beeps, repeated once: success- ful bond persistent long beeps: the Hugs tag is seeing more than one Kisses tag no beep: battery problem 4 If the bond is…

Text truncated - open the document above for the full version.

May 8, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA Dear Sir or Madam, We respectfully request that the following documents, contained in our submission, for the item known as ID # ISEMTG for FCC certification, to be kept confidential. All the following information is considered to be confidential. 1. 2. 3. 4. 5. 6. 1 Page 2 Pages 1 Page 2 Pages 1 Page Operational Description Parts Listffune Up Info (Bill of Materials) Schematics Assembly Drawing Block Diagram Internal Photographs This information has not been disclosed to the public or to a third party. This information pertains to a product that is subject to competition in a highly competitive market and disclosure of this information might enable a competitor to benefit improperly from our hard-won intellectual property. Additionally this product will only be sold to Hospital maternity and pediatric wards and will not be sold directly to the general public. The product is professionally installed through a dealer network and is not viewable by, the general public. We would request a period of ten (10) years of protection. ThankShould you have any questions on this matter, please do not hesitate to contact us you for your attention is this matter. Sincerely~iS~ :_Qj...(.-(, : Senior RF Engineer

Barry Quinlan From: "Glen Westwell" <[email protected]> To: <[email protected]> Cc: "Ruby Dulmage" <[email protected]> Sent: Wednesday, May 22, 2002 9:39 AM Sub ject: Re: Instantel FCC ID: ISEMTG Page 1 of 2 5/23/2002 Hi Berry, I will respond to these questions for Ruby, she is off for a few days. Sorry for not including some of these answers as part of the original test report. I will answer after each question you have posed. Glen Westwell Nemko Canada Inc. From: Curtis -Straus TCB To: Ruby Dulmage Sent: May 21, 2002 6:01 PM Subject: Instantel FCC ID: ISEMTG Hi Ruby, We have these issues following our review: 1. The internal photos cannot be classified as confidential if the user (includes hospital personnel) can gain access to the interior of the device. How is the device sealed and how are the batteries changed? This is a sealed unit. The batteries are not changed. The battery and antenna are actually epoxied to the case, and thus is a throw away device once is stops to function. 2. The manual does not contain a clear caution against modification statement as required by 15.21. This is a throw away unit. Disassembly will probably destroy the unit due to the device being epoxied to the case. 3. The device operates at 125kHz. 15.33 requires investigation up to 30MHz. The test report only specifies measurements made up to the tenth harmonic or 1.25MHz. Please confirm that there are no other reportable emissions up to 30MHz. Yes the device was searched up to 30MHz. Only the detectable emissions were reported. In the future i will include this statement in the test report. 4. Please confirm that a fresh battery was employed during testing. Yes a fresh battery was used, this was a new production device. 5. Please confirm that the device was tested in three orthogonal planes. Yes the device was rotated on 3 orthogonal planes for the worst case emssion detection. Only the worst case emission levels were reported. Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB Page 2 of 2 5/23/2002

IC:1606B-MTG SERIAL # XXXXXX FCC ID: ISEMTG INSTANTEL INC. MADE IN CANADA KISSES MOTHER TAG FCC, ISC LABEL 806M8701 REV 00 XXX 0 Kisses ä

Master: PT15209 Date: December 12, 2001 Test Report:2W04940 Applicant:Instantel Inc. 309 Legget Drive Kanata, Ontario K2K 3A3 Equipment Under Test:806A2201, Mother Tag (EUT)125Khz Low PowerTransmitter In Accordance With:FCC Part 15, Subpart C, 15.209 FCC I.D. :ISEMTG Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: J. Harrington, RF Group Manager Date:15 May 2002 Total Number of Pages:11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 2 of 11 Table Of Contents Section 1. Summary Of Test Results.....................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................7 Section 4. Block Diagrams...................................................................................................10 Section 5. Test Equipment List...........................................................................................11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 3 of 11 Section 1.Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. A description of the test facility in on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: Glen Westwell, Wireless Technologist DATE: 15 May 2002 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 4 of 11 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions15.207N/A Radiated Emissions15.209Complies Footnotes For N/A’s:This device is powered by a 3 Vdc Lithium cell. Test Conditions: IndoorTemperature:24 °C Humidity:38 % OutdoorTemperature:15 °C Humidity:44 % Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 5 of 11 Section 2.General Equipment Specification Manufacturer: Instantel Inc. Model No.: 806A2201 Serial No.: None Date Received In Laboratory: 7 May 2002 Nemko Identification No.: #1 Frequency: 125 kHz Modulation: Pulse Modulated (on/off keying) Emission Designator: 32K3POD Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 6 of 11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 7 of 11 Section 3.Radiated Emissions Para. No.: 15.209 Test Performed By: Glen WestwellDate of Test: 13 May 2002 Minimum Standard: Fundamental (MHz) Field Strength (μμV/m) Field Strength (dBμμV) 0.009 - 0.4902400/F(kHz) @ 300m— 0.490 - 1.70524000/F(kHz) @ 30m— 1.705 - 3030 @ 30m— 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 Test Results:Complies. Measurement Data:See attached table. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 8 of 11 Test Data - Radiated Emissions Frequency of Emission (MHz) Received Signal (dBuV/[email protected]) Received Signal (dBuV/m@1m) Extrapolated Signal (dBuV/m@300m) Limit (dBuV/m@300m) Margin (dB) 0.125--45.3 -53.725.679.4 0.25035.0N.D. -104.119.6123.7 0.37529.0N.D. -110.116.1126.2 0.50028.7N.D. -110.433.6143.9 0.62530.0N.D. -109.131.7140.4 Notes: Field strength emissions were measured at 0.1m and 1m due to the very low power of the device. All emissions measured were extrapolated using 40 dB/decade extrapolation factor. N.D. = Not Detected. All harmonic and spurious emissions were searched up to the 10 th harmonic. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 9 of 11 Radiated Emissions- Photographs Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 10 of 11 Section 4.Block Diagrams Radiated Prescan SPECTRUM ANALYZER AND PLOTTER OR TEST RECEIVER COMPUTER ANTENNA EUT SHIELDED ROOM Test Site For Radiated Emissions Measurement distance at 1m, fundimental and 0.1m harmonics, due to the very low power of this device. EUT Distance As Per Measurement Data Variable 2 to 10m Active Loop Antenna 80cm 80cm Non-Conducting Turntable Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04940 EQUIPMENT: 806A2201 Mother Tag Page 11 of 11 Section 5.Test Equipment List CAL CYCLE EQUIPMENTMANUFACTURERMODELSERIALLAST CAL.NEXT CAL. 1 YearSpectrum AnalyzerHewlett Packard8564EFA001367Mar 6/02Mar 6/03 1 YearReceiverRohde & SchwarzESH3892473/002Oct 18/01Oct 18/02 1 YearActive Loop AntennaRohde & SchwarzHFH2-Z2FA000631May 12/02May 12/03 NA: Not Applicable NCR: No Cal Required COU: CAL On Use

Radiated Emissions- Photographs
