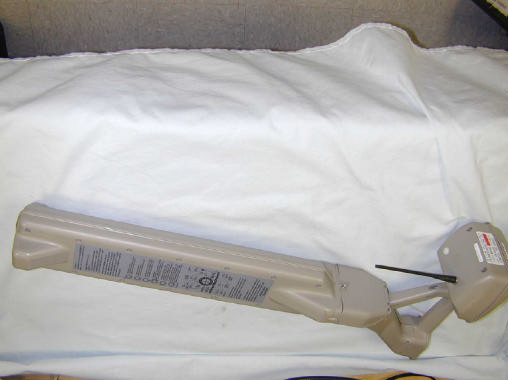

ITQ-CMW-R-75T750 Tracker Transmitter

750 Tracker - SUPPORT 1 SERIAL NUMBER RECORD 750 Tracker - SUPPORT 1 SERIAL NUMBER RECORD SUPPORT SERIAL NUMBER RECORDRecord the serial numbers and date of purchase of your Subsite components in the spaces below. Date of purchase:Tracker serial number: 2 750 Tracker - SERVICE PROCEDURE 2 750 Tracker - SERVICE PROCEDURE SERVICE PROCEDURENotify Subsite immediately of any malfunction of Subsite equipment. Always give model, serial number, and approximate date of purchase. This information should be recorded and placed on file by owner at time of purchase. Give detailed explanation of malfunction.Return damaged parts to Subsite for inspection and warranty consideration.Order genuine Subsite replacement or repair parts from your Subsite dealer. Use of another manufacturer’s parts may void warranty. 750 Tracker - FOREWORD 3 SERVICE PROCEDURE 750 Tracker - FOREWORD 3 SERVICE PROCEDURE FOREWORD This manual is an important part of your equipment. It provides safety information and operation instructions to help you use and maintain your Subsite Electronics equipment. Read this manual before using your equipment. Keep it with the equipment at all times for future reference. If you sell your equipment, be sure to give this manual to the new owner.If you need a replacement copy, contact your Subsite Electronics dealer.The descriptions and specifications in this manual are subject to change. The Charles Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have taken place after this manual was published.Thank you for buying and using Subsite Electronics equipment. 4 750 Tracker - FOREWORD SERVICE PROCEDURE 4 750 Tracker - FOREWORD SERVICE PROCEDURE Operator's Manual 750 Tracker Issue No.2.2/OP-4/01 Part Number 754-050 Copyright 1999, 2000, 2001 by The Charles Machine Works, Inc., Perry, Oklahoma Subsite is a registered trademark of The Charles Machine Works, Inc. U.S. Patent No. 5,065,098; 4,881,083. Other U.S. and foreign patents pending. 750 Tracker - CONTENTS 5 SERVICE PROCEDURE 750 Tracker - CONTENTS 5 SERVICE PROCEDURE CONTENTS SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Serial Number Record . . . . . . . . . . . . . . . . . . . . . . . . . 1Service Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Classifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Beacon Tracking Modes . . . . . . . . . . . . . . . . . . . . . . . 21Line Locating Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 32 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 General Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 6 750 Tracker - CONTENTS SERVICE PROCEDURE 6 750 Tracker - CONTENTS SERVICE PROCEDURE 750 Tracker - CONTROLS 7 OVERVIEW 750 Tracker - CONTROLS 7 OVERVIEW CONTROLS OVERVIEWThe 750 Tracker performs well with a variety of beacons and can track shallow or deep bores. It can send beacon information to a display mounted on the drilling unit operator ’ s station. The 750 Tracker can also locate lines and cables. Available modes are 8 kHz active (when used with transmitter) and 60 or 50 Hz passive (for locating power cables).A brief description of the buttons and display on the 750 Tracker follows. 8 750 Tracker - CONTROLS CONTROLS 8 750 Tracker - CONTROLS CONTROLS CONTROLSOn/OffPressing this button turns unit on and off. Fore/Aft/Left/RightPressing this button while in walkover tracking mode switches from fore/aft to left/right arrows. Only one set of arrows will show at a time. See OPERATION for further information. UpPressing this button raises gain (increases signal).DownPressing this button reduces gain (decreases signal). DepthThis button estimates depth of properly located signal source when pressed. See OPERATION for information on locating signals. ModePressing this button changes location mode and operating frequency. 750 Tracker - CONTROLS 9 CONTROLS 750 Tracker - CONTROLS 9 CONTROLS Depth + On/OffPressing these buttons when tracker is on cycles volume from low to high to off. Pressing and holding depth button before turning tracker on changes signal strength display. See “ Signal Strength ” section later in this chapter for more information. Depth + Fore/Aft/Left/RightPressing these buttons switches LCD backlight off and on.Depth + UpPressing these buttons enters tracker into calibration mode. See OPERATION for further information. Depth + DownPressing these buttons selects radio channel. “ CH-1 ” or “ CH-2 ” or “ OFF ” will appear in display. Depth + ModePressing these buttons changes depth units from default setting of feet:inches to inches, centimeters, or meters.On + UpHolding up button and pressing on button switches left/right arrows off and on.On + DownHolding down button and pressing on button switches all guidance arrows off and on. NOTE: If all arrows are disabled, remote guidance will not work. 10 750 Tracker - CONTROLS CONTROLS 10 750 Tracker - CONTROLS CONTROLS Fore/Aft/Left/Right + ModePressing these buttons starts tracker …

Text truncated - open the document above for the full version.

DM-3473 Synthesized UHF Data Module Technical Manual Part Number: 242-3473-XXX DM-3473 Synthesized UHF Data Module 001-3473-202 Revision 1 February 2000 Copyright 2000 by Dataradio COR Ltd. Dataradio COR Ltd. designs and manufactures radios and radio modems to serve a wide variety of data communication needs. The Dataradio Corporation produces equipment for the fixed data market including SCADA systems for utilities, petrochemical, waste and fresh water management markets and RF boards for OEM applications in the Radio Frequency Data Capture market. PRODUCT WARRANTY The manufacturer's warranty statement for this product is available from Dataradio COR Ltd., 299 Johnson Avenue, Box 1733, Waseca, MN 56093-0833. Phone (507) 835-8819. The information in this document is subject to change without notice. is a trademark of Dataradio Inc. 1 TABLE OF CONTENTS 1GENERAL INFORMATION 1.1SCOPE OF MANUAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 1.2EQUIPMENT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 DM-3473 SYNTHESIZER PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3TRANSCEIVER IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 1.4PART NUMBER BREAKDOWN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 1.5CUSTOMER SERVICE/TECHNICAL SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 1.6PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 1.7REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 1.8IF A PROBLEM ARISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 FACTORY REPAIR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4 2INSTALLATION 2.1PRE-INSTALLATION CHECKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 2.2INTERFACING WITH DATA EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 CONNECTOR PIN ASSIGNMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 3PROGRAMMING 3.1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 3.2DM-3473 SERIAL INTERFACE SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 3.3FRACTIONAL-N SYNTHESIZER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 SYNTHESIZER DATA PROTOCOL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 SYNTHESIZER DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 3.4SYNTHESIZER BIT DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 D-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 C-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 B-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 A0-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 3.5SYNTHESIZER LOAD PARAMETER EXAMPLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4 3.6RECOMMENDED SYNTHESIZER LOAD SEQUENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11 RECEIVE TO TRANSMIT SEQUENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11 TRANSMIT TO RECEIVE SEQUENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12 3.7A0 WORD ALGORITHM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13 4CIRCUIT DESCRIPTION 4.1GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1 INTRODUCTION. . . . . . .…

Text truncated - open the document above for the full version.

This label is affixed to the device with permanent adhesive. The label is made of PVC type material that is expected to last the life of the device. This device complies with Part 90 of the FCC rules FCC ID.: ITQ-CMW-R-75T Model: 750 Tracker Serial No.: 000000 Location of label

CIRCUIT DESCRIPTION 4.1 GENERAL 4.1.1 INTRODUCTION The DM-3473 consists of a low dropout regulator power supply, frequency synthesizer and VCO (voltage controlled oscillator), 2 watt RF power amplifier, and dual down conversion FM receiver. A block diagram of the transceiver is located in Figure 4-1 and shows the four major sections of the unit. The VCO is enclosed by a metal shield and soldered directly to the printed circuit board (PCB). The VCO unit is not field serviceable. The transmitter is also covered by a metal shield to prevent radiation of RF power causing interference. The 3473 comes standard with a reference oscillator stability of + 1.5 PPM over the entire operating temperature range. 4.2 POWER SUPPLY CIRCUIT DESCRIPTION Main DC power is delivered to the transceiver on pin 5 of the user interface connector (J201). This pin requires a regulated power supply voltage between 6 and 9 VDC. The voltage on this pin powers the on board low drop out regulator U130. The regulator provides constant 5.5 VDC to all of the relevant sections of the transceiver such as the VCO/Synthesizer, Receiver, and Regulator sections of the transmitter. Pins 1 and 2 provide the ground connection of the transceiver. Pins 3 and 4 of J201 are the main power supply to the RF power amplifier. This voltage is set between 6 and 9 VDC with 7.2 VDC being the nominal voltage to guarantee 2 watts +\-0.4 watts of RF power at the antenna connector. All three pins (3,4,and 5) can be tied together on a customer interface board if the maximum voltage limits are always between 6-9 VDC. The transmit and receive enable pins (pins 6 and 7) of J201 are a logic voltage input to turn on the transmitter or receiver. The necessary voltage is between 4.5 and 13 VDC for the enable mode. Refer to the programming section 3 for the implementation of the transmit and receive enable pins. The DM-3473 is equipped with a sleep mode pin for implementing current saving features by the customer when a transceiver requires a standby mode. Pin 8 requires a logic level >2.0 VDC to enable the transceiver, this voltage must always be high when the transceiver is in operation. Pin 8 can be grounded to put the radio to sleep. The transceiver will draw less than one milliampere in sleep mode. 4.3 SYNTHESIZER/VCO/TX MODULATION The VCO is an oscillator which can be controlled by an input voltage to oscillate at a desired frequency. The VCO in the 3473 serves either the receiver or the transmitter dependent on the desired operation. The frequency of the VCO for receive mode is 86.85 MHz above the desired receive frequency. For the transmitter the VCO produces the signal corresponding to the desired transmit frequency. The DC voltage controlling the oscillator frequency is generated by synthesizer IC U811. The VCO control voltage can be measured at test point TP831 on the PCB. When the VCO is locked (>3.5 Vdc on pin 11 of J201) TP831 will measure between 0.5 and 5.00 VDC, dependent on the frequency of operation. An unlocked condition (indicated on pin 11 of J201) is less than 1.5 VDC. The synthesizer determines the lock state of the radio by comparing the scaled VCO frequency to the scaled reference oscillator TCXO of 14.4 MHz. The VCO is a Colpitts oscillator formed by Q962 along with several capacitors, varactor diodes, and a ceramic resonator. The DC bias to the VCO is provided by transistor Q901 and forms a capacitance multiplier which delivers filtered, noise free supply voltage to the oscillator circuitry. The VCO is followed by gain stages which amplify the signal to approximately 0 dBm and then divide the signal using a splitter and sending it to the receiver or transmitter. The VCO is capable of oscillating between 403-434 MHz or 450-480 MHz in transmit and 489.85-520.85 MHz or 536.85-566.85 MHz in receive. The course frequency shift in the VCO between receive and transmit is accomplished by shifting in a capacitor to the tank of the oscillator. Pin 7 of J201 (receive enable) performs this function. When transmitting, the receive enable is forced low and a pin diode is turned on by a digital transistor connected to pin 7 which switches capacitance into the oscillator circuit. The reverse happens when returning to receive mode. Refer to section 3 for receive to transmit and transmit to receive load sequences. There are two parts to the transceiver modulation circuitry. With the placement of the VCO control line voltage low pass filter at approximately 400 Hz, it is necessary to modulate both the VCO and the TCXO. A loop response of 400 Hz is necessary to accomplish the fast lock times of the 3473. If only the VCO were modulated to transmit data, any baseband frequency component below 400 Hz would not be modulated onto the transmit carrier. To accomplish this the transceiver was designed to modulate both the VCO and TCXO, thus creating two parts to the modulation circuit and modulation capability from below 50 Hz up to 5000 Hz. It is important to note that modulation sensitivity adjustment and modulation deviation limiting are to be supplied in the customer interface equipment, and are required by most regulatory agencies, such as the Federal Communications Commission (FCC) in the United States. The modulation flatness adjustment (R825) balances the sensitivity of the VCO vs. the TCXO. The radio is set to best modulation flatness in the center of the RF band (418.5 MHz or 465 MHz) when the unit leaves the Dataradio factory. The modulation flatness becomes uneven when nearing the band edges due to changing sensitivity of the TCXO and VCO across a wide range of RF frequencies. If optimal modulation flatness is desired across the whole RF band of 450-480 or 403-434 MHz, the unit is equipped with an external flatness adjust. Pin 9 of J201 allows the implementation of an analog voltage between 0 and 5 VDC to obtain flat modulation. Linear interpolation of this voltage between the RF band edges will insure flat modulation everywhere in the band. If…

Text truncated - open the document above for the full version.

ALIGNMENT PROCEDURE AND PERFORMANCE TESTS 6.1 GENERAL Receiver or transmitter alignment may be necessary if repairs are made that could affect tuning. Alignment points diagrams are located in Figure 6-3 or component layouts are located in Section 8. Fabricate test cables by referring to Section 2.2 Interfacing with Data Equipment. This cable should include power and ground, a transmit keying switch that applies 5.5 VDC to the Rx and Tx Enable, data input and data output. The test setup must apply the various supply voltages and load the synthesizer with channel information. 6.2 ALIGNMENT PROCEDURE 6.2.1 VCTCXO SETUP (Y801) 1. Apply 7.2 Vdc +\-0.1 Vdc to pins 3, 4, and 5. 2. Verify 2.5 Vdc +\- 0.05 Vdc is on pin 10. 3. Set Y801 (the VCTCXO) to 14.400000 MHz +\- 6.0 Hz (+\- 0.4PPM) 6.2.2 FREQUENCY AND CONTROL LINE VOLTAGE CHECK 1. Connect the test setup shown in Figure 6-1. Set the power supply for +7.2V DC. 2. Load the synthesizer with the channel frequency. 3. Connect a DC voltmeter at TP831 to measure the VCO control line voltage for a meter reading of ≥ 0.50 - ≤ 5.0VDC for all desired frequencies of operation in both transmit and receive. 6.2.3 100mW TRANSMITTER POWER ALIGNMENT 1. Connect the test setup shown in Figure 6-1. A DC ammeter capable of measuring up to 2.0 A should be installed in the supply line. 2. Load the synthesizer with the desired channel frequency. 3. Set the IDSS of the final by shorting TP601. To Ground R521, turn counter-clockwise for minimum transmit current. Note the current and adjust R521 for 200 mA more current. 4. Key the transmitter and make sure that pins 3, 4, and 5 on the RF board are 7.2V. (Do not transmit for extended periods.) 5. Adjust C552 for 100 milliwatts output power.

The manufacturer includes a warning statement in the user manual stating that a minimum 10 cm. Separation distance must be maintained. Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:20.00(dBm) Maximum peak output power at antenna input terminal:100(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Prediction distance:10(cm) Prediction frequency:450(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.3000(mW/cm^2) Power density at prediction frequency:0.079577(mW/cm^2) Maximum allowable antenna gain:5.763311(dBi) 2 4R PG S π = >10 cm. From closest part of handle to closest part of antenna. The orientation of the LCD display dictates that the user operate the EUT with the antenna away from the body in order to be able to read the display.

DM-3473 Synthesized UHF Data Module Technical Manual Part Number: 242-3473-XXX DM-3473 Synthesized UHF Data Module 001-3473-202 Revision 1 February 2000 Copyright 2000 by Dataradio COR Ltd. Dataradio COR Ltd. designs and manufactures radios and radio modems to serve a wide variety of data communication needs. The Dataradio Corporation produces equipment for the fixed data market including SCADA systems for utilities, petrochemical, waste and fresh water management markets and RF boards for OEM applications in the Radio Frequency Data Capture market. PRODUCT WARRANTY The manufacturer's warranty statement for this product is available from Dataradio COR Ltd., 299 Johnson Avenue, Box 1733, Waseca, MN 56093-0833. Phone (507) 835-8819. The information in this document is subject to change without notice. is a trademark of Dataradio Inc. 1 TABLE OF CONTENTS 1GENERAL INFORMATION 1.1SCOPE OF MANUAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 1.2EQUIPMENT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 DM-3473 SYNTHESIZER PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3TRANSCEIVER IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 1.4PART NUMBER BREAKDOWN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 1.5CUSTOMER SERVICE/TECHNICAL SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 1.6PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 1.7REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 1.8IF A PROBLEM ARISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 FACTORY REPAIR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4 2INSTALLATION 2.1PRE-INSTALLATION CHECKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 2.2INTERFACING WITH DATA EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 CONNECTOR PIN ASSIGNMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 3PROGRAMMING 3.1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 3.2DM-3473 SERIAL INTERFACE SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 3.3FRACTIONAL-N SYNTHESIZER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 SYNTHESIZER DATA PROTOCOL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 SYNTHESIZER DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 3.4SYNTHESIZER BIT DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 D-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 C-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 B-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 A0-WORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 3.5SYNTHESIZER LOAD PARAMETER EXAMPLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4 3.6RECOMMENDED SYNTHESIZER LOAD SEQUENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11 RECEIVE TO TRANSMIT SEQUENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11 TRANSMIT TO RECEIVE SEQUENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12 3.7A0 WORD ALGORITHM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13 4CIRCUIT DESCRIPTION 4.1GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1 INTRODUCTION. . . . . . .…

Text truncated - open the document above for the full version.

KTL Test Report:0L0483RUS1 Applicant:SUBSITE ELECTRONICS 1950 WEST FIR STREET PERRY, OKLAHOMA 73077 Equipment Under Test:750 Tracker (E.U.T.) In Accordance With:FCC Part 90, Subpart I Private Land Mobile Transmitter Tested By:KTL Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Date:2/4/01 Total Number of Pages:36 KTL Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0L0483RUS1 EQUIPMENT: 750 Tracker Page 2 of 36 Table of Contents Section 1. Summary of Test Results........................................................................................3 Section 2. General Equipment Specification.............................................................................5 Section 3. RF Power Output....................................................................................................7 Section 4. Modulation Characteristics......................................................................................8 Section 4.1Modulation Limiting................................................................................................9 Section 5. Occupied Bandwidth.............................................................................................10 Section 6. Spurious Emissions at Antenna Terminals.............................................................14 Section 7. Field Strength of Spurious Emissions....................................................................17 Section 8. Frequency Stability...............................................................................................20 Section 9. Transient Frequency Behaviour.............................................................................22 Section 10. Test Equipment List..............................................................................................25 ANNEX A - TEST METHODOLOGIES..................................................................................26 ANNEX B - TEST DIAGRAMS..............................................................................................32 KTL Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0L0483RUS1 EQUIPMENT: 750 Tracker Page 3 of 36 Section 1.Summary of Test Results Manufacturer:Subsite Electronics Model No.:750 Tracker Serial No.:066449 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: TESTED BY:David LightDATE:1/5/01 KTL Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the co…

Text truncated - open the document above for the full version.
