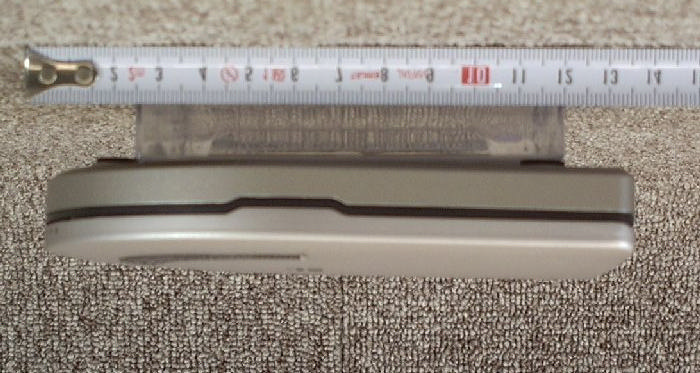

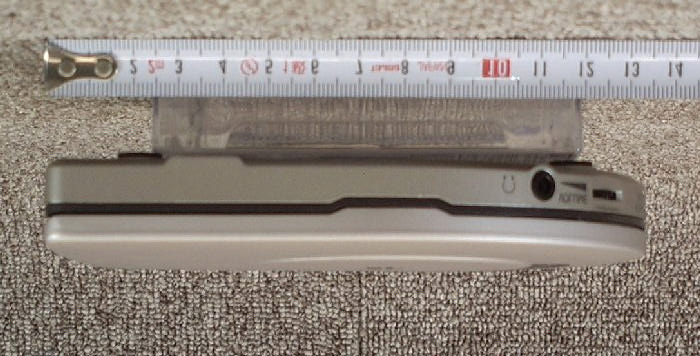

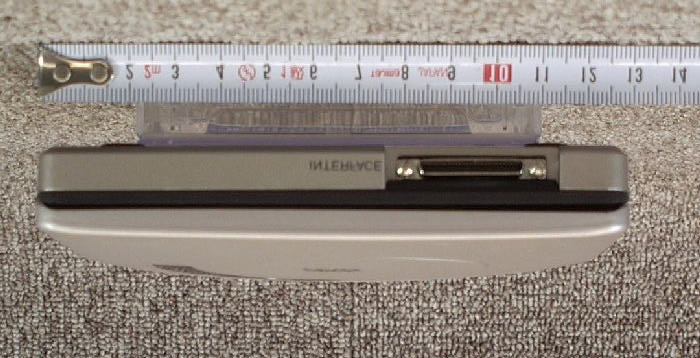

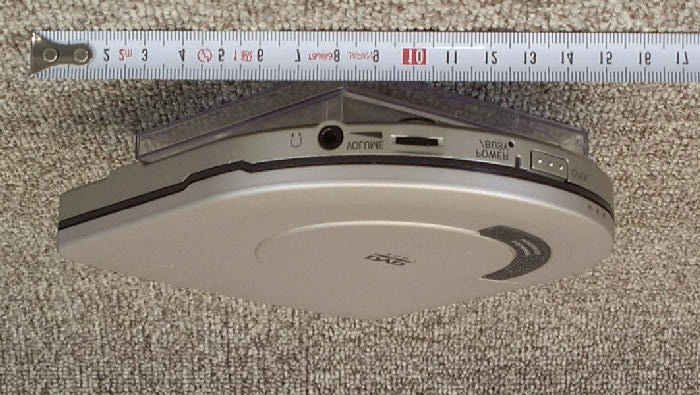

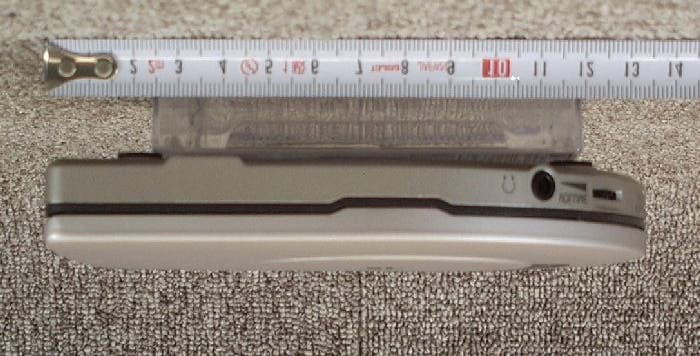

IUO9TB083CRSDVD-ROM Drive

DVD-ROM DRIVE UNIT LK-RV624D INSTRUCTION MANUAL Please read through these instructions before operating this unit. Interface : ATAPI iii DVD-ROM DRIVE UNIT LK-RV624D INSTRUCTION MANUAL Please read through these instructions before operating this unit. Interface : ATAPI TABLE OF CONTENTS IMPORTANT SAFETY NOTICE 1. PRECAUTIONS WHEN OPERATING ................................................................... A-5 1.1 PRECAUTIONS WHEN TRANSPORTING ...................................................... A-5 1.2 INSTALLATION LOCATION ............................................................................ A-5 1.3 PRECAUTIONS FOR USE .............................................................................. A-5 1.4 PRECAUTIONS FOR OPERATION ................................................................ A-5 1.5 PRECAUTIONS WHEN HANDLING DISCS .................................................... A-5 2. PARTS AND FUNCTIONS .................................................................................... A-7 2.1 FRONT VIEW ................................................................................................... A-7 2.2 REAR VIEW ..................................................................................................... A-8 2.3 SIDE VIEW ....................................................................................................... A-8 3. CONNECTIONS ..................................................................................................... A-9 3.1 CONNECTING VIEW ....................................................................................... A-9 4. GUIDE TO OPERATION ....................................................................................... A-10 4.1 INSTALLATIONS ............................................................................................. A-10 5. GENERAL DESCRIPTION .................................................................................... A-11 5.1 FEATURE SUMMARY ..................................................................................... A-11 5.2 POWER SAVING ............................................................................................. A-11 6. SPECIFICATION SUMMARY ................................................................................ A-12 6.1 PERFORMANCE ............................................................................................. A-12 6.2 ERROR RATES ............................................................................................... A-13 6.3 AUDIO PERFORMANCE ................................................................................. A-13 6.4 GENERAL PERFORMANCE ........................................................................... A-13 6.5 ENVIRONMENTAL CONDITIONS ................................................................... A-13 6.6 PICK UP LASER .............................................................................................. A-13 7. BEFORE REQUESTING SERVICE ....................................................................... A-14 7.1 TROUBLESHOOTING ..................................................................................... A-14 iv IMPORTANT SAFETY NOTICE NOTICE (1) You may not reproduce or transcribe any part of this publication without permission. (2) We reserve the right to revise this document at any time without notice. (3) If you have any questions about this document, contact your sales representative. SAFETY NOTICE (1) To prevent fire or electric shock, do not expose this appliance to rain or moisture. (2) To avoid electric shock or damage to the eyes due to laser beam, do not attempt to disassemble the cabinet. FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO FREQUENCY INTERFERENCE STATEMENT Class B Computing Device NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - - Reorient or relocate the receiving antenna. - - Increase the separation between the equipment and receiver. - - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - - Consult the dealer or an experienced radio/TV technician for help. FCC WARNING : Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION : Use shielded connecting cables in order to meet FCC emission limits and also to prevent interference to nearby radio and television reception. For USA A-1 LASER SAFETY INFORMATION Class 1 LASER Product This equipment is certified to comply with DHHS Rule 21 CFR Chapter 1, Subchapter J in effect as of date of manufacture. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN60825 for Class 1 laser products. Class 1 laser products are not considered to be hazardous. To ensure continued product safety, the following precautions should be heeded. This equipment has the Optical Pickup which has the Dual Lasers (DVD & CD). Caution : (1) The use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. (2) Do not open the drive unit; no user adjustments or serviceable parts are inside. …

Text truncated - open the document above for the full version.

MKE Front End Processor AN8701FHQ : MEC ALPC Serial I/F TE & FE detection RF & Dropout detection Data Slice VCO PLL RF AMP. Auto Gain Control Programmable RF Equalizer Linear Driver BA5918FP :ROHM DC-DC +5v to +3.3V AN8683NSH : MEC LPXCM0036:MKE Audio Amp. NJM2100V:NJM M5216FP:MITSUBISHI Pick Up VED0438:MEI 420MHz Typ. Disk Motor Push pull TE FG PLL Control Sync det. Data & Clock FE TE BDO RF env. Power (+5V) Headhone Out Eject Motor PNN3GE06TA : NAMA DVD-RAM Play (AN8405 : MEC) LK-RV624D FUNCTIONAL BLOCK DIAGRAM Micro Processor MN102LF53GHL:MEC Flash ROM Serial I/F PWM output D/A Converter A/D Converter Servo processor Access Control CLV & CAV control Interpolation Digital Attenuation Digital Deemphasis Digital Filter DAC (MASH) Focus & Tracking drv. Pre- AMP. Spindle Motor PWM Driver Optical Disc Controller MN103007B :MEC Micro processor I/F ATAPI DRAM controller ECC processor Syndrome / CRC Chien search CD / DVD Formatter DRAM 4M bit IDE Bus CIRC Servo DSP MN677031 : MEC Clock:16.93MHz Clock:33.86MHz

MATSUSHITA-KOTOBUKI ELECTRONICS INDUSTRIES LTD. MATSUYAMA DIVISION 2131-1 Minamikata, Kawauchi-cho, Onsen-gun, Ehime-ken, 791-0395 Japan PHONE +81 89 966 2111 FAX +81 89 966 2123 January 28, 2000 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Akzo Kashima Ltd. to act on our behalf in all matters relating to applications for the equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Akzo Kashima Ltd. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefit, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. This authorization expires one year from the current date. Sincerely yours, K. Matsugi Engineer Legal Affairs Sec. Matsuyama Division Matsushita-Kotobuki Electronics Ind.,Ltd.

MATSUSHITA-KOTOBUKI ELECTRONICS INDUSTRIES LTD. MATSUYAMA DIVISION 2131-1 Minamikata, Kawauchi-cho, Onsen-gun, Ehime-ken, 791-0395 Japan PHONE +81 89 966 2111 FAX +81 89 966 2123 Page 1 of 19 pages TEST REPORT REPORT NUMBER: MKM00F-001 APPLICANT: Matsushita-Kotobuki Electronics Industries, Ltd. MODEL NUMBER:LK-RV624D FCC ID:IUO9TB083CRS Regulation:FCC Part15B Class B Conducted Emission Test Radiated Emission Test Matsushita-Kotobuki Electronics Ind., Ltd. Matsuyama Division 2131-1 Minamikata, Kawauchi-cho, Onsen-gun, Ehime-ken, 791-0395 Japan Tel.: +81 89 966 2111 Fax.: +81 89 966 5733 Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 2 of 19 pages TABLE OF CONTENTS Page SECTION1.TEST CERTIFICATION3 SECTION2.EQUIPMENT UNDER TEST5 SECTION3.SUPPORT EQUIPMENT USED6 SECTION4.CABLE(S) USED 7 SECTION5.CONSTRUCTION OF EQUIPMENT 8 SECTION6.OPERATING CONDITIONS9 SECTION7.TEST PROCEDURE(S) 10 SECTION8.EVALUATION OF TEST RESULTS11 SECTION9.PHOTOGRAPHS OF TEST SET-UP 17 SECTION10.INSTRUMENTS USED FOR TEST18 SECTION11.PRECISION19 SECTION12.VALIDITY OF TEST REPORT19 Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 3 of 19 pages SECTION 1. TEST CERTIFICATION APPLICANT INFORMATION Company: Matsushita-Kotobuki Electronics Industries, Ltd. Address: 8-1, Furujin-machi, Takamatsu-city, Kagawa-ken, 760-0025 Japan GRANTEE INFORMATION Company: Matsushita-Kotobuki Electronics Industries, Ltd. Division / Section: Matsuyama Division Legal Affairs Sec. Address: 2131-1 Minamikata, Kawauchi-cho, Onsen-gun, Ehime-ken, 791-0395 Japan Telephone number: +81 89 966 2111 Fax number : +81 89 966 5733 Contact person: Kenji Matsugi DESCRIPTION OF TEST ITEM Kind of equipment: DVD-ROM Drive Trademark: Matsushita-Kotobuki FCC ID: IUO9TB083CRS Model number: LK-RV624D Serial number: SA0111000012 Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 4 of 19 pages TEST PERFORMED FCC Registration No.: 90793 Test started: January 24, 2000 Test completed: January 24, 2000 Purpose of test: FCC Docket 87-389 Regulation: FCC Part 15B Class B Unintentional Radiators Test setup: ANSI C63.4 -1992 Report file number: MKM00F-001 Report issue date: January 28, 2000 Test engineer: Shinji Yamauchi Report approved by : Hisayuki Honda [ Manager ] This equipment complies with above standard or regulation under the test condition or test configuration shown on this test report. Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 5 of 19 pages SECTION 2. EQUIPMENT UNDER TEST The equipment under test (EUT) consists of the following equipment. Indication in the following left side column corresponds to section 5. SymbolItemModel No. Serial No. FCC IDManufacturer A)DVD-ROMLK-RV624DSA0111000012IUO9TB083CRSMatsushita-Kotobuki DriveElectronics Ind., Ltd. Power ratings of EUT : +5V DC, 1.8A 2.1 Port(s) / Connector(s) : IDE Bus Connector(50pin), Head Phone Jack(Stereo Mini Plug), DC IN Connector 2.2 Oscillator(s) / Crystal(s) : OscillatorOperatingBoard nameRemarks Frequency 16.93 MHz33.86 MHzMain PCBODC, Servo DSP 420 MHz / typ.420 MHz / typ.Pick UpHigh Frequency Module (Highest Frequency) Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 6 of 19 pages SECTION 3. SUPPORT EQUIPMENT USED The EUT has been supported by the following equipment during these tests. Indication in the following left side column corresponds to section 5. SymbolItemModel No.Serial No.FCC IDManufacturer B)Host Computer264597-9244V4U6JPN-32476-DT-EIBM C)Head PhoneRP-HT28NoneN.A.Panasonic D)Printer3630A3219A17397BSD8533630AHEWLETT PACKARD E)ModemC202A010489BKM552C202AEPSON Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 7 of 19 pages SECTION 4. CABLE(S) USED The following cable(s) was used for testing. Indication number in the following left side column corresponds to section 5. NumberNameLengthShieldFromTo 1)50Pin Flat cable0.3 mNoneDVD-ROM DriveHost Computer Plastic connector 2)Head Phone cable1.5 mNoneDVD-ROM DriveHead Phone Plastic connector 3)Parallel I/F cable1.5 mYesHost ComputerPrinter Metal connector 4)RS-232C I/F cable1.1 mYesHost ComputerModem Metal connector 5)Power cord for2.0 mNoneDVD-ROM DrivePower Source DVD-ROM Drive 6)Power cord for1.8 mNoneHost ComputerAC Adapter Host Computer 7)Power cord for1.0 mNoneAC AdapterPower Source Host Computer 8)Power cord for Printer2.0 mNonePrinterAC Adapter 9)Power cord for Printer2.0 mNoneAC AdapterPower Source 10)Power cord for Modem1.9 mNoneModemPower Source Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 8 of 19 pages SECTION 5. CONSTRUCTION OF EQUIPMENT The construction of EUT during testing is as follows. System configuration * : EUT C) Head Phone 43 1 E)B)A) D) Printer Modem Host Computer DVD-ROM Drive * 62 8 16V DC 3.36A 20V AC 60Hz AC AdapterAC Adapter 1075 9 6V DC 700mA 5V DC 1.8A AC Adapter AC Adapter 120V AC120V AC 120V AC120V AC 60Hz60Hz 60Hz60Hz Symbol or numbers assigned to equipment or cables on this diagram are corresponded to the symbols or numbers assigned to equipment or cables on tables in Sections 2 to 4. Report No. MKM00F-001 FCC ID : IUO9TB083CRS Page 9 of 19 pages SECTION 6. OPERATING CONDITIONS The EUT has been operated under the following conditions during the tests. 6.1 Operating condition The tests have been carried out under Read mode. 6.2 Operation flow Performed following operations continuously. 6.2.1 CD-ROM read mode 1. The EUT operates the normal speed. 2. The EUT play-backs the audio data. 3. The EUT reads the ‘H’ characters’ data. 4. The Color Display displays ‘H’ characters. 5. The Printer prints ‘H’ characters’ data. 6. The Modem sends ‘H’ characters’ data. 7. The EUT changes the disc rotating speed to the 24 times. 8. The EUT reads ‘H’ characters’ data. 9. The Color Display displays ‘H’ characters. 10. The Printer prints ‘H’ characters. 11. The Modem sends ‘H’ characters’ data. 6.2.2 DVD-ROM read mode 1. The EUT operates the 6 times speed. 2. The EUT reads the ‘H’ characters’ data. 3. The Color Display displays ‘H’ characters. 4. The Printer prints ‘H’ characters’ data. 5. The Modem sends ‘H’ characters’ dat…
