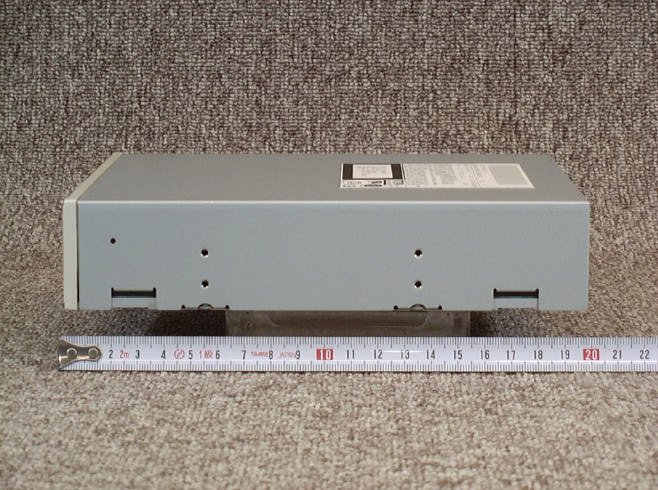

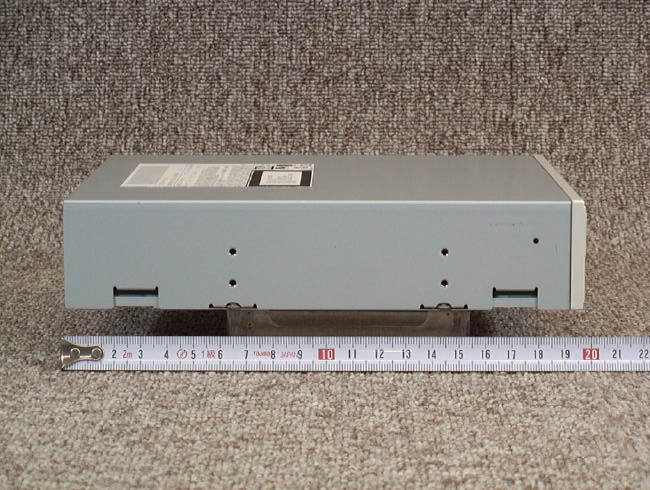

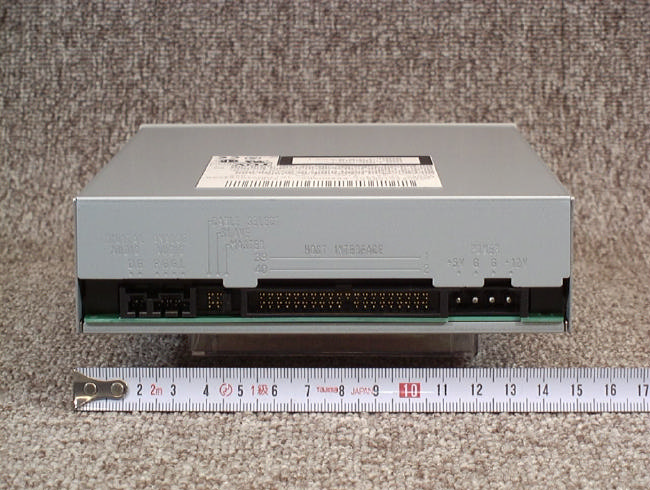

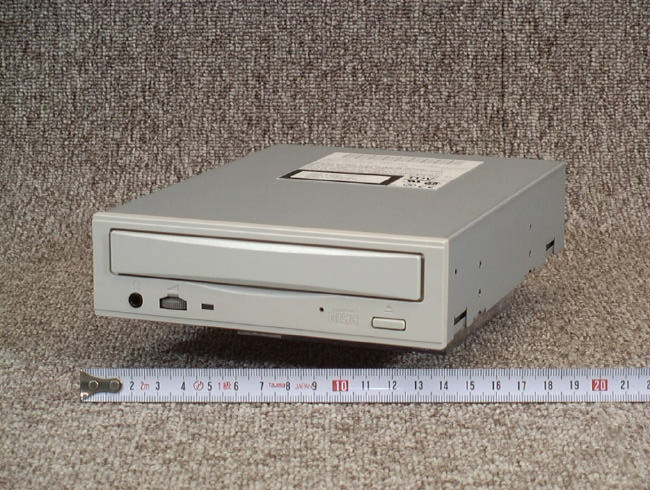

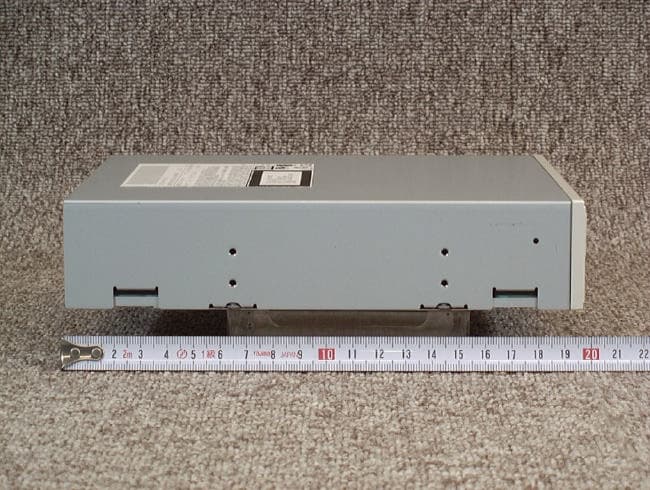

CD-ROM DRIVE UNIT CR-594-B / CR-594-C INSTRUCTION MANUAL Please read through these instructions before operating this unit. Interface : ATAPI ENGLISH iii CD-ROM DRIVE UNIT CR-594-B / CR-594-C INSTRUCTION MANUAL Please read through these instructions before operating this unit. Interface : ATAPI TABLE OF CONTENTS IMPORTANT SAFETY NOTICE 1. PRECAUTIONS WHEN OPERATING ................................................................... A-3 1.1 PRECAUTIONS WHEN TRANSPORTING ...................................................... A-3 1.2 INSTALLATION LOCATION ............................................................................ A-3 1.3 PRECAUTIONS FOR USE .............................................................................. A-3 1.4 PRECAUTIONS FOR OPERATION ................................................................ A-3 1.5 PRECAUTIONS WHEN HANDLING DISCS .................................................... A-3 2. PARTS AND FUNCTIONS .................................................................................... A-5 2.1 FRONT VIEW ................................................................................................... A-5 2.2 REAR VIEW ..................................................................................................... A-5 3. CONNECTIONS ..................................................................................................... A-6 3.1 CONNECTING VIEW ....................................................................................... A-6 4. GUIDE TO OPERATION....................................................................................... A-6 4.1 INSTALLATIONS ............................................................................................. A-6 5. GENERAL DESCRIPTION .................................................................................... A-7 5.1 FEATURE SUMMARY ..................................................................................... A-7 5.2 SYSTEM SET UP ............................................................................................ A-7 5.3 POWER SAVING ............................................................................................. A-7 6. SPECIFICATION SUMMARY ................................................................................ A-7 6.1 PERFORMANCE ............................................................................................. A-7 6.2 ERROR RATES ............................................................................................... A-8 6.3 AUDIO PERFORMANCE ................................................................................. A-8 6.4 GENERAL PERFORMANCE ........................................................................... A-9 6.5 ENVIRONMENTAL CONDITIONS ................................................................... A-9 6.6 PICK UP LASER .............................................................................................. A-9 7. BEFORE REQUESTING SERVICE ....................................................................... A-9 7.1 TROUBLESHOOTING ..................................................................................... A-9 APPENDIX ............................................................................................................... A-10 * Model CR-594-B iv IMPORTANT SAFETY NOTICE NOTICE (1) You may not reproduce or transcribe any part of this publication without permission. (2) We reserve the right to revise this document at any time without notice. (3) If you have any questions about this document, contact your sales representative. SAFETY NOTICE (1) To prevent fire or electric shock, do not expose this appliance to rain or moisture. (2) To avoid electric shock or damage to the eyes due to laser beam, do not attempt to disassemble the cabinet. FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO FREQUENCY INTERFERENCE STATEMENT Class B Computing Device NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - - Reorient or relocate the receiving antenna. - - Increase the separation between the equipment and receiver. - - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - - Consult the dealer or an experienced radio/TV technician for help. FCC WARNING : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. For USA (Model CR-594-B only) A-1 ENGLISH LASER SAFETY INFORMATION Class 1 LASER Product This equipment is certified to comply with DHHS Rule 21 CFR Chapter 1,Subchapter J in effect as of date of manufacture. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN60825 for Class 1 laser products. Class 1 laser products are not considered to be hazardous. To ensure continued product safety, the following precautions should be heeded. • This label is attached to the upper shield at the top of the drive unit. • Märkningen återfinns på den översta kåpan överst på drivenheten. (For Swedish) • Denne merkelappen er festet til det øverste dekselet på toppen av spilleren.(For Norwegian) • Denne etiket er sat fast på den øverste sk…

Text truncated - open the document above for the full version.

IC8 MKE IC1 OPTICAL AMP Pick Up Disc Motor Traverse Motor FG FE TE RREC BH,PH CR-594-B BLOCK DIAGRAM Interpolation Digital Attenuation Digital De-emphasis Digital Filter DAC (MASH) Micro processor ATAPI DRAM IDE Bus Focus & Tracking dr i v e . IC803 Spindle & 4CH Driver D/A Converter (PWM output) A/D Converter Servo processor Access Control CLV & CAV control DSL VCO PLL CIRC ALPC TE & FE detection RF & Dropout detection RF AMP Auto Gain Control EQ RF. EQCTL. SGC FBAL TBAL etc ECC 33.86 MHz Line Out IC18 3.3 V Regulator & RESET +5V+3.3V RESET DSP & ECC & Interface & DRAM & MICOM Loading Motor IC6 FLASH ROM IC200 AUDIO AMP HEAD PHONE

Matsushita-Kotobuki Electronics Industries Ltd. Matsuyama Division Address: 2131-1 Minamikata, Kawauchi-cho, Onsen, Ehime 791 – 0395 Japan Tel: 089 - 966 - 2111 / Fax: 089 – 966 - 6006 March 15, 2000 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Akzo Kashima Ltd. to act on our behalf in all matters relating to applications for the equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Akzo Kashima Ltd. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefit, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. This authorization expires one year from the current date. Sincerely yours, K. Matsugi Engineer Legal Affairs Sec. Matsuyama Division Matsushita-Kotobuki Electronics Ind.,Ltd.

Matsushita-Kotobuki Electronics Industries Ltd. Matsuyama Division Address: 2131-1 Minamikata, Kawauchi-cho, Onsen, Ehime 791 – 0395 Japan Tel: 089 - 966 - 2111 / Fax: 089 – 966 - 6006 Page 1 of 18 pages TEST REPORT REPORT NUMBER: MKM00F-003 APPLICANT: Matsushita-Kotobuki Electronics Industries, Ltd. MODEL NUMBER:CR-594-B FCC ID:IUO9TB084CRB Regulation:FCC Part15B Class B Conducted Emission Test Radiated Emission Test Matsushita-Kotobuki Electronics Ind., Ltd. Matsuyama Division 2131-1 Minamikata, Kawauchi-cho, Onsen-gun, Ehime-ken, 791-0395 Japan Tel.: +81 89 966 2111 Fax.: +81 89 966 5733 Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 2 of 18 pages TABLE OF CONTENTS Page SECTION1.TEST CERTIFICATION3 SECTION2.EQUIPMENT UNDER TEST5 SECTION3.SUPPORT EQUIPMENT USED6 SECTION4.CABLE(S) USED 7 SECTION5.CONSTRUCTION OF EQUIPMENT 9 SECTION6.OPERATING CONDITIONS10 SECTION7.TEST PROCEDURE(S) 11 SECTION8.EVALUATION OF TEST RESULTS12 SECTION9.PHOTOGRAPHS OF TEST SET-UP 16 SECTION10.INSTRUMENTS USED FOR TEST17 SECTION11.PRECISION18 SECTION12.VALIDITY OF TEST REPORT18 Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 3 of 18 pages SECTION 1. TEST CERTIFICATION APPLICANT INFORMATION Company: Matsushita-Kotobuki Electronics Industries, Ltd. Address: 8-1, Furujin-machi, Takamatsu-city, Kagawa-ken, 760-0025 Japan GRANTEE INFORMATION Company: Matsushita-Kotobuki Electronics Industries, Ltd. Division / Section : Matsuyama Division Legal Affairs Sec. Address: 2131-1 Minamikata, Kawauchi-cho, Onsen-gun, Ehime-ken, 791-0395 Japan Telephone number: +81 89 966 2111 Fax number : +81 89 966 5733 Contact person: Kenji Matsugi DESCRIPTION OF TEST ITEM Kind of equipment: CD-ROM Drive Trademark: Matsushita-Kotobuki FCC ID:IUO9TB084CRB Model number : CR-594-B Serial number: 0229XXX00012 Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 4 of 18 pages TEST PERFORMED FCC Registration No.: 90793 Test started : March 15, 2000 Test completed: March 15, 2000 Purpose of test : FCC Docket 87-389 Regulation: FCC Part 15B Class B Unintentional Radiators Test setup: ANSI C63.4 -1992 Report file number: MKM00F-003 Report issue date: March 16, 2000 Test engineer: Shinji Yamauchi Report approved by : Hisayuki Honda [ Manager ] This equipment complies with above standard or regulation under the test condition or test configuration shown on this test report. Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 5 of 18 pages SECTION 2. EQUIPMENT UNDER TEST The equipment under test (EUT) consists of the following equipment. Indication in the following left side column corresponds to section 5. SymbolItemModel No. Serial No. FCC IDManufacturer A)CD-ROMCR-594-B0229XXX00012IUO9TB084CRBMatsushita-Kotobuki DriveElectronics Ind., Ltd. Power ratings of EUT : +5V DC, 1.5A / +12V DC, 1.8A 2.1 Port(s) / Connector(s) : IDE Bus Connector(40pin), Head Phone Jack(Stereo Mini Plug), Audio Out Connector(4pin), Digital Audio Out Connector(2pin), DC IN Connector(4pin) 2.2 Oscillator(s) / Crystal(s) : OscillatorOperatingBoard name Remarks Frequency 33.86MHz33.86MHzMain PCBECC & ATAPI I/F IC Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 6 of 18 pages SECTION 3. SUPPORT EQUIPMENT USED The EUT has been supported by the following equipment during these tests. Indication in the following left side column corresponds to section 5. SymbolItemModel No.Serial No.FCC IDManufacturer B)Interface CardLMEP0345ANoneIUO9TB035CRIMatsushita- Kotobuki C)Host ComputerOptiPlex GXaSPHWXDeclaration ofDELL DCSConformity D)Head PhoneRP-HT28NoneN.A.Panasonic E)Stereo RadioRX-F5NoneACJ9TBRX-F5Panasonic Cassette Recorder F)KeyboardSK-1000REWM970911905GYUR36SKDELL G)Color DisplayXC-1429C009133290BGB9J5XC-1429CMITSUBISHI H)Printer3630A3219A17397BSD8533630AHEWLETT PACKARD I )ModemC202A010489BKM552C202AEPSON Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 7 of 18 pages SECTION 4. CABLE(S) USED The following cable(s) was used for testing. Indication number in the following left side column corresponds to section 5. NumberNameLengthShieldFromTo 1)40Pin Flat cable0.4 mNoneCD-ROM DriveHost Computer Plastic connector 2)Audio cable 0.4 mNoneCD-ROM DriveInterface Card Plastic connector 3)Digital Audio cable0.4 mNoneCD-ROM DriveInterface Card Plastic connector 4)DC Power cable0.4 mNoneCD-ROM DriveHost Computer 5)Head Phone cable 1.5 mNoneCD-ROM DriveHead Phone Plastic connector 6)Audio cable 1.0 mNoneInterface CardStereo Radio Cassette Recorder 7)Audio cable 1.0 mNoneInterface CardStereo Radio Cassette Recorder 8)Keyboard I/F cable1.9 mYesHost ComputerKeyboard Metal connector 9)Video Signal1.4 mYesHost ComputerColor Display cableMetal connector None : All cables are not attached ferrite core. Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 8 of 18 pages The following cable(s) was used for testing. Indication number in the following left side column corresponds to section 5. NumberNameLengthShieldFromTo 10)Parallel I/F cable1.5 mYesHost ComputerPrinter Metal connector 11)RS-232C I/F cable1.1 mYesHost ComputerModem Metal connector 12)Power cord for 2.0 mYesHost ComputerPower Source Host Computer 13)Power cord for Stereo1.9 mNoneStereo RadioPower Source Radio Cassette RecorderCassette Recorder 14)Power cord for 1.5 mNoneColor DisplayPower Source Color Display 15)Power cord for Printer2.0 mNonePrinterAC Adapter 16)Power cord for Printer2.0 mNoneAC AdapterPower Source 17)Power cord for Modem1.9 mNoneModemPower Source None : All cables are not attached ferrite core. Report No. MKM00F-003 FCC ID : IUO9TB084CRB Page 9 of 18 pages SECTION 5. CONSTRUCTION OF EQUIPMENT The construction of EUT during testing is as follows. System configuration * : EUT D) Head PhoneG) Color Display 5 9 11 10 6 7 C) Host Computer E) Stereo I) B)Interface Card H) Printer RadioModem Cassette 2 Recorder3A)4 CD-ROM 1Drive DC +5V, 1.5A 15 * DC +12V, 1.8A 20V AC 60Hz AC Adapter 8 13 14 17 F) Keyboard 9V DC 500mA 6V DC 700mA 12 16 AC Adapter AC Adapter 120V AC120V AC120V AC 120V AC120V AC 60Hz60Hz60Hz 60Hz60Hz Symbol or numbers as…
