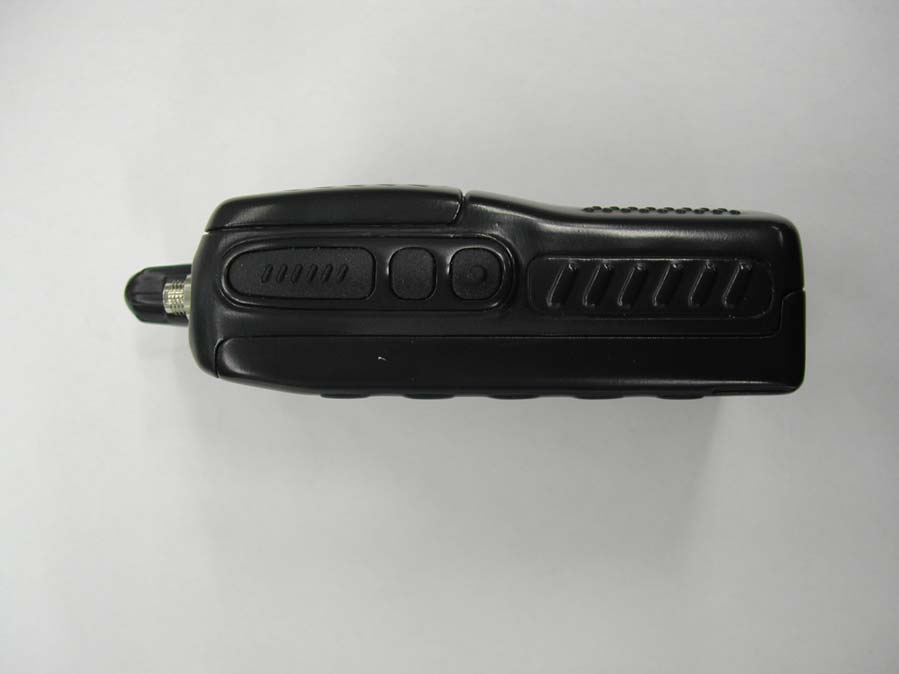

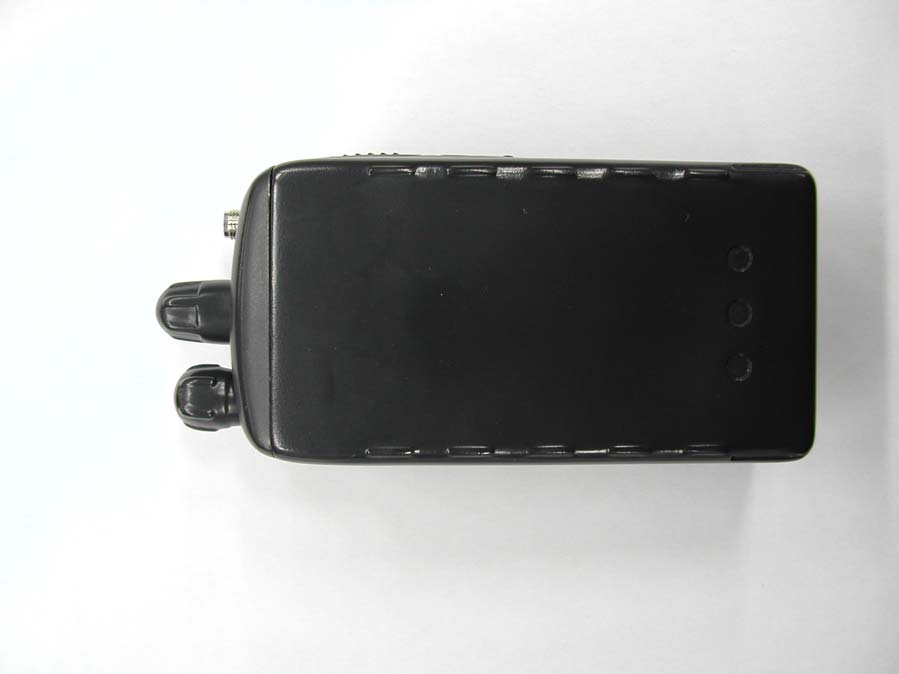

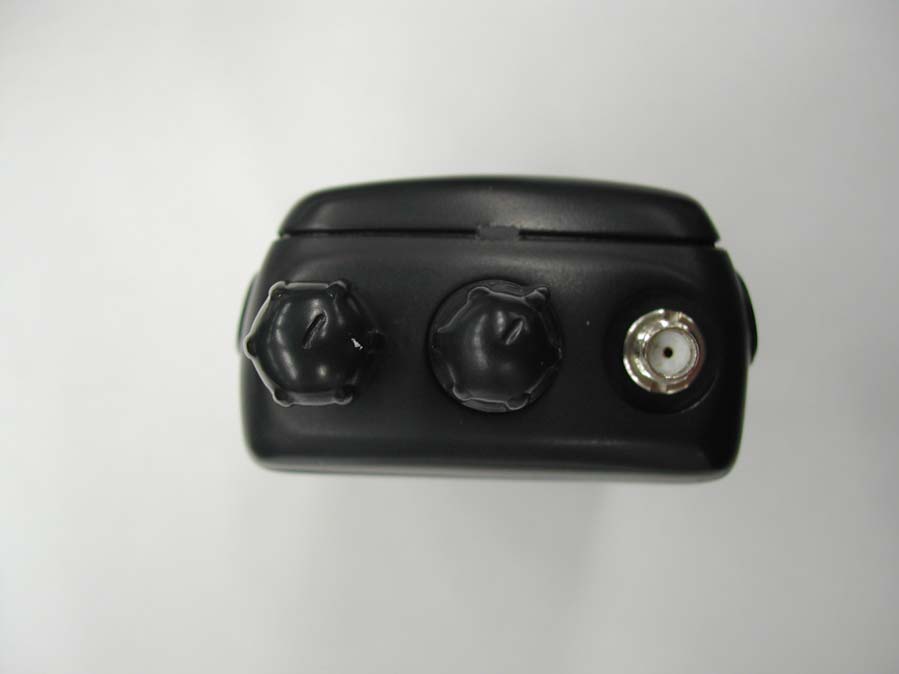

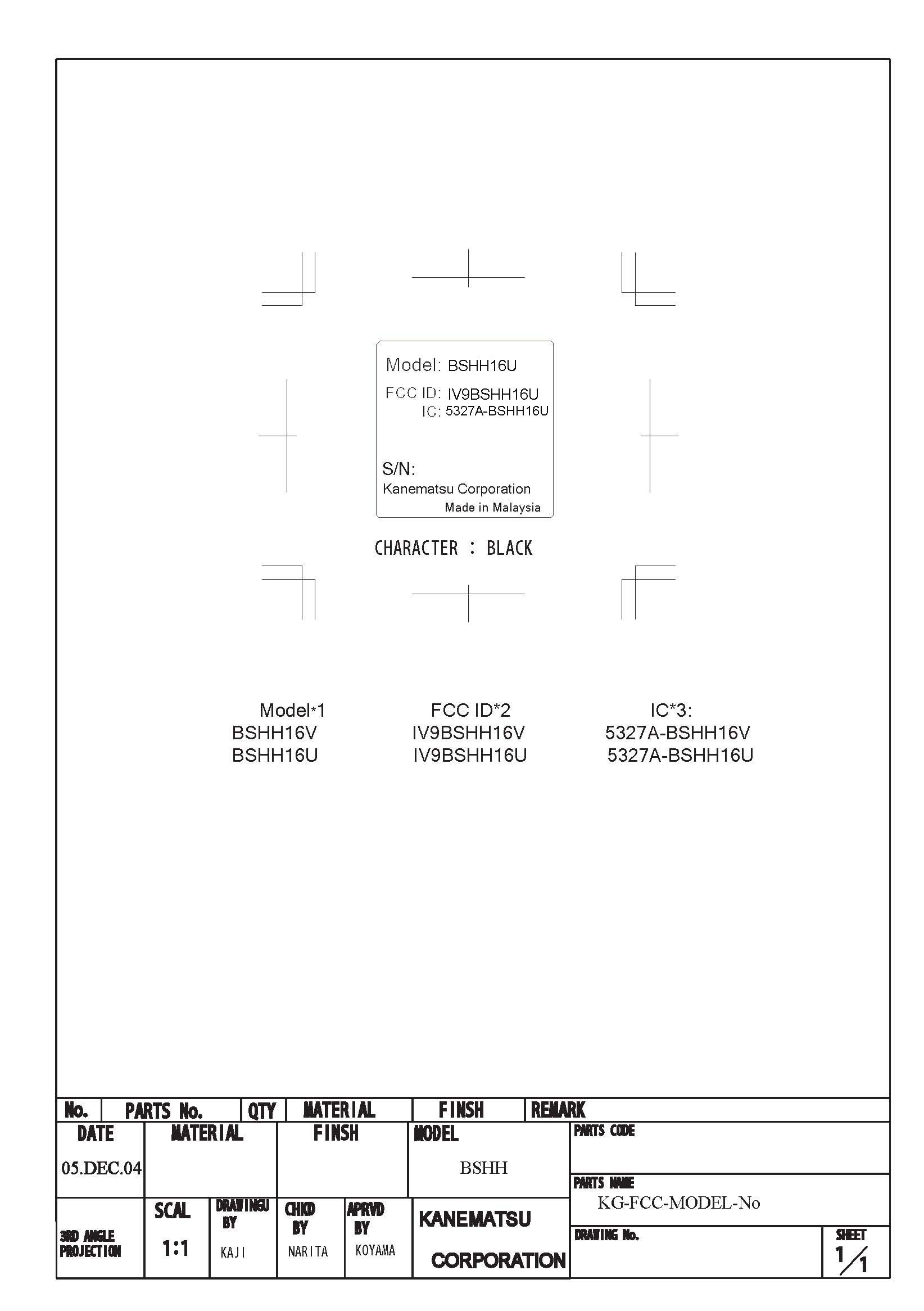

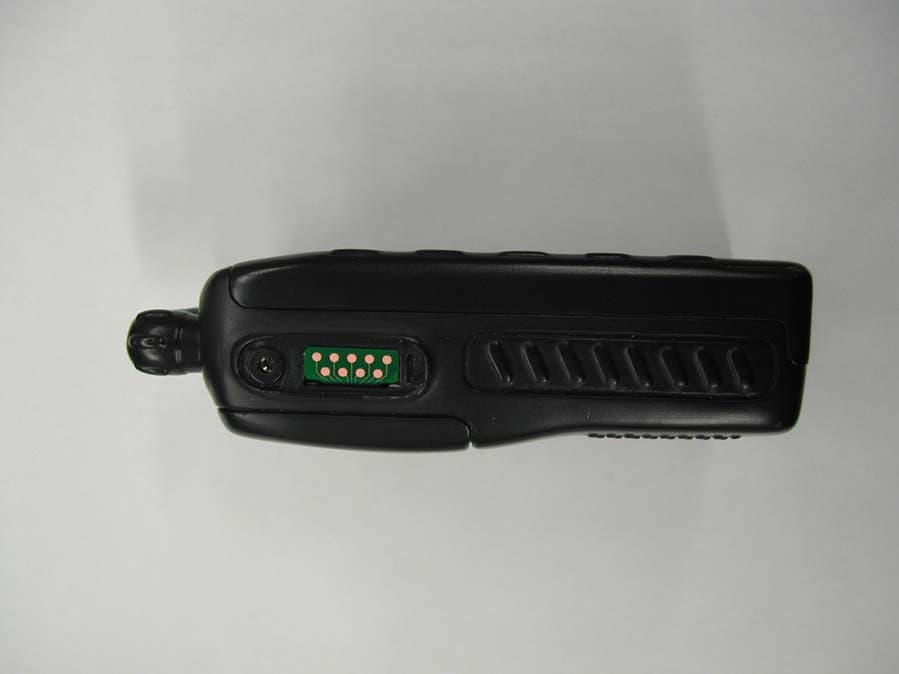

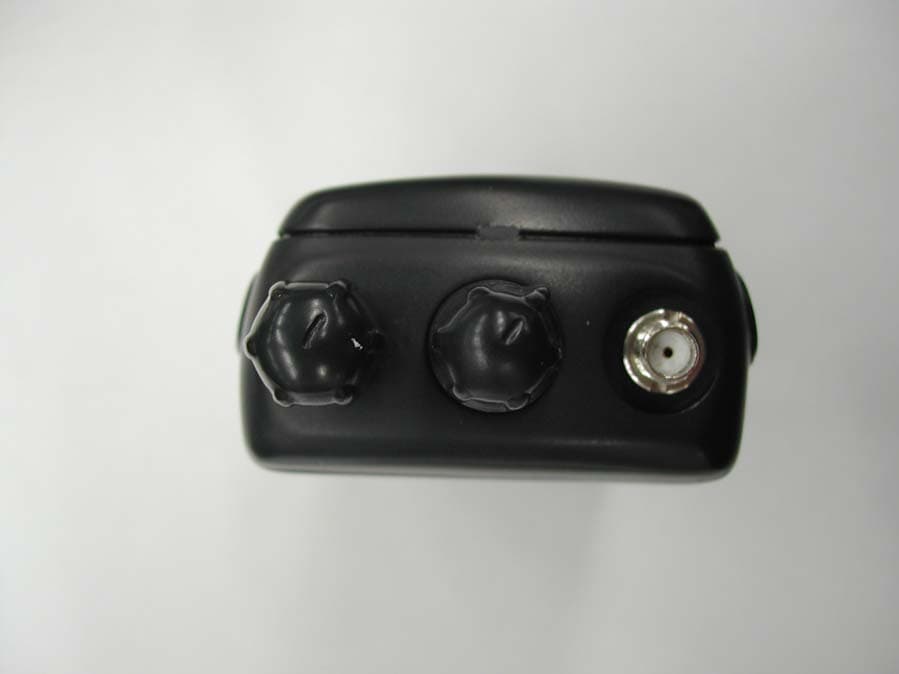

IV9BSHH16UUHF Transceiver

BS HH1 6 Users Manual INTRODUCTION This Manual describes the operation for the Kanematsu Handheld radio This Handheld is full-featured FM transceiver designed for flexible mobile business communications in the VHF or UHF Land mobile bands. This Land mobile radio can be programmed with 16 channels. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and easily programmable by dealers using personal computer and PC EDITER software. FCC Requirements Your radio must be properly licensed Federal Communications Commission prior to use. Your Wireless dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signaling codes, etc., and will be there to meet your communications needs as your system expands. This device complies with part 15 of the FCC Rules. Operation is subject to the Condition that this devices does not cause harmful interference . NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. SAFETY WARNING INFORMATION READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR LAND MOBILE RADIO  Only qualified technicians are allowed to repair this product.  Do not operate the radio without a proper antenna attached. As this may damage the radio and may also cause to exceed FCC RF exposure limits.  Typical electronic systems that may malfunction due to the lack of protection from radio frequency energy present when transmitting. If the vehicle contains such equipment, consult the dealer.  Just as it is dangerous to fuel a vehicle with motor running, similar hazard exist when operation a mobile radio. Be sure to turn the radio off while fueling a vehicle.  Do not operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits.  Do not transmit for more than 50% of total radio use time. Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. Always obey the “Turn Off Two –Way radios” signs posted where dynamite is being used.  Do not install the radio in the closed compartment that contains an LP gas container or its fitting.  No changes or adjustments shall be made to the equipment except by an authorized or certified electronic technician.  Using your radio to send personal messages is a violation of FCC rules. Control and Connectors FRONT PANEL 1 VOL/PWR Knob (3) Turn this control clockwise to turn the radio on and increase the volume. Turn it counterclockwise into the click-stop to the radio off. 2 BUSY/TX Indicator Indicate transceiver Transmit/Receive Status Steady Red: Transmitting in progress Steady Green: Busy Channel 3 Channel Selectable Knob (2) Selectable channel Knob. 4 UDC Terminal (7) Connect the microphone or speaker. An external loudspeaker may be connected to this 2-contact. Caution: Do not connect either wire of this line to ground, and be certain that the speaker has adequate capability to handle the audio output (4W) from the radio. 5 Moniter Buttons (6) All channel activity can be monitored by pressing the button. 6 SCAN Button (5) Switches the Scan Mode on and off. 7 Antenna Connector ( 1) The 50-ohm to the antenna must be connected here, using a SMA plug. 8 7.2V DC Input The supplied Battery must be connected to this 2-contact. BASIC OPERATION Important! – Before turning on the radio the first time, confirm that the power connections have been made correctly and that a proper antenna is connected to the antenna jack. Overview -Your authorized Dealer can program your radio for Conventional format. RECEIVE Switching Power ON Turn power on by the VOL/PWR knob. The radio will beep. Setting the volume Turn the VOL/PWR knob clockwise to increase the volume, and counterclockwise to decrease it. Select a Channel Use the rotary switch (channel knob) to select the operating channel. Transmitting Press the Monitor button to listen for channel activity When receiving a call, transmit only after the incoming call ends. The radio cannot receive a call and transmit simultaneously. Press PTT switch. If the channel is clear, the BUSY/TX indicator will grow red. The radio is now transmitting. While holding in the PTT switch, speak across the face of the microphone in a clear and normal voice. For best transmission, hold the microphone about 1-1/2 to 2 inches away from your month. Release the PTT switch to receive. If the Busy Channel Lockout feature has been programmed on a channel, the radio will not transmit when a carrier is present. Instead, the radio will generate a continuous low-pitched tone wile PTT switch is pressed. Release the PTT switch and wait for the channel to be clear of activity. If CTCSS or Digital Code Squelch (DCS) Lockout has been programmed on a channel, the radio can transmit only when there is no carrier being received or when the carrier being received includes the correct CTCSS tone or DCS code. Time-Out Timer If the selected channel has been programmed for Time-Out timer, you must limit the length of each transmission, Wile transmitting, a beep will sound 10 seconds before time-out. Another beep will sound just before the deadline; The TX indicator will disappear the transmission will cease soon thereafter. To resume transmitting, you must release the PTT switch and wait for the “penalty timer “ to expire (if you press the PTT switch before this timer expires, the timer restarts, and you will have to wait another “penalty” period) ADVANCED OPERATION MONITOR Press the monitor button hears background noise (unmute the audio); the BUSY/TX indicator will grow green. SCAN The Scanning feature is used to monitor multiple channels programmed into the transceiver. While scanning, transceiver will check each channel for the presence of a signal, and will stop on a cha…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 29-Nov-2004 Sheet of File:  \\ Fs\fs_c\3_‹@Ží•ÊŽ‘—¿\BSHH\BasicHH\‰ñ ̃H }\Main1. 24.Ddb Drawn By: 1st MIX 2nd Lo P.L BEEP LEV1 TUNE APC VCO TUNE TUNE APC TONE 3.3V5VRX ANT B RX 5VTX 6V SW B PS ST_BY D/A Cont SPC_CHK 2TONE_DETVOX_CHKDCS_DECSQL_CHK 2TONE DET BOX DET DCS_DECSW4SW3SW2SW1U.L BATT CHK RX 5V RX 5V RX 5V RX 5V RX 5V VBB VBB TX 6V TX 6V TX 6V TX 6V TX 6V D/A Cont(RX MUTE,N/W) D/A Cont(MIC MUTE/MIC GAIN) BEEP TONE PS 3.3V PS 3.3V VBB D101/102 D103/104 Q101 D105/106 Q403 Q402 Q401 IC401B IC401A ANT LPF ANT ANT SW BPF RF AMP BPF Pri AMP Power AMP APC AMP APC DET SW SPC_CHK SQL CHK RX 5VD202 D203 F203F204 D201 RX 5V CD201 BUFF AMP 1st IF BPF 2nd IF BPF2nd IF BPF 2nd MIX 2nd Lo IC201 SW SW Noise AMP Noise DET2nd IF AMP TX VCO RX VCO PLL_CLK TCXO PLL_LOCK PS 3.3V BUFF AMP BUFF AMP 1/N PHASEDET CHG PUMP 1/N PHASEDET CHG PUMP 1/N1/N BUFF DETLOCK SHIFT REG Loop Fil SWSW RX 8V TX 3.3V Q307 Q306 Q302 Q301 X301 D301Q303 D304/Z301 D302/303 Q304 IC301 5V5V 5V 3.3V PLL_LEPLL_DATA Loop Fil PS 3.3V MOD 5V Q308 BUFF AMP ATT PL H.P.F. PL DET ATT ATT VR H.P.F. MIC AMP VOX DET VOX AMP AMP(LIM) LPF SP AMP INT SP DRV AMP SW RX5 SW AMP PL LPF Q804 SW IC801 CPU 3.3V Q805 SW RESET 3.3V IC802 RESET IC804 3.3VEEP_CLKEEP_SDA EEPROM 3.3V REG5V REG SHIFT SW D/A IC803 TEMP DET RX SWANT SWPS SW Q406 Q102 F201/202 Q201 5V 5V SW VBB SW B SW EXT SP INT_SP IC202B/C/D IC202A QUAD DET IC803 3/8 IC502 IC803 8/8 IC501A IC501B IC503 IC504 IC803 7/8 Q502 IC805 RL901 Q803 IC501C 5V IC501D SW TX 3.3V Q305 VCO Q404/405Q602Q701/702IC702IC701 SHIFTTX_LEDBUSY_LED DAC_LDCLKDATA Q801 D901 2/2 D901 1/2 SW5 BEEP BEEP LEV2 PLL_CLKPLL_LEPLL_DATA D501 UDC_DET

CIRCUIT DESCRIPTION: BS HH16 UHF GENERAL INFORMATION The BS HH16 UHF has two printed circuit boards; Interface board, Radio Frequency, CPU and Audio Frequency (RF) board. The RF board contains the VCO/Synthesizer section, Transmitter Section, Receiver Section, Transmitter Audio circuitry, CPU (the Microprocessor/Control Section). Receiver Audio circuitry, and Battery Section. MICROPROCESSOR / CONTROL SECTION The microprocessor IC801 is constantly operating when the radio is turned ON. It is continuously monitoring,the PTT line and other internal inputs such as the squelch detect, etc. When a change occurs, the microprocessor makes the appropriate response. The microprocessor is used for control. The Radio emits a beep on channel change and the synthesizer is loaded with the correct frequency information. The microprocessor runs off a 8.4 MHz oscillator which is composed of X801, C802,C803,C804 and R802. When the radio is first turned on, the microprocessor reads the radio status from the EEPROM IC804. VCO / SYNTHESIZER SECTION This section consists of the Temperature-Compensated Crystal Oscillator (TCXO) circuit (X301), Voltage Controlled Oscillators (VCO) circuit, Synthesizer and the Loop Filter. Temperature-Compensated Crystal Oscillator (TCXO) circuit The circuit of TCXO is included in X801. The temperature compensated crystal-oscillator is held within the specified ±2.5 PPM from -30 to +60 degree C. Voltage-Controlled Oscillators circuit Only one of the VCOs runs at a time, which is controlled by IC801. When the PTT is pressed, IC801 pin55 goes low (approx. 0V) disabling the receive VCO by the Q302 and biases on Q304 to enable the transmitter VCO. The receive VCO consists of C301-C308, L301, L303, and Q301, Q302. This VCO oscillates at 45.1 MHz above the programmed receive frequency. The VCO’s oscillating frequency is tuned by the varactor D301 . The tuning voltage is supplied from the output of the Loop Filter. The output of the VCO is AC coupled (C303,312) to the synthesizer and the output VCO Q301,303 respectively. The output of the VCO buffer Q307 is AC coupled (C344) to the synthesizer and the output buffer Q308 respectively. The transmitter VCO consists of C312-C318, L304, L305, Q303, Q304 and D302. This VCO oscillates on the programmed transmit frequency. The VCO’s oscillating frequency is tuned by the varactor D304. The tuning voltage is supplied from the output of the Loop Filter. The transmit voltage controlled oscillator is directly frequency-modulated and operates on the carrier frequency. In the receive mode, the transmit VCO is disabled and the receive VCO is enabled, producing the receive local oscillator signal at a frequency 45.1MHz above the incoming receive frequency. The synthesizer is tuned in 5.00kHz or 6.25kHz step. Synthesizer The frequency synthesizer is a large-scale monolithic synthesizer integrated circuit IC301. The synthesizer IC contains a dual modulus prescaler, programmable divide-by-N counter, prescale control (swallow) counter, reference oscillator, reference divider, phase detector, charge pump and lock detector. Also, included in IC301 are shift registers and control circuits for frequency controls and general device control. RF output from the active VCO is AC coupled to the synthesizer IC301 prescaler input at Pin 8. The divide counter chain in IC301 , consisting of the dual-modulus prescaler, swallow counter and programmable counter, divides the VCO signal down to a frequency very close to 5.00kHz or 6.25kHz which is applied to the phase detector. The phase comparator compares the phase with the 5.00kHz or 6.25kHz reference signal from the reference divider. The synthesizer unlock detector circuit prevents the operation of the transmitter and receiver, when the phase lock loop (PLL) is unlocked. The following discussion assumes the unit has been placed in the transmit mode. IC301 lock detector Pin 6 goes high when the PLL is locked. This high level is applied to Pin 20 of the microprocessor IC801. A software timing routing brings the ANT _B/TX line High (Pin 28, 29 of IC801). With the ANT_B/TX line High, Q405 is on and Q405 is biases on passing TX6 to Q404, it biases on Q404 to pass switched TX6 to the transmitter amplifier string which enables transmission. When the PLL become unlocked, the lock detector at IC301 Pin7 will begin pulsing low. A RC circuit converts pulsing low to a low level for the microprocessor. The microprocessor then changes the RX/TX line to a high, thus signaling the other transistor switches to drive Q404 into cutoff which disable transmission. Loop Filter The Loop Filter, a passive lead-lag filter consisting of R312-R316, VR301 and C325-C327 output to produce the DC turning voltage for the VCO. One parasitic pole, consisting of RFchokes L303/L306, prevent modulation of the VCOs by the 5.00kHz or 6.25kHz reference energy remaining at the output of the loop filter. Direct FM is obtained for modulating frequencies outside the PLL bandwidth by applying the CTCSS/DCS signals and the pre-emphasized, limited microphone audio to the VCO modulation circuit. The modulation circuit consists of R310 and C324 . TRANSMITTER SECTION RF POWER Amplifier After the PTT is pressed, the TX6 line switches to approximately 6V. Q304 is turned on enabling transmit VCO. The VCO buffer, pre-driver, driver and power amplifier are biased on by Q404 and Q304. RF output from the transmit VCO(Q303) is applied to the VCO output buffer Q307. Output from Q307 feeds the buffer Q308 . The output signal from Q308 feeds the pre-driver amplifier Q401 , and feeds the driver amplifier Q402 , whose output from the driver stage feeds the final RF power amplifier Q403 to produce the rated output power of 4Watts. The output of the final is applied to a low-pass filter ( C414-C421 , C428 , L418 and L419) and then to the transmit/receive switch D101. RF power is then fed to the antenna via the output low-pass filter consisting of C101-C105, L101-104. Antenna Switchin…

Text truncated - open the document above for the full version.

Timco Engineering, Inc. TCB Application Form 731 Rev 07 Mar 03 Shaded areas are REQUIRED Item 1. Applicant’s complete, legal business name: KANEMATSU USA INC. Applicant’s FCC Registration Number (FRN): 0011-3337-70 Item 2. Applicant’s mailing address: fill in fields, as appropriate Line 1:543 WEST ALGONQUIN ROAD Line 2: P.O. Box: City:ARLINGTON HEIGHTS State: ILLINOIS Country (if foreign address): USA Zip/Postal Code: 60005 Item 3. Applicant Contact Person: First Name:HIRO Last Name:TAKEDA Title:OEM COMMUNICATION Telephone:847-981-5600 E-mail:[email protected] Fax No.:847-981-6763 Item 4. FCC ID consisting of: Grantee Code: IV9 Equipment Product Code (14 characters maximum): BSHH16U include “dashes” (-) where appropriate Item 5. Application Contact: All questions regarding the application will be directed to this contact. The Original Grant and Invoice will be sent to this contact. Firm Name: Timco Engineering, Inc. Telephone: 888-472-2424 Ext: Fax: No.: 352-472-5500 First Name:Mario Middle Initial:R Last Name:de Aranzeta Address Line 1:849 NW State Road 45 P.O. Box: Address Line 2: City:Newberry State:FL Country (if foreign address): Zip/Postal Code:32669 E-mail:[email protected] Telephone:888-472-2424 Fax:352-472-5500 Item 6. Test Firm Used to Take Measurements: Firm Name: Timco Engineering, Inc. Telephone: 888-472-2424 Ext.: Fax No.: 352-472-2030 First Name:Mario Middle Initial:R Last Name:de Aranzeta Address Line 1:849 NW State Road 45 P.O. Box: Address Line 2: City:Newberry State:FL Country (if foreign address): Zip/Postal Code:32669 E-mail:[email protected] FCC Registered Test Site Number. Required for Part 15 and 18 applications. Item 7. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR 0.459 of the Commission Rules? Yes No Item 8. *Is this application for modular approval? Yes No If yes, please submit a cover letter addressing the modular approval requirements of DA 00-1407. Item 9. *Is this application for software defined radio authorization? Yes No Item 10. Equipment Class: 3-digits required TNF Description of Product as it is marketed: UHF TRANSCEIVER For Timco Use Only Job Number 2048UT4 Scope Date Filed Conf. # Grant Note Item 11. *Application is for: Original Equipment Change in identification of presently authorized equipment: Original FCC ID Grant Date (MM/DD/YYYY) Class II permissive change or modification of presently authorized equipment Class III permissive change to software defined radio Note: this may only be filed for applications pertaining to Software Defined Radio Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered “Yes” complete section 12 (c). Yes No Yes No (c) The related application: has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. * Equipment will be operated under FCC Rule Part(s): 90 Item 14. EQUIPMENT SPECIFICATIONS: Where applicable Frequency range in MHz Low Freq High Freq Rated RF power output IN WATTS Frequency tolerance %, Hz, ppm Emission Designator (See 47 CFR 2.201 and 2.202) Microprocessor model number 430 470 4.10 2.5 ppm 15K2F3E 430 470 1.12 2.5 ppm 15K2F3E 430 470 4.10 2.5 ppm 10K6F3E 430 470 1.12 2.5 ppm 10K6F3E Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312 (a) (1)), AND/OR FORFEITURE (U.S. TITLE 47, SECTION 503). (Continued on Next Page) Item 15. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above Section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. *Signature of Authorized Applicant:Mario R. de Aranzeta Title of Authorized Signature:Engineer NOTE: An asterisk ‘*’ preceding a field indicates it must be completed.

Timco Engineering, Inc. TCB Application Form 731 Rev 07 Mar 03 Shaded areas are REQUIRED Item 1. Applicant’s complete, legal business name: KANEMATSU USA INC. Applicant’s FCC Registration Number (FRN): 0011-3337-70 Item 2. Applicant’s mailing address: fill in fields, as appropriate Line 1:543 WEST ALGONQUIN ROAD Line 2: P.O. Box: City:ARLINGTON HEIGHTS State: ILLINOIS Country (if foreign address): USA Zip/Postal Code: 60005 Item 3. Applicant Contact Person: First Name:HIRO Last Name:TAKEDA Title:OEM COMMUNICATION Telephone:847-981-5600 E-mail:[email protected] Fax No.:847-981-6763 Item 4. FCC ID consisting of: Grantee Code: IV9 Equipment Product Code (14 characters maximum): BSHH16U include “dashes” (-) where appropriate Item 5. Application Contact: All questions regarding the application will be directed to this contact. The Original Grant and Invoice will be sent to this contact. Firm Name: Timco Engineering, Inc. Telephone: 888-472-2424 Ext: Fax: No.: 352-472-5500 First Name:Mario Middle Initial:R Last Name:de Aranzeta Address Line 1:849 NW State Road 45 P.O. Box: Address Line 2: City:Newberry State:FL Country (if foreign address): Zip/Postal Code:32669 E-mail:[email protected] Telephone:888-472-2424 Fax:352-472-5500 Item 6. Test Firm Used to Take Measurements: Firm Name: Timco Engineering, Inc. Telephone: 888-472-2424 Ext.: Fax No.: 352-472-2030 First Name:Mario Middle Initial:R Last Name:de Aranzeta Address Line 1:849 NW State Road 45 P.O. Box: Address Line 2: City:Newberry State:FL Country (if foreign address): Zip/Postal Code:32669 E-mail:[email protected] FCC Registered Test Site Number. Required for Part 15 and 18 applications. Item 7. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR 0.459 of the Commission Rules? Yes No Item 8. *Is this application for modular approval? Yes No If yes, please submit a cover letter addressing the modular approval requirements of DA 00-1407. Item 9. *Is this application for software defined radio authorization? Yes No Item 10. Equipment Class: 3-digits required TNF Description of Product as it is marketed: UHF TRANSCEIVER For Timco Use Only Job Number 2048UT4 Scope Date Filed Conf. # Grant Note Item 11. *Application is for: Original Equipment Change in identification of presently authorized equipment: Original FCC ID Grant Date (MM/DD/YYYY) Class II permissive change or modification of presently authorized equipment Class III permissive change to software defined radio Note: this may only be filed for applications pertaining to Software Defined Radio Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered “Yes” complete section 12 (c). Yes No Yes No (c) The related application: has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. * Equipment will be operated under FCC Rule Part(s): 90 Item 14. EQUIPMENT SPECIFICATIONS: Where applicable Frequency range in MHz Low Freq High Freq Rated RF power output IN WATTS Frequency tolerance %, Hz, ppm Emission Designator (See 47 CFR 2.201 and 2.202) Microprocessor model number 430 470 4.10 2.5 ppm 15K2F3E 430 470 1.12 2.5 ppm 15K2F3E 430 470 4.10 2.5 ppm 10K6F3E 430 470 1.12 2.5 ppm 10K6F3E Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312 (a) (1)), AND/OR FORFEITURE (U.S. TITLE 47, SECTION 503). (Continued on Next Page) Item 15. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above Section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. *Signature of Authorized Applicant:Mario R. de Aranzeta Title of Authorized Signature:Engineer NOTE: An asterisk ‘*’ preceding a field indicates it must be completed.

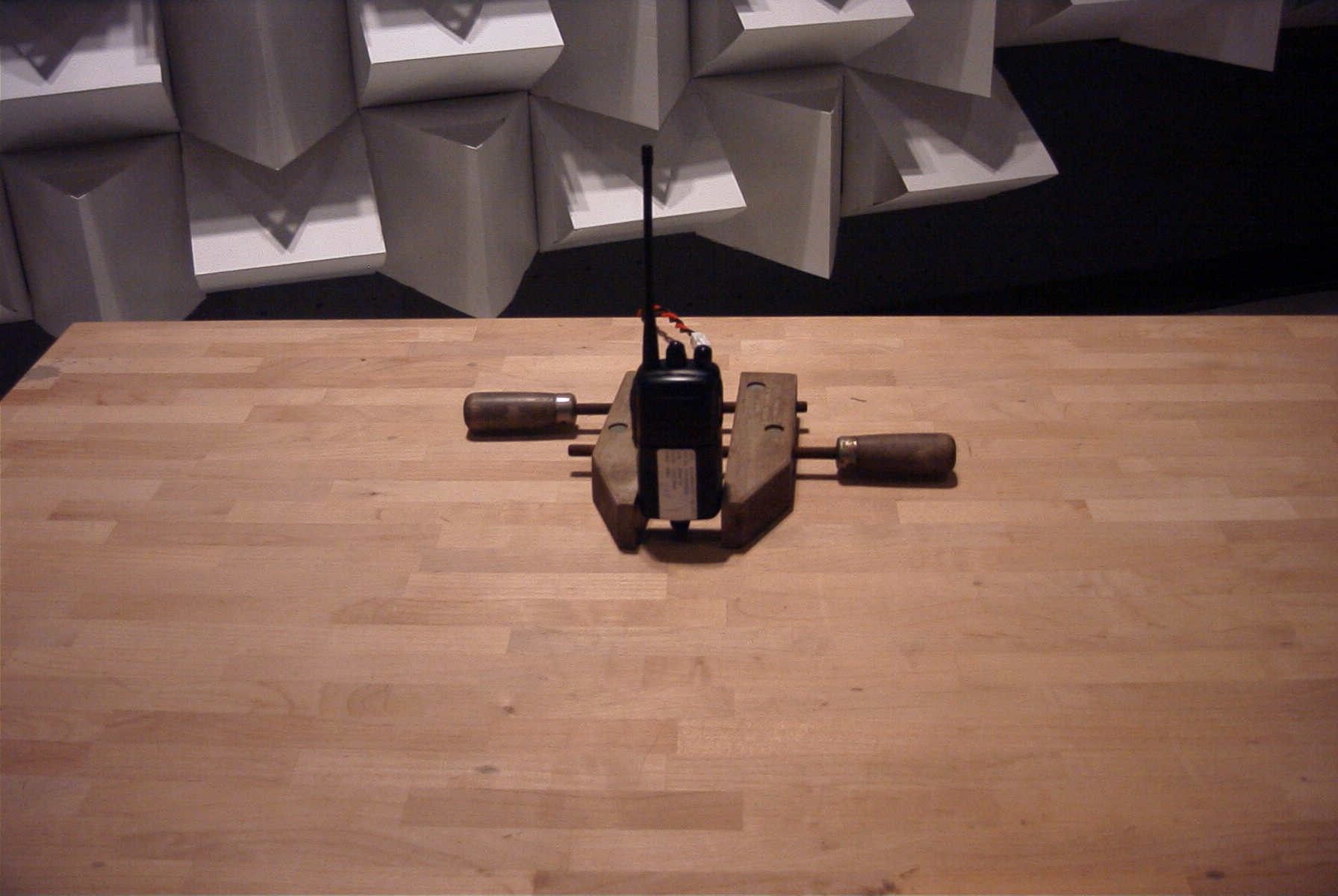

© 2005 Celltech Labs Inc. 1 of 20 Test Report S/N: 121504IV9-T607-S90U Test Date(s): January 10, 2005 Test Type: FCC/IC SAR Evaluation Performed By: Spencer Watson Compliance Technologist Celltech Labs Inc. Reviewed By: Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information KANEMATSU USA INC. 543 West Algonquin Road Arlington Heights, Illinois 60005 United States FCC IDENTIFIER: IV9BSHH16U IC IDENTIFIER: 5327A-BSHH16U Model(s): BSHH16U Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Description: Portable FM UHF PTT Radio Transceiver Modulation Type: FM (UHF) Tx Frequency Range: 430 - 470 MHz Max. RF Output Power Tested: 36.12 dBm Conducted (450.125 MHz) Antenna Type(s) Tested: Detachable Whip Battery Type(s) Tested: NiMH (7.5 V, 1500 mAh) Body-Worn Accessories Tested: n/a (radio does not have provision for body-worn transmit operation) Max. SAR Level(s) Evaluated: 3.61 W/kg - Face-held (50% Duty Cycle) © 2005 Celltech Labs Inc. 2 of 20 Test Report S/N: 121504IV9-T607-S90U Test Date(s): January 10, 2005 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM................................................ 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES.......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS........................................... 9 11.0PROBE SPECIFICATION.......................................................... 10 12.0PLANAR PHANTOM................................................................. 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST............................................................ 11 16.0MEASUREMENT UNCERTAINTIES............................................. 12-13 17.0REFERENCES.........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 Applicant: Kanematsu USA Inc. FCC ID: IV9BSHH16UIC ID: 5327A-BSHH16U Model:BSHH16UPortable FM UHF PTT Radio Transceiver 430 - 470 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 20 Test Report S/N: 121504IV9-T607-S90U Test Date(s): January 10, 2005 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates that the Kanematsu USA Inc. Model: BSHH16U Portable FM UHF PTT Rad…
