IWD-W3900006CDMA/CELL 850 Pico-repeater

Radio Frequency Systems Inc
CDMA/CELL 850 Pico-repeater - FCC ID IWD-W3900006 - Radio Frequency Systems Inc
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Feb 08, 2010
Application Purpose
Original Equipment
Date of Application
Feb 08, 2010
Equipment Note
CDMA/CELL 850 Pico-repeater
Frequency Range
869.00000000 - 894.00000000
Company
Radio Frequency Systems Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

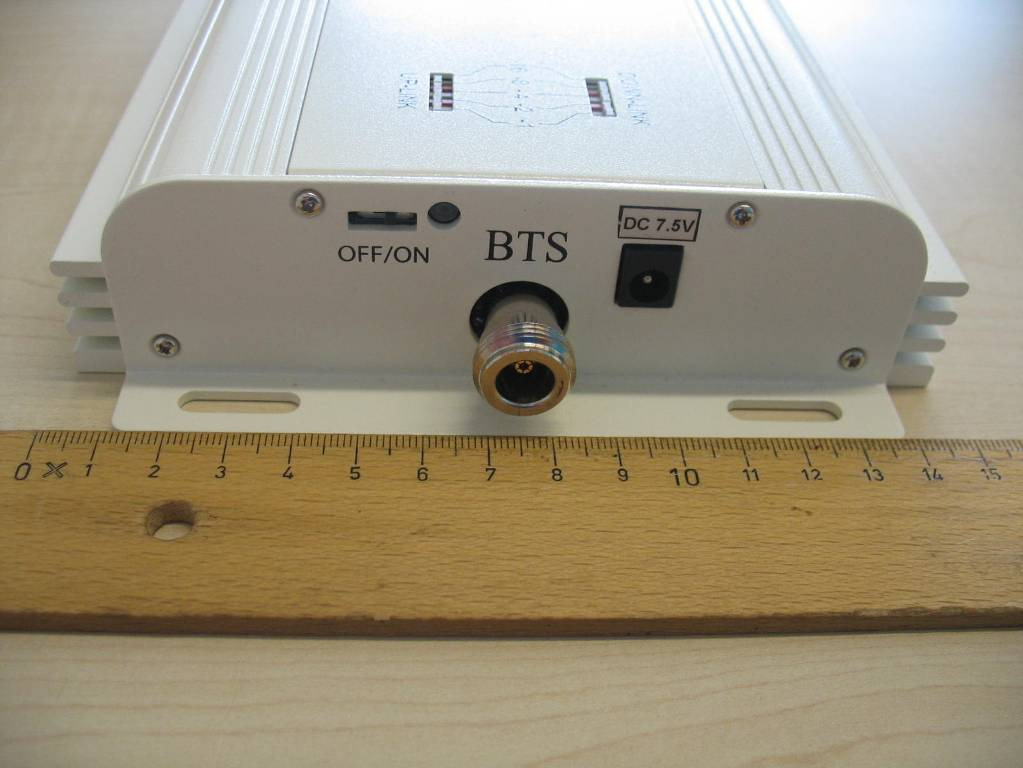

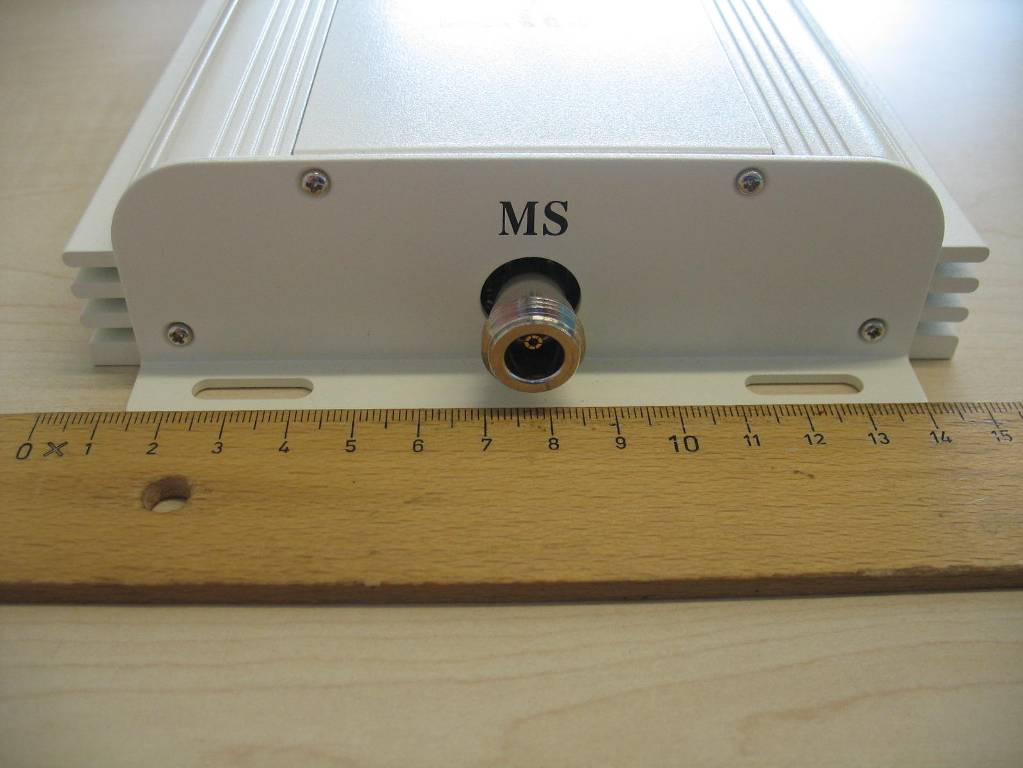

External Photos

↗

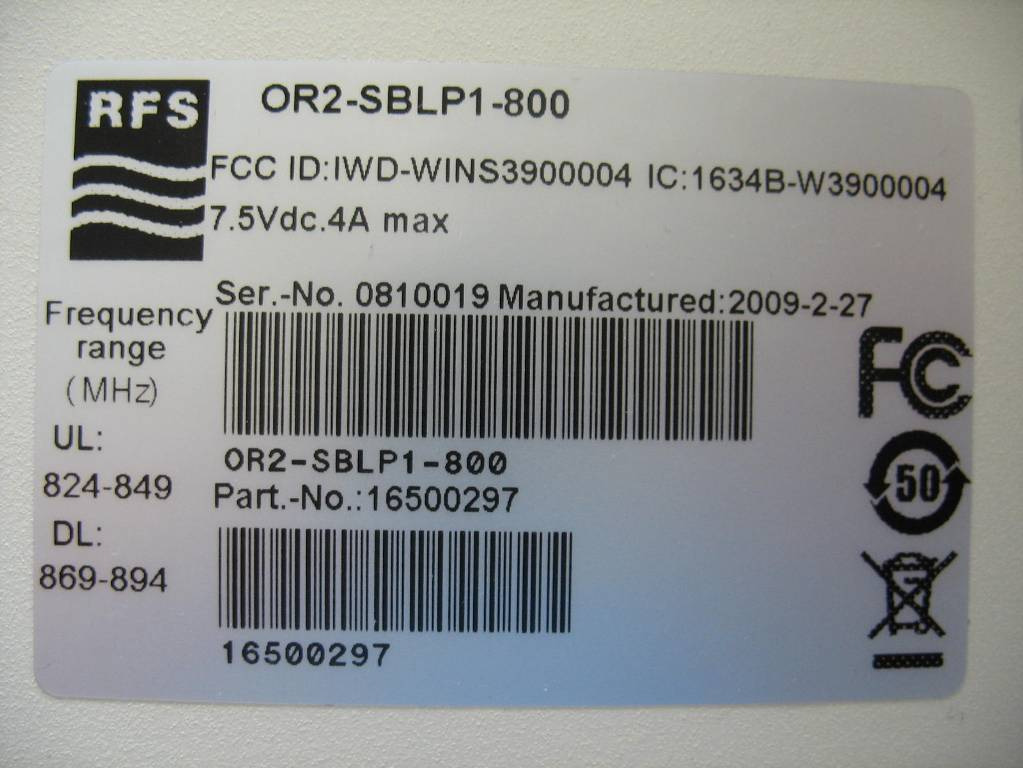

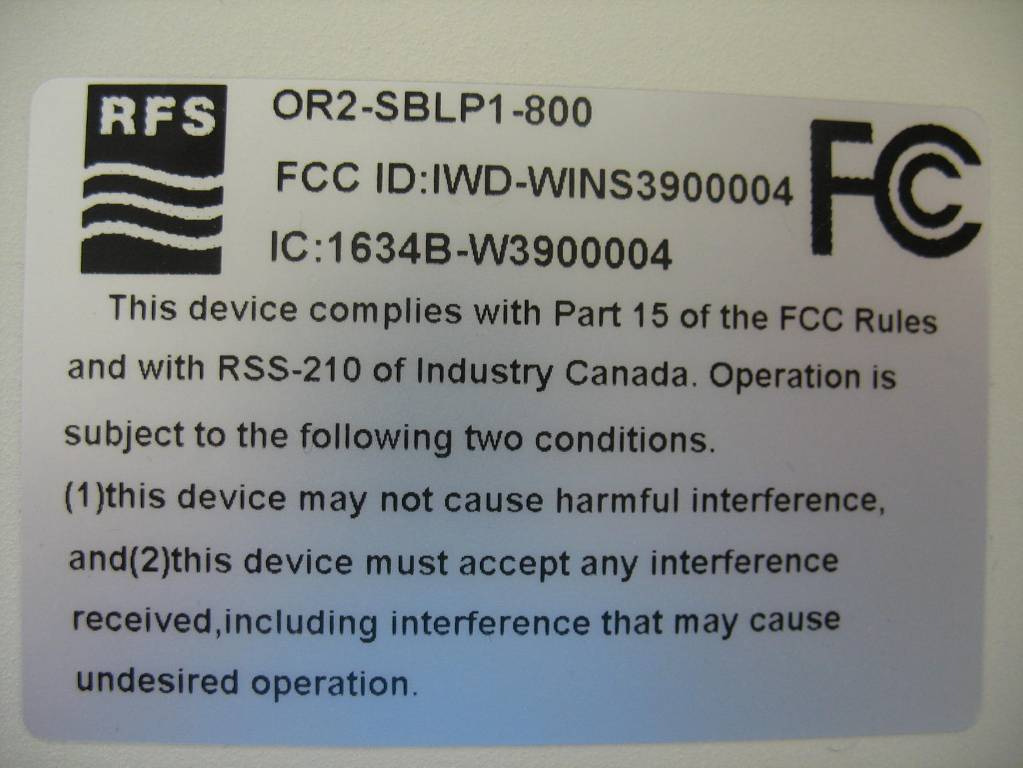

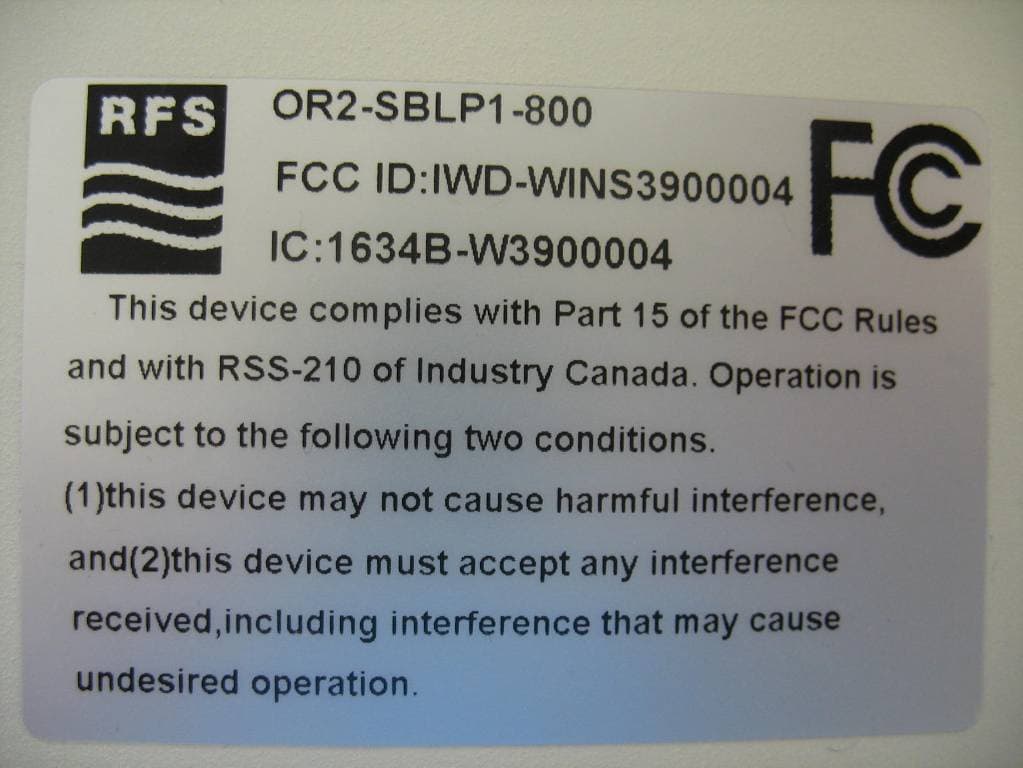

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 45 of 49 6 Photographs of EUT 6.1 External Photos Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 46 of 49 Photo 3: Photo 4: (ID ́s not actual) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 47 of 49 Photo 5: (ID ́s not actual) Photo 6: (ID ́s not actual) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 48 of 49 Photo 7: Photo 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 49 of 49 Photo 9: Photo 10:

RF Exposure Info

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 8 of 49 3 Measurements and results For Part 24/22/90 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in CDMA mode. 3.1 CDMA 3.1.1 RF Exposure FCC: FCC §1.1307, §2.1091 IC: RSS-131 §5.5 MPE calculation These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 where S = power density ( in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 9 of 49 Antenna gain Worst case calculations: (G=S*4πR 2 / P) Downlink: Maximum peak output power at antenna input terminal (dBm): 21.1 Maximum peak output power at antenna input terminal (mW): 128.8 Prediction distance (cm): 20 Prediction frequency (MHz): 893.25 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 0.596 Maximum Antenna Gain (numeric): 23.24 Antenna Gain, typical (dBi): 13.67 Test result: The device is compliant with the requirement MPE limit for uncontrolled exposure at predication frequency 0.596 mW/cm. The maximum allowed antenna gain for a distance of 20 cm is 13.67 dBi (Downlink). Uplink: Maximum peak output power at antenna input terminal (dBm): 21.0 Maximum peak output power at antenna input terminal (mW): 125.9 Prediction distance (cm): 20 Prediction frequency (MHz): 824.75 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 0.550 Maximum Antenna Gain (numeric): 21.94 Antenna Gain, typical (dBi): 13.41 Test result: The device is compliant with the requirement MPE limit for uncontrolled exposure at predication frequency 0.550 mW/cm. The maximum allowed antenna gain for a distance of 20 cm is 13.41 dBi (Uplink).

Test Report

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 1 of 49 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3462C-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 1-1135-01-04/09 Applicant : RADIO FREQUENCY SYSTEMS Type : OR2-SBLP1-800-CELL Test Standard : FCC Part 22 RSS-132 Issue 2 FCC ID : IWD-W3900006 Certification No. IC : 1634B-W3900006 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 2 of 49 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 ADDITIONAL EUT INFORMATION FOR IC CANADA (APPENDIX 2).......................................................................... 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 CDMA .................................................................................................................................................................. 8 3.1.1 RF Exposure ................................................................................................................................................. 8 3.1.2 RF Power Output ........................................................................................................................................ 10 3.1.3 Radiated Emissions..................................................................................................................................... 11 3.1.4 Conducted Spurious Emissions ................................................................................................................... 21 3.1.5 Block Edge Compliance .............................................................................................................................. 25 3.1.6 Occupied Bandwidth ................................................................................................................................... 28 3.1.7 Intermodulation Tests ................................................................................................................................. 35 3.1.8 Out of Band Rejection ................................................................................................................................. 38 3.1.9 Conducted Emissions <30 MHz §15.107/207....................................................................................... 39 4 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS ........................................................................ 40 5 PHOTOGRAPHS OF TEST SET-UP .................................................................................................................... 43 6 PHOTOGRAPHS OF EUT...................................................................................................................................... 45 6.1 EXTERNAL PHOTOS............................................................................................................................................. 45 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 3 of 49 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Stefan Bös Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specif…

Text truncated - open the document above for the full version.

Test Setup Photos

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 43 of 49 5 Photographs of Test Set-up Photo 1: Radiated Emissions Photo 2: Radiated Emissions CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-04/09 Date: 2009-07-08 Page 44 of 49 Photo 3: Radiated Emissions Photo 4: Conducted Emissions

Contact Information

Applicant

Paul Carney(Senior RF Engineer)
[email protected]602-722-9684Fax: 203-821-3852

Test Firm

cetecom advanced GmbHGerald Schmidt
[email protected]49-681-598-0Fax: 49-681-598-8775

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
222H869 MHz - 894 MHz129.00 mWF9WAmp
Confidentiality
Long Term
Grant Notes
Power listed is peak conducted. Users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. Downlink (indoor) grant conditions. The antenna used for this transmitter is fixed-mounted on indoor permanent structures providing a separation distance of at least 20 cm from all persons during normal operation. The maximum radiated output power must satisfy the MPE Categorical Exclusion Requirements of 2.1091. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). Uplink/Downlink (outdoor) grant conditions. The antenna used for this transmitter is fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3).
