IWD-W3900009PCS 1900 Pico-repeater

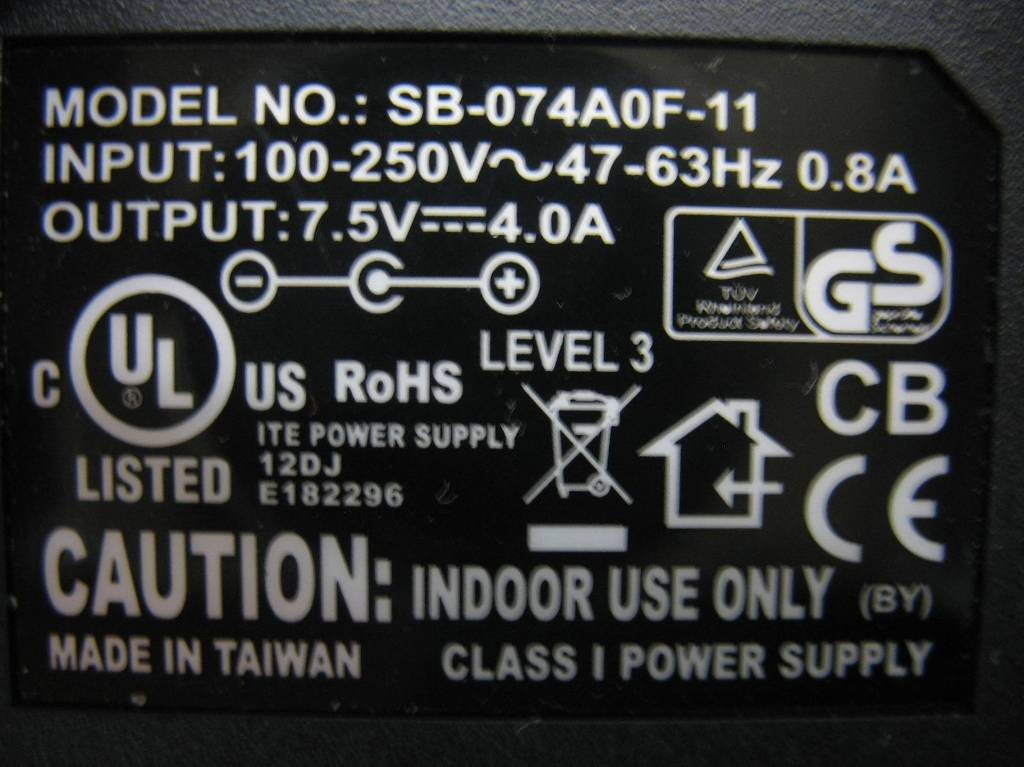

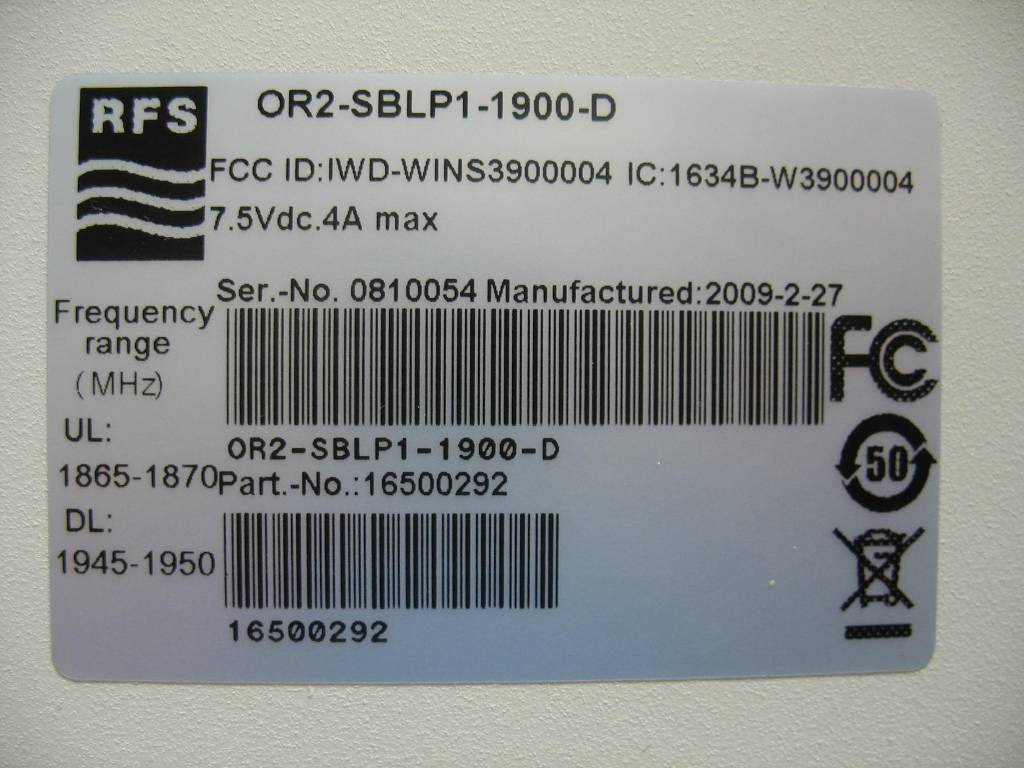

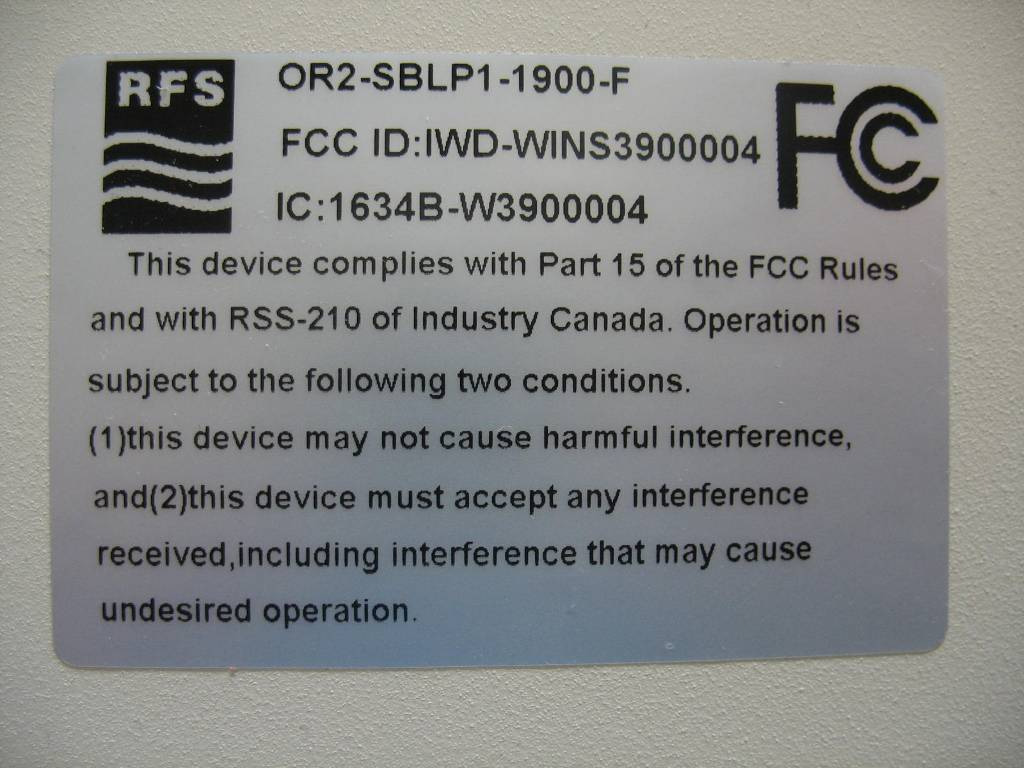

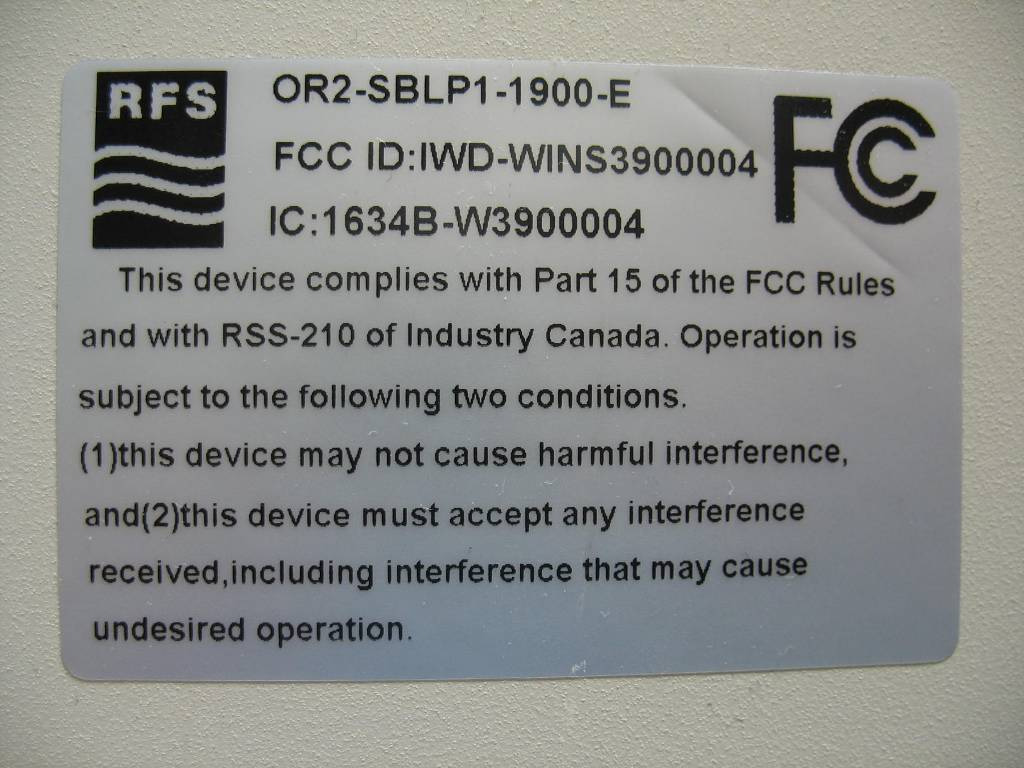

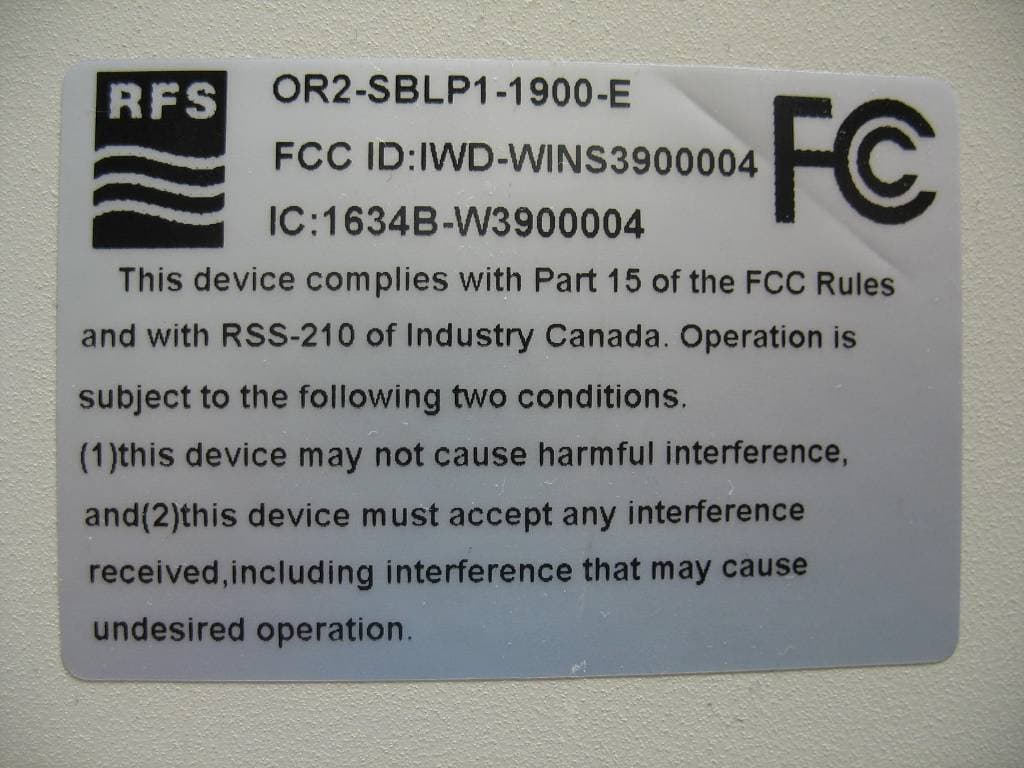

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 57 of 63 6 Photographs of EUT 6.1 External Photos Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 58 of 63 Photo 3: Photo 4: (ID ́s not actual) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 59 of 63 Photo 5: OR2-SBLP1-1900-D (ID ́s not actual) Photo 6: OR2-SBLP1-1900-D (ID ́s not actual) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 60 of 63 Photo 7: OR2-SBLP1-1900-E (ID ́s not actual) Photo 8: OR2-SBLP1-1900-E (ID ́s not actual) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 61 of 63 Photo 9: OR2-SBLP1-1900-F (ID ́s not actual) Photo 10: OR2-SBLP1-1900-F (ID ́s not actual) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 62 of 63 Photo 11: Photo 12: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 63 of 63 Photo 13: Photo 14:

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 8 of 63 3 Measurements and results For Part 24/22/90 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in CDMA mode. 3.1 CDMA 3.1.1 RF Exposure FCC: FCC §1.1307, §2.1091 IC: RSS-131 §5.5 MPE calculation These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 where S = power density ( in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 9 of 63 Antenna gain Worst case calculations: (S4πR 2 / P) OR2-SBLP1-1900-D Downlink: Maximum peak output power at antenna input terminal (dBm): 22.7 Maximum peak output power at antenna input terminal (mW): 186.2 Prediction distance (cm): 20 Prediction frequency (MHz): 1947.5 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 1.0 Maximum Antenna Gain (numeric): 27.0 Antenna Gain, typical (dBi): 14.3 Uplink: Maximum peak output power at antenna input terminal (dBm): 23.0 Maximum peak output power at antenna input terminal (mW): 199.5 Prediction distance (cm): 20 Prediction frequency (MHz): 1867.5 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 1.0 Maximum Antenna Gain (numeric): 25.2 Antenna Gain, typical (dBi): 14.0 Test result: The device is compliant with the requirement MPE limit for uncontrolled exposure at predication frequency 1mW/cm. The maximum allowed antenna gain for a distance of 20 cm is 14.3 dBi for Downlink and 14.0 dBi for Uplink. CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 10 of 63 OR2-SBLP1-1900-E Downlink: Maximum peak output power at antenna input terminal (dBm): 23.0 Maximum peak output power at antenna input terminal (mW): 199.5 Prediction distance (cm): 20 Prediction frequency (MHz): 1967.5 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 1.0 Maximum Antenna Gain (numeric): 25.2 Antenna Gain, typical (dBi): 14.0 Uplink: Maximum peak output power at antenna input terminal (dBm): 23.0 Maximum peak output power at antenna input terminal (mW): 199.5 Prediction distance (cm): 20 Prediction frequency (MHz): 1887.5 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 1.0 Maximum Antenna Gain (numeric): 25.2 Antenna Gain, typical (dBi): 14.0 Test result: The device is compliant with the requirement MPE limit for uncontrolled exposure at predication frequency 1mW/cm. The maximum allowed antenna gain for a distance of 20 cm is 14.0 dBi for Downlink and 14.0 dBi for Uplink. OR2-SBLP1-1900-F Downlink: Maximum peak output power at antenna input terminal (dBm): 22.7 Maximum peak output power at antenna input terminal (mW): 186.2 Prediction distance (cm): 20 Prediction frequency (MHz): 1972.5 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 1.0 Maximum Antenna Gain (numeric): 27.0 Antenna Gain, typical (dBi): 14.3 Uplink: Maximum peak output power at antenna input terminal (dBm): 23.6 Maximum peak output power at antenna input terminal (mW): 229.0 Prediction distance (cm): 20 Prediction frequency (MHz): 1892.5 MPE limit for uncontrolled exposure at predication frequency (mW/cm ): 1.0 Maximum Antenna Gain (numeric): 21.9 Antenna Gain, typical (dBi): 13.4 Test result: The device is compliant with the requirement MPE limit for uncontrolled exposure at predication frequency 1mW/cm. The maximum allowed antenna gain for a distance of 20 cm is 14.3 dBi for Downlink and 13.4 dBi for Uplink.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 1 of 63 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3462C-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 1-1135-01-05-B/09 Applicant : RADIO FREQUENCY SYSTEMS Type : OR2-SBLP1-1900-D OR2-SBLP1-1900-E OR2-SBLP1-1900-F Test Standard : FCC Part 24 RSS-131 Issue 2 FCC ID : IWD-W3900009 Certification No. IC : 1634B-W3900009 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 2 of 63 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 ADDITIONAL EUT INFORMATION FOR IC CANADA (APPENDIX 2).......................................................................... 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 CDMA .................................................................................................................................................................. 8 3.1.1 RF Exposure ................................................................................................................................................. 8 3.1.2 RF Power Output ........................................................................................................................................ 11 3.1.3 Radiated Emissions..................................................................................................................................... 12 3.1.4 Conducted Spurious Emissions ................................................................................................................... 23 3.1.5 Block Edge Compliance .............................................................................................................................. 27 3.1.6 Occupied Bandwidth ................................................................................................................................... 34 3.1.7 Intermodulation Tests ................................................................................................................................. 41 3.1.8 Out of Band Rejection ................................................................................................................................. 46 3.1.9 Conducted Emissions <30 MHz §15.107/207....................................................................................... 50 4 USED TEST EQUIPMENT ..................................................................................................................................... 52 5 PHOTOGRAPHS OF TEST SET-UP .................................................................................................................... 55 6 PHOTOGRAPHS OF EUT...................................................................................................................................... 57 6.1 EXTERNAL PHOTOS............................................................................................................................................. 57 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 3 of 63 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Stefan Bös Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 55 of 63 5 Photographs of Test Set-up Photo 1: Radiated Emissions Photo 2: Radiated Emissions CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-8412 Fax: -8484 Test report No.: 1-1135-01-05-B/09 Date: 2009-07-13 Page 56 of 63 Photo 3: Radiated Emissions Photo 4: Conducted Emissions
