IWD-W3900008

Radio Frequency Systems Inc

PCS 1900 Pico-repeater

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Feb 08, 2010
Application Purpose: Original Equipment
Date of Application: Feb 08, 2010
Equipment Note: PCS 1900 Pico-repeater
Frequency Range: 1975.00000000 - 1990.00000000
Company: Radio Frequency Systems Inc
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

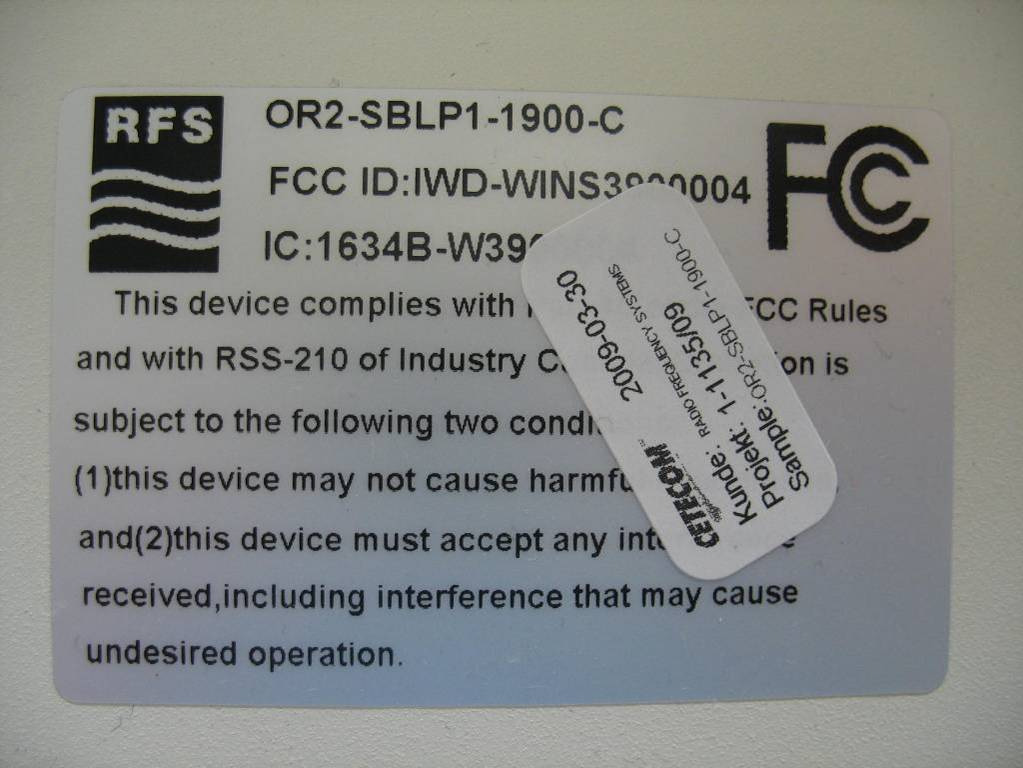

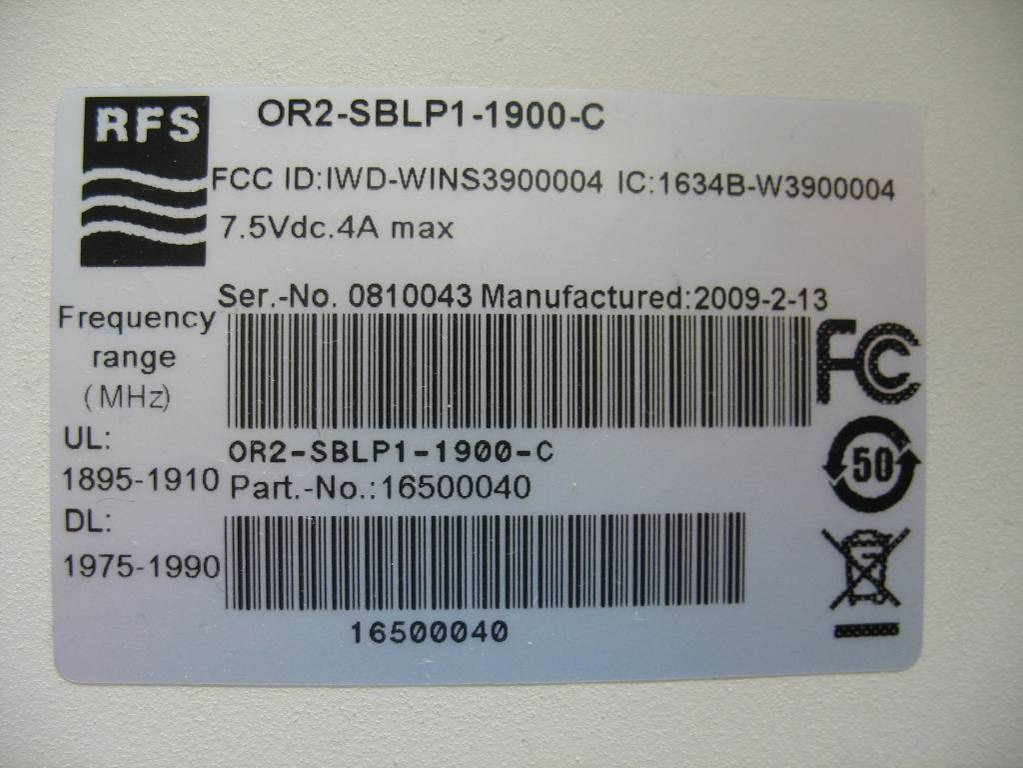

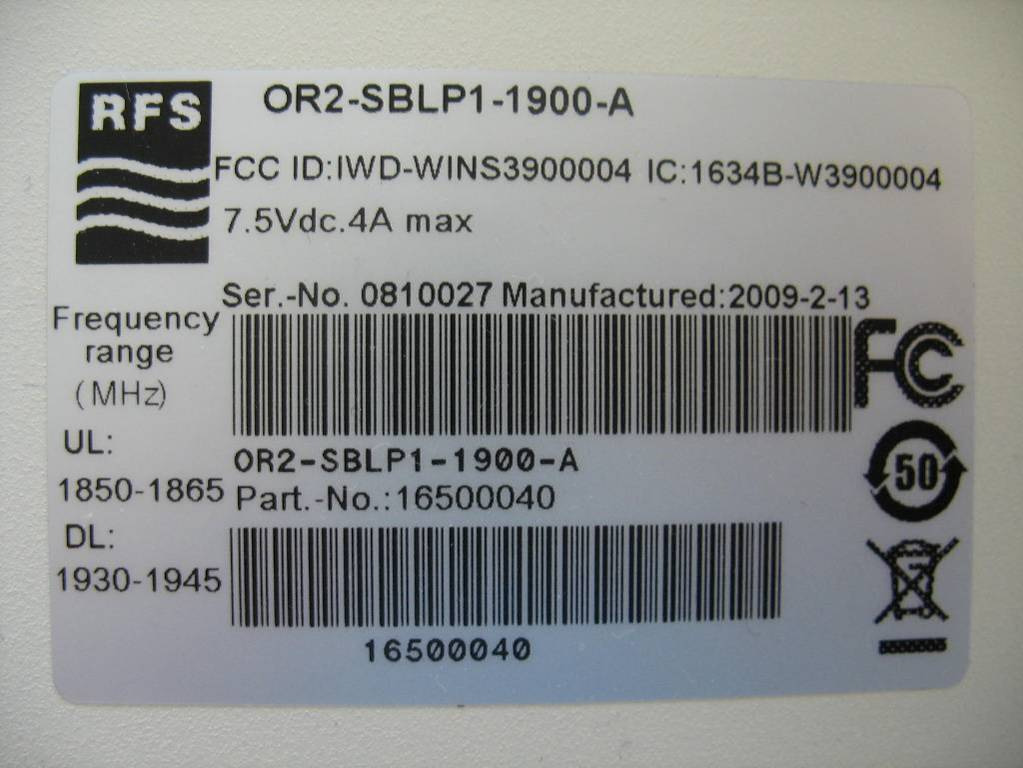

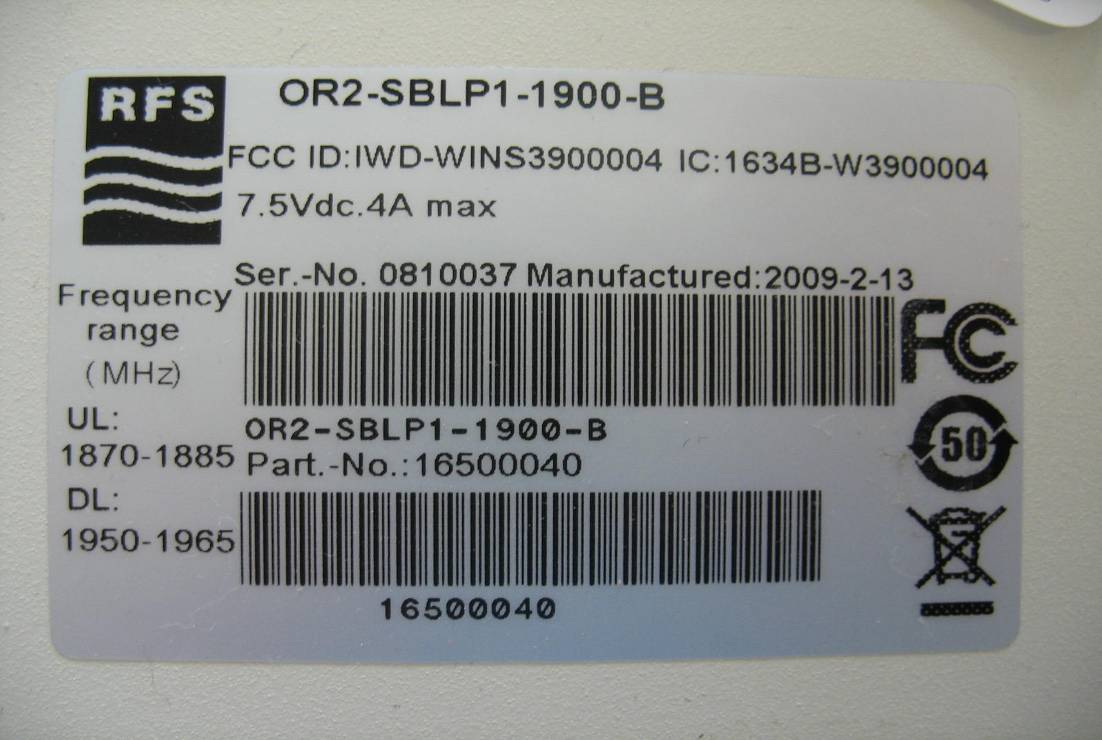

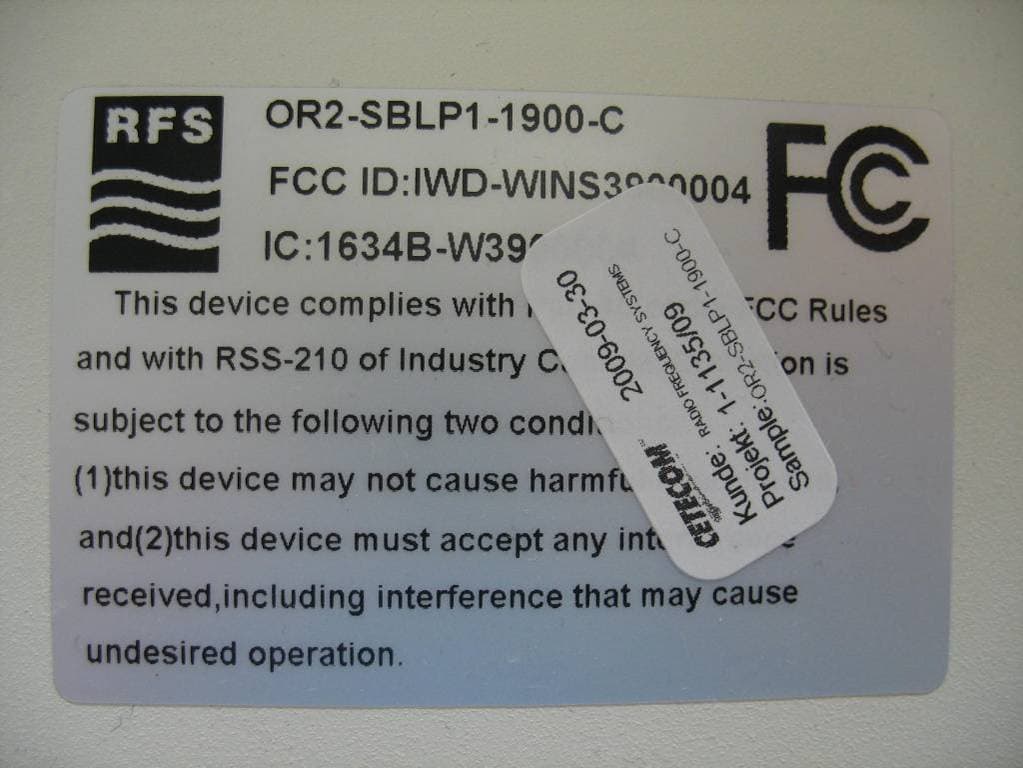

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.98 GHz - 1.99 GHz	195.00 mW	F9W	Amp

Confidentiality

Long Term

Grant Notes

Power listed is peak conducted. Users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. Downlink (indoor) grant conditions. The antenna used for this transmitter is fixed-mounted on indoor permanent structures providing a separation distance of at least 20 cm from all persons during normal operation. The maximum radiated output power must satisfy the MPE Categorical Exclusion Requirements of 2.1091. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). Uplink/Downlink (outdoor) grant conditions. The antenna used for this transmitter is fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3).
