IXV-TX3314SREMOTE CONTROL (TRANSMITTER)

TX3314S USER MANUAL 1.INTRODUCTION TX3314S is a saw-based with fixed code technology radio frequency remote controller. When a key pressed encoder will send a code to activate RF oscillator then transmit a RF signal through antenna. 2.INSTRUCTION:: Press button “1”,RX4303D2 D0 pin goes high state ;release D0 changes to low state. Press button “2”,RX4303D2 D1 pin goes high state ;release D1 changes to low state.

Federal Communications Commission Date: Feb. 01, 2008 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Change in Contact Person for Grantee Code “IXV” Dear Sir, This is to request a change in Contact Person for grantee code “IXV” in accordance with CFR 47, Part 2, and Section 2.934 of the FCC Rules. Kindly revise your records to reflect the following company name changes: Old Information: Automicro Technology Inc. No. 6, Alley 8, Lane 214, Pao-Ping Road, Young-Ho City, Taipei Hsien, Taiwan Contact Name: Victor Chang Changed Information: Automicro Technology Inc. No. 6, Alley 8, Lane 214, Pao-Ping Road, Young-Ho City, Taipei Hsien, Taiwan Contact Name: Alice Hung Tel: +886-2-2926-2034 Fax: +886-2-2928-7310 E-mail: [email protected] or [email protected] Sould you have any questions or require further action, please contact Mr. Leon Liu Tel&Fax: +886-2-26092133&+886-2-26099303. We authorize Mr. Leon Liu of Audix Technology Corporation to act as our agent. Thank you for your attention and cooperation in this matter. Sincerely,

Authorization Letter Date: Jan. 10, 2008 Authorization Letter for FCC ID: IXV-TX3314S Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Mr. Ben Cheng of Audix Technology Corporation (contact by e-mail: [email protected]), to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Audix Technology Corporation on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Mr. Ben Cheng of Audix Technology Corporation as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely,

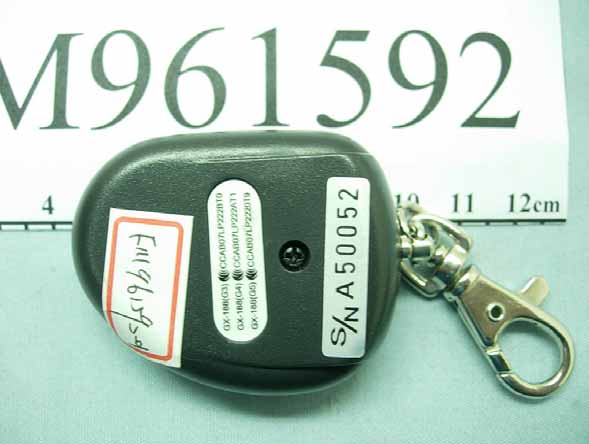

AutoMicro Technology Inc. Remote Control (Transmitter) FCC ID. : IXV-TX3314S Photographs of EUT (External) Photos 1 General Appearance (Front View) Photos 2 General Appearance (Back View)

AutoMicro Technology Inc. Remote Control (Transmitter) FCC ID. : IXV-TX3314S FCC ID Label Format and Location z Label Format z Label Placement Location (Bottom Side of EUT) FCC IDIXV-TX3314S FCC IDIXV-TX3314S

AutoMicro Technology Inc. Remote Control (Transmitter) FCC ID. : IXV-TX3314S Photographs of EUT (Internal) Photos 1 Internal View (Case Covers Removed) Photos 2 PCB View (Front Side) AutoMicro Technology Inc. Remote Control (Transmitter) FCC ID. : IXV-TX3314S Photos 3 PCB View (Back Side)

FCC ID.IXV-TX3314S Page 1 of 40 Audix Technology Corporation Report No. EM-F960618 APPLICATION FOR CERTIFICATION On Behalf of AutoMicro Technology Inc. Remote Control (Transmitter) Model : TX3314S Brand : AutoMicro FCC IDIXV-TX3314S Prepared for : AutoMicro Technology Inc. No. 6, Alley 8, Lane 214, Pao-Ping Road, Young-Ho City, Taipei Hsien, Taiwan Prepared by : Audix Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number EM961592A Report Number EM-F960618 Date of Test Dec. 18 ~ 20, 2007 Date of Report Dec. 29, 2007 FCC ID.IXV-TX3314S Page 2 of 40 Audix Technology Corporation Report No. EM-F960618 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................3 1. GENERAL INFORMATION ..........................................................................................................4 1.1. Description of Device (EUT).............................................................................................................. 4 1.2. Description of Test Facility ................................................................................................................ 5 1.3. Measurement Uncertainty................................................................................................................... 5 2. POWERLINE CONDUCTED EMISSION MEASUREMENT .....................................................6 3. RADIATED EMISSION MEASUREMENT ..................................................................................7 3.1. Test Equipment ................................................................................................................................... 7 3.2. Test Setup ........................................................................................................................................... 7 3.3. Radiation Limit (§15.231/§15.209) .................................................................................................... 9 3.4. EUT’s Configuration during Compliance Measurement .................................................................... 9 3.5. Operating Condition of EUT ............................................................................................................ 10 3.6. Test Procedure .................................................................................................................................. 10 3.7. Radiated Emission Noise Measurement Results............................................................................... 11 4. EMISSION BANDWIDTH MEASUREMENT............................................................................32 4.1. Test Equipment ................................................................................................................................. 32 4.2. Block Diagram of Test Setup............................................................................................................ 32 4.3. Specification Limits [§15.231-(c)] ................................................................................................... 32 4.4. EUT’s Configuration during Compliance Measurement .................................................................. 32 4.5. Emission Bandwidth Measurement Results...................................................................................... 32 5. PERIODIC OPERATED MEASUREMENT ................................................................................34 5.1. Test Equipment ................................................................................................................................. 34 5.2. Block Diagram of Test Setup............................................................................................................ 34 5.3. Specification Limits [§15.231-(a)-(1)].............................................................................................. 34 5.4. EUT’s Configuration during Compliance Measurement .................................................................. 34 5.5. Periodic Operated Measurement Results ..........................................................................................34 6. DEVIATION TO TEST SPECIFICATIONS ................................................................................36 7. PHOTOGRAPHS...........................................................................................................................37 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz)........................................ 37 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (1~5GHz)....................................... 38 7.3. Photos of Bandwidth Measurement .................................................................................................. 40 7.4. Photos of Periodic Operated Measurement....................................................................................... 40 FCC ID.IXV-TX3314S Page 3 of 40 Audix Technology Corporation Report No. EM-F960618 TEST REPORT CERTIFICATION Applicant : AutoMicro Technology Inc. Manufacturer : AutoMicro Technology Inc. EUT Description : Remote Control (Transmitter) FCC ID : IXV-TX3314S (A) Model Number : TX3314S (B) Serial Number : N/A (C) Brand : AutoMicro (D) Power Supply : DC 12V (E) Test Voltage : DC 12V (Via Battery) Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, SEP. 2007 AND ANSI C63.4/2003 (FCC CFR 47 Part 15C, §15.231, §15.207 and §15.209) The device described above was tested by AUDIX Technology Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits both radiated and conducted emissions. The measurement results are contained in this test report and AUDIX Technology Corporation is assumed full responsibility for the accuracy and com…

Text truncated - open the document above for the full version.

FCC ID.IXV-TX3314S Page 37 of 40 Audix Technology Corporation Report No. EM-F960618 7. PHOTOGRAPHS 7.1. Photos of Radiated Measurement at Semi-Anechoic Chamber (30~1000MHz) EUT on Lie EUT on Side FCC ID.IXV-TX3314S Page 38 of 40 Audix Technology Corporation Report No. EM-F960618 EUT on Stand 7.2. Photos of Radiated Measurement at Semi-Anechoic Chamber (1~5GHz) EUT on Lie FCC ID.IXV-TX3314S Page 39 of 40 Audix Technology Corporation Report No. EM-F960618 EUT on Side EUT on Stand FCC ID.IXV-TX3314S Page 40 of 40 Audix Technology Corporation Report No. EM-F960618 7.3. Photos of Bandwidth Measurement 7.4. Photos of Periodic Operated Measurement
