IXVTXF-4311RRemote Control

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution :To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

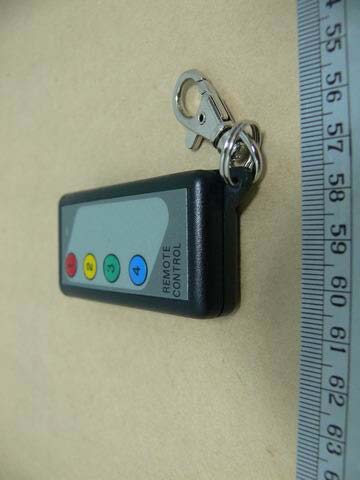

Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 14 of 22 External Photos Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 15 of 22 Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 16 of 22 Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 17 of 22

Label Size: 18×7 mm This device complies with Part 15C of the FCC rules. Model No.:TXF-4311R FCC ID:IXVTXF-4311R This device complies with Part 15C of the FCC rules. Model No.:TXF-4311R FCC ID:IXVTXF-4311R

Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 18 of 22 Internal Photos Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 19 of 22 Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 20 of 22 Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 21 of 22

of Applicant: AutoMicro Technology Inc. Address: No.6, Alley 8, Lane 214, Pao-Ping Road, Young-Ho City, Taipei Hsien, Taiwan, R.O.C Tested and Prepared by ETS Product Service (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Accredited No.: 2300.01 PTCRB Accredited Type Certification Test House FCC ID: IXVTXF-4311R Report No.: W6M20707-8347-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC TEST REPORT for Remote Control Model No.: TXF-4311R Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. Page 1 of 19 TABLE OF CONTENTS 1 G ENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 DETAILS OF APPROVAL HOLDER 3 1.4 APPLICATION DETAILS 4 1.5 T EST ITEM 4 1.6 TEST STANDARDS 5 2 TECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 T EST MODE 5 2.4 TEST EQUIPMENT UTILIZED 6 2.5 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 OUT OF BAND RADIATED EMISSIONS 12 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 S PURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 C HANNEL BANDWIDTH 16 3.7 A NTENNA REQUIREMENT 17 3.8 D UTY CYCLE 18 3.9 CONDUCTED MEASUREMENT AT (AC) POWER LINE 19 Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. Page 2 of 19 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS Product Service (Taiwan) Co., Ltd. Tester: July 30, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: July 30, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. Page 3 of 19 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS Product Service (Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : AutoMicro Technology Inc. Street : No.6, Alley 8, Lane 214 Pao-Ping Road Young-Ho City Town : Taipei Hsien Country : Taiwan, R.O.C Telephone : +886-2-2926-2034 Fax : +886-2-2928-7310 Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. Page 4 of 19 1.4 Application details Date of receipt of test item : July 23, 2007 Date of test : from July 24, 2007 to July 27, 2007 1.5 Test item Description of test item : Remote Control Type identification : TXF-4311R Brand name : ./. Multi-listing model number : Test sample without serial number Transmitting frequency : 433.92 MHz Operation mode : simplex Voltage supply : 12 VDC ( battery ) (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 433.9 MHz Antenna type : loop antenna Photos : see Annex Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. Page 5 of 19 1.6 Test standards Technical standard : FCC RULES PART 15 SUBPART B / SUBPART C § 15.231 (a) (2007-05) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 3 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 12 VDC ( battery ) 2.3 Test Mode This EUT is the portable device. So the EUT was tested on three different axes. Please see assessment test results as section 3 of this test report. Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. Page 6 of 19 2.4 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2006/10/16 2007/10/15 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY None None Function Test ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2006/10/16 2007/10/15 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2006/10/16 2007/10/15 ETSTW-CE 006 IMPUL…

Text truncated - open the document above for the full version.

Registration number: W6M20707-8347-C-1 FCC ID: IXVTXF-4311R ETS Product Service (Taiwan) Co., Ltd. appendix 22 of 22 Set Up Photos
