J2LKDRFLimited Modular Transmitter Approval

May 30, 2004 14085 Howard Rd Dayton, MD 21036 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21036 Re: FCC ID:J2LKDRF Gentlemen: Submitted herewith is an application for a low frequency transmitter module to be used in a series of printers having essentially same form factor. In accordance with the requirements set forth in DA 00-1407 Released: June 26, 2000, this device incorporates the design features as described and listed below for Part 15 limited modular transmitter approval: 1. The modular transmitter has its own RF shielding. As can be seen from the test site photos, the device was tested outside the host equipment that provided data and power to the unit. The PC board with the RF circuit incorporated is contained within the internal shield as shown in the photo. This basic pc board assembly is host to the RF transmitter circuit and is used across many printers comprising a family of products using the KDRF board that have the same basic mechanical and electrical specifications. 2. This modular transmitter only has data inputs from the basic printer and toner cartridge assembly thus ensuring that the module will continue to comply with Part 15 requirements and no conditions of excessive data rates or over-modulation can occur. 3. This modular transmitter receives its DC power from a regulated supply providing power to the main PC board. The design of the power supply circuitry in the printers into which the PC board is installed requires a regulated supply voltage at a fixed level to the PC board thus ensuring the modular transmitter will always receive the correct regulated voltage. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c) and is a small multi-turn inductively coupled loop antenna that couples to the toner cartridge. 5. This modular transmitter was tested in a stand-alone configuration outside the host device during testing. The host device is an ac-powered unit intended to be used as an office/business printer. No modifications were made to the host device. 6. This modular transmitter is labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed will also display a label referring to the enclosed module. This exterior label will use this wording: “Contains FCC ID: J2LKDRF”. 7. This modular transmitter complies with all operating requirements applicable to the transmitter. 8. This modular transmitter complies with applicable RF exposure requirements. Its measured field strength level is 0.7 uV/m at 300 meters when extrapolated using inverse square method from measurements made at 3 meters. Further, the module is intended to be installed inside a host device which provides additional isolation from the user. Specific installation and operating instructions for users are not required as the only user installed portion of this system is replacement toner cartridges that have very fixed installation procedures. If there are any additional questions, please contact me at 410-531-3439. Sincerely yours, Phillip Inglis TRP/Cetecom bvba

May 30, 2004 CONFIDENTIALITY REQUEST Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Fuji Xerox Co., Ltd. application for Low Power Transmitter, FCC ID: J2LKDRF Gentlemen: Fuji Xerox Co., Ltd, 7-1, Funai 3-Chome Iwatsuki-shi, Saitama 339-8509, Japan herein submits an Application for Equipment Authorization for certification of a low power transmitter under FCC Rules Part 15. Fuji Xerox Co., Ltd., requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: 1. Circuit diagrams submitted as attachment: "schematics”. 2. Block diagram submitted as attachment “block diagram”. 3. Theory of operation submitted as attachment “operational description”. 4. Parts list submitted as attachment “parts list”. Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that Fuji Xerox does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned by phone at 410-531-3439, by fax at 410-531-0807, by email at [email protected], or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Regards, (signed) Phillip Inglis, TRP/Cetecom b.v.b.a. 14085 Howard Rd. Dayton, MD. 21036

Masayuki Hirata EMC Technical Manager Environment and Product Safety Date: January 15, 2004 CETECOM Benelux Hector Henneaulaan, 97 B – 1930 ZAVENTEM, Belgium Authorization Letter Gentlemen: We, (Fuji Xerox Co., Ltd. 2274, Hongo Ebina-shi, Kanagawa 243-0494 Japan) hereby authorize CETECOM Benelux, Hector Henneaulaan 97, B – 1930 ZAVENTEM, Belgium to handle the type approval application for the World wide market regarding the following products: 1. Kind of product: Printer cartridge Identification (RFID) Type designation: KDRF This authorization expires on January 30, 2005. Sincerely, _________________________________ Masayuki Hirata Technical Manager, Environment and Product Safety Fuji Xerox Co., Ltd.

CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 23 (29) Photographs of the equipment Photo No.: 09 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 24 (29) Photographs of the equipment Photo No.: 10 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 25 (29) Photographs of the equipment Photo No.: 11

Label for FCC ID: J2LRFKBRFto be placed on bottom of unit it is installed within. This devices contains FCC ID:J2LKDRF IC:4423A-KDRF This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Bottom of unit. Label Loc.

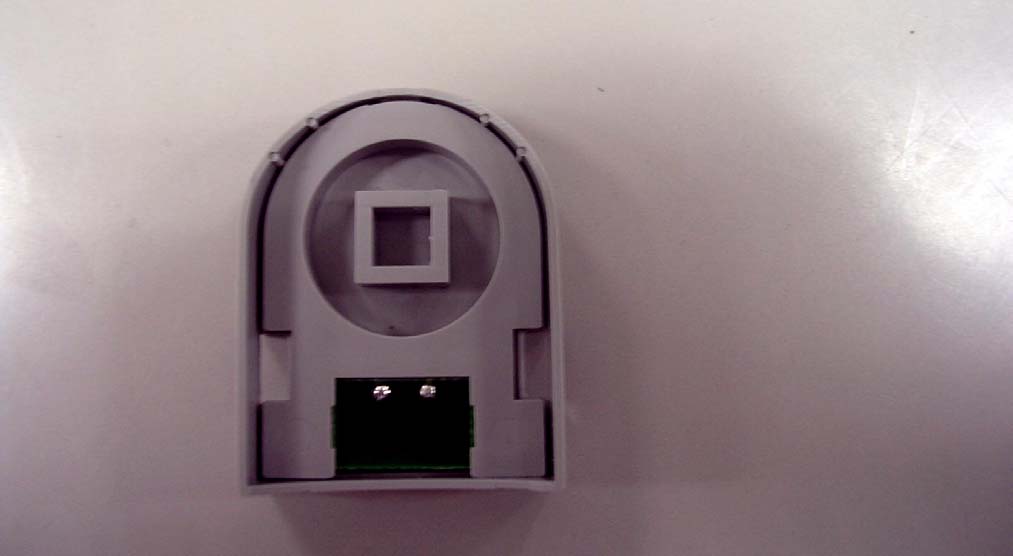

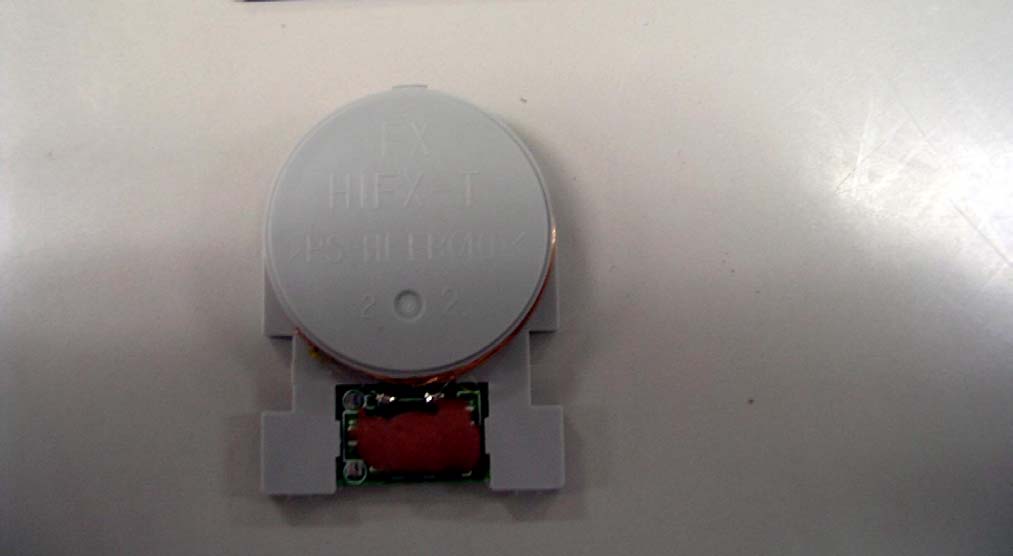

CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 15 (29) Photographs of the equipment Photo No.: 01 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 16 (29) Photographs of the equipment Photo No.: 02 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 17 (29) Photographs of the equipment Photo No.: 03 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 18 (29) Photographs of the equipment Photo No.: 04 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 19 (29) Photographs of the equipment Photo No.: 05 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 20 (29) Photographs of the equipment Photo No.: 06 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 21 (29) Photographs of the equipment Photo No.: 07 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 22 (29) Photographs of the equipment Photo No.: 08

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-0 Telefax: -9075 Testreport No.: 2-3526-01-02/04 This test report consist of 29 PagesPage 1 (29) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3526-01-02/04 FCC Part 15.209 KDRF FCC ID: J2LKDRF CETECOM ICT Services GmbH Test report No.: 2-3526-01-02/04 Date: 2004.02.07 Page 2 (29) Table of contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report No.: 2-3526-01-02/04Date: 2004.02.07 Page 3 (29) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2004.02.07RSC - 8431Gillmann D. DateSectionNameSignature Technical responsibility for area of testing: 2004.02.07RSC - 8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report No.: 2-3526-01-02/04Date: 2004.02.07 Page 4 (29) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory Accredited by: Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by: Federal Communications Commission (FCC) AuthorityIdentification/Registration No. RegTPTTI-P-G 081/94-D0 FCC90462 1.3Details of applicant Name :FUJI XEROX CO., LTD Street :3-7-1, Funai, Iwatsuki-shi City :Saitama 339-8509 Country :Japan Telephone:+81-48-798-5111 Telex :+81-48-790-1930 E-mail :[email protected] Contact person: Name : Mr. Tsuneo Imada Telephone : +81-48-798-5111 Telex : +81-48-790-1930 E-mail : 1.4Application details Date of receipt of test item : 2004-02-07 Date of test : 2004-02-07 CETECOM ICT Services GmbH Test report No.: 2-3526-01-02/04Date: 2004.02.07 Page 5 (29) 1.5Test item Type of equipment : Passive transponder reader for toner cartridges Type designation:KDRF (Part composition ) KDRF-C controller HIFX-A antenna HIFX-T tag Manufacturer:see applicant Street: City: Country: Serial number:- / - Additional information : Frequency:125 kHz Frequency EUT:124.970 kHz Number of channels :1 Antenna:Integral antenna ERP: 77 dBμV/m in 3m distance or *-3 dBμV/m in 300m distance * according to FCC 15.31.(f)(2) Power supply (DC):3.3 and 5.0V Temperature range :0°C - +55°C FCC ID :J2LKDRF 1.6Test specifications: FCC Part 15 §15.209 CANADA RSS-210 CETECOM ICT Services GmbH Test report No.: 2-3526-01-02/04Date: 2004.02.07 Page 6 (29) 2 Technical test 2.1 Summary of test results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 20 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test set-ups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna . 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave guide horn All measurement settings are according to FCC 15.35, 15.209. The product fulfils also the requirements for CANADA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT : PASS CETECOM ICT Services GmbH Test report No.: 2-3526-01-02/04Date: 2004.02.07 Page 7 (29) 2.2Test report TEST REPORT Test report no: 2-3526-01-02/04 CETECOM ICT Services GmbH Test report No.: 2-3526-01-02/04Date: 2004.02.07 Page 8 (29) LIST OF MEASUREMENTS. The list of measured parameters is given below. Clause Page number Transmitter parameters § 15.209Effective radiated RF power9 § 15.209Spurious radiations – Radiated10 Test equipment listing14 Photographs of the equipment16 CETECOM ICT Services GmbH Test report no.: 2-3526-01-02/04Date: 2004.02.07 Page 9 (29) Equipment under test : KDRF Ambient temperature : 23°C Relative humidity : 33% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24: 53 , 54 , 62 MAXIMUM PEAK OUTPUT POWER (RADIATED) Measuring distance 3m, correction factor according FCC 15.31(f)(2) - 80dB TEST CONDITIONSMAXIMUM PEAK OUTPUT POWER (μV/m) Frequency (MHz)125 kHz T nom 23 °C V nom 3.3 V 0.7 μV/m (-3.0 dBμV…
