JBQCDR018Internal CD-RW drive

    D  RW      AC INLET DC Cable Main Board Power Supply SCSI Connector Audio SCSI Internal DC Cable Internal Cable Cable  CRD-RW2  Phones Connector Volume FCC ID: JBQCDR018CRD-RW2 BLOCK DIAGRAM RW2 BlockDiagram SH CN‰ ü‘ P FM Demodu CD-Docorder CD-Encorder SCSI- Inteface StrategyLC898542 DRAM DservoCIRC HD-AMPLA4536 FO/TR Driver BA6792 WBL-CLV WBL-SPD-EQ CDR-OFF-TRK TE/FE/FOK CDR-Defect Beta-Detect RunningOPC LazerDriver SPD-Driver BA6855 CPU H8/3062 LZ PIT-Detect DPM DAC M62353 ADJ ADJ-Selector TC4051 PK/BOTTOM Detect ACT DSP SPD MOTOR AK8566 LC898023 NEWAS I C BH3802KV 20MHz 33.8MHz CNImprovement

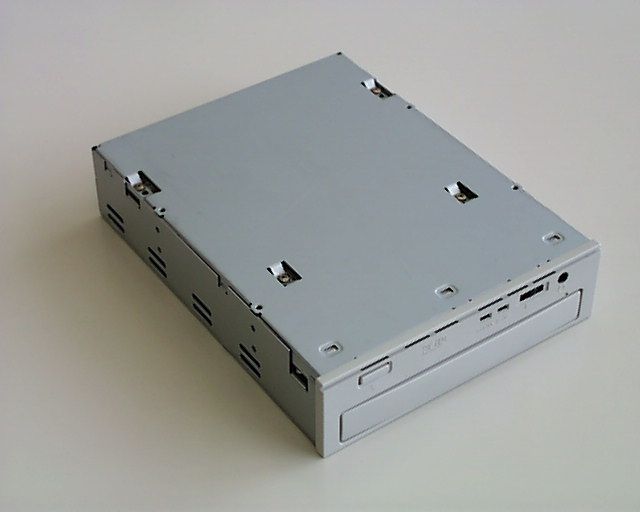

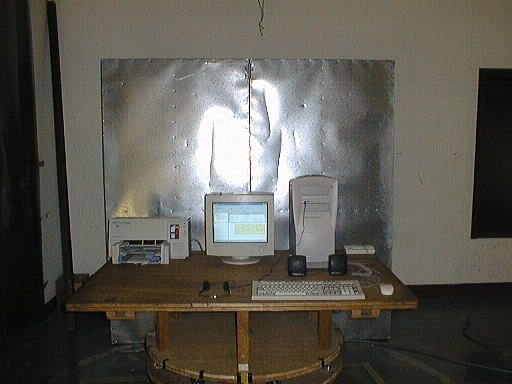

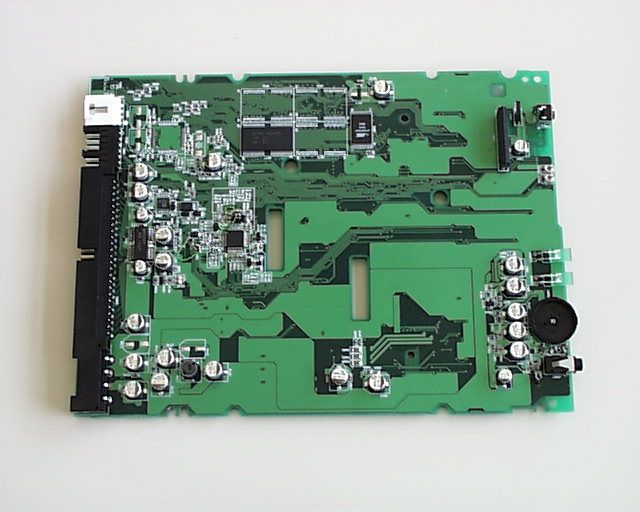

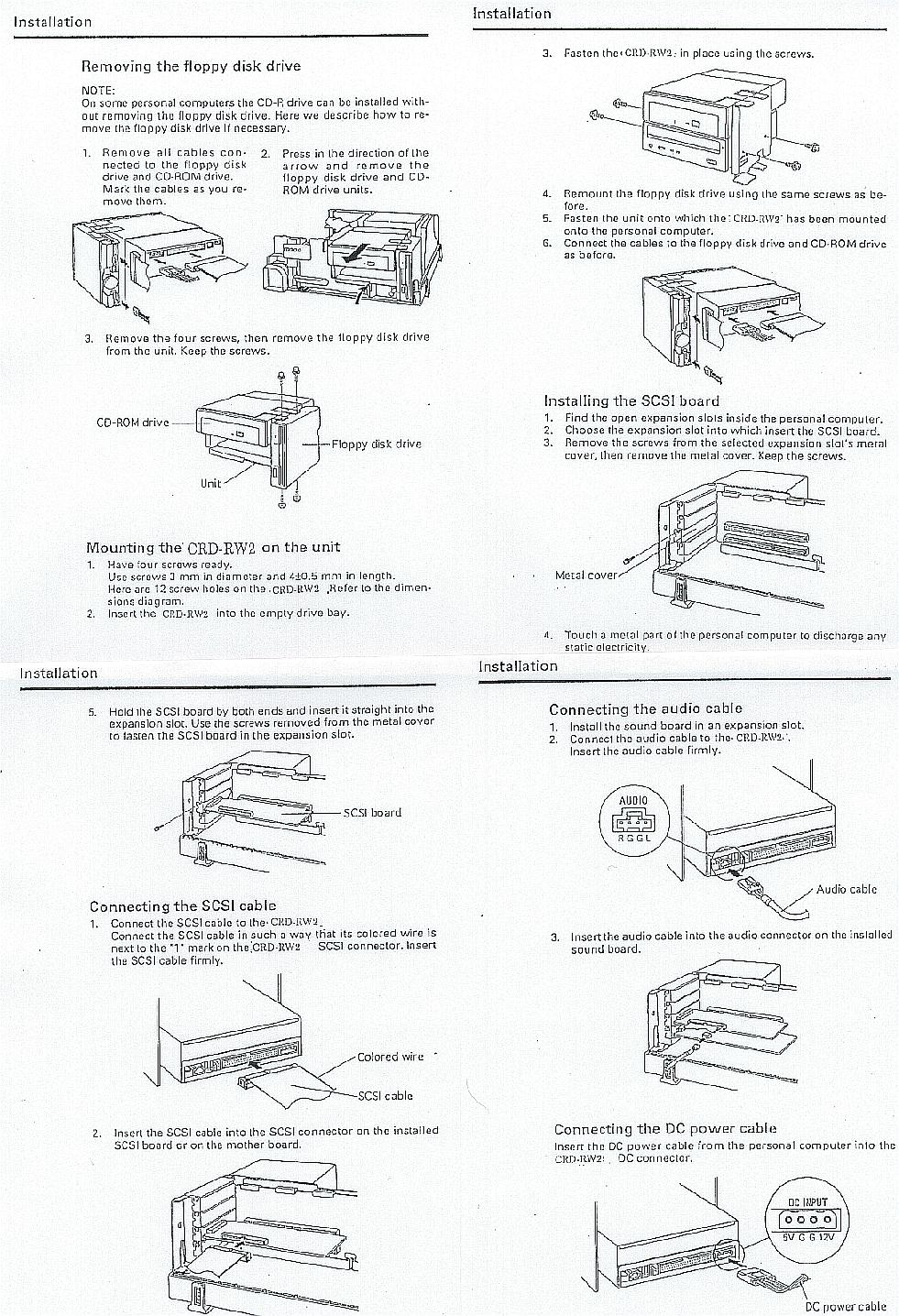

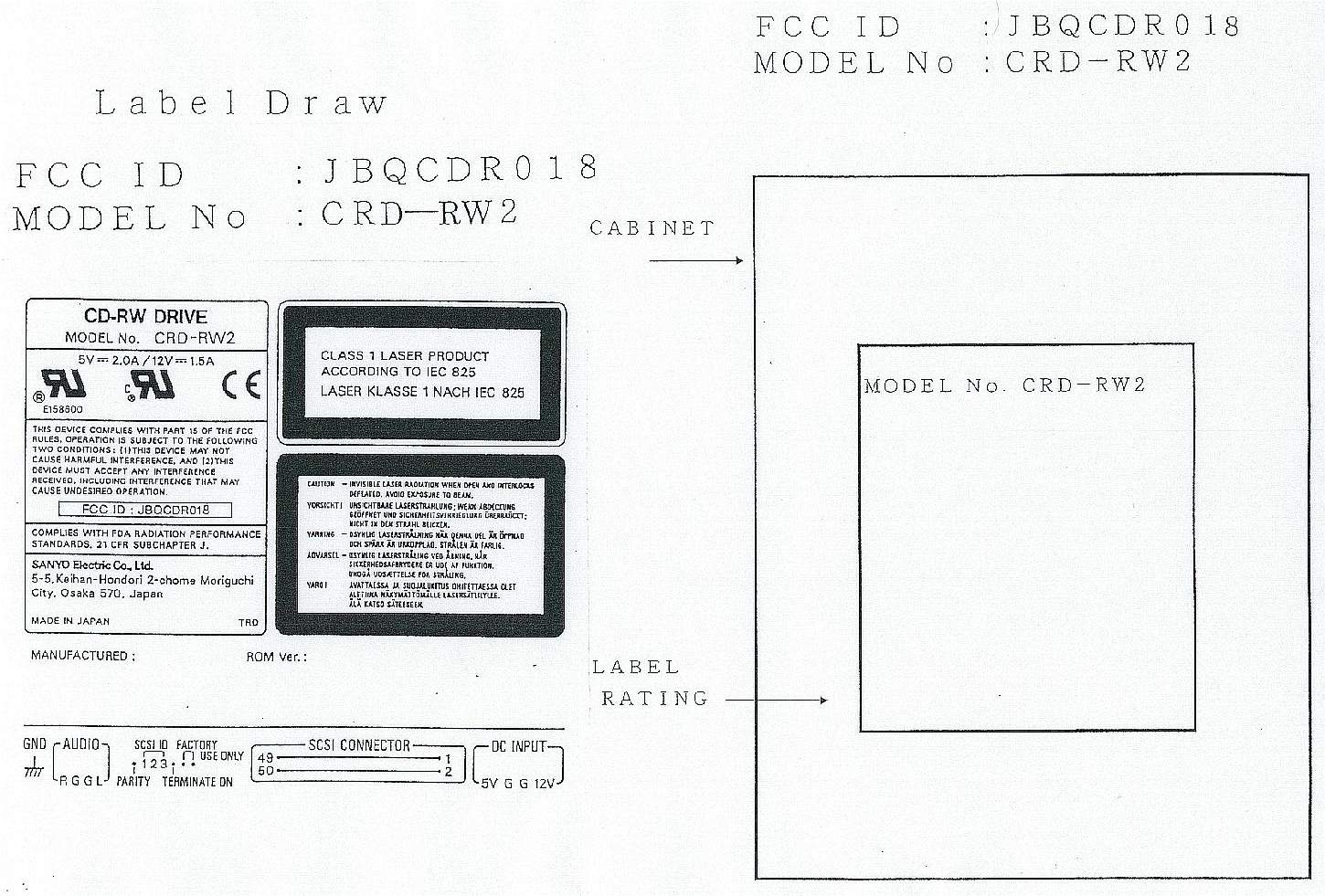

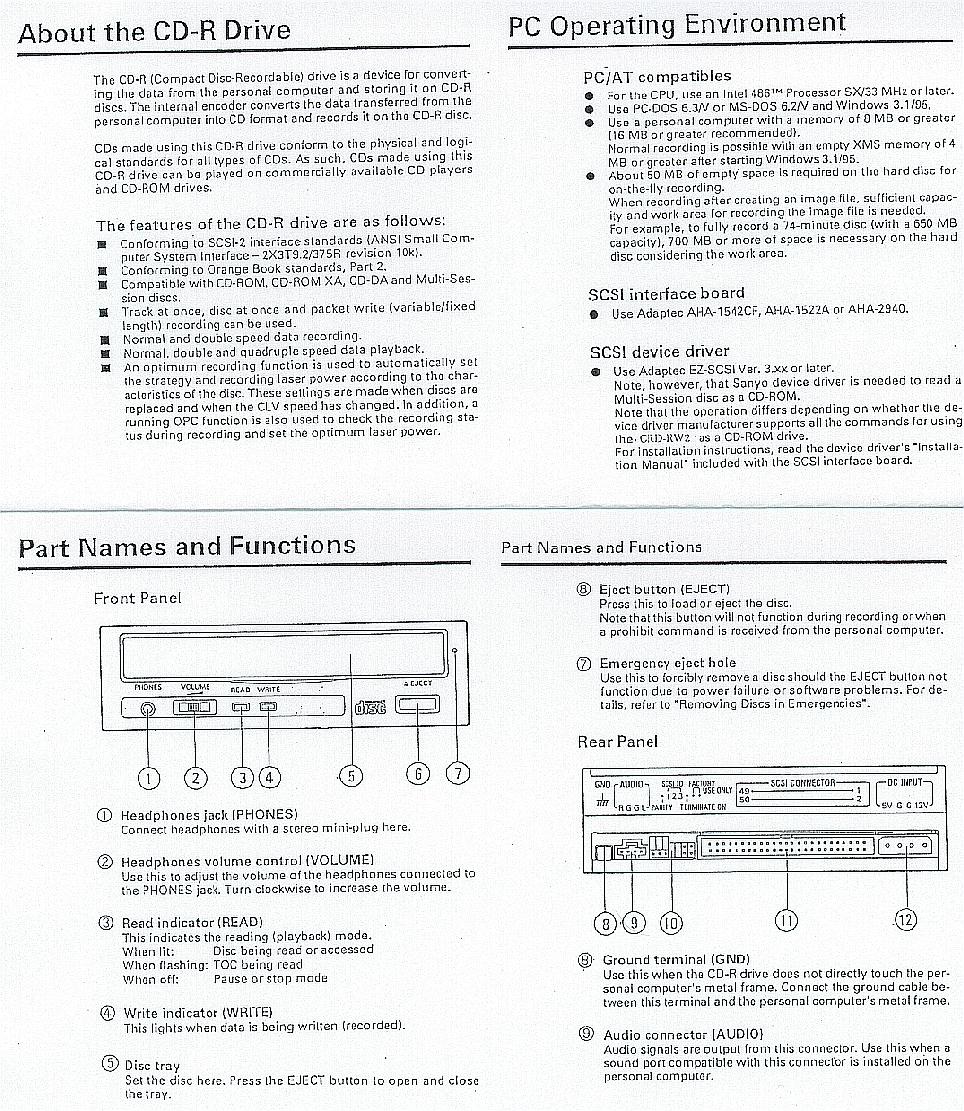

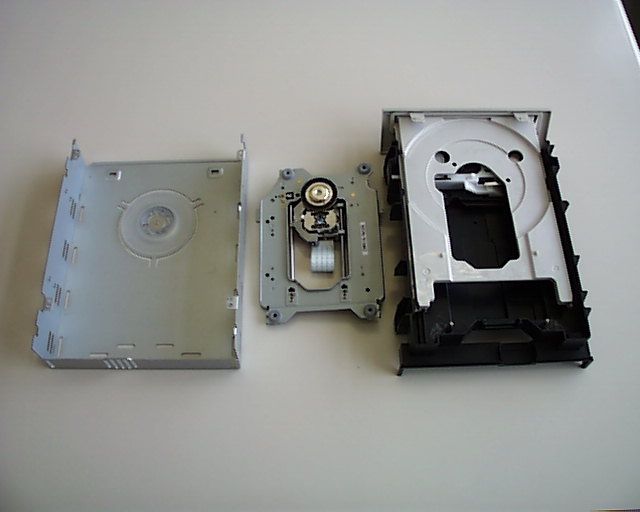

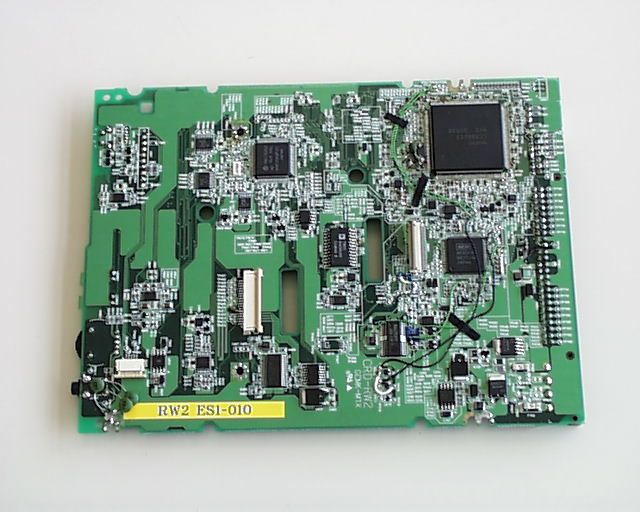

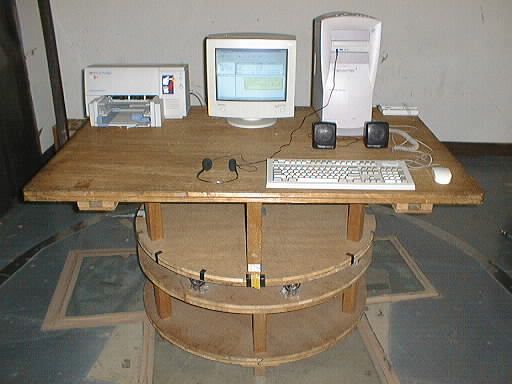

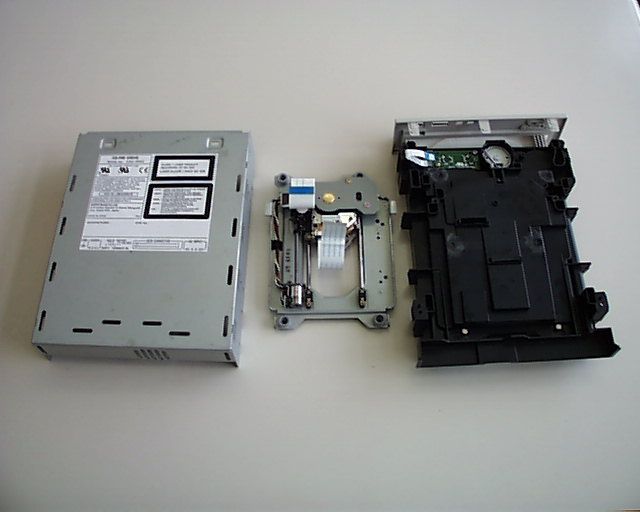

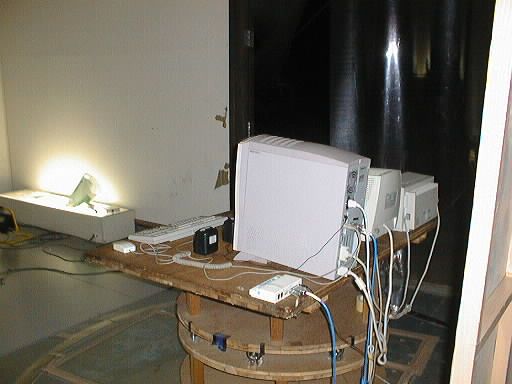

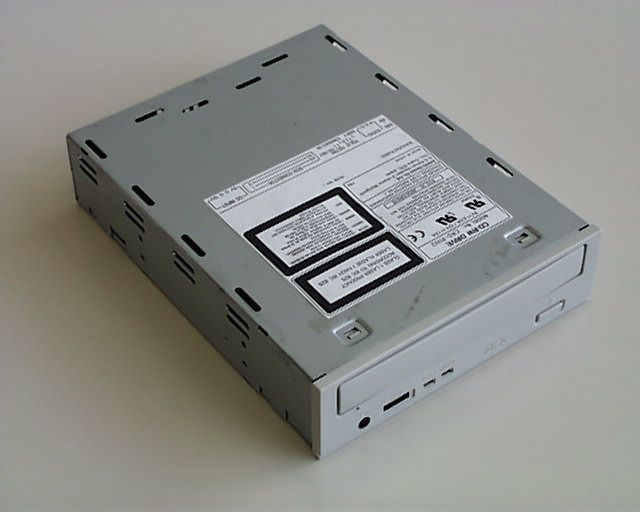

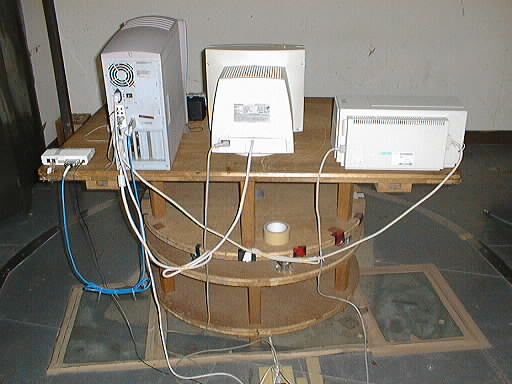

ZACTA TECHNOLOGY CORPORATION August 6, 1999 Yonezawa Testing Center 4149-7 Hachimanpara 5-Chome Yonezawa-shi Yamagata 992-1128 Japan Phone: +81-238-28-2880 Fax: +81-238-28-2888 ATTN: FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA RE: FCC Part 15 Certification [CD-RW drive / FCC ID: JBQCDR018] JBP-Computing Device Peripheral File #:Z02C-99206 Applicant: Sanyo Electric Co., Ltd. Gentlemen: Please find attached exhibits listed below; Block Diagram External Photos ID Label / Location info. Internal Photos Operational Description Test Report Test Setup Photos User Manual Your prompt attention to this matter would be highly appreciated. If there are any questions or if further information is needed, please contact our USA point of contact as follows: Zacta International Corporation 21220 Devonshire street, Suite 201 Chatsworth CA. 91311 Contact Name: Yoshi Namiki / Consultant Phone: 818-727-1740 Fax: 818-727-7938 E-mail: [email protected] We also hereby certify that no party to this application is subject to denial of benefits, including FCC benefits, pursuant to section 5301 of Anti-Drug Act of 1988, 21 U.S.C.853(a). Sincerely yours, Akemi Suzuki [email protected] Filing Coordinator of ZACTA TECHNOLOGY CORPORATION

SANYO ELECTRIC CO., LTD. CD-RW DRIVE FCC ID: JBQCDR018 Report No.: Z02C-99206 Report Issue Date: August 5, 1999 ZACTA TECHNOLOGY CORPORATION YONEZAWA TESTING CENTER 4149-7 Hachimanpara 5-chome Yonezawa-shi Yamagata 992-1128 Japan TABLE OF CONTENTS CERTIFICATE COMPLIANCE ........................................................... 2 EQUIPMENT DESCRIPTION ............................................................ 3 PRODUCT DESCRIPTION ............................................................ 3 EUT EXERCISE ................................................................... 4 FCC PART 15 SUBPART B CERTIFICATION REPORT for E-File Report No.:Z02C-99206 Page 2 / 22 Zacta Technology Corp. FCC ID: JBQCDR018 LABORATORY DESCRIPTION ........................................................... 4 DESCRIPTION FOR TEST SITE ...................................................... 4 DESCRIPTION OF CONDUCTED EMISSION TESTING ...................................... 6 DESCRIPTION OF RADIATED EMISSION TESTING ....................................... 7 UNCERTAINTY .................................................................... 7 TEST SITE CONDITION & INSTRUMENTATION ............................................ 9 TEST SITE CONDITION ............................................................ 9 USED FOR CONDUCTED EMISSION MEASUREMENT ........................................ 9 USED FOR RADIATED DISTURBANCE MEASUREMENT ..................................... 10 SAMPLE OF FIELD STRENGTH CALCULATION .......................................... 11 LABORATORY MEASUREMENTS ......................................................... 11 JUSTIFICATION / ENGINEERING COMMENT ........................................... 12 SUMMARY OF DATA RESULT......................................................... 12 CONFIGURATION INFORMATION ..................................................... 14 SYSTEM CONFIGURATION .......................................................... 15 TEST DATA ....................................................................... 17 CERTIFICATE COMPLIANCE ZACTA TECHNOLOGY CORPORATION YONEZAWA TESTING CENTER 4149-7 Hachimanpara 5-chome Yonezawa-shi Yamagata 992-1128 Japan This device, as described herewith, was tested pursuant to test procedure C63.4-1992, by Zacta Technology Corporation and it was verified to comply with the requirements of Part 15 Class B of the FCC rules. The Test results are traceable to international or national standard. The EUT complies with section 15.37 “Transition provision for compliance with the rules”. COMPANY NAME : SANYO ELECTRIC CO., LTD. EUT : CD-RW Drive MODEL : CRD-RW2 FCC ID : JBQCDR018 EUT CONDITION : Pre-Production Report No.:Z02C-99206 Page 3 / 22 Zacta Technology Corp. FCC ID: JBQCDR018 DATE FOR TEST : August 4, 1999 FCC RULE PART : FCC PART 15 SUBPART B, DOCKET 87-389 EUT CLASS : B MEASUREMENT : ANSI C63.4-1992 TEST RESULT : PASS REPORT NO. : Z02C-99206 REMARKS : Internal Interface Cables were Unshielded cable. Zacta Technology Corporation certifies that no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21U.S.C. 853(a). Authorized by : Shin-ichi Abe General Manager, Zacta Technology Corporation Yonezawa Testing Center The results in this report apply only to the samples tested. This report shall not be re-product except in full without the written approval of Zacta Technology Corporation. EQUIPMENT DESCRIPTION PRODUCT DESCRIPTION The EUT is the Internal CD-RW drive, FCC ID:JBQCDR018. This model CDR-RW2 FCC ID:JBQCDR018 is provided at Max.X8 data transfer speed. This device is provided SCSI interface. APPLICANT : SANYO ELECTRIC CO., LTD. FCC ID : JBQCDR018 OSC : 20.0MHz, 33.8MHz POWER : DC input +5V, +12V I/F CABLE(S) : Unshielded PORT/Connectors : Headphones jack Audio connector SCSI connector DC connector (DC INPUT) Report No.:Z02C-99206 Page 4 / 22 Zacta Technology Corp. FCC ID: JBQCDR018 Equipment : No modification was made during testing Modifications EUT EXERCISE The EUT exercise program used during Radiated and Conducted emission testing was designed to exercise the various system components in a manner similar to a typical use. Once loaded, the program sequentially exercised each system component in turn. LABORATORY DESCRIPTION DESCRIPTION FOR TEST SITE 1. LOCATION: ZACTA TECHNOLOGY CORPORATION YONEAZAWA TESTING CENTER 4149-7 Hachimanpara 5-chome, Yonezawa-shi Yamagata 992-1128 Japan Phone: +81-238-28-2880 Fax: +81-238-28-2888 2. THE NUMBER OF SITE: Total: 4 sites - #1 site, #2 site, #3 site, #4 site 3. THE TYPE OF SITE: Whether protected site 4. TEST TYPE: All sites could perform as follows tests: 1) 3/10m Radiated disturbance test 2) Conducted disturbance test Report No.:Z02C-99206 Page 5 / 22 Zacta Technology Corp. FCC ID: JBQCDR018 5. FACILITY FILING INFORMATION FCC FINAL SITE FILING: 2.948 Pursuant to ANSI C63.4-1992 #1 site, #2 site, #3 site (Final date: January 29, 1997) #4 site (Final date: June 18, 1998) *3m/10m Radiated emission test & Conducted emission test could be performed on each site VCCI FINAL SITE FILING: V–5/97.04 Pursuant to VCCI Regulations for Registration of measurement facilities #1 site R – 136 C - 132 (Final date: April 1, 1997) #2 site R – 137 C – 133 (Final date: April 1, 1997) #3 site R – 138 C – 134 (Final date: April 1, 1997) #4 site R – 752 C - 775 (Final date: June 23, 1998) NVLAP ACCREDITION: NVLAP CODE: 200306-0 NVLAP INFORMATION: NVLAP accreditation does not constitute any product endorsement by NVLAP or any agent of the U.S. Government Report No.:Z02C-99206 Page 6 / 22 Zacta Technology Corp. FCC ID: JBQCDR018 DESCRIPTION OF CONDUCTED EMISSION TESTING The line-conducted emissions testing facility is located inside of the site which used for radiated emissions testing. A 1 meter x 1.5 meter surface, 0.8 meter height from conducting ground plane wooden table is placed 40 cm away from the vertical conducting surface. …
