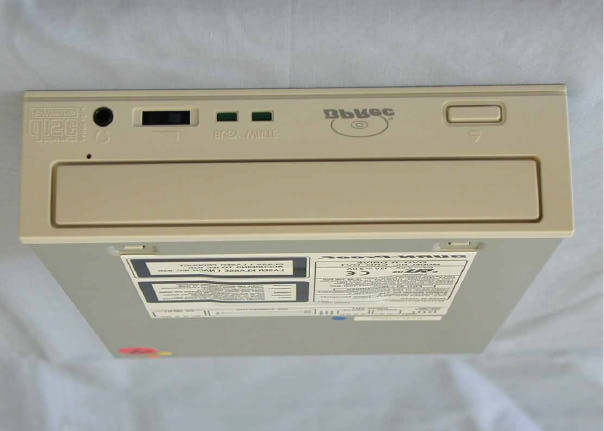

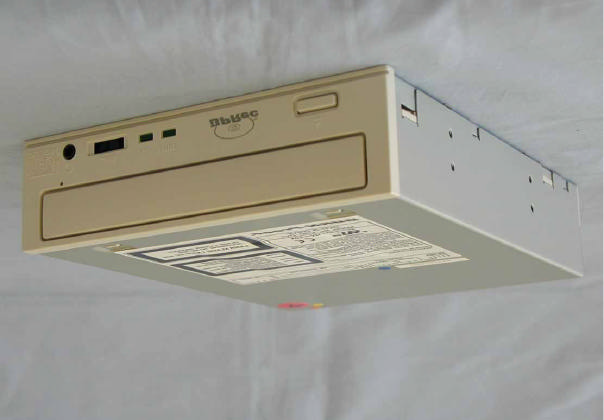

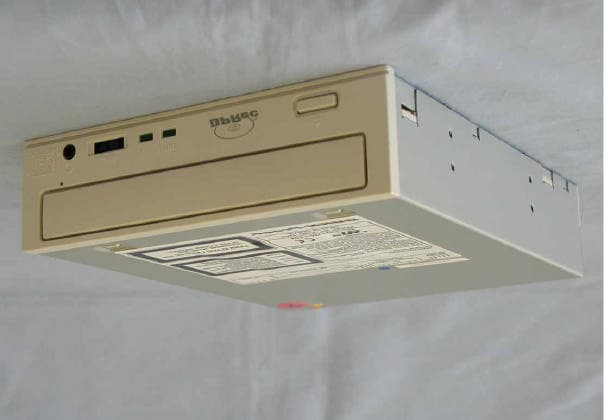

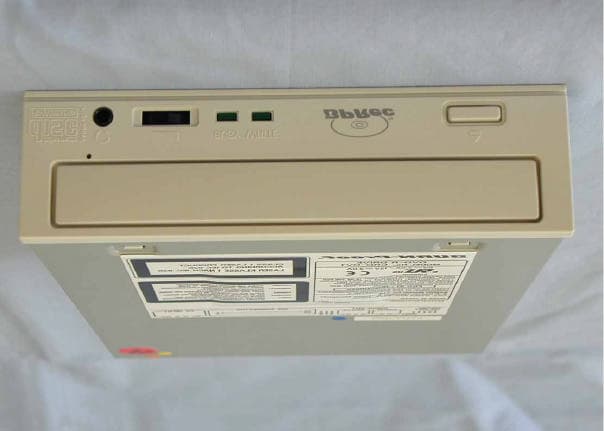

JBQCDR029DVD - R Drive

DVD-RDrive CRD-DV1 OWNER’SMANUAL Page 2 Document No. Document Name SANYO Electric Co., Ltd. Revision History (1/1) 1. Revision History Revision No. Manager Change Description Check Approval First Edition Newly issued Page 3 Document No. Document Name SANYO Electric Co., Ltd. Included Document List (1/1) 2. Included Document List Document Name Document No. Page No. General Description 1/3 ~ 3/3 4 Dimensions, External View and Names and Functions of Each Part 1/2 ~ 2/2 7 Terminal Description 1/3 ~ 3/3 9 Environmental Conditions 1/1 12 Reliability 1/3 ~ 3/3 13 Lot No. Reliability Description 1/1 16 Safety Standards 1/1 17 Electrical Characteristics 1/3 ~ 3/3 18 Function Description 1/3 ~ 3/3 21 Handling Manual 1/1 24 Notes for Handling 1/5 ~ 5/5 25 Page 4 Document No. Document Name SANYO Electric Co., Ltd. General Description (1/3) General Description (1) Model Name: CRD-DV1 (DVD-R drive with MAX × 12 speed reading, × 4 speed writing, CD-R drive with MAX × 40 speed reading, × 24 speed writing, and × 12 rewriting) (2) External View External View (3) General Specifications 1) Characteristics * Half-height and built-in type * Conforms to Orange Book Part 2, 3 & DVD-R for general specifications. * Equipped with the newly developed automatic strategy LSI with the data reliability enhanced. * DVD-R drive with MAX × 12 speed reading(CAV), × 4 speed writing (CLV), CD-R drive with MAX × 40 speed reading, × 24 speed writing, and × 12 rewriting) * ATAPI is employed to enable high speed data transmission. * Automatic loading mechanism * Emergency disc ejecting function * Data verifying function * Media condition check function * CD-DA read function * BURN-Proof Technology implemented “BURN-Proof” stands for Proof against Buffer Under Run error, not for proof against burning. Page 5 Document No. Document Name SANYO Electric Co., Ltd. General Description (2/3) (4) Applications Wide range of applications available, such as image data filing, management of CAD/CAM, drawing data and financial affairs, audio data storage and electronic publication. (5) Main Specifications Items Specifications Dimensions 148 (W) x 194.2 (D) x 42.3 (H) mm Mass 1020 g Recording Form Orange-book part 2, 3 Fixed packet Disc-at-once Variable packet Track-at-once DVD-R for general 2.0 Disc at Once Recording Incremental Recording Front Panel Eject key, Emergency eject pinhole, LED (busy and write) Headphone jack, Volume Eject Automatic loading Power Supply DC 5 × (1 ± 5 %) V DC 12 × (1 ± 10 %) V (6) Operational environment for the “write/rewrite” application software Items Specifications Host Machine IBM compatible PC (Celeron433 MHz or more) (Note 1) OS MS-Windows 98SE/ME/2000/NT4.0/XP (Note 2) Memory MS-Windows 98SE/ME/NT: 128 MB or more. MS-Windows2000/WindowsXP: 128 MB required. 256 MB recommended. Hard disc Empty Storage Capacity: 5GB or more (20GB or more recommended) Average seek time: 20 ms or less Transmission rate: 2 MB/s or more Do not use the HDD which caliblates thermaly during operation. CD-R (×4 ~ ×24) : MITSUI CHEMICAL , HITACHI MAXELL, RITEK, ACER, CMC (T.B.D) CD-RW (×4 ,×10, ×12) :MITSUBISHI CHEMICAL, RICOH (T.B.D) (Note 3)(Note 4) Recommended Media DVD-R(×1, ×2, ×4)MITUBISHI CHEMICAL,HITACHI MAXELL, PIONEER VIDEO,TAIYO YUDEN,TDK (T.B.D) (Note 1) If any problem occurs, negotiation is required to settle the matter. (Note 2) Windows NT4.0 doesn’t have ATAPI-DMA-Driver in the standard. Therefore, this Drive and IDE-HDD function with PIO-Mode. (Note 3) We intend to add the proper media one by one in the near future. (Note 4) Please refer to the latest information on the web: www.burn-proof.com . Page 6 Document No. Document Name SANYO Electric Co., Ltd. General Description (3/3) (7) Scope This specification is applied to the CD-R/RW/DVD-R drive “CRD-DV1” which is designed by SANYO Electric Co., Ltd. (8) Contents 1) Model No. CRD-DV1 2) Performance Write function onto CD-R/RW/DVD-R disc in combination with the write application software and CD-ROM/DVD-ROM read function, in combination with the CD-ROM/DVD-ROM application software. 3) Applications Write onto and read of the CD-R/RW/DVD-R disc. Read of CD-ROM/DVD-ROM disc. 4) Dimensions Refer to the item “Dimensions and Dimensional Drawing”. 5) Notes for handling Refer to the Manual and Notes for Handling. 6) Others a. The specifications of this product are the same as in the delivery specifications. If any fault or malfunction of the product occurs when it is used under any conditions except for our guaranteed conditions, our company has no responsibility for the claim. b. The specifications of this product are subject to change to enhance the performance. c. The change of notice is issued when the specification is changed only. d. If any doubt occurs regarding the contents of the specifications, negotiation is required to settle the matter. Page 7 Document No. Document Name SANYO Electric Co., Ltd. Dimensions, External View and Names and Functions of Each Part (1/2) 1. Dimensions and External View (1) External View Refer to the “General Description”. (2) Dimensions and Dimensional Drawing Refer to the attached document “Dimensions and Dimensional Drawing”. (3) Names and Functions of Each Part on the Front Panel Front Panel 1. Headphone Terminal : The headphone with a stereo mini plug is connected through this terminal. 2. Headphone Volume : The volume of the headphone connected to the headphone terminal is adjusted using this volume dial. When the volume dial is turned right, the volume becomes louder. 3. BUSY indicator : Command executing. ON Reading disc and accessing condition ON-AND-OFF TOC reading condition & EJECT condition OFF Pause or Stop condition 4. WRITE indicator : This is ON when the data is written onto the disc. 5. EJECT key : The disc is ejected, using this key. This key is available even when the tray is moving. When the PRV command is transmitted from HOST or during writing, this key is not available. 6. Emergency eject pinhole : If the disc is not eje…

Text truncated - open the document above for the full version.

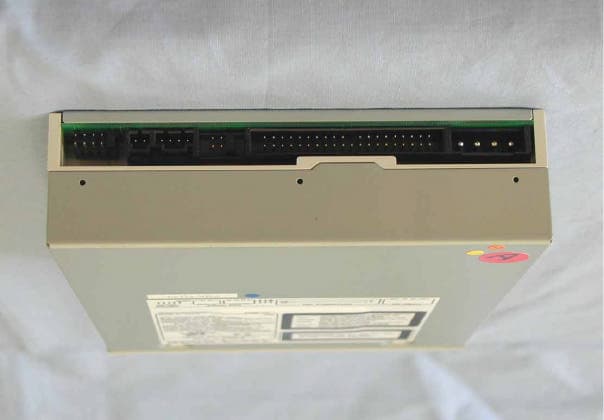

I9 D AC INLET DC Cable Main Board Power Supply Audio Internal Cable IDE Connector DC Cable IDE Internal Cable HzHzMH Phones Connector Volume

Sanyo Electric Co., Ltd. DVD-R Drive JBQCDR029

MODEL No. CRD-DV1 Label goes here

Sanyo Electric Co., Ltd. DVD-R Drive JBQCDR029

Report Number: Z01C-02310 Page 2 of 19 ZACTA Technology Corp. FCC ID: JBQCDR029 FCC Certification Rev.3.2 Table of contents Page 1. Equipment description..............................................................................................................................3 1.1 EUT information....................................................................................................................................................................................3 1.2 Operating flow........................................................................................................................................................................................3 2. Configuration information........................................................................................................................4 2.1 Peripheral(s) information........................................................................................................................................................................4 2.2 Cable(s) information...............................................................................................................................................................................4 2.3 System configuration..............................................................................................................................................................................5 3. Test procedure..........................................................................................................................................6 3.1 Description of Conducted Emission testing............................................................................................................................................6 3.2 Test equipment for Conducted emission.................................................................................................................................................6 3.3 Description of Radiated emission testing................................................................................................................................................7 3.4 Test equipment for Radiated emission....................................................................................................................................................8 4. Laboratory description..............................................................................................................................9 4.1 Description for Test Site..........................................................................................................................................................................9 4.2 Uncertainty...........................................................................................................................................................................................10 5. Results of the measurements...................................................................................................................11 5.1 Results of the measurements.................................................................................................................................................................11 5.2 Deviation from the standard..................................................................................................................................................................11 5.3 Sample of field strength calculation......................................................................................................................................................11 6. Test Data................................................................................................................................................12 Report Number: Z01C-02310 Page 3 of 19 ZACTA Technology Corp. FCC ID: JBQCDR029 FCC Certification Rev.3.2 1. Equipment description 1.1 EUT information No. EUT Company Model No. Serial No. FCC ID/DoC Comment 1 DVD-R Drive SANYO CRD-DV1 DV1PP2085 JBQCDR029 - Max. used frequency : 380.00MHz (±80%) Oscillator(s)/Crystal(s) Operating frequency : 20.00MHz, 33.86MHz, 380MHz(±80%) Power ratings : DC +5V, +12V [EUT is powered from Host PC. Power supply for Host PC in testing was AC 120V 60Hz.] Port(s) : Headphones jack Audio connector IDE connector DC connector (DC input) Size : (W) 148 x (D) 194.2 x (H) 42.3 mm Operating mode : CD Read mode CD Write mode DVD Read mode DVD Write mode Variation of model(s) : Not applicable 1.2 Operating flow <CD Read mode> <CD Write mode> <DVD Read mode> <DVD Write mode> END EUT reads CD data and output data to PC. START END EUT writes data from PC on the CD. START END EUT writes data from PC on the DVD. START END EUT reads DVD data and output data to PC. START Report Number: Z01C-02310 Page 4 of 19 ZACTA Technology Corp. FCC ID: JBQCDR029 FCC Certification Rev.3.2 2. Configuration information 2.1 Peripheral(s) information No. Equipment Company Model No. Serial No. DoC / FCC ID Comment 2 Main board COMPAQ N/A N/A N/A - 3 Personal Computer COMPAQ Prosig 320 C500/ M1 JPN2 7016 CZHP0116 DoC - 4 Headphone N/A N/A N/A N/A - 5 Speaker Panasonic RP-SP30 N/A N/A - 6 Printer HP C4555A US6BC1212N B94C4555X - 7 Display Goldstar Studio Works 56i 15005G004960 BEJCS585 - 8 Modem US Robotics 839 000839032BK6YV4J DoC - 9 AC adapter for Modem US Robotics N/A N/A N/A - 10 Keyboard COMPAQ KB-9965 B13B00WBUJ6150 DoC - 11 Mouse COMPAQ Intelli Mouse 0805393-5 DoC - 2.2 Cable(s) information No. Cable Length [m] Shield Connector From To Comment a IDE cable 0.4 Unshielded Plastic EUT Main board - b Audio cable 0.5 Unshielded Plastic EUT Main board - c DC cable 0.2 Unshielded Plastic EUT Power supply - d Headphone cable 1.0 Unshielded Metal EUT Headphone - e Speaker cable 1.0 Unshielded Metal PC Speaker - f Centronics cable 1.2 Shielded Metal PC Printer - g AC power cord for Printer 2.7 Unshielded Plastic Printer AC outlet - h RGB cable 1.5 Shielded Metal PC Display…
