JBQCDR027Internal CD-RW

Page 3 Document No. Document Name SANYO Electric Co., Ltd. Included Document List (1/1) 2. Included Document List Document Name Document No. Page No. General Description 1/3 ~ 3/3 46 Dimensions, External View and Names and Functions of Each Part 1/2 ~ 2/2 78 Terminal Description 1/3 ~ 3/3 911 Environmental Conditions 1/1 12 Reliability 1/3 ~ 3/3 1315 Lot No. Reliability Description 1/1 16 Safety Standards 1/1 17 Electrical Characteristics 1/3 ~ 3/3 1820 Function Description 1/3 ~ 3/3 2123 Handling Manual 1/1 24 Notes for Handling 1/5 ~ 5/5 25 Page 4 Document No. Document Name SANYO Electric Co., Ltd. General Description (1/3) General Description (1) Model Name: CRD-BP1500U40X (CD-R drive with MAX × 48 speed reading, × 40 speed writing, and × 12 speed rewriting) (2) External View External View (3) General Specifications 1) Characteristics * Half-height and built-in type * Conforms to Orange Book Part 2, 3 * Equipped with the newly developed automatic strategy LSI with the data reliability enhanced. * MAX × 48 CAV speed reading, × 40 speed writing (ZCLV), and × 12 speed rewriting * USB2.0 is employed to enable high speed data transmission. * Automatic loading mechanism * Vertical operation feasible. * Emergency disc ejecting function * Data verifying function * Media condition check function * CD-DA read function * BURN-Proof Technology implemented “BURN-Proof” stands for Proof against Buffer Under RuN error, not for proof against burning. Page 5 Document No. Document Name SANYO Electric Co., Ltd. General Description (2/3) (4) Applications Wide range of applications available, such as image data filing, management of CAD/CAM, drawing data and financial affairs, audio data storage and electronic publication. (5) Main Specifications Items Specifications Dimensions 146 (W) x 188.5 (D) x 41.3 (H) mm Mass 1020 g Recording Form Orange-book part 2, 3 Fixed packet Disc-at-once Variable packet Track-at-once Front Panel Eject key, Emergency eject pinhole, LED (busy and write) Headphone jack, Volume Eject Automatic loading Power Supply DC 5 × (1 ± 5 %) V DC 12 × (1 ± 10 %) V (6) Operational environment for the “write/rewrite” application software Items Specifications Host Machine IBM compatible PC (Pentium 166 MHz or more) (Note 1) OS MS-Windows 95/98/98SE/ME/2000/NT4.0/XP (Note 2) Memory MS-Windows 95/98/98SE/ME/NT: 64 MB required. 128 MB recommended. MS-Windows2000/WindowsXP: 128 MB required. 256 MB recommended Hard disc Empty Storage Capacity: 100 MB or more Average seek time: 20 ms or less Transmission rate: 2 MB/s or more Do not use the HDD which caliblates thermaly during operation. CD-R ( × 4 ~ × 40) : RITEK, CMC, DAXON, MBI, MITSUI CHEMICAL , MITSUBISHI CHEMICAL, HITACHI MAXELL Recommended Media CD-RW ( × 4 , × 10, × 12) :MITSUBISHI CHEMICAL, RICOH (T.B.D) (Note 3)(Note 4) (Note 1) If any problem occurs, negotiation is required to settle the matter. (Note 2) (1) Install “Device Driver of USB 2.0” in OS. (A thing for the board of USB 2.0 which you chose.) (2) Install USB 2.0 Storage Driver (TPPinst.exe). Please,Downlode this site. www.in-system.com/SW_License.html (Note 3) We intend to add the proper media one by one in the near future. (Note 4) Please refer to the latest information on the web: www.burn-proof.com. Page 6 Document No. Document Name SANYO Electric Co., Ltd. General Description (3/3) (7) Scope These delivery specifications are applied to the CD-R/RW drive “CRD-BP1500U40X” which is sold by SANYO Electric Co., Ltd. (8) Contents 1) Model No. CRD-BP1500U40X 2) Performance Write function onto CD-R/RW disc in combination with the write application software and CD-ROM read function, in combination with the CD-ROM application software. 3) Applications Write onto and read of the CD-R/RW disc. Read of CD-ROM disc. 4) Dimensions Refer to the item “Dimensions and Dimensional Drawing”. 5) Notes for handling Refer to the Manual and Notes for Handling. 6) Others a. The specifications of this product are the same as in the delivery specifications. If any fault or malfunction of the product occurs when it is used under any conditions except for our guaranteed conditions, our company has no responsibility for the claim. Service and the term of guarantee shall be described in the attached memorandum. b. For the legal regulations for this product, refer to the attached document. c. The specifications of this product are subject to change to enhance the performance. d. The change of notice is issued when the specification is changed only. e. If any doubt occurs regarding the contents of the specifications, negotiation is required to settle the matter. Page 7 Document No. Document Name SANYO Electric Co., Ltd. Dimensions, External View and Names and Functions of Each Part (1/2) 1. Dimensions and External View (1) External View Refer to the “General Description”. (2) Dimensions and Dimensional Drawing Refer to the attached document “Dimensions and Dimensional Drawing”. (3) Names and Functions of Each Part on the Front Panel Front Panel 1. Headphone Terminal : The headphone with a stereo mini plug is connected through this terminal. 2. Headphone Volume : The volume of the headphone connected to the headphone terminal is adjusted using this volume dial. When the volume dial is turned right, the volume becomes louder. 3. BUSY indicator : Command executing. (Power indicator) ON : Power-On ON-AND-OFF(Slow) : TOC reading condition & Eject condition OFF Power-Off 4. WRITE indicator : This is ON when the data is written onto the disc. 5. EJECT key : The disc is ejected, using this key. This key is available even when the tray is moving. When the PRV command is transmitted from HOST or during writing, this key is not available. 6. Emergency eject pinhole : If the disc is not ejected when the key is pressed, because of power failure or run away of the software, this pinhole is used to take out the disc. 7. Disc tray : The disc is placed on this tray. 6 7 5 1 2 4 3 Page 8 Document No. Document Name SANYO Electri…

Text truncated - open the document above for the full version.

FCC ID : JBQCDR027 CRD-BP1500U40X BlockDiagram PickUP 290MHz25% ACT SPDL MOTOR LC898094 AK8569B SLMOTOR Isd300 DU AC INLET DC Cable Main Board Power Supply Audio Internal Cable USB Connector DC Cable USB Internal Cable HzHHH Phones Connector Volume DU Computer Power Supply USB Connector DC Cable USB Interface Cable HHHH Phones Connector Volume

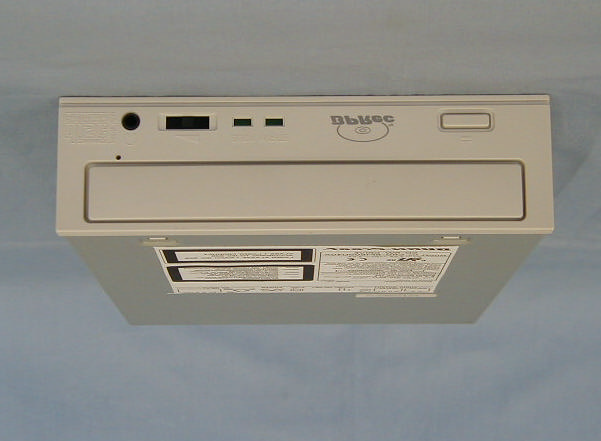

Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR027

MODEL No. CRD-BP1500U40X Label goes here

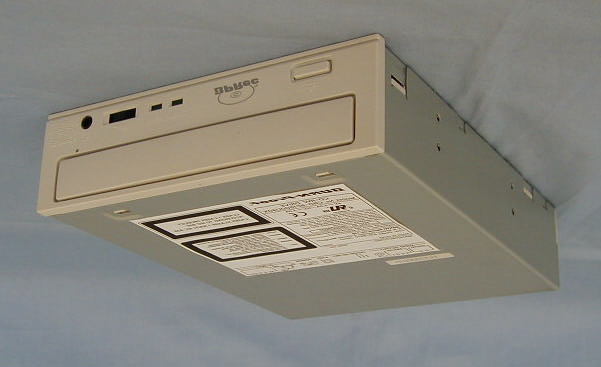

Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR027

FCC ID: JBQCDR027 Over view Model: CRD-BP1500U40X is the CD-RW Drive with Max. signal transfer rate: X48 speed. This device is provided USB2.0 interface and installed internal of the Personal Computer. < Specifications > Recording/playback speed Recording x4, x8, x16, x20, x40 (Write) x4, x10, x12 (Rewrite) Playback & Data reading x1 ~ x48 speed Signal transfer rate X4 speed : 600kB/s X20 speed : 3000kB/s X8 speed : 1200kB/s X40 speed : 6000kB/s X16 speed : 2400kB/s Connectors Interface connector : 4-pin DC connector : : 4-pin, +5V, +12V 5-pin, +5V, +12V (for Internal use) (for External use) Analog Audio connector (Line Out) : 4-pin 3.5mm stereo mini-jack (for Internal use) (for External use) Digital Audio connector : 2-pin (for Internal use) Headphone : 3.5mm stereo mini-jack Audio Headphone Output level : 80mV (1kHz, 28dB) Line Out Output level: : 60mV (1kHz, 60dB) Loading method: Tray loading Dimensions: (WxDxH) 146 x 188.5 x 41.3 mm Weight: 1020g

Report No.:Z01C-02143 Page 2 of 21 ZACTA Technology Corp. FCC ID: JBQCDR027 FCC Certification Rev.3.0 Table of contents Page 1. Equipment description..............................................................................................................................3 1.1 EUT information....................................................................................................................................................................................3 1.2 Operating flow........................................................................................................................................................................................3 2. Configuration information........................................................................................................................4 2.1 Peripheral(s) information (Internal Mode)..............................................................................................................................................4 2.2 Cable(s) information (Internal Mode).....................................................................................................................................................4 2.3 System configuration (Internal Mode)....................................................................................................................................................5 2.4 Peripheral(s) information (External Mode).............................................................................................................................................6 2.5 Cable(s) information (External Mode)....................................................................................................................................................6 2.6 System configuration (External Mode)...................................................................................................................................................7 3. Test procedure..........................................................................................................................................8 3.1 Description of Conducted Emission testing............................................................................................................................................8 3.2 Test equipment for Conducted emission.................................................................................................................................................8 3.3 Description of Radiated emission testing................................................................................................................................................9 3.4 Test equipment for Radiated emission..................................................................................................................................................10 4. Laboratory description............................................................................................................................11 4.1 Description for Test Site........................................................................................................................................................................11 4.2 Uncertainty...........................................................................................................................................................................................12 5. Results of the measurements...................................................................................................................13 5.1 Results of the measurements.................................................................................................................................................................13 5.2 Deviation from the standard..................................................................................................................................................................13 5.3 Sample of field strength calculation......................................................................................................................................................13 6. Test Data................................................................................................................................................14 Report No.:Z01C-02143 Page 3 of 21 ZACTA Technology Corp. FCC ID: JBQCDR027 FCC Certification Rev.3.0 1. Equipment description 1.1 EUT information No. EUT Company Model No. Serial No. FCC ID/DoC Comment 1 CD-RW Drive SANYO CRD-BP1500U40X PL1700U035 JBQCDR027 - Max. used frequency : 290.00MHz (±25%) Oscillator(s)/Crystal(s) Operating frequency : 25.00MHz, 30.00MHz, 33.86MHz, 290.00MHz (±25%) Power ratings : (Internal use) DC +5V, +12V [EUT is powered from Host PC . Power supply for Host PC in testing was AC 120V 60Hz.] (External use) DC +5V, +12V [EUT is powered from DC power supply. Power supply for DC power supply in testing was AC 120V 60Hz.] Port(s) : Headphones jack Audio connector(For Internal Use Only) Line Out jack (For External Use Only) USB Type A connector DC connector (From Internal DC input) DC connector (From AC Adaptor) Size : (W) 146 x (D) 188.5 x (H) 41.3 mm Operating mode : Internal CD Read mode Internal CD Write mode External CD Read mode External CD Write mode Variation of model(s) : Not applicable 1.2 Operating flow <Internal CD Read, External CD Read> <Internal CD Write, External CD Write > END EUT reads CD data and output data to PC. START END EUT writes data from PC on the CD. START Report No.:Z01C-02143 Page 4 of 21 ZACTA Technology Corp. FCC ID: JBQCDR027 FCC Certification Rev.3.0 2. Configuration information 2.1 Peripheral(s) information (Internal Mode) No. Equipment Company Model No. Serial No. DoC / FCC ID Comment 2 Main board COMPAQ N/A N/A N/A - 3 USB 2.0 I/F Board Adaptec AUA-3100LP - DoC - 4 Personal Computer COMPAQ Prosig 320 C500/ M1 JPN2 7016 CZLIPO116 DoC - 5 Headphone FISHER N/A N/A N/A - 6 Speaker Panasonic…

Text truncated - open the document above for the full version.

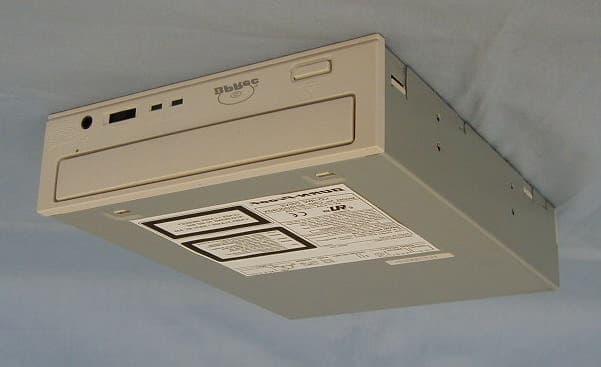

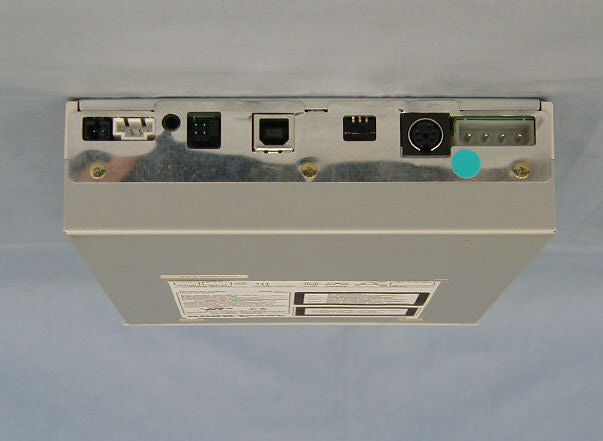

Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR027 Conduction (Internal Mode) Radiation (Internal Mode) Conduction (External Mode) Radiation (External Mode) Connectors (Internal Mode) Connectors (External Mode)
