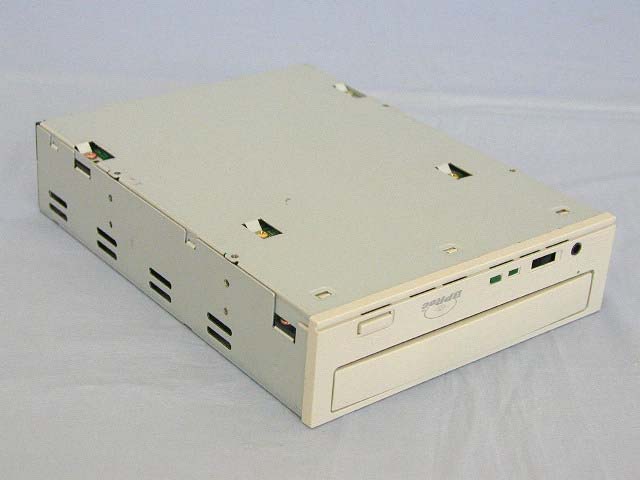

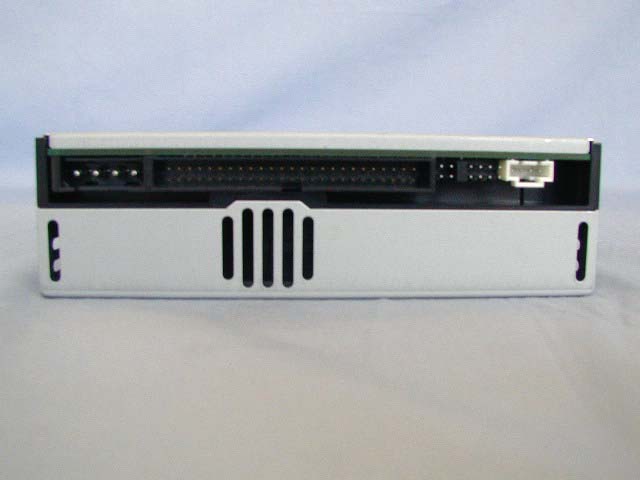

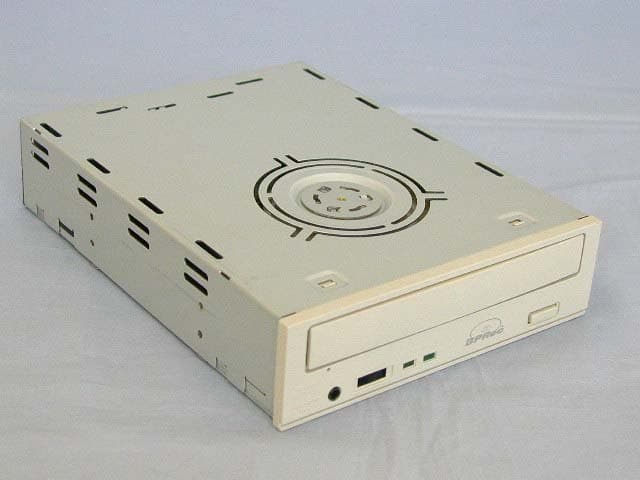

JBQCDR020Internal CD-RW drive

D AC INLET DC Cable Main Board Power Supply Audio Internal Cable SCSI Connector DC Cable SCSI Internal Cable Phones Connector Volume FCC ID: JBQCDR020 MODEL No. CRD-BP4 BP4 BlockDiagram LZ ACT SPDL MOTOR AK8567 LC898023K ASIC BH3802KV

MODEL No. CRD-BP4

Report No.:Z01C-00330 Page 1 of 16 ZACTA Technology Corp. FCC ID: JBQCDR020 FCC Certification Rev.3.0 T T E E S S T T R R E E P P O O R R T T Report No.: Z01C-00330 Issue Date: October 10, 2000 The device, as described herewith, was tested pursuant to applicable test procedure indicated below and complies with the requirements of; FCC Part15 Subpart B, Class B The EUT complies with section 15.37 “Transition provision for compliance with the rules”. The test results are traceable to international or national standards. Applicant : Sanyo Electric Co., Ltd. Information Products Division 1-1-1, Sakata, Oizumi-machi Ora-gun , Gunma-ken 370-0596 Phone: +81-276-61-8006 Fax.: +81-276-61-8752 Equipment under test (EUT) : CD-RW Drive FCC ID : JBQCDR020 Trade Name : SANYO Model Number : CRD-BP4 Serial Number : 38900004 EUT Condition : Pre-production Test procedure : ANSI C63.4-1992 Date of test : October 5, 2000 Test place : Site 2 Test results : Complied Zacta Technology Corporation certifies that no party to the application is subject to a denial of federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21U.S.C. 853(a). The results in this report are applicable only to the samples tested. This report shall not be re-produced except in full without the written approval of ZACTA Technology Corporation. Test performed by: Yuki Shindo / EMC engineer Authorized by: Kiyoshi Endo / Manager of Technical Division ZACTA Technology Corporation Yonezawa Testing Center 4149-7 Hachimanpara 5-chome Yonezawa-shi Yamagata 992-1128 Japan Phone: +81-238-28-2880 Fax: +81-238-28-2888 Report No.:Z01C-00330 Page 2 of 16 ZACTA Technology Corp. FCC ID: JBQCDR020 FCC Certification Rev.3.0 Table of contents Page 1. Equipment description............................................................................................................................3 1.1 EUT information...................................................................................................................................................................................3 1.2 Operating flow......................................................................................................................................................................................3 2. Configuration information.....................................................................................................................4 2.1 Peripheral(s) information......................................................................................................................................................................4 2.2 Cable(s) information.............................................................................................................................................................................4 2.3 System configuration............................................................................................................................................................................5 3. Test procedure........................................................................................................................................6 3.1 Description of Conducted Emission testing........................................................................................................................................6 3.2 Test equipment for Conducted emission.............................................................................................................................................6 3.3 Description of Radiated emission testing............................................................................................................................................7 3.4 Test equipment for Radiated emission.................................................................................................................................................7 4. Laboratory description...........................................................................................................................8 4.1 Description for Test Site.......................................................................................................................................................................8 4.2 Uncertainty............................................................................................................................................................................................8 5. Results of the measurements..................................................................................................................9 5.1 Results of the measurements................................................................................................................................................................9 5.2 Deviation from the standard.................................................................................................................................................................9 5.3 Sample of field strength calculation...................................................................................................................................................10 6. Test Data...............................................................................................................................................11 Report No.:Z01C-00330 Page 3 of 16 ZACTA Technology Corp. FCC ID: JBQCDR020 FCC Certification Rev.3.0 1. Equipment description 1.1 EUT information No. EUT Company Model No. Serial No. FCC ID/DoC Comment 1 CD-RW Drive SANYO CRD-BP4 38900004 JBQCDR020 - Max. used frequency : 33.86MHz Oscillator(s)/Crystal(s) Operating frequency : 20.0MHz, 33.8MHz Power ratings : DC +5V, +12V [EUT is powered from Host PC. Power supply for Host PC in testing was AC 120V 60Hz.] Port(s) : Headphones jack Audio connector SCSI connector DC connector (DC input) Size : (W) 146 x (H) 41.3 x (D) 188.5 mm Operating mode : CD READ mode CD WRITE…

Text truncated - open the document above for the full version.

Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR020 Conduction Radiation
