JBQCDR024CD-RW Drive

FCC ID: JBQCDR02 FCC ID: JBQCDR02 FCC ID: JBQCDR02 FCC ID: JBQCDR024 4 4 4 CRD-BP1500u BlockDiagram PickUP:310Mhz 25% A CT SPDL MOTOR LC898098Y AK8569 Isd300 4 DU AC INLET DC Cable Main Board Power Supply Audio Internal Cable USB Connector DC Cable USB Internal Cable Phones Connector Volume 4 DU Computer Power Supply USB Connector DC Cable USB Interface Cable Phones Connector Volume

Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR024

FCC ID : JBQCDR024 MODEL No. : CRD-BP1500U CABINET MODEL No. CRD-BP1500U LABEL RATING

Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR024

FCC ID: JBQCDR024 Over view Model: CRD-BP1500U is the CD-RW Drive with Max. signal transfer rate: X40 speed. This device is provided USB2.0 interface and installed internal of the Personal Computer. < Specifications > Recording/playback speed : x2 ,x4,x8,x12,x16,x24(Write) Recording x2 ,x4,x8,x10(Rewrite) Playback & Data reading : x1 ~ x40 speed Signal transfer rate x1 speed (CLV) : 150kB/s x2 speed (CLV) : 300kB/s x16 ~x40 speed(CAV) : 2400kB/s~6000kB/s x4 speed (CLV) : 600kB/s x8 speed (CLV) : 1200kB/s x12 speed (CLV) : 1800kB/s Connectors Interface connector : 4-pin DC connector: : 4-pin, +5V, +12V (for Internal use) : 5-pin, +5V, +12V (for External use) 4-pin (for Internal use) Analog Audio connector (Line Out) : 3.5mm stereo mini-jack (for External use) Digital Audio connector : 2-pin (for Internal use) Headphone : 3.5mm stereo mini-jack Audio Headphone Output level : 90mV (1kHz, 28dB) Line Out Output level : 70mV (1kHz, 70dB) Loading method: Tray loading Dimensions: (WxDxH) 146 x 188.5 x 41.3 mm Weight: 1040g

Report No.:Z01C-01292 Page 1 of 21 ZACTA Technology Corp. FCC ID: JBQCDR024 FCC Certification Rev.3.0 T T E E S S T T R R E E P P O O R R T T Report No.: Z01C-01292 Issue Date: August 2, 2001 The device, as described herewith, was tested pursuant to applicable test procedure indicated below and complies with the requirements of; FCC Part15 Subpart B, Class B The EUT complies with section 15.37 “Transition provision for compliance with the rules”. The test results are traceable to international or national standards. Applicant : Sanyo Electric Co., Ltd. Information Products Division 1-1-1, Sakata, Oizumi-machi Ora-gun , Gunma-ken 370-0596 Phone: +81-276-61-8006 Fax.: +81-276-61-8752 Equipment under test (EUT) : CD-RW Drive FCC ID : JBQCDR024 Trade Name : SANYO Model Number : CRD-BP1500U Serial Number : U-0195 EUT Condition : Pre-production Test procedure : ANSI C63.4-1992 Date of test : July 27, 2001 Test place : Site 3 Test results : Complied Zacta Technology Corporation certifies that no party to the application is subject to a denial of federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21U.S.C. 853(a). The results in this report are applicable only to the samples tested. This report shall not be re-produced except in full without the written approval of ZACTA Technology Corporation. Test performed by: Takuya Osato / EMC engineer Authorized by: Kiyoshi Endo / Manager of Technical Division ZACTA Technology Corporation Yonezawa Testing Center 4149-7 Hachimanpara 5-chome Yonezawa-shi Yamagata 992-1128 Japan Phone: +81-238-28-2880 Fax: +81-238-28-2888 Report No.:Z01C-01292 Page 2 of 21 ZACTA Technology Corp. FCC ID: JBQCDR024 FCC Certification Rev.3.0 Table of contents Page 1. Equipment description..............................................................................................................................3 1.1 EUT information....................................................................................................................................................................................3 1.2 Operating flow........................................................................................................................................................................................3 2. Configuration information........................................................................................................................4 2.1 Peripheral(s) information (Internal Mode)..............................................................................................................................................4 2.2 Cable(s) information (Internal Mode).....................................................................................................................................................4 2.3 System configuration (Internal Mode)....................................................................................................................................................5 2.4 Peripheral(s) information (External Mode).............................................................................................................................................6 2.5 Cable(s) information (External Mode)....................................................................................................................................................6 2.6 System configuration (External Mode)...................................................................................................................................................7 3. Test procedure..........................................................................................................................................8 3.1 Description of Conducted Emission testing............................................................................................................................................8 3.2 Test equipment for Conducted emission.................................................................................................................................................8 3.3 Description of Radiated emission testing................................................................................................................................................9 3.4 Test equipment for Radiated emission..................................................................................................................................................10 4. Laboratory description............................................................................................................................11 4.1 Description for Test Site........................................................................................................................................................................11 4.2 Uncertainty...........................................................................................................................................................................................12 5. Results of the measurements...................................................................................................................13 5.1 Results of the measurements.................................................................................................................................................................13 5.2 Deviation from the standard..................................................................................................................................................................13 5.3 Sample of field strength calculation......................................................................................................................................................13 6. Test Data................................................................................................................................................14 Report No.:Z01C-01292 Page 3 of 21 ZACTA …

Text truncated - open the document above for the full version.

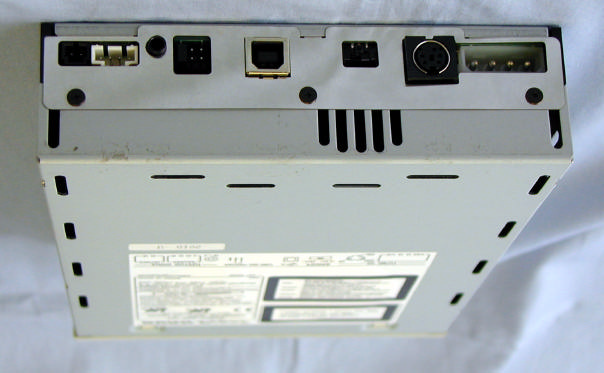

Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR024 Conduction (Internal Mode) Radiation (Internal Mode) Conduction (External Mode) Radiation (External Mode) Connectors(Internal Mode) Connectors(External Mode)
