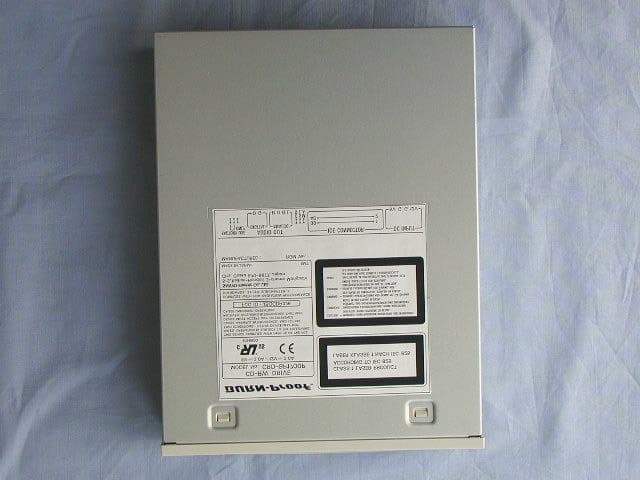

JBQCDR026Internal CD-RW
Sanyo Electric Co Ltd
Click to zoom
Application Details
- Equipment Class
- JBP - Part 15 Class B Computing Device Peripheral
- Date of Grant
- Mar 13, 2002
- Application Purpose
- Original Equipment
- Date of Application
- Mar 12, 2002
- Equipment Note
- Internal CD-RW
- Company
- Sanyo Electric Co Ltd
- Country
- Japan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Block Diagram
FCCID:JBQCDR026 CRD-BP1700P BlockDiagram PickUP 290MHz25 ACT SPDL MOTOR LC898094 AK8569B SLMOTOR D7 AC INLET DC Cable Main Board Power Supply Audio Internal Cable IDE Connector DC Cable IDE Internal Cable MHzHzHz Phones Connector Volume
External Photos
Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR026
ID Label/Location Info
P MODEL No. CRD-BP1700P Label goes here
Internal Photos
Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR026
Test Report
Report No.:Z01C-02032 Page 2 of 15 ZACTA Technology Corp. FCC ID: JBQCDR026 FCC Certification Rev.3.0 Table of contents Page 1. Equipment description..............................................................................................................................3 1.1 EUT information....................................................................................................................................................................................3 1.2 Operating flow........................................................................................................................................................................................3 2. Configuration information........................................................................................................................4 2.1 Peripheral(s) information........................................................................................................................................................................4 2.2 Cable(s) information...............................................................................................................................................................................4 2.3 System configuration..............................................................................................................................................................................5 3. Test procedure..........................................................................................................................................6 3.1 Description of Conducted Emission testing............................................................................................................................................6 3.2 Test equipment for Conducted emission.................................................................................................................................................6 3.3 Description of Radiated emission testing................................................................................................................................................7 3.4 Test equipment for Radiated emission....................................................................................................................................................8 4. Laboratory description..............................................................................................................................9 4.1 Description for Test Site..........................................................................................................................................................................9 4.2 Uncertainty...........................................................................................................................................................................................10 5. Results of the measurements...................................................................................................................11 5.1 Results of the measurements.................................................................................................................................................................11 5.2 Deviation from the standard..................................................................................................................................................................11 5.3 Sample of field strength calculation......................................................................................................................................................11 6. Test Data................................................................................................................................................12 Report No.:Z01C-02032 Page 3 of 15 ZACTA Technology Corp. FCC ID: JBQCDR026 FCC Certification Rev.3.0 1. Equipment description 1.1 EUT information No. EUT Company Model No. Serial No. FCC ID/DoC Comment 1 CD-RW Drive SANYO CRD-BP1700P PL026 JBQCDR026 - Max. used frequency : 290.00MHz (±25%) Oscillator(s)/Crystal(s) Operating frequency : 25.00MHz, 33.86MHz, 290.00MHz (±25%) Power ratings : DC +5V, +12V [EUT is powered from Host PC. Power supply for Host PC in testing was AC 120V 60Hz.] Port(s) : Headphones jack Audio connector IDE connector DC connector (DC input) Size : (W) 146 x (D) 188.5 x (H) 41.3 mm Operating mode : CD Read mode CD Write mode Variation of model(s) : Not applicable 1.2 Operating flow <CD Read > <CD Write > END EUT reads CD data and output data to PC. START END EUT writes data from PC on the CD. START Report No.:Z01C-02032 Page 4 of 15 ZACTA Technology Corp. FCC ID: JBQCDR026 FCC Certification Rev.3.0 2. Configuration information 2.1 Peripheral(s) information No. Equipment Company Model No. Serial No. DoC / FCC ID Comment 2 Main board COMPAQ N/A N/A N/A - 3 Personal Computer COMPAQ Prosig 320 C500/ M1 JPN2 7016 CZHP0116 DoC - 4 Headphone FISHER N/A N/A N/A - 5 Speaker Panasonic RP-SP30 N/A N/A - 6 Printer HP C4555A US6BC212N B94C4555X - 7 Display Goldstar Studio Works 56i 15005G004966 BEJCS585 - 8 Modem US Robotics 839 000839032BK6YV4J DoC - 9 AC adapter for Modem US Robotics N/A N/A N/A - 10 Keyboard COMPAQ KB-9965 B13B00WBUJ6150 DoC - 11 Mouse COMPAQ Intelli Mouse 0805393-5 DoC - 2.2 Cable(s) information No. Cable Length [m] Shield Connector From To Comment a IDE cable 0.4 Unshielded Plastic EUT Main board - b Audio cable 0.5 Unshielded Plastic EUT Main board - c DC cable 0.2 Unshielded Plastic EUT Power supply - d Headphone cable 1.5 Unshielded Metal EUT Headphone - e Speaker cable 1.0 Unshielded Metal PC Speaker - f Centronics cable 1.2 Shielded Metal PC Printer Bundled excess cable. g AC power cord for Printer 2.7 Unshielded Plastic Printer AC outlet - h RGB cable 1.5 Shielded Metal PC Display With one ferrite core Bundled excess cable. i AC power cord for Display 2.2 Unshielded Plastic Display AC outlet - j RS232C cable 1.4 Shielded Metal PC M…
Text truncated - open the document above for the full version.
Test Setup Photos
Sanyo Electric Co., Ltd. CD-RW Drive JBQCDR026 Conduction Radiation Connectors
Contact Information
Applicant
Ryuichi Matsunae(Manager)
Technical Contact
PCTEST Engineering Lab., Inc.Randy Ortanez
[email protected]410-290-6652
6660-B Dobbin Road · Columbia, Maryland · United States
Test Firm
TUV SUD Zacta Ltd.Shin-ichi Abe
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15B | - | - |
