JF6-8505U-4Digitally Modulated Radio

3DH03220MDR-8000 Series Radios Issue 6, April 2002 1-1 Page section 1 general List of Paragraphs 1.1INTRODUCTION...................................................................................... 1-3 1.2STANDARD FEATURES ............................................................................. 1-3 1.3 NAMING CONVENTION ........................................................................1-5 1.4 ORDERING INFORMATION......................................................................1-6 1.5SYSTEM CONFIGURATIONS .................................................................... 1-6 1.6RADIO CONFIGURATIONS ...................................................................... 1-6 1.6.1Basic Configurations................................................................................. 1-6 1.6.2 Ring .......................................................................................................1-7 1.6.3 Space Diversity Add-On............................................................................1-7 1.6.4Optical 2 X 4 Configuration ...................................................................... 1-7 1.7FEATURES AND OPTIONS........................................................................ 1-7 1.7.1Primary Power ......................................................................................... 1-7 1.7.2Transmit Power Level Options .................................................................... 1-7 1.7.3Differential Absolute Delay Equalization (DADE) .......................................... 1-7 1.7.4Trellis Encoding and Time Domain Equalization (TDE) ................................... 1-7 1.7.5MCS-11 Alarm/Control Interface ............................................................... 1-7 1.7.6 Foreign Alarm Interface.............................................................................1-8 1.7.7 Relay Interface Option..............................................................................1-8 1.7.8Extended Link Monitor Channel.................................................................. 1-8 1.7.9Automatic Transmitter Power Control Provisioning Option.............................. 1-8 1.7.10Service Channels Provisioning Options ....................................................... 1-8 1.7.11Mechanical Options ............................................................................... 1-10 1.7.12Capacity upgrade .................................................................................. 1-12 1.7.13Bandwidth upgrade................................................................................ 1-12 1.8USER SYSTEM INTERFACE (USI) .............................................................. 1-12 1.8.1System Security ...................................................................................... 1-12 1.9RADIO CHARACTERISTICS...................................................................... 1-13 3DH03220MDR-8000 Series Radios Issue 6, April 2002 1-2 Page 1.10EXTERNAL INTERFACE REQUIREMENTS ................................................... 1-32 1.11EQUIPMENT LISTING ............................................................................. 1-35 1.11.1Diplexer Filter Kits .................................................................................. 1-45 1.11.2Standard Filter Kits ................................................................................. 1-45 1.11.3Cable Drop Kit Option............................................................................ 1-45 1.12FAN ASSEMBLY..................................................................................... 1-45 1.13HANDSET KIT........................................................................................ 1-47 List of Tables Table 1-1Rack Options ......................................................................................... 1-11 Table 1-2Software ............................................................................................... 1-13 Table 1-3Guidelines............................................................................................. 1-13 Table 1-4Physical, Environmental, and Electrical Characteristics ................................ 1-14 Table 1-5OSS External Interface Requirements ........................................................ 1-32 Table 1-6MDR-8000/i/s Common Shelf Assembly .................................................. 1-35 Table 1-7Supplied and Optional Equipment............................................................ 1-38 Table 1-8I/O Interface Options ............................................................................. 1-40 Table 1-9XMTR Options ....................................................................................... 1-41 Table 1-10PA Options............................................................................................ 1-42 Table 1-11RCVR Options........................................................................................ 1-43 Table 1-12Capacity Keys for Transmitter and Receiver Modules .................................. 1-44 Table 1-13LBO Options.......................................................................................... 1-45 List of Figures Figure 1-1Typical MDR-8000/i/s/u Series Microwave Digital Radio ............................ 1-4 Figure 1-2Typical MDR-8000/i/s/u Component Locations and Options ...................... 1-36 Figure 1-3MDR-8000/i/s Component Locations, Rear View....................................... 1-37 Figure 1-4Fan Assembly ........................................................................................ 1-46 Table 1-14Fan Assembly/Lap Top Tray Options ........................................................ 1-46 Figure 1-5Fan Assembly With Laptop Tray Fully Extended.......................................... 1-47 Figure 1-6Handset Kit ........................................................................................... 1-48 3DH03220MDR-8000 Series Radios Issue 6, Jul…

Text truncated - open the document above for the full version.

3DH03220MDR-8000 Series Radios Issue 6, April 2002 6-1 Page section 6 DS3 initial turnup List of Paragraphs 6.1General .................................................................................................. 6-3 6.2Sequence of Events................................................................................... 6-3 6.3Provisioning Overview .............................................................................. 6-3 6.4Test Procedures ...................................................................................... 6-25 6.5Testing Sequence ................................................................................... 6-25 6.6Test Equipment Required ......................................................................... 6-27 List of Charts Chart 1Load MDR-8000 Software on PC..................................................................... 6-5 Chart 2Establish COM Port ........................................................................................ 6-7 Chart 3Provisioning................................................................................................. 6-11 Chart 4Transmit Crystal Oscillator Frequency Check .................................................. 6-29 Chart 5Transmitter Output Level Check (No PA) ......................................................... 6-31 Chart 6 Power Amplifier Output Level Check ............................................................. 6-35 Chart 7DS3 Radio DADE ......................................................................................... 6-39 Chart 8DS3 Line DADE............................................................................................ 6-41 Chart 9Over-The-Hop XMTR Output Power and RCVR RSL ......................................... 6-45 Chart 10Over-The-Hop DS3 BER Threshold Test........................................................... 6-47 List of Tables Table 6-1Test Equipment Required ......................................................................... 6-27 List of Figures Figure 6-1Load USI Software on PC .......................................................................... 6-6 Figure 6-2USI Computer Hookup .............................................................................. 6-8 Figure 6-3Communications Port Setup ....................................................................... 6-9 Figure 6-4Provisioning Sequence ............................................................................ 6-12 3DH03220MDR-8000 Series Radios Issue 6, April 2002 6-2 Page Figure 6-5DS3 Radio Configuration Provisioning (Sheet 1 of 3) .................................. 6-13 Figure 6-5DS3 Radio Configuration Provisioning (Sheet 2 of 3) .................................. 6-14 Figure 6-5DS3 Radio Configuration Provisioning (Sheet 3 of 3) .................................. 6-15 Figure 6-6DS3 Facilities Provisioning....................................................................... 6-16 Figure 6-7Wayside DS1 Facilities Provisioning ........................................................ 6-17 Figure 6-8DS3 Radio Service Channel Provisioning .................................................. 6-18 Figure 6-9DS3 Radio Audio Provisioning ................................................................. 6-19 Figure 6-10DS3 Radio MCS-11 Provisioning.............................................................. 6-20 Figure 6-11ELMC Provisioning ................................................................................. 6-21 Figure 6-12ELMC Remote Time-Out Constant Provisioning ........................................... 6-22 Figure 6-13Control Names Provisioning .................................................................... 6-23 Figure 6-14DS3 Station Alarm Names Provisioning .................................................... 6-24 Figure 6-15Testing Sequence ................................................................................... 6-26 Figure 6-16Transmit Crystal Oscillator Frequency Check.............................................. 6-30 Figure 6-17Transmitter Output Level Check (No PA) .................................................... 6-33 Figure 6-18PA Output Level Check............................................................................ 6-38 Figure 6-19DS3 Radio DADE Adjustment................................................................... 6-40 Figure 6-20DS3 Line DADE Adjustment ..................................................................... 6-42 Figure 6-21DADE Fine Tuning .................................................................................. 6-43 Figure 6-22XMT Output Power and RSL Test............................................................... 6-46 Figure 6-23DS3 BER Threshold Test (Sheet 1 of 2) ...................................................... 6-51 Figure 6-23DS3 BER Threshold Test (Sheet 2 of 2) ...................................................... 6-53 3DH03220MDR-8000 Series Radios Issue 6, July 2002DS3 Initial Turnup 6-3 6 DS3 INITIAL TURNUP 6.1 GENERAL This section describes the procedures required to turn up the DS3 MDR-8000/i Microwave Digital Radios after installation. 6.2 SEQUENCE OF EVENTS Perform the following initial turnup procedures in sequence: 1 Install software on PC (Chart 1). Software installed at the factory before delivery should not be overwritten by downloading to the radio controller at initial tur- nup. Refer to Section 10, Maintenance for procedure to upgrade existing software. 2 Establish communication between radio and USI computer (Chart 2). 3 Provision radio (Chart 3). Before troubleshooting a radio that is not performing correctly, check that the antenna has been aligned by contacting the program manager, project engineer, or appropriate customer representative. 4 Perform applicable test procedures (Chart 4 through Chart 10). 5 Log test results on field test data sheet. 6.3 PROVISIONING OVERVIEW This part of the section describes provisioning options avail…

Text truncated - open the document above for the full version.

Alcatel 1000 Coit Rd., Plano, Texas, 75075 August 09, 2002 ALCATEL USA WIRELESS TRANSMISSION DEVISION 1000 Coit Rd. Pano, Tx 75075 To Whom It May Concern: MDR-8X05u- XX RADIOS MUST BE PRO FESSIONALLY INSTALLED AND THERFORE THEY ARE EXEMPT FROM THE ANTENNA RESTRICTIONS (FCC PART 15.203), INCLUDING INFORMATION ON ANTENNAS USED FOR TESTING The above statement is in regard with the professional installation of the MDR-8X05u-XX radios (MDR-8505u-2, MDR-8505u-4, MDR-8505u-8, MDR-8505u-16, MDR-8605u-45) and the antennas used for testing. The MDR-8X05u-XX radios must be professionally installed and for that reason they are exempt from the antenna restrictions of the FCC Part 15.203. ALCATEL developed and manufactured this radio. These radios are part of the larger MDR- 8000/i/s/u series Microwave Digital Radio that provides transport for DS1, E1, DS3, and OC3 in 2, 6, 7, 8, 10, and 11Ghz licensed frequency bands. The MDR-8X05u-XX family of radios uses digitally modulated signals and it is to be certified for operation under Part 15.247 of the FCC Rules (including the new rules adopted under Docket No. 99- 123). The radio is designed for point-to-point communications in the 5.725-5.850Ghz band and will provide transport for 2DS1, 4DS1, 8DS1, 16DS1 capacities using 32 TCM modulation scheme and 1DS3 capacity with 64QAM modulation scheme. Due to the unique requirements of installation and turn-on procedures, typical consumers or businesses will not have the proper training required for successful implementation of these radios. The MDR-8X05u-XX radios are not designed for use by general public, and will be sold through ALCATEL sales department only, or 3 rd party distributors, to professional communications users in the following category: regional Bell operating companies, telecommunication companies, personal communication service companies, power electric utilities, etc These companies will either use their professional telecommunications engineering staff to carry out the installation or will subcontract to professional installation firms. The MDR-8X05u-XX radios will be used for point –to-point communications only, as fixed, permanent or temporary links requiring the use of directional antennas mounted outdoor, usually on a tower. These antennas have narrow beamwidths and require a professional installer for alignment. Alcatel 1000 Coit Rd., Plano, Texas, 75075 The maximum transmit power of the MDR-8X05u-XX radio is 1Watt(30dbm) and it is adjusted in the factory during the final tests. However the output power can be adjusted to lower levels by professional installer during installation. The method of adjusting the output power is described in the manual written for use by professional trained installers. This radio is sold without antenna and the customer chooses from commercially available antennas. Theodore Timaru Electrical Design Engineer RF Design Wireless Transmission Division

- 1 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Exhibit: Bloc Diagram 2.6 Functional Description This section presents a short functional description of the MDR–8000 series radios. The descriptive information covers the radio main functions only. Theory of operation, module description, turnup procedures and maintenance are located in the MDR-8000/i/s/u Instruction Book. 2.6.1 MDR–8000 Main Functions See figure 1–1. In the transmit direction the MDR–8000 uses a modulation structure where the I and Q baseband signals modulate the in–phase and quadrature phase components of the transmitter. The DS1/E1 I/O interface converts the format of the incoming DS1/E1 data streams to I,Q, data, and clock. The DS1/E1 I/O interface module uses the DS1/E1 signals to generate 32 or 128 trellis code amplitude modulated (TCM) baseband signals The transmitter processes the TCM baseband signals to generate the modulated TCM RF signal. The RF signal is then amplified and applied directly to the antenna branching or further amplified by a solid–state amplifier (optional) and applied to the antenna branching. The DS3 I/O interface converts the format of the incoming DS3 and Wayside (WS) DS1 data streams to I, Q, data, and clock. The I/O interface module uses the DS3 signals to generate 64 Quadrature Amplitude Modulated (QAM) baseband signals. The transmitter processes the QAM baseband signals to generate the modulated QAM RF signal. The RF signal is then amplified and applied directly to the antenna branching or further amplified by a solid–state amplifier (optional) and applied to the antenna branching. In the receive direction, the MDR–8000 uses a demodulation conversion structure. The received TCM or QAM RF signal is fed into a filter followed by a receiver module. The receiver module directly converts the RF signal to I and Q baseband signals and provides all of the acquisition loops. The receiver also provides countermeasures to dynamic path distortions. Clock and digital data are extracted from the analog channels and passed on to the I/O interface. The digital data is processed by the I/O interface module and converted to a DS1/E1 or DS3 format. The MDR–8000 consists of I/O, transmit, receive, control and monitor, and power distribution subsystems. - 2 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 DS1/E1 Non-Standby System Functional Block Diagram Figure 2.6.1-DS1/E1 Non–Standby System Functional Block Diagram

Alcatel 1000 Coit Rd., Plano, Texas, 75075 August 27, 2002 ALCATEL USA WIRELESS TRANSMISSION DEVISION 1000 Coit Rd. Pano, Tx 75075 To Whom It May Concern: This letter is to comply with Section 0.457(d)(2)(I) pertaining to confidential material. Alcatel would like all the documents uploaded with the request for confidentiality to be kept confidential. These documents are: 1. MDR-8X05u-X (MDR-8X05u-2, -8X05u-4, -8X08u-8, -8X05u-16, -8605u-45 ) schematics 2. MDR-8X05u-X photos of modules without covers (shielding) The contents of these documents are proprietary to Alcatel and therefore should not be accessible to the general public. Theodore Timaru Electrical Design Engineer RF Design Wireless Transmission Division

Alcatel 1000 Coit Rd., Plano, Texas, 75075 September 26, 2002 ALCATEL USA WIRELESS TRANSMISSION DEVISION 1000 Coit Rd. Pano, Tx 75075 To Whom It May Concern: This letter is to comply with Section 0.457(d)(2)(I) pertaining to confidential material. Alcatel would like all the documents uploaded with the request for confidentiality to be kept confidential. These documents are: 1. MDR-8X05u-X (MDR-8X05u-8, -8605u-45 ) schematics The contents of these documents are proprietary to Alcatel and therefore should not be accessible to the general public. Theodore Timaru Electrical Design Engineer RF Design Wireless Transmission Division

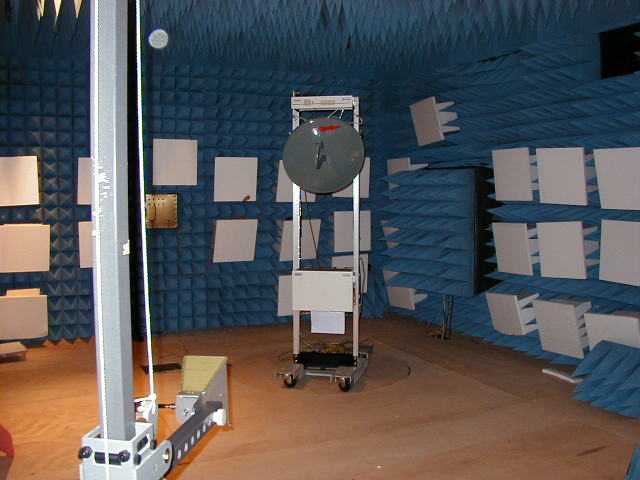

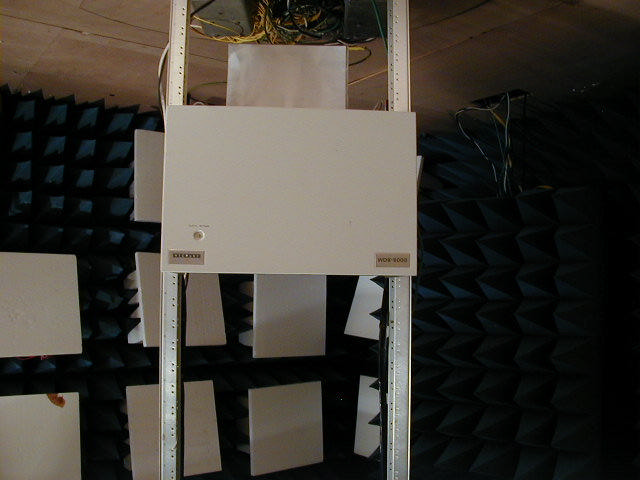

- 1 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Appendix C: External Photos MDR-8X05u-XX radio mounted in a rack with cover on. - 2 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 MDR-8X05u-XX radio (non-standby) without cover.

APPENDIX A: FCC ID Location

- 1 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Appendix B: Assembly and Card Photographs Power Amplifier (cover view) - 2 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Power Amplifier (back view) - 3 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Transmitter (cover view) - 4 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Transmitter (back view) - 5 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Receiver (cover view) - 6 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Receiver (back view) - 7 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 I/O Interface Card (cover view) - 8 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 I/O Interface Card (back view) - 9 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Controller Card (component view) - 10 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Controller (back view)

Appendix E: Modules without Cover Transmitter (RF Section, front view) Transmitter (Biasing and Low Frequency Circuitry) Power Amplifier (Front view, RF and Biasing Sections)

- 1 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Ehibit: OPERATIONAL DESCRIPTION 2.0 General Description The MDR-8X05-XX is the MDR-8000/i/s/u version for the unlicensed frequency band: 5725- 5850Mhz. It is the latest addition of the Alcatel family of digital microwave products. The MDR–8000/i/s/u series Microwave Digital Radios (see figure 2–1) consists of: ·Solid–state, licensed, digital radios that provide transport for DS1, E1, and DS3 in 2, 6, 7, 8, 10, and 11 GHz RF frequency bands and OC3 in 6, 7, 8, 10, and 11 GHz RF frequency bands ·Solid–state, unlicensed digital radios that provide transport for DS1 and DS3 in the 5 GHz RF frequency band. The following capacities and modulation schemes are available: · MDR–8000 – 2, 4, 8, 12, or 16 North American Standard DS1 channels at either 32 or 128 TCM or 1 or 3 North American Standard DS3 channels with 1 or 3 wayside DS1 channels at 64 QAM · MDR–8000i – 2, 4, 8, 12, or 16 CCITT E1 channels at either 32 or 128 TCM ·MDR–8000s – 3 North American Standard STS1 channels with 3 wayside DS1 channels at 128 TCM · MDR–8000u– 2, 4, 8, or 16 North American Standard DS1 channels at 32 TCM or 1 North American Standard DS3 channel with 1 wayside DS1 channel at 16 or 64 QAM. The radio fits into a standard 19 in. (483 mm) rack and occupies seven vertical rack increments. Up to four fully–equipped hot–standby radios can be mounted in a standard 7 ft rack. The radio is front accessible and can be mounted against a wall or back–to–back against other equipment. 2.1 STANDARD FEATURES Standard features include: ·Frequency bands from 2 to 11 GHz ·Committee of European Post and Telegraph (CEPT)/Federal Communications Commission (FCC) applications ·DS1, E1, DS3, and OC3 Traffic capacities. - 2 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 ·International Telecommunications Union (ITU)/ETSI/FCC compliant ·Five configuration options ·Upstream management compatibility ·User–friendly Personal Computer (PC) monitor and control ·Automatic Transmitter Power Control (ATPC) ·Adaptive Time Domain Equalization (TDE) ·Extended Link Monitor Channel (ELMC) ·MCS–11/Telemetry Byte Oriented Serial (TBOS) Alarm/Control Interface ·Two independent PCM audio channels - 3 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 Figure 2–1 Typical MDR–8000/i/s/u Series Microwave Digital Radio - 4 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 2.2 NAMING CONVENTION The MDR–8000/i/s/u series radio naming conventions are as follows: - 5 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 2.3 SYSTEM CONFIGURATIONS The MDR–8000/i/s radio can be provisioned as a terminal, synchronous repeater, ring terminal, or ring repeater. 2.4 RADIO CONFIGURATIONS 2.4.1 Basic Configurations The MDR–8000/i/s/u supports the three basic configurations: ·Non–standby – available in all frequency bands – stand alone transmitter/receiver combination ·Hot–standby – available in all frequency bands – pair of transmitters and receivers, both pairs operating on the same set of go and return frequencies. ·Frequency diversity – available in all frequency bands except 2 GHz – pair of transmitters and receivers, each pair operating on a different set of go and return frequencies. 2.4.2 Ring Non–standby radios are typically used in ring systems where the radios are protected by the ring architecture. 2.4.3 Space Diversity Add–On Space diversity can be added to any of the three basic configurations and ring systems. 2.4.4 Optical 2 X 4 Configuration Hot–standby and frequency diversity configuration are available with 2–fiber or 4–fiber optical interfaces. 2.5 FEATURES AND OPTIONS Features and options for the MDR–8000/i/s/u series of microwave digital radios are described in the following paragraphs. 2.5.1 Primary Power The MDR–8000/i/s/u series radios operate from 20.5 to 60 V dc primary power with positive or negative ground. - 6 - FCC Part 15.247 Digital Modulation Technique Certification Alcatel 1000 Coit Rd., Plano, Texas, 75075 2.5.2 Transmit Power Level Options The standard radio is provided without a power amplifier (PA) module for low–power applications. The optional PA module is available for high–power requirements. There are different levels for the different frequency bands. Refer to the electrical characteristics table in this section for specific levels. 2.5.3 Differential Absolute Delay Equalization (DADE) DADEing adjusts the differential absolute delay between the main and diversity signals in a space diversity configuration. DADEing is an automatic function within the DS1/E1 and OC3 MDR– 8000/i/s/u receivers, reducing the time required for initial turn–up and test. 2.5.4 Trellis Encoding and Time Domain Equalization (TDE) Trellis encoding (DS1/E1/OC3) ensures that even with the most severe multipath, only the correct digital data is demodulated. TDE further reduces the disruptive effects of multipath distortion. 2.5.5 MCS–11 Alarm/Control Interface MCS–11 is standard in the MDR–8000. The MDR–8000 can interface with any alarm system that is based on the MCS–11 protocol. Use with the TSM–2500 network management system to develop a central access point to monitor and control the transmission system 2.5.6 Foreign Alarm Interface This provisioning option provides serial alarm/status reporting for the Telemetry Byte Oriented Serial (TBOS) protocol. A wire–wrap adapter is provided to mate to connector J305 on the backplane. 2.5.7 Relay Interface Option The optional AE–27AF Relay Interface unit provides relay closure indications of radio alarms and status. The relay interface also provides up to 16 station alarm inputs and six relay closure control outputs. 2.5.8 Extended Link Monitor Channel ELMC is standard and performance monitoring, alarm a…

Text truncated - open the document above for the full version.

3DH03220MDR8000 Series Radios Issue 6, July 2002Applications 21 2.3UNLICENSED RADIO The MDR8X05u (unlicensed) radio provides fast deployment of service with microwave radio No li cense and small antennas (no FCC requirements) allow immediate turnup. After the license is received, the unlicensed radio can be easily converted to the lower 6 GHz licensed band. The MDR8X05u radio operates in the 57255850 Information, Scientific, and Medical (ISM) band in accordance with FCC Part 15.247. This unlicensed radio, although opperating in the same band as a spread spectrum radio, operates using narrower bandwidths than spread spectrum. Advantages, disad vantages, and antenna recommendations for the unlicensed radio follow: 2.3.1 Advantages •Fast installation and turnup •2, 4, 8, 16 DS1 and 1 DS3 capacities •Field convertable to lower 6 GHz licensed band •Field expandable to higher capacities. •Common network management with licensed radios. •Common spares and training with licensed radios 2.3.2 Disadvantages •No interference protection •Operating restrictions •5.725 to 5.850 GHz band •Performance could deteriorate due to interference as the frequency band becomes con gested. 2.3.3 Antenna Recommendations •Frequency  5.8 GHz •Size and Type  2,4, 6, 8, or 10 foot parabolic; 1 or 2 foot flat panel. •Gain and Beamwidth (3 dB) •2 ft parabolic  29 dB/6° •4 ft parabolic  35 dB/3° •6 ft parabolic  38 dB/2° •8 ft parabolic  41 dB/1.5° •10 ft parabolic  42.5 dB/1.2° •1 ft flat panel  23 dB/9° MDR8000 Series Radios3DH03220 ApplicationsIssue 6, April 2002 22 •2 ft flat panel  28 dB/4° NOTE When using a 1 ft flat panel antenna with a 1 watt (+30 dBm) output power, the antenna must be located in an area that doe not allow the general population access to within 5 feet of the antenna.

RF RADIATION EXPOSURE RF Safety Rules Based on ET Docket No. 93-62. - http://www.fcc.gov/oet/rfsafety All Details are in OET Bulletin 65 - http://www.fcc.gov/oet/info/documents/bulletins/#65 Parabolic Antennas ?Near-Field or Fresnel Region: The radiation is substantially confined within a cylindrical pattern having the same diameter as the antenna. This region may be considered to extend out from the antenna to a distance of R nf as defined on the following slide.* ?Transition Region: Since the distance to the far-field region is two to three times the length of the near- field region, there is a transition region between the two.* Within the transition region the power density decreases inversely with distance. ?Far-Field or Fraunhofer Region: At a substantial distance from an antenna, the power density begins to decrease in proportion to the inverse square of the distance from the antenna. This occurs at a distance from a parabolic antenna where the difference in path length between a ray on the axis of the beam, and a ray from the edge of the antenna to a given point on the beam axis, is less than 1/16 of a wavelength. This region begins at a distance designated as R ff as defined on the following slide. R nf = Distance from the antenna to Near-Field boundary (ft). R ff = Distance from the antenna to Far-Field boundary (ft). D= Diameter of antenna (ft). ?= Wavelength (ft).F= Frequency (GHz). Ra…
