JF6-8702-8WDigital Modulated Radio

EXHIBIT 6. USER’S MANUAL The MDR-8000 series Microwave Digital Radios (see Figure ) consists of: • Solid-state, licensed, digital radios that provide transport for DS1 and E1 in 1.85, 2, 6, 7, 8, 10, and 11 GHz RF bands, DS3 in 2, 6, 7, 8, and 11 GHz RF bands, and OC3 in 6, 7, 8, and 11 GHz RF bands • Solid-state, unlicensed digital radios that provide transport for DS1 and DS3 in the 5 GHz RF frequency band. The following capacities and modulation schemes are available: • MDR-8000 – 2, 4, 8, 12, or 16 North American Standard DS1 channels at either 32 or 128 TCM or 1, 2, or 3 North American Standard DS3 channels with 1, 2, or 3 wayside DS1 channels at 64 QAM • MDR-8000i – 2, 4, 8, 12, or 16 CCITT E1 channels at either 32 or 128 TCM • MDR-8000u – 2, 4, 8, or 16 North American Standard DS1 channels at 32 TCM. SHELF CONFIGURATIONS The MDR-8000 is available in two shelf configurations: hot-standby and CommPak. HOT STANDBY SHELF The MDR-8000 hot-standby shelf is wired hot-standby and can be configured non- standby, where only the A-side is populated, or hot-standby, where both the A- and the B- sides are populated. The hot-standby shelf fits into a standard 19 in. (483 mm) rack and occupies seven vertical rack increments. Up to four fully equipped hot-standby radios can be mounted in a standard 7 ft. rack. The radio is front accessible and can be mounted against a wall or back-to-back against other equipment. COMMPAK RADIO The MDR-8000 CommPak radio is available as a full indoor shelf or outdoor unit in a cabinet. COMMPAK INDOOR SHELF The CommPak indoor shelf is wired and configured non-standby only. The indoor shelf fits into a standard 19 in. (483 mm) rack and occupies four vertical rack increments (7 in.). The radio is front accessible and can be mounted against a wall or back-to-back against other equipment. COMMPAK OUTDOOR UNIT The MDR-8000 outdoor unit consists of the CommPak indoor shelf mounted vertically in a 20 in. high x 7.5 in. wide x 12.5 in. deep enclosure. STANDARD FEATURES Standard features include: • Frequency bands from 1.85 to 11 GHz • Committee of European Post and Telegraph (CEPT)/Federal Communications Commission (FCC) applications • DS1, E1, DS3, and OC3 Traffic capacities • International Telecommunications Union (ITU)/ETSI/FCC compliant • Five configuration options • Upstream management compatibility. • User-friendly Personal Computer (PC) monitor and control • Automatic Transmitter Power Control (ATPC) • Adaptive Time Domain Equalization (TDE) • Extended Link Monitor Channel (ELMC) • MCS-11/Telemetry Byte Oriented Serial (TBOS) Alarm/Control Interface • Two independent PCM audio channels Figure 1 Typical MDR-8000 Series Microwave Digital Radio Table Physical, Environmental, and Electrical Characteristics ITEM CHARACTERISTICS PHYSICAL CHARACTERISTICS Dimensions WIDTH DEPTH HEIGHT Hot-Standby Shelf 483 mm (19 in.) 406.4 mm (16.25 in.) 311.15 mm (12.25 in.) CommPak Indoor Shelf 483 mm (19 in.) 406.4 mm (16.25 in.) 177.8 mm (7.0 in.) Weight (Hot-Standby Terminal)38.6 kg (85 lbs) ENVIRONMENTAL CHARACTERISTICS Ambient Temperature Spec Compliant Operating Without Failure Nonoperating 32° to 122°F (0° to 50°C) - 4° to 158°F (- 20° to 70°C) - 40° to 176°F (- 40° to 80°C) Altitude Operating Nonoperating Relative Humidity Vibration and Shock Duty Cycle -350 to 16500 ft (-100 to 5000 m) -350 to 40000 ft (-100 to 12000 m) 5 to 95 percent (without condensation) Normal Storage and Handling Continuous, unattended COMMON ELECTRICAL CHARACTERISTICS Primary Input Voltage ±20.5 to ±60.0 Vdc RF CHANNEL FREQUENCY (MHZ) MDR-8X02/i-X MDR-8X05u-X MDR-8X06/i/s-X MDR-8X07/i/s-X MDR-8X08/i/s-X MDR-8X10/i/s-X MDR-8X11/i/s-X 1850-2285 5725-5850 5850-7125 7125-7750 7700-8500 10440-10680 10700-11700 XMT OUTPUT POWER (DBM, NOMINAL) XMTR (NO PA) OPTIONAL PA INSTALLED MDR-8X02/i-X MDR-8505u-X MDR-8605u-X MDR-8X06/i/s-X MDR-8X07/i/s-X +14 +15 +14 +14 +14 +30 or +33 +25 or +30 +23 or +29 +23 or +29 or +31 or +33 MDR-8X08/i/s-X MDR-8X10/i/s-X MDR-8X11/i/s-X +14 +15 +15 +28 or +30 +28 or +30 or +32 +23 or +27 or +29 +23 or +27 or +29 Note: XMT Power Referenced at the SMA output of the diplexer filter or the top of the stack for waveguide stacking configurations. Figure 1. Typical MDR-8000 Hot-Standby Shelf Component

MDR-8000/i/s/u Alcatel Part Number 3EM15726AA 3400 West Plano Parkway Plano, Texas 75075-5813 U.S.A. Part 1 of 2 Issue 2, June, 2004 Microwave Digital Radios Users Manual Table of Contents TOC-i Page Section 1General 1.1 INTRODUCTION ............................................................................................. 1-1 1.2 CONTENT ....................................................................................................... 1-1 Section 2Operation 2.1 GENERAL ........................................................................................................ 2-1 2.2 TURN-ON ........................................................................................................ 2-1 2.3 USER SYSTEM INTERFACE (USI) PROVISIONING FUNCTION/OPERATION ...... 2-2 2.4 OPERATING PROCEDURES .............................................................................. 2-2 2.4.1 Radio Receiver Manual Switching ..................................................................... 2-2 2.4.2 Radio Transmitter Manual Switching ................................................................. 2-5 2.4.3 Radio I/O Interface Manual Switching .............................................................. 2-5 2.4.4 MCS-11 Operation .......................................................................................... 2-7 2.4.5 Lamp Tests ....................................................................................................... 2-8 2.4.6 Alarm Checks .................................................................................................. 2-8 2.4.7 Orderwire Operation ....................................................................................... 2-8 2.4.8 Initiating Outgoing Orderwire Calls .................................................................. 2-8 2.4.9 Answering Incoming Orderwire Calls ................................................................ 2-8 2.5 TURN-OFF PROCEDURE ................................................................................... 2-9 2.6 EMERGENCY OPERATION .............................................................................. 2-9 2.7 MODEM OPERATION ...................................................................................... 2-9 2.8 CONTROLS, INDICATORS, TEST POINTS, AND CONNECTORS ....................... 2-9 Section 3Interconnect 3.1 SECTION INTRODUCTION .............................................................................. 3-1 3.2 INSTALL POWER CABLE ASSEMBLIES ............................................................... 3-1 Page TOC-ii 3.3 PDU STRAPPING AND CONNECTIONS ........................................................... 3-3 3.4 SHELF/RACK ALARM CONNECTION .............................................................. 3-5 3.5 DS1 CONNECTIONS (J303 IN AND J304 OUT) .............................................. 3-8 3.6 DS1 REPEATER (J314 ON ONE SHELF TO J314 ON SECOND SHELF) ............ 3-10 3.7 DS3 LBO STRAPPING AND CONNECTIONS ................................................. 3-11 3.8 DS3 LBO DS3 BNC CONNECTIONS (J21 THROUGH J26 ) ............................. 3-12 3.9 DS3 LBO WAYSIDE DS1 CONNECTIONS (J201 IN AND J202 OUT ) ............. 3-13 3.9.1 Wayside DS1 Terminal .................................................................................. 3-14 3.9.2 Wayside DS1 Repeater .................................................................................. 3-15 3.10 DS3 REPEATER (J401 ON ONE SHELF TO J401 ON SECOND SHELF) ............ 3-15 3.11 FIBER OPTIC CABLE CONNECTIONS ............................................................. 3-16 3.11.1 2 or 4 Fiber Management Panel ..................................................................... 3-17 3.11.2 2x4 Fiber Switched Management Panel .......................................................... 3-17 3.12 OC3 AUX INTERFACE BOARD WAYSIDE DS1 CONNECTIONS (J201 IN AND J202 OUT) .............................................................................. 3-20 3.12.1 Wayside DS1 Terminal .................................................................................. 3-20 3.12.2 Wayside DS1 Repeater .................................................................................. 3-20 3.13 OC3 REPEATER (J203 ON ONE SHELF TO J203 ON SECOND SHELF) ........... 3-21 3.14 USI/CONTROLLER CABLE CONNECTION TO LAPTOP (J301) ......................... 3-22 3.15 SERVICE CHANNEL ....................................................................................... 3-22 3.15.1 Handset Jack ................................................................................................. 3-23 3.15.2 Service Channels Provisioning Options ............................................................ 3-24 3.15.3 Audio 1, Audio 2 (J316, J317) ....................................................................... 3-24 3.15.4 RS-232-1, RS-232-2 (J312, J313) .................................................................... 3-27 3.15.5 MCS-11 Connections ..................................................................................... 3-28 3.15.6 ELMC (J315, J318) ........................................................................................ 3-37 3.16 FOREIGN ALARM INTERFACE (J305) ............................................................. 3-41 3.17 ALARM, STATUS, CONTROLS INTERCONNECT ............................................. 3-44 3.17.1 Controller Bus ................................................................................................ 3-46 3.17.2 Control Inputs ................................................................................................ 3-46 3.17.3 Station Alarm Inputs/TBOS Interface ............................................................... 3-46 Page TOC-iii 3.17.4 Station Alarm Wiring ..................................................................................... 3-47 3.17.5 Relay Alarm/Status Outputs .............................................................…

Text truncated - open the document above for the full version.

MDR-8000/i/s/u Alcatel Part Number 3EM15726AA 3400 West Plano Parkway Plano, Texas 75075-5813 U.S.A. Part 2 of 2 Issue 2, June, 2004 Microwave Digital Radios Users Manual 4-1 4 INITIAL TURNUP 4.1 SECTION INTRODUCTION This section describes the procedures required to turn up the MDR-8000 Microwave Digital Radios after installation. This provisioning part of the section describes provisioning options available with the MDR-8000 software application. Provisioning allows for the definition, editing, and storing of specific functions. The MDR-8000 provides the ability to provision equipment and facili- ties through a series of Windows™-based screens and messages. The Provisioning menu lists equipment and functions which may be provisioned. You should use only those provi- sioning screens that are applicable to your radio. Refer to the Users Guide section and applicable DS1/E1, DS3, or OC3 Initial Turnup section on the attached CD for more infor- mation. 4.2 RECOMMENDED SEQUENCE Perform the following initial turnup procedures in sequence: 1 Install software on PC. Software installed at the factory before delivery should not be overwrit- ten by downloading to the radio controller at initial turnup. Refer to Maintenance section on the attached CD for procedure to upgrade exist- ing software. 2 Establish communication between radio and USI computer. Saving provisioning on disk provides a reference for any future provi- sioning changes. 3 Provision radio. See Figure 4-1. The radio has been properly aligned and tested at the factory before shipment eliminating the need for testing after initial turn-up. The only time testing and/or adjustment is required is after a maintenance action such as removal and replacement procedure and/or constant alarms requiring corrective maintenance action. The completed maintenance action procedure(s) will reference any required test procedure(s). Note Note 4-2 Figure 4-1 Provisioning Sequence FIG 4-5 DS3 RADIO CONFIG PROVISIONING FIG 4-2 DS1/E1, DS3, OC3 RADIO CONFIG PROVISIONING FIG 4-6 DS3 FACILITIES PROVISIONING FIG 4-3 DS1/E1 RADIO CONFIG PROVISIONING FIG 4-4 DS1/E1 FACILITIES PROVISIONING FIG 4-8 OC3 RADIO CONFIG PROVISIONING FIG 4-9 OC3 FACILITIES PROVISIONING FIG 4-10 OC3 RADIO WAYSIDE DS1 FACILITIES PROVISIONING FIG 4-7 DS3 RADIO WAYSIDE DS1 FACILITIES PROVISIONING FIG 4-11 DS1/E1, DS3, OC3 RADIO SERVICE CHANNEL PROVISIONING FIG 4-12 DS1/E1, DS3, OC3 RADIO AUDIO PROVISIONING FIG 4-13 DS1/E1, DS3, OC3 RADIO MCS-11 PROVISIONING FIG 4-14 DS1/E1, DS3, OC3 RADIO MCS TRANSPORT/PPP TRANSPORT PROVISIONING FIG 4-17 DS1/E1, DS3, OC3 RADIO CONTROL NAMES PROVISIONING START OPTIONAL ENTRY LMW-9038-sm 05/07/04 FIG 4-16 DS1/E1, DS3, OC3 RADIO ELMC REMOTE TIME-OUT CONSTANT PROVISIONING FIG 4-18 DS1/E1, DS3, OC3 RADIO STATION ALARM NAMES PROVISIONING END OPTIONAL ENTRY FIG 4-15 DS1/E1, DS3, OC3 RADIO ELMC PROVISIONING DS1/E1DS3OC3 4-3 4.3 PROVISIONING RADIO Screen shown is for DS1 Radio. DS3 and OC3 radio configuration pro- visioning is similar. Changes to provisioning do not have to be made in any particular order. Open radio provisioning screens. On main screen, double click on tower icon. Status and alarm screen displays. Click on Provisioning. Check current provisioning and change as required. Figure 4-2 DS1/E1, DS3, OC3 Radio Configuration Provisioning (Sheet 1 of 4) Note ATPC EnabledA&B PA Present RADIO CONFIG: HS Tx/HS RxTERMINAL 6-8 GHz SYSTEM ALARM Visual/AudibleRelays ON/NOStation Alarm 13-16RSL Alarm Enable RSL-Sw EnableEye BER Disable RCV SWITCHING: RADIO TYPE: MDR-8000 DS116 LINES128 TCM OPTIONS: Stat/Prov/WaySideOption Key: SYSTEM ID: TEST1 Disable RADIO LINK ID:ELMC: SELECT DISABLE OR DOUBLE CLICK TO ENABLE (00 DISPLAYS). ENTER 2-DIGIT NUMBER BETWEEN 00 AND 99 AS IDENTIFICATION FOR RADIO RCV/XMT PAIR. USE FOR FREQUENCY COORDINATION IN CONGESTED AREAS THAT HAVE NEARBY TRANSMITTERS AT SAME FREQUENCY WITH SAME MODULATION. ID MUST BE SAME AT BOTH ENDS OF HOP. IF RCV ID DOES NOT MATCH ID RECEIVED FROM FAR-END XMTR, A USI ALARM AND RACK ALARM ARE GENERATED. DISPLAYS NUMBER OF LINES AVAILABLE AS DETERMINED BY CAPACITY KEY. CHANGING NUMBER OF LINES REQUIRES CHANGING CAPACITY KEY. SELECT APPROXIMATE ERROR RATE AT WHICH EYE CLOSURE ALARM ACTIVATES AND SWITCHING OCCURS: EYE BER=1X10 -5 , 1X10 -6 , 1X10 -7 , 1X10 -8 OR SELECT Eye BER Disable TO ACTIVATE ALARMS AT APPROXIMATELY 1X10-6 WITHOUT RECEIVERS SWITCHING. SELECT A&B PA Present IF SHELF IS EQUIPPED WITH A&B PAs, A OR B PA ONLY IF SHELF IS EQUIP- PED WITH ONLY ONE PA, OR NO PA IF SHELF IS NOT EQUIPPED WITH PA. UNEQUIPPED PA ALARMS ARE DISABLED. SELECT Major/Minor TO TRIGGER MAJOR ALARM ON ANY ALARM ON ON-LINE SIDE AND MINOR ALARM ON ANY ALARM ON OFF-LINE SIDE. SELECT Visual/ Audible TO TRIGGER RACK ALARM ON ANY ALARM ON ON-LINE SIDE. DISPLAYS ELMC OPTION KEY TYPE INSTALLED ON CON- TROLLER. STAT (STATUS)/PROV (REMOTE PROVISIONING)/ WAYSIDE (WITH WAYSIDE DS1 MONITORING). NOT PRO- VISIONABLE. CHANGING DISPLAY REQUIRES CHANGING OPTION KEY. SELECT TERMINAL, REPEATER, RING TERMINAL OR RING REPEATER FROM DROP DOWN LIST. SELECT REPEATER IF TRAFFIC AND SERVICE CHANNEL (FOUR RAILS OF X/Y DATA) ARE BEING TRANSPORTED BETWEEN J314 OF BOTH SHELVES. ENABLE OR DISABLE AUTOMATIC POWER CONTROL (ATPC) FUNCTION. SELECT ATPC Disable, ATPC Enabled, OR ATPC with Timeout FROM DROP DOWN LIST. SEE SHEET 2 0F 3 FOR DETAILS. DISPLAYS MODULATION SCHEME. NOT PROVISIONABLE DISPLAYS RADIO TYPE NOT PROVISIONABLE BACKSPACE TO DELETE CURRENT ADDRESS AND ENTER 5-DIGIT REMOTE RACK ADDRESS. SEE FIGURE 6-11 FOR DETAILS. SELECT RSL-Sw Enable TO ENABLE AUTOMATIC RECEIVER SWITCHING BASED ON RSL. WHEN ENABLED, RECEIVER SWITCHES IF: 1. ON-LINE RCV RSL IS BELOW RCV AGC THRESHOLD, AND 2. OFF-LINE RCV RSL IS ABOVE RCV AGC THRESHOLD. SELECT RSL-Sw Disable TO DISABLE AUTOMATIC RECEIVER SWITCHING. LMW-7084 Sheet 1 of 2 02/04/03 SELECT Station Alarm 13-16 TO ENABLE STATION ALARM 13-16 INPUTS TO RELAY INTFC. WHEN EXTERNAL TBOS IS WIRED TO RADIO, SELECT TBOS Display 1-…

Text truncated - open the document above for the full version.

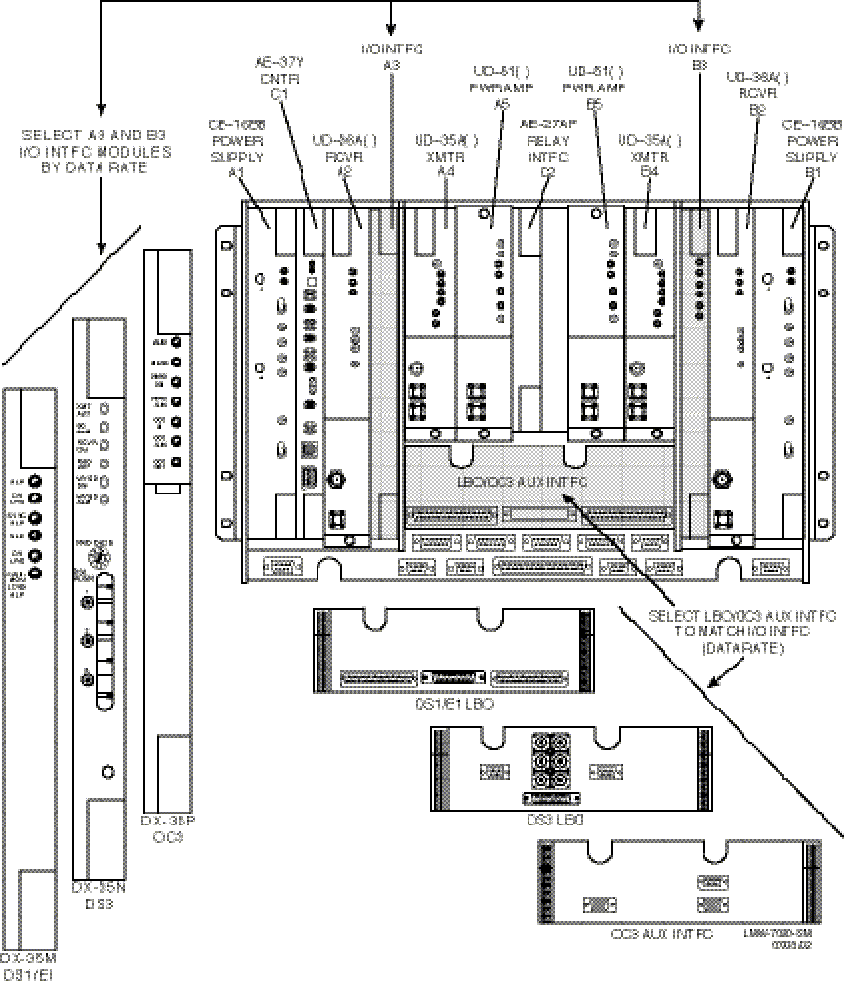

Exhibit 2 Figure 1 Typical MDR-8000 Series Microwave Digital Radio Figure 1 Typical MDR-8000 Hot-Standby Shelf Component

EXHIBIT 7. INTERNAL PHOTOS I/O CONDITIONER CIRCUIT SIDE I/O CONDITI0NER SOLDER SIDE TRANSMITTER RF CIRCUIT SIDE TRANSMITTER RF SOLDER SIDE TRANSMITTER BASEBAND CIRCUIT SIDE TRANSMITTER BASEBAND SOLDER SIDE

EXHIBIT 7. INTERNAL PHOTOS CONT. PA RF SOLDER SIDE PA RF SOLDER SIDE PA BIAS BOARD CIRCUIT SIDE PA BIAS BOARD SOLDER SIDE

EXHIBIT 9. MDR–8000 Operational Description In the transmit direction the MDR–8000 uses a modulation structure where the I and Q baseband signals modulate the in–phase and quadrature phase components of the transmitter. The DS1/E1 I/O interface converts the format of the incoming DS1/E1 data streams to I, Q, data, and clock. The DS1/E1 I/O interface module uses the DS1/E1 signals to generate 32 or 128 trellis code amplitude modulated (TCM) baseband signals The transmitter processes the TCM baseband signals to generate the modulated TCM RF signal. The RF signal is then amplified and applied directly to the antenna branching or further amplified by a solid–state amplifier (optional) and applied to the antenna branching. In the receive direction, the MDR–8000 uses a demodulation conversion structure. The received TCM RF signal is fed into a filter followed by a receiver module. The receiver module directly converts the RF signal to I and Q baseband signals and provides all of the acquisition loops. The receiver also provides countermeasures to dynamic path distortions. Clock and digital data are extracted from the analog channels and passed on to the I/O interface. The digital data is processed by the I/O interface module and converted to a DS1/E1 format. WCS development requirements: Four components need to be developed: Transmitter Receiver Power Amplifier RF filters. The Transmitter, Receiver and Power Amplifier are all modified versions of the PCS band modules. The 6 MHz bandwidth filter is intended for use at sites where other microwave transmitters are co-located and operate at frequencies very close to the MDR-8X02 receiver operating frequency. The filter is designed to provide at least 30 dB of rejection 7 MHz away from the operating frequency. Transmitter: • The main development of the Transmitter is to improve the out-of-band noise floor. • One goal is to increase the frequency flexibility of the current 2GHz Transmitter to accommodate the WCS application. • The transmitter design is based on a phase locked VCO which is a stepping stone to a synthesized transmitter in the future. • The requirements are as follows: • T/L PN: 3EM11962ADAA • PB/RF: 3EM11960ACAA • PBA/RF: 3EM11961ADA • BB ASSY: 3DH03139 • Frequency range: 2305 – 2360 MHz (WCS Band) • RF DC requirements: +/- 5 VDC, +10.5 VDC, +/- 12 VDC • Interface requirement: • Baseband interface: 20 pin, thru hole male connector • I/Q inputs:------- -10dBm • RF detect:------ 500mV +/- 50mV • DC:-------------- +10.5 +/- .2 VDC +5 +/- .1 VDC -5 +/- .1 VDC +12 +/- .2 VDC -12 +/- .2 VDC • Freq Ctrl---------- +3.0 VDC • VVA control------ 0 to 3 VDC • LO interface: 10 pin ribbon connector • LO level: --------- +10 dBm +/- 2 dB • LO monitor: BNC connector • LO level: --------- -10 dBm +/- 2 dB • RF monitor: SMA connector • Level: -------------- 0 dBm +/- 2 dB • RF monitor: SMA connector • Level: ------------- +18 dBm Receivers: • The Receiver effort will be an effort to maximize T/I performance, modifying some baseband filtering and optimizing gain/linearity of the design. The design is based on a phase locked VCO. As with the transmitter, receiver frequency flexibility is required. • The requirements are as follows: • T/L PN: 3EM11964AAAA • PB/RF: 3EM11963ACAA • PBA/RF: 3EM11964ADAA • BB ASSY: 3DH03134AKAH • Frequency range: 2305 – 2360 MHz (WCS Band) • RF DC requirements: +/- 5 VDC, +/- 12 VDC • Interface requirement: • Baseband interface: 20 pin, thru hole male connector • DC:--------------- +5 +/- .1 VDC -5 +/- .1 VDC +12 +/- .2 VDC -12 +/- .2 VDC • Freq Ctrl---------- +3.0 VDC • AFC -------------- 0 to 3 VDC • LO interface: 10 pin ribbon connector • LO level: --------- +10 dBm +/- 2 dB • LO monitor: BNC connector • LO level: --------- -10 dBm +/- 2 dB • RF input: SMA connector • Input Level: ---- -15 to -92 dBm • RF Gain: ----------28 dB max. • NF: -------------- 2.8 dB max. Power Amplifiers: • The Power amplifier will be a slight modification of the Canadian 2GHz. • RF input: SMA connector • Input Level: ---------- -12 dBm • RF Gain: ---------------25 dB max. • RF Output: SMA connector • RF Output Pwr: ------+36 dBm max.

6-3 6 INITIAL TURNUP 6.1 SECTION INTRODUCTION This section describes the procedures required to turn up the MDR-8000 Microwave Digital Radios after installation. This provisioning part of the section describes provisioning options available with the MDR-8000 software application. Provisioning allows for the definition, editing, and storing of specific functions. The MDR-8000 provides the ability to provision equipment and facili- ties through a series of Windows™-based screens and messages. The Provisioning menu lists equipment and functions which may be provisioned. You should use only those provi- sioning screens that are applicable to your radio. Refer to the Users Guide section and applicable DS1/E1, DS3, or OC3 Initial Turnup section on the attached CD for more infor- mation. 6.2 RECOMMENDED SEQUENCE Perform the following initial turnup procedures in sequence: 1 Install software on PC. Software installed at the factory before delivery should not be overwrit- ten by downloading to the radio controller at initial turnup. Refer to Maintenance section on the attached CD for procedure to upgrade existing software. 2 Establish communication between radio and USI computer. Saving provisioning on disk provides a reference for any future provi- sioning changes. 3 Provision radio. See Figure 6-1. The radio has been properly aligned and tested at the factory before shipment eliminating the need for testing after initial turn-up. The only time testing and/or adjustment is required is after a maintenance action such as removal and replacement procedure and/or constant alarms requiring corrective maintenance action. The completed maintenance action procedure(s) will reference any required test procedure(s). Note Note 6-4 Figure 6-1 Provisioning Sequence LMW-9038-sm 01/23/04 FIG 6-5 DS3 RADIO CONFIG PROVISIONING FIG 6-2 DS1/E1, DS3, OC3 RADIO CONFIG PROVISIONING FIG 6-6 DS3 FACILITIES PROVISIONING FIG 6-3 DS1/E1 RADIO CONFIG PROVISIONING FIG 6-4 DS1/E1 FACILITIES PROVISIONING FIG 6-7 OC3 RADIO CONFIG PROVISIONING FIG 6-8 OC3 FACILITIES PROVISIONING FIG 6-9 DS3, OC3 RADIO WAYSIDE DS1 FACILITIES PROVISIONING FIG 6-13 DS1/E1, DS3, OC3 RADIO ELMC PROVISIONING FIG 6-10 DS1/E1, DS3, OC3 RADIO SERVICE CHANNEL PROVISIONING FIG 6-11 DS1/E1, DS3, OC3 RADIO AUDIO PROVISIONING FIG 6-12 DS1/E1, DS3, OC3 RADIO MCS-11 PROVISIONING FIG 6-14 DS1/E1, DS3, OC3 RADIO ELMC REMOTE TIME-OUT CONSTANT PROVISIONING FIG 6-16 DS1/E1, DS3, OC3 RADIO STATION ALARM NAMES PROVISIONING START END OPTIONAL ENTRY FIG 6-15 DS1/E1, DS3, OC3 RADIO CONTROL NAMES PROVISIONING OPTIONAL ENTRY DS1/E1DS3OC3 6-5 6.3 PROVISIONING RADIO Screen shown is for DS1 Radio. DS3 and OC3 radio configuration pro- visioning is similar. Changes to provisioning do not have to be made in any particular order. Open radio provisioning screens. On main screen, double click on tower icon. Status and alarm screen displays. Click on Provisioning. Check current provisioning and change as required. Figure 6-2 DS1/E1, DS3, OC3 Radio Configuration Provisioning (Sheet 1 of 4) Note ATPC EnabledA&B PA Present RADIO CONFIG: HS Tx/HS RxTERMINAL 6-8 GHz SYSTEM ALARM Visual/AudibleRelays ON/NOStation Alarm 13-16RSL Alarm Enable RSL-Sw EnableEye BER Disable RCV SWITCHING: RADIO TYPE: MDR-8000 DS116 LINES128 TCM OPTIONS: Stat/Prov/WaySideOption Key: SYSTEM ID: TEST1 Disable RADIO LINK ID:ELMC: SELECT DISABLE OR DOUBLE CLICK TO ENABLE (00 DISPLAYS). ENTER 2-DIGIT NUMBER BETWEEN 00 AND 99 AS IDENTIFICATION FOR RADIO RCV/XMT PAIR. USE FOR FREQUENCY COORDINATION IN CONGESTED AREAS THAT HAVE NEARBY TRANSMITTERS AT SAME FREQUENCY WITH SAME MODULATION. ID MUST BE SAME AT BOTH ENDS OF HOP. IF RCV ID DOES NOT MATCH ID RECEIVED FROM FAR-END XMTR, A USI ALARM AND RACK ALARM ARE GENERATED. DISPLAYS NUMBER OF LINES AVAILABLE AS DETERMINED BY CAPACITY KEY. CHANGING NUMBER OF LINES REQUIRES CHANGING CAPACITY KEY. SELECT APPROXIMATE ERROR RATE AT WHICH EYE CLOSURE ALARM ACTIVATES AND SWITCHING OCCURS: EYE BER=1X10 -5 , 1X10 -6 , 1X10 -7 , 1X10 -8 OR SELECT Eye BER Disable TO ACTIVATE ALARMS AT APPROXIMATELY 1X10-6 WITHOUT RECEIVERS SWITCHING. SELECT A&B PA Present IF SHELF IS EQUIPPED WITH A&B PAs, A OR B PA ONLY IF RACK IS EQUIP- PED WITH ONLY ONE PA, OR NO PA IF SHELF IS NOT EQUIPPED WITH PA. UNEQUIPPED PA ALARMS ARE DISABLED. SELECT Major/Minor TO TRIGGER MAJOR ALARM ON ANY ALARM ON ON-LINE SIDE AND MINOR ALARM ON ANY ALARM ON OFF-LINE SIDE. SELECT Visual/ Audible TO TRIGGER RACK ALARM ON ANY ALARM ON ON-LINE SIDE. DISPLAYS ELMC OPTION KEY TYPE INSTALLED ON CON- TROLLER. STAT (STATUS)/PROV (REMOTE PROVISIONING)/ WAYSIDE (WITH WAYSIDE DS1 MONITORING). NOT PRO- VISIONABLE. CHANGING DISPLAY REQUIRES CHANGING OPTION KEY. SELECT TERMINAL, REPEATER, RING TERMINAL OR RING REPEATER FROM DROP DOWN LIST. SELECT REPEATER IF TRAFFIC AND SERVICE CHANNEL (FOUR RAILS OF X/Y DATA) ARE BEING TRANSPORTED BETWEEN J314 OF BOTH SHELVES. ENABLE OR DISABLE AUTOMATIC POWER CONTROL (ATPC) FUNCTION. SELECT ATPC Disable, ATPC Enabled, OR ATPC with Timeout FROM DROP DOWN LIST. SEE SHEET 2 0F 3 FOR DETAILS. DISPLAYS MODULATION SCHEME. NOT PROVISIONABLE DISPLAYS RADIO TYPE NOT PROVISIONABLE BACKSPACE TO DELETE CURRENT ADDRESS AND ENTER 5-DIGIT REMOTE RACK ADDRESS. SEE FIGURE 6-11 FOR DETAILS. SELECT RSL-Sw Enable TO ENABLE AUTOMATIC RECEIVER SWITCHING BASED ON RSL. WHEN ENABLED, RECEIVER SWITCHES IF: 1. ON-LINE RCV RSL IS BELOW RCV AGC THRESHOLD, AND 2. OFF-LINE RCV RSL IS ABOVE RCV AGC THRESHOLD. SELECT RSL-Sw Disable TO DISABLE AUTOMATIC RECEIVER SWITCHING. LMW-7084 Sheet 1 of 2 02/04/03 SELECT Station Alarm 13-16 TO ENABLE STATION ALARM 13-16 INPUTS TO RELAY INTFC. WHEN EXTERNAL TBOS IS WIRED TO RADIO, SELECT TBOS Display 1-8 TO ENABLE TBOS DRIVERS ON CONTROLLER AND SELECT A TBOS DISPLAY (1-8) TO VIEW. SELECT Relays ON/NO (NORMALLY OPEN-HIGH IMPEDANCE) OR Relays ON/NC (NORMALLY CLOSED- GROUND) ON ALARM FOR ALARM/STATUS OUTPUTS OR Relays OFF. REFER TO RELAY INTERFACE IN THEORY SECTION FOR DETAILS. 6-6 Screen shown is…

Text truncated - open the document above for the full version.

EXHIBIT 3 2.983 Supporting Documentation 2.984 RF Power Output 2.985 Modulation Characteristics 2.986 Occupied Bandwidth 2.987 Emissions at Antenna Port 2.988 Field Strength Spurious Radiation 2.989 Frequency Stability 2.983. MDR-8000 FCC Type Acceptance A. Name of Manufacturer Alcatel USA 3400 W. Plano Parkway Plano, TX 75075 B. The equipment for which Type Acceptance is requested is referred to as the MDR-8X02. MDR is an abbreviation for M icrowave Digital Radio. The 8 refers to an Alcatel product numbering scheme that implies the eighth generation of microwave products. The X can either be a 5 or a 7 referring to the modulation scheme implemented. The 5 implies a 32 Trellis Coded Modulation (TCM) scheme while the 7 implies 128 TCM. The last two digits imply the frequency band of the radio. In this case 2 GHz. C. The MDR-8X02 is planned to be a fully supported microwave product with sales exceeding the quantity of one. D. Technical Description 1. FCC ID Emission Designator JF6-8702-16 5M00D7W JF6-8702-12 3M75D7W JF6-8702-8 2M50D7W JF6-8702-4 1M25D7W JF6-8702-2 800KD7W JF6-8502-8 3M75D7W JF6-8502-4 2M50D7W JF6-8502-2 1M25D7W 2. 2305 to 2360 MHz 3. One transmit power option of +33 dBm is provided for the MDR-8X02 WCS radio. The power is measured at the top of the waveguide stack. For operation in the C and D blocks of the WCS band it was necessary to reduce the transmit power by 1 dB due to the increase insertion loss of the 6 MHz narrow band filter. 4. The maximum rated RF power as submitted in FCC Form 731 is 2 Watts MDR-8702-16 Private/Common Carrier Digital Radio Radio Characteristics FCC Identification JF6-8702-8 Frequency Range 2.305-2317.6 GHz and 2347.5-2.360 GHz RF Channel Bandwidth 5.00 MHz Occupied Bandwidth 2.1768 MHz Emission Designation 2M50D7W Modulation Type 128 TCM Data Range 12.62 Mb/s Baud Rate 2.02 Mbaud/s Data Efficiency 6.25 bits/Hz Transmit Power +33 dBm (2 Watts) Transmit Frequency Stability 0.005 % (-20 to +50 Degrees C.) Primary Voltage Range 24 – 48 Vdc (positive or negative) Operating Temperature Range 0 to 50 Degrees C Attached Support Documents Equipment Photograph FCCID Label Drawing Defining location of FCCID label 2.984 RF Power Output 2.985 Modulation Characteristics 2.986 Occupied Bandwidth 2.987 Emissions at Antenna Port 2.988 Field Strength of Spurious Radiation 2.989 Frequency Stability 2.990 RF POWER OUTPUT Power output is measured and set at the RF antenna port of the transmitter using an HP 436A Power Meter with an HP 8481 B High Power sensor. The transmit power is set at the desired level by adjusting the Power Amplifier GAIN ADJ at the front of this module. The Power Amplifier has the following characteristics: Alcatel Part Number: 3EM 09037 ADAA Type Design: Solid State DC Power Requirement: +10.5 VDC @ 7.3A -12 VDC @ 100 mA -5 VDC @ 100 mA Gain: 25 dB typical Output Power: +33 dBm transmit power at the RF antenna 2.991 MODULATION CHARACTERISTICS The modulation employed in this equipment is 128 and 32 TCM (Trellis Coded Modulation). This modulation was selected to achieve good BER (bit error rate) performance while maintaining …

Text truncated - open the document above for the full version.
