JH5BM702Part 90.103 Fluid level sensor

MEASUREMENT/TECHNICAL REPORT Company: Krohne America, Inc. Model: BM702 FCC ID: JH5BM702 Description: This is a report to support a request for a type acceptance. Equipment Type: Radiolocation device Report prepared for:Krohne America, Inc. 7 Dearborn Road Peabody, MA 01960 Phone:978-535-6060 Fax:978-535-1720 Report prepared by:Chad A. Bell Curtis-Straus LLC 527 Great Road Littleton, MA 01460 USA Phone:978-486-8880 FAX:978-486-8828 FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 ______________________________________________________________________________ 11-Oct-00 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Page 2 of 14 Table of Contents LETTER OF AGENCY..................................................................................................................................................3 INTRODUCTION..........................................................................................................................................................4 Product Description.................................................................................................................................................5 Related Submittal(s) Grants.....................................................................................................................................5 Test Methodology.....................................................................................................................................................6 Test Equipment Used...............................................................................................................................................9 Operating Frequency.............................................................................................................................................11 Electric Field Strength Radiation Measurements..................................................................................................11 Frequency Stability................................................................................................................................................13 FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 ______________________________________________________________________________ 11-Oct-00 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Page 3 of 14 Letter of Agency FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 ______________________________________________________________________________ 11-Oct-00 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Page 4 of 14 Introduction This report is an application for Certification of a Transmitter operating pursuant to Part 90 of the FCC Rules, Code of Federal Regulations 47. The model number covered by this report is BM702. This report is designed to demonstrate the compliance of this device with the requirements outlined in Part 90 of CFR 47 using the methods outlined in Part 2 of CFR 47. The current revision date, October 1,1998, of each Part has been used for technical requirements. The confidential information and descriptions included in this application are detailed descriptions of the products, block diagrams, component specifications, and schematic diagrams. We hereby respectfully request under the provision of section 0.457d of the code that the documents listed below be held confidential. Technical Descriptions and Block Diagrams Schematics Bill of Materials Krohne America, Inc. is requesting that the Technical Descriptions, Block Diagrams, Schematics and Bill of Materials be kept confidential in the FCC application because of the proprietary design developed by Krohne America, Inc. that is unique to the industry. FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 ______________________________________________________________________________ 11-Oct-00 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Page 5 of 14 Product Description The BM 702 level gauge is designed solely for measuring the level, distance, volume and reflection of liquids, pastes, slurries, particulate materials and solids. Five different antennas are available for use with the unit depending on the application. There are four horn antennas and one Wave-Stick antenna. The Wave-Stack antenna has several different part numbers which correspond to the different lengths of waveguide that lead to the radiating potion of the Wave- Stick. We tested the 6in Wave-Stick. Unit Tested Model Number: BM702 Serial Number: 0/311883.001 Antennas: 3in horn2116340100 4in horn2113010100 6in horn2113000100 8in horn2112540100 Wave-Stick3159860600 Related Submittal(s) Grants There are no other approvals required for this device. FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 ______________________________________________________________________________ 11-Oct-00 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Page 6 of 14 Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (1992). Radiated testing was performed at an antenna to EUT distance of 3 meters below 1 GHz, and at a distance of 3 or 1 meter(s) above 1 GHz. The actual test distance used is noted in the test data sheets. The device’s performance was investigated to 40GHz. The EUT was powered by a DC power supply for all tests. All other performance te…

Text truncated - open the document above for the full version.

FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 User’s Manual________________________________________________________ 6-Oct-00 Page 1 of 25 Variable area flowmeters Vortex flowmeters Flow controllers Electromagnetic flowmeters Ultrasonic flowmeters Mass flowmeters Level measuring instruments Communications technology Engineering systems & solutions Operating Instructions Level-Radar BM 702 FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 User’s Manual________________________________________________________ 6-Oct-00 Page 2 of 25 Software History IntroductionSignal converterUser programInstructions Mth./ Yr Hard- ware FirmwareHard - ware Operating system Soft- ware DeviceUser program 04/00BM 7027.00PREnnPCDOS 5.0 and higher PC-CAT 3.02 PRE01 05/007.02221.11+ Suppl. instruction Win95/98/N T PC- CAT Win 4.00 Online help Test versions for BM 702. 07/00BM 7027.00PCDOS 5.0 and higher PC-CAT 3.01 07/007.02221.11+ Suppl. instruction Win95/98/N T PC- CAT Win 4.00 Online help First series version for BM 702. Items included with supply The scope of supply includes, in the version as ordered: • Signal converter bolted to waveguide window and antenna; optionally: antenna extension, sunshade (with fastening material in each case) • Shielding material with tightening strap (not for the US market) • Installation and operating instructions plus instruction card • Report on factory settings for the signal converter • Certification and approval documents, unless reproduced in the device documentation Installation material (stud bolts, flange gasket and cabling) not supplied, to be provided by customer! FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 User’s Manual________________________________________________________ 6-Oct-00 Page 3 of 25 Contents 1Handling and storage.................................................................................................3 2Installation..................................................................................................................4 2.1Field assembly...........................................................................................................4 2.2Mechanical installation...............................................................................................5 3Electrical connection..................................................................................................7 4Setting the parameters...............................................................................................8 5Maintenance, error handling.....................................................................................19 6Safety information.....................................................................................................20 7Technical data (extract)............................................................................................21 8BM 702 Level-Radar Type code...............................................................................23 9Parameter check list.................................................................................................25 Product liability and warranty: The BM 702 level gauge is designed solely for measuring the level, distance, volume and reflection of liquids, pastes, slurries, particulate materials and solids. The BM 702 level gauge does not form part of an overfill protection system as defined in the WHG (= German water pollution regulation). Local codes and regulations apply to its use in hazardous areas. Responsibility as to suitability and intended use of these level gauges rests solely with the user. Improper installation and operation of our level gauges may lead to loss of warranty. In addition, the "General conditions of sale", form the basis of the purchasing contract. If you need to return the level gauge to the manufacturer or supplier, please refer to the information given in Section 5 i Handling and storage Safety advice Depending on the version, the device will weigh between approx. 5 kg and 30 kg. To carry, use both hands to lift the device carefully by the converter housing. If necessary, use lifting gear. When handling the BM 702, avoid hard blows, jolts, impact, etc. When storing the "Wave-Stick" version, make sure that the device is not placed on its side on the PTFE antenna, as this may cause the rod to bend. FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 User’s Manual________________________________________________________ 6-Oct-00 Page 4 of 25 Installation Most of the BM 702 versions are supplied in fully assembled condition. In this case, you may skip this chapter. However, if a device should be delivered in parts, or parts are subsequently replaced, the following should be noted. Field assembly • For any necessary field assembly of the BM 702, all parts are included with the supply (stud bolts, washers, etc.). • Bolt the waveguide window (flange mount) or distance piece, if supplied loose, to the BM 702. Torque for the sets of 4 Allen screws M (key size 5 mm): max. 8 Nm ∼ 0.8 kpm (5.8 ft lbf). • Note: Ensure the upper Teflon plug is kept absolutely dry and clean! Moisture and dirt will impair functionability of the BM 702! • Bolt antenna extension to the antenna; torque for the 3 stud bolts A: max. 8 Nm ∼ 0,8 kpm (5.8 ft lbf). Do not detach bolts H ! distance piece (for high-temperature version up to 250°C (482 °F) upper Teflon plug O-ring lower Teflon plug O-ring BM70 A connecting flange antenna extension antenna M H M A signal converter Version: Flange Stick plating (for Hastelloy, Stick Gasket Gasket Horn antenna Separation (Metaglass) Wave-Stick Wave-Stick (PP or PTFE) Flange system 96 with horn antenna LP flange system max. 2 bar max. 2 bar distance piece (optional) High temperature plate Horn antenna Flange Ti, Ta) PTFE w/o plate with horn antenna BM 702 converter FCC Application for Krohne America, Inc. •…

Text truncated - open the document above for the full version.

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: (978) 486-8880 Fax: (978) 486-8828 Web: http://www.curtis-straus.com e-mail: [email protected] CONFIDENTIAL September 28, 2000 Certification Department Re: Confidentiality for Krohne America, Inc. (FCC ID: JH5BM702) Due to the proprietary design developed by Krohne America that is unique to the industry, Krohne America is requesting confidentiality for the following exhibits of Curtis-Straus report number EA0897-1 (FCC ID: JH5BM702): Technical Description and Block Diagram Schematics Bill of Materials Please feel free to contact me with any questions. Best regards, Michael Buchholz EMC Manager

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: (978) 486-8880 Fax: (978) 486-8828 Web: http://www.curtis-straus.com e-mail: [email protected] September 28, 2000 Certification Department Re: FCC Part 90 Type Acceptance for Krohne America, Inc. (FCC ID: JH5BM702) Dear Sir: We are submitting an application for the Krohne America Level Radar (model number: BM702). Please note that we are simultaneously requesting the following services: Certification Request for Confidentiality Please feel free to contact me with any questions. Best regards, Michael Buchholz EMC Manager CC w/enclosures Krohne America Barc Beahm

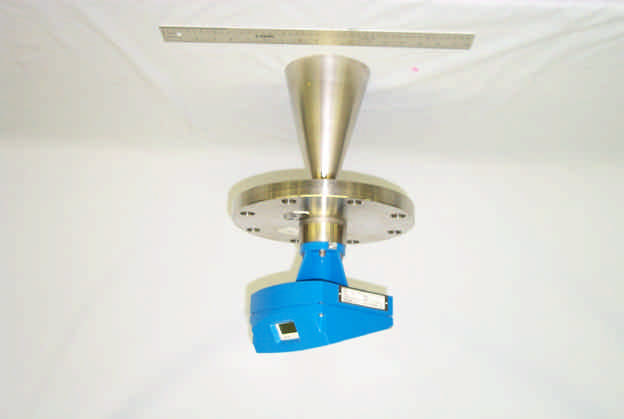

FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 External Photos ________________________________________________________6-Oct-00 Page 1 of 2 External Photos FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 External Photos ________________________________________________________6-Oct-00 Page 2 of 2

FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Product Labeling ______________________________________________________ 6-Oct-00 Page 1 of 3 Product Labeling Label Artwork The label shown in the drawing below will be permanently affixed to the system at the location shown in the photo below. FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Product Labeling ______________________________________________________ 6-Oct-00 Page 2 of 3 FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Product Labeling ______________________________________________________ 6-Oct-00 Page 3 of 3

FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Internal Photos _______________________________________________________ 6-Oct-00 Page 1 of 2 Internal Photos FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Internal Photos _______________________________________________________ 6-Oct-00 Page 2 of 2

RF Exposure Evaluation A calculation based on the FCC’s Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields (Edition 97-01) appears below. Since conducted power measurements were unable to be made, output power was calculated using radiated field strength readings. Antenna Output = 117.7dBuV/m @ 1m ERP=4πPDR 2 where PD= power density, R= measurement distance [m] PD=(field strength) 2 /( free space impedance) 117.7dBuV/m = 0.767V/m PD=(0.767) 2 / 377 = 0.00156W/m 2 ERP=4π x 0.000118 x 1 2 = 0.0196 = 19.6mW The limit for General Population/Uncontrolled Exposure is S=1mW/cm 2 The distance from the antenna at which this radiation level will be reached is R=SQRT(EIRP/4πS) EIRP = 1.64 x ERP R=SQRT(1.64 x 19.6 / (4π x 1)) = 1.6cm Due to this small distance and general installation practice (installed inside an RF tight metal tank), the danger of harmful RF radiation exposure from this device is minimal.

Responses to TCB questions Subject: Re: JH5BM702 Date: Wed, 11 Oct 2000 16:11:07 -0400 From: Michael Buchholz <[email protected]> Organization: curtis-straus To: Certification Manager <[email protected]> References: 1 The Wave Stick has been tested and added to the report - along with 3 other antennas previously unknown. :-) Mike Certification Manager wrote: > Hi, > > Just looking through the manual and I noticed that the unit has another > antenna called the "wave stick". Please justify the lack of data for > this antenna. > > -- > Jon D. Curtis > Certification Manager > > Curtis-Straus LLC > Telecom Certification Body > 527 Great Road > Littleton, MA 01460 > USA > t:978-486-8880 f:978-486-8828 -- Michael Buchholz Senior EMC Manager ----------------------------------------------------------- Curtis-Straus LLC Voice: 978.486.8880 x264 527 Great Road Fax: 978.486.8828 Littleton, MA 01460 http://www.curtis-straus.com ----------------------------------------------------------- Subject: Re: JH5BM702 Date: Wed, 11 Oct 2000 16:09:53 -0400 From: Michael Buchholz <[email protected]> Organization: curtis-straus To: Certification Manager <[email protected]> References: 1 The items below have been addressed. A new hard copy and CD will follow. Mike Certification Manager wrote: > We have the following issues to resolve. > > 1. On page 6 of the test report you state that the equivalent radiated > power is derived from a reading of 86.5dbuV. I see that the unit had a > field strength of 106.5 dbuV/m at 1m. Please explain the discrepancy > and provide revised test report and 731 form as appropriate. Calculations have been corrected. A new form 731 has been provided. > > > 2. What does the designation "NF" mean in the radiated emissions column > of table 2 and 3? Noise floor - this has been clarified in the tables > > > 3. Why did you go to 55C when only 50C is required? As per ANSI C63.4 > > > 4. Please submit an exhibit addressing RF Exposure. Provided > > > -- > Jon D. Curtis > Certification Manager > > Curtis-Straus LLC > Telecom Certification Body > 527 Great Road > Littleton, MA 01460 > USA > t:978-486-8880 f:978-486-8828 -- Michael Buchholz Senior EMC Manager ----------------------------------------------------------- Curtis-Straus LLC Voice: 978.486.8880 x264 527 Great Road Fax: 978.486.8828 Littleton, MA 01460 http://www.curtis-straus.com -----------------------------------------------------------

FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Test Setup Photos_________________________________________________________ 29-Sep-00 Page 1 of 4 Test Setup Photographs: Radiated Emissions – Curtis-Straus FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Test Setup Photos_________________________________________________________ 29-Sep-00 Page 2 of 4 Radiated Emissions – Curtis-Straus FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Test Setup Photos_________________________________________________________ 29-Sep-00 Page 3 of 4 Line Conducted Emissions FCC Application for Krohne America, Inc. ••FCC ID: JH5BM702 •• Report No. EA0897-1 Test Setup Photos_________________________________________________________ 29-Sep-00 Page 4 of 4 Frequency Stability
