JH5OPTIWAVE7300CIRadar Level Meter

© KROHNE 04/20047.02287.21.00 CH OPTIWAVE 7300 C Radar Level Meter Measurement of distance, level and volume of liquids, pastes and solids • Easy installation • Wizard driven • Service and maintenance-free General Items supplied Visual check This is a quick-start guide only. For further infor- mation please consult the handbook, data sheet, special manuals and certificates supplied on CD-ROM. Installation, assembly, commissioning and ser- vicing must only be undertaken by trained personnel. Maintenance which is considered relevant to safety in the sense of explosion pro- tection must only be carried out by the manu- facturer, his agents or under the supervision of experts. For use in hazardous areas, special codes and regulations are applicable, which are supplied in a separate document that describes all ATEX hazardous area information. Responsibility as to suitability and intended use of this device rests solely with the user. The sup- plier does not accept any liability resulting from misuse by the customer. Improper installation and operation of our level gauges may lead to loss of warranty. In addition, the "General condi- tions of sale", found on the back of the invoice and forming the basis of the purchasing con- tract, are applicable. If you need to return the device to the manufac- turer or supplier, please complete the form given on the CD-Rom and attach to the device. KROHNE regrets that it cannot repair or check your device unless accompanied by this com- pleted form. * Wa rranty *If applicable Quick-start Quick-startOPTIWAVE 7300 C Handling and installation instructions 2 max. 2° Antenna must protrude from nozzle base. Handling and installation instructions 3 Option H D Mount off-centre to avoid multiple reflections. DN 40 / 50: > 1/7 H, but max. 1/3 D DN 80: > 1/10 H, but max. 1/3 D Install away from entry pipe. +80°C / +175°F -40°C / -40°F max. 150°C / 300°F min. -40°C / -40°F Viton min. -20°C / -5°F Kalrez Special considerations 4 Stray reflections ! Too many objects in tank: use bypass chamber Foam: use stilling well Avoid too many objects near to the radar beam in tank. Stilling wells and bypass chambers Dimensions and Weights 5 Note: Additional antenna extension of 105 mm / 4.1" length available. approx. 11 kg /24.3 lb Flange (Antenna DN 80)Antenna DN 80 with antenna extension approx. 12 kg /26.5 lb Dimensions and Weights 6 Dimensions in mm and inch Flange (Antenna DN 40/50)Thread 39 / 1.5 43 / 1.7 38.5 / 1.5 50 / 2 343.8 / 13.5 355.3 / 14 cba Antenna type Antenna DN 40 Antenna DN 50 mm / inch mm / inch mm / inch Note: Cable glands are not delivered with the device. Terminal Compartment and Terminals 7 Wiring options min.250Ω L – L + HART ® Configuration Software HART ® Modem HHC Non-Ex min.250Ω L – L + HART ® Configuration Software HART ® Modem HHC Intrinsically Safe (IS) / Ex i min.250Ω L – L + HART ® Configuration Software HART ® Modem HHC Explosion Proof (XP) / Ex d Ex non-Ex Ex non-Ex Note:Other options how to connect the HHC and modem to the HART ® loop are available. Output 1 4 ... 20 mA/HART or 3.8 ... 20.5 mA/HART acc. to NAMUR NE 43 – + Connection procedure •Unscrew terminal compartment cover. •Wire up using standard procedures. •Apply grease to thread of cover before closing. Quick-start OPTIWAVE 7300 C Technical data extract Application conditions Temperature Ambient temperature-40...+80°C / -40...+175°F; EEx i: -40...+60°C / -40...+140°F Storage temperature-40...+85°C / -40...+185°F Flange temperature-40...+150°C / -40...+300°F (Viton gasket) -20...+150°C / -5...+300°F (Kalrez 6375 gasket) Thermal shock resistance100°C/min Process conditions Operating pressure-1...40 bar / -14.5...580 psig; subject to process connection used and flange temperature Dielectric constant1.5 Vibration resistanceIEC 68-2-6 and prEN 50178 (10...57Hz: 0.075 mm / 57...150 Hz: 1 g) Protection categoryIP 66/67 equiv. to NEMA 6-6X Output Output signal Output 14 ... 20 mA HART® or 3.8 ... 20.5 mA acc. to NAMUR NE 43 Accuracy0.05% (rel. 20 mA; 20°C / 68°F) Resolution±2 μA Temperature driftTypically 50 ppm/K Error signalHigh: 22 mA; Low: 3.6 mA acc. to NAMUR NE 43 Max. Load350 ohm Approvals Overfill protectionWHG ATEXATEX II G/D 1, 1/2, 2 EEx ia IIC T6; ATEX II G/D 1/2, 2 EEx d ia IIC T6 FMIS class I Div. 1 Gr. A...G; XP class I Div. 1 Gr. A...G CSAIS class I Div. 1 Gr. A...G; XP class I Div. 1 Gr. A...G For futher data see data sheet, approvals and handbook on CD-ROM Hotline: +33(0)4.75.05.44.00 · Fax: +33(0)4.75.05.44.97 www.krohne.com for local contacts · E-mail: [email protected] Human interface 9 Program mode: Saves or confirms parameter. Program mode: ESC-function returns to previous menu. If top menu reached, returns to normal mode. Any paramenter value entered is not stored. Normal mode: Selects display style. Program mode: Moves cursor to right or selects next menu level. ESC Normal mode: Selects type of information displayed. Program mode: Moves menu selector up the list or increments parameter value. Normal mode: Selects measurement parameters to be displayed. Program mode: Moves menu selector down list or decrements parameter value. Human interface Startup procedure 10 Hot keys Hot key activated when: 3 seconds 3 seconds 3 seconds 3 seconds 3 seconds Action Enters program mode Saves current function used as quick link Active screen stored as default screen HMI will reset to default language Returns to normal mode (last screen displayed) Signal editing function Mode Normal Program Normal All modes Program Normal (signal screen) ☞ ☞ ☞ ☞ ☞ ☞ + After mechanical and electri- cal installation, start-up, then the device performs a self- test and is ready for use. The Wizard automatically dis- plays parameter setup steps on-screen. If false parameter value is input- ted (e.g. outside limits) an error message / icon occurs, and after 10 seconds the screen switches to HELP function. If error persists, download log file using PACTware and send to e- mail address given on back rear page. F…

Text truncated - open the document above for the full version.

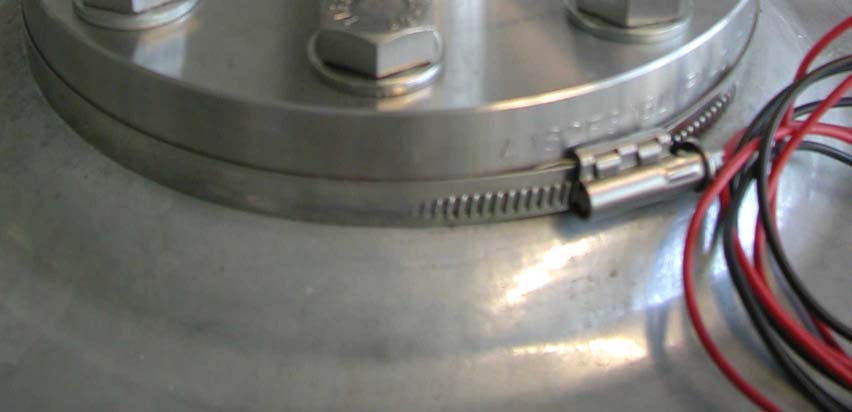

CETECOM ICT Services GmbH Test report No.: 2-3629-01-02/03Date : 28.05.2004Page 36 of 43 4Photographs CETECOM ICT Services GmbH Test report No.: 2-3629-01-02/03Date : 28.05.2004Page 37 of 43 CETECOM ICT Services GmbH Test report No.: 2-3629-01-02/03Date : 28.05.2004Page 38 of 43 CETECOM ICT Services GmbH Test report No.: 2-3629-01-02/03Date : 28.05.2004Page 39 of 43 CETECOM ICT Services GmbH Test report No.: 2-3629-01-02/03Date : 28.05.2004Page 40 of 43 CETECOM ICT Services GmbH Test report No.: 2-3629-01-02/03Date : 28.05.2004Page 41 of 43

IC: 1991B-OW7300CI FCC ID JH5OPTIWAVE7300CI When installed in totally enclosed metal tanks, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. Printer Note: Top line: 9pt Arial Narrow Main text: 8 pt Arial Narrow Label size: 26 mm high by 70 mm wide 1991B-OW7300CI

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax +49 (0) 681 598 – 9075 Test report No.: 2-3629-03-02/04 This test report consists of 38 pages Page 1 of 38 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: 3463 (IC) TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Test report No. 2-3629-03-02/04 Applicant: KROHNE Messtechnik GmbH & Co. KG Type: OPTIWAVE 7300 C Test standard : FCC Part 15 IC RSS 210 Member of RWTÜV Group CETECOM ICT Services GmbH Test report No.: 2-3629-03-02/04 Date : 2005.03.22 Page 2 of 38 Table of contents Page 1. General information............................................................................ 3 1.1 Notes.................................................................................................... 3 1.2 Testing laboratory................................................................................. 4 1.3 Details of applicant................................................................................ 4 1.4 Application details................................................................................. 4 1.5 Equipment under test (EUT)................................................................. 5 1.6 Technical data....................................................................................... 5 1.7 Test standards...................................................................................... 6 2. Technical tests.................................................................................... 7 2.1 Summary of test results........................................................................ 7 2.2 Test environment.................................................................................. 7 2.3 Measurement and test set-up............................................................... 7 2.4 Test equipment utiliszed and test set-up......................................... 8 - 9 2.5 Test results.................................................................................. 10 - 13 3. Plots, graphs and data sheets.................................................. 14 - 28 4. Photographs............................................................................... 29 - 36 CETECOM ICT Services GmbH Test report No.: 2-3629-03-02/04 Date : 2005.03.22 Page 3 of 38 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item . The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester : Date Name Signature 2005.03.22 Detlev Gillmann Technical responsibility for area of testing: Date Name Signature 2005.03.22 Manfred Paschwitz CETECOM ICT Services GmbH Test report No.: 2-3629-03-02/04 Date : 2005.03.22 Page 4 of 38 Test Report Cover Sheet/Performance Test Data TEST REPORT NUMBER: 2-3629-01-03/04 EQUIPMENT MODEL NUMBER: OPTIWAVE 7300C CERTIFICATION NO: MANUFACTURER : KROHNE Messtechnik GmbH & Co. KG TESTED TO RADIO STANDARDS SPECIFICATION NO. : RSS 210 Issue 5 OPEN AREA TEST SITE INDUSTRY CANADA NUMBER: 3463 FREQUENCY RANGE (or fixed frequency): 24.000 GHz – 24.250 GHz FIELD STRENGTH (at what distance): 223.8 mV/m @3m TYPE OF MODULATION: sweep EMISSION DESIGNATOR (TRC-43): 20K0FN0N (hopping puls) ANTENNA INFORMATION: Horn TRANSMITTER SPURIOUS (worst case): 103.8 dB μV/m @ 3m ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Laboratory Manager : 2005-03-22 RSC 8434 M. Paschwitz Date Section Name Signature CETECOM ICT Services GmbH Test report No.: 2-3629-03-02/04 Date : 2005.03.22 Page 5 of 38 1.2 Testing laboratory CETECOM ICT Services GmbH CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 P.O. Box 10 04 45 D-66117 Saarbrücken D-66004 Saarbrücken Germany Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Industry Canada (IC) Authority Identification/Registration No. RegTP TTI-P-G 081/94-D0 FCC 90462 IC 3463 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) 1.3 Details of applicant Name : KROHNE Messtechnik GmbH & Co. KG Street : Ludwig-Krohne-Strasse 5 Town : D-47058 Duisburg Country : Germany Phone : +49 203 301 0 Fax : +49 203 301 368 Contact person Name : Mr. Uwe Wegemann Phone : +49 203 301 459 Fax : +49 203 301 368 E–Mail : [email protected] 1.4 Application details Date of test : 28.02.2005 Person(s) who have been : Mr. Charalambos Ouzounis present during the test : Mr. Gerding CETECOM ICT Services GmbH Test report No.: 2-3629-03-02/04 Date : 2005.03.22 Page 6 of 38 1.5 Test item (EUT) Description : Field disturbance sensor Type designation : OPTIWAVE 7300 C Manufacturer Name : KROHNE Messtechnik GmbH & Co. KG Street : Ludwig-Krohne-Strasse 5 Town : D-47058 Duisburg Country : Germany 1.6 Technical data Operational frequency : 24.000 GHz ... 24.250 GHz EIRP PEP : 223.8 mV/m (EUT outsid…
