D81CH Quick Reference Manual 1 1. Minimum Requirements Telephone connection (for making telephone calls) AC power connection Broadband Internet access (cable/DSL for accessing D81CH features) 2. Parts Checklist The package includes the following: 1 Quick Reference Manual 2 Handset 3 Three pieces of AAA NiMH Battery 4 Charger Cradle 5 USB Cable 6 Power Adapter 3. Specifications Standard DECT 6.0 (Digital Enhanced Cordless Telecommunications), GAP (Generic Access Profile) Number of channels 5 channels Frequency range 1921.536 MHz to 1928.488MHz Channel spacing 1,728 kHz LCD 2.0” Color LCD with 176 x 220 pixels Power source Input: 120 VAC, 60 Hz Output: 5VDC 500mA Power consumption Standby: 1.0W (approx) Maximum: 4.5 W (approx.) Dimension Handset : 50mm x 150mm x2.5mm Charger : 65mm x 70mm x 30mm Operating conditions Temperature 5 °C–40 °C (41 °F–104 °F), Relative humidity (dry) 20%–80% 2 4. D81CH Handset Layout 1 Earphone Audio output 2 Alert bar LED indication for incoming /intercom call, pages or messages 3 Left Softkey (LSK) Select the function displayed on the lower left of the screen. 4 Speaker Turns the speaker on or off. 5 Talk Activates phone with a dial tone 6 */ shift Key Dial a * (star) during calls or toggles between uppercase, lowercase and numeric modes during text entry 7 Microphone Selects the function displayed on the lower right of the screen. Audio input 8 # Key Dial a # (pound) during calls, and enters space during text entry 9 Keypad Use for dialing phone numbers and entering text. 10 Phone Off Ends a currently active call or returns screen to Home screen 11 Back Press quickly to go back one level. 12 Right soft key (RSK) Selects the function displayed on the lower right of the screen. 13 Navigation Keys [UP][Down][Left][Right] Navigate menu screens and position the cursor during text entry (Pressing the center button to open the selected item) 14 Screen Handset display. 3 5. Installing the Handset Install the handset 1. Plug the provided USB cable into the handset cha rger and connect the other USB end to the adapter. 2. Plug the power adapter to an electrical outlet. 3. Insert the battery with the correct polarity int o the handset. 4. Close the battery door. 5. Place the handset on the charger for charging. ( It is recommended that you charge the handset for 16 hours before fir st use.) 6. Charger the batteries before the first use and whenever you see the “low battery indication. Power On 1. Press the Phone Off key for at least five seconds to turn on the handset. 2. Once the handset has successfully established a lin k to the base, the handset number assigned by the base will appear on the top left corner of the handset display. Power Off 1. Press the Phone Off for three seconds until an alert tone is heard. 2. Press the Phone Off continuously to generate a second alert tone. You’ll be prompted to confirm the Power Off sequenc e. 3. Press the Yes Softkey to turn off the handset. Handset Registration 1. For an unregistered handset, press the Register Softkey to begin the handset registration process. 2. Press the Yes Softkey to confirm the registration. 3. The handset will display “ Please press the registr ation key on the base”. Follow the instruction and press the re gistration key on the phone base. Alternative method 1. Enter the Menu Settings. 2. From the Menu Settings , select Phone Settings . 3. From the Phone Settings, select Registration. 4. Press the Yes Softkey to confirm registration. 5. The handset will display “Please press the registra tion key on the base”. Follow the instructions and press the regis tration key on the phone base. 4 Once the registration is successful, the handset nu mber assigned by the base will appear in the top left corner of the hand set display. 6. Menu Operation Main Menu Sub - Menu Description Call Log Missed Calls Answered Calls Dialed Calls All Calls The Call log is provided by the base. The Call, Delete, Save number and Delete All functions are available for the Call Log Phone Settings Time Alarm Sound Settings Register Handset De-Register Handset Handset Settings Factory Reset Enables customization of the handset. Press the [Up] and [Down] Navigation keys to navigate, then press Select or the Center key to confirm a selection. Phone Settings Press the [Up] or [Down] Navigation keys to go to t he Phone Settings menu. Press the Select Softkey or [Center] key to select a setting. Press the Back Softkey to return to the pervious menu. Setting Time Press the [Up] or [Down] Navigation keys to go to t he following settings Time Display Option: 12 hours / 24 hours Hour and Minutes: AM/PM (can only be set if the Time Display Option i s set to 12 hours) Register Handset Follow the instruction displayed on the handset scr een to register the handset. De Register Handset Follow the instruction displayed on the handset scr een to de-register the handset. 5 Alarm Press the [Up] or [Down] Navigation keys to go to t he following Alarm settings Press the [Center] key or Select Softkey to set the designated item. Alarm: On/Off Time: To set the desired alarm time Snooze: Off, Every 5 min, 10 min, 15 min and 30 mi n Freq: Once / Daily Alarm Melody: 15 melodies Weekdays only: On/Off Sound Settings Press the [Up] or [Down] Navigation keys to go to t he followings sound settings. Press the [Center] key or Select Softkey to set the designated item. Ring Tone: 15 Melodies Ring Tone – Intercom: 15 Melodies Ring Volume: Off, Level 1 to Level 5 Keypad Tone: On / Off Low Battery: On /Off Out of Range: On /Off Notifications: On / Off Handset Settings Press the [Up] or [Down] Navigation keys to go to t he following Handset settings. Press the [Center] key or Select Softkey to set the designated item. Backlight Timer: 30sec, 1 min, 2 min, 5 min Screen Saver: Off / Clock / Image Visual Alerts: Enable / Disable Brightness: Level 1 to Level 5 Auto Talk: On / Off 6 7. Telephone Operation Making an Outgoing Call
Dial the number and press the Talk , Speak…

Text truncated - open the document above for the full version.

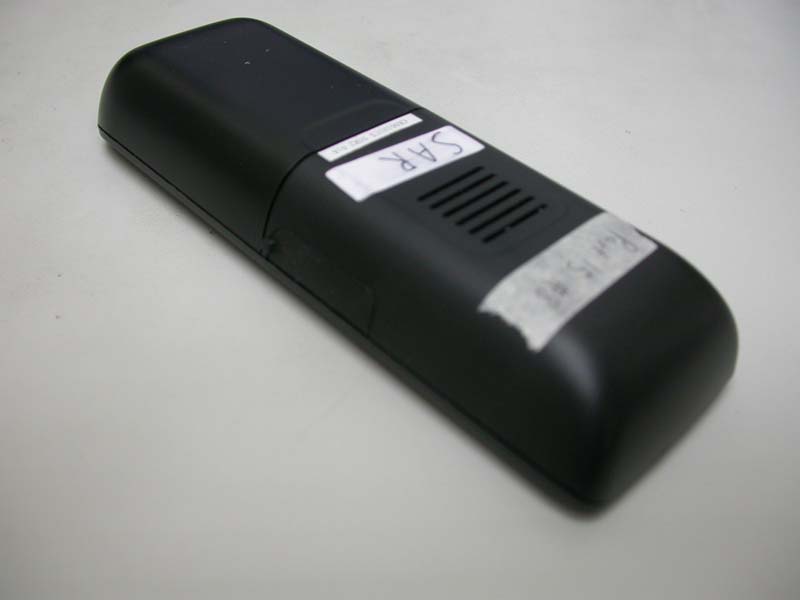

FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

CK001 Label drawing

FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page B1 of B5 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page B2 of B5 3. Inside View 3 of EUT 4. Inside View 4 of EUT FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page B3 of B5 5. Inside View 5 of EUT 6. Inside View 6 of EUT FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page B4 of B5 7. Front view of PCB 8. Rear view of PCB FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page B5 of B5 9. Module

Report No.: 10-04-MAS-226-03 Page 1 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 1 Report No.: 10-04-MAS-226-03 Client: SMC Networks Inc. Product: D81CH Model: D81CH FCC ID: JI5-D81CH Manufacturer/supplier: SMC Networks Inc. Date test item received: 2010/04/27 Date test campaign completed: 2010/04/30 Date of issue: 2010/05/13 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 W/kg averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01). The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 73 pages Test Engineer David You Checked by Joe Hsieh Approved by Winpo Tsai The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. SAR Evaluation Report for FCC OET Bulletin 65 Supplement C Report No.: 10-04-MAS-226-03 Page 2 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 2 Applicant Information Client : SMC Networks Inc. Address : 20 Mason Irvine, CA 92618 Manufacturer : SMC Networks Inc. Address : 20 Mason Irvine, CA 92618 EUT : D81CH Trade Name SMC Model No. : D81CH Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) IEEE Standard 1528-2003 Test Location : Electronics Testing Center, Taiwan (www.etc.org.tw) No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang,Taoyuan County 33383, Taiwan, R.O.C. The US DECT handset is in compliance with the FCC Report and Order 93- 326 and Health Canada Safety Code 6, and the tests were performed according to the FCC OET65c for uncontrolled exposure. Report No.: 10-04-MAS-226-03 Page 3 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 3 Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1 GENERAL INFORMATION............................................................................................................. 6 1.1 Description of Equipment Under Test ..................................................................................... 6 1.2 Photograph of EUT .................................................................................................................. 6 1.3 Environment Conditions .......................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ................................................................... 7 1.4.1 RF Exposure Limits ..........................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ........................................................................ 8 1.5.1 General Requirements.......................................................................................................................8 1.5.2 Phantom Requirements .....................................................................................................................8 1.5.3 Test Positions ....................................................................................................................................8 1.5.4 Test Procedures ...............................................................................................................................10 2 D ESCRIPTION OF THE TEST EQUIPMENT.................................................................................. 11 2.1 Test Equipment List ............................................................................................................... 11 2.2 DASY4 Measurement System Diagram ................................................................................ 12 2.3 DASY4 Measurement Server................................................................................................. 14 2.4 DAE (Data Acquisition Electronics)...................................................................................... 15 2.5 Phantom.................................................................................................................................. 16 2.6 Device Holder ........................................................................................................................ 17 2.7 Specifications of Probes ......................................................................................................... 18 2.8 SAR Measurement Procedures in DASY4 ............................................................................ 18 2.9 Simulating Liquids ................................................................................................................. 19 2.10 System Performance Check ................................................................................................... 19 2.10.1 Purpose .......................................................................................................................................19 2.10.2 System Performance Check Procedure.......................................................................................19 2.10.3 System Performance Check Setup ..............................................................................................20 2.10.4 Result of System Performance Check: Valid Result ..................................................................20 3 RESULTS..................................................................................................................................... 21 3.1 Summary of Test Results ................................…

Text truncated - open the document above for the full version.

Report No.: 10-04-MAS-226-03 Page 50 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 50 ANNEX C: DIPOLE CERTIFICATE Report No.: 10-04-MAS-226-03 Page 51 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 51 Report No.: 10-04-MAS-226-03 Page 52 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 52 Report No.: 10-04-MAS-226-03 Page 53 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 53 Report No.: 10-04-MAS-226-03 Page 54 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 54 Report No.: 10-04-MAS-226-03 Page 55 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 55 Report No.: 10-04-MAS-226-03 Page 56 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 56 Report No.: 10-04-MAS-226-03 Page 57 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 57 Report No.: 10-04-MAS-226-03 Page 58 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 58 Report No.: 10-04-MAS-226-03 Page 59 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 59 ANNEX D: PROBE CERTIFICATE Report No.: 10-04-MAS-226-03 Page 60 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 60 Report No.: 10-04-MAS-226-03 Page 61 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 61 Report No.: 10-04-MAS-226-03 Page 62 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 62 Report No.: 10-04-MAS-226-03 Page 63 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 63 Report No.: 10-04-MAS-226-03 Page 64 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 64 Report No.: 10-04-MAS-226-03 Page 65 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 65 Report No.: 10-04-MAS-226-03 Page 66 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 66 Report No.: 10-04-MAS-226-03 Page 67 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 67 Report No.: 10-04-MAS-226-03 Page 68 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 68 Report No.: 10-04-MAS-226-03 Page 69 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 69 Report No.: 10-04-MAS-226-03 Page 70 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 70 Report No.: 10-04-MAS-226-03 Page 71 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 71 Report No.: 10-04-MAS-226-03 Page 72 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 72 Report No.: 10-04-MAS-226-03 Page 73 of 73 FCC ID: JI5-D81CH Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 73

FCC ID: JI5-D81CH Sheet 1 of 79 Sheets ETC Report No.: 10-04-MAS-226-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Report No.: 10-04-MAS-226-02 Client: SMC Networks Inc. Product: D81CH Model: D81CH FCC ID: JI5-D81CH Manufacturer/supplier: SMC Networks Inc. Date test item received: 2010/04/27 Date test campaign completed: 2010/05/07 Date of issue: 2010/05/13 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 79 pages Total number of pages of photos: External photos 1 pages Internal photos 5 pages Setup photos 2 pages Test Engineer Checked By Approved By John Li Joe Hsieh Winpo Tsai FCC ID: JI5-D81CH Sheet 2 of 79 Sheets ETC Report No.: 10-04-MAS-226-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION......................................................................................................... 4 1.1 Testing Laboratory..................................................................................................................... 4 1.2 Client Information....................................................................................................................... 4 1.3 Manufacturer...............................................................................................................................4 2 TEST INFORMATION................................................................................................................... 5 2.1 Description of Tested Device(s)............................................................................................... 5 2.2 Test Environment....................................................................................................................... 5 3 TEST REPORT SUMMARY......................................................................................................... 6 3.1 Test Summary............................................................................................................................ 6 3.2 Other Comments........................................................................................................................ 7 4 TEST SETUP.................................................................................................................................. 8 4.1 Frequency and Timing Measurements................................................................................... 8 4.2 Conducted Emission Tests....................................................................................................... 8 4.3 Radiated Emission Tests.......................................................................................................... 9 4.4 Power line Conducted Tests.................................................................................................... 9 4.5 Monitoring Tests....................................................................................................................... 10 5 TEST EQUIPMENT LIST............................................................................................................ 11 6 TEST RESULT............................................................................................................................. 12 6.1 Coordination with fixed microwave........................................................................................ 12 6.2 Cross Reference...................................................................................................................... 13 6.3 Labeling Requirements........................................................................................................... 14 6.4 Power line Conducted Emissions.......................................................................................... 15 6.5 Antenna Requirement............................................................................................................. 16 6.6 Digital Modulation Techniques............................................................................................... 16 6.7 Peak Transmit Power.............................................................................................................. 17 6.8 Power Spectral Density........................................................................................................... 21 6.9 Antenna Gain............................................................................................................................ 25 6.10 Automatic discontinuation of transmission......................................................................... 25 6.11 Safety exposure levels.......................................................................................................... 26 6.12 Emission Bandwidth B.......................................................................................................... 27 6.13 Monitoring time....................................................................................................................... 31 6.14 Monitoring threshold.............................................................................................................. 32 6.15 Maximum transmit period..................................................................................................... 33 6.16 System Acknowledgement................................................................................................... 35 FCC ID: JI5-D81CH Sheet 3 of 79 Sheets ETC Report No.: 10-04-MAS-226-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 6.17 Least Interfered C…

Text truncated - open the document above for the full version.

FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page 1 of 2 Photos of Radiation Measuring Setup x axis FCC ID: JI5-D81CH ETC Report No.: 10-04-MAS-226-02 Page 2 of 2 y axis z axis
