  1. Home/
  2. SMC Networks Inc/
  3. JI5-DORY3A

JI5-DORY3ACable Gateway

SMC Networks Inc
Cable Gateway - FCC ID JI5-DORY3A - SMC Networks Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 18, 2012
Application Purpose
Original Equipment
Date of Application
Jun 18, 2012
Equipment Note
Cable Gateway
Frequency Range
2422.00000000 - 2452.00000000
Company
SMC Networks Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

` SMCD3GNV User Manual Comcast Wireless Cable Modem Gateway FastFind Links Getting to Know the Gateway Installing the Gateway Preconfiguration Guidelines Configuring the Gateway Configuring the Gateway’s mso Interface SMC Networks 20 Mason Irvine, CA. 92618 U.S.A. Copyright © 2012 SMC Networks All Rights Reserved Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, or for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or stored in a database or retrieval system for any purpose without the express written permission of SMC. Microsoft and Windows are registered trademarks of Microsoft Corporation. Apple and Macintosh are registered trademarks of Apple, Inc. All other brands, product names, trademarks, or service marks are property of their respective owners. This product (Model : SMCD3G2GNV ) includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL used in this product, are available to you at http://gpl.smc.com/. The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL Code and LGPL Code for this product and the terms of the GPL and LGPL. SMCD3GNV Wireless Cable Modem Gateway User Manual May 8, 2012 iii SMCD3GNV Wireless Cable Modem Gateway User Manual Contents Preface .................................................................................................................... vii Key Features ............................................................................................................. viii Document Organization .............................................................................................. ix Document Conventions .............................................................................................. ix Safety and Warnings ............................................................................................ ix Typographic Conventions ............................................................................................ x 1 Getting to Know the Gateway ............................................................................ 11 Unpacking Package Contents ................................................................................... 12 System Requirements ............................................................................................... 12 Front Panel ................................................................................................................ 13 Rear Panel ................................................................................................................ 15 Top Panel .................................................................................................................. 16 Bottom Panel ............................................................................................................. 16 Using the Reset Button ............................................................................................. 17 2 Installing the Gateway ........................................................................................ 18 Finding a Suitable Location ....................................................................................... 19 Installing a Battery ..................................................................................................... 20 Connecting to the LAN .............................................................................................. 21 Connecting the WAN ................................................................................................. 22 Connecting to the Public Telephone Network ........................................................... 22 Powering on the Gateway ......................................................................................... 23 3 Preconfiguration Guidelines .............................................................................. 24 Configuring Your Computer for TCP/IP ..................................................................... 25 Configuring Microsoft Windows 2000 .................................................................. 25 Configuring Microsoft Windows XP ..................................................................... 26 Configuring Microsoft Windows Vista .................................................................. 27 Configuring Microsoft Windows 7 ........................................................................ 30 Configuring an Apple ® Macintosh ® Computer ..................................................... 33 Disabling Proxy Settings ........................................................................................... 34 Disabling Proxy Settings in Internet Explorer ...................................................... 34 Disabling Proxy Settings in Firefox ...................................................................... 34 Disabling Proxy Settings in Safari ....................................................................... 35 Disabling Firewall and Security Software .................................................................. 35 Confirming the Gateway’s Online Status ................................................................... 35 Contents iv SMCD3GNV Wireless Cable Modem Gateway User Manual Confirming Your Computer’…

Text truncated - open the document above for the full version.

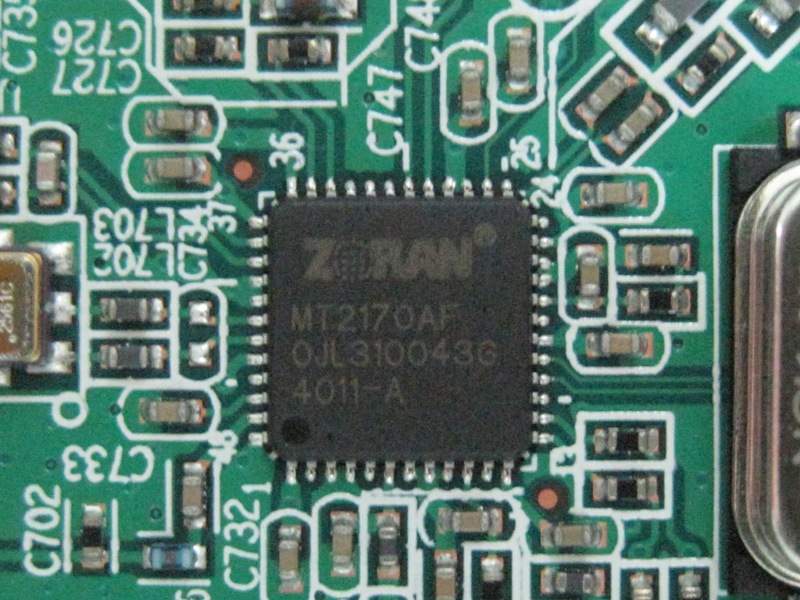

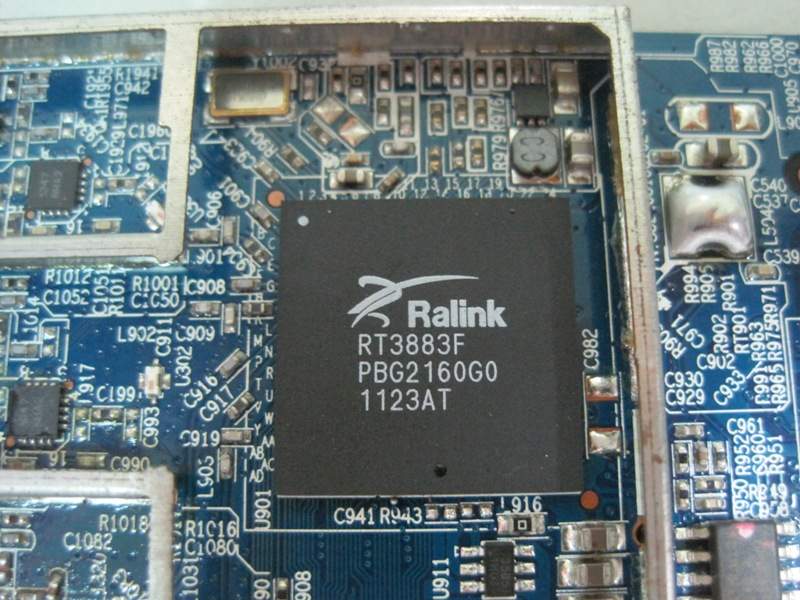

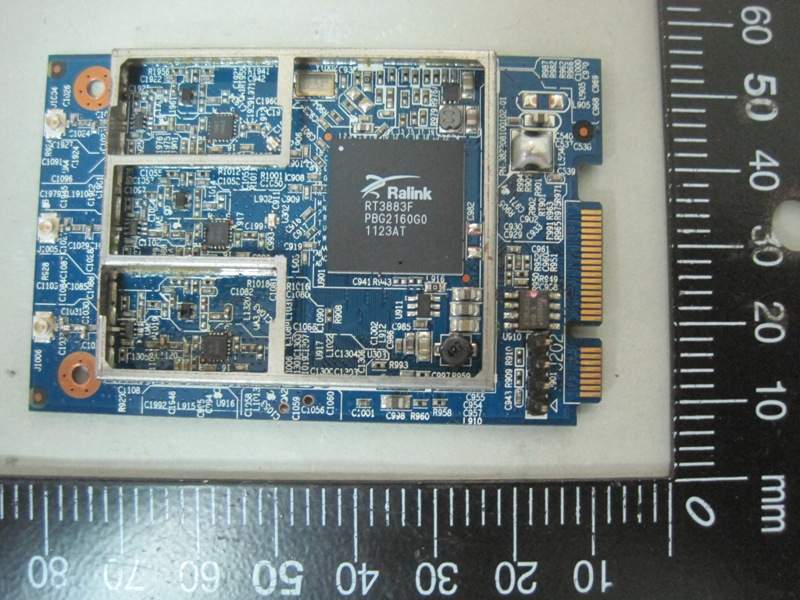

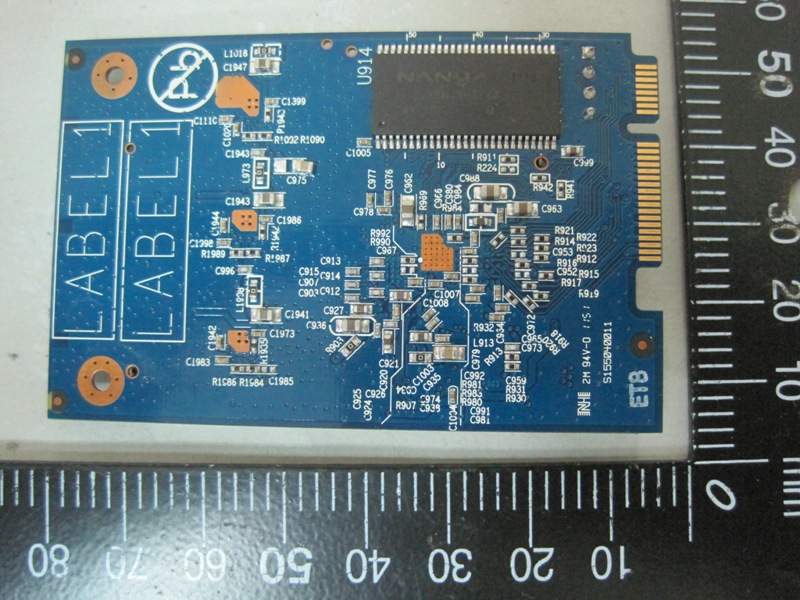

Internal Photos

Report No.:232401 SPORTON International Inc. PAGE NUMBER : 1 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:232401 SPORTON International Inc. PAGE NUMBER : 2 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 3 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 4 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 5 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 6 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 7 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 8 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 9 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 10 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 11 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 12 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 13 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 14 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255 Report No.:232401 SPORTON International Inc. PAGE NUMBER : 15 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2012 FAX : 886-2-2696-2255

RF Exposure Info

Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : B3 of B3 1.3. Calculated Result and Limit Antenna Type : Embedded Antenna Max Conducted Power for AV Power for IEEE 802.11n (2.4GHz): 21.86 dBm Antenna Gain (dBi) Antenna Gain (numeric) Output Power (dBm) Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.50 2.8184 21.8580 153.3901 0.086049 1 Complies

Test Setup Photos

Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : A1 of A6 Appendix A. Test Photos Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : A2 of A6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : A3 of A6 SIDE VIEW Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : A4 of A6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : A5 of A6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR232401 FCC ID: JI5-DORY3A Page No. : A6 of A6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW

Contact Information

Applicant

Alex Kim(CEO)
[email protected]949-679-8280Fax: 949-679-1481

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz127.10 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted peak output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz.
