JI5-SMCWK01ZWireless Keypad

SMCWK01-Z Key Pad Quick Start Guide Copyright © 2010 SMC Networks Page 1 All Rights Reserved SMCMWK01-Z08172010 8/17/10 1 Pre-Installation Guidelines A. With a Phillips screwdriver, remove the screw from the battery cover in the back of the key pad and remove the cover. B. Find the two supplied CR2 3-volt lithium batteries. C. On the front of the key pad, hold down the 2 and 8 buttons while inserting one of the batteries in thback of the key pad (positive end up ). e D. Continue to hold down the 2 and 8 buttons until the button lights green, then release immediately . E. The button flashes green 3 times every 5 seconds. This means the device is in Search mode and can be added to the TouchScreen. If the button stops blinking, touch the STAR to restart Search mode. butto F. Insert the other battery and replace the key pad back cover. n 2 Adding a Key Pad A. From the Home screen, touch the Settings widget. B. When the TouchScreen Keypad screen appears, touch the numbers to enter the Installer keypad code (this code is the same for all To uchScreens installed by your company). C. When the Technician keyboard pad appears, enter your Technician ID and touch Done . D. When the Technician Settings menu appears, select Key Fobs & Pads > Add a Key Pad . The Locating Key Pads screen appears. E. Touch Next , and the system scans the premises for key pads that can be added, which must meet the following requirements: - Defaulted - Not currently paired with another TouchScreen. - In Search Mode (blinking 3 times every 5 seconds) F. Follow the system prompts to complete the add process and pair the key pad with the TouchScreen. Note: If no available key pads are found, touch Cancel Key Pad Add to return to the Technician Settings menu. G. Arm the system from the key pad to test that the key pa h d as been added successfully. 3 Deleting a Key Pad Deleting a key pad from the premises removes it from being used to perform ac tions in your security system. You should delete a key pad: If the key pad is being relinquished by the customer. ¾ ¾ To reset the key pad to factory default settings by deleting the key pad and re-a dding it to the TouchScreen immediately. Congratulations on purchasing your SMCWK01-Z Key Pad. The SMCMT02-Z Key Pad is a professional state-of-the-art device that lets you arm and disarm your system from additional locati ons in your home. It also provides an emergency alarm function. To delete a key pad from the TouchScreen: A. Perform steps A through D in step 2, “ Adding a Key Pad to the TouchScreen”. B. When the Technician Settings menu appears, select Key Fobs & Pads > Delete a Key Pad . The Remove Key Pad screen appears. C. Touch the key pad icon that you want to delete. A confirmation dialog appears. D. Touch Yes . The key pad is deleted from the TouchScreen. E. After deleting the key pad from the TouchScreen, press the button to reset the device to default and place it in Search mode so it can be added to a TouchScreen again. 4 Troubleshooting If a key pad does not appear to be working properly or is not being located by the TouchScr een during the Add process: ¾ Verify that two good batteries have been properly installed (see step 1, “ .” Pre-Installation Guidelines ¾ Confirm that the key pad has been defaulted. Congratulations! You have successfully added key pads. continued on next page SMCWK01-Z Key Pad Quick Start Guide Copyright © 2010 SMC Networks Page 2 All Rights Reserved SMCWK01-Z 08172010 8/17/10 5 Mounting the Key Pad A. Use a Phillips screwdriver to remove the faceplate from the front of the key pad. B. Behind the circuit bo ard, find the four holes at the back of the device. C. Place the key pad on the wall where you want it located and use a pen to mark the location of the four holes. D. E. Affix the key pad to the installed screws. Install four screws in the locations marked on the wall. Do not screw them in all the way. F. Replace the faceplate to the front of the key pad. 6 Control Buttons With the key pad, you can arm the system (in Arm Away or Arm Stay modes), disarm it, or send an Emergency alarm for police assistance. System Status Press the System Status button to show the current status of the security system or the device. The button lights to show the current status of the device and then. ¾ Lights green for 3 seconds if the system is disarmed. ¾ Lights red for 3 seconds if the system is armed. ¾ Lights orange for 3 seconds if the system is not ready to be armed, such as when a door is open. ¾ Flashes green 3 times every 5 seconds if the key pad has been defaulted and is ready to pair to the TouchScreen. Arm Away Enter a valid keypad code, then press the button to arm the system in Arm Away mode (no one is in the premises). For more information about arming mode, refer to the TouchScreen User Guide. The button turns red for 3 seconds to show the Exit Delay started (default 30 seconds—To uchScreen beeps during this period). If the system is not ready for arming, such as if a door or window is open, the button flashes orange 7 times. Arm Stay Enter a valid keypad code, then press the button to arm the system in Arm Stay mode (people are in the premises). For more information about arming mode, refer to the TouchScreen User Guide. The button turns red for 3 seconds to indicate the Exit Delay started (twice as long as the period configured for Arm Away—up to 120 seconds wi th no beeping from the TouchScreen). If the system is not ready for arming, such as when a door or window is open, the button flashes orange 7 times. Disarm Enter a valid keypad code followed by the button to disarm the system. The button turns green for 3 seconds to indicate the system has been disarmed. There is no Entry Delay period. Panic Press and hold the Panic button for about 2 seconds to send a silent alarm to central monitoring for police assistance. The button flashes red to indicate the alarm was sent. The TouchScreen does not react in any way; however, the History tab on the S…

Text truncated - open the document above for the full version.

Attention: Application Examiner Date: August 4, 2010 Re: Request for confidentiality Applicant: SMC Networks Inc. FCC ID: JI5-RB5701, JI5-SMCZB01, JI5-SMCDW01Z, JI5-SMCKF01Z, JI5- SMCWK01Z To whom it may concern, Permanent Confidentiality Request is hereby submitted by SMC Networks Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Tune up procedure • Parts list SMC Networks Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Richard Hwang Product Manager SMC Networks Inc.

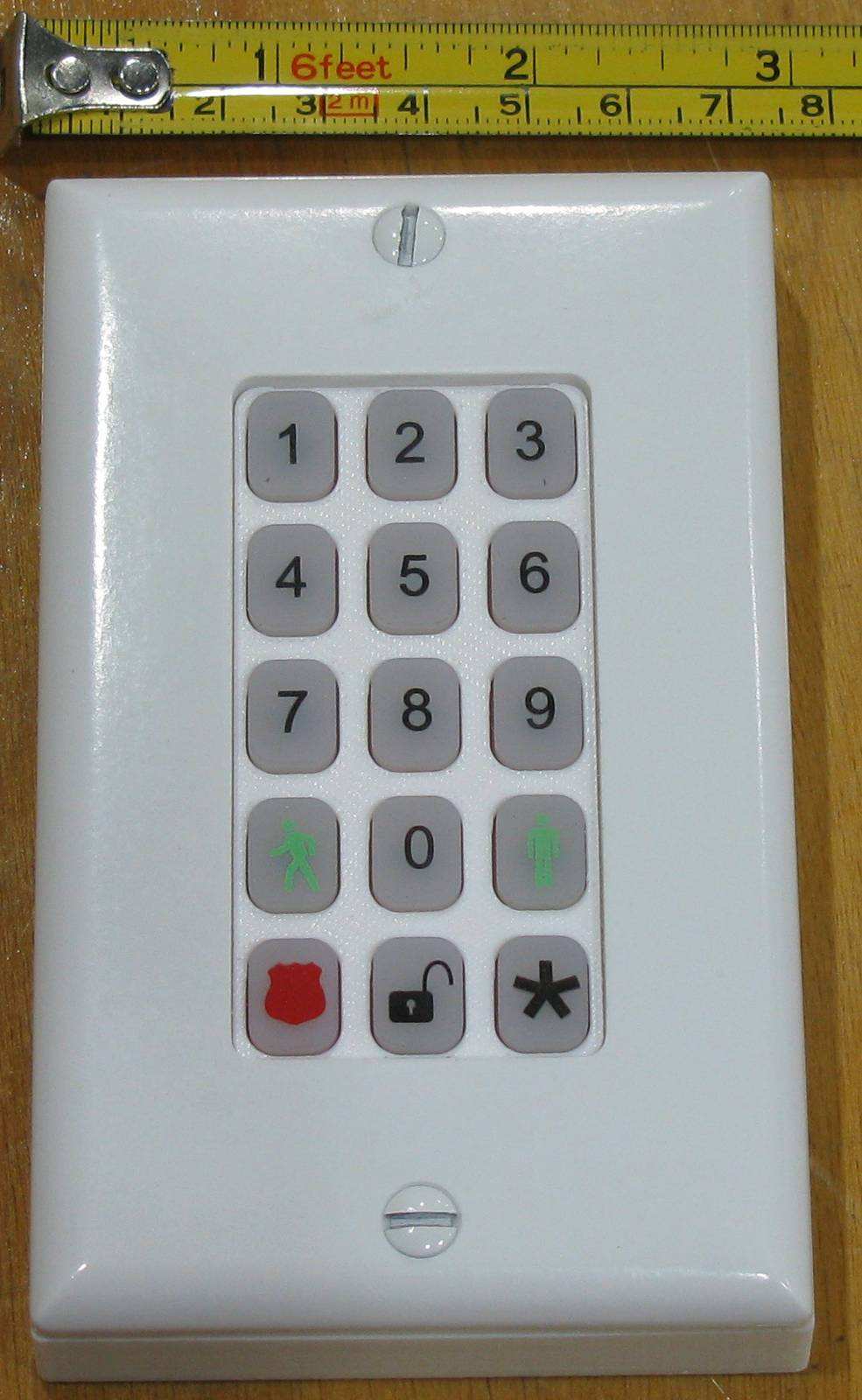

Front Side Back Side

Front Side Back Side

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for SMC Networks on the KeyPad Page 1 of 35 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 100061447LEX-003 Project Number: G100061447 Report Issue Date: 8/23/2010 Product Name: KeyPad FCCID: JI5-SMCWK01Z ICIC: 4137A-SMCWK01Z Standards: Title 47 CFR Part 15 Subpart B and C, RSS-210 Issue 7 and RSS-Gen Issue 2 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 SMC Networks 20 Mason Street Irvine, CA 92618 Report prepared by Report reviewed by Bryan Taylor, Team Leader Jason Centers, Senior Project Engineer Intertek Report Number: 100061447LEX-003 Issued: 8/23/2010 EMC Report for SMC Networks on the KeyPad FCCID:JI5-SMCWK01Z; ICID:4137A-SMCWK01Z Page 2 of 35 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Peak Conducted Power ....................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 7 6 Conducted Spurious Emissions....................................................................................................... 12 7 Power Spectral Density ..................................................................................................................... 16 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 20 9 Radiated Spurious Emissions (Receiver)........................................................................................ 28 10 AC Powerline Conducted Emissions ........................................................................................... 30 11 Antenna Requirement per FCC Part 15.203 ................................................................................. 32 12 RF Exposure Requirements (MPE Calculations)......................................................................... 33 13 Measurement Uncertainty.............................................................................................................. 34 14 Revision History ............................................................................................................................. 35 Intertek Report Number: 100061447LEX-003 Issued: 8/23/2010 EMC Report for SMC Networks on the KeyPad FCCID:JI5-SMCWK01Z; ICID:4137A-SMCWK01Z Page 3 of 35 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS210 A8.4 (4) Pass 7 Occupied Bandwidth § 15.247(a)(2) RSS210 A8.2(A) Pass 12 Conducted Spurious Emissions § 15.247(d) RSS210 (A8.5) Pass 16 Power Spectral Density § 15.247(e) RSS210 A8.2(B) Pass 20 Radiated Spurious Emissions (Transmitter) § 15.247(d), § 15.209, and § 15.205 RSS-210 (2.2) Pass 28 Radiated Spurious Emissions (Receiver) § 15.109 RSS-Gen (7.2.3) Pass 30 AC Powerline Conducted Emissions § 15.207 RSS-Gen (7.2.2) Pass 32 Antenna Requirement per FCC Part 15.203 § 15.203 RSS-Gen (7.1.4) Pass 33 RF Exposure Requirements (MPE Calculations) § 15.247(b)(5), § 1.1310 RSP100 (4) Pass Intertek Report Number: 100061447LEX-003 Issued: 8/23/2010 EMC Report for SMC Networks on the KeyPad FCCID:JI5-SMCWK01Z; ICID:4137A-SMCWK01Z Pag…

Text truncated - open the document above for the full version.

Antenna Port Measurements Conducted Power Port Emissions (Front) Conducted Power Port Emissions (Back) Radiated Emissions (Front) Radiated Emissions (Back)
