Copyright © 2010 SMC Networks Page 1 All Rights Reserved I/M SMCMT01-Z rev. 1.0 8/25/10 1 0B Verify Package Contents SMC Networks provides the following items in your p ackage:
1 SMCMT01-Z Motion Sensor with wireless radio insta lled
3 CR123A 3.0V lithium batteries
2 plastic masks
1 screw to secure the SMCMT01-Z to the wall-mountin g bracket
1 wall-mounting bracket
1 sheet of adhesive masking labels
1 cardboard undercrawl window mask
This Quick Start Guide If an item is missing or damaged, contact your plac e of purchase. The SMCT01-Z specifications are:
Power supply: 2.6 Volt to 3.6 Volt
Battery type: 3V Lithium, Duracell® 123, Sanyo® and Panasonic® CR123A
Life Expectancy: 3 years using 3 batteries
Current consumption walktest mode (LED flashing): 6 mA
Transceiver: ZigBee IEEE 802.15
Detection range: Up to 50 feet (15.2 m)
Mounting height: 6 to 10 feet (1.8 to 3 m)
Number of curtains: 9
Relative humidity: 10 to 85% non-condensing
Enclosure material: flame retardant ABS 2 1B Set the Switches The SMCMT01-Z Motion Sensor circuit board has 2 swi tches to configure range and mode. To access the switches, u se a flat head screwdriver to press the back cover tabs to re lease the back cover. Looking at the rear of the device, the s witches are to the right of the bottom battery holder. 3 Install Batteries With the rear panel of the SMCMT01-Z removed, insta ll three 3V Lithium batteries. A. Remove the back cover, if installed. B. Remove any old batteries and dispose of them proper ly. C. Place the 3.0V lithium batteries in the holder and press each one into place. D. Leave the back cover off and go to the next section. Switch Description ON (down) = Detection range is 50 feet (15.2 m). RANGE OFF (up) = Detection range is 33 feet (10.1 m). Thi s is the default. ON (down) = Bi-curtain Mode. Increases false alarm immunity in small areas. Intruders must pass throug h 2 curtains to trigger an alarm. Do not use for ranges under 5 feet (1.5 m). This is the default. MODE OFF (up) = Standard Mode. Use for wide-angle or sin gle- curtain applications. Intruders to only pass throug h 1 curtain to trigger an alarm. Congratulations on purchasing your SMCMT01 - Z Motion Sensor . The SMCT01-Z Motion Sensor is a 35' passive infrare d motion sensor with 80-pound pet immunity or a 50' standard sensor. It is highly sensitive to moving infrared sources and features superior immunity to RFI, vibration, s tatic electricity, temperature changes, and other f alse alarm sources. This Quick Start Guide has all the information to get your SMCMT01-Z Motion Sensor up and running qui ckly. For detailed installation information, please see the SMCMT01-Z Motion Sensor User Manual. SMCMT01 - Z Motion Sensor Quick Start Guide continued on next page SMCMT01-Z Motion Sensor Quick Start Guide Copyright © 2010 SMC Networks Page 2 All Rights Reserved I/M SMCMT01-Z rev. 1.0 8/25/10 4 Select a Coverage Pattern A. If the SMCMT01-Z is closed, use a flat head screwdr iver to press the back cover tabs to release the back co ver. B. If necessary, modify the coverage pattern as follow s:
Plastic mask method: Use one or both supplied plastic masks to mask off large areas of coverage.
Adhesive label method: Mask the appropriate mirror curtains with the supplied adhesive labels. Do not use sharp objects to remove unwanted labels, as the mir ror can get scratched. If necessary, peel off the label .
Cardboard mask method: Use the cardboard undercrawl window mask. The undercrawl mask allows objects to be placed within 5 feet (1.5 m) of, or directly below, the SMCMT01-Z. If the mask will not be used, remove it. 5 Perform the Walk Test To test the SMCTM01-Z operation and coverage patter n. A. If the SMCMT01-Z is closed, use a flat head screwdr iver to press the back cover tabs to release the back co ver. B. Open the tamper switch to enable the Walk Test. C. Press the front cover release tab to remove the fro nt cover to access the Transmitter and PIR circuit boa rds. D. When the SMCMT01-Z is remounted on the bracket, the Walk Test is enabled for 3-4 minutes. If more time is required, press and release the tamper switch to re set the Walk Test timer. Depending on switch settings ( see step 2), the Walk Test triggers an alarm when 1 or 2 curtain areas are entered and the LED on the front cover goes ON to indicate an alarm. E. Walk test the detection pattern and make any necess ary adjustments. F. Replace and walk test the SMCMT01-Z to verify that it is communicating with the control panel. Note: When the test ends (3-4 minutes), the SMCMT01-Z returns to normal mode, where it activates once eve ry 3 minutes and the LED goes OFF to reduce battery drain . 6 Mount the SMCMT01-Z Before touching the SMCMT01-Z, touch a grounded, ba re metal surface to remove static electricity or wear a grounding strap. A. Mount the SMCMT01-Z from 7 to 10 feet (2.1 to 3.0 m ) high. For optimum detection and pet immunity, mount it between 7 and 8 feet (2.1 and 2.4 m) high. For pet alley applications, mount the SMCMT01-Z 3 f eet (0.9 m) above the floor, upside down, with the dete ctor window toward the ceiling. Use the standard mirror and set the SENS jumper for increased sensitivity. B. Mount the SMCMT01-Z on a rigid vibration-free surfa ce, where it can detect the movements of an intruder. C. Avoid surfaces exposed to moisture and areas that c an expose the SMCMT01-Z to false alarm sources such as :
Direct sunlight
Heaters and radiators in the field of view
Strong air drafts (fans, air conditioners, etc.) D. Avoid areas where the ambient temperature is below 0° F (-18°C) or above 122°F (50°C). E. Do not aim the SMCMT01-Z at windows or glass doors. To mount the SMCT01-Z: A. Touch a grounded, bare metal surface to remove stat ic electricity from your body or wear a grounding stra p. B. Separate the PIR unit from the mounting bracket (se e the figure on the previous page). continued on next page Copyright © 2010 SMC Networks Page 3…

Text truncated - open the document above for the full version.

Copyright © 2010 SMC Networks Page 1 All Rights Reserved I/M SMCSM01-Z rev. 1.0 8/19/10 1 Unpacking Your SMCSM01-Z package includes the following items :
One SMCSM01-Z Smoke Sensor
One dust cover
Two CR123A batteries
Mounting bracket
This user manual If any items are missing or damaged, contact your p lace of purchase. Keep the carton, including the original p acking material, in case you need to store or return the p roduct. 2 Specifications The SMCSM01-Z specifications are:
Voltage: 3VDC
Battery type1 3V Lithium, Duracell ® 123, Sanyo ® , and Panasonic ® CR123A
Sensitivity 2.25 % ± 1.35 %
Drift compensation adjustment 0.5%/ft. max
Operating temperature: 40° to 100° F (4.4° and 37.8 ° C)
Compatible control panel: RB5701-Z SMA Gateway The SMCSM01-Z specifications heat alarm specificati ons are:
Rate-of-rise: 15°F/min >105°F (8.3°C/min > 40.6°C)
Fixed: 135°F ± 5°F (57.2°C ± 2.8°C) Note: Constant exposures to high or low temperatures or high humidity may reduce battery life. 3 NFPA Guidelines
NFPA 72, 2-1.4.2.1 Total (Complete) Coverage If required, total coverage shall include all rooms , halls, storage areas, basements, attics, lofts, spaces abo ve suspended ceilings, and other subdivisions and acce ssible spaces; and the inside of all closets, elevator sha fts, enclosed stairways, dumbwaiter shafts, and chutes. Inaccessi ble areas shall not be required to be protected by detectors. (For exceptions, refer to NFPA 72.)
NFPA 72, 2-1.4.2.2 Partial Coverage If required, partial detection systems shall be pro vided in all common areas and work spaces, such as corridors, lo bbies, storage rooms, equipment rooms, and other tenantles s spaces in those environments suitable for proper detector operation in accordance with this code.
NFPA 72, 2-1.4.2.3 Selective Coverage Where codes, standards, laws, or authorities having jurisdiction require the protection of selected are as only, the specified areas shall be protected in accordance wi th this code.
NFPA 72, 2-1.4.2.4 Supplementary (Non required) Coverage Where installed, detection that is not required by an applicable law, code, or standard, whether total (c omplete), partial, or selective coverage, shall conform to th e requirements of this code. (For exceptions, refer t o NFPA 72 Chapter 2 Spacing Requirements.)
NFPA 72, 2-1.4.3 Where non required detection devices are installed for a specific hazard, additional non required detection devices shall not be required to be installed throughout an entir e room or building.
NFPA 72, 2-2 Heat-Sensing Fire Detectors Heat-sensing fire detectors shall be installed in a ll areas where required by the NFPA codes and standards or by the authority having jurisdiction.
NFPA 72, 8-1.4.1.3.2 Detection in New Apartment Buildings Approved, single-station smoke alarms shall be inst alled in accordance with 7-6.2.10 of NFPA 101 outside every sleeping area in the immediate vicinity of the bedrooms and on all levels of the dwelling unit including basements. (1 01: 18- 3.4.4.2) (For exceptions, refer to this section of NFPA 72.)
NFPA 72, 8-1.4.1.4.2 Detection in Existing Apartmen t Buildings Approved, single-station smoke alarms sha ll be in-stalled in accordance with 7-6.2.10 of NFPA 101 outside every sleeping area in the immediate vicini ty of the bedrooms and on all levels of the dwelling unit including basements. (101: 19-3.4.4.1) (For excepti ons, refer to this section of NFPA 72.) 4 Technical Bulletin SMCSM01-Z is a member of SMC Networks’ family of re liable, high-quality products using the latest technology a vailable. Please review the information in this section to en sure you get the most out of your new SMCSM01-Z Smoke Sensor . Pre-installation Considerations Install the SMCSM01-Z in accordance with the Nation al Fire Protection Association’s (NFPA) Standard 72, Chapte rs 2 and 8. Depending on the application, you may need to re ference other chapters of NFPA 72 or NFPA 101. SMC SM 01 - Z S m oke Sensor User Manual Congratulations on purchasing your SMC SM 01 - Z Smoke Sensor . The SMCSM01-Z Smoke Sensor is a low-profile wireless smoke detector designed to pro vide reliable smoke or fire detection. The SMCSM01- Z is ideal for difficult-to-wire residential or commercial applications. This user m anual has all the information to get your SMCSM01-Z Smoke Sensor up and running quickly. continued on next page SMCSM01-Z Smoke Sensor Quick Start Guide Copyright © 2010 SMC Networks Page 2 All Rights Reserved I/M SMCSM01-Z rev. 1.0 8/19/10 Placing the SMCSM01-Z When choosing a location to install the SMCSM01-Z, consider:
Use of structure and type of construction
Contents you want to protect and their burning characteristics
Human occupancy
Total area to be monitored
Ceiling height and surface condition
Air movement and vent locations
Obstructions
Deflections After considering these factors, choose a location:
Where the temperature range is between 40° and 100° F (4.4° and 37.8° C).
Where the humidity is between 0 and 90% noncondensing.
Away from ventilation sources that can prevent smok e from reaching the SMCSM01-Z.
That is at least 5 feet (1.5 m) from bathrooms. When placing the SMCSM01-Z on a ceiling, mount it i n the center of the room or hallway, at least 4 inches (1 0cm) away from any walls or partitions. When mounting the SMCSM01-Z on a wall, place it so the top is 4 to 12 inches (10 to 31cm) below the ceiling. In rooms with sloped, peaked, or gabled ceilings, l ocate SMCSM01-Z sensors 3 feet (.9 m) down or away from t he highest point of the ceiling. If mounting to suspended ceiling tile, secure the t ile with the appropriate fastener to prevent tile removal. Locations to Avoid
Areas where normal ambient temperature exceeds 100 ° F (37.8° C).
Dirty, dusty, insect infested areas.
In or near areas with combustion particles (kitchen s, gar- ages, furnaces, hot-water heaters, gas space heater s).
On the ceiling in rooms next to kitchens…

Text truncated - open the document above for the full version.

Attention: Application Examiner Date: August 4, 2010 Re: Request for confidentiality Applicant: SMC Networks Inc. FCC ID: JI5-RB5701, JI5-SMCZB01, JI5-SMCDW01Z, JI5-SMCKF01Z, JI5- SMCWK01Z To whom it may concern, Permanent Confidentiality Request is hereby submitted by SMC Networks Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Tune up procedure • Parts list SMC Networks Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Richard Hwang Product Manager SMC Networks Inc.

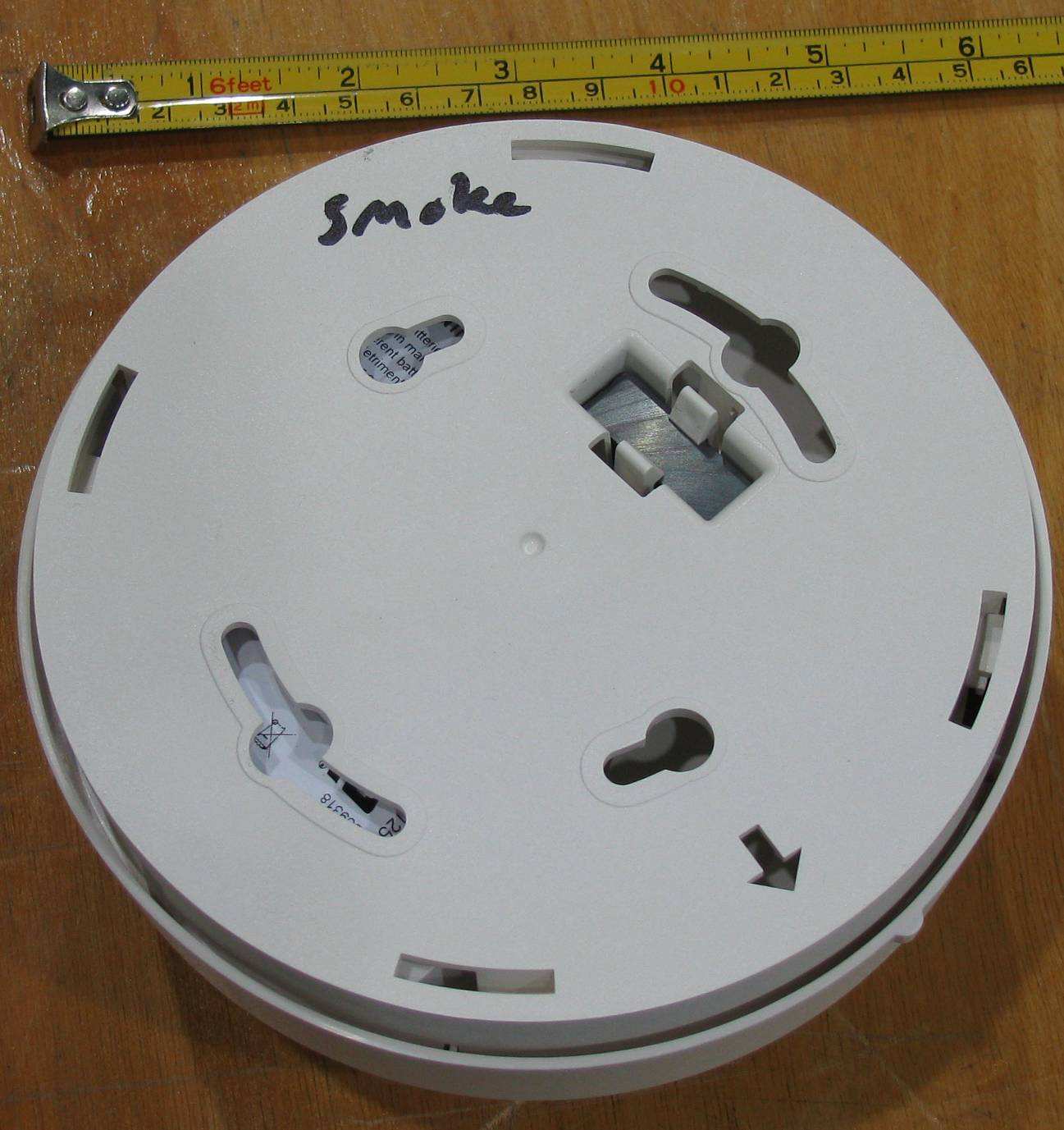

Smoke Detector Containing RF Module (Front) Smoke Detector Containing RF Module (Back) GE Motion Sensor Containing RF Module (Front) GE Motion Sensor Containing RF Module (Back) Suren Motion Sensor Containing RF Module (Front) Suren Motion Sensor Containing RF Module (Back)
