JRNUSA1WTX1 Watt Synthesized UHF Transmitter

CX6USA Issue 1 Scope Communications UK Ltd, Quantum House, Totnes, Devon TQ9 5AL United Kingdom Tel:+44 (0)1803 860700 Fax: +44 (0)1803 863716 www.scope-uk.com Connexions CX6 Radio Paging Transcoder Mains, Multi Port Version USA Installation & User Manual ConneXions CX6 Mains, Multi Port Version USA CX6USA Issue 1 Page 1 of 15 PREFACE Important Installation Information It is the purchasers’ responsibility to determine the suitability of this equipment and its derivatives for any given application, Scope cannot give specific advice in this manual, as each use will require independent evaluation. Scope has, wherever possible, employed extra safeguards or designed optional equipment to further monitor the system’s performance. Certain system installations, operational requirements or budgets may, however, limit the effectiveness of these safeguards. Again, the suitability of the system for any given application must therefore be decided by the installer and their customer, relative to the application and risk. Licence This equipment is cleared for use within the USA under a license assigned to the exclusive importer, PIPS Holdings Inc. License No. 950415906. Certain restrictions apply in respect of power output and antenna installations. Alternative frequencies are available by formal license application (Form 600) via the FCC. These will not be subject to the same restrictions as the standard assigned license. You should obtain the FCC Rules and Regulations, Title 47, Part 80 to End, including Parts 90 and 95, available from the US Gov. Printing Office, GPO Bookstore, FCC Office or www.fcc.gov/oet/info/rules/ Important Safety Information Scope products are designed to operate safely when installed and used according to general safety practices. The following requirements should be observed at all times. Do NOT subject this equipment to: Mechanical shock Excessive humidity or moisture Extremes of temperature Corrosive liquids This equipment is designed for indoor use, unless expressly stated otherwise, and must not be used in classified Hazardous Areas, including areas containing explosive or flammable vapours, unless express authorization has been given in writing by the manufacturer. If in doubt, consult your local product dealer for further information. Do not obstruct any slots or openings in the product. These are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. Only use a damp cloth for cleaning (not liquid or aerosol based cleaners), and ensure that any power is removed from the unit prior to beginning the cleaning operation. Removal of covers from the equipment must only be undertaken by authorized service personnel, who must ensure that power is isolated prior to removal. This equipment must be earthed and must only be connected to a grounded outlet. ConneXions CX6 Mains, Multi Port Version USA CX6USA Issue 1 Page 2 of 15 PREFACE Equipment Applications It is the user’s responsibility to determine the suitability of the Scope products for any given application. Scope, including its subsidiaries and Distributors, cannot provide specific advice within this manual, as each application will require independent evaluation. Common sense dictates that certain applications may require back up systems to cover in the event of mains or equipment failure. All applications should be thoroughly assessed by the installer in conjunction with the customer so as to minimize risk. Scope has no control of the use and application of the frequencies issued by the FCC. Some equipment that is individually licensed may have a greater degree of protection than other equipment that is operated on a FCC License Assignment basis. The following information, however, may be of benefit. Equipment Testing. Range tests should be carried out at least once a week on portable radio equipment, more often when critical criteria apply. This should involve testing the unit past the limit of its required working range. Good working practice dictates that a suitable system installation log, covering both portable and fixed equipment must be generated, together with a record of the dates when the system has been manually checked and/or serviced, (with the aid of suitable test equipment etc.) enabling the system performance to be compared with the original installation data. The frequency of the tests required will vary between applications. If portable equipment has been dropped or is worn by a person involved in an accident, the unit should be tested again before re-use. It must be stressed that the physical range tests are essential and that any construction work or movement of plant or equipment could alter the signalling capability of the unit. Radio equipment, like any other requires servicing from time to time to ensure that it is operating to its optimum performance. It is therefore essential that equipment is inspected and tested by authorized service centres at least once a year. Literature Scope Communications UK Ltd, the manufacturer, in conjunction with its distributors operates a policy of continual improvement, and therefore reserve the right to modify or change any specifications without prior notice. While every possible care has been taken in the preparation of this manual, Scope does not accept any liability for technical or typographical errors or omissions contained herein, nor for incidental or consequential damage arising from the use of this material. Installation Installation must only be undertaken by an Approved contractor, who shall ensure that all work is carried out in compliance with the appropriate State and Federal Regulations. This equipment must be earthed. For mains powered equipment, a readily accessible isolating fuse or socket must be located within 1 meter of the equipment. Liability Scope does not accept liability for any damage or injury, howsoever caused as the result of misuse of this equipment. It is the responsibility of the …

Text truncated - open the document above for the full version.

DLINKMK3ACUSA Issue 1 Digilink MK3 10/5 Zone Telemetry Transmitter, USA Mains Version Installation & User Manual Scope Communications UK Ltd, Quantum House, Steamer Quay Rd, Totnes, Devon TQ9 5AL Tel: +44 (0)1803 860700 Fax: +44 (0)1803 863716 Email: [email protected] Web: www.scope-uk.com Digilink MK3, USA Mains Version DLINKMK3ACUSA Issue 1 2 PREFACE Important Installation Information It is the purchasers’ responsibility to determine the suitability of this equipment and its derivatives for any given application, Scope cannot give specific advice in this manual, as each use will require independent evaluation. Scope has, wherever possible, employed extra safeguards to monitor the system’s performance. Certain system installations, operational requirements or budgets may, however, limit the effectiveness of these safeguards. Again, the suitability of the system for any given application must therefore be decided by the installer and their customer, relative to the application and risk. Licence This equipment is cleared for use within the USA under a license assigned to the exclusive importer, PIPS Holdings Inc. License No. 950415906. Certain restrictions apply in respect of power output and antenna installations. Alternative frequencies are available by formal license application (Form 600) via the FCC. These will not be subject to the same restrictions as the standard assigned license. You should obtain the FCC Rules and Regulations, Title 47, Part 80 to End, including Parts 90 and 95, available from the US Gov. Printing Office, GPO Bookstore, FCC Office or www.fcc.gov/oet/info/rules/ Good working practice dictates that a suitable system installation log must be generated, together with a record of the dates when the system has been manually checked, (with the aid of signal strength meters etc.) enabling the system performance to be compared with the original installation data. Important Safety Information Scope products are designed to operate safely when installed and used according to general safety practices. The following requirements should be observed at all times. Do NOT subject this equipment to: Mechanical shock Excessive humidity or moisture Extremes of temperature Corrosive liquids This equipment is designed for indoor use, unless expressly stated otherwise, and must not be used in classified Hazardous Areas, including areas containing explosive or flammable vapours, unless express authorisation has been given in writing by the manufacturer. If in doubt, consult your local product dealer for further information. Do not obstruct any slots or openings in the product. These are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. Only use a damp cloth for cleaning (not liquid or aerosol based cleaners), and ensure that any power is removed from the unit prior to beginning the cleaning operation. Digilink MK3, USA Mains Version DLINKMK3ACUSA Issue 1 3 Preface Important Safety Information Removal of covers from the equipment must only be undertaken by authorised service personnel, who must ensure that power is isolated prior to removal. Installation Installation must only be undertaken by an Approved contractor, who shall ensure that all work is carried out in compliance with the appropriate State and Federal Regulations. This equipment must be earthed. For mains powered equipment, a readily accessible isolating fused spur must be located within 1 meter of the equipment. Liability Scope does not accept liability for any damage or injury, howsoever caused as the result of misuse of this equipment. It is the responsibility of the user to ensure that the equipment is operated in the manner for which it was intended and that it is the correct item of equipment for the required task Warranty This product is warranted as free from defects of workmanship and materials for a period of one year from the original purchase date. During this time, if there is a defect or malfunction of this product, Scope will, with proof of purchase, repair or replace at its discretion any defective parts, free of charge. This does not include where the adjustments, parts and repair are necessary due to circumstances beyond the control of Scope, including but not limited to fire or other casualty, accident, neglect, abuse, abnormal use or battery leakage damage. There are no other expressed or implied warranties except as stated herein, and those excluded include those of merchantability and fitness for a particular purpose. In no event will Scope or any of its agents be liable for direct, indirect, special incidental or consequential damages resulting from any defect in the product, even if advised of the possibility of such damages. The warranties and remedies set forth above are exclusive and in lieu of all others, oral or written, expressed or implied. No Scope distributor, dealer, agent or employee is authorized to make any modification, extension or addition to this warranty. Some states do not allow limitations on how long an implied warranty may last and some states do not allow exclusions or limitation of incidental or consequential damages. No User Serviceable Parts Alteration or modification to any part of this equipment, without the prior written consent of the manufacturer, will invalidate all Approvals and Warranties attaching to the equipment. Further liability for the operation of the equipment, under the applicable law, will pass to the user, who will absolve the manufacturer of any further responsibility for it’s correct operation and use. Caution! RF exposure requirements: this product should be installed so as to ensure a separation distance of greater than 20 cm between the antenna and all persons during normal use. © Scope Communications UK Ltd, 2014 All Rights Reserved ******************************************************************************** Digilink MK3, USA Mains Version DLINKMK3ACUSA Issue 1 4 System Overview The Scope Di…

Text truncated - open the document above for the full version.

13th November 2014 Operational description

Scope Marketing (Comms UK) Ltd Ref: TX1W Issue 1 Black lettering on white box background Artwork: reduce 2:1 Material: polyester, clear laminate Label Size: 50 x 30 mm Scope TX1W Label Scope Communications UK Ltd www.scope-uk.com MODEL: TX1W MK1 UHF SynthesizedTransmitter 446 to 469.700 MHz FCC ID: JRNUSA1WTX 0891

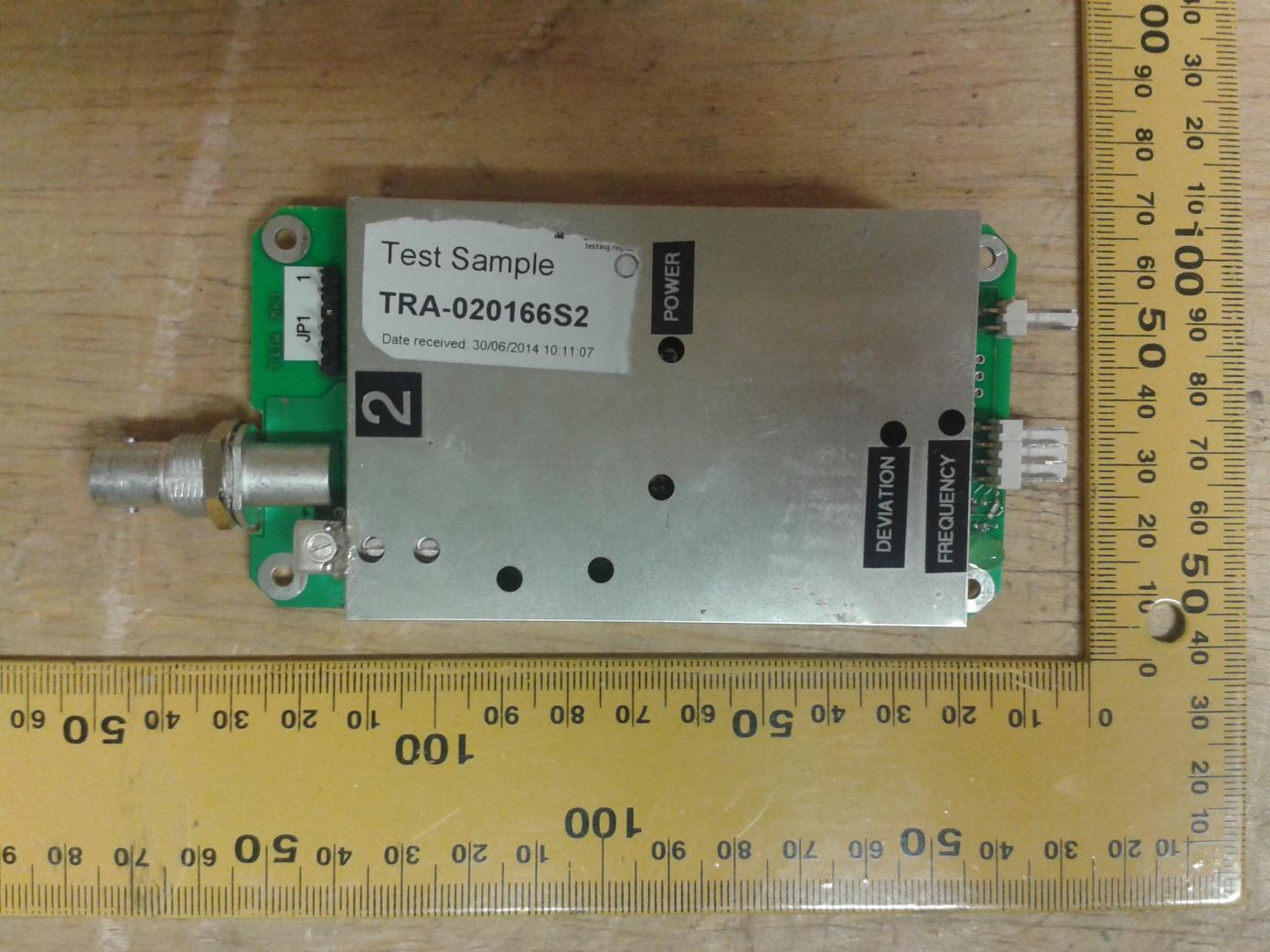

A RADIO TEST REPORT FOR Scope Communications UK Ltd ON 1W UHF Synthesized TX DOCUMENT NO. TRA-020166-47-00-B TRaC Wireless Test Report : TRA-020166-47-00-B Applicant : Scope Communications UK Ltd Apparatus : 1W UHF Synthesized TX Specification(s) : CFR47 Part 90 & RSS119 Purpose of Test : Certification FCCID : JRNUSA1WTX Authorised by : : Radio Product Manager Issue Date :13 th August 2014 Authorised Copy Number : PDF Total number of pages: 53 TRaC Global Test Report: TRA-020166-47-00-B Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Standard References 7 1.7 Notes Relating To Assesment 8 1.8 Deviations from Test Standards 8 Section 2: Measurement Uncertainty 9 2.1 Measurement Uncertainty Values 9 Section 3: Modifications 11 3.1 Modifications Performed During Assessment 11 Section 4 General Test Procedures 12 4.1 Radiated Test Setup and Procedures 12 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 13 4.3 Antenna Port Conducted Emissions 13 4.4 Power Supply Variation 14 4.5 Thermal Variation 14 4.6 Time Domain Measurements 14 Appendix A: Formal Emission Test Results 15 A1 RF Output Power 16 A2 Emissions Mask 17 A3 Occupied Bandwidth 18 A4 Spurious Emissions at Antenna Terminals 19 A5 Radiated Electric Field Emissions 20 A6 Frequency Stability 22 A7 Transient Behaviour 25 A8 Power Line Conducted Emissions 26 A9 Unintentional Radiated Emissions 28 Appendix B: Supporting Graphical Data 30 Appendix C: Additional Test and Sample Details 41 Appendix D: Additional Information 47 Appendix F: Photographs and Figures 48 Appendix G: MPE Calculation 52 3 TRaC Global Test Report: TRA-020166-47-00-B Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D Winstanley, A Tosif Report author: D Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TRA-020166-47-00-B 1.2 Tests Requested By This testing in this report was requested by : Scope Communications UK Ltd Quantum House Steamer Quay Totnes Devon GB TQ9 5AL 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 5 th – 10 th July 2014: 1W UHF Synthesized TX The 1W UHF Synthesized TX is a UHF paging transmitter capable of operating with 12.5 kHz & 25 kHz channel spacing. 5 TRaC Global Test Report: TRA-020166-47-00-B 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type FCC Part RSS Part Appendix in Report Measurement Standard RF Power Output 90.205 RSS-119 5.4 A1 TIA-603 D 2.2.1 Emission Mask 90.210 RSS-119 5.5 A2 TIA-603 D 2.2.13 Occupied Bandwidth 90.210 RSS-119 5.5 A3 TIA-603 D 2.2.13 Spurious Emissions at Antenna Terminals 90.210 RSS-119 5.8 A4 TIA-603 D 2.2.13 Field Strength of Spurious Emissions 90.210 RSS-119 5.8 A5 TIA-603 D 2.2.12 Frequency Stability 90.213 RSS-119 5.3 A6 TIA-603 D 2.2.2 Transient behaviour 90.214 RSS-119 5.9 A7 TIA-603 D 2.2.19 AC Powerline Conducted Emissions 15.107 RSS-GEN 5.5 A8 TIA-603 D 2.1.3 Field Strength of Un-Intentional Spurious Emissions 15.109 RSS-GEN 6.0 A9 TIA-603 D 2.1.1 Audio Frequency Response 2.1047 RSS-119 5.5 N/A Note 1 TIA-603 D 3.2.6 Modulation Limiting 2.1047 RSS-119 5.5 N/A TIA-603 D 3.2.3 1 The EUT does not contain audio circuitry; therefore the test was not performed. Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TRA-020166-47-00-B 1.6 Standard References 47 CFR 2 Code of Federal Regulations, Title 47, Part 2, “Frequency allocations and Radio Telemetry Matters; General Rules and Regulations” 47 CFR 90 Code of Federal Regulations, Title 47, Part 90,”Land Mobile Radio Service” 47 CFR 15 Code of Federal Regulations, Title 47, Part 15,”Radio Frequency Devices” Subpart B, “Unintentional Radiators” C63.10-2009 American National Standard for Testing Unlicensed Wireless Devices C63.4-2003 American National Standards Institute (ANSI), “Methods of Measurement of Radio Noise Emissions from Low Voltage Electrical and Electronic Equipment in the Range 9 kHz to 40 GHz” RSS-GEN Radio Standards Specification - General Requirements and Information for the Certification of Radio Apparatus RSS-119 Radio Transmitters and Receivers Operating in the Land Mobile and Fixed Services in the Frequency Range 27.41-960 MHz TIA EIA-603-D Land Mobile FM or PM Communications Equipment Measurement and Performance Standards 7 TRaC Global Test Report: TRA-020166-47-00-B 1.7 Notes Relating To Assesment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating mode…
