JRR-PHIL2-11Video Transmitter

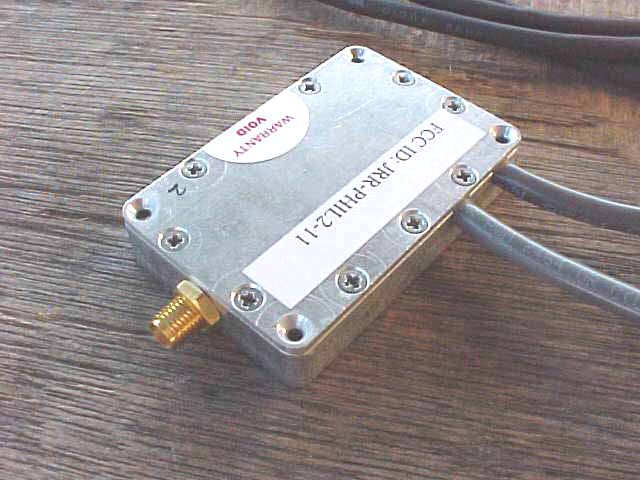

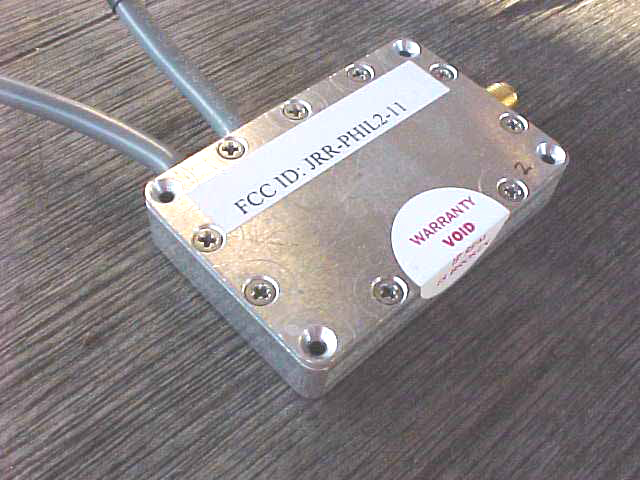

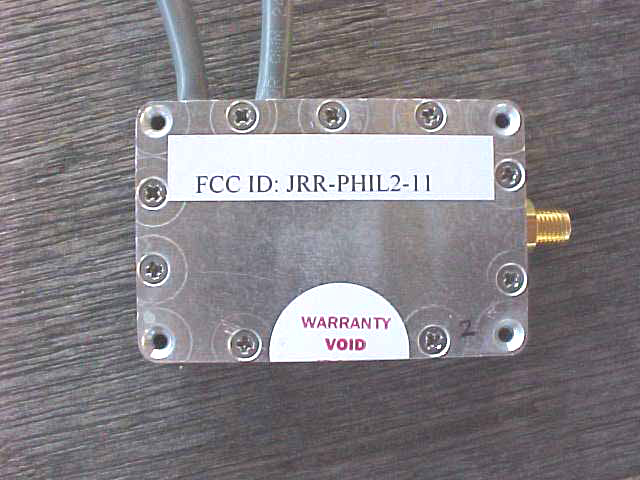

Microtek Electronics, Inc. P.O. Box 3464, San Clemente, CA 92672 Information Hotline 888-36-MICRO Oct 2000 M INI L INK 2.4THP-90 Microwave Video Transmitter The Minilink transmitter system allows transmissions of wireless signals from a remote location to a monitor or a VCR. The system uses advanced micro circuitry for a compact miniature design, all packaged within a rugged metal case. The Minilink transmitter’s output frequency is user selectable to one of two frequencies on the 2400-MHz band. FCC NOTICE This equipment has been tested and found to comply with the limits of a Class B device, pursuant to PART 90 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. M ICROTEK L IMITED W ARRANTY Microtek Electronics extends the following LIMITED WARRANTY to theoriginal owner/purchaser of this product: 1) If, within one year after date of initial sale, this product, or any part orportion thereof, shall prove upon examination by MICROTEK, to bede fective in material or workmanship, MICROTEK will repair or replace such part or portion at MICROTEK’s option. The warranty period on therepaired or replaced part or portion of this product shall be limited to theunexpired term of the original warranty. The buyer shall be responsible for all shipping and transportation of the product to MICROTEK for anyperformance under this warranty. 2) Conditions and Exceptions: a) Any accident to this product, any misuse or abuse, alternation, use inmodified form, or any attempt to repair this product shall void this warranty. These conditions to the warranty include, but are notlimited to, incorrect power connections, physical damage due tomechanical shock, exposure to moisture, and circuit modification. b) SHOULD THIS P RODUCT PROVE DEFECTIVE FOLLOWING PURCHASE, THE BUYER, NOT THE MANUFACTURER,DISTRIBUTOR, OR RETAILER, ASSUMES THE ENTIRE COSTOF ALL SERVICING OR REPAIR, EXCEPT AS OTHERWISEPROVIDED BY THE TERMS OF THIS WARRANTY. c) FOR BREACH OF ANY WRITTEN OR IMPLIED WARRA NTY ON THIS PRODUCT, THE BUYER IS LIMITED TO THEFOLLOWING DAMAGES. (1) THE COST OF LABOR TOREPAIR OR REPLACE DEFECTIVE PARTS OR PORTIONS OFTHIS PRODUCT, AND (2) THE COST OF THE REPAIRED ORREPLACE PARTS OR PORTIONS OF THIS PRODUCT. d) NO OTHER EXPRESSED OR IMPLIED WARRANTIES HAVE BEEN MADE OR WILL BE MADE ON BEHALF OF MICROTEKWITH RESPECT TO THE SALE, REPAIR, INSTALLATION,OPERATION, OR REPLACEMENT OR THIS PRODUCT.MICROTEK DISCLAIMS ANY IMPLIED WARRANTY OFMERCHANTABILITY OF THIS PRODUCT OR ITS FITNESSF OR ANY PURPOSE, AND THE BUYER AGREES THAT THIS PRODUCT IS SOLD “AS IS” AND THAT THE ENTIRE RISK OFQUALITY AND PERFORMANCE OF THIS PRODUCT IS WITHTHE BUYER, EXCEPT AS OTHERWISE PROVIDED BY THETERMS OF THIS WARRANTY. e) Some states/jurisdictions do not allow exclusions or limitations of incidental or consequential damages, or limitations on how long animplied warranty lasts, so the above exclusions or limitations may notapply to you. 3) Contact your dealer regarding return authorization for out of warrantyrepairs and any further product information. OPERATION The Minilink video transmitter is designed to be used in conjunction with a compatible receiver. Refer to the instructions accompanying your receiver for proper installation of that unit. LOCATION: • The Minilink has been designed to be mounted against a flat surface for support and stability. ( Note: The location selected for mounting the Minilink should be protected form immersion in water unless the Minilink is enclosed in a watertight enclosure, and should have a moderate shock protection.) POWER: • The Minilink is powered by a 8.5-13.8VDC power supply connected through the 4-pin (RED) connector harness protruding from the side of the Minilink case. Pin 1) White wire,Video In. Pin 2) Green wire,Video Ground Pin 3) Black wire, Power Ground Pin 4) Red wire, Power Positive Channel Select: • Channel selection is accomplished by individually grounding pins 1-3 of the 4 pin (BLUE) connector. The 4 th pin outputs +5 volts (TTL High) when power is applied to the transmitter. Pins 1, 2 & 3 ungrounded (open) for channel # 4 select (2477 mHz) Pin 1) Green wire, Ground this pin for channel # 3 select (2470 mHz) Pin 2) White wire, Ground this pin for channel # 2 select (2463 mHz) Pin 3) Black wire, Ground this pin for channel # 1 select (2456 mHz) Pin 4) Red wire, Power sense TTL output +5 Volts or 0 Volts (25 mA. Source current Max) SETUP & OPERATION: • Connect Power and video. • Select Frequency MAINTENANCE Your Microtek Electronics product is an example of superior design and craftsmanship. The following suggestions will help to ensure maximum operational life. • Keep the product dry. If it does get wet, wipe it dry immediately. Liquids may contain minerals than corrode electronic circuits. • Use the system only within the environmental specifications indicated below. High temperatures can shorten the life of electronic devices and melt plastic parts. • Excessive mechanical shock can damage the case, connectors, cabl…

Text truncated - open the document above for the full version.

From: Mike Kuo Sent: Thursday, February 27, 2003 9:28 AM To: Mike Kuo; 'Kyle Fujimoto (E-mail)'; '[email protected]' Subject: RE: Microtek Electronics, Inc., FCC ID:JRR-PHIL2-11, AN03T2610 Hi Kyle and Scott: Received revised test report. Please also correct Page 4 of 23 about emission designator. In the revised test report, it still indicates 16M0F3F. Best Regards Mike Kuo -----Original Message----- From: Mike Kuo Sent: Wednesday, February 26, 2003 9:51 AM To: Kyle Fujimoto (E-mail); '[email protected]' Subject: FW: Microtek Electronics, Inc., FCC ID:JRR-PHIL2-11, AN03T2610 -----Original Message----- From: CERTADM Sent: Wednesday, February 26, 2003 9:50 AM To: '[email protected]' Subject: Microtek Electronics, Inc., FCC ID:JRR-PHIL2-11, AN03T2610 Notice_content ------------- Question #1: The emission designator listed on TCB application form is 16M0F3F. General Description file listed the emission designator as 8M0F3F. Section 8 of test report provided emission designator as 16M0F3F with Carson rule justification. Please verify the emission designator and provide revised Carson rule justification as necessary. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Page 1 of 1 http://www.celectronics.../WorldClient.dll?Session=DAICEVN&View=Message&Number=582/27/03 Kyle, Please disregard the response I sent you last night. I examined the information I sent you in the 2.4THP-90 General Description file and found the 8M0F3F to be correct for the unit tested. The Carson rule justification is as follows: 2M+2D=Necessary Bandwidth, where M = highest modulation frequency and D = peak deviation. Highest modulation frequency = 2.5 mHz Peak deviation = 1.5 mHz 2 X 2.5 + 2 X 1.5 = 8mHz Modulation type is Frequency modulation, one analog channel Television = F3F Emission designator is: 8M0F3F The low power 50mW version just granted is different, the highest modulation frequency is 4 mHz with the peak deviation at 4 mHz. 16M0F3F is corrcet for that unit. >Question #1: The emission designator listed on TCB application form is >16M0F3F. General Description file listed the emission designator as >8M0F3F. Section 8 of test report provided emission designator as 16M0F3F >with Carson rule justification. Please verify the emission designator >and provide revised Carson rule justification as necessary. > >I'm not sure if the General description file is just incorrect or if this >unit is really 8MOF3F and we need to rexplain how that is obtained. Thanks, Mike Henkoski _________________________________________________________________ The new MSN 8: smart spam protection and 2 months FREE* http://join.msn.com/?page=features/junkmail From: "" <[email protected]> To: [email protected] Date: 02/27/2003 07:27 AM Subject: Re: The low power transmitter has been granted

Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 23 FCC PART 90 and PART 15, SUBPART B TEST REPORT for VIDEO TRANSMITTER Model: 2.4THP-90 Prepared for MICROTEK ELECTRONICS, INC. P.O. BOX 3464 SAN CLEMENTE, CALIFORNIA 92674 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 8, 2003 REPORT APPENDICES TOTAL BODY A B C D E PAGES 23 2 2 2 15 36 80 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 23 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. Description of Test Configuration 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 7. Test Procedures 15 7.1 Radiated Emissions Test for Part 15 15 7.2 Radiated Emissions (Spurious and Harmonics) Test for Part 90 17 7.3 Radiated Emissions (Spurious and Harmonics) Limit for Part 90 19 7.4 RF Power Output of the EUT 20 7.5 Modulation Characteristics – Audio Frequency Response 20 7.6 Modulation Characteristics – Audio Frequency Response 20 7.7 Occupied Bandwidth for the EUT 20 7.8 Spurious Emissions at the Antenna Terminal 21 7.9 Frequency Stability 21 8. EMISSION DESIGNATOR 22 9. CONCLUSIONS 23 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 23 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets E Laboratory Recognitions LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 23 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Video Transmitter Model: 2.4THP-90 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Emission Designator 8MOF3F (see section 8 of this test report) Manufacturer: Microtek Electronics, Inc. P.O. Box 3464 San Clemente, California 92674 Test Date: January 14, 15, and 29, 2003 File # For Canada: IC2154-A Test Specifications: EMI requirements CFR Title 47, Part 90, Subpart I; and CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4: 1992 and TIA/EIA-603-A: 2001 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 23 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B 2 RF Power Output of the EUT Complies with the limits of CFR Title 47, Part 90, Section 90.205 (1) 3 Modulation Characteristics – Audio Frequency Response This test was not performed because this test is not applicable to the EUT 4 Modulation Characteristics – Modulation Limiting Response This test was not performed because this test is not applicable to the EUT 5 Occupied Bandwidth for the EUT Complies with the limits of CFR Title 47, Part 90 Section 90.210 (b) 6 Radiated RF Emissions on the Digital Portion 30 MHz – 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B 7 Radiated Spurious Emissions on the Transmitter portion – 10 kHz to 25000 MHz Complies with the limits of CFR Title 47, Part 90 Section 90.210 (b) 8 Spurious Emissions at the Antenna Terminal Complies with the limits of CFR Title 47, Part 90 Section 90.210 (b) 9 Frequency Stability Complies with the limits of CFR Title 47, Part 90 Section 90.213 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 23 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Video Transmitter Model: 2.4THP-90. The EMI measurements were performed according to the measurement pr…

Text truncated - open the document above for the full version.

Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 APPENDIX E DATA SHEETS Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E2 RF OUTPUT POWER DATA SHEETS Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E 6 PEAK OUTPUT POWER MICROTEK ELECTRONICS, INC. VIDEO TRANSMITTER MODEL: 2.4THP-90 CHANNEL PEAK POWER OUTPUT (Watts) LOW 0.363 MIDDLE 0.295 HIGH 0.316 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E 7 OCCUPIED BANDWIDTH DATA SHEETS Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E11 RADIATED EMISSIONS ON THE DIGITAL PORTION DATA SHEETS Page: 1 of 1 Test location: Compatible Electronics Customer : MICROTEK ELECTRONICS, INC. Date : 1/14/2003 Manufacturer : MICROTEK ELECTRONICS, INC. Time : 17.56 EUT name : VIDEO TRANSMITTER Model: 2.4THP-90 Specification: Fcc_B Test distance: 3.0 mtrs Lab: D Distance correction factor(20*log(test/spec)) : 0.00 Test Mode : SPURIOUS EMISSIONS FROM THE DIGITAL PORTION 10 kHz to 25000 MHz VERTICAL and HORIZONTAL POLARIZATIONS TEMPERATURE 69 DEGREES F., RELATIVE HUMIDITY 42% TESTED BY: KYLE FUJIMOTO NO SPURIOUS EMISSIONS FOUND FROM THE DIGITAL PORTION BETWEEN 10 kHz AND 25000 MHz IN EITHER POLARIZATION FOR THE EUT FROM THE DIGITAL PORTION Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 2 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 3 RADIATED SPURIOUS EMISSIONS ON THE TRANSMITTER PORTION DATA SHEETS FCC Part 90 Microtek Electronics, Inc.Date: 01/14/03 Video TransmitterLab: D Model: 2.4THP-90Tested By: Kyle Fujimoto Temperature: 16 Degrees Celsisus, Relative Humidity 65% Test Description: Operating Mode - Spurious Emissions Vertical Polarization - Using the Substitution Method Freq. (MHz) Reference Level (dBm)* Power** (dBm) Antenna Gain*** (dBi) Corr'd Power^ (dBm) Delta (dB) Power Limit (dBm) 4912.02-45.9-34.69.55-25.05-12.05-13 7368.03-59.8-48.38.76-39.54-26.54-13 9824.04-70.4-44.910.54-34.36-21.36-13 4940-50.1-38.29.5-28.7-15.7-13 7410-60.5-48.68.81-39.79-26.79-13 9880-71.2-4810.55-37.45-24.45-13 4954.1-50.3-37.79.47-28.23-15.23-13 7431-61.7-48.68.83-39.77-26.77-13 9908-71.5-49.510.5-39-26-13 *The Reference Level is the meter reading off the Spectrum Analyzer after maximizing the EUT for Field Strength. ** Power = Output of Signal Generator where the signal is injected into the Subsitution Ant. The Output of the Signal Generator is obtained when the output matches the Reference Level *** The gain of the subsitution antenna ^ The Corr'd Power (dBm) = Power (dBm) + Antenna Gain (dBi). No Emissions were Found after the 3rd Harmonic Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 4 FCC Part 90 Microtek Electronics, Inc.Date: 01/14/03 Video TransmitterLab: D Model: 2.4THP-90Tested By: Kyle Fujimoto Temperature: 16 Degrees Celsisus, Relative Humidity 65% Test Description: Operating Mode - Spurious Emissions Horizontal Polarization - Using the Substitution Method Freq. (MHz) Reference Level (dBm)* Power** (dBm) Antenna Gain*** (dBi) Corr'd Power^ (dBm) Delta (dB) Power Limit (dBm) 4912.02-50.5-35.89.55-26.25-13.25-13 7368.03-59.7-45.18.76-36.34-23.34-13 9824.04-68.1-43.710.54-33.16-20.16-13 4940-50.4-36.99.5-27.4-14.4-13 7410-59.8-45.38.81-36.49-23.49-13 9880-69.9-43.510.55-32.95-19.95-13 4954.1-50.7-36.39.47-26.83-13.83-13 7431-59.5-43.88.83-34.97-21.97-13 9908-69.4-43.510.5-33-20-13 *The Reference Level is the meter reading off the Spectrum Analyzer after maximizing the EUT for Field Strength. ** Power = Output of Signal Generator where the signal is injected into the Subsitution Ant. The Output of the Signal Generator is obtained when the output matches the Reference Level *** The gain of the subsitution antenna ^ The Corr'd Power (dBm) = Power (dBm) + Antenna Gain (dBi). No Emissions were Found after the 3rd Harmonic Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 5 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E1 6 SPURIOUS EMISSIONS AT THE ANTENNA TERMINAL DATA SHEETS

Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E26 FREQUENCY STABILITY DATA SHEETS Frequency Stability over Temperature FCC 2.10555 and 90.213 Microtek Electronics, Inc.Date: 1/29/03 Video TransmitterLab: Enivronment Assoc. Model: 24.THP-90Tested By: Kyle Fujimoto Test Description: Low Channel - Center Frequency - 2.4560040 GHz Temp CelsisusVoltageFREQUENCY (GHz)Deviation% ERROR -30120 VAC2.4560010.00000300.0001221 -20120 VAC2.45600150.00000250.0001018 -10120 VAC2.45600180.00000220.0000896 0120 VAC2.45600190.00000210.0000855 10120 VAC2.4560020.00000200.0000814 20102 VAC (85%)2.45600390.00000010.0000041 20120 VAC (100%)2.4560040.00000000.0000000 20138 VAC (115%)2.4560041-0.00000010.0000041 30120 VAC2.4560010.00000300.0001221 40120 VAC2.45600050.00000350.0001425 50120 VAC2.45600020.00000380.0001547 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E 27 Frequency Stability over Temperature FCC 2.10555 and 90.213 Microtek Electronics, Inc.Date: 1/29/03 Video TransmitterLab: Enivronment Assoc. Model: 24.THP-90Tested By: Kyle Fujimoto Test Description: Middle Channel - Center Frequency - 2.4700050 GHz Temp CelsisusVoltageFREQUENCY (GHz)Deviation% ERROR -30120 VAC2.47000050.00000450.0001822 -20120 VAC2.47000150.00000350.0001417 -10120 VAC2.47000120.00000380.0001538 0120 VAC2.47000140.00000360.0001457 10120 VAC2.4700040.00000100.0000405 20102 VAC (85%)2.47000490.00000010.0000040 20120 VAC (100%)2.4700050.00000000.0000000 20138 VAC (115%)2.4700051-0.00000010.0000040 30120 VAC2.47000150.00000350.0001417 40120 VAC2.47000350.00000150.0000607 50120 VAC2.47000250.00000250.0001012 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E 28 Frequency Stability over Temperature FCC 2.10555 and 90.213 Microtek Electronics, Inc.Date: 1/29/03 Video TransmitterLab: Enivronment Assoc. Model: 24.THP-90Tested By: Kyle Fujimoto Test Description: High Channel - Center Frequency - 2.4770030 GHz Temp CelsisusVoltageFREQUENCY (GHz)Deviation% ERROR -30120 VAC2.477007-0.00000400.0001615 -20120 VAC2.4770065-0.00000350.0001413 -10120 VAC2.4770052-0.00000220.0000888 0120 VAC2.47700210.00000090.0000363 10120 VAC2.47700250.00000050.0000202 20102 VAC (85%)2.4770030.00000000.0000000 20120 VAC (100%)2.4770030.00000000.0000000 20138 VAC (115%)2.4770031-0.00000010.0000040 30120 VAC2.4770010.00000200.0000807 40120 VAC2.4770010.00000200.0000807 50120 VAC2.4770030.00000000.0000000 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E 29 Report Number: B30129Z2 FCC Part 90 and FCC Part 15 Class B Test Report Video Transmitter Model: 2.4THP-90 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E 30 CONDUCTED EMISSIONS DATA SHEETS COMPATIBLE ELECTRONICS FREQUENCY [MHz] EMISSION LEVEL [dBuV] PEAK 1/15/2003 9:48:46 Graph for Peak & Average EN55022-B Conducted EmissionsMicrotek Electronics, Inc.Video TransmitterModel: 2.4THP-90 - 115 VACBlackLead LI-215 12090 11-18-02EN 55022 B - Black Lead AMPLITUDE [dBuV] 102030405060708090 100110 0.15 30 1 10 EN 55022 - Class B - Quasi-peak EN 55022 - Class B - Average COMPATIBLE ELECTRONICS page 1/1 1/15/2003 9:48:46 Microtek Electronics, Inc. Video Transmitter Model: 2.4THP-90 - 115 VAC EN 55022 B - Black Lead TEST ENGINEER : Kyle Fujimoto ----------------------------------------------------- 31 highest peaks above -50.00 dB of EN 55022 - Class B - Average limit line Peak criteria : 0.10 dB, Curve : Peak Peak#Freq(MHz)Amp(dBuV)Limit(dB)Delta(dB) 1 3.547 47.87 46.00 1.87* 2 3.605 47.07 46.00 1.07* 3 0.150 55.34 56.00 -0.66* 4 0.154 54.74 55.78 -1.04* 5 3.492 44.86 46.00 -1.14* 6 0.159 54.33 55.51 -1.18* 7 0.166 53.73 55.16 -1.43* 8 0.172 52.83 54.86 -2.03* 9 0.170 52.83 54.94 -2.11* 10 0.174 52.43 54.77 -2.34* 11 0.182 51.43 54.41 -2.99* 12 0.186 51.13 54.19 -3.07* 13 0.189 50.83 54.06 -3.23* 14 0.197 50.33 53.75 -3.43* 15 0.199 49.82 53.67 -3.84* 16 0.207 49.12 53.31 -4.19* 17 0.204 49.22 53.44 -4.22* 18 0.217 48.12 52.91 -4.79* 19 0.215 48.12 53.00 -4.88* 20 0.212 48.12 53.14 -5.02* 21 0.210 48.12 53.23 -5.10* 22 0.474 40.91 46.45 -5.54 23 0.227 47.02 52.57 -5.55 24 0.221 47.22 52.78 -5.56 25 0.299 44.72 50.28 -5.56 26 3.456 40.36 46.00 -5.64* 27 0.230 46.32 52.43 -6.11 28 0.307 43.82 50.05 -6.24 29 0.243 45.72 52.00 -6.28 30 3.683 39.57 46.00 -6.43* 31 0.29344.02 50.45 -6.43 -------------------------------------------------- *Please See the Average Readings on the Next Page and on the Plot COMPATIBLE ELECTRONICS page 1/1 1/15/2003 9:48:46 Microtek Electronics, Inc. Video Transmitter Model: 2.4THP-90 - 115 VAC EN 55022 B - Black Lead TEST ENGINEER : Kyle Fujimoto ----------------------------------------------------- 9 highest peaks above -50.00 dB of EN 55022 - Class B - Average limit line Peak criteria : 0.00 dB, Curve : Average Peak#Freq(MHz)Amp(dBuV)Limit(dB)Delta(dB) 1 3.54745.73 46.00 -0.27 2 3.60544.83 46.00 -1.17 3 3.49241.80 46.00 -4.20 4 0.15048.68 56.00 -7.32 5 3.45636.01 46.00 -9.99 6 3.68335.23 46.00-10.77 7 3.76133.36 46.00-12.64 8 3.34632.82 46.00-13.18 9 3.40130.10 46.00-15.90 ------------------------------------------------- COMPATIBLE ELECTRONICS FREQUENCY [MHz] EMISSION LEVEL [dBuV] PEAK 1/15/2003 10:01:44 Graph for Peak & Average EN55022-B Conducted EmissionsMicrotek Electronics, Inc.Video TransmitterModel: 2.4THP-90 - 115 VACWhite Lead LI-215 12090 11-18-02EN 55022-B - White Lead AMPLITUDE [dBuV] 102030405060708090 100110 0.15 30 1 10 EN 55022 - Class B - Quasi-peak EN 55022 -…

Text truncated - open the document above for the full version.
