JRR-PHL4-13Video/Audio Transmitter Module

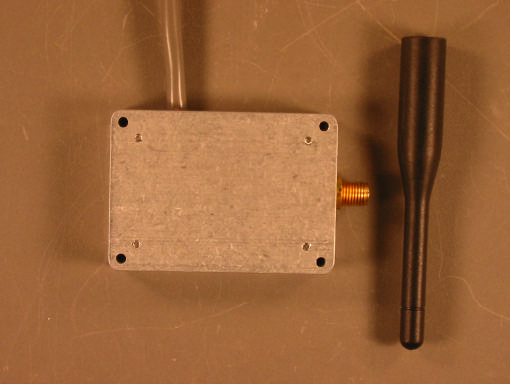

External Photos Model: Minilink 5.8 TXM FCC ID: JRR-PHL4-13 Model: Minilink 5.8 TXM FCC ID: JRR-PHL4-13 Model: Minilink 5.8 TXM FCC ID: JRR-PHL4-13 Model: Minilink 5.8 TXM FCC ID: JRR-PHL4-13

Internal Photos Model: Minilink 5.8 TXM FCC ID: JRR-PHL4-13 Model: Minilink 5.8 TXM FCC ID: JRR-PHL4-13 Model: Minilink 5.8 TXM FCC ID: JRR-PHL4-13

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Test Report Report No EC0824-1 Client Microtek Electronics, Inc. P.O. Box 3464 San Clemente, CA 92672 Phone (949)-498-3024 Fax (949)-366-4978 FRN 0007-4512-48 Model Minilink 5.8 TXM FCC ID JRR-PHL4-13 Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date _11/8/02 _ Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EC0824-1 FCC ID: JRR-PHL4-13 Page 2 of 15 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Table Of Contents Summary...........................................................................................................3 Test Methodology............................................................................................3 Statement of Conformity................................................................................4 Fundamental Frequency Measurement.....................................................5 Band Edge Measurements............................................................................7 Harmonic and Spurious Frequency Measurements................................9 AC Line Conducted Emission Measurements........................................10 Voltage Variation...........................................................................................11 Test Equipment Used...................................................................................12 Terms And Conditions..................................................................................14 REPORT: EC0824-1 FCC ID: JRR-PHL4-13 Page 3 of 15 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Summary This report is an application for Certification of a Modular Transmitter operating pursuant to Part 15.249 of the FCC Rules, Code of Federal Regulations 47. The model number covered by this report is Minilink 5.8 TXM. This report is designed to demonstrate the compliance of this device with the requirements outlined in Part 15 of CFR 47 using the methods outlined in Part 2 of CFR 47. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2000). Frequency range investigated: 30MHz – 40GHz Measurement distances: Distances are noted in the data tables. 3m (30 – 1000MHz) 3 or 1m (1-18GHz) 1m (18-26.5GHz) 0.1m (26.5-40GHz) EUT powered by: CONDOR D7-10-01 500mA 12VDC supply Emissions maximized around the three orthogonal axes. REPORT: EC0824-1 FCC ID: JRR-PHL4-13 Page 4 of 15 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Statement of Conformity The Microtek Minilink 5.8 TXM has been found to conform with the following parts of the 47 CFR as detailed below: The requirements for modular approval are addressed in a separate exhibit. Part 2 Part 15 Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 The antenna connector is a reverse SMA type connector. 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 2.1055(d) Amplitude is constant during voltage variations. 15.207 The unit complies with the conducted emissions limits of 15.207. 15.249 The unit complies with the field strength limits of 15.249 REPORT: EC0824-1 FCC ID: JRR-PHL4-13 Page 5 of 15 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Fundamental Frequency Measurement LIMIT Average: 50mV/m = 93.9dBμV/m @ 3m [15.249(a), (b), and (d)] Peak: 93.9dBμV/m + 20dB = 123.9dBμV @ 3m [15.249(d)] Note: If Peak measurements meet Average limits, then Average measurements are not required. MEASUREMENTS Fundamental Frequency Curtis-Straus LLC Date: 04-Nov-02 Engineer: Evan Gould Work Order: C0824 Company: Microtek Electronics, Inc. EUT: Minilink 5.8 TXM Fundamental Frequencies: 5741-5858MHz Test Site: "T" Cable: Microflex Pre-amp: White Antenna: Yellow Filter/Attenuator: N/A Analyzer: Orange Measurement Distance: 3 Meters Resolution BW: 1MHz Detector Type: Peak Video BW: 1MHz Notes: Measurements were taken of the EUT set to Channels 1,5, and 10. Measurements taken without modulation. AntennaPreampAntennaCableFilter/AttenuatorDistanceAdjusted 47 CFR 15.249 PolarizationFrequencyReadingFactorFactorFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dB)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) H 5741.069.619.436.62.40.00.089.293.9-4.7Pass H 5793.071.619.436.72.40.00.091.393.9-2.6Pass H5858.073.219.436.82.40.00.093.093.9-0.9Pass ANALYZER PLOTS REPORT: EC0824-1 FCC ID: JRR-PHL4-13 Page 6 of 15 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 REPORT: EC0824-1 FCC ID: JRR-PHL4-13 Page 7 o…
