JTQ97X97X Proximity Readers

Casi Rusco

Click to zoom

Application Details

Equipment Class: FDS - Part 15 Field Disturbance Sensor
Date of Grant: Apr 17, 2002
Application Purpose: Original Equipment
Date of Application: Feb 11, 2002
Equipment Note: 97X Proximity Readers
Frequency Range: 0.12500000 - 0.12500000
Company: Casi Rusco
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Part Number: 460157001L January 2002 Model 94x, 97x Proximity Reader Installation Guide CASIRUSCO 791 Park of Commerce Boulevard Boca Raton, Florida 33487 (561) 998-6100 CASI-RUSCO... SecuritySolutionsforthe21 st Century This publication may contain examples of data reports used in dailybusiness operations. Examples include fictitious names ofindividuals and companies for illustration only; any similarity tonames and addresses of actual business enterprises and persons isentirely coincidental.This document is distributed on an as is basis, without warranty either expressed or implied. Successful implementation dependssolely upon the customer’s ability to integrate each product into thetotal inventory of “in-house” products. While each offering has beenreviewed for its compatibility and maintainability, no assurance ofsuccessful installation can be given.The customer accepts full maintenance responsibility. (A full scopeof software and hardware maintenance contracts are available to thecustomer.)Copyright 1993, 1994, 1997-2002 CASI-RUSCOAll Rights ReservedPrinted in the USAProxLite is a trademark of CASI-RUSCO. WARNING: This is a Class A product. In a domestic environment, thisproduct may cause radio interference; in which case, the user may berequired to take adequate measures. Model 94x, 97x Proximity Reader i Introduction................................................................................................. 1Product Features......................................................................................... 2Switch Settings ............................................................................................ 3 Selecting Reader Power Level .....................................................3Selecting Operating Mode ...........................................................7Selecting Beeper Sound Level .....................................................7 Connecting the Reader .............................................................................. 8 CE/FCC Compliancy ...................................................................8Pinouts ..........................................................................................10Wiring Diagrams .........................................................................10 Mounting the Reader ............................................................................... 17Testing the Reader .................................................................................... 28Troubleshooting Guide............................................................................ 29 All Installations ...........................................................................29Unsupervised Modes Only........................................................31Supervised Modes Only.............................................................31 Technical Specifications........................................................................... 34Functional Specifications......................................................................... 36 Contents ii Model94x,97xProximityReader FiguresFigure 1: Model 94x/97x Reader, J1 Connector and DIP Switch Locations.........................................................................4 Figure 2: Typical Installation Using Shielded Cable/Drain Wire.... 8Figure 3: Wiring Diagram, Model 94x/97x Supervised F/2F Mode.....................................................................11 Figure 4: Wiring Diagram, Model 94x/97x Unsupervised F/2F Mode.....................................................................13 Figure 5: Wiring Diagram, Model 94x/97x Unsupervised Wiegand Mode ........................................................................... 15 Figure 6: Recommended Additional Mounting Instructions for External Tamper Switch Activation ..........................19 Figure 7: Model 940 Reader - Gang Box Mounting..................... 20Figure 8: Model 940 Reader - Direct Wall Mounting ................... 21Figure 9: Model 941 Reader - Gang Box Mounting..................... 22Figure 10: Model 941 Reader - Direct Wall Mounting ................... 23Figure 11: Model 970/972 Reader - Gang Box Mounting.............. 24Figure 12: Model 970/972 Reader - Direct Wall Mounting ............ 25Figure 13: Model 971/973 Reader - Gang Box Mounting.............. 26Figure 14: Model 971/973 Reader - Direct Wall Mounting ............ 27Figure 15: Badge to Reader Presentation..................................... 36 Model 94x, 97x Proximity Reader 1 IntroductionThis manual is an installation guide for the CASI-RUSCO Models940, 941, 970, 971, 972, and 973 Proximity Perfect Readers.Throughout this guide, the abbreviation 94x represents ReaderModels 940 and 941. The abbreviation 97x represents Reader Models970, 971, 972, and 973.The 94x and 97x Readers while similar in functionality offer a varietyof features making them suitable for different applications. The 94xand 97x Readers are designed to mount on standard U.S. gang boxes.The 94x Readers are single-gang box size. The 97x Readers are sizedfor larger dual gang box installation, offer greater badge read range,and a keypad option.Models 940 and 970 give the greatest all-around badge read range fortheir respective sizes, making them ideal for most installations.Models 941 and 971 are tuned for installation on metal mountingplates. The standard metal mounting plate shields the reader fromthe effects of a metal wall, which would otherwise dramaticallyreduce the read range. The optional back-to-back metal mountingplate shields the reader from the effects of a metal wall and makes thereader unidirectional; ideal for direct back-to-back readerinstallations.Models 972 and 973 are dual gang size readers, identical to the 970and 971 respectively, except for their built-in twelve-position keypad.This feature makes these readers ideal for installations requiringkeypad PIN entry in addition to a valid badge read. 2 Model 94x, 97x Proximity Reader …

Text truncated - open the document above for the full version.

Cover Letter(s)

Offices in Ottawa (Canada), USA, Norway, England, Germany, Italy, Korea, Taiwan, China and Shanghai February 12, 2002 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA Nemko Canada Inc. 3325 River Road RR #5 Ottawa, Ontario Canada K1V 1H2 Tel: 613-737-9680 Fax: 613-737-9691 Toll Free: 1-800-563-6336 Email: [email protected] Internet: www.nemkoca.com Dear Sir/Madam:Our File Ref. 2W04609 FCC ID: JTQ97X Applicant: Casi-Rusco Equipment: 97X Proximity Readers FCC Confirmation no.: EA629760 We have successfully electronically filed all the required documentation for an application for certification in accordance with FCC Part 15, Subpart C 15.209 on the above mentioned equipment, February 12, 2002. The required fees have been paid electronically, Remittance ID: 201541, Authorization number: 099198. Please note that an error was made on the FCC Form 731. For Item 11 – Description of product as it is Marketed: should state “97X Proximity Readers” and not 94X. If you require additional information, please do not hesitate to contact me at 1-800-563-6336 (extension 232). Thank you in advance for your assistance in this matter. Sincerely, Ruby Dulmage Submissions Specialist Nemko Canada Inc. [email protected] Encl.

Cover Letter(s)

Operational Description

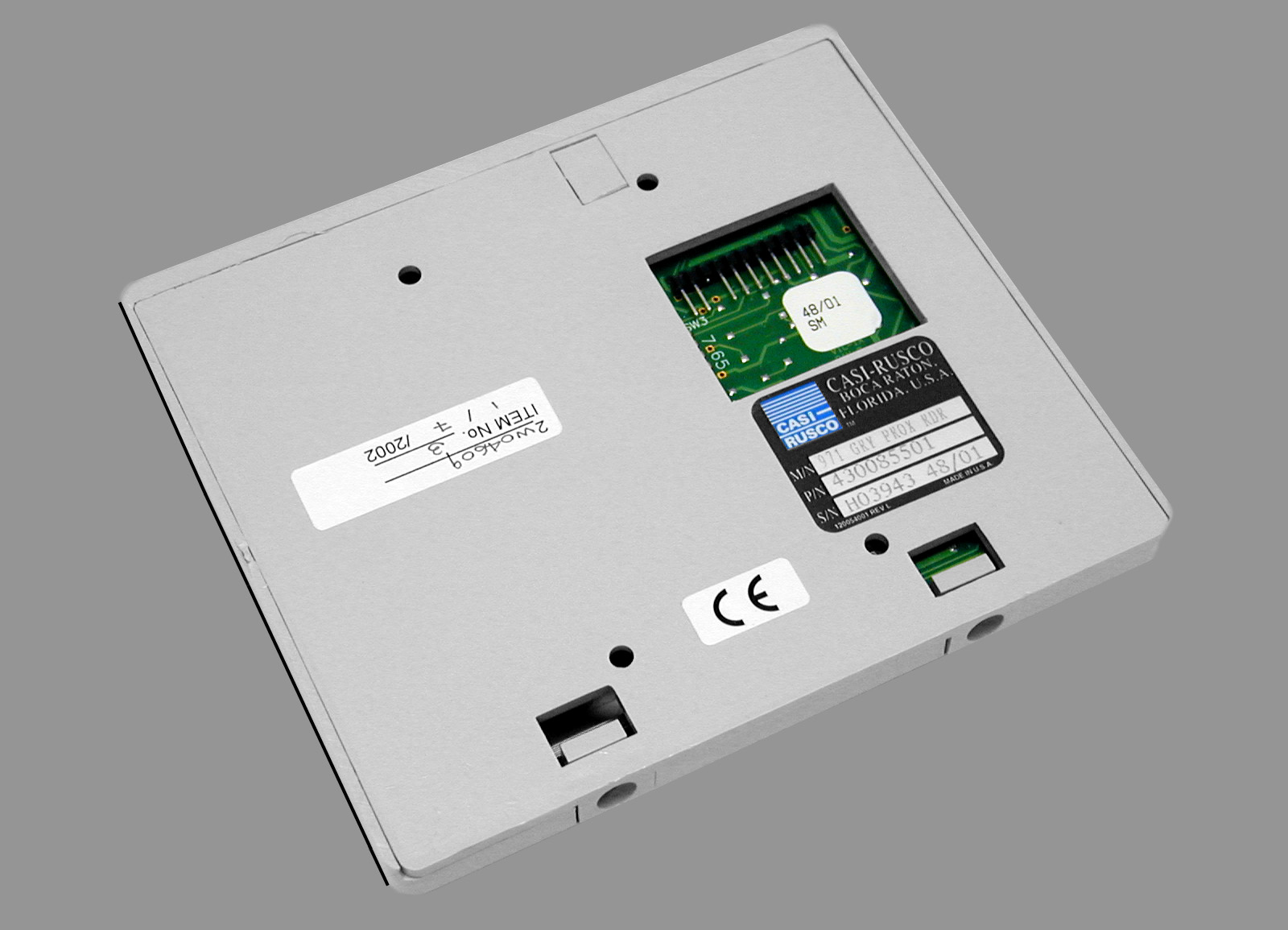

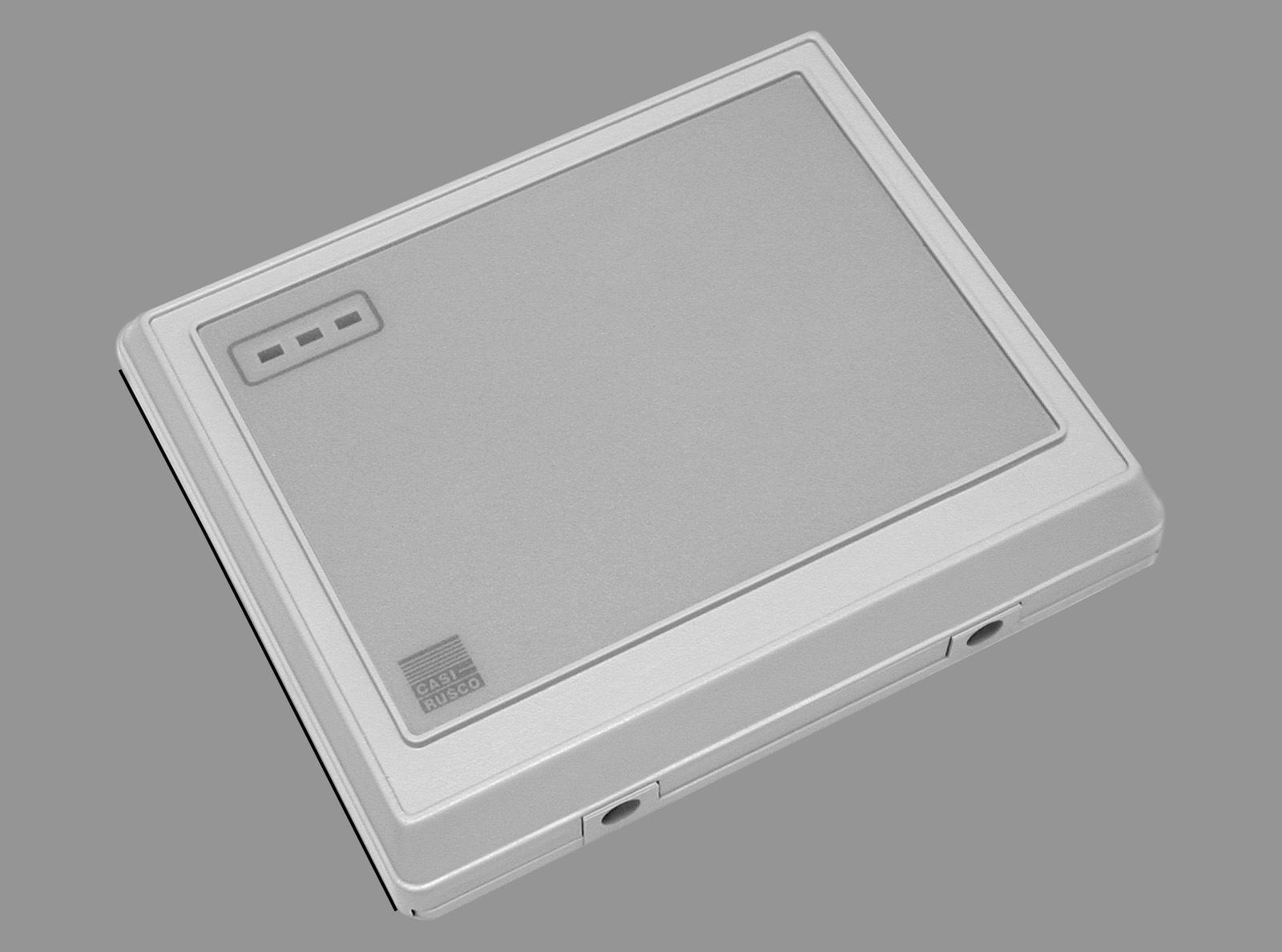

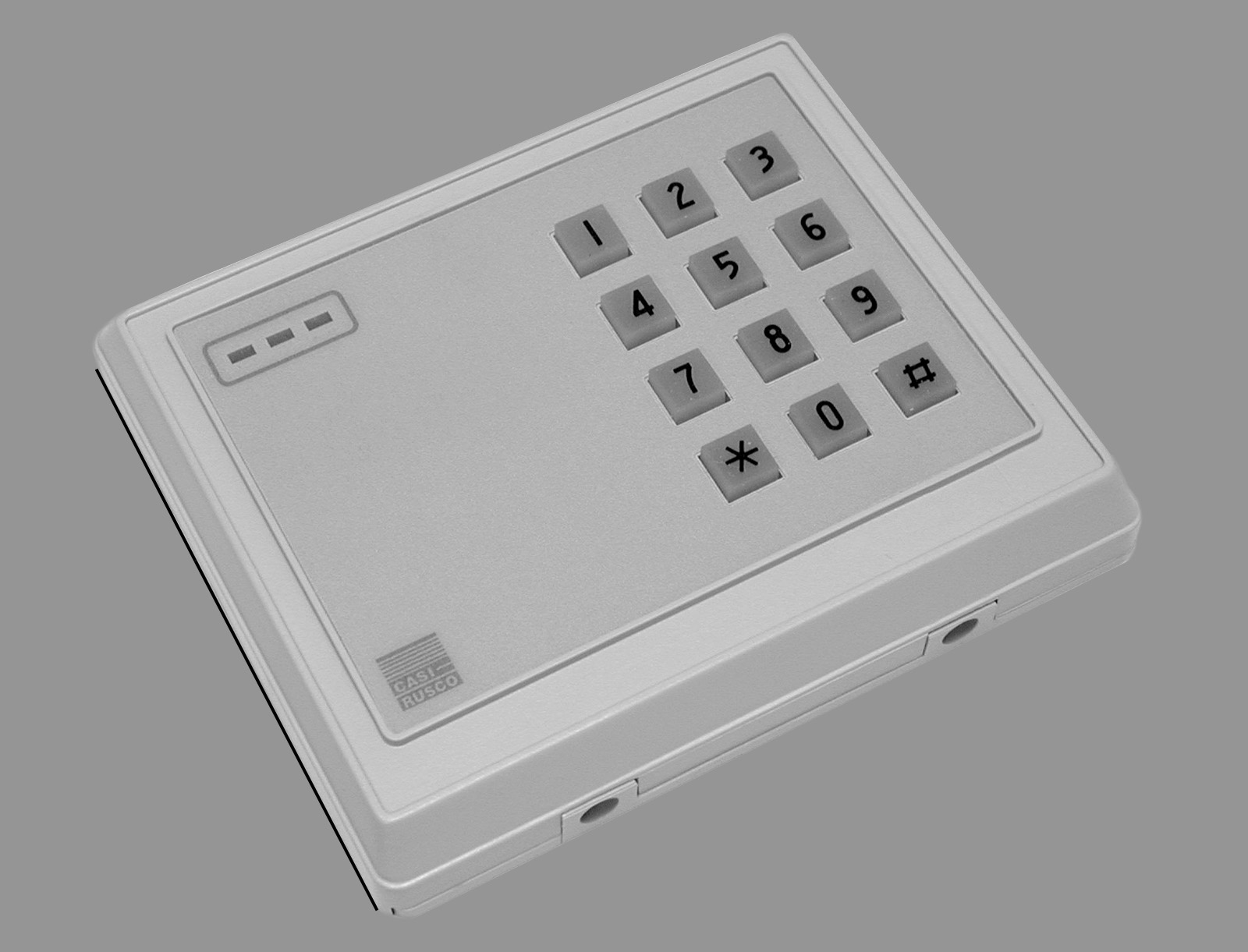

970/971/972/973 Name: Proximity Reader Model: 430085001/501; 430088001/501 Serial Number: Manufacturer (If Different From Applicant): Approximate Power Requirement (Volts And Amps): +12Vdc, 200mA Approximate Size (Weight And Dimensions): 4.75”H x 5.5”W x 0.90”D Brief Description Of Equipment Construction And Theory Of Operation: The reader provides an energy field that will activate a passive card. The reader detects , demodulates and validates the digital stream sent by the card. Upon validation of the of the data stream, the reader will transmit that same data via a 2kHz F/2F format to the Microcontroller where the determination is made if the user has access to the controlled area/door. 970 is tuned for mounting on std. US gang box, 971 reader is tuned for metal mounting. 972=971 w/keypad; 973=972 w/keypad Modes : 1. 972 & 973 have keypad for additional PIN input (i.e. card access plus PIN) 2. 3. 4. 5. Configurations : 1. Reader can be configured to read up to 10” (dip switch configurable) 2. Reader can be configured for different formats (unsupervised, supervised, wiegand—dip switch) 7.0 Additional Information 1. The reader used a single processor with a 12MHz clock frequency. There are no external address or data lines. 2. A 2MHz signal form the processor is divided down to 125kHz to drive the antenna 3. The antenna circuit is parallel tunes which shunts the harmonic energy through the capacitance rather than the inductive component (antenna) 4. Shielded twisted pairs are used to connect the readers to the M/5 5. An active bandpass filter in the receiver section rejects signals outside the spectrum generated by the ID badges. 6. Transient protection is provided by series resistance and diode-device on the I/O lines. This product was designed to tolerate line-induced transients as well as ESD transients

Test Report

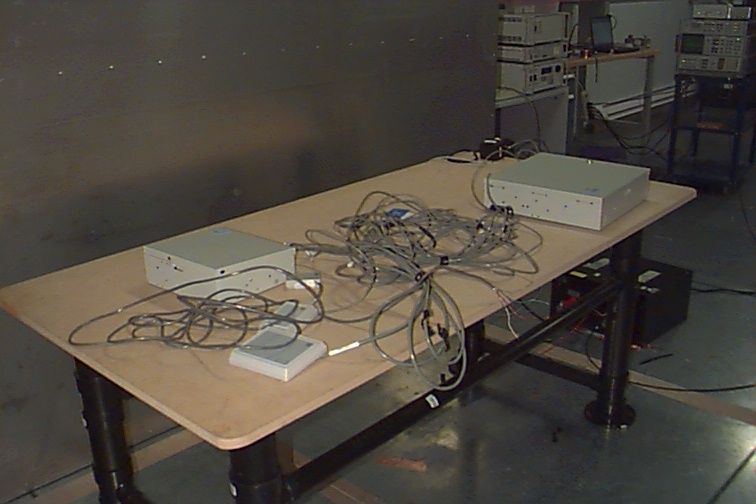

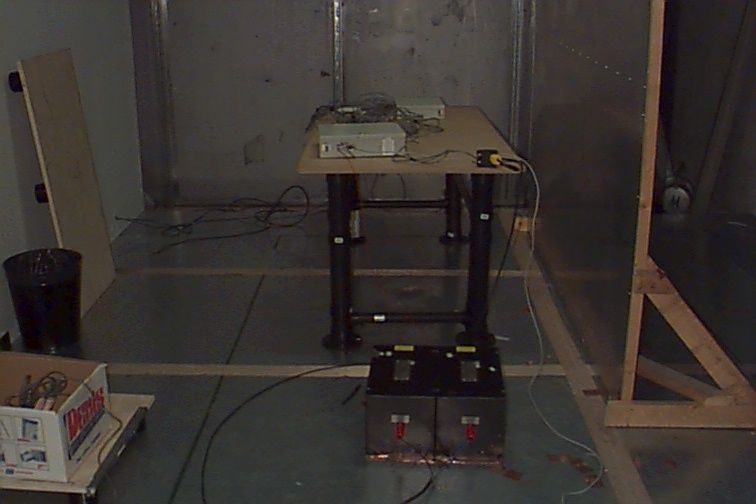

Master: PT15209 Date: December 12, 2001 Test Report:2W04609 Applicant:Casi-Rusco 791 Park of Commerce Blvd., Suite 100 Boca Raton, FL 33487 USA Equipment Under Test:970, 971, 972, 973 (EUT)Proximity Reader In Accordance With:FCC Part 15, Subpart C, 15.209 Tested By:Nemko Canada Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date:January 15, 2002 Total Number of Pages:11 Authorized Copy:Soft Copy Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 2 of 11 Table Of Contents Section 1. Summary Of Test Results.....................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................7 Section 4. Block Diagrams...................................................................................................10 Section 5. Test Equipment List...........................................................................................11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 3 of 11 Section 1.Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. A description of the test facility in on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: DATE: January 11, 2002 Russell Grant, Wireless Group Manager Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 4 of 11 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions15.207N/A Radiated Emissions15.209Complies Footnotes For N/A’s:12 VDC external power supply. Test Conditions: IndoorTemperature:20 °C Humidity:60 % OutdoorTemperature:20 °C Humidity:60 % Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 5 of 11 Section 2.General Equipment Specification Manufacturer: Casi Rusco Model No.: 970 Serial No.: H03302 25/01 Date Received In Laboratory: July 17, 2001 Nemko Identification No.: Item #1 Tx: 125 kHz Emission Designator: NON Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 6 of 11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 7 of 11 Section 3.Radiated Emissions Para. No.: 15.209 Test Performed By: Russell GrantDate of Test: September 20, 2001 Minimum Standard: Fundamental (MHz) Field Strength (μμV/m) Field Strength (dBμμV) 0.009 - 0.4902400/F(kHz) @ 300m— 0.490 - 1.70524000/F(kHz) @ 30m— 1.705 - 3030 @ 30m— 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 Test Results:Complies. Measurement Data:See attached table. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 8 of 11 Test Data - Radiated Emissions Frequency of Emission (MHz) Received Signal (dBuV/m@2m) Received Signal (dBuV/m@4m) Extrapolated Signal (dBuV/m) Limit (dBuV/m) Margin (dB) 0.125111.292.8-21.825.747.5 0.25056.837.4-83.419.6103.1 0.37562.744.1-71.816.187.9 0.50040.4-115.933.6149.5 0.62542.424.5-27.531.759.2 0.75031.4-124.930.1155.0 0.87544.928.0-21.128.849.9 1.12540.7-115.626.6142.2 1.37540.721.2-35.524.860.3 1.62540.021.8-31.123.454.5 1.75017.0-139.329.5168.8 1.87537.819.6-33.329.562.8 2.12537.219.8-30.829.560.3 2.37535.418.2-31.829.561.3 2.62533.216.8-30.929.560.4 2.87533.116.7-31.029.560.5 3.12533.016.8-30.329.559.8 3.37532.916.1-32.729.562.3 3.87530.714.0-34.529.564.1 Notes: Emissions measured at 2m only were extrapolated to 10m using 40dB/decade. Measured: Active Loop Antenna, 10 kHz RBW, Peak Detector Test Distance (meters) : 3 Range: A Tower Receiver: ESVP RBW(kHz): 120 Detector: Q-Peak Freq. (MHz) Ant. * Pol. (V/H) RCVD Signal (dBμμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Field Strength (dBμμV/m) Limit (dBμμV/m) Margin (dB) 176.0B/C1V20.013.833.843.59.7 176.0B/C1H22.013.835.843.57.7 214.0B/C1V20.016.636.643.56.9 214.0B/C1H25.016.641.643.51.9 Notes: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-measured using dipole antenna. **Includes cable loss when amplifier is not used. ***Includes cable loss. ( )Denotes failing emission level. N.D. =Not Detected Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT: 970, 971, 972, 973 - Proximity Reader Page 9 of 11 Radiated Emissions Photographs Front View Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 2W04609 EQUIPMENT…

Text truncated - open the document above for the full version.

Test Report

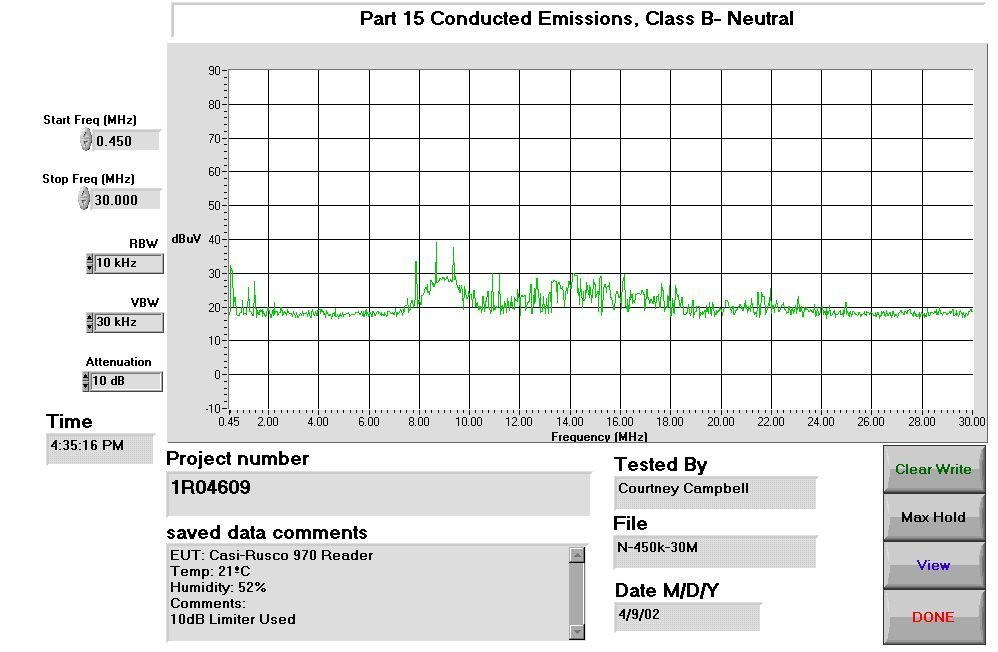

Measurement Data ConductorFrequency (MHz) CISPR (dBμV) Average (dBμV) BB/NBBB Corr. (dB) Result (dBμV) Neutral8.65625.8N/AN/A25.8 Neutral9.23627.0N/AN/A27.0 Neutral9.62422.6N/AN/A22.6 Neutral9.66316.2N/AN/A16.2 Neutral8.01518.2N/AN/A18.2 Neutral9.90719.2N/AN/A19.2 Neutral0.52337.8N/AN/A37.8 Phase8.71732.2N/AN/A32.2 Phase9.26624.5N/AN/A24.5 Phase8.37424.2N/AN/A24.2 Phase8.25020.3N/AN/A20.3 Phase9.57225.9N/AN/A25.9 Phase9.78521.2N/AN/A21.2 Phase7.95419.4N/AN/A19.4
