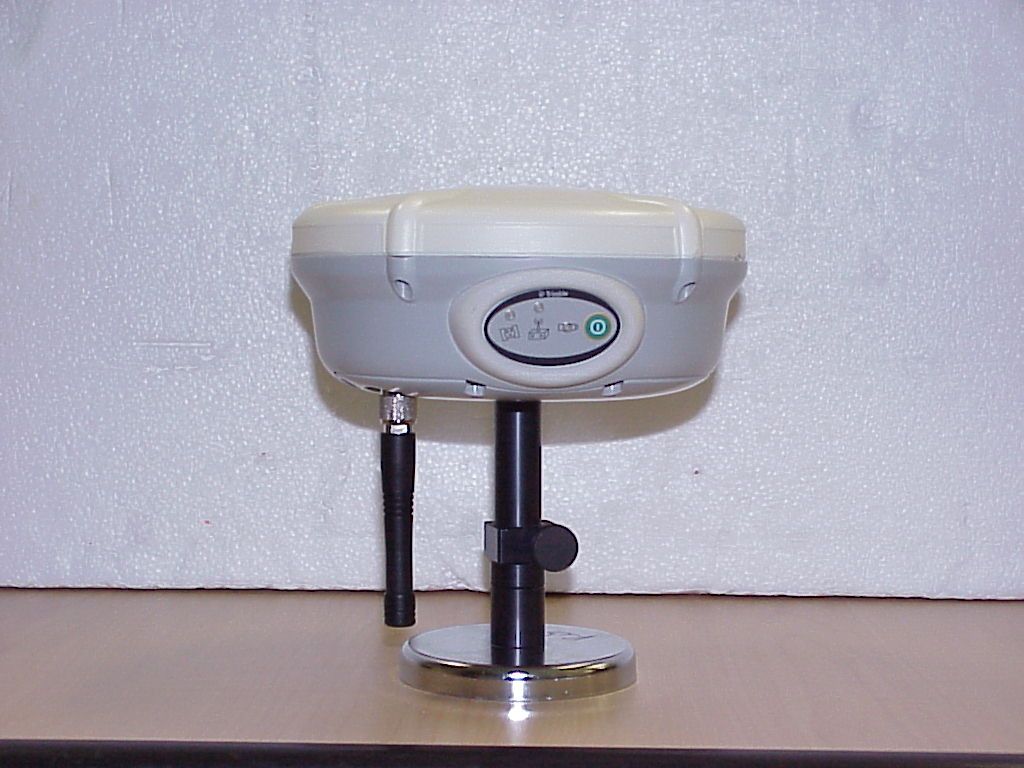

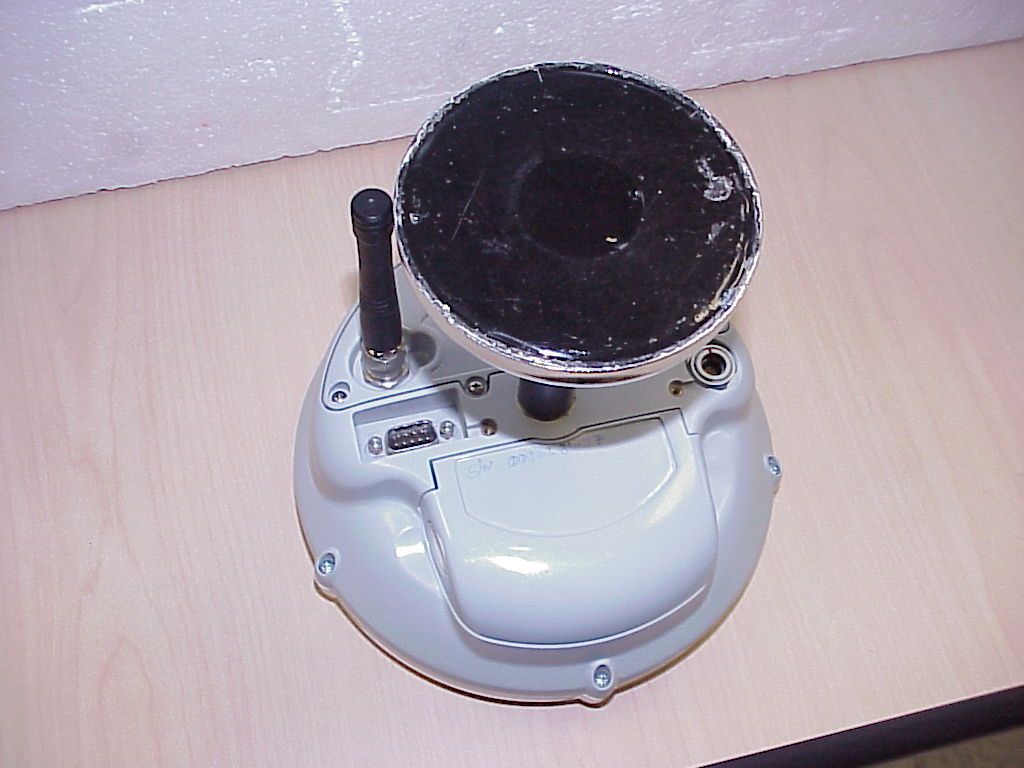

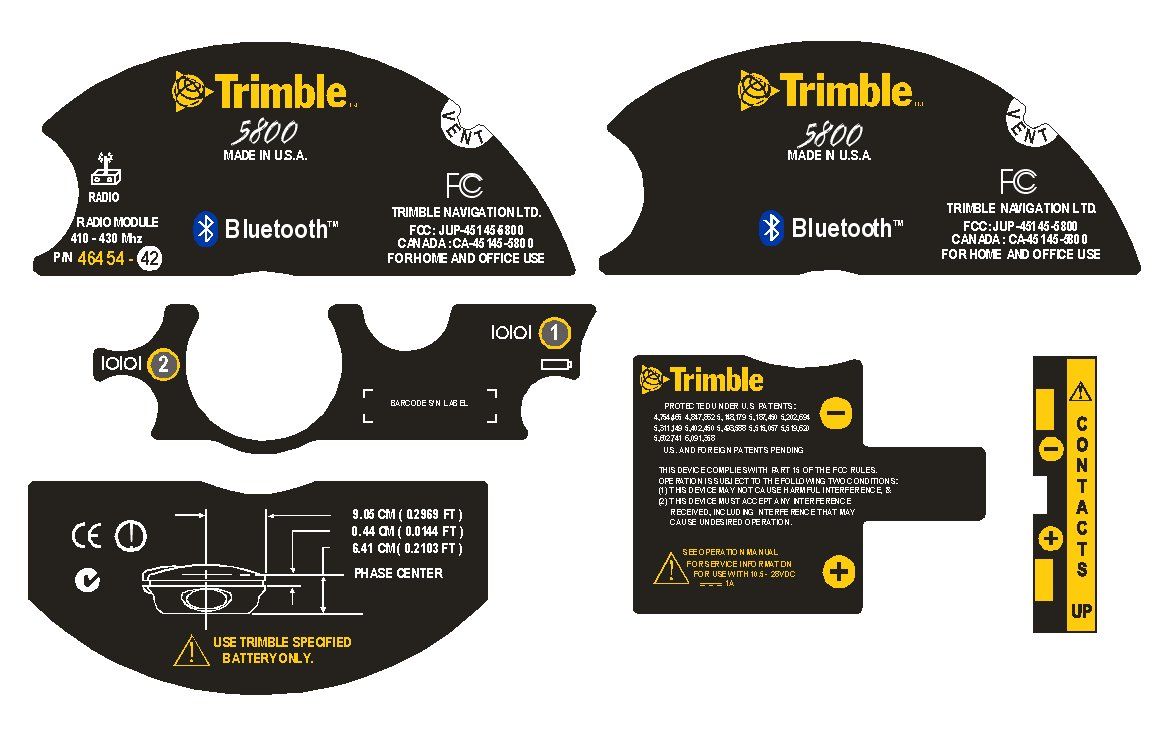

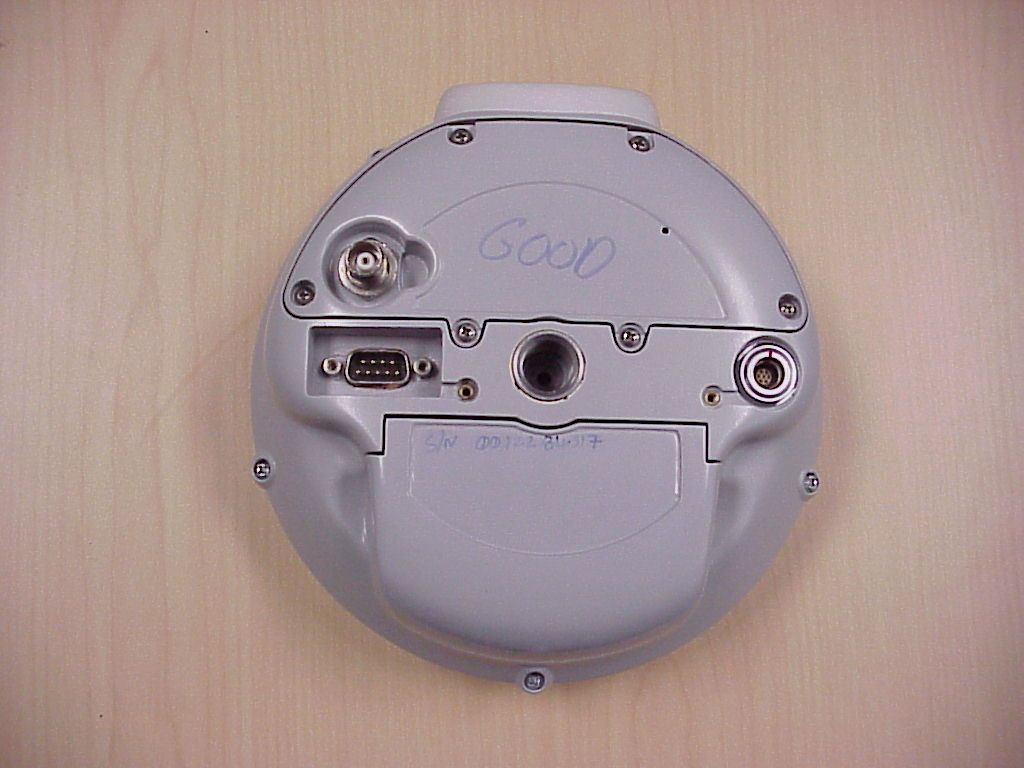

JUP-45145-5800GPS Receiver with Bluetooth

Version 1.00 Part Number 43952-10-ENG Revision A January 2002 5700/5800 GPS Receiver User Guide Corporate Office Trimble Navigation Limited Engineering and Construction Division 5475 Kellenburger Road Dayton, Ohio 45424-1099 U.S.A. Support Offices At direction of Division Manager - check #s. Copyright and Trademarks © 2001-2002, Trimble Navigation Limited. All rights reserved. Printed in the United States of America. Printed on recycled paper. The Globe & Triangle logo, Trimble, Configuration Toolbox, Micro-Centred, QuickPlan, Trimble Geomatics Office, Trimble Survey Controller, TRIMMARK, TRIMTALK, TSC1, TSCe, and Zephyr are trademarks of Trimble Navigation Limited. Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Trimble Navigation under license.CHECK TRADEMARKING SITUATION FOR BLUETOOTH GPS Total Station is a trademark of Trimble Navigation Limited, registered in the United States Patent and Trademark Office. All other trademarks are the property of their respective owners. Release Notice This is the January 2002 release (Revision A) of the 5700/5800 GPS Receiver User Guide, PN43952-10-ENG. It applies to version 1.00 of the 5700/5800 GPS Receiver The following limited warranties give you specific legal rights. You may have others, which vary from state/jurisdiction to state/jurisdiction. Hardware Limited Warranty Trimble warrants that this Trimble hardware product (the “Product”) shall be free from defects in materials and workmanship and will substantially conform to Trimble’s applicable published specifications for the Product for a period of one (1) year, starting from the date of delivery. The warranty set forth in this paragraph shall not apply to software/firmware products. Software and Firmware License, Limited Warranty This Trimble software and/or firmware product (the “Software”) is licensed and not sold. Its use is governed by the provisions of the applicable End User License Agreement (“EULA”), if any, included with the Software. In the absence of a separate EULA included with the Software providing different limited warranty terms, exclusions, and limitations, the following terms and conditions shall apply. Trimble warrants that this Trimble Software product will substantially conform to Trimble’s applicable published specifications for the Software for a period of ninety (90) days, starting from the date of delivery. Warranty Remedies Trimble's sole liability and your exclusive remedy under the warranties set forth above shall be, at Trimble’s option, to repair or replace any Product or Software that fails to conform to such warranty (“Nonconforming Product”), or refund the purchase price paid by you for any such Nonconforming Product, upon your return of any Nonconforming Product to Trimble in accordance with Trimble’s standard return material authorization procedures. Warranty Exclusions and Disclaimer These warranties shall be applied only in the event and to the extent that: (i) the Products and Software are properly and correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Trimble’s relevant operator's manual and specifications, and; (ii) the Products and Software are not modified or misused. The preceding warranties shall not apply to, and Trimble shall not be responsible for defects or performance problems resulting from (i) the combination or utilization of the Product or Software with products, information, data, systems or devices not made, supplied or specified by Trimble; (ii) the operation of the Product or Software under any specification other than, or in addition to, Trimble's standard specifications for its products; (iii) the unauthorized modification or use of the Product or Software; (iv) damage caused by accident, lightning or other electrical discharge, fresh or salt water immersion or spray; or (v) normal wear and tear on consumable parts (e.g., batteries). THE WARRANTIES ABOVE STATE TRIMBLE'S ENTIRE LIABILITY, AND YOUR EXCLUSIVE REMEDIES, RELATING TO PERFORMANCE OF THE PRODUCTS AND SOFTWARE. EXCEPT AS OTHERWISE EXPRESSLY PROVIDED HEREIN, THE PRODUCTS, SOFTWARE, AND ACCOMPANYING DOCUMENTATION AND MATERIALS ARE PROVIDED “AS-IS” AND WITHOUT EXPRESS OR IMPLIED WARRANTY OF ANY KIND BY EITHER TRIMBLE NAVIGATION LIMITED OR ANYONE WHO HAS BEEN INVOLVED IN ITS CREATION, PRODUCTION, INSTALLATION, OR DISTRIBUTION, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT. THE STATED EXPRESS WARRANTIES ARE IN LIEU OF ALL OBLIGATIONS OR LIABILITIES ON THE PART OF TRIMBLE ARISING OUT OF, OR IN CONNECTION WITH, ANY PRODUCTS OR SOFTWARE. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON DURATION OR THE EXCLUSION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TRIMBLE NAVIGATION LIMITED IS NOT RESPONSIBLE FOR THE OPERATION OR FAILURE OF OPERATION OF GPS SATELLITES OR THE AVAILABILITY OF GPS SATELLITE SIGNALS. Limitation of Liability TRIMBLE’S ENTIRE LIABILITY UNDER ANY PROVISION HEREIN SHALL BE LIMITED TO THE GREATER OF THE AMOUNT PAID BY YOU FOR THE PRODUCT OR SOFTWARE LICENSE OR U.S.$25.00. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL TRIMBLE OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER UNDER ANY CIRCUMSTANCE OR LEGAL THEORY RELATING IN ANY WAY TO THE PRODUCTS, SOFTWARE, AND ACCOMPANYING DOCUMENTATION AND MATERIALS, (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS), REGARDLESS OF WHETHER TRIMBLE HAS BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH LOSS AND REGARDLESS OF THE COURSE OF DEALING WHICH DEVELOPS OR HAS DEVELOPED BETWEEN YOU AND TRIMBLE. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YO…

Text truncated - open the document above for the full version.

RF input Stage RF ASIC CPU Ericson Bluetooth Module Receive - Only UHF FM Radio Flash SDRAM 48 MHz generated in CPU 4 MHz 16 MHz 45 MHz 44.55 MHz 10 mhz RS232 Internal 13 MHz 5800 Block Diagram showing oscillators GPS Antenna

645 N. Mary Avenue Sunnyvale, CA 94086, USA Ph +1 408 481 8000 Fax +1 408 481 6866 2002-02-25 Federal Communications Commission 445 12th St. S.W. Washington DC 20554 Dear Sir/Ms, Confidentiality Request for JUP-45145-5800 We, Trimble, would like to request that the schematic diagrams, and operation description, submitted with the application for certification be withheld from public disclosure, as per Section 0.459 of the FCC rules. Information for which Confidentiality is Requested: Schematics Theory of Operation / Operation Description Best Regards, Dennis Connor Engineering Manager, Radio Group

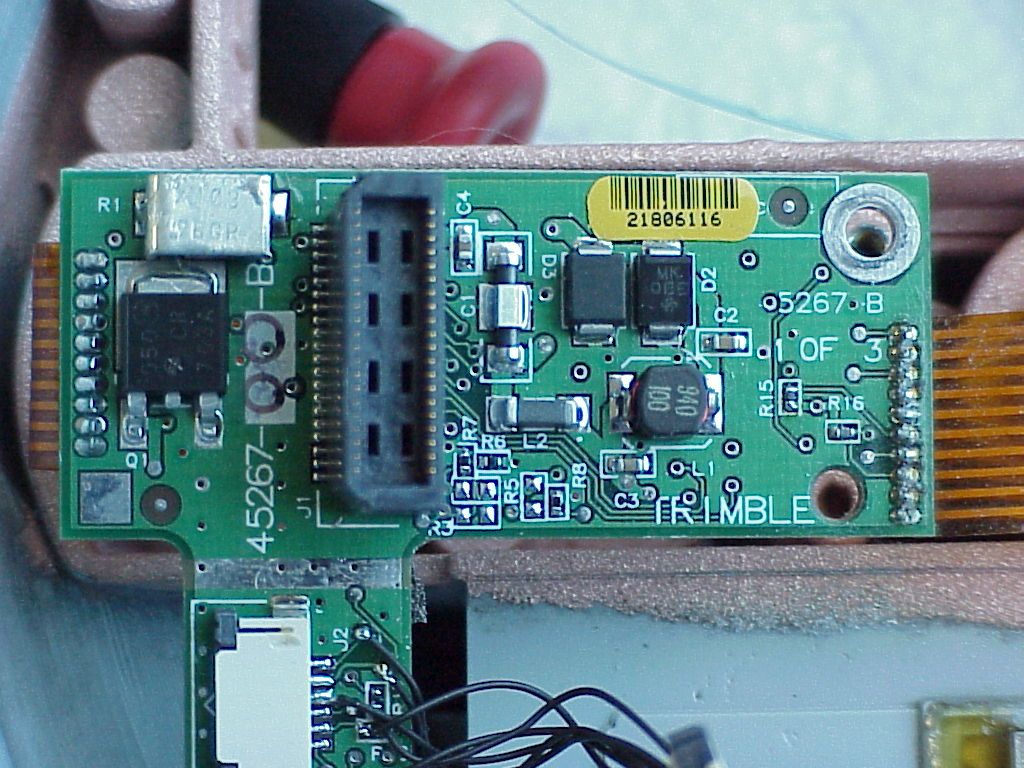

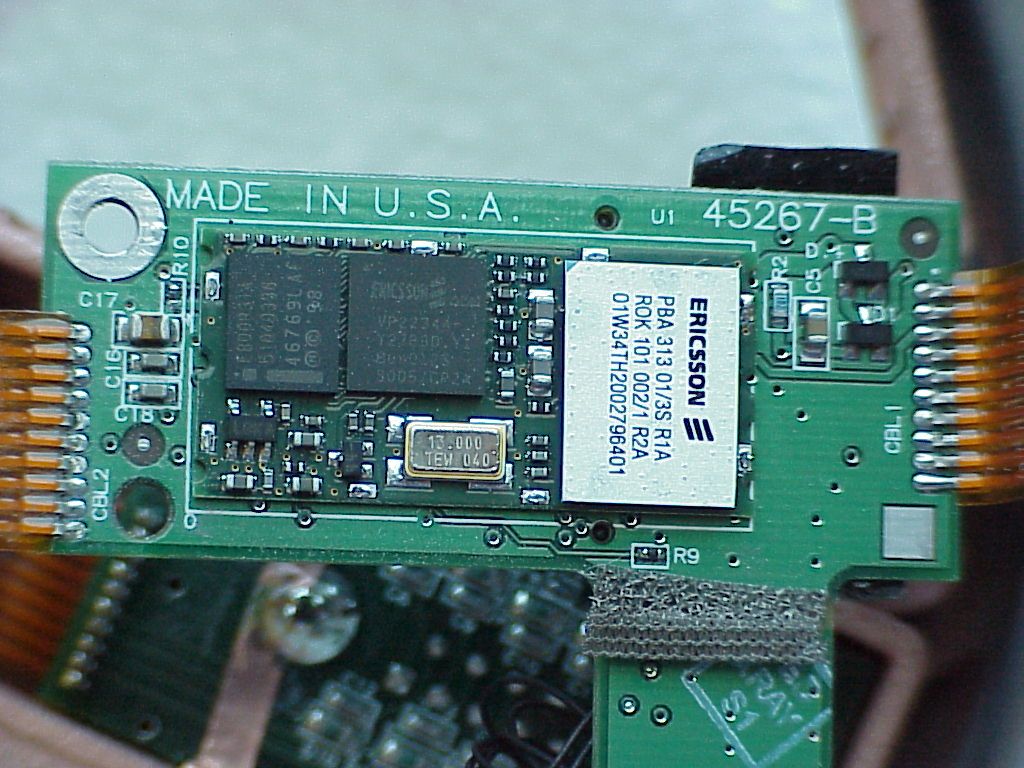

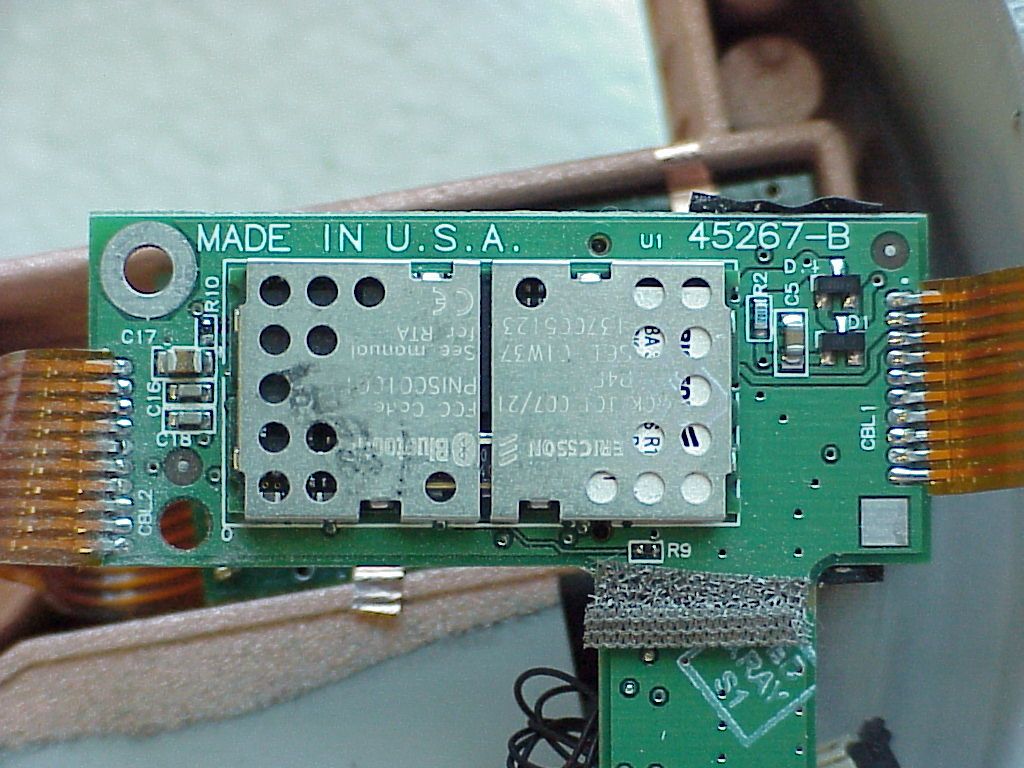

6. Foto Report Picture1Top side of module (with case): Picture2Top side of module (without case): Page 21 of 37Testreport Reference: 5BT_Ericsson_Qual_02_c Picture3Bottom side of module (with case): Picture4Bottom side of module (without case): Page 22 of 37Testreport Reference: 5BT_Ericsson_Qual_02_c

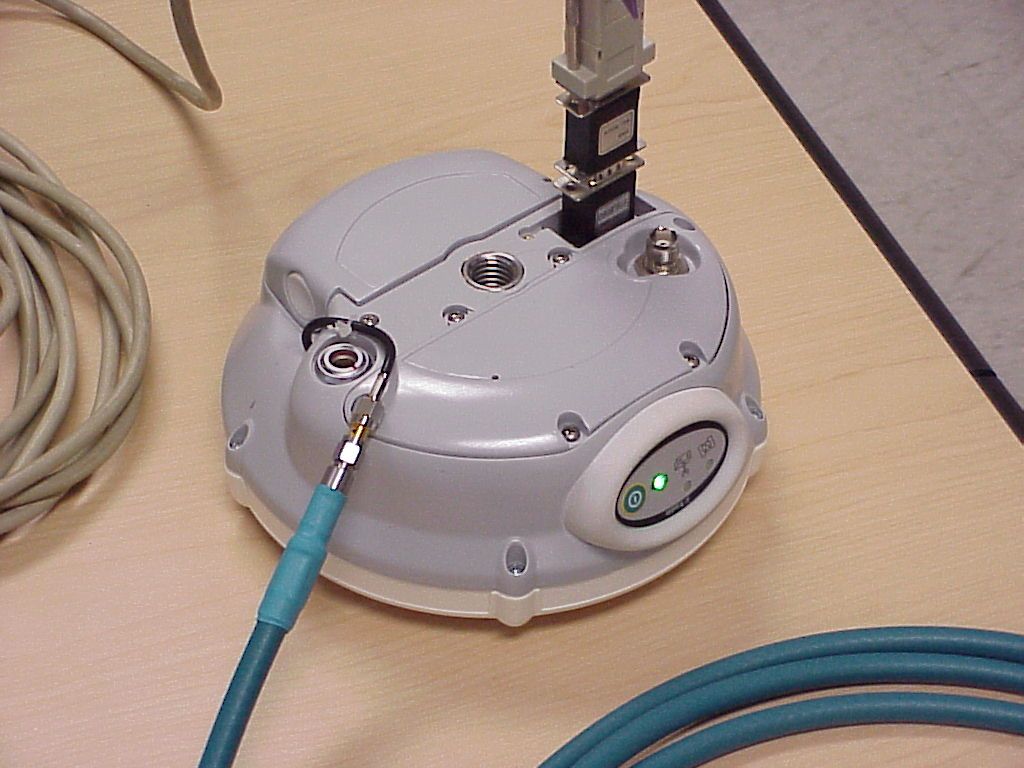

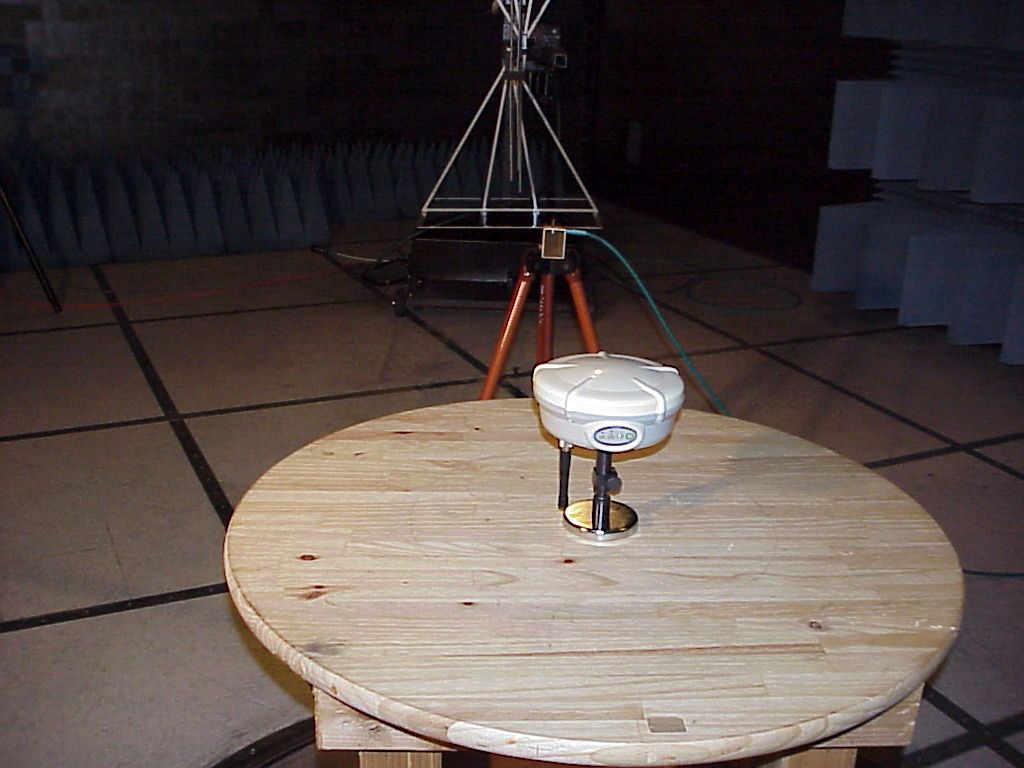

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 49 Pages Page 1 (49) Test report no.: 237FCC/2002 FCC Part 15.247 (POGOSTICK) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.:237FCC/2002 Issue date:2002-02-05 Page 2 (49) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC & Radio Engineer : Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.:237FCC/2002 Issue date:2002-02-05 Page 3 (49) 1.3 Details of applicant Name : Trimble Navigation Ltd. Street : 645 N Mary Av. City : Sunnyvale, CA 94086 Country : USA Contact : Dennis Connor Telephone : +1 408 481 7314 Telefax : +1 408 481 2097 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2002-01-01 Date of receipt test item : 2002-01-16 Date of test : 2002-01-16/17 1.5 Test item Manufacturer : Applicant Name of EUT : POGOSTICK Description : GPS Receiver with integrated Bluetooth and receive only Radio Modem Model No. : 5800 Serial No. : 0012284317 FCC ID. : Additional information Frequency : 2402MHz – 2480MHz Type of modulation : FHSS Number of channels : 79 Antenna : Quater wave dipole Power supply : Internal Battery Output power : -8.81dBm (0.131mW) Extreme vol. Limits : Battery operated (8V-20V DC) Extreme temp. Tolerance : -30ºC – +60ºC 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) CETECOM Inc. Test report no.:237FCC/2002 Issue date:2002-02-05 Page 4 (49) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 2002-02-05 EMC & Radio Lothar Schmidt Date Section Name Signature CETECOM Inc. Test report no.:237FCC/2002 Issue date:2002-02-05 Page 5 (49) 2.2 Testreport TEST REPORT Test report no. : 237FCC/2002 (POGOSTICK) CETECOM Inc. Test report no.:237FCC/2002 Issue date:2002-02-05 Page 6 (49) TEST REPORT REFERENCE LIST OF MEASUREMENTS Paragraph PARAMETER TO BE MEASURED PAGE Transmitter parameters § 15.204 Antenna gain 7 § 15.247 (a) Carrier frequency separation 8 § 15.247 (a) Number of hopping channels 9 § 15.247 (a) Time of occupancy (dwell time) 13 § 15.247 (a)(1) Spectrum Bandwith of a FHSS System 16 § 15.247 (b)(2) Maximum peak output power 20 §15.247(c) Band edge compliance 28 § 15.247 (c)(1) Emission limitations 30 § 15.107/207 AC Line Conducted Emission 43 Receiver parameters § 15.209 Spurious radiations - Radiated 44 Test equipment listing 49 CETECOM Inc. Test report no.: 237FCC/2002 Issue Date: 2002-02-05 Page 7 (49) Antenna Gain SUBCLAUSE § 15.204 The max gain is: -9.27dBi (measured effectiv radiated power – measured conducted power with a temporary RF-connector) CETECOM Inc. Test report no.: 237FCC/2002 Issue Date: 2002-02-05 Page 8 (49) CARRIER FREQUENCY SEPERATION §15.247(a) A UnitdBm 1.8 dB Offset 1MA RBW 30 kHz VBW 100 kHz SWT 8.5 ms 1MAX RF Att 40 dB Ref Lvl 31.8 dBm Ref Lvl 31.8 dBm 300 kHz/Center2.441 GHzSpan3 MHz -60 -50 -40 -30 -20 -10 0 10 20 -68.2 31.8 1 23 Marker 1 [T1] -0.70 dBm 2.44000401 GHz 1 [T1] -0.70 dBm 2.44000401 GHz 2 [T1] -0.63 dBm 2.44100301 GHz 3 [T1] -0.70 dBm 2.44200701 GHz Date: 17.JAN.2002 08:42:28 CETECOM Inc. Test report no.: 237FCC/2002 Issue Date: 2002-02-05 Page 9 (49) NUMBER OF HOPPING CHANNELS §15.247(a) The number of hopping channels is 79 (see next 4 plots) The right red line corresponds to the left red line from the next plot. Plot 1: Total 22 A UnitdBm 1.8 dB Offset 1MA1MAX RF Att 40 dB Ref Lvl 31.8 dBm Ref Lvl 31.8 dBmSWT 5 ms Start2.4 GHzStop2.425 GHz2.5 MHz/ RBW 300 kHz VBW 300 kHz -60 -50 -40 -30 -20 -10 0 10 20 -68.2 31.8 1 2 Marker 1 [T1] -0.49 dBm 2.40200401 GHz 1 [T1] -0.49 dBm 2.40200401 GHz 2 [T1] -0.72 dBm 2.42304609 GHz F1 F2 Date: 17.JAN.2002 08:45:46 CETECOM Inc. Test report no.: 237FCC/2002 Issue Date: 2002-02-05 Page 10 (49) Plot 2: Total 24 A UnitdBm 1.8 dB Offset 1MA1MAX RF Att 40 dB Ref Lvl 31.8 dBm Ref Lvl 31.8 dBmSWT 5 ms Start2.42 GHzStop2.45 GHz3 MHz/ RBW 300 kHz VBW 300 kHz -60 -50 -40 -30 -20 -10 0 10 20 -68.2 31.8 12 Marker 2 [T1] -0.72 dBm 2.42304609 GHz 2 [T1] -0.72 dBm 2.42304609 GHz 1 [T1] -0.72 dBm 2.44705411 GHz F2 F1 Date: 17.JAN.2002 08:49:21 CETECOM Inc. Test report no.: 237FCC/2002 Issue Date: 2002-02-05 Page 11 (49) Plot 3: Total 20 A UnitdBm 1.8 dB Offset 1MA1MAX RF Att 40 dB Ref Lvl 31.8 dBm Ref Lvl 31.8 dBmSWT 5 ms Start2.445 GHzStop2.47 GHz2.5 MHz/ RBW 300 kHz VBW 300 kHz -60 -50 -40 -30 -20 -10 0 10 20 -68.2 31.8 1 2 Marker 1 [T1] -0.89 dBm 2.44705411 GHz 1 [T1] -0.89 dBm 2.44705411 GHz 2 [T1] -0.61 dBm 2.46704409 GHz F1 F2 Date: 17.JAN.2002 08:51:30 CETECOM Inc. Test report no.: 237FCC/2002 Issue Date: 2002-02-05 Page 12 (49) Plot 4: Total 13 A UnitdBm 1.8 dB Offset 1MA1MAX RF Att 40 dB Ref Lvl 31.8 dBm Ref Lvl 31.8 dBmSWT 5 ms Start2.465 GHzStop2.485 GHz2 MHz/ RBW 300 kHz VBW 300 kHz -60 -50 -40 -30 -20 -10 0 10 20 -68.2 31.8 1 2 Marker 2 [T1] -0.68 dBm 2.46704409 GHz 2 [T1] -0.68 dBm 2.46704409 GHz 1 [T1] -0.76 dBm 2.48…

Text truncated - open the document above for the full version.
