JUP-SMSE013RFID Read/Writer for Chemical and Fertilizer application system

Assembly Instructions Müller-Elektronik GmbH, Franz-Kleine-Straße 18, 33154 Salzkotten, Germany, [email protected], www.mueller-elektronik.de 3059790004-02-EN-600 V1.20240306 For your safety Please read the following instructions carefully before using the product for the first time: ▪ The approved antenna must be professionally installed by Amwac or an Amwac approved installer to comply with §15.203 of the FCC rules. ▪ The approved antenna must be professionally serviced by Amwac or an Amwac approved installer to comply with §15.203 of the FCC rules. ▪ The SIMPAS RFID Reader/Writer may only be used with the approved antenna (No.: SMSE015) and not with any other antenna (each antenna connection may only be connected to an identical approved antenna). ▪ Use of the device with any other antenna will invalidate the FCC certification. ▪ Unused antenna connectors must be deactivated by the software and covered with a dust cap. ▪ This device is only approved for installation on agricultural machines. The power supply from an AC source is not permitted. The system is designed to be operated only with 5 VDC. The FCC certification is invalidated if an AC main power supply is used. Connecting the RFID Reader/Writer to antennas You can connect the RFID Reader/Writer to a total of three antennas. Please note that only antennas of type SMSE015 may be used.  - You have an original RFID Reader/Writer to hand.  - You have three SMSE015 antennas to hand.  - You have a 1Nm torque wrench to hand. 1. Connect the first antenna to the first connection of the RFID Reader/Writer. Use the 1Nm torque wrench and tighten the screw clockwise. 2. Connect the second antenna to the second connection of the RFID Reader/Writer. Proceed in the same way as for the first antenna. 3. Connect the third antenna to the third connection of the RFID Reader/Writer. Proceed in the same way as for the other two antennas. ⇨ The RFID Reader/Writer can now be connected to the machine. Procedure

Data Sheet RFID Reader/Writer SMSE013 Version: V2.20240306 3059790004-02-EN-900 Read and follow this data sheet. Keep it for future use. Subject to technical modifications. Company details Data Sheet Product: RFID Reader/Writer SMSE013 Document number: 3059790004-02-EN-900 Original language: German Müller-Elektronik GmbH Franz-Kleine-Straße 18 33154 Salzkotten Germany Phone: ++49 (0) 5258 / 9834 - 0 Fax: ++49 (0) 5258 / 9834 - 90 Email: [email protected] Homepage: http://www.mueller-elektronik.de Document Copyright © Table of contents 3059790004-02-EN-900 Subject to technical modifications. 3 Table of contents 1 For your safety 4 2 Description 5 3 Compliance 6 4 Technical specifications 7 5 Dimensions 8 6 Block diagram 9 1 For your safety 4 Subject to technical modifications. 3059790004-02-EN-900 For your safety Please read the following instructions carefully before using the product for the first time: ▪ The approved antenna must be professionally installed by Amwac or an Amwac approved installer to comply with §15.203 of the FCC rules. ▪ The approved antenna must be professionally serviced by Amwac or an Amwac approved installer to comply with §15.203 of the FCC rules. ▪ The SIMPAS RFID Reader/Writer may only be used with the approved antenna (No.: SMSE015) and not with any other antenna (each antenna connection may only be connected to an identical approved antenna). ▪ Use of the device with any other antenna will invalidate the FCC certification. ▪ Unused antenna connectors must be deactivated by the software and covered with a dust cap. ▪ This device is only approved for installation on agricultural machines. The power supply from an AC source is not permitted. The system is designed to be operated only with 5 VDC. The FCC certification is invalidated if an AC main power supply is used. 1 Description 2 3059790004-02-EN-900 Subject to technical modifications. 5 Description The RFID Reader/Writer serves as a reading and writing device for RFID tags attached to containers of the SIMPAS application system. It is a transceiver that operates in the 902-928 MHz range. It reads and writes RFID tags that comply with the ISO1800-6C standard. The device is powered by 5 V and is usually installed on agricultural machinery. It is controlled via RS-232 interface. The device transmits data and is controlled via RS-232. The antennas have a gain of -18 dBi. When the system is powered up and initialized, a SIMPAS Meter ECU triggers read operations on each antenna every 100 ms via the RS-232 interface. When the machine is running, the SIMPAS Meter ECU triggers write operations every 30 seconds to update the values on the RFID tags. Only one antenna can be active at a time. The SIMPAS RFID Reader/Writer does not read or write independently. An external device is required to trigger read/write operations via RS-232. RFID Reader/Writer with connected antenna (No. :SMSE015) 2 3 Compliance 6 Subject to technical modifications. 3059790004-02-EN-900 Compliance Changes or modifications not expressly approved by Trimble could void the user's authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 3 Technical specifications 4 3059790004-02-EN-900 Subject to technical modifications. 7 Technical specifications Operating voltage 4.5 V...5.45 V Max. current consumption 0.5 A Operating temperature -20 °C...+70 °C (-4°C...+158°F) Dimensions 118 mm x 128 mm x 34 mm (4.65 in x 5.04 in x 1.34 in) Certification FCC according to FCC standard 15.247 Transmitting frequency 902 MHz (nominal) The transmit frequency is controlled by a 20 MHz crystal oscillator. The RF transmitter IC (ST25RU3993) has a built-in phase locked loop circuit. Modulation ASK (Amplitude Shift Keying) RF output power 100 mW (20 dBm) 4 5 Dimensions 8 Subject to technical modifications. 3059790004-02-EN-900 Dimensions 5 Block diagram 6 3059790004-02-EN-900 Subject to technical modifications. 9 Block diagram 6

Data Sheet RFID Reader/Writer SMSE013 Version: V1.20240220 3059790004-02-EN-900 Read and follow this data sheet. Keep it for future use. Subject to technical modifications. Company details Data Sheet Product: RFID Reader/Writer SMSE013 Document number: 3059790004-02-EN-900 Original language: German Müller-Elektronik GmbH Franz-Kleine-Straße 18 33154 Salzkotten Germany Phone: ++49 (0) 5258 / 9834 - 0 Fax: ++49 (0) 5258 / 9834 - 90 Email: [email protected] Homepage: http://www.mueller-elektronik.de Document Copyright © Table of contents 3059790004-02-EN-900 Subject to technical modifications. 3 Table of contents 1 For your safety 4 2 Description 5 3 Compliance 6 4 Technical specifications 7 5 Dimensions 8 6 Block diagram 9 1 For your safety 4 Subject to technical modifications. 3059790004-02-EN-900 For your safety Please read the following instructions carefully before using the product for the first time: ▪ The approved antenna must be professionally installed by Amwac or an Amwac approved installer to comply with §15.203 of the FCC rules. ▪ The SIMPAS RFID Reader/Writer may only be used with the approved antenna (No.: SMSE015) and not with any other antenna (each antenna connection may only be connected to an identical approved antenna). ▪ Use of the device with any other antenna will invalidate the FCC certification. ▪ Unused antenna connectors must be deactivated by the software and covered with a dust cap. ▪ This device is only approved for installation on agricultural machines. The power supply from an AC source is not permitted. The system is designed to be operated only with 5 VDC. The FCC certification is invalidated if an AC main power supply is used. 1 Description 2 3059790004-02-EN-900 Subject to technical modifications. 5 Description The RFID Reader/Writer serves as a reading and writing device for RFID tags attached to containers of the SIMPAS application system. It is a transceiver that operates in the 902-928 MHz range. It reads and writes RFID tags that comply with the ISO1800-6C standard. The device is powered by 5 V and is usually installed on agricultural machinery. It is controlled via RS-232 interface. The device transmits data and is controlled via RS-232. The antennas have a gain of -18 dBi. When the system is powered up and initialized, a SIMPAS Meter ECU triggers read operations on each antenna every 100 ms via the RS-232 interface. When the machine is running, the SIMPAS Meter ECU triggers write operations every 30 seconds to update the values on the RFID tags. Only one antenna can be active at a time. The SIMPAS RFID Reader/Writer does not read or write independently. An external device is required to trigger read/write operations via RS-232. RFID Reader/Writer with connected antenna (No. :SMSE015) 2 3 Compliance 6 Subject to technical modifications. 3059790004-02-EN-900 Compliance Changes or modifications not expressly approved by Trimble could void the user's authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 3 Technical specifications 4 3059790004-02-EN-900 Subject to technical modifications. 7 Technical specifications Operating voltage 4.5 V...5.45 V Max. current consumption 0.5 A Operating temperature -20 °C...+70 °C (-4°C...+158°F) Dimensions 118 mm x 128 mm x 34 mm (4.65 in x 5.04 in x 1.34 in) Certification FCC according to FCC standard 15.247 Transmitting frequency 902 MHz (nominal) The transmit frequency is controlled by a 20 MHz crystal oscillator. The RF transmitter IC (ST25RU3993) has a built-in phase locked loop circuit. Modulation ASK (Amplitude Shift Keying) RF output power 100 mW (20 dBm) 4 5 Dimensions 8 Subject to technical modifications. 3059790004-02-EN-900 Dimensions 5 Block diagram 6 3059790004-02-EN-900 Subject to technical modifications. 9 Block diagram 6

CKC Certification Services, LLC CB: US0103; NB/AB: 0976 5046 Sierra Pines Drive Mariposa, CA 95338 Phone: 1 800-500-4EMC (4362) Fax: 209-787-5568 Email: [email protected] APP-FCC-A Page 1 of 2 Rev 3 APP-FCC-A Applicant Attestation Applicant Information Company Name: Trimble Inc. Contact Name: Jeff Mallari Contact Title: Compliance Engineering Manager Company Address: 10368 Westmoor Drive, Westminster, CO 80021, United States Telephone No: +1 (408)481-8220 Facsimile No: Email Address: [email protected] Certification Type / Equipment Identification Certification Program: FCC Equipment Authorization / Radio Certification Certification Number: JUP-SMSE013 The equipment identified above ☐ is / ☒ is not “covered” equipment prohibited from receiving an equipment authorization pursuant to 47 CFR Part 2, Subpart J, §2.903. The applicant identified above ☐ is / ☒ is not identified on the FCC’s “Covered List” as an entity, affiliate, or subsidiary which produces equipment on the “Covered List” or identified as an entity which has rebranded or relabeled equipment produced by entities identified on the “Covered List.” I hereby attest and certify that the above statements are true and correct. Signature of Authorized Individual: 1 Printed Name: Jeff Mallari Title of authorized signature: Compliance Engineering Manager Date 9/25/2023 Note this attestation shall be signed by the applicant or their direct appointee within the same legal entity. A third party agent is not permitted to sign on behalf of the applicant. 1 Signature is not subject to the FCC’s authorized individual policy ( KDB 852134) and may be signed by any appropriate company official. CKC Certification Services, LLC CB: US0103; NB/AB: 0976 5046 Sierra Pines Drive Mariposa, CA 95338 Phone: 1 800-500-4EMC (4362) Fax: 209-787-5568 Email: [email protected] APP-FCC-A Page 2 of 2 Rev 3 Attachment A – Additional Information The FCC’s “Covered List” includes certain “telecommunications equipment” and “video surveillance equipment” produced by specific manufacturers, their Affiliates or Subsidiaries and including any products produced by these entities which are rebranded or relabeled by other entities. (191, 184, 185, 188) 2 The FCC claims the identified equipment poses an unacceptable risk to United States national security. Telecommunications Equipment (195) : Any equipment used in fixed or mobile networks that provides advanced communications service, provided the equipment includes or uses electronic components, as defined under section 1.50001(c). Video Surveillance Equipment (205) : Any equipment that is used in fixed and mobile networks that provides advanced communications service in the form of a video surveillance service, provided the equipment includes or uses electronic components. Advanced Communications Service (195, 205) Any equipment that can be used in such a fixed or mobile broadband network to enable users to originate and receive high quality voice, data, graphics, and video telecommunications service using any technology with connection speeds of at least 200 kbps in either direction. Affiliate (183) : An entity that (directly or indirectly) owns or controls, is owned or controlled by, or is under common ownership or control with, another entity, where the term “own” means to have, possess, or otherwise control an equity interest (or the equivalent thereof) of more than 10 percent. Subsidiary (184) : Any entity in which such named entity directly or indirectly (1) holds de facto control or (2) owns or controls more than 50% of the total voting power of the entity’s outstanding voting stock. Useful Links: FCC Covered List https://www.fcc.gov/supplychain/coveredlist 47 CFR Part 2 Subpart J (including 2.903 and 2.911) https://www.ecfr.gov/current/title-47/chapter-I/subchapter-A/part-2/subpart-J FCC KDB System: https://apps.fcc.gov/oetcf/kdb/index.cfm FCC Report and Order 22-84 https://docs.fcc.gov/public/attachments/FCC-22-84A1.pdf 2 Parenthetical references are citations of paragraph numbers in FCC Report and Order FCC 22-84 (ET Docket 21.232).

Attestation For United States Agent for Service of Process Self-Designation for US Based Manufacturers Only CKC CS PUB FCC AFSOP Self Designation v4 Applicant / Equipment Manufacturer Information Company Name: Trimble Inc. Grantee Code: JUP FRN: 0005921291 Applicant Attestation The undersigned hereby consents: a) to self-designation as US Agent for Service of Process; and b) to accept responsibility and obligation to maintain self-designation for no less than one year after either all marketing and importation of the applicable equipment within the U.S has been permanently terminated, or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later; and c) to accept service of process in the US for matters related to the applicable equipment and at the physical address and email address identified in the applicant’s grantee code registration for equipment authorization applications under certification pursuant to 47 CFR Part 2 Subpart J; and d) to maintain current grantee code information on file in accordance with 47 CFR Part 2.929. Signature of Applicant: Printed Name: Jeff Mallari Date: 10/17/2023

Trimble Inc. 10368 Westmoor Dr Westminster, CO 80021 United States 1 September 2023 To Whom It May Concern: We hereby delegate CKC Certification Services, LLC (CKC CS) power of attorney to act on our behalf in matters pertaining to certification of products. The actions of CKC CS shall be considered the same as our own. Sincerely, Jeff Mallari Compliance Engineering Manager Tr im b le In c. 510 De Guigne Dr Sunnyvale, CA, 94085 United States 408-481-8220

Trimble Inc. 10368 Westmoor Drive Westminster, CO 80021 +1(720) 887-6100 AUTHORIZATION LETTER September 21, 2023 To Whom It May Concern: I hereby appoint Jeff Mallari to sign letters and applications for any filings with regulatory agencies on our behalf, and to receive and exchange data between our company, the agents company and the agency in connection with certification for the product that our company owns or manufactures. Model: SMSE013 Product Name: SIMPAS_RE RFID R/W Product Description: RFID Read/Writer for Chemical and Fertilizer application system Sincerely, Tony Phan Compliance Manager Trimble Inc.

Trimble Inc. 10368 Westmoor Dr Westminster, CO 80021 United States 10/09/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Permanent Confidentiality To whom it may concern: In accordance with 47CFR Section 0.457 and Section 0.459 pertaining to confidential material, we hereby request to hold permanently confidential all information contained within the below identified exhibits/document categories submitted pursuant to radio equipment certification requirements for FCC ID: JUP-SMSE013 1. Block Diagram 2. Operational Description 3. Schematics 4. Parts List The above material contains trade secrets and proprietary information as specified by 47CFR 0.457(d) and technical data, which would customarily be guarded from competitors. The public disclosure of this information might be harmful to our company and provide unjustified benefits to our competitors. Sincerely, Jeff Mallari Compliance Engineering Manager Trimble Inc. 510 De Guigne Dr Sunnyvale, CA, 94085 United States 408-481-8220

Trimble Inc. 10368 Westmoor Dr Westminster, CO 80021 United States 2/22/2024 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Installation restriction (SIMPAS RFID R/W - FCC-ID: JUPSMSE013) To whom it may concern: The device “SIMPAS RFID R/W” (Part No. SMSE013) is only approved for installation on agricultural machines. The power supply from an AC source is not permitted. The system is designed to be operated only with 5 VDC supplied by a “SIMPAS Meter” ECU, which is operated on the 12 VDC board net of the machine. The FCC certification is invalidated if an AC main power supply is used." Sincerely, __________________________ Jeff Mallari Compliance Manager Trimble Inc.

Trimble Inc. 10368 Westmoor Dr Westminster, CO 80021 United States 2/22/2024 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Professional Installation (SIMPAS RFID R/W - FCC-ID: JUPSMSE013) To whom it may concern: In accordance with KDB 353028 (D01 Antennas Part 15 Transmitters v01 r01, section II. A. 2)(c)) the device “SIMPAS RFID R/W” (Part No. SMSE013) must be professionally installed and is intended for commercial agricultural use only. The device is uniquely designed for Amvac and can only be purchased by Amvac approved dealers as part of a SIMPAS system. It is not for sale to consumers or the general public. Due to the complexity of the SIMPAS system the installation can only be done by Amvac trained dealer personnel. The device may only be used with the Amvac approved antenna (Part No.: SMSE015). Sincerely, __________________________ Jeff Mallari Compliance Manager Trimble Inc.

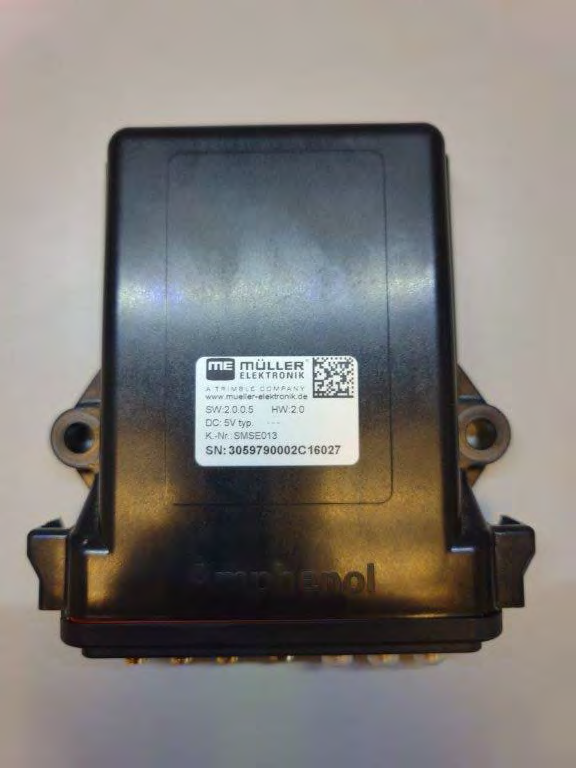

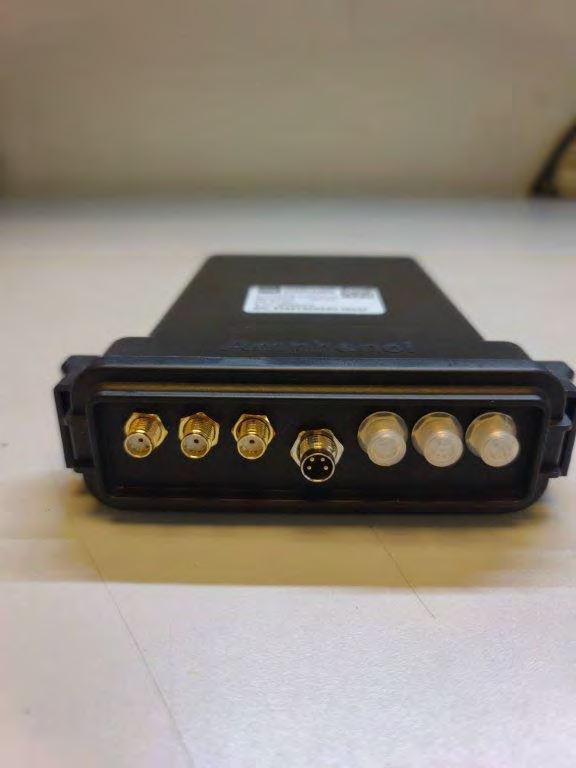

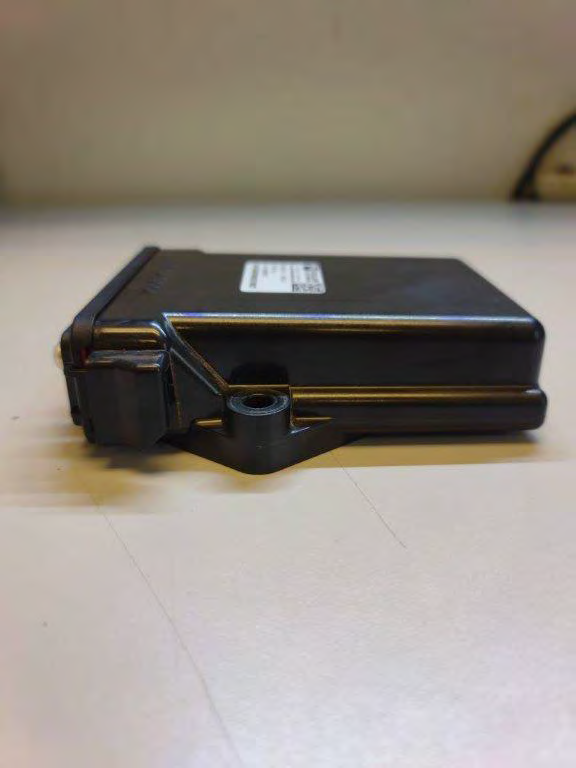

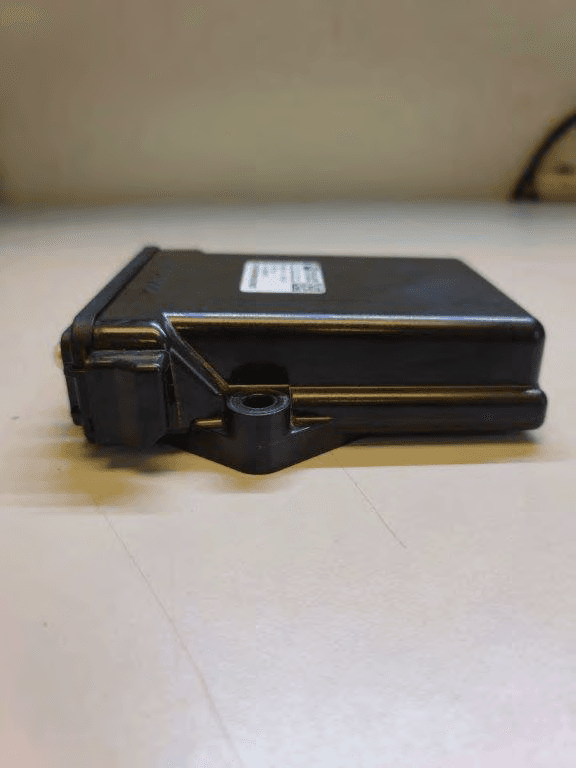

F2P28883-C1 Page 1 of 6 2023-05-01 PHOTOGRAPHS: EXTERNAL Trimble Inc. – Model SMSE013 Front Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 2 of 6 2023-05-01 Rear Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 3 of 6 2023-05-01 Right Side Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 4 of 6 2023-05-01 Left Side Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 5 of 6 2023-05-01 Top Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 6 of 6 2023-05-01 Bottom

Sample ID Label Sample Label Location

F2P28883-C1 Page 1 of 5 2023-05-01 PHOTOGRAPHS: INTERNAL Trimble Inc. – Model SMSE013 Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 2 of 5 2023-05-01 Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 3 of 5 2023-05-01 Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 4 of 5 2023-05-01 PCB Top PCB Bottom Order Number: F2P28883-C1 Client: Trimble Inc. Model: SMSE013 F2P28883-C1 Page 5 of 5 2023-05-01 Radio Chip

042216 Report Number: F2P28883-C1-02E Page 1 of 8 Issue Date: 2024-04-04 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Trimble Inc. 10368 Westmoor Drive Westminster, Colorado 80021 USA Applicant: Same as Above Product Name: SIMPAS_RE RFID R/W Product Description: RFID Reader/Writer Model: SMSE013 FCC ID: JUP-SMSE013 Test Results: In Compliance The EUT complies with the EMC requirements when manufactured identically as the unit tested in this report, including any required modifications. Any changes to the design or build of this unit subsequent to this testing may deem it non- compliant. Standards: • KDB447498 • FCC 1.1310 Order No(s): F2P28883-C1 Applicant: Trimble Inc. Model: SMSE013 042216 Report Number: F2P28883-C1-02E Page 2 of 8 Issue Date: 2024-04-04 Evaluation Conducted by: Julius Chiller, Senior Wireless Project Engineer Report Reviewed by: Ken Littell, Vice President of Operations F2 Labs F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road 8583 Zionsville Road Damascus, MD 20872 Middlefield, OH 44062 Indianapolis, IN 46268 Ph 301.253.4500 Ph 440.632.5541 Ph 317.610.0611 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order No(s): F2P28883-C1 Applicant: Trimble Inc. Model: SMSE013 042216 Report Number: F2P28883-C1-02E Page 3 of 8 Issue Date: 2024-04-04 TABLE OF CONTENTS 1 ADMINISTRATIVE INFORMATION 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 3 ENGINEERING STATEMENT 4 EUT INFORMATION AND DATA 5 RF EXPOSURE FOR DEVICE >20cm FROM HUMAN Order No(s): F2P28883-C1 Applicant: Trimble Inc. Model: SMSE013 042216 Report Number: F2P28883-C1-02E Page 4 of 8 Issue Date: 2024-04-04 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to KDB558074. 1.4 Document History Document Number Description Issue Date Approved By F2P28883-C1-02E First Issue 2024-04-04 K. Littell Order No(s): F2P28883-C1 Applicant: Trimble Inc. Model: SMSE013 042216 Report Number: F2P28883-C1-02E Page 5 of 8 Issue Date: 2024-04-04 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results RF Exposure for Device >20cm from Human KDB447498 Complies Modifications Made to the Equipment None Order No(s): F2P28883-C1 Applicant: Trimble Inc. Model: SMSE013 042216 Report Number: F2P28883-C1-02E Page 6 of 8 Issue Date: 2024-04-04 3 ENGINEERING STATEMENT This report has been prepared on behalf of Trimble Inc. to provide documentation for the testing described herein. This equipment has been tested and found to comply with KDB447498. The test results found in this test report relate only to the item(s) tested. Order No(s): F2P28883-C1 Applicant: Trimble Inc. Model: SMSE013 042216 Report Number: F2P28883-C1-02E Page 7 of 8 Issue Date: 2024-04-04 4 EUT INFORMATION AND DATA 4.1 Equipment Under Test: Product: SIMPAS_RE RFID R/W Model: SMSE013 Serial No.: 3059790002C 16027 Firmware: 4.2.2.0 Hardware: 4.0 FCC ID: JUP-SMSE013 4.2 Trade Name: Trimble Inc. 4.3 Power Supply: USB 5VDC 4.4 Applicable Rules: KDB447498 4.5 Antenna: Dipole, Mueller Electronics 3059790003 4.6 Accessories: Device Manufacturer Model Number Serial Number Laptop Dell Latitude E6530 None Specified Power Supply* BK Precision 1685B 346F17303 *Indicates F2 Labs-supplied equipment. . Order No(s): F2P28883-C1 Applicant: Trimble Inc. Model: SMSE013 042216 Report Number: F2P28883-C1-02E Page 8 of 8 Issue Date: 2024-04-04 5. RF EXPOSURE FOR DEVICE >20cm FROM HUMAN 5.1 Requirements: Distance used is 20cm Limit: 0.602mW/cm 2 (902.75/1500) Formula used for result: E.I.R.P. 4 π R 2 Results: Max Conducted Output Power was 17.66dBm on the 902.75 MHz Low Channel. The Peak Antenna Gain was -17.31dBi E.I.R.P. = 1.08mW at the 902.75 MHz Low Channel. 1. 08mW = 1.08mW = 0.00021mW/cm2 4 π R 2 5026.55

Königswinkel 10 32825 Blomberg, Germany Phone: +49 (0) 52 35 / 95 00-0 Fax: +49 (0) 52 35 / 95 00-10 [email protected] www.phoenix-testlab.de Antenna Report Report Number: F230236E1 Equipment under Test (EUT): RFID Antenna Article No. 3059790003 Applicant: Müller Elektronik Manufacturer: Müller Elektronik Examiner: Bernd STEINER Report Number: F230236E1 Date of issue: 15.12.2023 Order Number: 23-110236 page 2 of 25 References [1] None (According customer requirements) Disclaimer T h i s t e s t r e p o r t i s o n l y v a l i d i n i t s o r i g i n a l f o r m. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Tested by: Signature Written by: Signature Reviewed and approved by: Signature Examiner: Bernd STEINER Report Number: F230236E1 Date of issue: 15.12.2023 Order Number: 23-110236 page 3 of 25 Contents: Page 1 Identification ..................................................................................................................................................... 4 1.1 Applicant ..................................................................................................................................................... 4 1.2 Manufacturer .............................................................................................................................................. 4 1.3 Test Laboratory .......................................................................................................................................... 4 1.4 AUT (Antenna under test) .......................................................................................................................... 5 1.5 Technical Data of Equipment ..................................................................................................................... 6 1.6 Dates .......................................................................................................................................................... 6 2 Operational States ............................................................................................................................................ 7 3 Additional Information ....................................................................................................................................... 7 4 Antenna photographs ....................................................................................................................................... 8 4.1 External photographs ................................................................................................................................. 8 4.2 internal photographs................................................................................................................................... 9 5 Antenna Charts ............................................................................................................................................... 10 5.1 Results (Max. Gain) .................................................................................................................................. 10 5.2 Antenna Diagrams EUT Position 1 (X-Position) ...................................................................................... 11 5.2.1 Test Setup Photos (X-Position) ..................................................................................................... 11 5.2.2 Antenna Charts X-Position ............................................................................................................ 12 5.3 Antenna Diagrams EUT Position 2 (Y-Position) ...................................................................................... 15 5.3.1 Test Setup Photos .........…
