JUP-50158-R8GPS Receiver with integrated GSM and BT

 Version 2.11 Revision A June 2004 Trimble ® R7/R8 GPS Receiver User Guide Corporate Office Trimble Navigation Limited Engineering and Construction Division 5475 Kellenburger Road Dayton, Ohio 45424-1099 U.S.A. Copyright and Trademarks © 2001-2004, Trimble Navigation Limited. All rights reserved. Trimble, the Globe & Triangle logo, and GPS Total Station are trademarks of Trimble Navigation Limited, registered in the United States Patent and Trademark Office and other countries. eRTK, Micro-Centred, SiteNet, Trimble Geomatics Office, Trimble Survey Controller, Trimble Survey Pro, TRIMMARK, TRIMTALK, TSC1, TSCe, and Zephyr are trademarks of Trimble Navigation Limited. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Trimble Navigation Limited is under license Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Release Notice This is the June 2004 release (Revision A) of the Trimble R7/R8 GPS Receiver User Guide. It applies to version 2.11 of the Trimble R7/R8 GPS receivers. The following limited warranties give you specific legal rights. You may have others, which vary from state/jurisdiction to state/jurisdiction. Hardware Limited Warranty Trimble warrants that this Trimble hardware product (the “Product”) shall be free from defects in materials and workmanship and will substantially conform to Trimble’s applicable published specifications for the Product for a period of one (1) year, starting from the date of delivery. The warranty set forth in this paragraph shall not apply to software/firmware products. Software and Firmware License, Limited Warranty This Trimble software and/or firmware product (the “Software”) is licensed and not sold. Its use is governed by the provisions of the applicable End User License Agreement (“EULA”), if any, included with the Software. In the absence of a separate EULA included with the Software providing different limited warranty terms, exclusions, and limitations, the following terms and conditions shall apply. Trimble warrants that this Trimble Software product will substantially conform to Trimble’s applicable published specifications for the Software for a period of ninety (90) days, starting from the date of delivery. Warranty Remedies Trimble's sole liability and your exclusive remedy under the warranties set forth above shall be, at Trimble’s option, to repair or replace any Product or Software that fails to conform to such warranty (“Nonconforming Product”), or refund the purchase price paid by you for any such Nonconforming Product, upon your return of any Nonconforming Product to Trimble in accordance with Trimble’s standard return material authorization procedures. Warranty Exclusions and Disclaimer These warranties shall be applied only in the event and to the extent that: (i) the Products and Software are properly and correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Trimble’s relevant operator's manual and specifications, and; (ii) the Products and Software are not modified or misused. The preceding warranties shall not apply to, and Trimble shall not be responsible for defects or performance problems resulting from (i) the combination or utilization of the Product or Software with products, information, data, systems or devices not made, supplied or specified by Trimble; (ii) the operation of the Product or Software under any specification other than, or in addition to, Trimble's standard specifications for its products; (iii) the unauthorized modification or use of the Product or Software; (iv) damage caused by accident, lightning or other electrical discharge, fresh or salt water immersion or spray; or (v) normal wear and tear on consumable parts (e.g., batteries). THE WARRANTIES ABOVE STATE TRIMBLE'S ENTIRE LIABILITY, AND YOUR EXCLUSIVE REMEDIES, RELATING TO PERFORMANCE OF THE PRODUCTS AND SOFTWARE. EXCEPT AS OTHERWISE EXPRESSLY PROVIDED HEREIN, THE PRODUCTS, SOFTWARE, AND ACCOMPANYING DOCUMENTATION AND MATERIALS ARE PROVIDED “AS-IS” AND WITHOUT EXPRESS OR IMPLIED WARRANTY OF ANY KIND BY EITHER TRIMBLE NAVIGATION LIMITED OR ANYONE WHO HAS BEEN INVOLVED IN ITS CREATION, PRODUCTION, INSTALLATION, OR DISTRIBUTION, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT. THE STATED EXPRESS WARRANTIES ARE IN LIEU OF ALL OBLIGATIONS OR LIABILITIES ON THE PART OF TRIMBLE ARISING OUT OF, OR IN CONNECTION WITH, ANY PRODUCTS OR SOFTWARE. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON DURATION OR THE EXCLUSION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TRIMBLE NAVIGATION LIMITED IS NOT RESPONSIBLE FOR THE OPERATION OR FAILURE OF OPERATION OF GPS SATELLITES OR THE AVAILABILITY OF GPS SATELLITE SIGNALS. Limitation of Liability TRIMBLE’S ENTIRE LIABILITY UNDER ANY PROVISION HEREIN SHALL BE LIMITED TO THE GREATER OF THE AMOUNT PAID BY YOU FOR THE PRODUCT OR SOFTWARE LICENSE OR U.S.$25.00. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL TRIMBLE OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER UNDER ANY CIRCUMSTANCE OR LEGAL THEORY RELATING IN ANY WAY TO THE PRODUCTS, SOFTWARE, AND ACCOMPANYING DOCUMENTATION AND MATERIALS, (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS), REGARDLESS OF WHETHER TRIMBLE HAS BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH LOSS AND REGARDLESS OF THE COURSE OF DEALING WHICH DEVELOPS OR HAS DEVELOPED BETWEEN YOU AND TRIMBLE. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO…

Text truncated - open the document above for the full version.

645 N. Mary Avenue Sunnyvale, CA 94086, USA Ph +1 408 481 8000 Fax +1 408 481 6866 2004-05-21 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Trimble Navigation Ltd requests confidentiality for the following products: FCC ID Number Product Title/Model JUP-50158-R8The Trimble “R8” For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Theory of Operation 3) Parts List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Trimble Navigation Ltd trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our GPS receiver. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dennis Connor Engineering Manager, Radio Group

1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com STATEMENT This filing constitutes a formal submittal for equipment certification pursuant to parts 22, 24, & 15.247 of FCC rules (CFR 47). Company Name: Trimble Navigation Ltd. FCC ID: JUP-50158-R8 IC ID: 1756A-50158 Model# R8 R8 is a GPS receiver with integrated GSM and BT modules. Radio Manufacturer Model# GSM 850/1900 Wavecom Q2426 BT Infineon ROK104001 Since GSM module is pre-approved by FCC, therefore only radiated testing is done on EUT with this radio . All conducted measurements are used from the modular approval test report. SUMMARY OF TESTING EMC/Radio Test Reports: Test report no. EMC_655FCC22_24_2004 This test report covers all Radiated testing done in GSM 850/1900 bands with GSM module in the EUT. Test report no. GOM20304-7780-T-47 This test report covers all conducted testing for GSM module. Test report no. 4_Infin_0203_BTT_FCCa This test report covers all Radiated done on BT module. RF Exposure Please refer to MPE calculations under doc. “MPE_R8” Harpreet Sidhu EMC & Radio Engineer

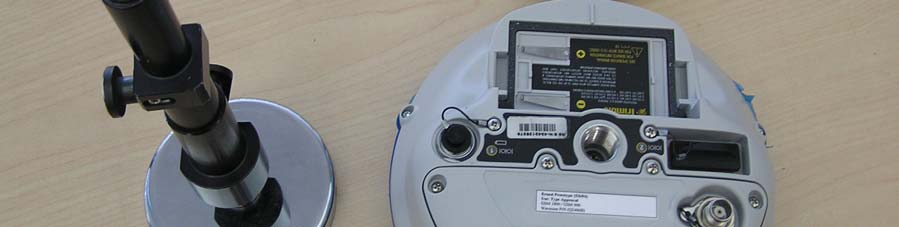

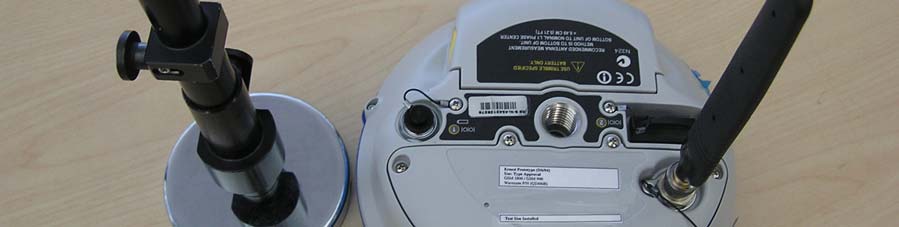

External photos R8 EUT – Top view External photos R8 EUT – Profile showing battery compartment External photos R8 EUT – Profile showing keypad External photos R8 EUT – Bottom view External photos R8 EUT – Bottom view with antenna and battery detached

Internal Photos BT BT Module as in R8 Internal Photos BT BT Module shielded Internal Photos BT BT Module unshielded

Internal photos R8 EUT – Internal view showing BT module Internal photos R8 EUT – Internal view close-up BT module Internal photos R8 EUT – Internal view showing shielded GSM module EUT – Internal view showing unshielded GSM module Internal photos R8 EUT – Internal view

MPE calculation for: Model# R8 Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power Calculation: GSM 1900 EIRP: 29.27dBm (845.27mW) Calculated at distance of 20cm Power density = 845.27 / (4 x pi x 20 2 ) = 0.168 mW/cm 2 GSM 850 EIRP: 27.73dBm (592.92mW) Calculated at distance of 20cm Power density = 592.92 / (4 x pi x 20 2 ) = 0.118 mW/cm 2 BT EIRP: 3.2dBm (2.09mW) Calculated at distance of 20cm Power density = 2.09 / (4 x pi x 20 2 ) = 0.0004 mW/cm 2 Limits for General Population/Uncontrolled Exposure (§1.1310) Frequency range (MHz) Power density (mW/cm 2 ) 300 – 1500 f/1500 1500 – 100,000 1.0 The warning information is included in the user manual

EMC Measurement/Technical Report 4_Infin_0203_BTT_FCCa on 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Flinkstone ROK 104001 Registergericht - registered in: Düsseldorf, HRB 44096 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99 Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Measurement Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 -- 11 14 17 28 31 33 34 Spurious RF Radiated Emissions 19 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation Processing Gain 23 25 27 -- 4.2 4.2 4.4 4.5 4.6 4.7 4.8 -- 8. Annex measurement plots25 Pages Page 2 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 58 Testreport Reference: 4_Infin_0203_BTT_FCCa 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result 21s60b01op-mode 1temporary antenna connectorpassed 21s60b01op-mode 2temporary antenna connectorpassed 21s60b01op-mode 3temporary antenna connectorpassed 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result 21s60b01op-mode 1temporary antenna connectorpassed 21s60b01op-mode 2temporary antenna connectorpassed 21s60b01op-mode 3temporary antenna connectorpassed 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result 21s60b01op-mode 1temporary antenna connectorpassed 21s60b01op-mode 2temporary antenna connectorpassed 21s60b01op-mode 3temporary antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result 21s60b02op-mode 1enclosurepassed 21s60b02op-mode 2enclosurepassed 21s60b02op-mode 3enclosurepassed § 15.247(f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Dwell Time OP-ModeSetupPortFinal Result 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (d)FCC Part 15, Subpart C Page 4 of 58 Testreport Reference: 4_Infin_0203_BTT_FCCa FCC §15.3110-1-1998 The measurement was performed according to Power Density OP-ModeSetupPortFinal Result 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result 21s60b01op-mode 6temporary antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 20.02.2003 Arndt Stöcker 25.02.2003 20.02.2003 - 24.02.2003 Responsible for testing and report Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Infineon Technologies Wireless Solution Sweden AB Henrik Arfwedson Isafjordsgatan 16 164 81 Kista-Stockholm Sweden please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 58 Testreport Reference: 4_Infin_0203_BTT_FCCa 2.0 Product Labeling 2.1 FCC ID Label: At the time of the report there was no FCC label available. 2.2 Location of Label on the EUT: see above Page 7 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa 3. Testobject Data Type Designation: Kind of Devi…
