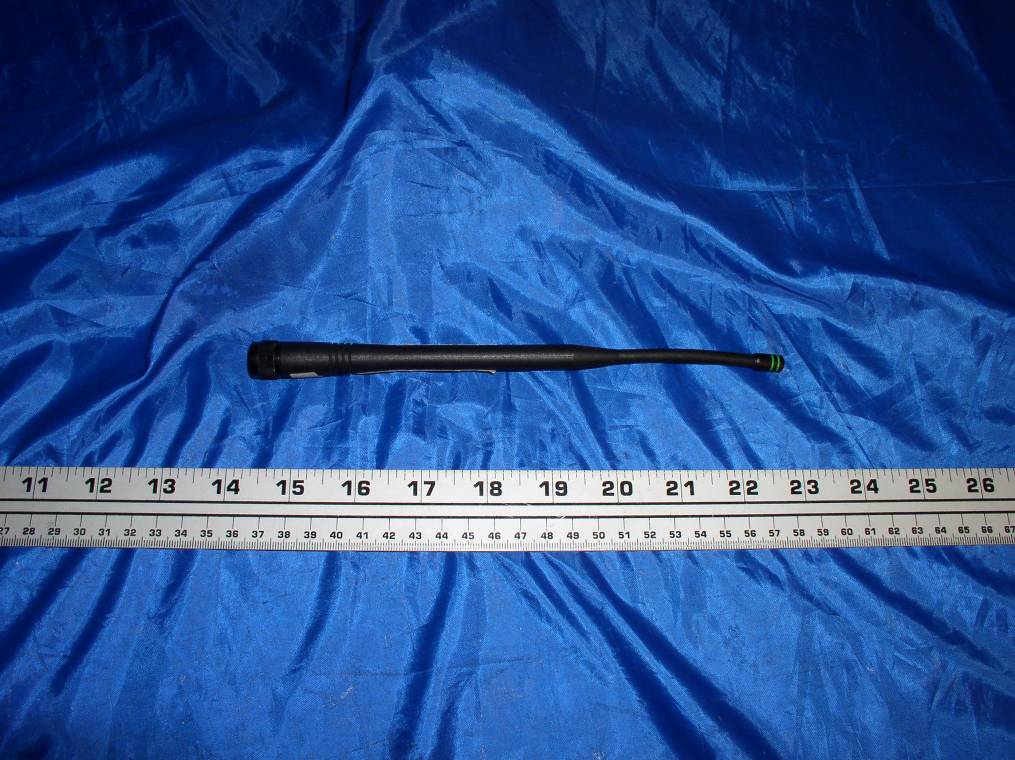

Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 69 of 73 FCC Part 15.247 and IC RSS-210 Test Report 18 EXHIBIT C - EUT PHOTOGRAPHS 18.1 EUT – Top View 18.2 EUT – Bottom View Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 72 of 73 FCC Part 15.247 and IC RSS-210 Test Report 18.7 EUT External Antenna 1 18.8 EUT External Antenna 2 Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 73 of 73 FCC Part 15.247 and IC RSS-210 Test Report 18.9 EUT External Antenna 3 ***** END OF REPORT *****

Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 64 of 73 FCC Part 15.247 and IC RSS-210 Test Report 16 EXHIBIT A – FCC & IC EQUIPMENT LABELING REQUIREMENTS 16.1 FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 16.2 FCC ID Labeling Requirements as per FCC § 15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID:XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0-9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 8 alphanumeric characters (A-Z, 0-9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 65 of 73 FCC Part 15.247 and IC RSS-210 Test Report 16.3 Specifications: As per RSS GEN 5.2 Equipment Labeling: Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 16.4 FCC ID & IC Product Label 16.5 Suggested Label Location (EUT Top view)

Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 70 of 73 FCC Part 15.247 and IC RSS-210 Test Report 18.3 EUT PCB 1 (with RF Shielding) 18.4 EUT PCB 1 (without RF Shielding) Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 71 of 73 FCC Part 15.247 and IC RSS-210 Test Report 18.5 EUT PCB 2 (with RF Shielding) 18.6 EUT PCB 2 (Without RF Shielding)

Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 12 of 73 FCC Part 15.247 and IC RSS-210 Test Report 4 FCC §15.247 (i) and §2.1091, IC RSS-Gen 5.5 & RSS-102 - RF Exposure 4.1 Applicable Standard According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 Test Result The power density level at 20 cm is 0.581 mW/cm², which is below the uncontrolled exposure limit of 0.619 mW/cm² at 928 MHz. Maximum peak output power at antenna input terminal (dBm): 429.66 Maximum peak output power at antenna input terminal (mW): 2924.698 Prediction distance (cm): 220 Prediction frequency (MHz): 2928 Maximum Antenna Gain, typical (dBi): 45 Maximum Antenna Gain (numeric): 23.16 Power density of prediction frequency at 20.0 cm (mW/cm 2 ):00.581 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ):0.619

2 Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government . FCC PART 15.247 INDUSTRY CANADA RSS-210, ISSUE 7, JUNE 2007 MEASUREMENT AND TEST REPORT For Trimble Navigation Limited 935 Stewart Drive, Sunnyvale, CA 94085, USA Model: 64281-92 FCC ID: JUP-6248192 IC ID: 1756A-6248192 Report Type: Original Report Product Type: 900 MHz FHSS Radio Transceiver Module Test Engineer(s): Choon Sian Ooi Report Number: R0711021 Test Date(s) 2007-11-05, 2007-11-20, 2007-11-28 Report Date: 2007-12-12 Reviewed By: Hans Mellberg, VP of Engineering Prepared By: (24) Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Trimble Navigation Limited FCC ID: JUP-6248192, IC: 1756A-6248192 Report Number: R0711021 Page 2 of 73 FCC Part 15.247 and IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 1.2 MECHANICAL DESCRIPTION OF EUT ................................................................................................................... 5 1.3 EUT PHOTO......................................................................................................................................................... 5 1.4 ANTENNA DESCRIPTION....................................................................................................................................... 6 1.5 OBJECTIVE........................................................................................................................................................... 7 1.6 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 7 1.7 TEST METHODOLOGY.......................................................................................................................................... 7 1.8 MEASUREMENT UNCERTAINTY............................................................................................................................ 7 1.9 TEST FACILITY..................................................................................................................................................... 8 2 SYSTEM TEST CONFIGURATION ..........................................................................................................................9 2.1 JUSTIFICATION..................................................................................................................................................... 9 2.2 EUT EXERCISE SOFTWARE.................................................................................................................................. 9 2.3 SPECIAL ACCESSORIES......................................................................................................................................... 9 2.4 EQUIPMENT MODIFICATIONS...............................................................................................................................9 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS................................................................................................ 9 2.6 HOST SYSTEM DETAILS....................................................................................................................................... 9 2.7 HOST SYSTEM POWER SUPPLY INFORMATION..................................................................................................... 9 2.8 TEST SETUP BLOCK DIAGRAMS......................................................................................................................... 10 3 SUMMARY OF TEST RESULTS ...............................................................................................................................11 4 FCC §15.247 (i) and §2.1091, IC RSS-Gen 5.5 & RSS-102 - RF Exposure...............................................................12 4.1 APPLICABLE STANDARD.................................................................................................................................... 12 4.2 MPE PREDICTION.............................................................................................................................................. 12 4.3 TEST RESULT..................................................................................................................................................... 12 5 FCC §15.203, IC RSS-Gen §7.1.4 – Antenna Requirement .......................................................................................13 5.1 APPLICABLE STANDARD.................................................................................................................................... 13 5.2 RESULT.............................................................................................................................................................. 13 6 FCC §15.207 (a), IC RSS-Gen §7.2.2 - Conducted Emissions....................................................................................17 6.1 APPLICABLE STANDARD.................................................................................................................................... 17 6.2 TEST SETUP....................................................................................................................................................... 17 6.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................…
