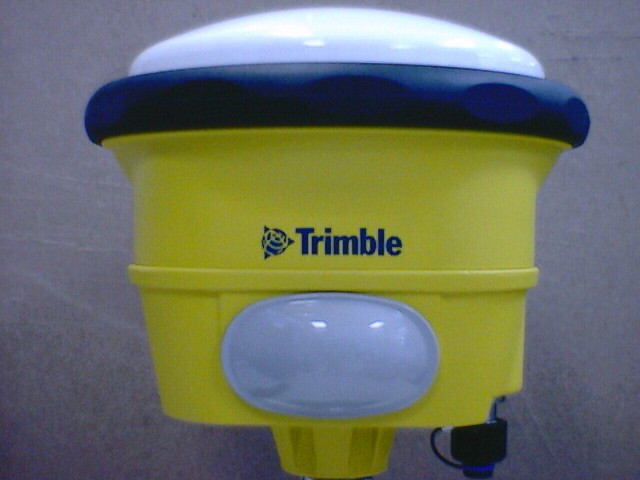

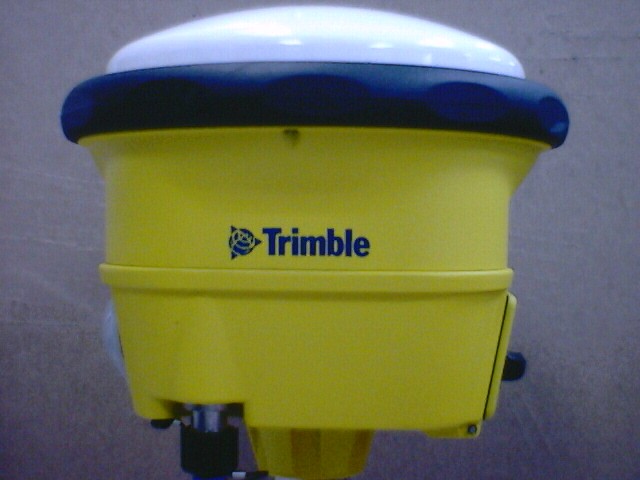

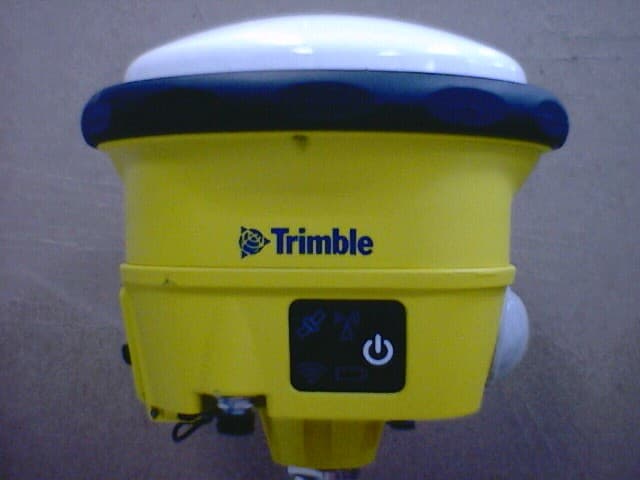

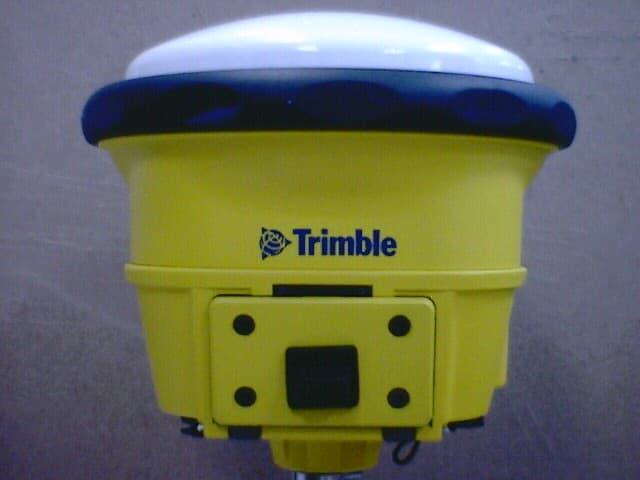

Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 54 of 66 FCC Part 15C & IC RSS-210 Test Report 18 Exhibit C - EUT Photographs 18.1 EUT - Top View 18.2 EUT - Bottom View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 55 of 66 FCC Part 15C & IC RSS-210 Test Report 18.3 EUT – Side View 1 18.4 EUT - Side View 2 Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 56 of 66 FCC Part 15C & IC RSS-210 Test Report 18.5 EUT - Side View 3 18.6 EUT - Side View 4 (Battery Door)

Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 49 of 66 FCC Part 15C & IC RSS-210 Test Report 16 Exhibit A - FCC & IC Equipment Labeling Requirements 16.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 16.2 IC Label Requirements As per IC RSS-Gen §5, the certification number shall appear as follows: IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0-9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 11 alphanumeric characters (A-Z, 0-9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 50 of 66 FCC Part 15C & IC RSS-210 Test Report As per IC RSS-Gen §5.2 Equipment Labeling: Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 16.3 FCC ID & IC Label 16.4 FCC ID & IC Label Location

Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 57 of 66 FCC Part 15C & IC RSS-210 Test Report 18.7 EUT – Cover off View 1 18.8 EUT – Cover off View 2 900 MHz Radio Module Location Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 58 of 66 FCC Part 15C & IC RSS-210 Test Report 18.9 EUT - 900 MHz Module with Shield Top View 18.10 EUT - 900 MHz Module without Shield Top View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 59 of 66 FCC Part 15C & IC RSS-210 Test Report 18.11 EUT - 900 MHz Module with Shield Bottom View 18.12 EUT - 900 MHz Module without Shield Bottom View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 60 of 66 FCC Part 15C & IC RSS-210 Test Report 18.13 Power Supply Board Bottom View 18.14 EUT - GPS Board/Antenna Top View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 61 of 66 FCC Part 15C & IC RSS-210 Test Report 18.15 EUT - GPS Board/Antenna Shielded BottomView 18.16 EUT - GPS Board/Antenna without Shield Bottom View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 62 of 66 FCC Part 15C & IC RSS-210 Test Report 18.17 EUT - Digital Main Board Top View 18.18 EUT - Digital Main Board Bottom View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 63 of 66 FCC Part 15C & IC RSS-210 Test Report 18.19 EUT - Keypad Interface Board Top View 18.20 EUT - Keypad Interface Board Bottom View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 64 of 66 FCC Part 15C & IC RSS-210 Test Report 18.21 EUT – Wi-Fi and BT Antenna Top View 18.22 EUT- Wi-Fi and BT Antenna Bottom View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 65 of 66 FCC Part 15C & IC RSS-210 Test Report 18.23 EUT - Radio Interface Board Top View 18.24 EUT - Radio Interface Board Bottom View Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 66 of 66 FCC Part 15C & IC RSS-210 Test Report 18.25 AC/DC Adaptor 18.26 External Antenna View --- End of Report ---

Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 47 of 66 FCC Part 15C & IC RSS-210 Test Report 15 FCC §15.247(i), §2.1091 & IC RSS-102 - RF Exposure Information 15.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Averaging Time (Minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30–300 28 0.073 2* 6 300–1 500 1.585 f 0.5 0.0042 f 0.5 f/150 6 1 500–15 000 61.4 0.163 10 6 15 000–150 000 61.4 0.163 10 616000 / f 1.2 150 000-300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * Power density limit is applicable at frequencies greater than 100 MHz Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 48 of 66 FCC Part 15C & IC RSS-210 Test Report 15.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 15.3 MPE Results 1) MPE Calculation of 900 MHz Radio: Maximum peak output power at antenna input terminal (dBm):28.49 Maximum peak output power at antenna input terminal (mW): 706.32 Prediction distance (cm): 20 Prediction frequency (MHz): 927.6 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1.0 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.141 Power density of prediction frequency at 20.0 cm (W/m 2 ): 1.41 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.618 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):6.18 2) MPE Calculation of Co-location of 2.4 GHz Wi-Fi & Bluetooth Radio (FCC ID: JUP-76577WFBT): Radio Type Operating Frequency (MHz) MPE Limit Conducted Power (mW) Duty Cycle Antenna Gain (dBi) Gain (numeric) Power Density at 20cm (mW/cm 2 ) % of MPE Co-located % of MPE @ 20 cm 900 MHz Radio On 900 MHz Radio 927.6 0.618 706.32 100%0 1.0 0.141 22.82 - 900 MHz Radio with 2.4 GHz Wi-Fi Radio on 2.4 GHz Wi-Fi Radio FCC ID: JUP-76577WFBT 2412 1 74.30 100%4.0 2.51 0.037 3.7% 26.52 900 MHz Radio with 2.4 GHz BT Radio On 2.4 GHz FHSS Radio FCC ID: JUP-76577WFBT 2402 1 0.92 100%4.0 2.51 0.00046 0.046% 22.87 Note: 2.4 GHz Wi-Fi and Bluetooth is a combined radio, Wi-Fi & BT can not transmit simultaneously. 15.4 Test Result This device complies with the MPE limit at 20 cm for uncontrolled exposure environment.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C IC RSS-210 ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For Trimble Navigation Ltd 935 Stewart Drive, Sunnyvale, CA 94085, USA FCC ID: JUP-6829395 IC: 1756A-6829395 Report Type: Original Report Product Type: GPS Receiver with 900 MHz Transceiver Test Engineer: Quinn Jiang Report Number: R1202012-247 Report Date: 2012-04-05 Reviewed By: Victor Zhang RF/EMC Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Trimble Navigation Ltd. FCC ID: JUP-6829395, IC: 1756A-6829395 Report Number: R1202012-247 Page 2 of 66 FCC Part 15C & IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION....................................................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................. 6 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 6 1.3 OBJECTIVE............................................................................................................................................................... 6 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 6 1.5 TEST METHODOLOGY.............................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................6 1.7 TEST FACILITY........................................................................................................................................................ 7 2 SYSTEM TEST CONFIGURATION .......................................................................................................................... 8 2.1 JUSTIFICATION......................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 8 2.3 SPECIAL ACCESSORIES............................................................................................................................................ 8 2.4 EQUIPMENT MODIFICATIONS................................................................................................................................... 8 2.5 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 8 2.6 POWER SUPPLY AND LINE FILTERS.......................................................................................................................... 8 2.7 INTERFACE PORTS AND CABLING............................................................................................................................ 8 2.8 INTERNAL PARTS LIST AND DETAILS....................................................................................................................... 9 3 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 4 FCC §15.203 & IC RSS-GEN §7.1.2 – ANTENNA REQUIREMENTS ................................................................. 11 4.1 APPLICABLE STANDARD........................................................................................................................................ 11 4.2 RESULT.................................................................................................................................................................. 11 5 FCC §15.207 & IC RSS-GEN §7.2.4 – AC LINE CONDUCTED EMISSIONS .................................................... 12 5.1 APPLICABLE STANDARDS...................................................................................................................................... 12 5.2 TEST SETUP........................................................................................................................................................... 12 5.3 TEST PROCEDURE.................................................................................................................................................. 12 5.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................13 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................. 13 5.6 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 14 5.7 TEST ENVIRONMENTAL CONDITIONS..................................................................................................................... 14 5.8 SUMMARY OF TEST RESULTS................................................................................................................................. 14 5.9 CONDUCTED EMISSIONS TEST PLOTS AND DATA..............................…
