JUP-6999600GSM/GPRS Modem

SNM910 Site-Net Modem Getting Started Guide Draft 1 Trimble SPS Modular GPS Receivers Help This Help describes how to use the following products: • Trimble SPS GPS receivers This family of receivers comprise the SPSx52 Modular GPS receiver, the SPSx51 Modular GPS receivers, the SPSx61 Modular Heading GPS receivers, and the SPS882 Smart GPS antenna. • SNM910 site-net modem Where necessary, this Help contains references to specific receivers in the product family. When information is specific to a particular model, then the specific model name is used. Even if you have used other Global Positioning System (GPS) products before, Trimble recommends that you spend some time reading this manual to learn about the special features of this product. If you are not familiar with GPS, visit the Trimble website (www.trimble.com ) for an interactive look at Trimble and GPS. 3 Legal Notices Corporate Office Trimble Navigation Limited 935 Stewart Drive Sunnyvale, CA 94085 USA www.trimble.com Heavy Highway business area Trimble Navigation Limited Heavy Highway business area 5475 Kellenburger Road Dayton, Ohio 45424-1099 USA 800- 538- 7800 (toll free in USA) +1-937- 245- 5600 Phone +1-937- 233- 9004 Fax www.trimble.com E- mail: [email protected] Legal Notices © 2006–2009, Trimble Navigation Limited. All rights reserved. Trimble, and the Globe & Triangle logo are trademarks of Trimble Navigation Limited, registered in the United States Patent and Trademark Office and in other countries. AutoBase, CMR, CMR+, CMRx, HYDROpro, Maxwell, Micro-Centered, TGO, SiteNet, TRIMMARK, TRIMTALK, TSC2, TSCe, VRS, Zephyr, and Zephyr Geodetic are trademarks of Trimble Navigation Limited. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Trimble Navigation Limited is under license. Microsoft, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.All other trademarks are the property of their respective owners. Release Notice This is the October 2009 release (Revision A) of the SPS Receivers Help. It applies to version 4.00 of the receiver firmware. Product Limited Warranty Information For applicable product Limited Warranty information, please refer to the Limited Warranty Card included with this Trimble product, or consult your local Trimble authorized dealer. SNM910 Site-Net Modem Getting Started Guide 4 COCOM limits The U.S. Department of Commerce requires that all exportable GPS products contain performance limitations so that they cannot be used in a manner that could threaten the security of the United States. The following limitations are implemented on this product: • Immediate access to satellite measurements and navigation results is disabled when the receiver velocity is computed to be greater than 1,000 knots, or its altitude is computed to be above 18,000 meters. The receiver GPS subsystem resets until the COCOM situation clears. As a result, all logging and stream configurations stop until the GPS subsystem is cleared. Notices Class B Statement – Notice to Users. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules and Part 90. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes and modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission rules. Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This apparatus complies with Canadian RSS-GEN, RSS-310, RSS-210, and RSS-119. Cet appareil est conforme à la norme CNR-GEN, CNR-310, CNR-210, et CNR-119 du Canada. Europe Legal Notices 5 The product covered by this guide are intended to be used in all EU member countries, Norway, and Switzerland. Products been tested and found to comply with the requirements for a Class B device pursuant to European Council Directive 89/336/EEC on EMC, thereby satisfying the requirements for CE Marking and sale within the European Economic Area (EEA). Contains a Bluetooth radio module. These requirements are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential or commercial environment. The 450 MHZ (PMR) bands and 2.4 GHz are non-harmonized throughout Europe. CE Declaration of Conformity Hereby, Trimble Navigation, declares that the GPS receivers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Australia and New Zealand This product conforms with the regulatory requirements of the Australian Communications and Media Authority (ACMA) EMC framework, thus satisfying the requirements for C-Tick Marking and sale within Australia and New Zealand. Taiwan – Battery Recycling Requirements (SPSx51 and SPS882 only) The product contains a removable Lithium-ion battery. Taiwanese regulations require that wast…

Text truncated - open the document above for the full version.

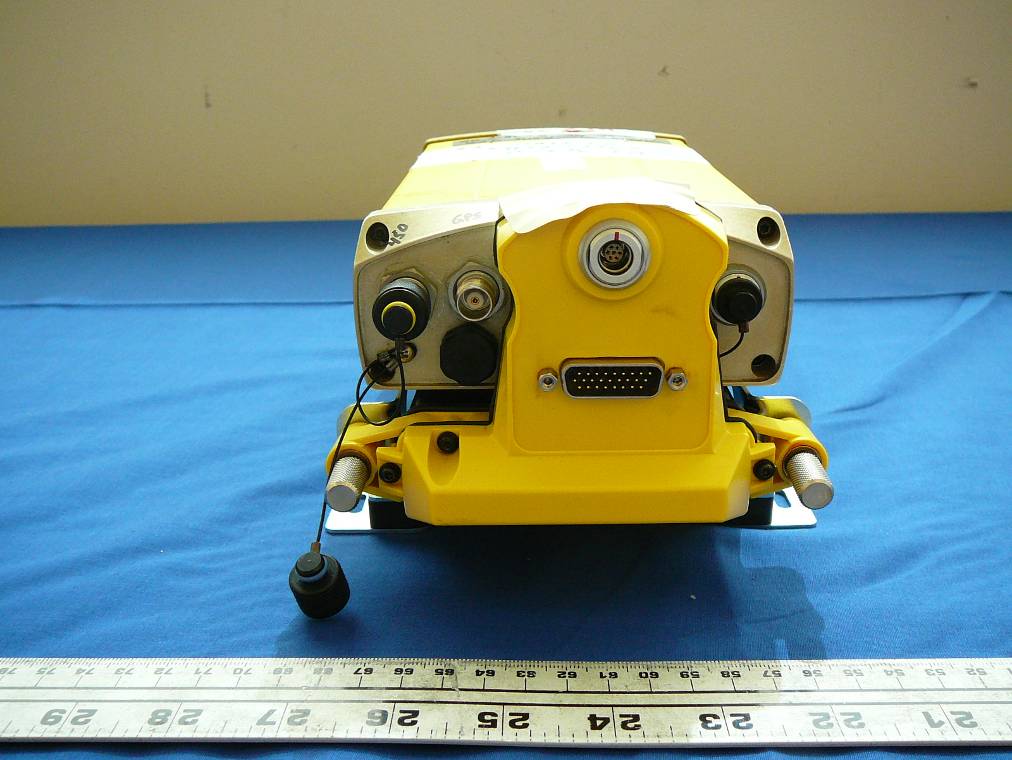

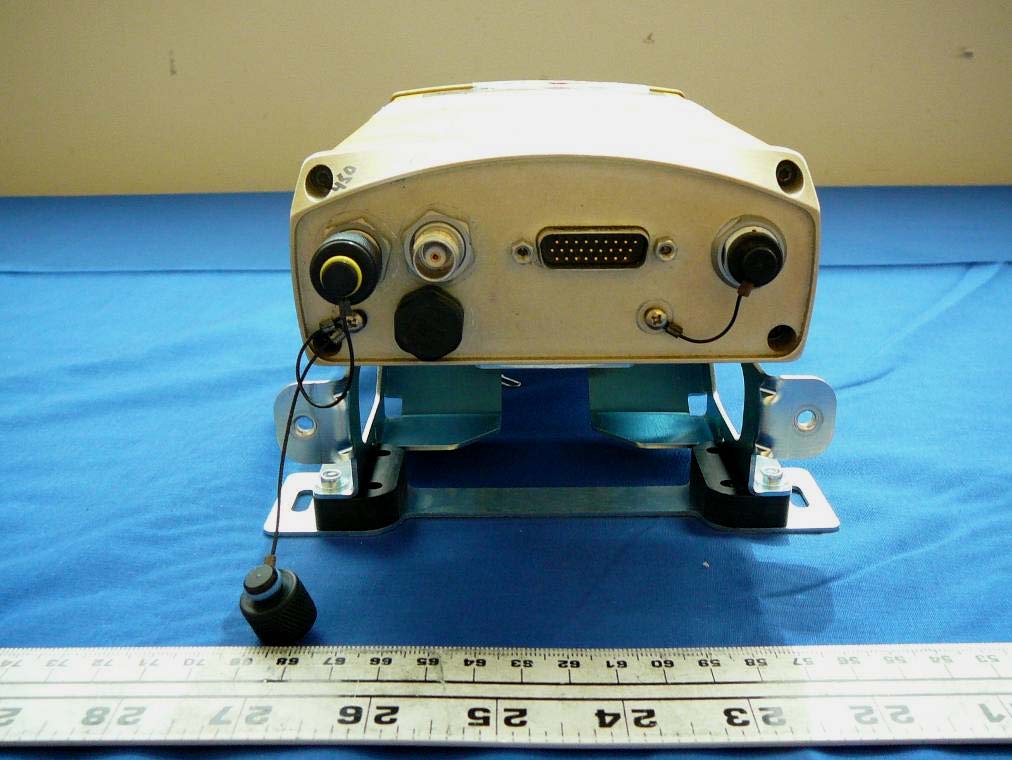

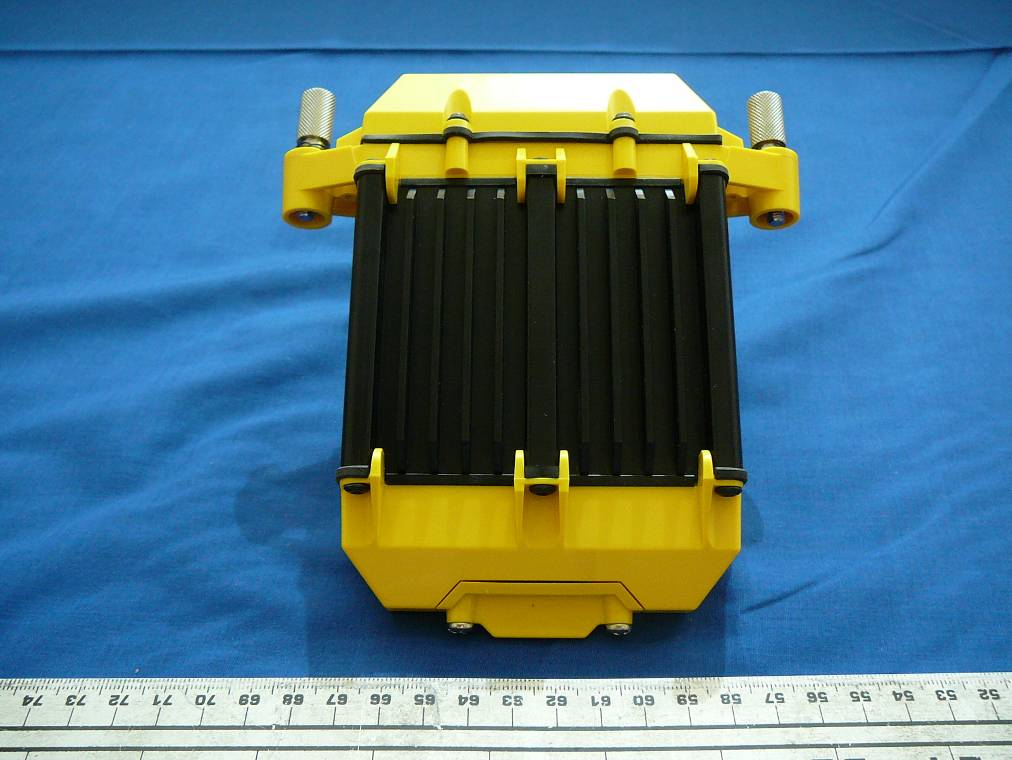

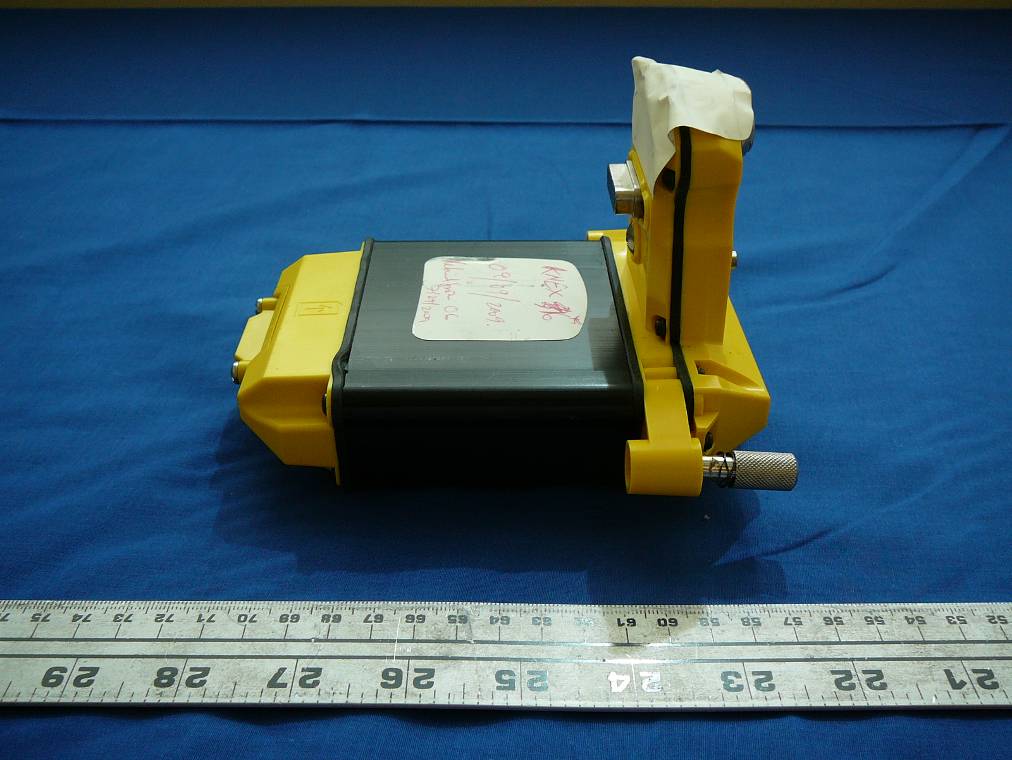

Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 32 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15 EXHIBIT C - EUT PHOTOGRAPHS 15.1 EUT- Front View 15.2 EUT- Rear View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 33 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15.3 EUT – Bottom/ Interface Port view 15.4 EUT – Side View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 34 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15.5 EUT SIM Card Port View 15.6 EUT with Supporting Host – Front View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 35 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15.7 EUT with Supporting Host – Rear View 15.8 Supporting Host Input Port View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 36 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15.9 EUT with Supporting Host – Side View 15.10 EUT AC/DC Power Adapter

CONNECTED SITE SOLUTION 11.5-28 11.5-28 VDC 2.5A VDC 2.5A SNM910 SEE MANUAL FOR DEVICE USAGE TRIMBLE NAVIGATION LTD. FCC ID: JUP-6999600 IC: 1756A-6999600 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE. SERIAL NUMBER IMEI NUMBER NOTES: UNLESS OTHERWISE SPECIFIED 1 SELECTIVE FINE TEXTURE SP1 2 3 GRAPHICS: (TRIMBLE BLUE) PMS 294C (LOGO, NO TEXTURE) 4 BACKGROUND: (TRIMBLE GRAY) PMS COOL GRAY 5C 5 BACKGROUND: (TRIMBLE YELLOW) PMS 116C GRAPHICS: BLACK RESUBMIT WITH CORRECTIONS APPROVED WITH CORRECTIONS OK AS IS APPROVAL SIGNATURE DATE 1:1 347597 DM TRIMBLE 65754 65754 02 65754 02 .007” 8010 3M 9668 .XXX =± .010 02 12/17/091of1 DIMENSIONS ARE IN INCHES TOLERANCESMATERIALSPRINT GENERATED FOR MATERIAL OR EQUIVALENT: ADHESIVE OR EQUIVALENT: COMPANY: PART #REV. BY:W/ODATESHEET SCALE: DO NOT SCALE DRAWING Customer Supplied Prints Dwg NumberRevDate Dimensional Graphics THIS PRINT MUST BE APPROVED AND RETURNED WITHIN 24 HOURS IN ORDER FOR THIS JOB TO PROCEED WITH PRODUCTION. ACCEPTANCE OF THE BELOW ART SAMPLE RELEASES VALMARK OF ANY GRAPHICS LIABILITY AFTER THE PRODUCTION RUN. (1) Valmark may, at its discretion unless otherwise noted, substitute any materials or BOM components with equivalent or similar materials and/or components based on control of cost or availability Responsibility for Validation and Fitness-of-Use: Because Valmark Industries, Inc. has no controlover the use or application of these parts, it is the sole responsibility of the OEM customer and/or its designated manufac- turer to test all custom parts for fitness-of-use and validation of design prior to acceptance of production units. Valmark Industries provides expertise in the layout and consistent fabrication of high quality, reliable membrane switch, custom graphics and labeling products. Valmark and its employees do NOT purport to be experts in the end-use application of our customers, or the environments in which these products will be stored and/or used. .750 1.250 1.650 2.960 1.984 2.074 .781 ALL OTHER TEXT AND SYMBOLS BLACK (TEXTURED) YELLOW (TEXTURED) BLUE LOGO AND TEXT (GLOSSY) ® REGISTER R SYMBOLS ARE TEXTURED (4X TOTAL) BLACK (TEXTURED) ALL OTHER TEXT AND SYMBOLS BLACK (TEXTURED) FONT: ARIAL UNLESS SPECIFIED SPACE FOR 58845 LABEL 1.250” X .750” GREY BACKGROUND (TEXTURED) 5 2 2 2 4

Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 37 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15.11 EUT Output Port PBC Assembly – Top View 15.12 EUT PBC Assembly – Top View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 38 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15.13 EUT PBC Assembly (with Shielding) – Bottom View 15.14 EUT PBC Assembly (without Shielding) – Bottom View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 39 of 39 FCC Part 22/24 & IC RSS-132/133 Report 15.15 EUT RF Module– Top View 15.16 EUT RF Module– Bottom View ***** END OF REPORT *****

Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 10 of 39 FCC Part 22/24 & IC RSS-132/133 Report 5 FCC §1.1307(b)(1), §2.1091 & IC RSS-102 - RF EXPOSURE 5.1 Applicable Standards According to FCC §1.1307(b)(1), §2.1091 and IC RSS-102, RF exposure is calculated. FCC: Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density IC: RSS-102, RF Field Strength Limits for Devices Used by the General Public Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2* 6 300-1500 1.585 f 0.5 0.0042 f 0.5 f/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/f f 1.2 150000-300000 0.1585 f 0.5 4.21x10 -4 f 0.5 6.67x10 -5 f 616000/f f 1.2 Note: ƒ is frequency in MHz * Power density limit is applicable at frequencies greater than 100 MHz. Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 11 of 39 FCC Part 22/24 & IC RSS-132/133 Report 5.2 MPE Prediction Predication of MPE limit at a given distance S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Cellular Band Maximum peak output power at antenna input terminal (dBm): 33.45 Maximum peak output power at antenna input terminal (mW): 2213.09 Prediction distance (cm): 28 Prediction frequency (MHz): 824.6 Antenna Gain, typical (dBi): -0.3 Maximum Antenna Gain (numeric): 0.933 Power density at predication frequency and distance (mW/cm 2 ): 0.2097 Power density at predication frequency and distance (W/m 2 ): 2.097 FCC MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5497 IC MPE limit for uncontrolled exposure at predication frequency (W/m 2 ): 5.4973 PCS Band Maximum peak output power at antenna input terminal (dBm): 30.58 Maximum peak output power at antenna input terminal (mW): 1142.88 Prediction distance (cm): 28 Prediction frequency (MHz): 1850.2 Antenna Gain, typical (dBi): 2.2 Maximum Antenna Gain (numeric): 1.66 Power density at predication frequency and distance (mW/cm 2 ): 0.1927 Power density at predication frequency and distance (W/m 2 ): 1.927 FCC MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 IC MPE limit for uncontrolled exposure at predication frequency (W/m 2 ): 10.0 Result The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power densities at the distance of 28 cm are 0.2097 mW/cm 2 (2.097 W/m 2 ) for Cellular band and 0.1927 mW/cm 2 (1.927 W/m 2 ) for PCS band. Proper use this device results in exposure the government limits below has been addressed in the user manual.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H, 24E INDUSTRY CANADA RSS-132, RSS-133 TEST AND MEASUREMENT REPORT For Trimble Navigation Limited. 935 Stewart Drive, Sunnyvale, CA 94085, USA FCC ID: JUP-6999600 IC: 1756A-6999600 Report Type: Original Report Product Type: GSM & GPRS Modem Test Engineer: Dennis Huang Report Number: R0909103-2224 Report Date: 2009-12-11 Reviewed By: Boni Baniqued EMC/RF Supervisor Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 2 of 39 FCC Part 22/24 & IC RSS-132/133 Report TABLE OF CONTENTS 1 GENERAL INFORMATION.............................................................................................................................. 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................ 4 1.2 MECHANICAL DESCRIPTION........................................................................................................................... 4 1.3 EUT PHOTO.................................................................................................................................................... 4 1.4 OBJECTIVE...................................................................................................................................................... 4 1.5 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................... 5 1.6 TEST METHODOLOGY..................................................................................................................................... 5 1.7 MEASUREMENT UNCERTAINTY...................................................................................................................... 5 1.8 TEST FACILITY............................................................................................................................................... 5 2 SYSTEM TEST CONFIGURATION ................................................................................................................. 6 2.1 JUSTIFICATION................................................................................................................................................ 6 2.2 EUT EXERCISE SOFTWARE............................................................................................................................. 6 2.3 SPECIAL ACCESSORIES................................................................................................................................... 6 2.4 EQUIPMENT MODIFICATIONS.......................................................................................................................... 6 2.5 REMOTE SUPPORT EQUIPMENT....................................................................................................................... 6 2.6 LOCAL SUPPORT EQUIPMENT......................................................................................................................... 6 2.7 POWER SUPPLY AND LINE FILTERS................................................................................................................. 6 2.8 INTERFACE PORTS AND CABLING................................................................................................................... 7 2.9 EUT INTERNAL CONFIGURATION DETAILS..................................................................................................... 7 3 SUMMARY OF TEST RESULTS ...................................................................................................................... 8 4 FCC §2.1047 & IC RSS-132 §4.2, RSS-133 §6.2 - MODULATION CHARACTERISTIC ........................... 9 4.1 APPLICABLE STANDARD................................................................................................................................. 9 4.2 RESULT........................................................................................................................................................... 9 5 FCC §1.1307(B)(1), §2.1091 & IC RSS-102 - RF EXPOSURE....................................................................... 10 5.1 APPLICABLE STANDARDS............................................................................................................................. 10 5.2 MPE PREDICTION......................................................................................................................................... 11 6 FCC §2.1053, §22.917, §24.238 & IC RSS-132 §4.5, RSS-133 §6.5 - SPURIOUS RADIATED EMISSIONS12 6.1 APPLICABLE STANDARD...............................................................................................................................12 6.2 TEST PROCEDURE......................................................................................................................................... 12 6.3 TEST EQUIPMENT LIST AND DETAILS........................................................................................................... 12 6.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS........................................................................................................................ 13 6.6 TEST RESULTS................................................…

Text truncated - open the document above for the full version.

Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 27 of 39 FCC Part 22/24 & IC RSS-132/133 Report 14 EXHIBIT B - TEST SETUP PHOTOGRAPHS 14.1 Radiated Emissions below 1 GHz (Host Orientation: Flat on Table) - Front View 14.2 Radiated Emissions below 1 GHz (Host Orientation: Flat on Table) - Rear View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 28 of 39 FCC Part 22/24 & IC RSS-132/133 Report 14.3 Radiated Emissions above 1 GHz (Host Orientation: Flat on Table) – Front View 14.4 Radiated Emissions above 1 GHz (Host Orientation: Flat on Table) - Rear View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 29 of 39 FCC Part 22/24 & IC RSS-132/133 Report 14.5 Radiated Emissions below 1 GHz (Host Orientation: Vertical) - Front View 14.6 Radiated Emissions below 1 GHz (Host Orientation: Vertical) - Rear View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 30 of 39 FCC Part 22/24 & IC RSS-132/133 Report 14.7 Radiated Emissions above 1 GHz (Host Orientation: Vertical) – Front View 14.8 Radiated Emissions above 1 GHz (Host Orientation: Vertical) - Rear View Trimble Navigation Limited FCC ID: JUP-6999600, IC: 1756A-6999600 Report Number: R0909103-2224 Page 31 of 39 FCC Part 22/24 & IC RSS-132/133 Report 14.9 Receiver Radiated Emissions below 1 GHz - Front View 14.10 Receiver Radiated Emissions below 1 GHz - Rear View
