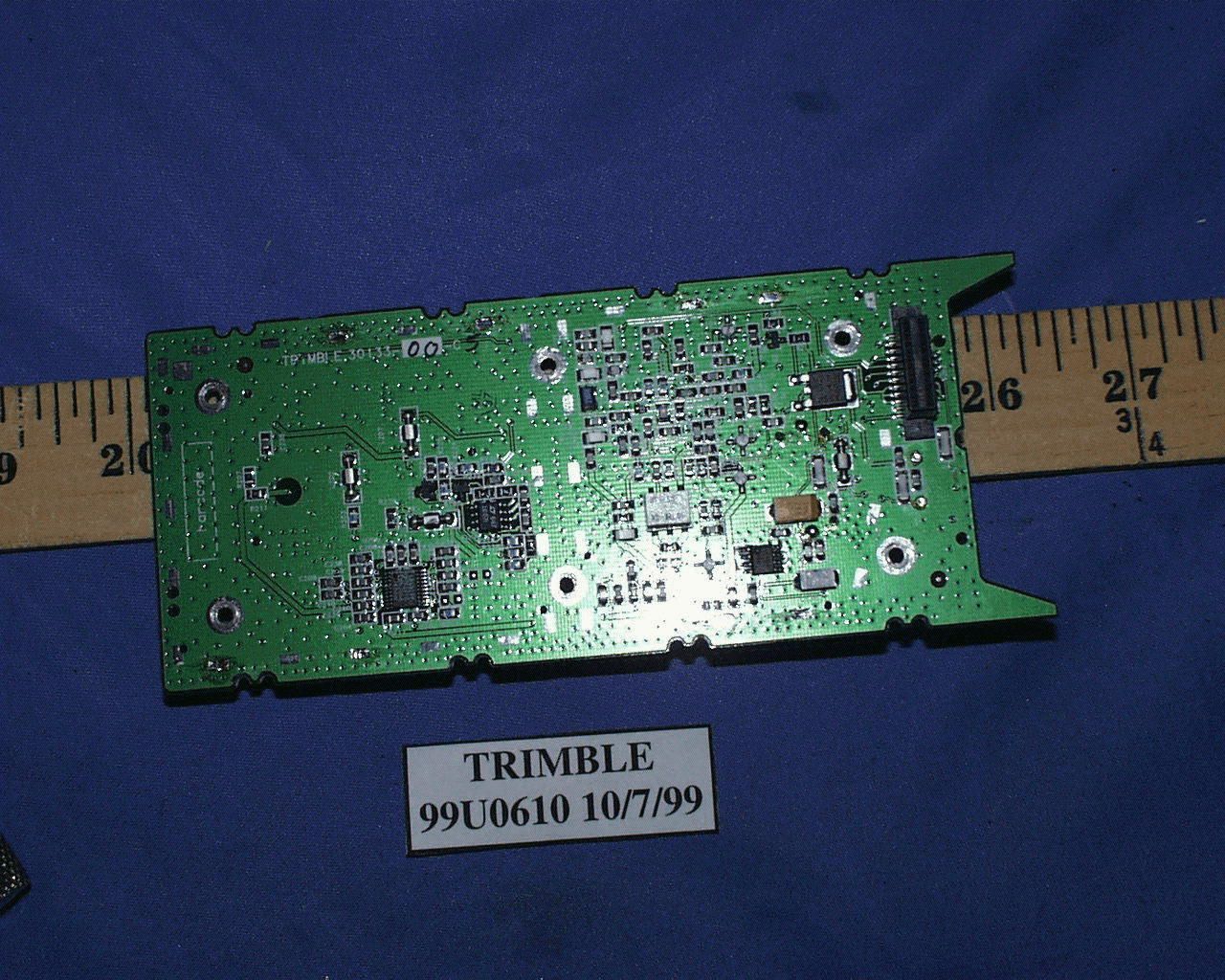

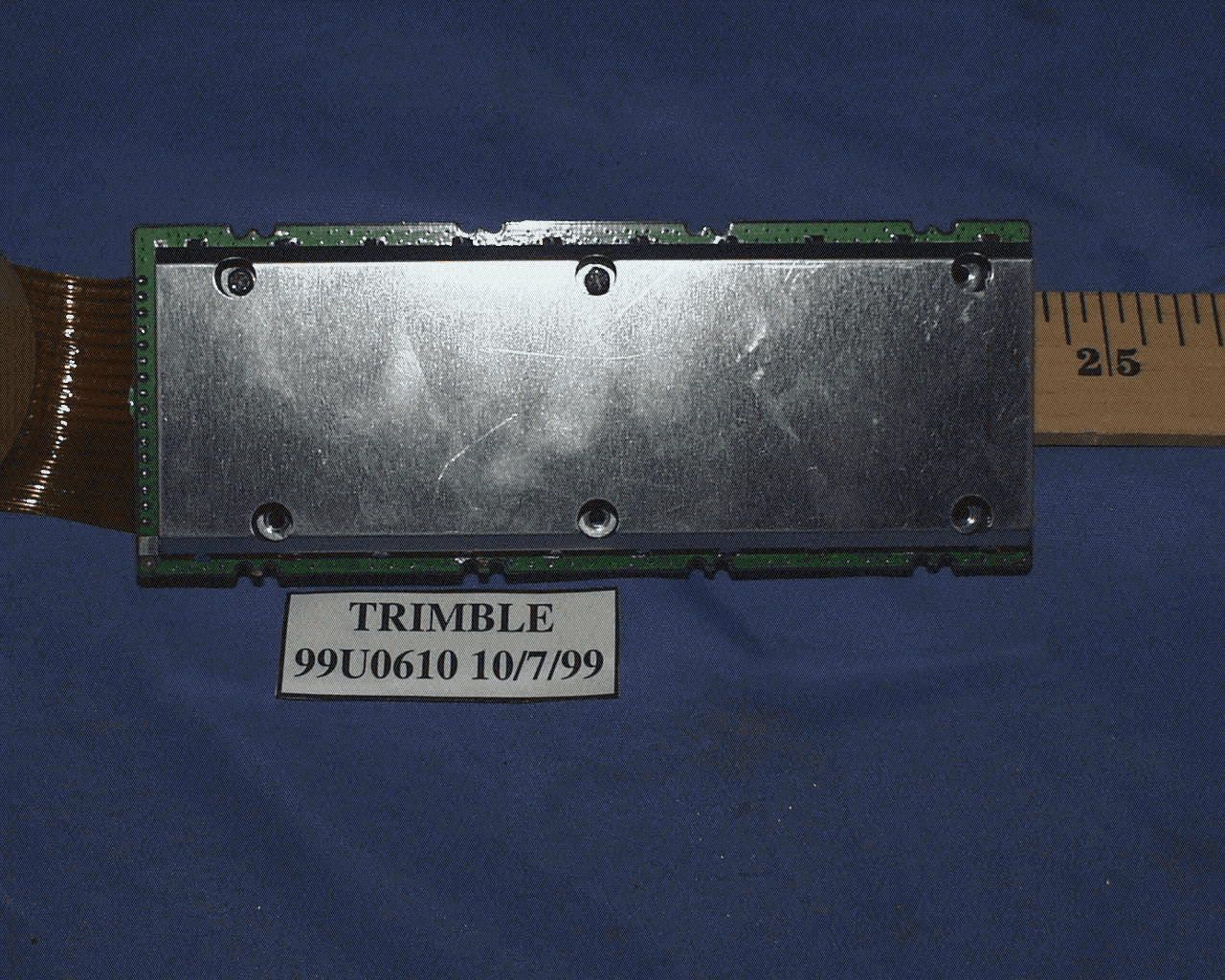

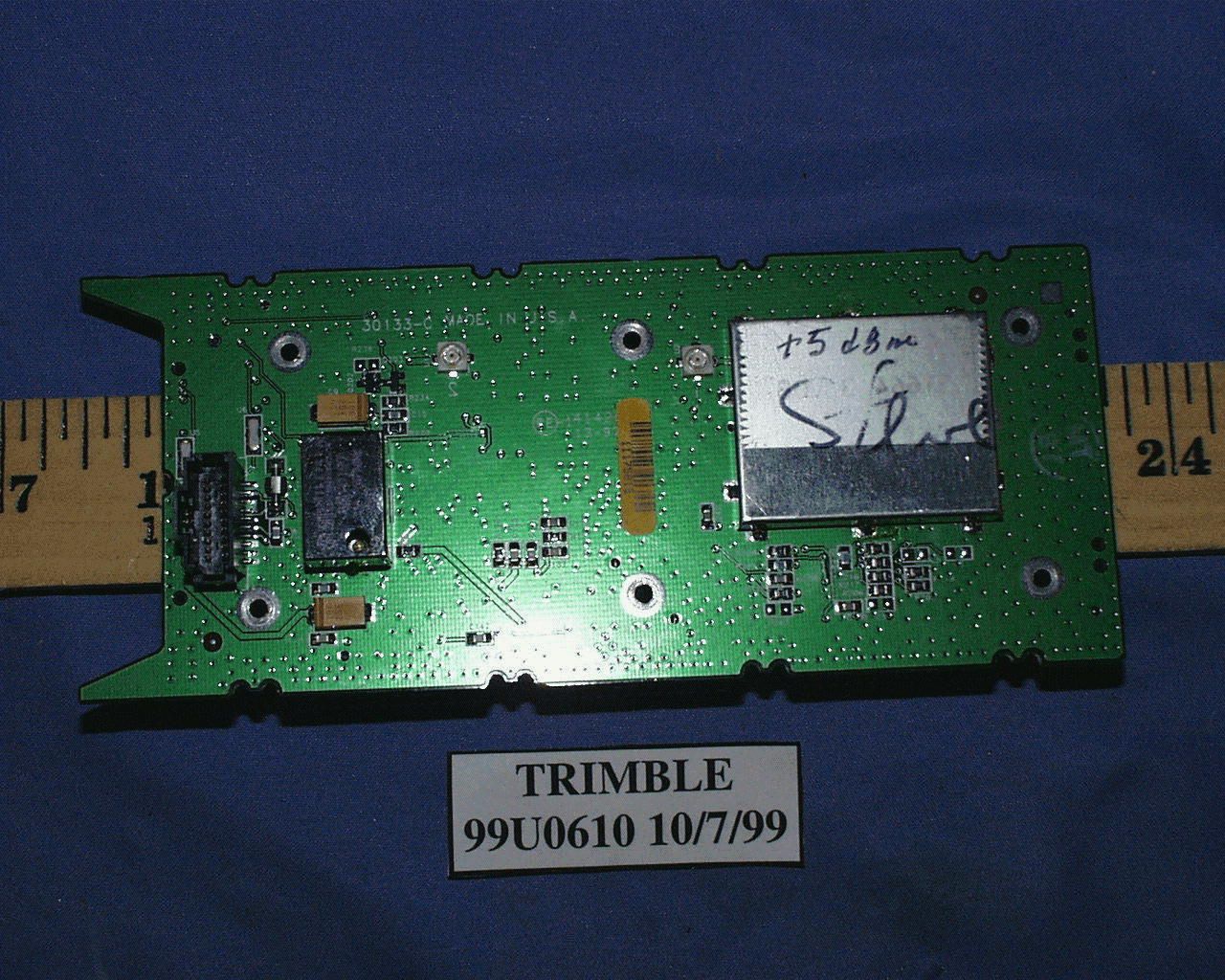

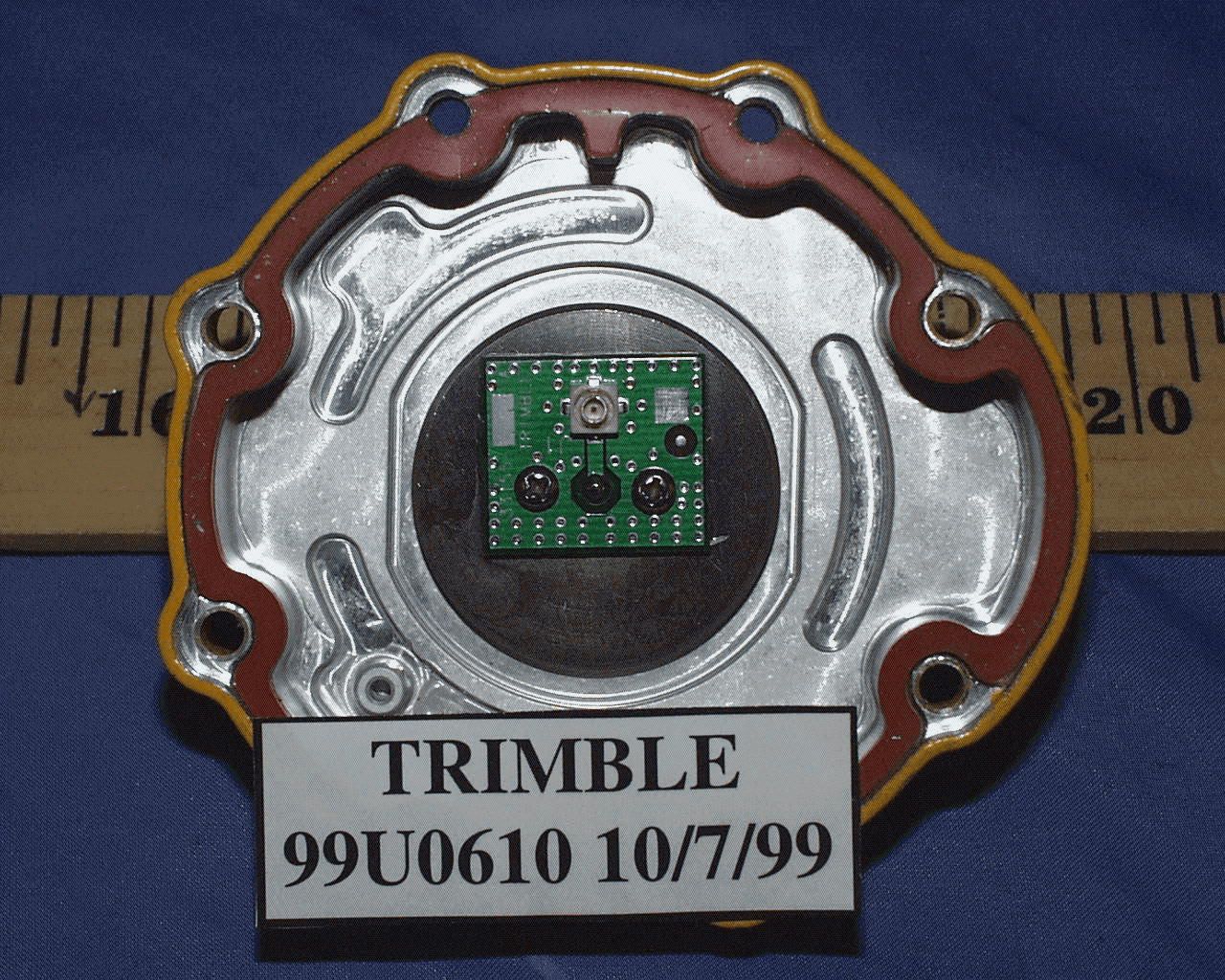

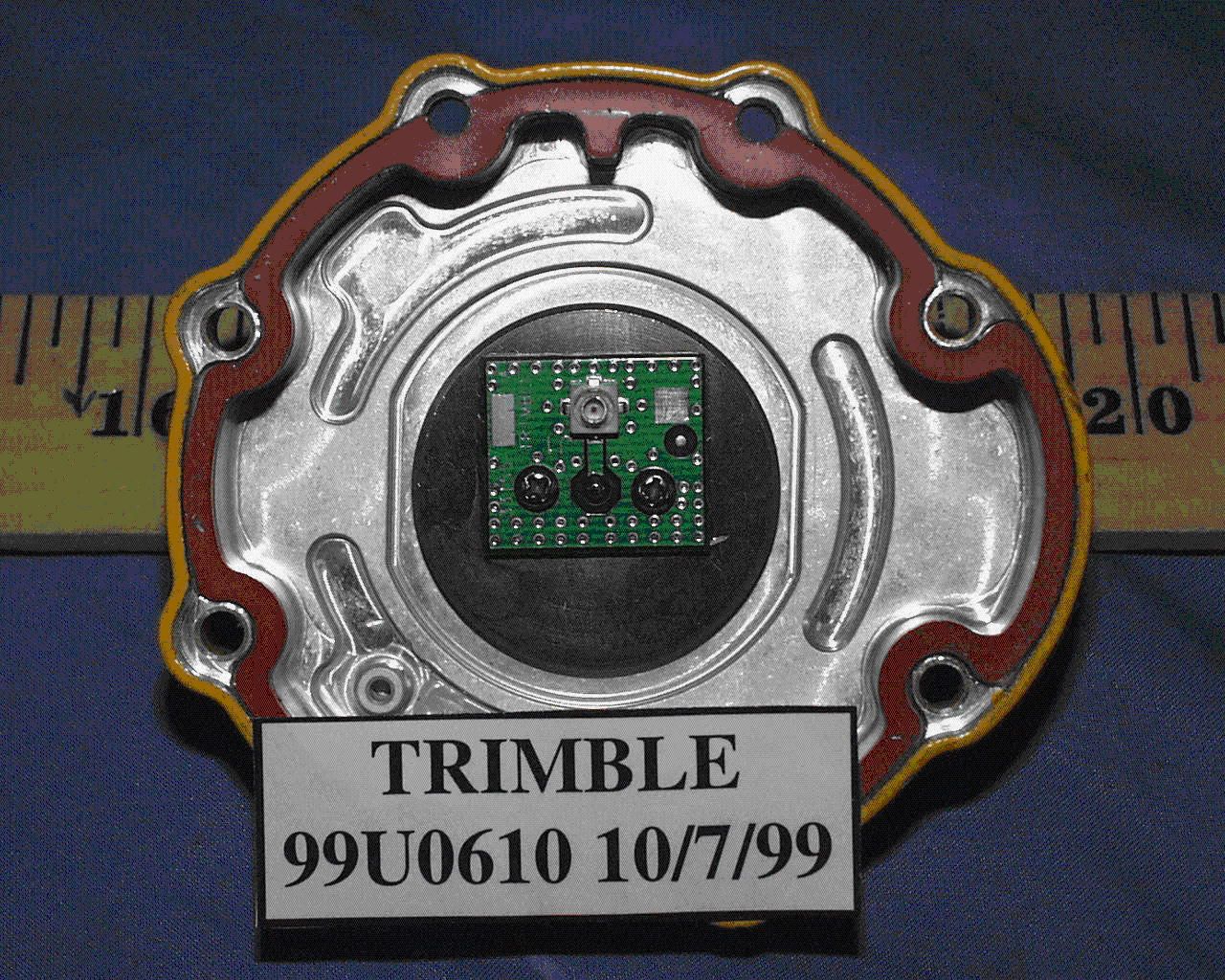

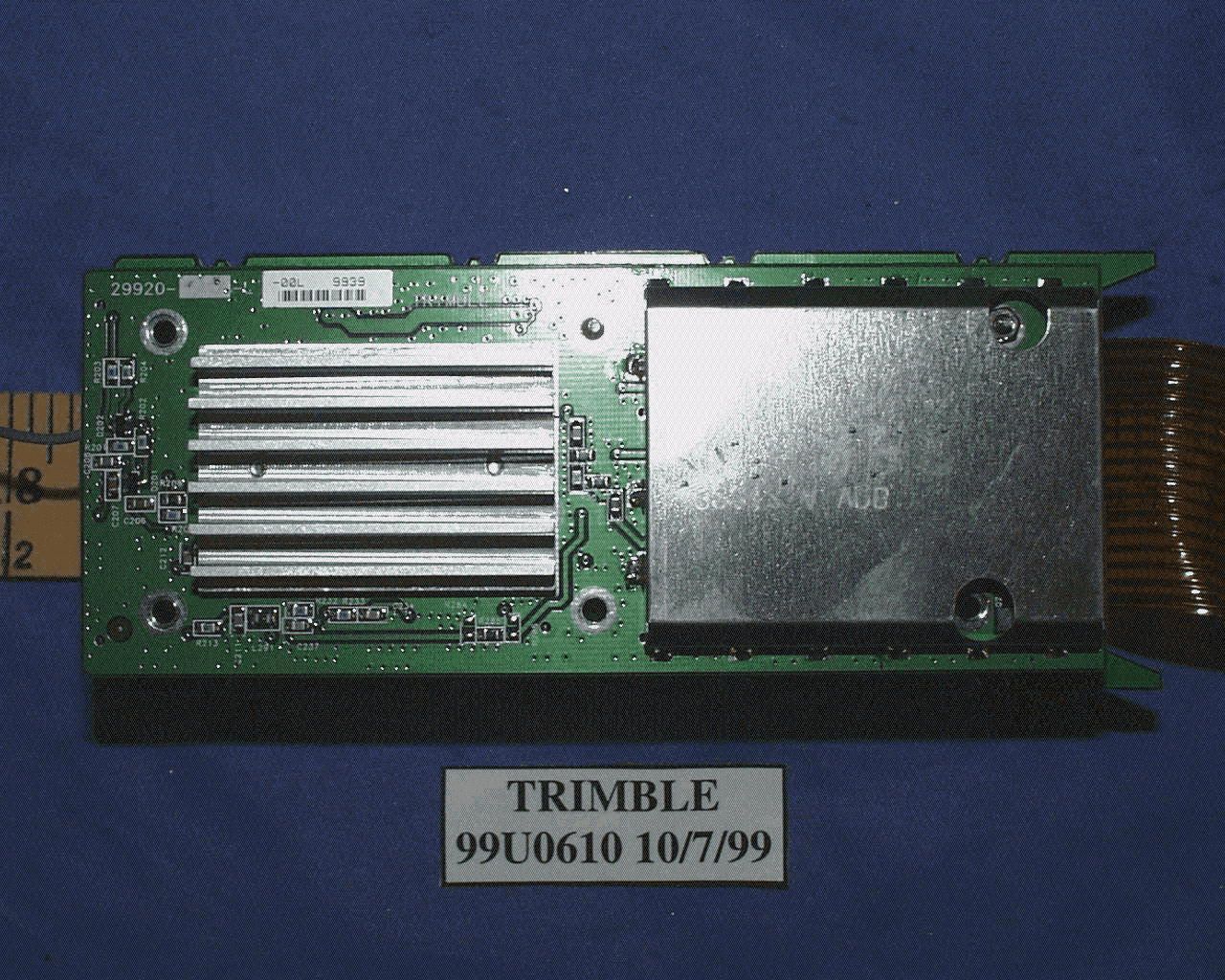

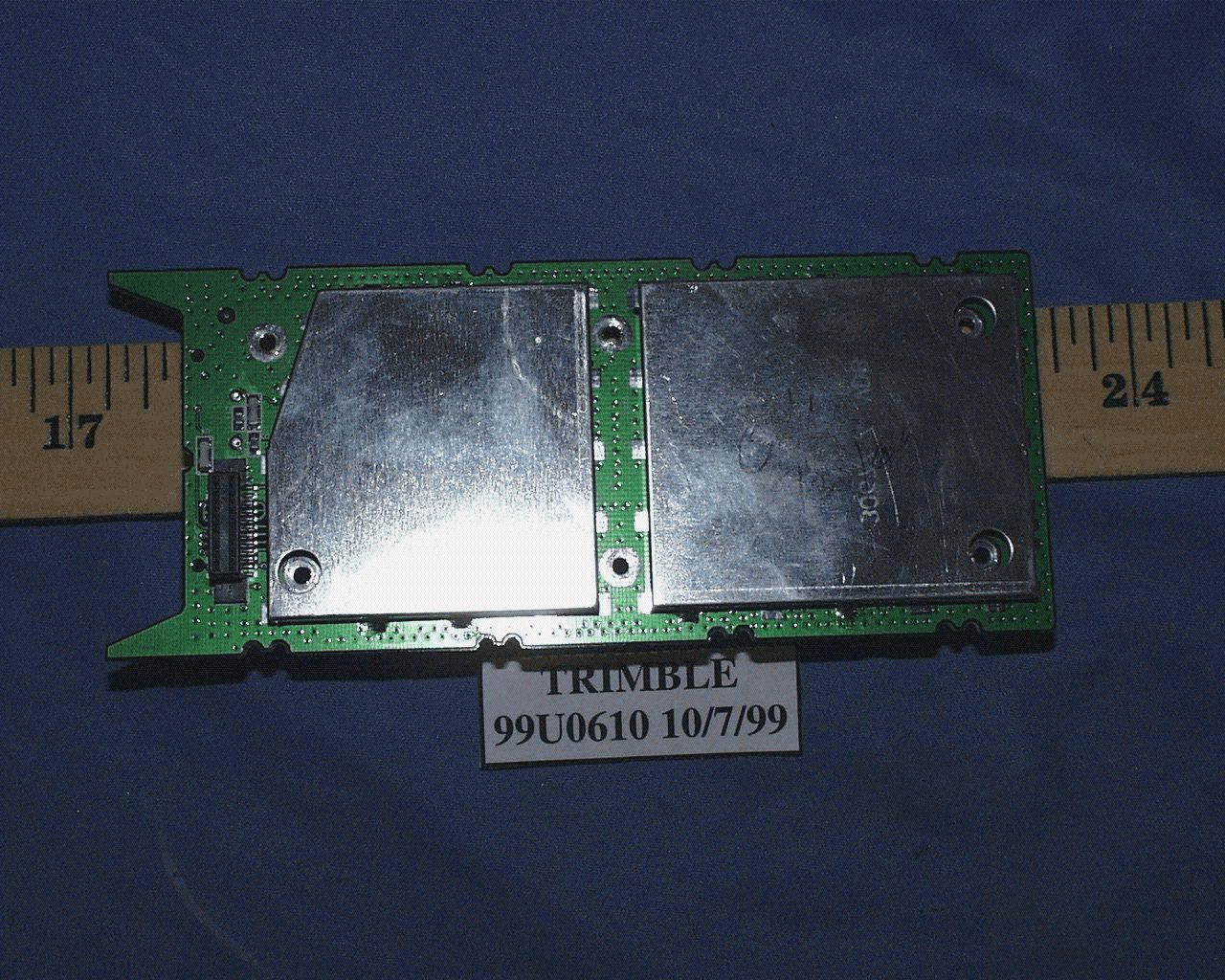

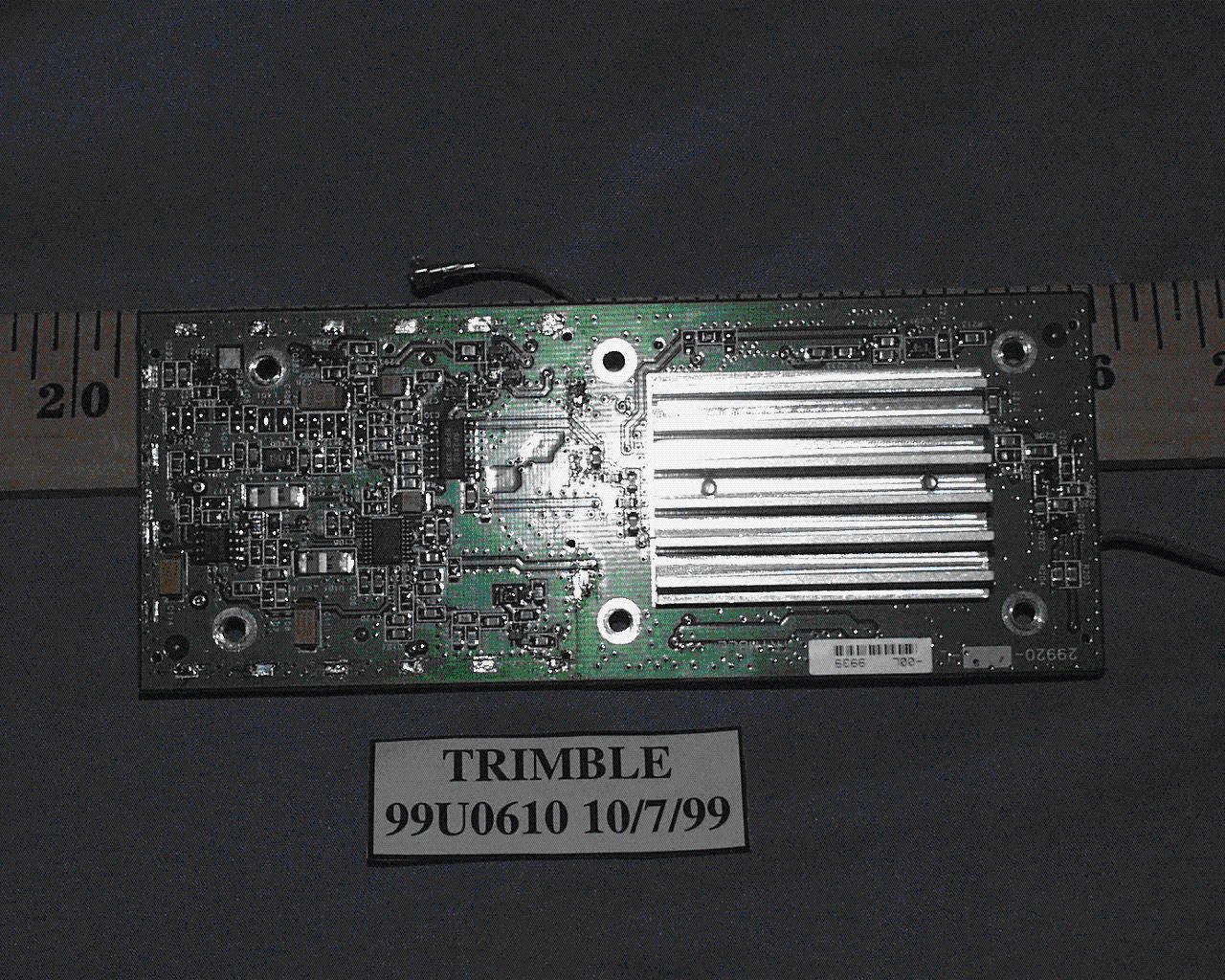

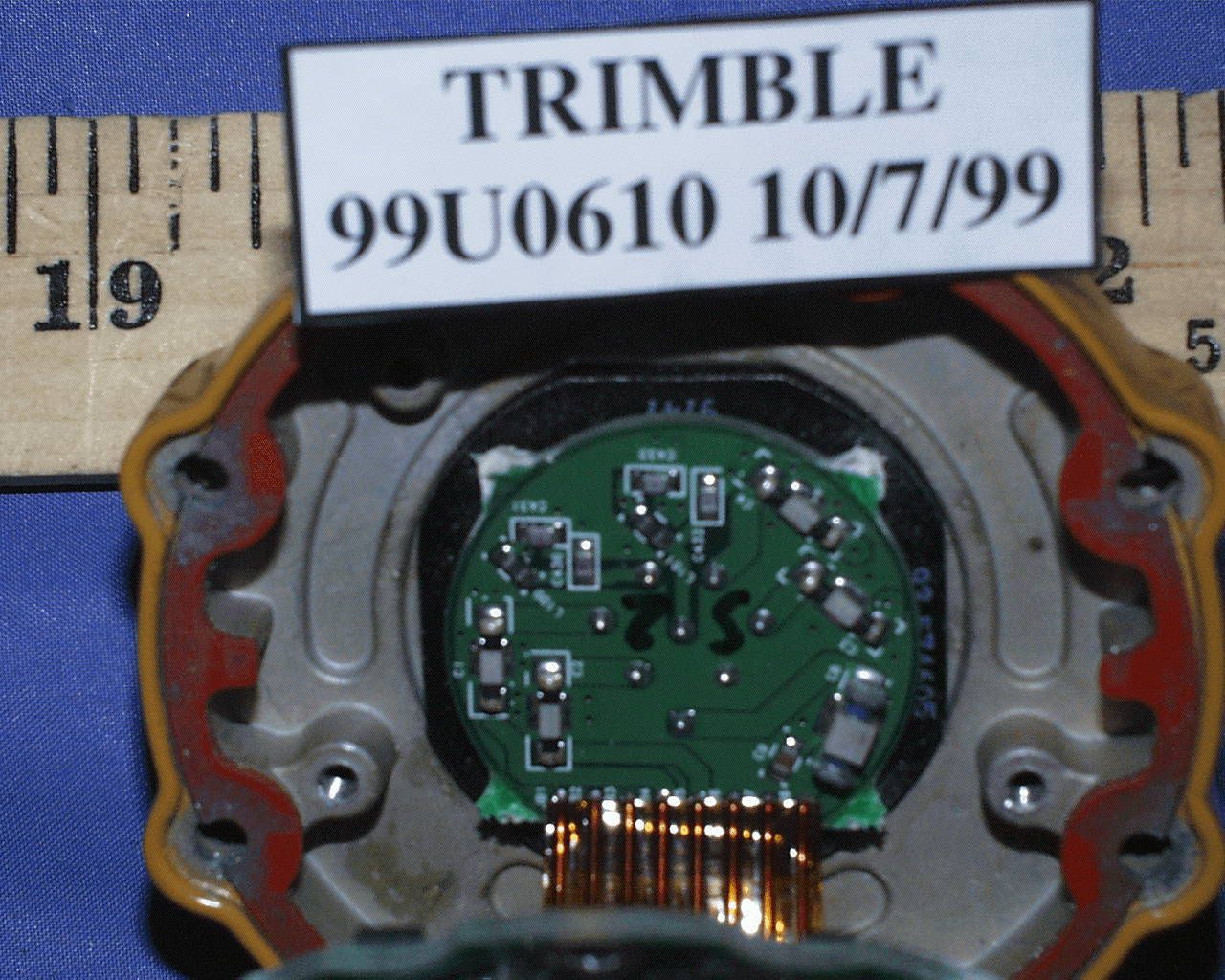

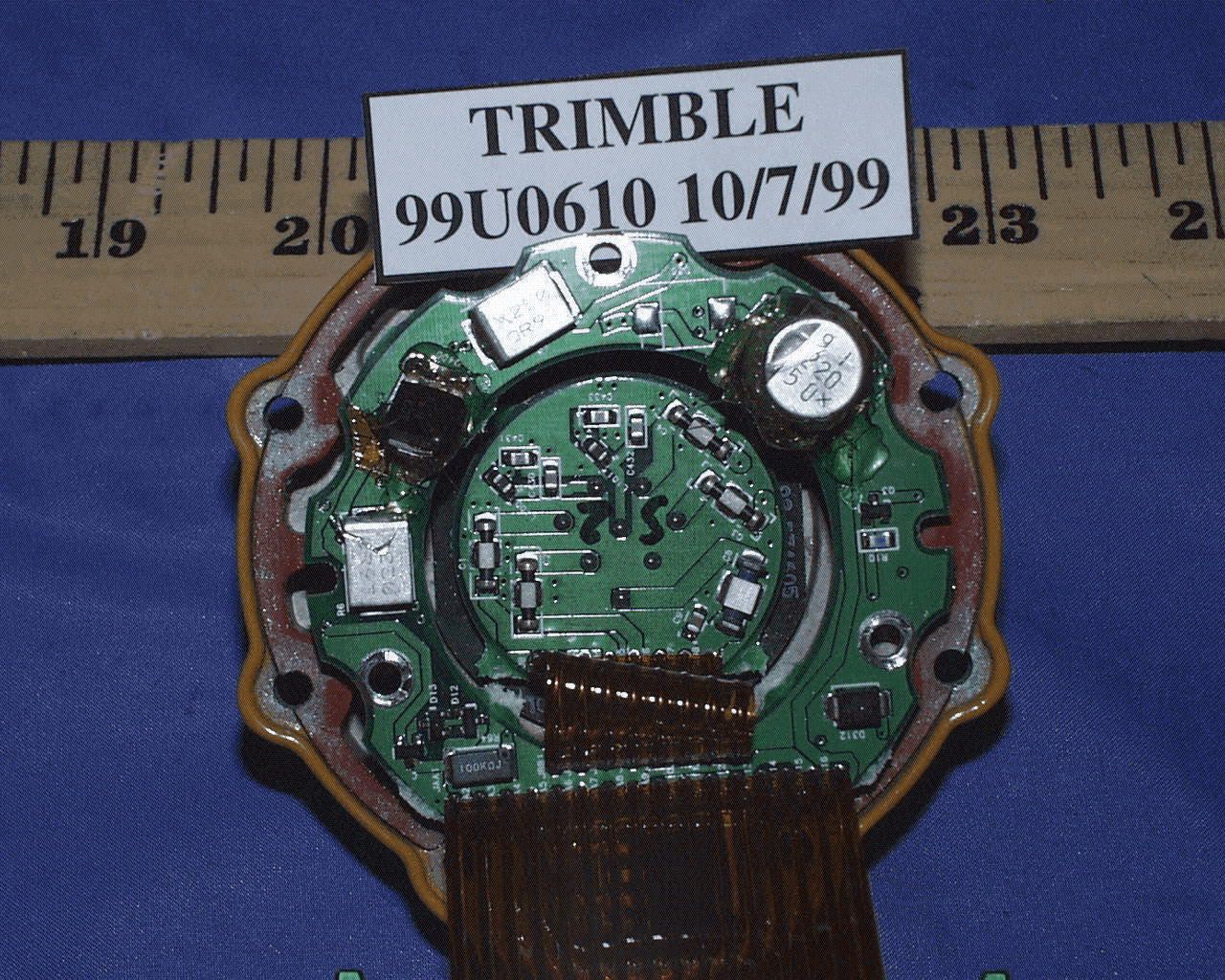

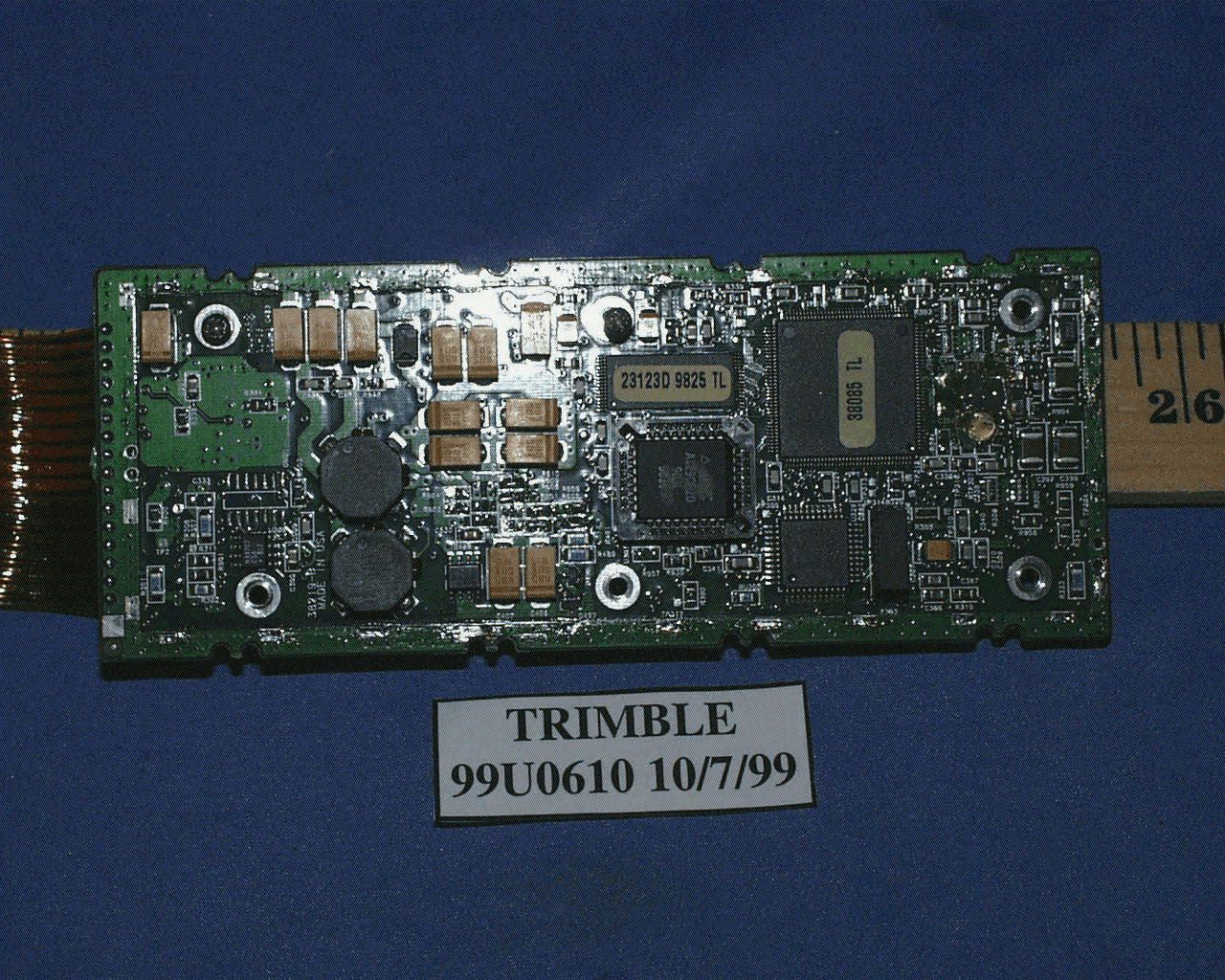

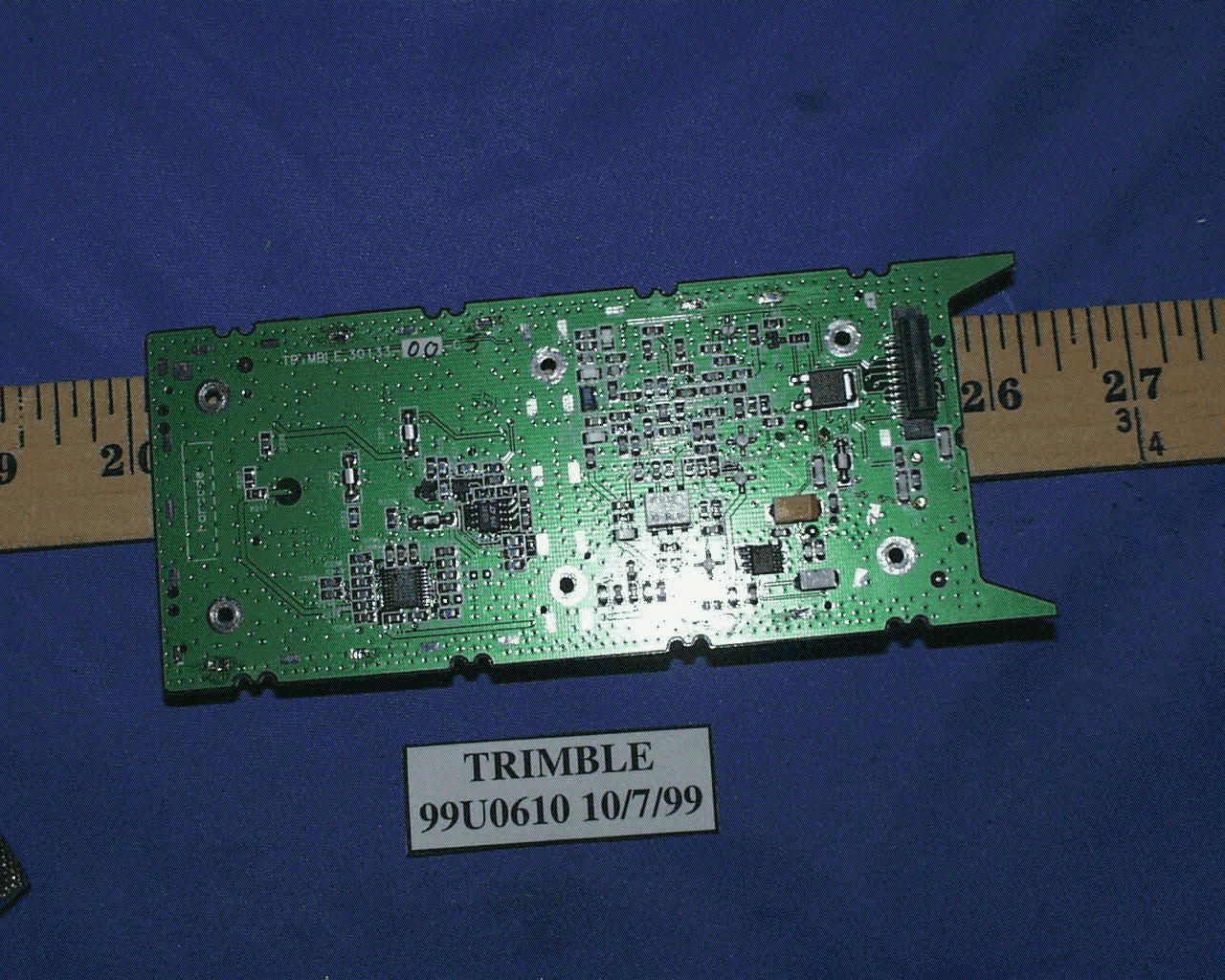

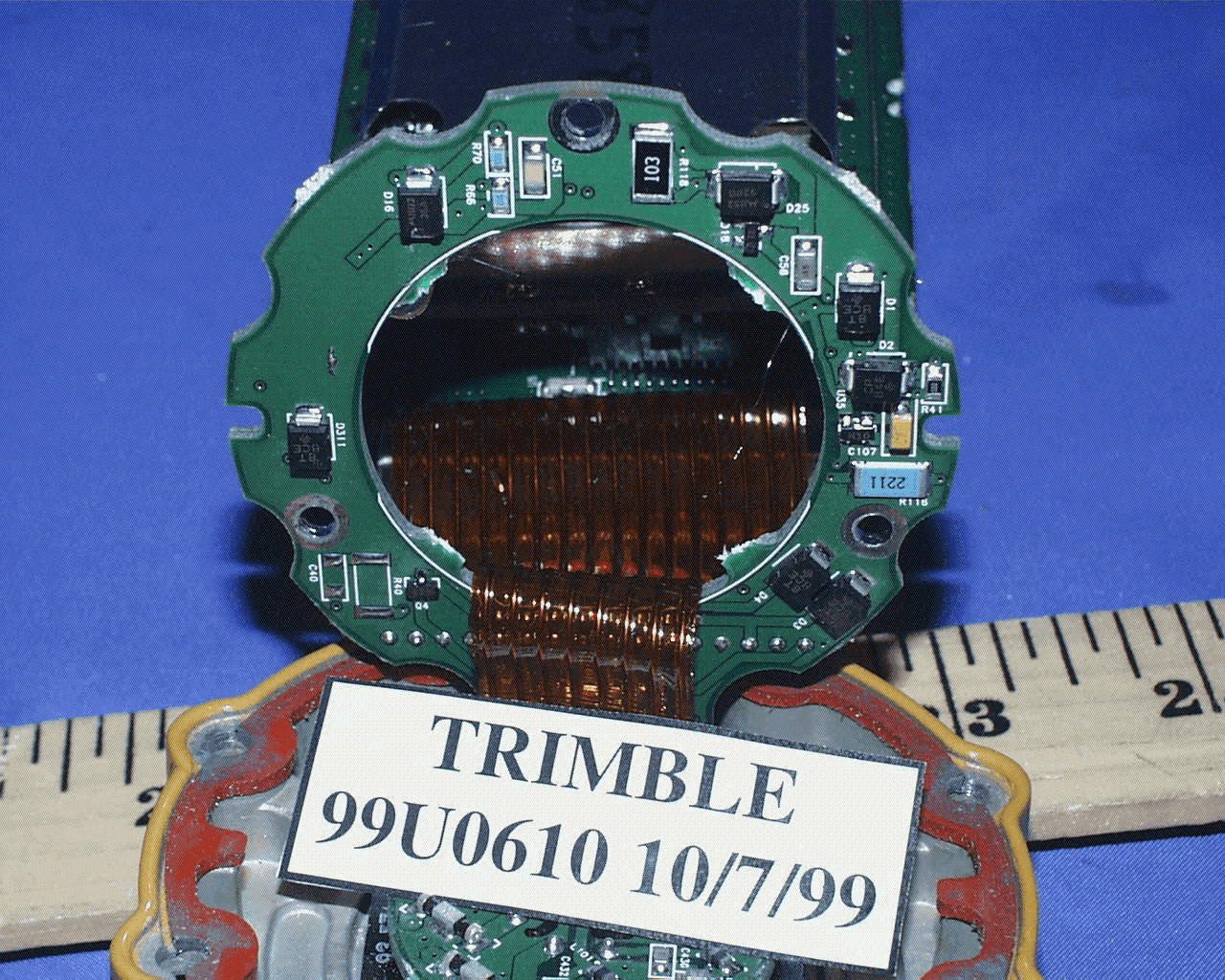

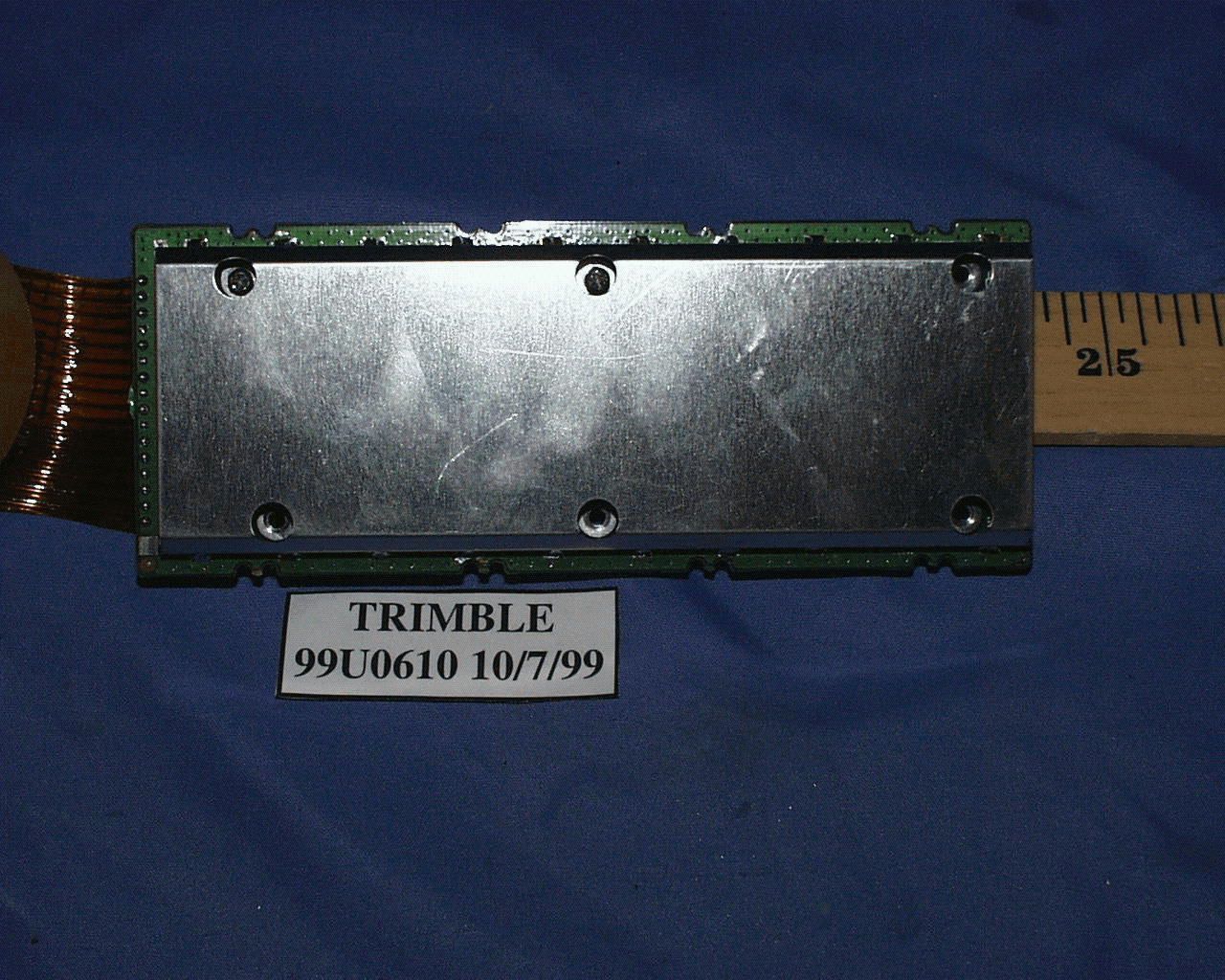

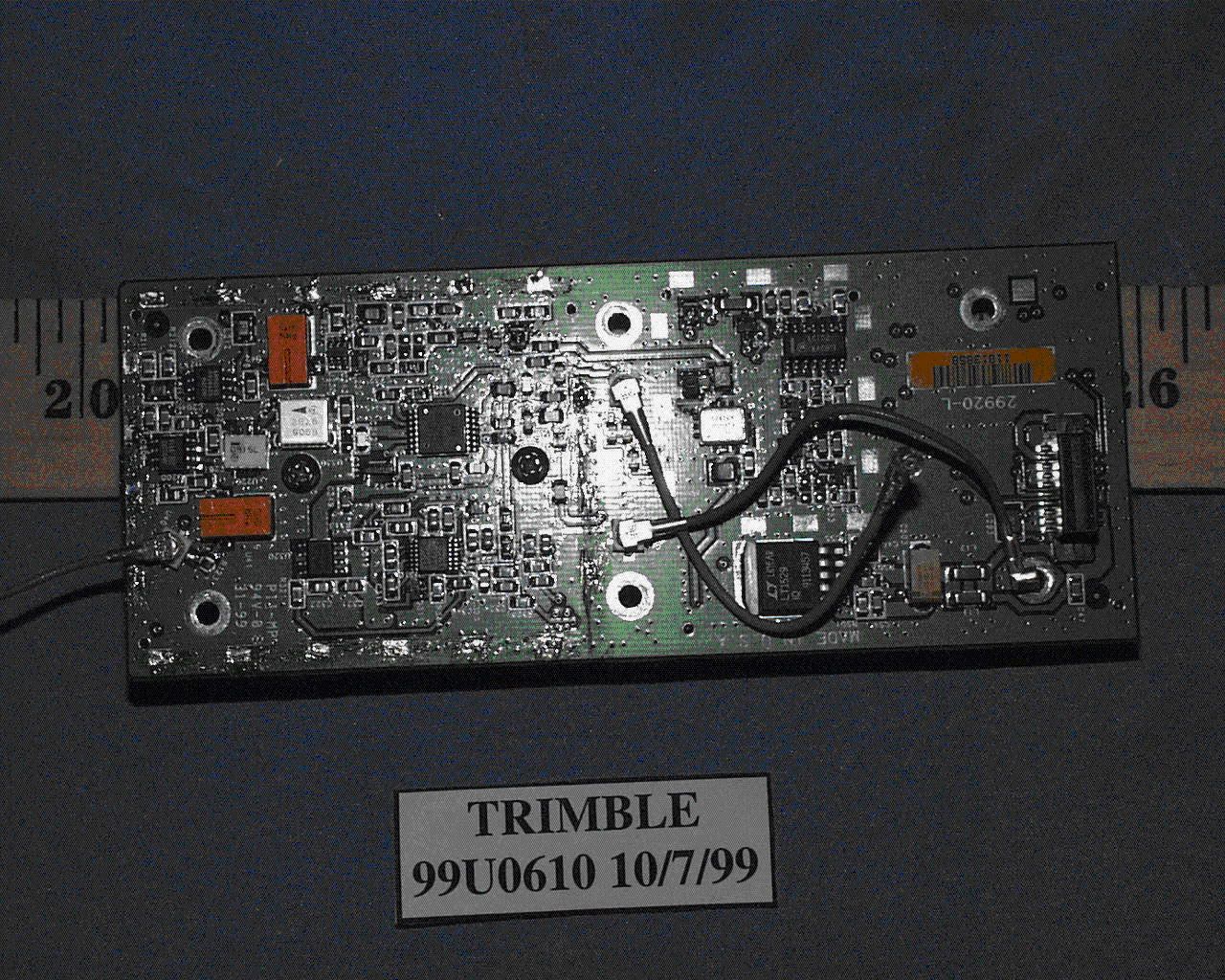

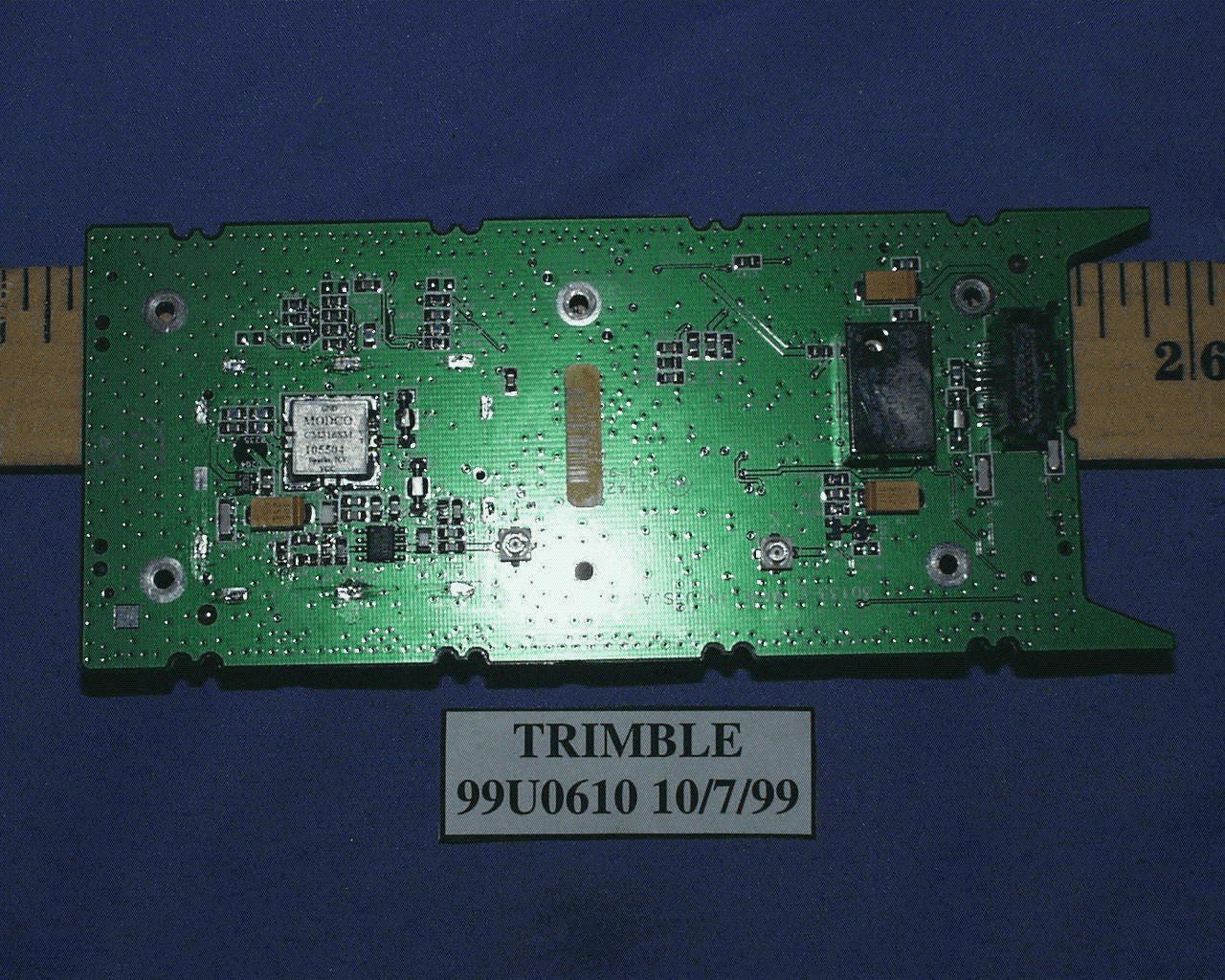

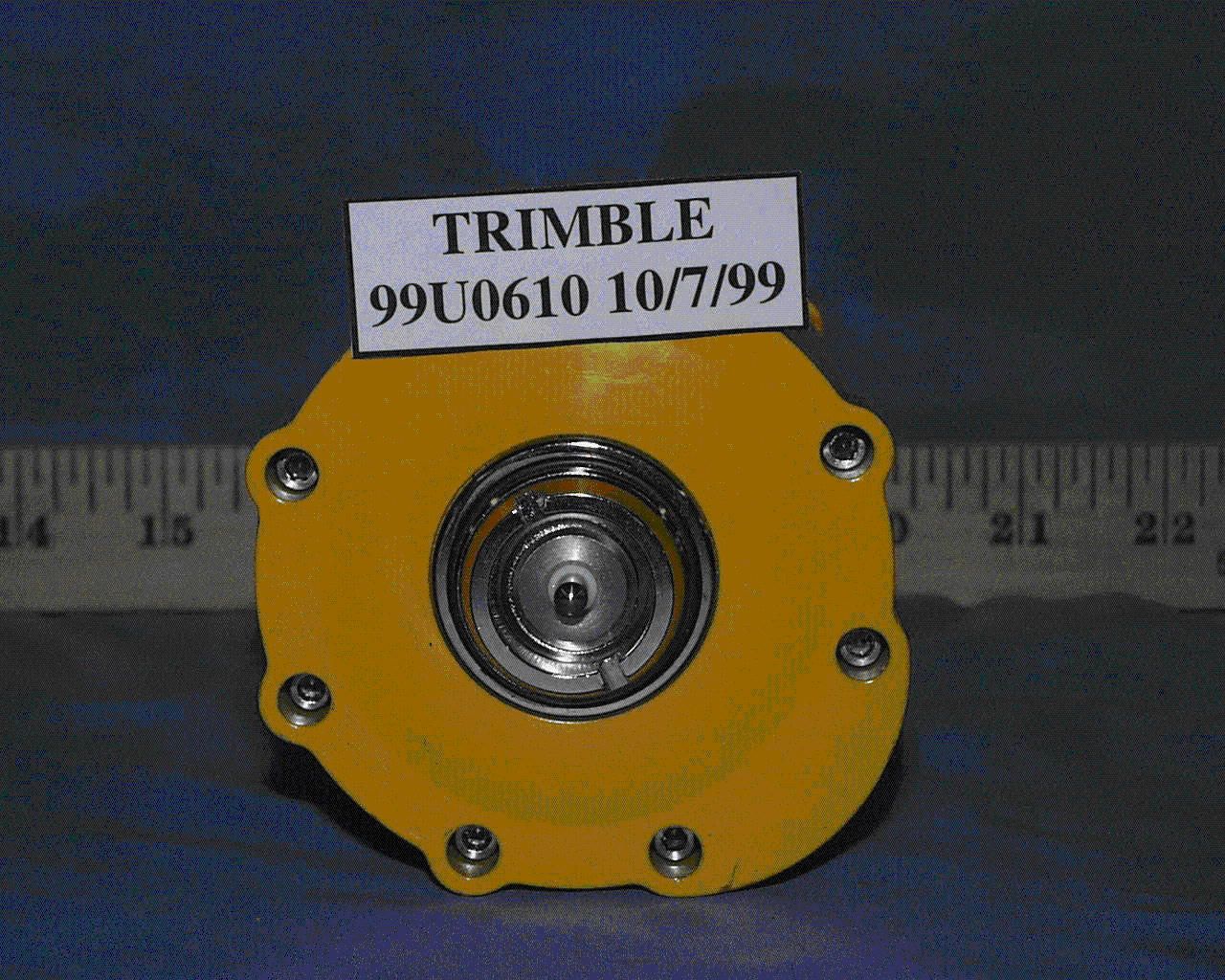

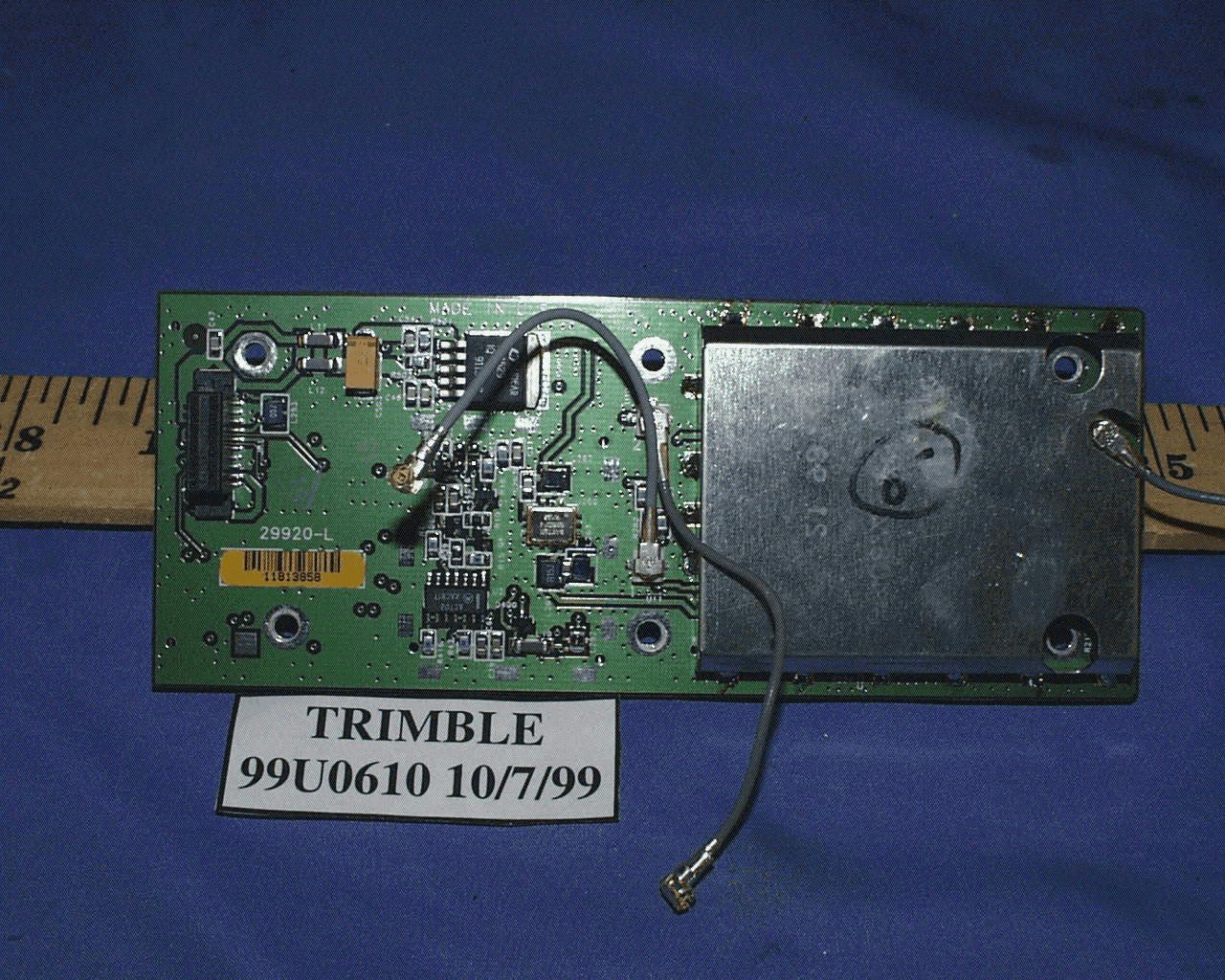

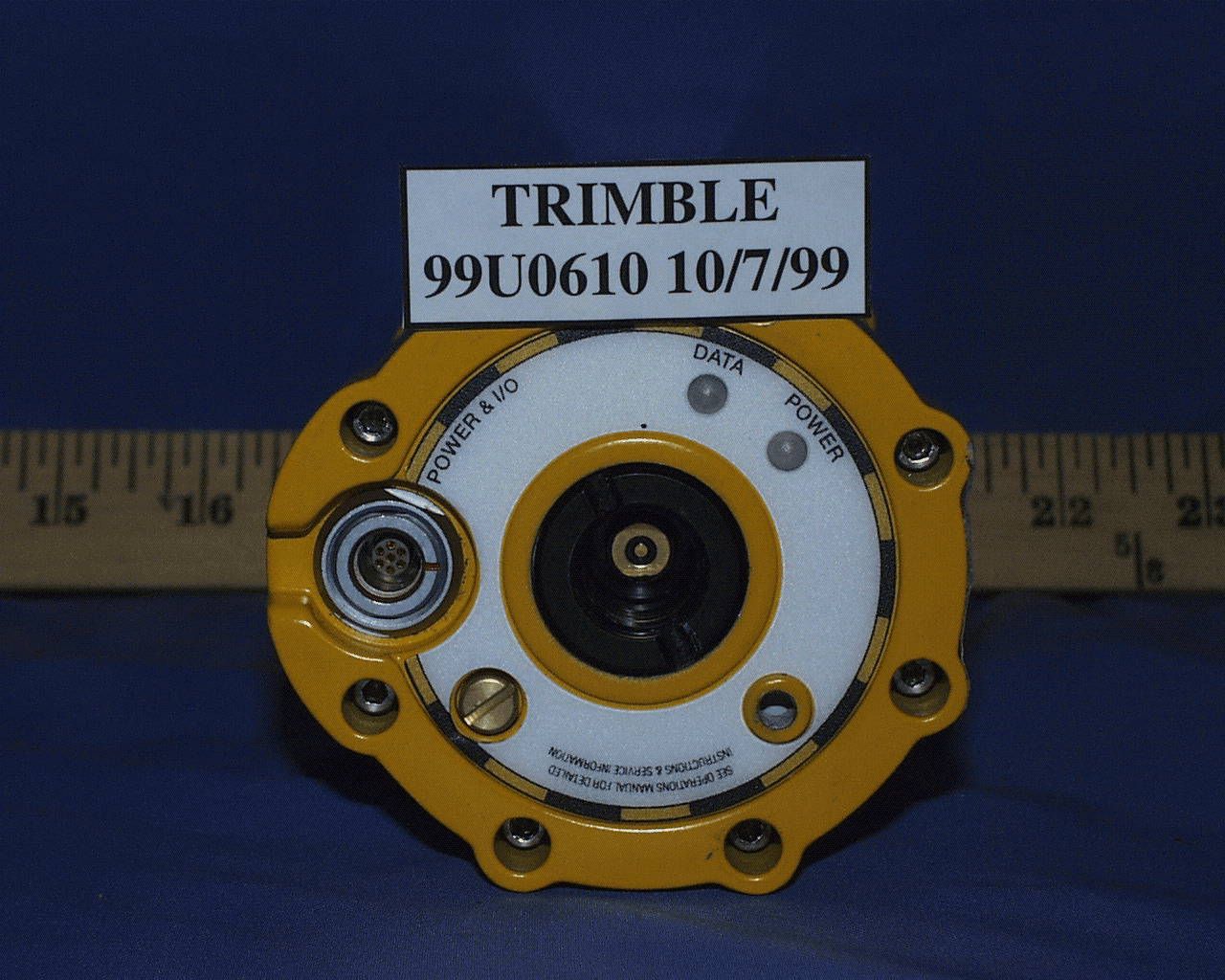

JUP-7112-900IP

FORM NO. FELN0032 04/99 TC900 Radio Operation Manual Computer Aided Earthmoving System (CAES) T ® Produced for Caterpillar Inc. by Trimble Navigation Limited Copyright 1999 Caterpillar Printed in U.S.A. Table of Contents Preface Scope and Audience .......................................................................... i Organization ...................................................................................... i •Document Conventions ..................................................................... ii •Notes, Tips, Cautions, and Warnings ................................................ ii 1 Overview 1.1TC900 Rovers as part of a TRIMCOMM 900 Network ................... 1 1.1.1Frequency Band ................................................................ 2 1.1.2Standard Features .............................................................. 3 1.2TC900 Description ............................................................................ 3 1.2.1Controls and Indicators ..................................................... 4 1.3TC900 Cabling Configurations ......................................................... 6 1.3.1Gender Changer (P/N 33405-00) ...................................... 7 1.3.2Software Configuration Cable (P/N 33471)...................... 8 1.3.3Power & I/O Cable (P/N 32942-17) ................................. 9 1.4 Antenna Description......................................................................... 10 2Using the TC900 2.1TC900 Installation............................................................................. 12 2.1.1TC900 Location on Machine ............................................ 13 2.1.2Antenna Considerations .................................................... 13 2.2Configuration .................................................................................... 15 2.2.1Configuration Software..................................................... 15 ACharacteristics and Specifications A.1 Antenna Gain ................................................................................... 17 A.2Point-To-Point Link .......................................................................... 19 A.3Electrical Interface ............................................................................ 20 A.4Specifications .................................................................................... 22 BRegulations and Safety B.1Safety................................................................................................. 26 B.2Service and Technical Support.......................................................... 26 Index Preface Welcome to the TC900 Operation Manual. This manual describes the installation, configuration, and operation of the TC900 radio modem. The TC900 radio modem is a rugged unit designed for real-time differential and real-time kinematic GPS applications. It provides a high-speed wireless data link between base and rover GPS receivers, and optional repeaters. The TC900 has been certified for license free operation in the U.S. under Part 15 of the FCC Rules, and in Canada under RSS-210 of Industrie Canada. Scope and Audience We recommend you spend some time reading this manual. The following section provides you with a guide to this manual, as well as to other documentation you have received with this product. Organization This manual contains the following chapters and appendices: • Chapter 1, Overview - provides a brief overview and physical description of the TC900. • Chapter 2, Using the TC900 - contains complete installation and configuration instructions for the TC900. • Appendix A, Characteristics and Specifications - summarizes performance characteristics and specifications that can be expected from a TC900 rover. • Appendix B, Regulations and Safety - contains regulation and safety information. ii Document Conventions Italics identify software menus, menu commands, dialog boxes, and the dialog box fields. SMALL CAPITALS identify DOS commands, directories, filenames, and filename extensions. Courier is used to represent what you see printed on the screen by the DOS system or program. Courier Bold represents information that you must type in a software screen or window. [Return] or [Ctrl] + [C] identifies a hardware function key or key combination that you must press on a PC. Helvetica Bold represents a software command button. Notes, Tips, Cautions, and Warnings Notes, tips, cautions, and warnings are used to emphasize important information.

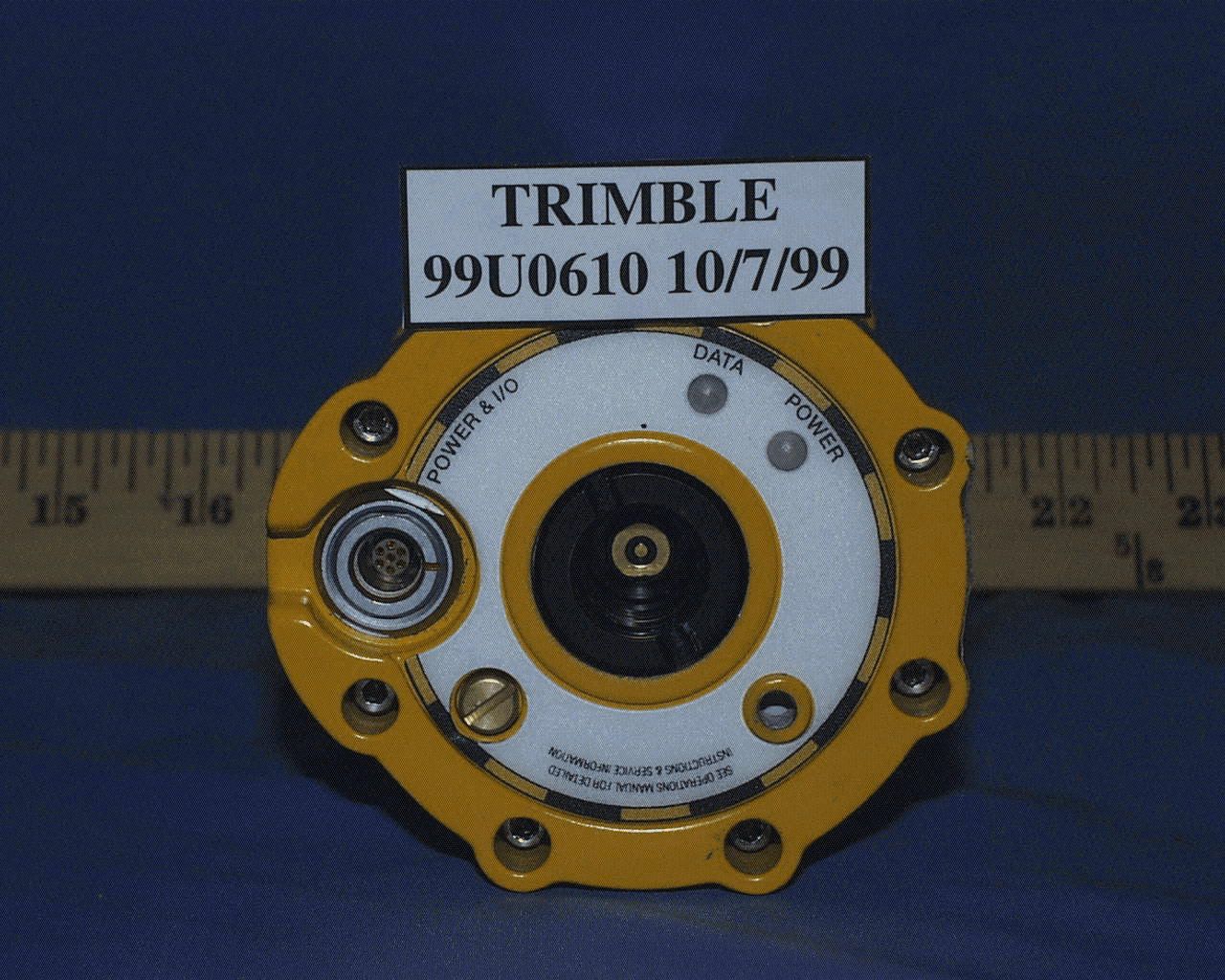

Note – Notes give additional significant information about the subject to increase your knowledge, or guide your actions. A note can precede or follow the text it references.  Tip – Indicates a shortcut or other time or labor-saving hint that can help you make better use of the TC900 radio modem.  Caution – Cautions alert you to situations that could cause hardware damage or software error. A caution precedes the text it references. iii  Warning – Warnings alert you to situations that could cause personal injury or unrecoverable data loss. A warning precedes the text it references . 1 1Overview A TC900 radio modem is part of a digital-data radio network. It is designed primarily for broadcasting low-latency differential GPS (DGPS) corrections or raw GPS data from a roving receiver (machine) to a repeater or reference station receiver, for use during real-time differential and real-time kinematic (RTK) surveying. 1.1TC900 Rovers as part of a TRIMCOMM 900 Network To achieve line-of-sight (LOS) coverage to all points in a work area, a TRIMCOMM 900 network including up to four repeaters must be used. The repeaters retransmit data packets according to a simple time-sharing scheme to avoid mutual interference. The operation of the repeaters is transparent to the TC900 rovers. This means that a TC900 rover can move around and pick up data packets from the reference station or any repeater, whichever it hears first. The reference, rovers, and repeater radios in a TRIMCOMM …

Text truncated - open the document above for the full version.

tel: 650-726-1263 fax: 650-726-1252 internet: [email protected] Thomas N. CokeniasEMC & Radio Type Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 2 January 2000 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Trimble Navigator FCC ID: JUP-7112-900IP To whom it may concern, Request is hereby submitted, on behalf of my client Trimble Navigation, to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Theory of operation (P2P Architecture) Rationale for request for confidentiality: Trimble Navigation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The $135 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Trimble Navigation. tel: 650-726-1263 fax: 650-726-1252 internet: [email protected]

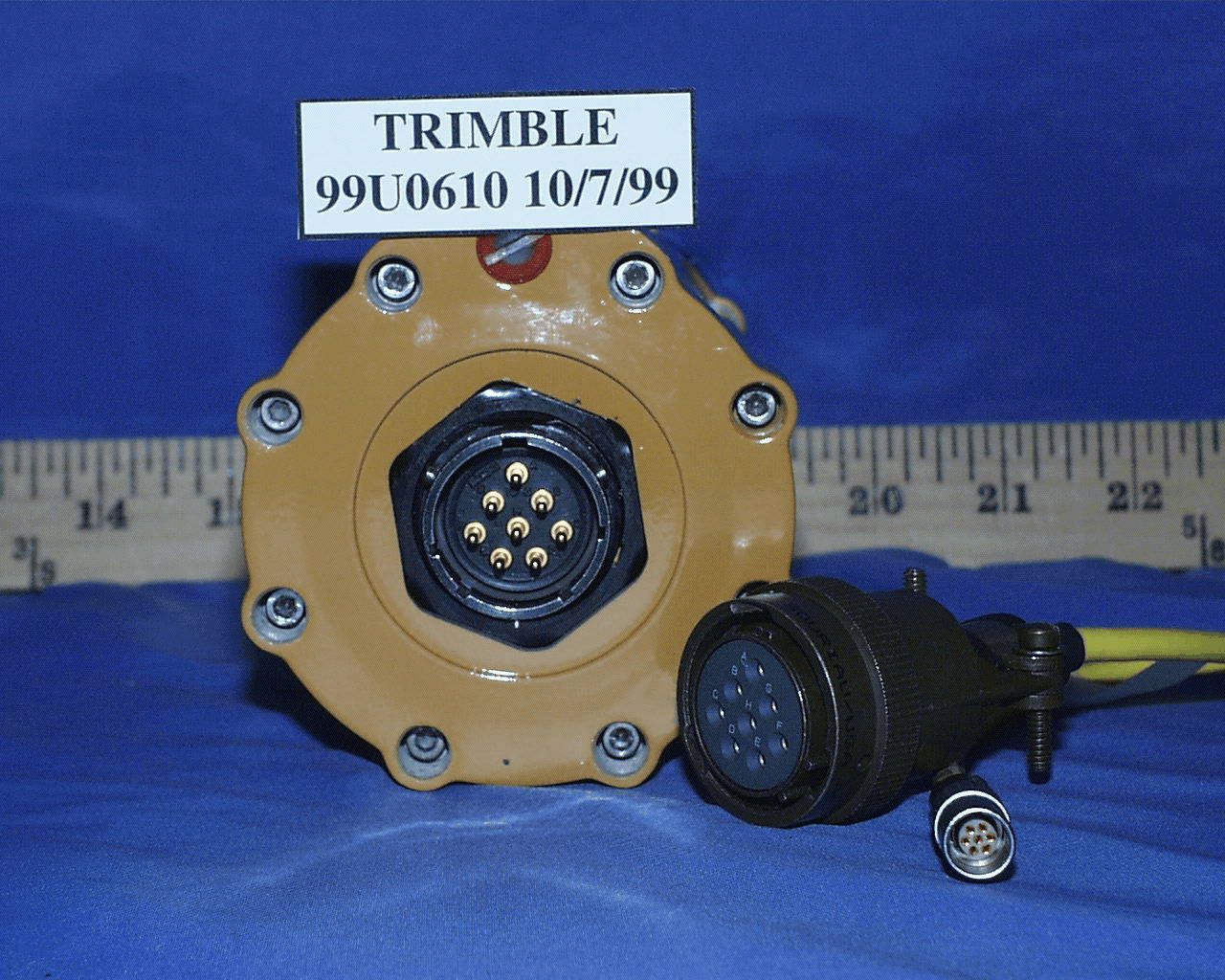

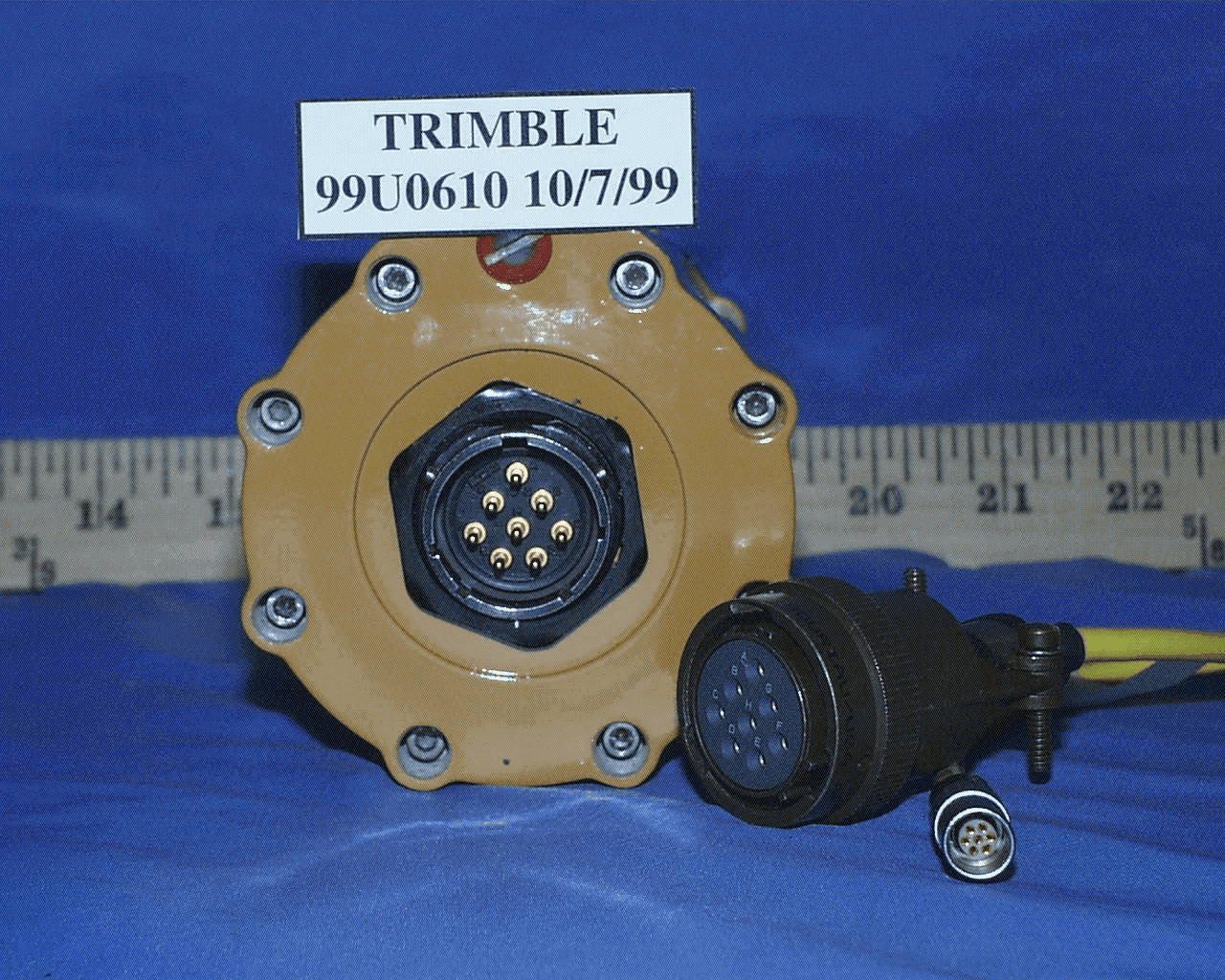

Correspondence Reference Number: 11012 731 Confirmation Number:EA95581 Date of Original E-Mail:12/13/1999 1) Please provide information showing compliance with the RF safety requirements. Submit the information in a separate exhibit and place it in the RF exposure info folder when submitting it. ANS: Refer to separate Word attachment: RF Hazard Please note: A new antenna by MaxRad has been added to those already tested and submitted. Radiated emissions data, antenna description, and manufacturer data sheets are being uploaded to FCC. 2) Please provide a confidential letter. ANS: Confidentiality letter is separate Word attachment: 900IPconf 3) You indicate the use of a unique connector. What is the type of unique connector being used? ANS: This is a Trimble proprietary connector that has been used on 900 MHz radios for several years. Refer to separate .jpg attachments titled: Unique 4) What is the receiver input bandwidth? ANS: 902 – 908 MHz– see page 1 of Theory of Operations, in separate Word document TCOM900_theory_of_op.doc 5) Provide a few samples of the pseudorandom hopping sequence. ANS: Refer to separate Word attachment: HOPPINGSEQ 6) The maximum allowed 20 dB bandwidth is 500 kHz. The device does not comply. Please explain. ANS: There was an error in setting the maximum and determining the 20 dB down points in the original test set-up. Refer to separate .jpg attachments named New20dB 7) The channel frequencies have to be separated by the greater of 25 kHz or the 20 dB Bandwidth of the hopping channel. Indicate compliance with this rule. ANS: Per 15.247a1, the hopping channels must be separated by at least 25 kHz or at least the channel BW, whichever of the two is greater. The channel BW is around 460 kHz. The channels are separated by 509.524 kHz – see page 1 of Theory of Operations, in separate Word document TCOM900_theory_of_op.doc 8) The transmitter cannot coordinate its hopping sequence with the hopping sequence of other transmitters, or vice versa, for the purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Provide a description on how the device complies with this rule. ANS: All transmitters in a network share the same synchronized hopping pattern. They do not avoid simultaneous occupancy, they guarantee simultaneous occupancy! If multiple transmitters transmit at thesame time, they will collide. A link-layer protocol uses TDMA to eliminate most simultaneous transmissions. Transmitters in separate networks are totally un-coordinated. 9) Each frequency must be used equally on the average by each transmitter. Except for voice systems, each new transmission must start at a different point in the sequence so that on average the full sequence is used. Therefore, Describe where the next transmission starts when all frequencies are not used for a previous message. This is required because some transmissions may need only a few frequency hops to be completed. i.e. If the transmission started on the same frequency each time, this frequency would be used more than the others if many short transmissions were sent. ANS: The hopping sequence is never re-started short of completion. It runs continuously, even if there is nothing to transmit. When there is something to transmit, it is transmitted using whatever part of the sequence is current.

JUP-7112-900IP Label and location CANADA: 1756 102 484A FCC ID: JUP-7112-900IP THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING CONDITONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE & (2) THIS DEVICE MUST ACCEPT ANY INTERFERNCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Data/Spec Sheet ORDER (800) 323-9122 FAX (630) 372-8077 MAXRAD Low Profile Vertical (MLPV) Series Antennas Features: uu uu uSingle wideband MLPV1700 antenna covers PCS and 2.4 GHz ISM frequencies, from 1700 to 2500 MHz uSingle wideband MLPV800 antenna covers frequencies from 806 to 960 MHz uu uu uThree UHF models cover UHF frequencies from 406 to 512 MHz uPatent-pending design uLess than 1-7/8” in overall height (MLPV1700 model) uLess than 2-1/2” in overall height (MLPV800 model) uLess than 3-3/8” in overall height (MLPV UHF models) uExcellent pattern coverage for mobile and base station applica- tions u3/4” hole mount allows easy installation and replacement uNo tuning required Electrical Specifications: Maximum Power: 150 Watts (MLPV1700 and MLPV800) 100 Watts (MLPV 406, 430 and 450) Nominal Impedance: 50 Ohms Antenna Type: Low profile - Vertical Mechanical Specifications: Radiator Material: Solid brass radiator Mount Type: 3/4” hole mount PCS/2.4 GHz ISM Antenna Height: 1-7/8” high 800/900 MHz Antenna Height: 2-1/2” high UHF Antenna Height: 3-3/8” high Mount Options: Compatible with various mobile mounts (consult factory for more information) The MLPV antenna series provides superior pattern coverage for all mobile and fixed applications using PCS/ISM frequencies from 1700 to 2500 MHz, 800/900 MHz frequencies from 806 to 960 MHz and UHF frequencies from 406 to 512 MHz. Its patent-pending design provides industry leading wideband performance and reliability, with mini- mum loss and no tuning required. The MLPV antennas feature an attractive compact package and are ideal for indoor or outdoor applications requiring minimum visibility. MLPV1700, MLPV406 and MLPV800 antennas seireSVPLM #ledoM ycneuqerF egnaRRWSVhtdiwdnaB tsiL ecirP 0071VPLMzHM0052-00711:5.1<zHM00800.04$ 008VPLMzHM069-6081:5.1<zHM45100.53$ 054VPLMzHM215-0541:0.2<zHM2600.83$ 034VPLMzHM084-0341:0.2<zHM0500.83$ 604VPLMzHM044-6041:0.2<zHM4300.83$ Feature / Benefit List Feature:Broadband performance Benefit:The MLPV1700 covers1800 GSM,1900 PCS and 2.4 GHz ISM applications. The MLPV800 covers all 800/900 MHz applications, including 800 MHz SMR, 800 MHz cellular, 900 MHz E-SMR, 900 MHz GSM and 900 MHz ISM bands. The MLPV450 covers UHF frequencies from 450-512 MHz. Feature:3/4” hole mount Benefit:Allows easy installation of the low profile antenna into an existing mount. Feature:Patent-pending design Benefit:Provides industry-leading broadband performance in an attractive, compact package. Feature:U.V. stable coil housing Benefit:Protects the low profile antenna from fading or cracking under direct sunlight, even after years of service. Feature:Efficient radiator design with rugged solid brass construction Benefit:Provides extremely efficient power handling that offers superior wideband performance and reliability with minimum loss, for both indoor or outdoor applications. Frequently Asked Questions Rev. 08/99 Question:Do the MLPV antennas require tuning? Answer:No. The antennas feature a patent-pending design that covers 1700-2500 MHz, 806-960 MHz, 406-440 MHz, 430-480 MHz and 450-512 MHz depending on the model. Question:Do the antennas require a ground plane? Answer:Yes. The standard MLPV antennas require a ground plane. Question:How do these antennas compare with quarter wave antennas? Answer:MAXRAD MLPV antennas outperform any quarter wave antenna. Maximum performance can still be achieved with a traditional MAXRAD 5 dB gain mobile antenna.

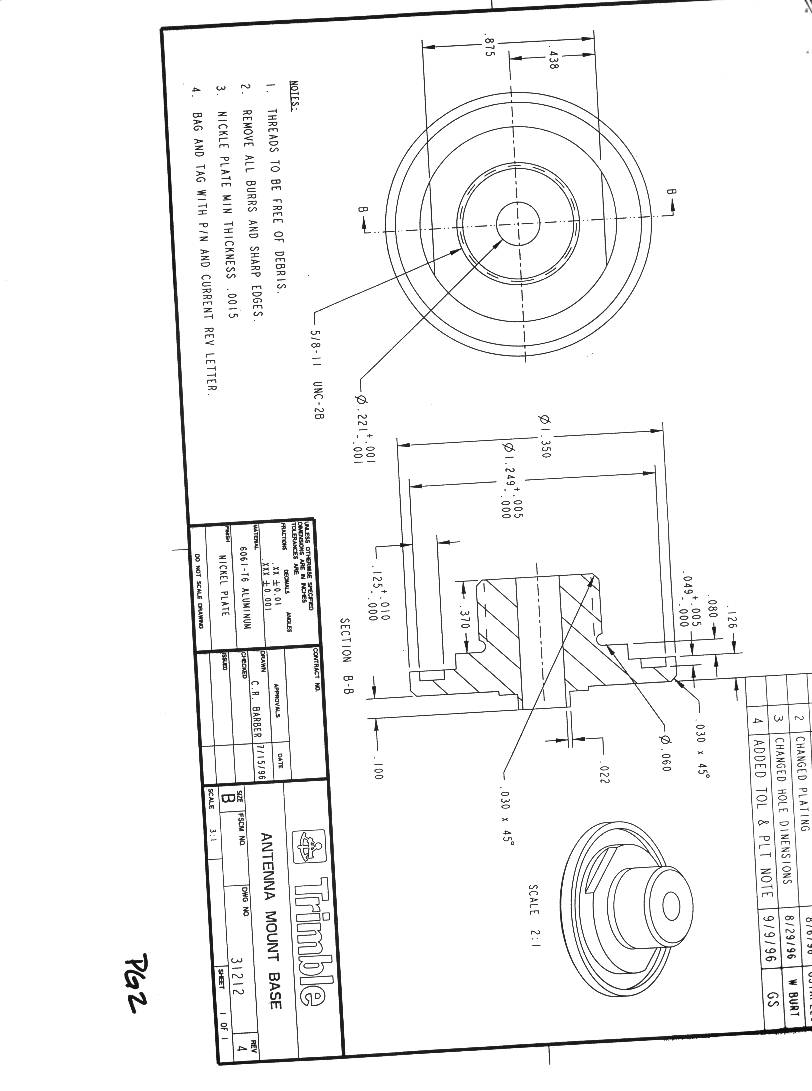

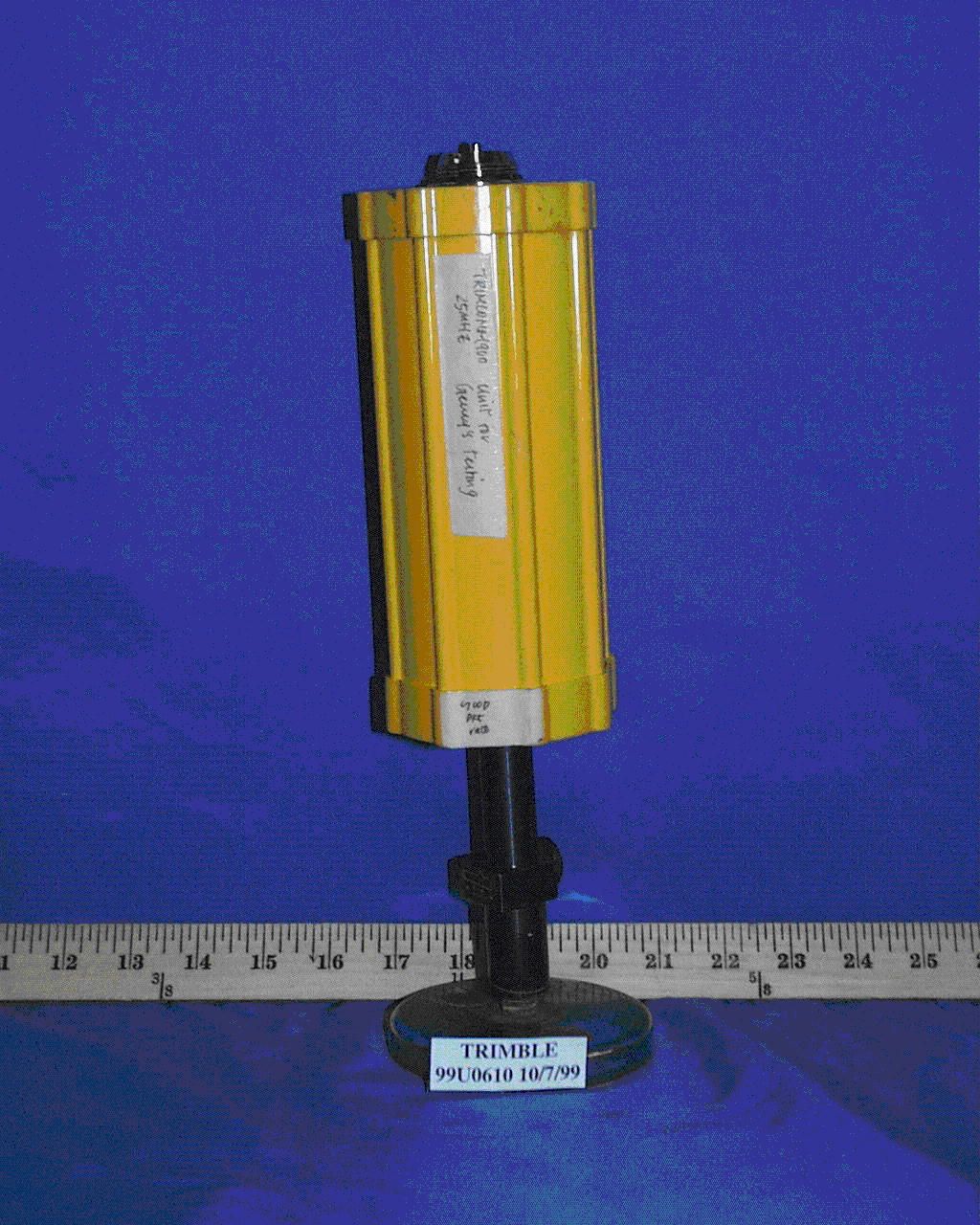

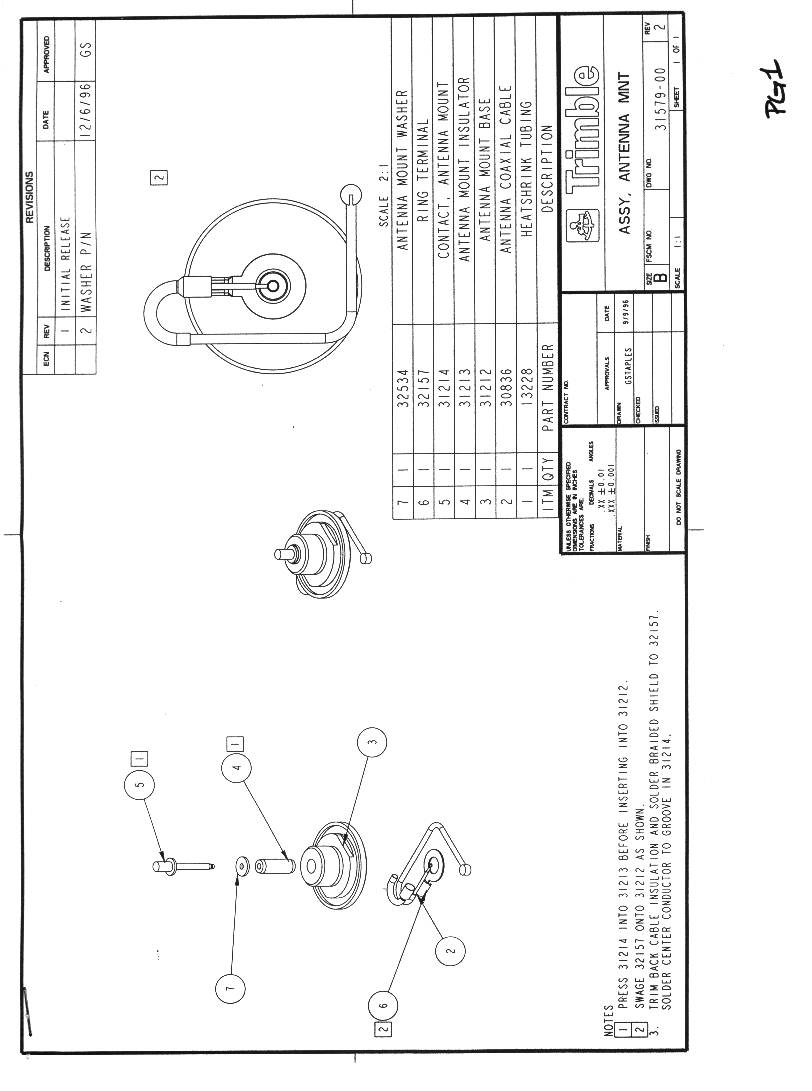

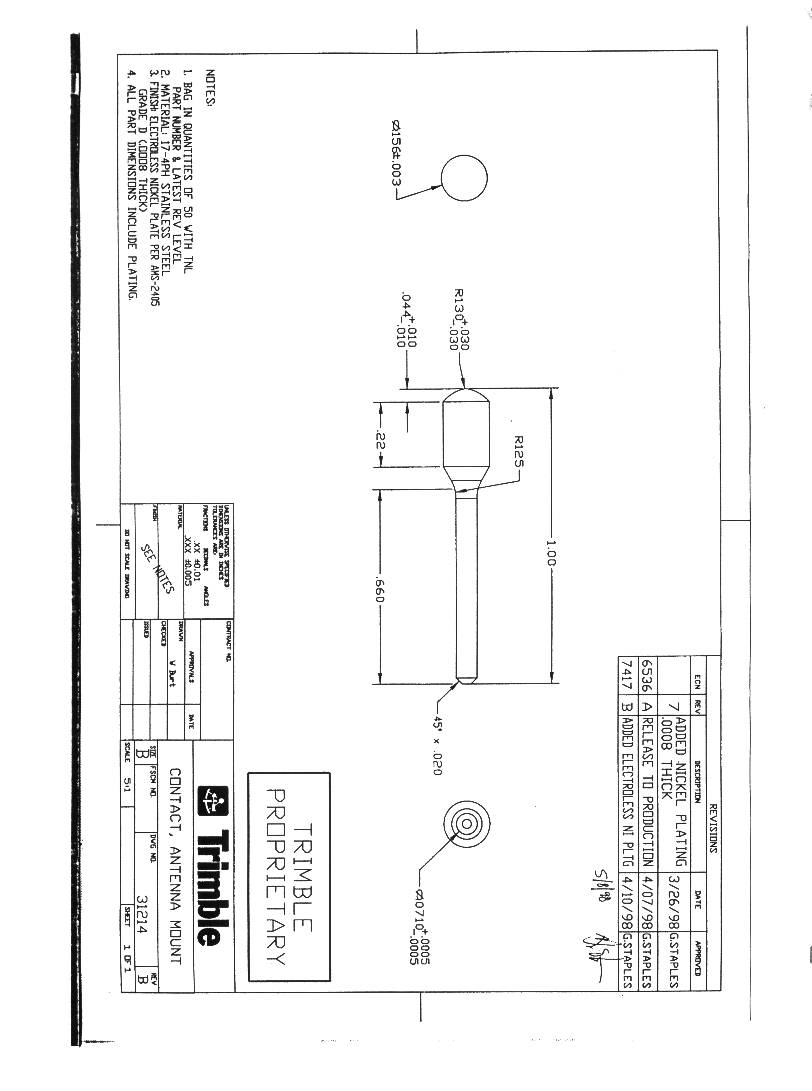

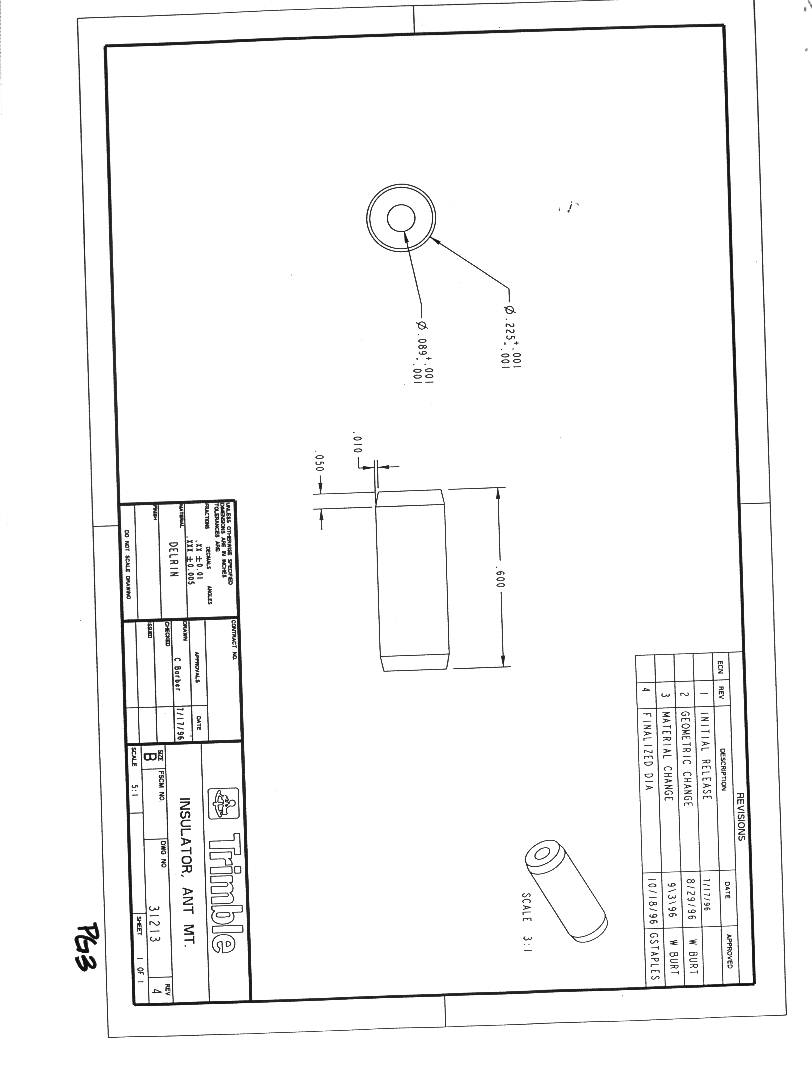

ADDITIONAL INFORMATION RE: MAXRAD ANTENNA The antenna is manufactured by MaxRad and is described as a low profile vertical antenna. Their standard part number for this antenna is MLPV800, covering the frequency range of 806 to 960 MHz. Trimble’s antenna is a modified MLPV800, modified at the base so that it will mate properly to the TC900 antenna connector. The MaxRad part number for this Trimble antenna is Z661. The antenna consists of a brass vertical post and a brass disk at the top of the post. MaxRad has measured the antenna gain on the TC900 antenna mounting endcap and measured a peak gain of 2.3 dBi at 915 MHz.

Trimble 900IP RF Hazard RF Hazard Information Per Sec. 1.1307 For transmitters operating in the 902-928 MHz frequency range, paragraph 1.1310 limits maximum permissible exposure (MPE) to f/1500 mW/cm2 for uncontrolled environments and f/300 mW/cm2 for controlled environments. The maximum distance from the antenna at which MPE is met or exceeded is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain, and separation distance in meters: E,V/m = (√(30*P*G))/d Power density, mW/m2 = E 2 /3770 E for MPE : √((902/1500)*3770) = 47.6 V/m Simplifying and rearranging terms: d = (√(30*P*G))/47.6 Converting to decibels: 20 log d = 10 log 30 + 10 log P watts + G dBi –33.6 dB 20 log d = 14.77dB + PdBm - 30 dB –33.6 dB + GdBi 20 log d = P dBm + G dBi –48.8 ; d = 10^(PdBm+GdBi-48.8)/20 Worst-case assumption is for 0.61 mW/cm2 uncontrolled environment: Max RF Output Power: 28.7 dBm Antenna TypeGain, dBiMPE distance, cm Short whip09.8 MaxRad2.312.9 Single coil517.6 Double coil722.1 The Trimble 900IP is designed to be mounted on a surveyor’s tripod or on the fender or roof of large vehicles such as earthmovers, bull dozers, dump trucks, and the like. The radio uses a single antenna, and is designed to operate in open spaces, and certainly at distances greater than 20 cm from equipment operators, bystanders, and radio users. Instructions will be placed in the user manual instructing installers and users to maintain the MPE distances during operation of the EUT: Trimble 900IP RF Hazard NOTICE: During transmiiter operation, a minimum distance of 22 cm (9 in.) shall be maintained between the antenna and personnel, in order to meet the maximum permissible exposure (MPE) limits in section 1.1310 of FCC Rules.

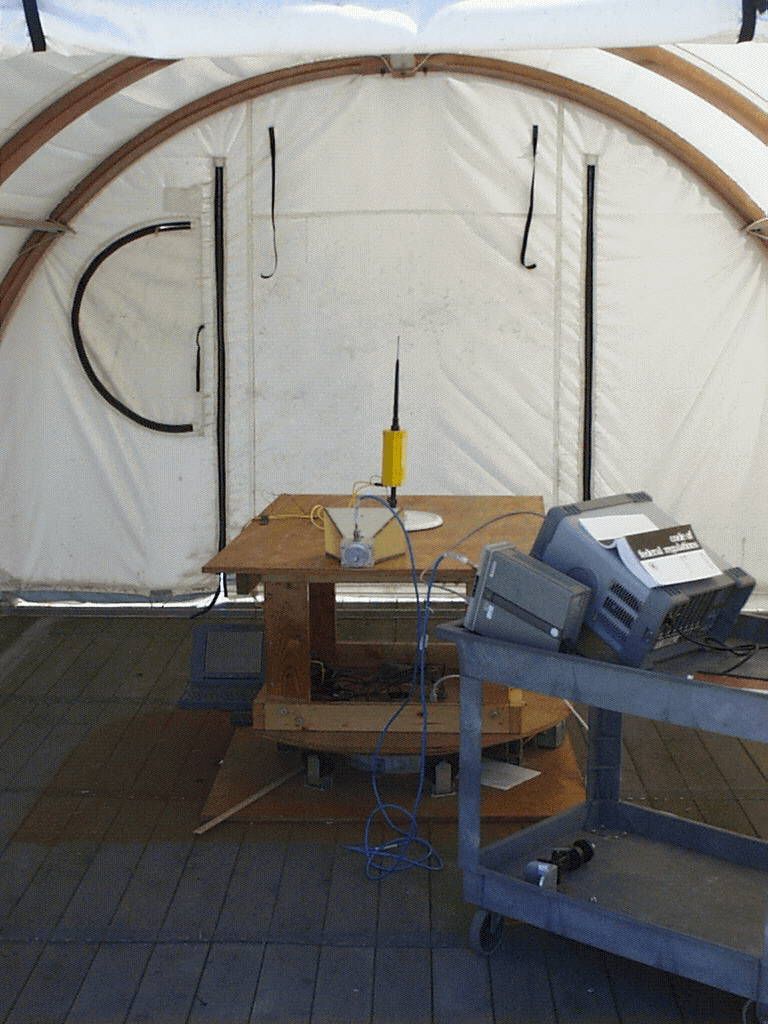

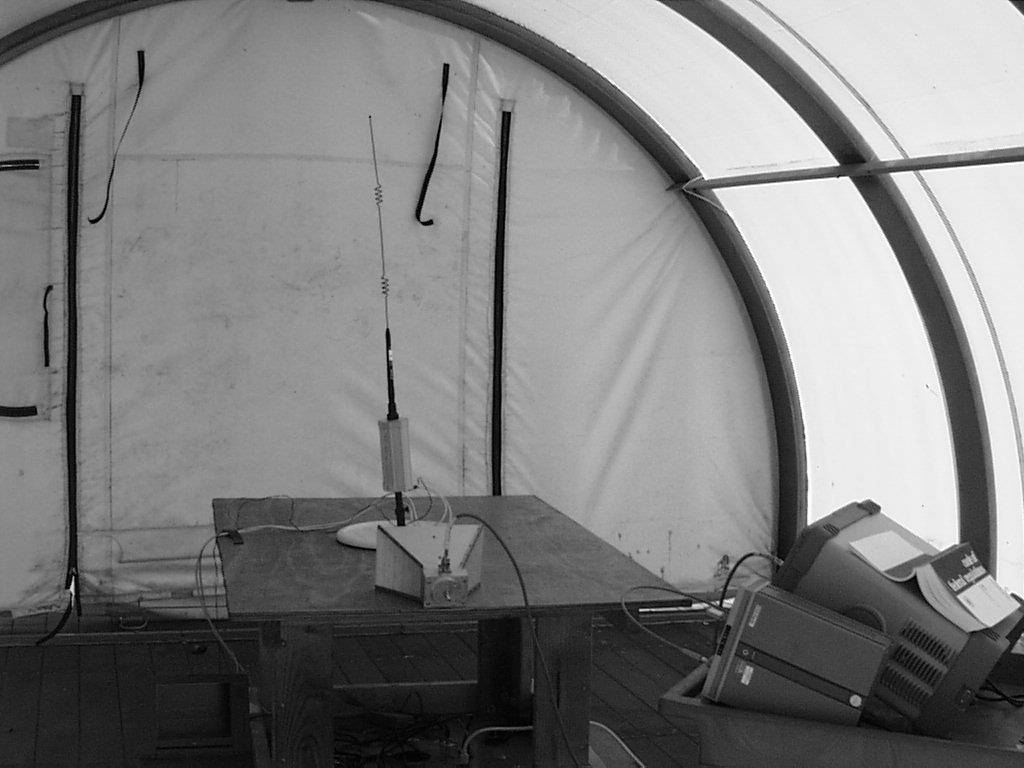

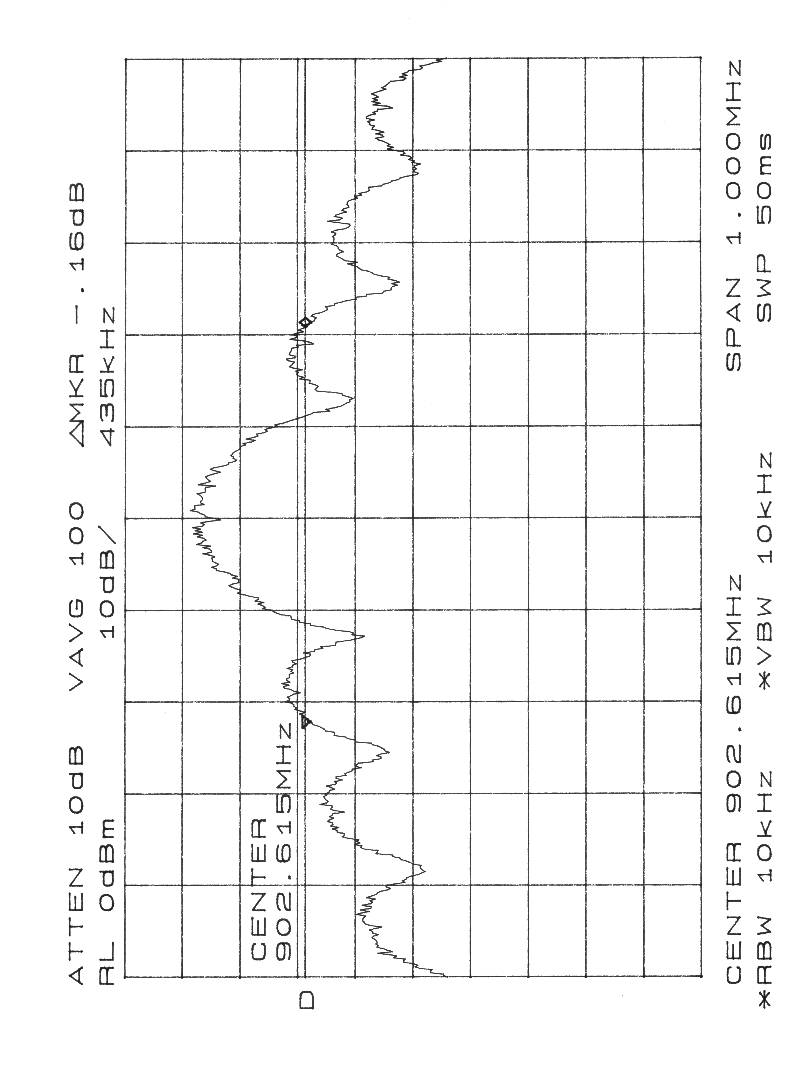

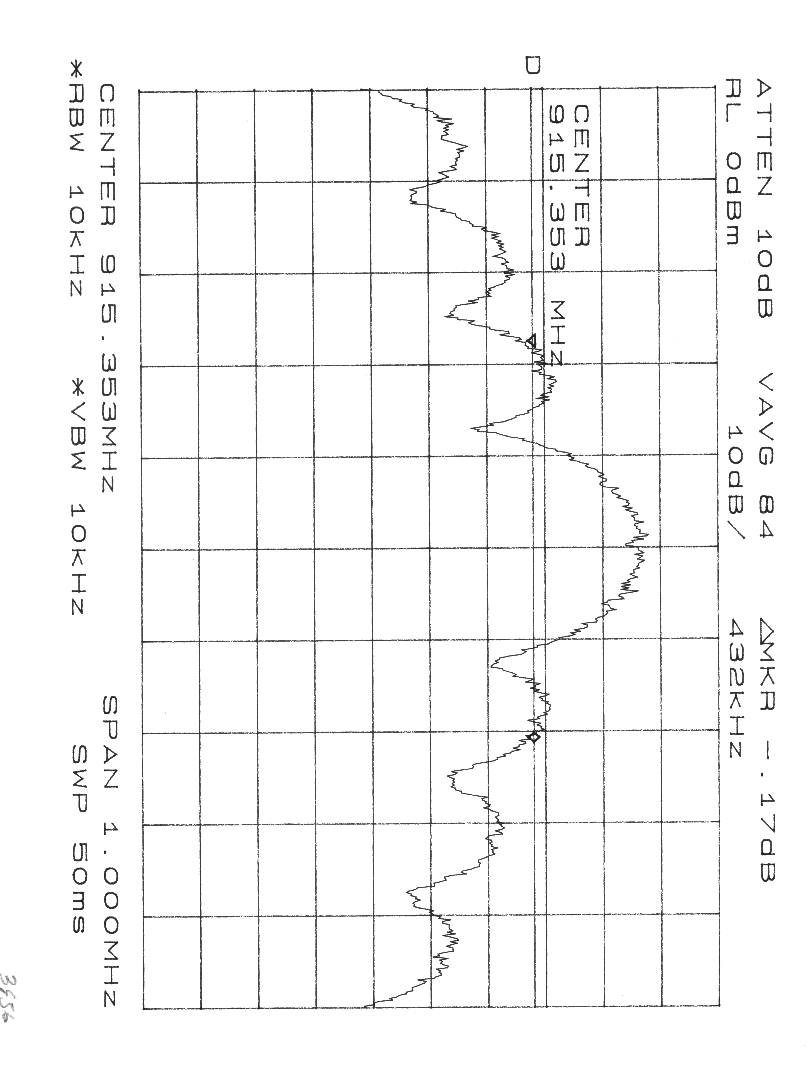

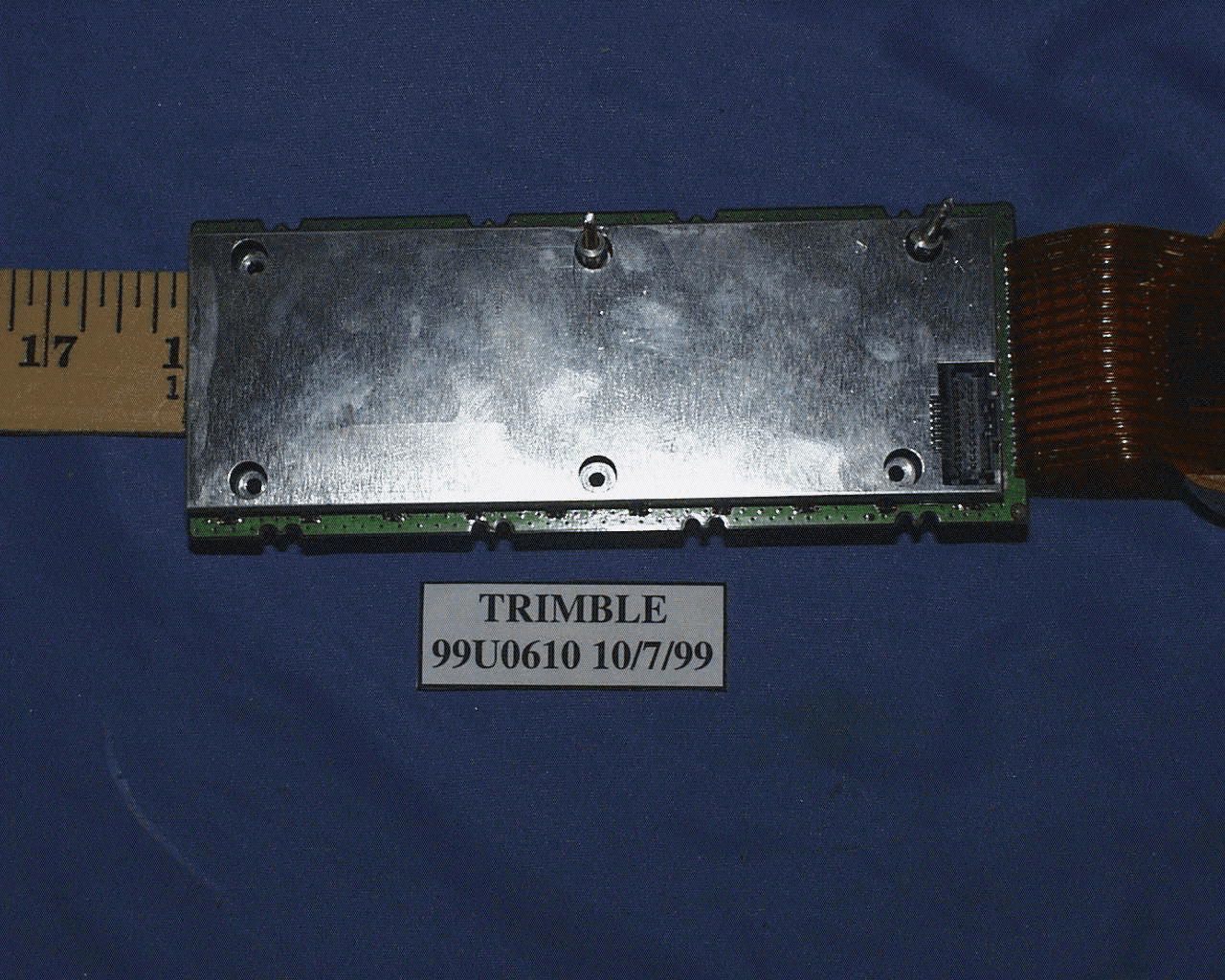

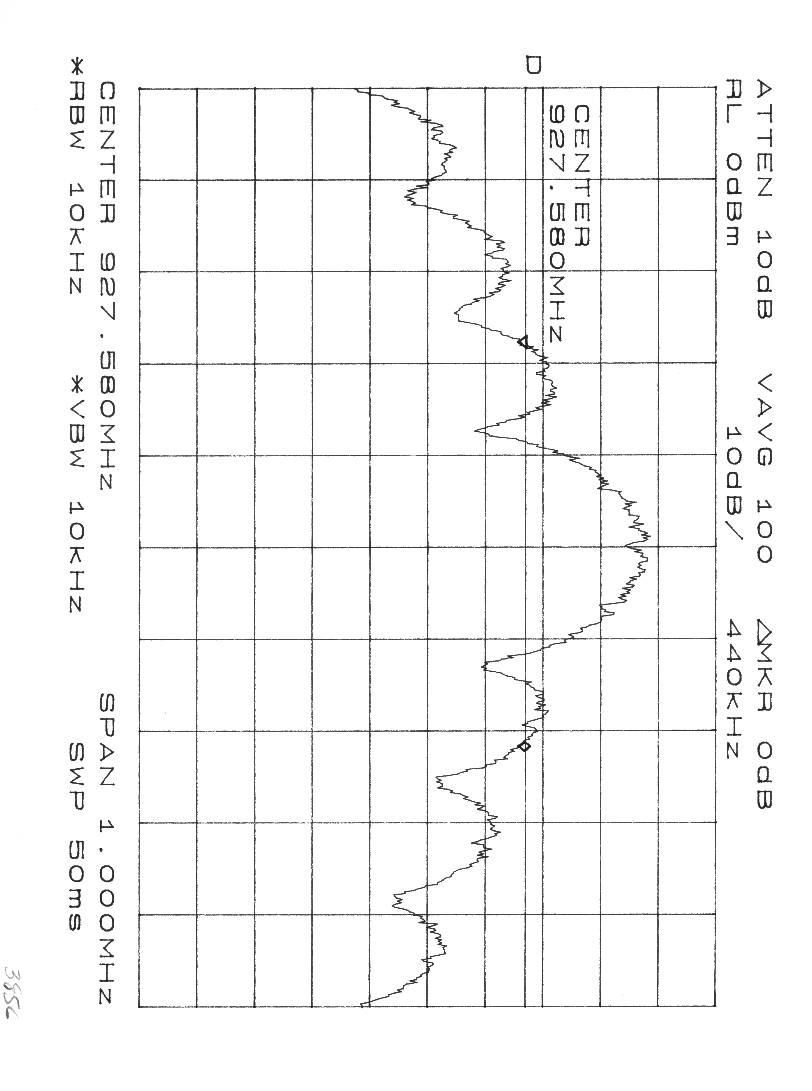

FCC ID: JUP-7112-900IPpage 1 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] Thomas N. CokeniasEMC/RFI Specialist Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 50128 Palo Alto, CA94303 CERTIFICATION TEST REPORT FOR A 902-928 MHz FHSS TRANSCEIVER Applicant: Trimble Navigation Limited 645 North Mary Avenue Sunnyvale, CA 94086 Model:TRIMCOMM 900IP, TC900IP FCC ID:JUP-7112-900IP Model Differences:Case color, different data I/O and power connectors Operating Frequency:902-928 MHz RF Output Power:28 dBm FCC Rule Part:15.247 Used For:Data link between two GPS receivers Power Source:13.5 V battery operation Also works from 13.5 VDC tap on AC operated battery charger Test Location:Compliance Consulting Services 951F Monterey Road Morgan Hill, CA 95087 All tests were performed by me or under my supervision. The Trimcomm 900IP meets all emissions and modulation requirements specified under Parts 2 and 15 of the Commission’s Rules. FCC ID: JUP-7112-900IPpage 2 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] THOMAS N. COKENIAS8 October FCC ID: JUP-7112-900IPpage 3 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBITS EXHIBIT A: Letter Requesting Confidentiality under Sec. 0.457(d) EXHIBIT B: Information for which Confidentiality is Requested B1: Theory of Operation B2: Block Diagram B3 Schematics EXHIBIT C: Product Photographs EXHIBIT D: FCC ID Label Drawing EXHIBIT E: User Manual EXHIBIT F: Schematics and Block Diagrams EXHIBIT G: Theory of Operation and Hopping Frequency List EXHIBIT H: Description of Antennas and Antenna Connector Per 15.203 EXHIBIT I: Report of Measurements FCC ID: JUP-7112-900IPpage 4 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT A:Letter Requesting Confidentiality under Sec. 0.457(d) FCC ID: JUP-7112-900IPpage 5 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT B:Information for which Confidentiality is Requested B1: Theory of Operation B2: Block Diagram B3 Schematics FCC ID: JUP-7112-900IPpage 6 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT C:Product Photographs FCC ID: JUP-7112-900IPpage 7 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT D:FCC ID Label Drawing FCC ID: JUP-7112-900IPpage 8 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT E:User Manual FCC ID: JUP-7112-900IPpage 9 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT F: Schematics and Block Diagrams -see Exhibit B (confidential material) FCC ID: JUP-7112-900IPpage 10 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT G: Theory of Operation and List of Hopping Frequencies -see Exhibit B (confidential material) FCC ID: JUP-7112-900IPpage 11 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT H: Description of Antennas and Antenna Connector per FCC Rule Para. 15.203 The TC900IP uses a unique antenna connector FCC ID: JUP-7112-900IPpage 12 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EXHIBIT I: Report of Measurements FCC ID: JUP-7112-900IPpage 13 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] EMISSIONS TEST REPORT FOR A LOW POWER TRANSMITTER I. GENERAL INFORMATION Requirement:Federal Communications Commissions Test Requirements: 15.107, 15.109, 15.205, 15.207, 15.209, 15.247 Applicant:Trimble Navigation Ltd. 645 North Mary Avenue Sunnyvale, CA 94086 Model:TRIMCOMM 900IP, TC900IP FCC ID:JUP-7112-900IP Model Differences:Case color, different data I/O and power connectors II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The Trimcomm FCC ID: JUP-7112-900IP is a 902-928 MHz frequency hopping spread spectrum (FHSS) transceiver used to link data between two or more GPS receivers. Three different antennas are available for use with this transceiver: a short whip, a whip with one helical coil, and a whip with two helical coils. III. TEST LOCATION All emissions tests were performed at: Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 FCC ID: JUP-7112-900IPpage 14 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] TEST PROCEDURES Radiated Emissions Test Requirement: 15.205 Measurement Equipment Used: HP 8593EM Spectrum Analyzer HP 8449 Preamplifier, 1-26.5 GHz FSY high pass filter, fo = 1800 MHz EMCO 3115 Double Ridged Horn antenna, 1 - 18 GHz 16 ft Flexco low loss cable (0.85 dB/ft at 26.5 GHz) Test Set-Up Ground plane d: 1 ft - 1m high pass filter d 1-2 meters EUT turntable horn antenna preamplifier AC Fig. 1 spectrum analyzer 1. The EUT was placed on a wooden table resting on a turntable on the open air test site. The search antenna was placed 3m from the EUT. The EUT antenna was mounted vertically as per normal installation. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. FCC ID: JUP-7112-900IPpage 15 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] 3. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Test Results: Refer to attached tabular data sheets FCC ID: JUP-7112-900IPpage 16 of 40 tel: 650 726 1263 fax: 650 726 1252 internet: [email protected] AC Line Conducted Emissions Test Requirement: 15.107, 15.207 Measurement Equipment Used: Rohde & Schwarz EMI Receiver ESHS-20 Fischer Custom Communication LISN, FCC-LISN-50/250-25-2 Test Set-up LISN AC AC-DC converter Figure 2 FIM Test Procedure 1. The EUT was placed on a wooden table 40 cm from a vertical ground plane and approximately 80 cm above the horizontal ground plane on the floor. The EUT was set…

Text truncated - open the document above for the full version.

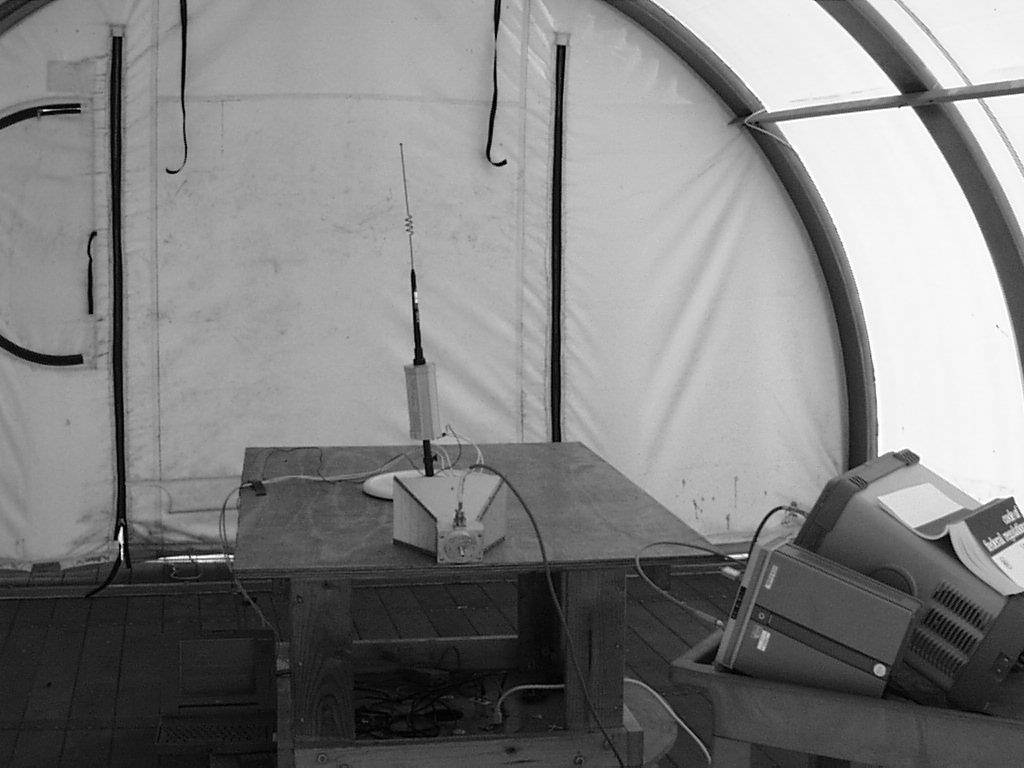

Sheet4 COMPLIANCE ENGINEERING SERVICES, INC. Out of Band 20-Dec-99 15.247 A site (1.5 Meter) TrimbleJUP-7112-900IPf o= 927.55 MHz MaxRad Antenna F(MHz) READING AF CL A MP DIST HPF TOTAL LIMIT MARGIN (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk A vg Pk A vg Pk A vg Pk A vg 2782.83 46.5 46.5 31 3.5 -35 -6 1 41 41 74 54 -33 -13 3710.4 44.9 44.9 33.2 3.8 -35 -6 1 41.9 41.9 74 54 -32.1 -12.1 4638.05 40.5 40.5 32.5 4.62 -35 -6 1 37.62 37.62 74 54 -36.4 -16.4 5565.66 45 45 34 4.95 -35 -6 1 43.95 43.95 74 54 -30.1 -10.1 6493.27 39.3 39.3 35.9 5.44 -35 -6 1 40.64 40.64 74 54 -33.4 -13.4 7420.42 43.1 43.1 37 5.94 -35 -6 1 46.04 46.04 74 54 -28 -7.96 8348.4 45.3 45.3 37.5 6.6 -35 -6 1 49.4 49.4 74 54 -24.6 -4.6 9276.1 42.9 42.9 39.1 6.79 -35 -6 1 48.79 48.79 74 54 -25.2 -5.21 NOTE1: ALL READINGS ARE VERTICAL(WORST CASE ) A NALYZER SETTINGS NOTE2: Only peak readings takenDIST : Correction to extrapolate reading to 3m specification distance Res bw Avg. bw 1.5 M measurement distance: -6 dB PEAK(P k ) : 1MHz 1MHz AF : Antenna Factor A VERAGE(Avg): 1MHz 10Hz AMP : Pre-amp gain CL : Cable loss HPF : High pass filter insertion loss (1.8 GHz) FSY (S/N: 001) Page 1

Sheet4 COMPLIANCE ENGINEERING SERVICES, INC. Out of Band 20-Dec-99 15.247 A site (1.5 Meter) TrimbleJUP-7112-900IPf o= 902.63 MHz MaxRad Antenna F(MHz) READING AF CL A MP DIST HPF TOTAL LIMIT MARGIN (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk A vg Pk A vg Pk A vg Pk A vg 2707.89 45.2 45.2 31.7 3.5 -35 -6 1 40.4 40.4 74 54 -33.6 -13.6 3610.52 44.5 44.5 32 3.8 -35 -6 1 40.3 40.3 74 54 -33.7 -13.7 4513.15 40.5 40.5 35.2 5.6 -35 -6 1 41.3 41.3 74 54 -32.7 -12.7 5415.78 40 40 34 4.95 -35 -6 1 38.95 38.95 74 54 -35.1 -15.1 7220.94 44.2 44.2 35.9 5.94 -35 -6 1 46.04 46.04 74 54 -28 -7.96 8123.67 44.8 44.8 37.5 6.6 -35 -6 1 48.9 48.9 74 54 -25.1 -5.1 9026.18 43.5 43.5 39.1 6.79 -35 -6 1 49.39 49.39 74 54 -24.6 -4.61 NOTE1: ALL READINGS ARE VERTICAL(WORST CASE ) A NALYZER SETTINGS NOTE2: Only peak readings takenDIST : Correction to extrapolate reading to 3m specification distance Res bw Avg. bw 1.5 M measurement distance: -6 dB PEAK(P k ) : 1MHz 1MHz AF : Antenna Factor A VERAGE(Avg): 1MHz 10Hz AMP : Pre-amp gain CL : Cable loss HPF : High pass filter insertion loss (1.8GHz) FSY (S/N: 001) Page 1

Sheet4 COMPLIANCE ENGINEERING SERVICES, INC. Out of Band 20-Dec-99 15.247 A site (1.5 Meter) TrimbleJUP-7112-900IPf o= 915.2 MHz MaxRad Antenna F(MHz) READING AF CL A MP DIST HPF TOTAL LIMIT MARGIN (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk A vg Pk A vg Pk A vg Pk A vg 2745.9 42.1 42.1 31 3.5 -35 -6 1 36.6 36.6 74 54 -37.4 -17.4 3661.2 43.7 43.7 33.2 3.8 -35 -6 1 40.7 40.7 74 54 -33.3 -13.3 4576.7 42 42 32.5 4.62 -35 -6 1 39.12 39.12 74 54 -34.9 -14.9 5492.17 40 40 34 4.95 -35 -6 1 38.95 38.95 74 54 -35.1 -15.1 6407.63 38.7 38.7 35.9 5.44 -35 -6 1 40.04 40.04 74 54 -34 -14 7323.09 42.8 42.8 37 5.94 -35 -6 1 45.74 45.74 74 54 -28.3 -8.26 8238.55 44.5 44.5 37.5 6.6 -35 -6 1 48.6 48.6 74 54 -25.4 -5.4 9154NF 45 45 39.1 6.79 -35 -6 1 50.89 50.89 74 54 -23.1 -3.11 NOTE1: ALL READINGS ARE VERTICAL(WORST CASE ) A NALYZER SETTINGS NOTE2: Only peak readings takenDIST : Correction to extrapolate reading to 3m specification distance Res bw Avg. bw 1.5 M measurement distance: -6 dB PEAK(P k ) : 1MHz 1MHz AF : Antenna Factor A VERAGE(Avg): 1MHz 10Hz AMP : Pre-amp gain CL : Cable loss HPF : High pass filter insertion loss (1.8 GHz) FSY (S/N: 001) Page 1
