JUP-8262070900 MHz FHSS, 2.4 GHz FHSS, and 2.4 GHz Wi-Fi Radio

Version 1.00 Revision B Part Number 65190-00-ENG June 2008 F User Guide Trimble ® SNRx10 Radio Modem DRAFT Contact Information Trimble Engineering and Construction Division 5475 Kellenburger Road Dayton, Ohio 45424-1099 USA 800-538-7800 (toll free in USA) +1-937-245-5600 Phone +1-937-233-9004 Fax www.trimble.com Copyright and Trademarks © 2000–2008, Caterpillar Trimble Control Technologies LLC. All rights reserved. Trimble and SiteVision are trademarks of Trimble Navigation Limited, registered in the United States and in other countries. SiteNet, Compact Measurement Record, and the Globe and Triangle logo are trademarks of Trimble Navigation Limited. All other trademarks are the property of their respective owners. Release Notice This is the June 2008 release (Revision B) of the SNRx10 Radio Modem User’s Guide, part number 65190-00-ENG. It applies to version 1.00 of the SNRx10 Radio Modem firmware. Product Warranty Information For warranty information, please refer to the Warranty Card included with this Trimble product, or consult your Trimble dealer. END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE/FIRMWARE IMPORTANT, READ CAREFULLY. THIS END USER LICENSE AGREEMENT ("AGREEMENT") IS A LEGAL AGREEMENT BETWEEN YOU AND TRIMBLE NAVIGATION LIMITED and applies to the computer software embedded within the Trimble product ("Device") purchased by you (whether built into hardware circuitry as firmware, embedded in flash memory or a PCMCIA card, or stored on magnetic or other media) ("Software"). This Agreement will also apply to any Software error corrections, updates and upgrades subsequently furnished by Trimble, unless such are accompanied by different license terms and conditions which will govern their use. The Software is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties. The Software is licensed, not sold. All rights reserved. BY CLICKING "YES" OR "I ACCEPT" IN THE ACCEPTANCE BOX, OR BY INSTALLING, COPYING OR OTHERWISE USING THE SOFTWARE, AS APPLICABLE, YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY RETURN THE UNUSED SOFTWARE AND DEVICE TO THE PLACE FROM WHICH YOU OBTAINED THEM FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING, BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS AGREEMENT (OR RATIFICATION OF ANY PREVIOUS CONSENT). 1 SOFTWARE PRODUCT LICENSE 1.1 License Grant. Subject to the terms and conditions of this Agreement, Trimble grants you a non-exclusive right to use one copy of the Software in machine-readable form only on the Device. Such use is limited to use with the Device for which it was intended and into which it was embedded. You may use the installation Software from a computer solely to download the Software to one Device. In no event shall the installation Software be used to download the Software onto more than one Device. A license for the Software may not be shared or used concurrently on different computers or Devices. 1.2 Other Rights and Limitations. (1) You may not copy, modify, make derivative works of, rent, lease, sell, distribute or transfer the Software, in whole or in part, except as otherwise expressly authorized under this Agreement, and you agree to use all commercially reasonable efforts to prevent its unauthorized use and disclosure. (2) The Software contains valuable trade secrets proprietary to Trimble and its licensors. To the extent permitted by relevant law, you shall not, nor allow any third party to copy, decompile, disassemble or otherwise reverse engineer the Software, or attempt to do so, provided, however, that to the extent any applicable mandatory laws give you the right to perform any of the aforementioned activities without Trimble's consent in order to gain certain information about the Software for purposes specified in the respective statutes (e.g., interoperability), you hereby agree that, before exercising any such rights, you shall first request such information from Trimble in writing detailing the purpose for which you need the information. Only if and after Trimble, at its sole discretion, partly or completely denies your request, may you exercise such statutory rights. (3) You may permanently transfer all of your rights under this Agreement only as part of a permanent sale or transfer of the Device, provided you retain no copies, you transfer all of the Software (including all component parts, the media and printed materials, any upgrades, and this Agreement) and the recipient agrees to the terms of this Agreement. If the Software portion is an upgrade, any transfer must include all prior versions of the Software. (4) You may not use the Software for performance, benchmark or comparison testing or analysis, or disclose to any third party or release any results thereof (all of which information shall be considered Trimble confidential information) without Trimble's prior written consent. (5) You may not directly or indirectly export or re-export, or knowingly permit the export or re-export of the Software (or portions thereof) to any country, or to any person or entity subject to United States or foreign export restrictions in contravention of such laws and without first obtaining appropriate licenses; and (6) You acknowledge that the Software and underlying technology is subject to U.S. Export jurisdiction. You agree to comply with all applicable international and national laws that apply to the Software and underlying technology, including U.S. Export Administration Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments. 1.3 Termination. You may terminate this Agreement by ceasing all use of the Software. Without prejudice as to any other rights, Trimble may terminate this Agreement without notice if you fail to comply with the terms and conditions of this Ag…

Text truncated - open the document above for the full version.

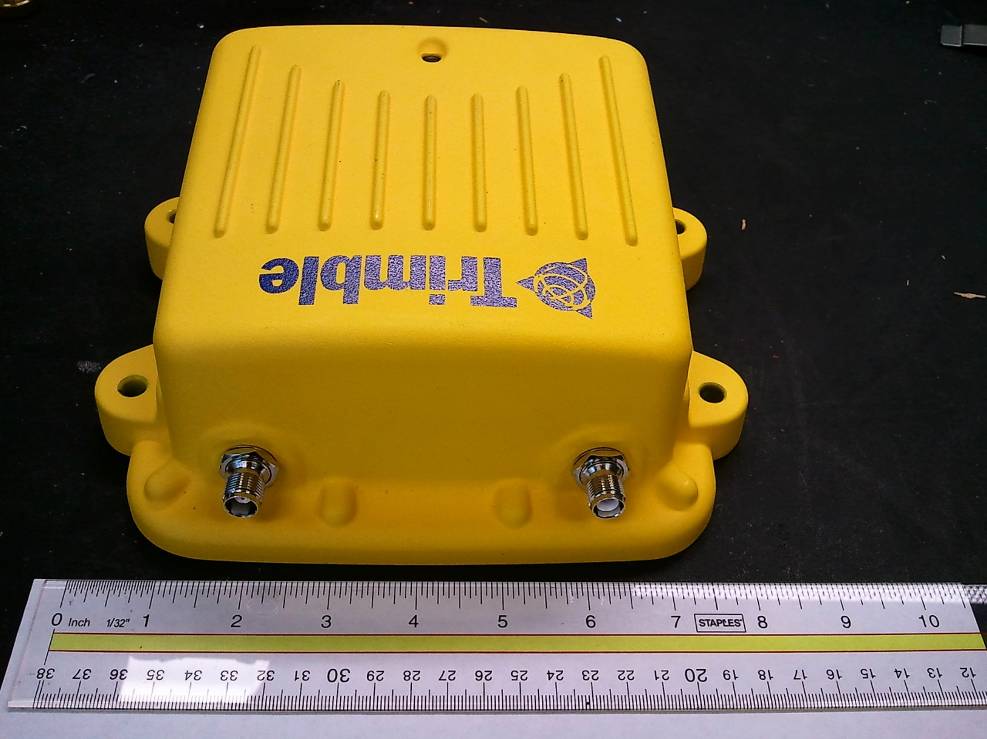

Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 28 of 38 FCC Part15C & IC RSS-210 Test Report 9 Exhibit C- EUT Photographs 9.1 EUT Top View 9.2 EUT Bottom View Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 29 of 38 FCC Part15C & IC RSS-210 Test Report 9.3 EUT Rear View 9.4 GPS Antenna with Cable View

Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 22 of 38 FCC Part15C & IC RSS-210 Test Report 7 Exhibit A – FCC & IC Labeling Requirements 7.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 7.2 IC Label Requirements As per IC RSS-Gen §5, the certification number shall appear as follows: IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0-9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 11 alphanumeric characters (A-Z, 0-9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 23 of 38 FCC Part15C & IC RSS-210 Test Report As per RSS-Gen §5.2 Equipment Labeling: Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 7.3 FCC ID & IC Label Contents and Location Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 24 of 38 FCC Part15C & IC RSS-210 Test Report

Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 30 of 38 FCC Part15C & IC RSS-210 Test Report 9.5 EUT Open View 1 9.6 EUT Open View 2 Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 31 of 38 FCC Part15C & IC RSS-210 Test Report 9.7 EUT Open View 3 9.8 EUT Open View 4 Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 32 of 38 FCC Part15C & IC RSS-210 Test Report 9.9 Main Board Top View 9.10 Main Board Bottom View Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 33 of 38 FCC Part15C & IC RSS-210 Test Report 9.11 2.4 GHz Radio Board Front View 9.12 2.4 GHz Radio Board Rear View Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 34 of 38 FCC Part15C & IC RSS-210 Test Report 9.13 2.4 GHz Module Board Front View with Shielding 9.14 2.4 GHz Module Board Rear View with Shielding Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 35 of 38 FCC Part15C & IC RSS-210 Test Report 9.15 2.4 GHz Module Board Front View without Shielding 9.16 2.4 GHz Module Board Front View without Shielding Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 36 of 38 FCC Part15C & IC RSS-210 Test Report 9.17 2.4 GHz Wi-Fi Module Front View 9.18 2.4 GHz Wi-Fi Module Rear View Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 37 of 38 FCC Part15C & IC RSS-210 Test Report 9.19 900 MHz Module Front View with Shielding 9.20 900 MHz Module Front View without Shielding Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 38 of 38 FCC Part15C & IC RSS-210 Test Report 9.21 900 MHz Module Rear View ***** END OF REPORT *****

Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 20 of 38 FCC Part15C & IC RSS-210 Test Report 6 FCC §15.247(i), §2.1091 & IC RSS-102 - RF Exposure Information 6.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Averaging Time (Minutes) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * Power density limit is applicable at frequencies greater than 100 MHz Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 21 of 38 FCC Part15C & IC RSS-210 Test Report 6.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal (dBm): 29.52 Maximum peak output power at antenna input terminal (mW): 895 Prediction distance (cm): 20 Prediction frequency (MHz): 902.7 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.178 Power density of prediction frequency at 20.0 cm (W/m 2 ): 1.78 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.602 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):6.02 Radio Type Operating Frequency (MHz) MPE Limit (mw/cm 2 ) Conducted Power (mW) Duty Cycle Antenna Gain (dBi) Gain (numeric) Power Density at 20 cm % of MPE Co-located % of MPE 900 MHz Radio ON 900 MHz Radio 902.7 0.602 895 100%0.00 1.00 0.1781 29.6% - 900 MHz Radio with 2.4 GHz FHSS Radio ON 2.4 GHz FHSS Radio FCC ID: HSW-2410G 2469.81 1.000 69.02 70%2.00 1.58 0.02 1.5% 31.1% 900 MHz Radio with 2.4 GHz Wi-Fi Radio ON 2.4 GHz Wi-Fi Radio FCC ID: F4AWLNG1 2412 1.000 142.89 100%3.00 2.00 0.06 5.7% 35.3% 900 MHz Radio with 2.4 GHz Wi-Fi Radio and 2.4 GHz FHSS Radio ON - 36.8% 6.3 Test Result The device complies with the MPE limit at 20 cm for uncontrolled exposure.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15C IC RSS-210, ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For Trimble Navigation Limited 935 Stewart Drive, Sunnyvale, CA 94085, USA FCC ID: JUP-8262070 IC: 1756A-8262070 Report Type: Original Report Product Type: SNR920-GPS Receiver with 900 MHz, 2.4 GHz FHSS & Wi-Fi Transceivers Test Engineer: Jack Liu Report Number: R1103102-247 Report Date: 2011-05-13 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 2 of 38 FCC Part15C & IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION.............................................................................................................................. 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................ 5 1.2 MECHANICAL DESCRIPTION OF EUT .............................................................................................................. 5 1.3 OBJECTIVE...................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................... 5 1.5 TEST METHODOLOGY..................................................................................................................................... 5 1.6 MEASUREMENT UNCERTAINTY...................................................................................................................... 5 1.7 TEST FACILITY............................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION ................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................ 7 2.2 EUT EXERCISE SOFTWARE............................................................................................................................. 7 2.3 SPECIAL ACCESSORIES................................................................................................................................... 7 2.4 EQUIPMENT MODIFICATIONS.......................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT......................................................................................................................... 7 2.6 EUT INTERNAL CONFIGURATION................................................................................................................... 7 2.7 INTERFACE PORTS AND CABLING................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ...................................................................................................................... 9 4 FCC §15.205, §15.209, §15.247(D) & IC RSS-210 §2.2, §A8.5 – RESTRICT BAND AND UNWANTED EMISSIONS................................................................................................................................................................. 10 4.1 APPLICABLE STANDARD:..............................................................................................................................10 4.2 TEST SETUP AND BLOCK DIAGRAM.............................................................................................................. 11 4.3 TEST PROCEDURE......................................................................................................................................... 12 4.4 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................... 12 4.5 TEST EQUIPMENT LIST AND DETAILS........................................................................................................... 12 4.6 TEST ENVIRONMENTAL CONDITIONS............................................................................................................ 13 4.7 SUMMARY OF TEST RESULTS........................................................................................................................ 13 4.8 RADIATED EMISSIONS TEST RESULTS.......................................................................................................... 14 5 IC RSS-GEN §4.10 & RSS-210 - §2.6 RECEIVER SPURIOUS EMISSIONS ............................................. 16 5.1 APPLICABLE STANDARD...............................................................................................................................16 5.2 TEST SETUP AND BLOCK DIAGRAM.............................................................................................................. 16 5.3 TEST PROCEDURE......................................................................................................................................... 17 5.4 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................... 17 5.5 TEST EQUIPMENT LIST AND DETAILS...................................…

Text truncated - open the document above for the full version.

Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 25 of 38 FCC Part15C & IC RSS-210 Test Report 8 Exhibit B – Test Setup Photographs 8.1 Tx Radiated Emissions - Front View 8.2 Tx Radiated Emissions below 1 GHz - Rear View Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 26 of 38 FCC Part15C & IC RSS-210 Test Report 8.3 Tx Radiated Emissions Above 1 GHz - Rear View 8.4 Rx Radiated Emissions - Front View Trimble Navigation Limited FCC ID: JUP-8262070, IC: 1756A-8262070 Report Number: R1103102-247 Page 27 of 38 FCC Part15C & IC RSS-210 Test Report 8.5 Rx Radiated Emissions - Rear View 8.6 Rx Radiated Emissions above 1 GHz - Rear View
