JUP-9090991GPS Receiver + 900 MHz + Wi-Fi + Bluetooth Radio

Trimble R10 Receiver WebHelp Trimble R10 Receiver Help This Help describes how to use the Trimble R10 receiver. Even if you have used other GNSS or GPS products before, Trimble recommends that you spend some time reading this manual to learn about the special features of this product. If you are not familiar with GNSS or GPS, visit the Trimble website (www.trimble.com). Trimble R10 Receiver WebHelp Introduction Related information Sources of related information include the following:  Release notes – The release notes describe new features of the product, information not included in the manuals, and any changes to the manuals. They can be downloaded from the Trimble website at www.trimble.com/support.shtml .  Trimble training courses – Consider a training course to help you use your GNSS system to its fullest potential. For more information, go to the Trimble website at www.trimble.com/training.html . Technical support If you have a problem and cannot find the information you need in the product documentation, contact your local dealer. Alternatively, go to the Support area of the Trimble website (www.trimble.com/support.shtml ). Select the product you need information on. Product updates, documentation, and any support issues are available for download. If you need to contact Trimble technical support, complete the online inquiry form at www.trimble.com/support_form.asp . Trimble R10 Receiver WebHelp R10 Getting Started Guide Introduction The R10 receiver incorporates a GNSS antenna, receiver, internal radio, and battery in a rugged light‐weight unit that is ideally suited as an all‐on‐the‐pole RTK rover or quick setup/rapid mobilization base station. LEDs enable you to monitor satellite tracking, radio reception, data logging status, Wi‐Fi status, and power. Bluetooth wireless technology provides cable‐free communications between the receiver and controller. You can use the R10 receiver as part of an RTK GNSS system with the Trimble Access software. The receiver can optionally record GNSS data to the receiver’s internal memory and download to a computer. The R10 receiver has no front panel controls for changing settings. To configure the receiver, use the web interface. Safety Information Before you use your Trimble product, make sure that you have read and understood all safety requirements. WARNING – This alert warns of a potential hazard which, if not avoided, could result in severe injury or even death. CAUTION – This alert warns of a potential hazard or unsafe practice that could result in minor injury or property damage or irretrievable data loss. Note – An absence of specific alerts does not mean that there are no safety risks involved. Use and care This product is designed to withstand the rough treatment and tough environment that typically occurs in construction applications. However, the receiver is a high‐precision electronic instrument and should be treated with reasonable care. CAUTION – Operating or storing the receiver outside the specified temperature range can damage it. Regulations and safety Some receiver models with base station capability contain an internal radio‐modem for transmission or can transmit through an external data communications radio. Regulations regarding the use of the 410 MHz to 470 MHz radio‐modems vary greatly from country to country. Trimble R10 Receiver WebHelp In some countries, the unit can be used without obtaining an end‐user license. Other countries require end‐user licensing. For licensing information, consult your local Trimble dealer. The R10 receiver is capable of transmitting data through Bluetooth wireless technology. Bluetooth wireless technology operates in license‐free bands. Before operating a Trimble receiver or GSM modem, determine if authorization or a license to operate the unit is required in your country. It is the responsibility of the end user to obtain an operator's permit or license for the receiver for the location or country of use. For FCC regulations, see Notices. Type approval Type approval, or acceptance, covers technical parameters of the equipment related to emissions that can cause interference. Type approval is granted to the manufacturer of the transmission equipment, independent from the operation or licensing of the units. Some countries have unique technical requirements for operation in particular radio‐modem frequency bands. To comply with those requirements, Trimble may have modified your equipment to be granted Type approval. Unauthorized modification of the units voids the Type approval, the warranty, and the operational license of the equipment. Exposure to radio frequency radiation For 450 MHz radio Safety. Exposure to RF energy is an important safety consideration. The FCC has adopted a safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated equipment as a result of its actions in General Docket 79‐144 on March 13, 1986. Proper use of this radio modem results in exposure below government limits. The following precautions are recommended:  DO NOT operate the transmitter when someone is within 20 cm (7.8 inches) of the antenna.  DO NOT operate the transmitter unless all RF connectors are secure and any open connectors are properly terminated.  DO NOT operate the equipment near electrical blasting caps or in an explosive atmosphere.  All equipment must be properly grounded according to Trimble installation instructions for safe operation.  All equipment should be serviced only by a qualified technician. For Bluetooth radio The radiated output power of the internal Bluetooth wireless radio is far below the FCC radio frequency exposure limits. Nevertheless, the wireless radio shall be used in such a manner that the Trimble receiver is 20 cm or further from the human body. The internal wireless radio operates within guidelines found in radio frequency safety standards and recommendations, which reflect the consensus of the scientific community. Trimbl…

Text truncated - open the document above for the full version.

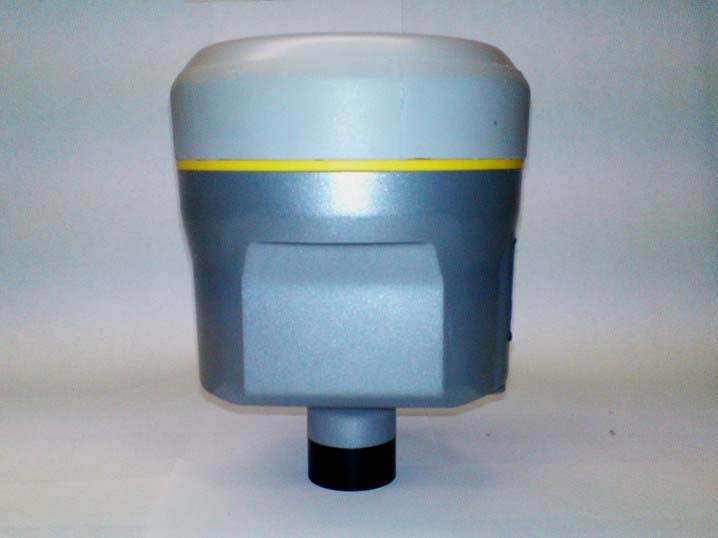

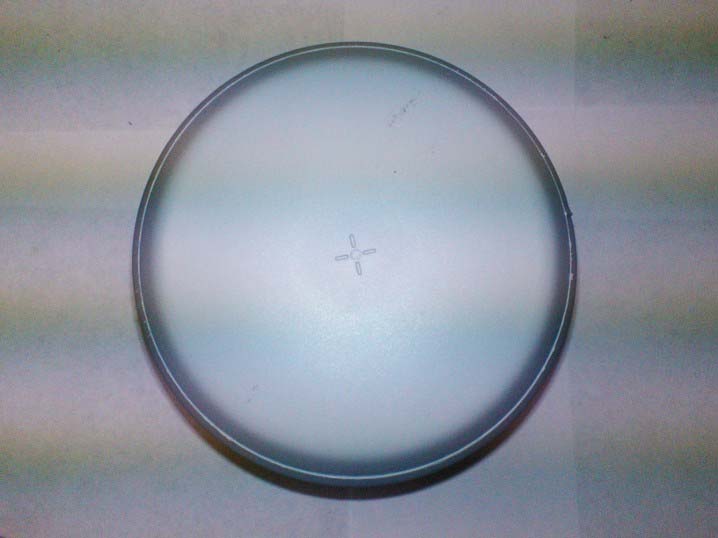

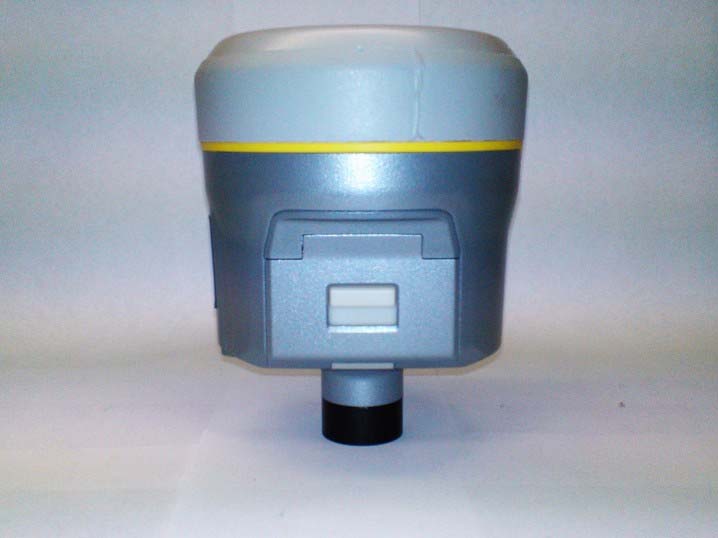

Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 34 of 50 FCC Part 15C & IC RSS-210 Test Report 11 Exhibit C - EUT Photographs 11.1 EUT - Top View 11.2 EUT - Bottom View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 35 of 50 FCC Part 15C & IC RSS-210 Test Report 11.3 EUT – Front View 11.4 EUT - Back View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 36 of 50 FCC Part 15C & IC RSS-210 Test Report 11.5 EUT - Left View 11.6 EUT - Right View

Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 29 of 50 FCC Part 15C & IC RSS-210 Test Report 9 Exhibit A - FCC & IC Equipment Labeling Requirements 9.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 9.2 IC Label Requirements As per IC RSS-Gen §5, the certification number shall appear as follows: IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0-9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 11 alphanumeric characters (A-Z, 0-9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 30 of 50 FCC Part 15C & IC RSS-210 Test Report As per IC RSS-Gen §5.2 Equipment Labeling: Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 9.3 FCC ID & IC Label Contents 9.4 FCC ID & IC Label Location Trimble Navigation Ltd. Regulatory Model: SBSMA-110B FCC ID: JUP-9090991 IC: 1756A-9090991 Contains FCC ID: JUP-76577WFBT Contains IC: 1756A-76577WFBT Contains FCC ID: R17UC864G Contains IC: 5131A-UC864G

Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 37 of 50 FCC Part 15C & IC RSS-210 Test Report 11.7 EUT – Cover off View 11.8 EUT – Bottom Enclosure View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 38 of 50 FCC Part 15C & IC RSS-210 Test Report 11.9 EUT - 900 MHz Module with Shield Top View 11.10 EUT - 900 MHz Module without Shield Top View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 39 of 50 FCC Part 15C & IC RSS-210 Test Report 11.11 EUT - 900 MHz Module with Shield Bottom View 11.12 EUT - 900 MHz Module without Shield Bottom View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 40 of 50 FCC Part 15C & IC RSS-210 Test Report 11.13 EUT – GSM/UMTS Radio Board Top ViewView 11.14 EUT – GSM/UMTS Radio Board Top ViewView Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 41 of 50 FCC Part 15C & IC RSS-210 Test Report 11.15 EUT – GSM Module with Shield Top View 11.16 EUT – GSM Module without Shield Top View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 42 of 50 FCC Part 15C & IC RSS-210 Test Report 11.17 EUT – GSM Module with Shield Bottom View 11.18 EUT – GSM Module without Shield Bottom View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 43 of 50 FCC Part 15C & IC RSS-210 Test Report 11.19 EUT - Baseband and GNSS Receiver Board Top View 11.20 EUT - Baseband and GNSS Receiver Board Bottom View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 44 of 50 FCC Part 15C & IC RSS-210 Test Report 11.21 EUT – Wi-Fi/BT Taoglass SWLP Top View 11.22 EUT – Wi-Fi/BT Taoglass SWLP Bottom View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 45 of 50 FCC Part 15C & IC RSS-210 Test Report 11.23 EUT – Wi-Fi/BT Taoglass SWLP Angle View 11.24 EUT – Inside Enclosure and Interface Board Top View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 46 of 50 FCC Part 15C & IC RSS-210 Test Report 11.25 EUT – Inside Enclosure and Interface Board Bottom View 11.26 EUT –Interface Board Top View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 47 of 50 FCC Part 15C & IC RSS-210 Test Report 11.27 EUT –Interface Board Bottom View 11.28 EUT – I/O and Front Panel Top View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 48 of 50 FCC Part 15C & IC RSS-210 Test Report 11.29 EUT – I/O and Front Panel Bottom view 11.30 EUT – GSM/UMTS Antenna View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 49 of 50 FCC Part 15C & IC RSS-210 Test Report 11.31 EUT – GNSS Antenna Top View 11.32 EUT – GNSS Antenna Bottom View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 50 of 50 FCC Part 15C & IC RSS-210 Test Report 11.33 AC/DC Adaptor 11.34 900 MHz Radio External Antenna View --- END OF REPORT ---

Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 26 of 50 FCC Part 15C & IC RSS-210 Test Report 8 FCC §15.247(i), §2.1091 & IC RSS-102 – RF Exposure Information 8.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Averaging Time (Minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30–300 28 0.073 2* 6 300–1 500 1.585 f 0.5 0.0042 f 0.5 f/150 6 1 500–15 000 61.4 0.163 10 6 15 000–150 000 61.4 0.163 10 616000 / f 1.2 150 000-300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz
22. Power density limit is applicable at frequencies greater than 100 MHz Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 27 of 50 FCC Part 15C & IC RSS-210 Test Report 8.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 8.3 MPE Results 1) MPE Calculation of 900 MHz Radio: Maximum peak output power at antenna input terminal (dBm):28.49 Maximum peak output power at antenna input terminal (mW): 706.32 Prediction distance (cm): 20 Prediction frequency (MHz): 927.6 Maximum Antenna Gain, typical (dBi): 3 Maximum Antenna Gain (numeric): 2 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.28 Power density of prediction frequency at 20.0 cm (W/m 2 ): 2.8 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.618 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):6.18 Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 28 of 50 FCC Part 15C & IC RSS-210 Test Report 2) MPE Calculation of Co-location of 2.4 GHz Wi-Fi, Bluetooth Radio (FCC ID: JUP-76577WFBT) and GSM/UMTS radio (FCC ID: RI7UC864G) Radio Type Operating Frequency (MHz) MPE Limit Conducted Power (mW) Duty Cycle Antenna Gain (dBi) Gain (numeric) Power Density at 20cm (mW/cm 2 ) % of MPE Co-located % of MPE @ 20 cm 900 MHz Radio On 900 MHz Radio 927.6 0.618 706.32 100%3 2 0.28 45.37% - 900 MHz Radio with 2.4 GHz Wi-Fi Radio on 2.4 GHz Wi-Fi Radio FCC ID: JUP-76577WFBT 2412 1 74.30 100%2 1.58 0.023 2.34% 47.71% 900 MHz Radio with 2.4 GHz BT Radio On 2.4 GHz FHSS Radio FCC ID: JUP-76577WFBT 2402 1 0.92 100%2 1.58 0.0003 0.03% 45.4% 900 MHz Radio with GSM 850 MHz Radio on GSM 850 MHz Radio FCC ID: RI7UC864G 824.2 0.549 1633.05 25%-4.7 0.34 0.028 5% 50.37% 900 MHz Radio with PCS 1900 MHz Radio on PCS 1900 MHz Radio FCC ID: RI7UC864G 1880 1 818.46 100-1.2 0.76 0.123 12.35% 57.72% 8.4 Test Result This device complies with the MPE limit at 20 cm for uncontrolled exposure environment.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 15 SUBPART C IC RSS-210 ISSUE 8, DEC 2010 TEST AND MEASUREMENT REPORT For Trimble Navigation Limited 935 Stewart Drive, Sunnyvale, CA 94085, USA FCC ID: JUP-9090991 IC: 1756A-9090991 Report Type: Original Report Product Type: GPS Receiver with 900 MHz Transceiver Prepared By: Quinn Jiang Report Number: R1202142-247 Report Date: 2012-07-02 Reviewed By: Victor Zhang RF/EMC Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 2 of 50 FCC Part 15C & IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION....................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................. 5 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 5 1.3 OBJECTIVE............................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.5 TEST METHODOLOGY.............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................5 1.7 TEST FACILITY........................................................................................................................................................ 6 2 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 2.1 JUSTIFICATION......................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 7 2.3 SPECIAL ACCESSORIES............................................................................................................................................ 7 2.4 EQUIPMENT MODIFICATIONS................................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 7 2.6 INTERNAL PARTS LIST AND DETAILS....................................................................................................................... 7 2.7 POWER SUPPLY AND LINE FILTERS.......................................................................................................................... 7 2.8 INTERFACE PORTS AND CABLING............................................................................................................................ 8 3 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 4 FCC §15.203 & IC RSS-GEN §7.1.2 – ANTENNA REQUIREMENTS ................................................................. 10 4.1 APPLICABLE STANDARD........................................................................................................................................ 10 4.2 RESULT.................................................................................................................................................................. 10 5 FCC §15.207 & IC RSS-GEN §7.2.4 – AC LINE CONDUCTED EMISSIONS .................................................... 11 5.1 APPLICABLE STANDARDS...................................................................................................................................... 11 5.2 TEST SETUP........................................................................................................................................................... 11 5.3 TEST PROCEDURE.................................................................................................................................................. 11 5.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................12 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................. 12 5.6 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 13 5.7 TEST ENVIRONMENTAL CONDITIONS..................................................................................................................... 13 5.8 SUMMARY OF TEST RESULTS................................................................................................................................. 13 5.9 CONDUCTED EMISSIONS TEST PLOTS AND DATA...................................................…

Text truncated - open the document above for the full version.

Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 31 of 50 FCC Part 15C & IC RSS-210 Test Report 10 Exhibit B - Test Setup Photographs 10.1 AC Line Conducted Emission Front View 10.2 AC Line Conducted Emission Side View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 32 of 50 FCC Part 15C & IC RSS-210 Test Report 10.3 Radiated Emission Front View 10.4 Radiated Emission below 1 GHz Rear View Trimble Navigation Limited FCC ID: JUP-9090991, IC: 1756A-9090991 Report Number: R1202142-247 Page 33 of 50 FCC Part 15C & IC RSS-210 Test Report 10.5 Radiated Emission above 1 GHz Rear View
