JUP-TC900C900 MHz Radio Modem

F Part Number 52357-00-ENG Revision B December 2004 Trimble ® SNR900 Radio-Modem Operation Manual SNR900.book Page i Friday, December 3, 2004 2:02 PM Contact Information Trimble Geomatics and Engineering Division 5475 Kellenburger Road Dayton, Ohio 45424-1099 U.S.A. 800-538-7800 (toll free in USA) +1-937-233-8921 Phone +1-937-233-9004 Fax www.trimble.com Copyright and Trademarks © 2001–2004, Caterpillar Trimble Control Technologies LLC. All rights reserved. Trimble, the Globe & Triangle logo, BladePro, and SiteVision are trademarks of Trimble Navigation Limited, registered in the United States Patent and Trademark Office and other countries. CMR+, MS750, MS860, SiteNet, and TRIMCOMM are trademarks of Trimble Navigation Limited. Microsoft, Windows, and Windows NT are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Release Notice This is the December 2004 release (Revision B) of the SNR900 Operation Manual, part number 52357-00-ENG. It applies to version 1.0 of the SNR900 radio-modem. Hardware Limited Warranty Trimble Navigation Limited warrants that this hardware product (the “Product”) will perform substantially in accordance with published specifications and be substantially free of defects in material and workmanship for a period of one (1) year starting from the date of delivery. The warranty set forth in this paragraph shall not apply to software products. Software License, Limited Warranty This Trimble software product, whether provided as a stand-alone computer software product, built into hardware circuitry as firmware, embedded in flash memory, or stored on magnetic or other media, (the “Software”) is licensed and not sold, and its use is governed by the terms of the relevant End User License Agreement (“EULA”) included with the Software. In the absence of a separate EULA included with the Software providing different limited warranty terms, exclusions and limitations, the following terms and conditions shall apply. Trimble warrants that this Trimble Software product will substantially conform to Trimble’s applicable published specifications for the Software for a period of one (1) year, starting from the date of delivery. Warranty Remedies Trimble's sole liability and your exclusive remedy under the warranties set forth above shall be, at Trimble’s option, to repair or replace any Product or Software that fails to conform to such warranty ("Nonconforming Product") or refund the purchase price paid by you for any such Nonconforming Product, upon your return of any Nonconforming Product to Trimble in accordance with Trimble’s standard return material authorization procedures. Warranty Exclusions and Disclaimer These warranties shall be applied only in the event and to the extent that (i) the Products and Software are properly and correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Trimble's relevant operator's manual and specifications, and; (ii) the Products and Software are not modified or misused. The preceding warranties shall not apply to, and Trimble shall not be responsible for defects or performance problems resulting from (i) the combination or utilization of the Product or Software with hardware or software products, information, data, systems, interfaces or devices not made, supplied or specified by Trimble; (ii) the operation of the Product or Software under any specification other than, or in addition to, Trimble's standard specifications for its products; (iii) the unauthorized, installation, modification, or use of the Product or Software; (iv) damage caused by accident, lightning or other electrical discharge, fresh or salt water immersion or spray; or (v) normal wear and tear on consumable parts (e.g., batteries). Trimble does not warrant or guarantee the results obtained through the use of the Product. THE WARRANTIES ABOVE STATE TRIMBLE'S ENTIRE LIABILITY, AND YOUR EXCLUSIVE REMEDIES, RELATING TO PERFORMANCE OF THE PRODUCTS AND SOFTWARE. EXCEPT AS OTHERWISE EXPRESSLY PROVIDED HEREIN, THE PRODUCTS, SOFTWARE, AND ACCOMPANYING DOCUMENTATION AND MATERIALS ARE PROVIDED “AS-IS” AND WITHOUT EXPRESS OR IMPLIED WARRANTY OF ANY KIND BY EITHER TRIMBLE NAVIGATION LIMITED OR ANYONE WHO HAS BEEN INVOLVED IN ITS CREATION, PRODUCTION, INSTALLATION, OR DISTRIBUTION INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT. THE STATED EXPRESS WARRANTIES ARE IN LIEU OF ALL OBLIGATIONS OR LIABILITIES ON THE PART OF TRIMBLE ARISING OUT OF, OR IN CONNECTION WITH, ANY PRODUCTS OR SOFTWARE. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON DURATION OR THE EXCLUSION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TRIMBLE NAVIGATION LIMITED IS NOT RESPONSIBLE FOR THE OPERATION OR FAILURE OF OPERATION OF GPS SATELLITES OR THE AVAILABILITY OF GPS SATELLITE SIGNALS. Limitation of Liability TRIMBLE’S ENTIRE LIABILITY UNDER ANY PROVISION HEREIN SHALL BE LIMITED TO THE AMOUNT PAID BY YOU FOR THE PRODUCT OR SOFTWARE LICENSE. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL TRIMBLE OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER UNDER ANY CIRCUMSTANCE OR LEGAL THEORY RELATING IN ANY WAY TO THE PRODUCTS, SOFTWARE AND ACCOMPANYING DOCUMENTATION AND MATERIALS, (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS), REGARDLESS WHETHER TRIMBLE HAS BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH LOSS AND REGARDLESS OF THE COURSE OF DEALING WHICH DEVELOPS OR HAS DEVELOPED BETWEEN YOU AND TRIMBLE. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YO…

Text truncated - open the document above for the full version.

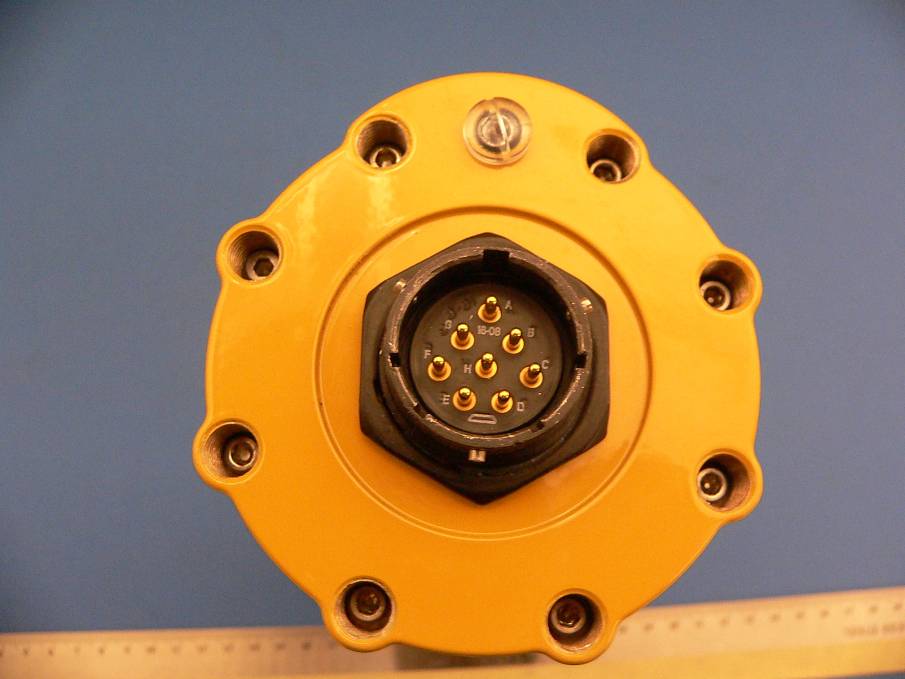

EXHIBIT C - EUT PHOTOGRAPHS EUT with Adaptor and 8-Pin Bendix EUT – Front View EUT – IO Connector 1 EUT – IO Connector 2 EUT – Adaptor and Unique Connector

EXHIBIT A - FCC ID LABEL INFORMATION The FCC labels should contain FCC statement in FCC 15.19 paragraph (3). A sample of the statement is presented hereinafter as reference. Also, as per FCC §15.19 a(4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: JUP-TC900C” Proposed Label Location on EUT Front View of EUT / Proposed FCC ID Label As per FCC §15.17 (b)(4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. FCC ID: JUP-TC900C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

EUT – Internal PCBA View 1 EUT – Internal PCBA View 2 EUT – Internal PCBA View 3 EUT – Internal PCBA View 4 EUT – Internal PCBA View 5 EUT – Internal PCBA View 6 EUT – Internal PCBA View 7 EUT – Antenna PCBA and Cap EUT – PCBA Bottom View Connector

§ 15.247 (e) (i) and § 2.1091 - RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 29.14(dBm ) Maximum peak output power at antenna input terminal: 820.35 (mW) Prediction distance: 20 (cm) Predication frequency: 915 (MHz) Antenna Gain (typical): 5 (dBi) antenna gain: 3.162 (numeric) Power density at predication frequency at 20 cm: 0.516 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.61 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.0516mW/cm², which is below the uncontrolled exposure limit of 0.61mW/cm² at 915 MHz.

Trimble Navigation Ltd. FCC ID: JUP-TC900C Report # R0610241Rpt Page 2 of 37 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 MECHANIC DESCRIPTION.............................................................................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................6 TEST METHODOLOGY..................................................................................................................................................6 TEST FACILITY.............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ..........................................................................................................................7 JUSTIFICATION.............................................................................................................................................................7 SPECIAL ACCESSORIES.................................................................................................................................................7 EQUIPMENT MODIFICATIONS.......................................................................................................................................7 POWER SUPPLY AND LINE FILTERS..............................................................................................................................7 INTERFACE PORTS AND CABLING.................................................................................................................................7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 SUMMARY OF TEST RESULTS FOR FCC PART 15............................................................................................8 ANTENNA REQUIREMENTS....................................................................................................................................9 §15.207 (A) - CONDUCTED EMISSIONS................................................................................................................10 §15.205, §15.209 & §15.247(C) - RADIATED EMISSIONS ....................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 TEST SETUP................................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................12 SUMMARY OF TEST RESULTS.....................................................................................................................................12 RADIATED EMISSIONS TEST DATA @ 3 METER..........................................................................................................13 §15.247 (A) (1) - HOPPING CHANNEL SEPARATION ........................................................................................17 APPLICABLE STANDARD............................................................................................................................................17 MEASUREMENT PROCEDURE......................................................................................................................................17 TEST EQUIPMENT.......................................................................................................................................................17 ENVIRONMENTAL CONDITIONS..................................................................................................................................17 MEASUREMENT RESULTS...........................................................................................................................................17 §15.247 (A) (1) - CHANNEL BANDWIDTH ............................................................................................................20 APPLICABLE STANDARD............................................................................................................................................20 MEASUREMENT PROCEDURE......................................................................................................................................20 TEST EQUIPMENT...................................................................…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emissions - Front View with Omni antenna Radiated Emissions - Rear View with Omni antenna Radiated Emissions - Front View with dipole whip antenna Radiated Emissions - Rear View with dipole whip antenna
