JUP96410PDA

USER GUIDE Trimble Juno Series Handhelds: TNJ31 and TNJ32  Safe ty information  About the Juno series handhelds  Getting started  Using the Windows Embedded Handheld operati ng system  Connecting to an office computer  Using the integrated radios to connect to other devices  Using the GNSS receiver  Using the camera  Troubleshooting Version 1.00 Revision A February 2012 2 Juno Series Handhelds User Guide Trimble Navigation Li mited 10355 Westmoor Drive Suite #100 Westminste r, CO 80021 USA www.trimble.com Legal Notices Copyright and Trademarks © 2008-2011, Trimble Navigation Limited. All rights reserved. Trimble, the Globe & Triangle logo, GPS Pathfinder, and Juno are trademarks of Trimble Navigation Limited, registered in the United States and in other countries. EVEREST, GeoBeacon, GPS Analyst, GPScorrect, H-Star, TerraSync, TrimPix, and VRS are trademarks of Trimble Navigation Limited. Microsoft, ActiveSync, Excel, Outlook, PowerPoint, Windows, Windows Live, Win dows Media, Win dows Mobile, Windows Vista, and the Windows Start logo are either registered trademarks or trademarks of M icrosoft Corporation in the United States and/or other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Trimble Navigation Limited is under license. All other trademarks are the property of their respective owners. Release Notice This is the February 2012 release (Revision A) of the Juno Series Handhelds User Guide, covering Models TNJ31 and TNJ32.The Juno series handheld’s operating system is based on Microsoft Windows Embedded Handheld 6.5 Professional operating system. Limited Warr anty Terms and Conditions Product Limited Warra nty Subject to the terms and co nditions set forth herein, Trimble Navigation Limited (“Trimble”) warrants that for a period of (1) year from date of purchase this Trimble product (the “Product”) will substantially conform to Tri mble's publicly available specifications for the Product and that the hardware and any storage media components of the Product will be substantially free from defects in materials an d workmanship. Pr oduct Software Product software, whether built into hardware circuitry as fir mware, provided as a standalone co mputer software product, embedded in flash m emory, or stored on magnetic or other media, is licensed solely for use with or as an in tegral part of the Product and is not sold. The terms of the end user license agreement, as included below, govern the use of the Product Software, including any differing limited warranty terms, exclusions and limit ati ons, which shall control over the terms and conditions set forth in the limited Product warranty. Warranty Remedies If the Trimble Product fails during the warranty period for reasons covered by this limited warranty and you notify Trimble of such fa ilure during the warranty period, Trimble will repair OR replace the nonconforming Product with new, equivalent to new, or reconditioned parts or Pro duct, OR refund the Product purchase price paid by you, at Trimble’s option, upon your return of the Product in accordance with Trimble's product return procedures then in effect. How to Obta in Warranty Service To obtain warranty service for the Product, please co ntact your Trimble dealer. Alternatively, you may contact Trimble to request warranty service at +1-408-481-6940 (24 hours a day) or email your request to tri [email protected]. Please be prepared to provide: – your name, address, and telephone numbers; – proof of purchase; – a copy of th is Trimble warran ty – a descripti on of the nonconforming Product including the model number; and – an explanation of the problem. The customer service representative may need additional in formation from you depending on the nature of the problem. Warranty Exclusions and Disclaimer This Product limited warranty shall only apply in the event and to the extent that (i) the Product is properly and correctly in stalled, co nfigured, interfaced, maintained, stored, and operated in accordance with Trimble 's applicable operator's manual and specifications, and; (ii) the Product is not modified or misused. This Product limited warranty shall not apply to, and Trimble shall not be responsible for, defects or performance problems resulting from (i) the combination or utilization of the Product with hardware or software products, information, data, systems, interfaces, or devices not made, supplie d, or specified by Trimble; (ii ) the operation of the Product under any specification other than, or in additi on to, Trimble's standard specific ations for its products; (iii) the unauthorized in stallation, modification, or use of the Product; (iv) damage caused by: accident, lightning or other electrical discharge, fresh or salt water immersi on or spray (outside of Product specifications); or exposure to environmental conditions for which the Product is no t in tended; (v) normal wear and tear on consumable parts (e.g., batteries); or (vi) cosmetic damage. Trimble does not warrant or guarantee the results obtained th rough the use of the Product or Software, or that software components will operate error free. NOTICE REGARDING PRODUCTS EQUIPPED WITH TECHNOLOGY CAPABLE OF TRACKING SATELLITE SIGNALS FROM SATELLITE BASED AUGMENTATION SYSTEMS (SBAS) (WAAS/EGNOS, AND MSAS), OMNISTAR, GPS, MODERNIZED GPS OR GLONASS SATELLITES, OR FROM IALA BEACON SOURCES: TRIMBLE IS NOT RESPONSIBLE FOR THE OPERATION OR FAILURE OF OPERATION OF ANY SATELLITE BASED POSITIONING SYSTEM OR THE AVAILABILITY OF ANY SATELLITE BASED POSITIONING SIGNALS. THE FOREGOIN G LIMITED WARRANTY TERMS STATE TRIMBLE’S ENTIRE LIABILITY, AND YOUR EXCLUSIVE REMEDIES, RELATING TO THE TRIMBLE PRODUCT. EXCEPT AS OTHERWISE EXPRESSLY PROVIDED HEREIN, THE PRODUCT, AND ACCOMPANYING DOCUMENTATION AND MATERIALS ARE PROVIDED “AS-IS” AND WITHOUT EXPRESS OR IMPLIED WARRANTY OF ANY KI ND, BY EI THER TRIMBLE OR ANYONE WHO HAS BEEN INVOLVED IN ITS CREATI…

Text truncated - open the document above for the full version.

8. Follow the steps in the Setup wizard. If the connection settings are not automatically downloaded from the Internet, you must enter them using the connection details supplied by your ISP or networ k administrator. Note – You cannot change the account name lat er. 9. Tap Finish. 10. Tap OK to download mail immediately. B Tip – To receive TerraSync data files by email, edit the settings for the email account you have set up. To do this, tap Menu and then select Options. In the Accounts tab, tap the e-mail account you want to use to receive TerraSync files. The Email Setup wizard appears. Tap Next until you reach the last page of the wizard. From the Message download limit drop-down list, select Entire message. When you connect the handheld to the email server, new messages are downloaded to the Messaging folder, messages in the Outbox folder are sent, and messages that have been deleted on the email server are removed from the Messaging folder. Messages received directly from an email server are link ed to the email server rather than an office computer. When you delete a message on the handheld, it is also deleted fr om the email server the next time you connect the handheld to the email server. You can work online or offline. When working online, you read and respond to messages while connected to the email server. Messages are sent as soon as you tap Send, which saves space on the handheld. When working offline, you can disconnect from the email server after you download new message headers or parti al messages and then decide which messages to download completely. The next time you connect, Messaging downloads the complete messages you have marked for retrieval and sends any messages that you have written. Voice calls Use the TNJ32 handheld to make and receive phone calls. You can enter a number to dial using the keypad, or select a number from your Contacts list. To make a phone call: 1. Make sure that a SIM card is installed. See Installing and removing the SIM card, page 26. 2. Make sure that the phone is turned on. See Turning on and tur ning off the integrated radios, page 49. 1. On the Home screen, do one of the following: – Tap / Phone. – Tap the Phone item, and then tap the Phone item again. Juno Series Handhelds User Guide 4 1 2. On the Phone screen which appears, do one of the following:: – Use the keypad to dial a phone number and then tap Talk. – Tap to hide the keypad and select an option from the list of previously dialled numbers. Alternatively, tap the left softkey, tap the required contact and then tap Call. Note – When you make or receive a voice call, the screen automati cally locks, and the touch screen cannot be used unless you use the Unlock (left) softkey or Call End (right) softkey. To answer a phone call, press the Start call button or the left softkey. Note – When you answer a voice call, the screen is blank. To end a phone call, press the End call button or the right soft key. Phone settings Note – You must have a SIM card in the handheld to access and change the phone settings. You can change th e ring type, ring tone, and keypad sound. If required, you can also set a PIN for the SIM card, or change the type of network or the name of the network you want to connect to. 1. To access Phone Settings, do one of the following: – Tap the modem status icon on the title bar of the Home screen and then tap Settings. – Tap / Settings / Personal / Phone. 2. Do any of the following: – Select the Sounds tab to set the required ri ng type, ring to ne, and keypad sound. – Select the Security tab to set a PIN, change the PIN, or set the handheld to require a PIN to be entered every time the phone is used. For more information on setting a PIN, see Setting a PIN on the TNJ32 handheld, page 50. – Select the GSM/UMTS tab to sele ct a particular type of network to connect to. By default, GSM/UMTS is selected and the phone will connect to either that is available. Alternatively you can specifically select GSM or UMTS fr om the drop-d own menu. – Select the Network tab to view which networ k you are connected to or manually select a desired network. 4 2 Juno Series Handhelds User Guide Text messaging Use the phone functionality on the TNJ32 handheld to send and receive text messages. 1. Make sure that a SIM card is installed. See Installing and removing the SIM card, page 26. 2. Make sure that the phone is turned on. See Turning on and tur ning off the integrated radios, page 49. 3. Do one of the following: • To send a text message: a. On the Home screen, select the Text item (this shows Text Messages: x unread, or No New messages). Alternatively, tap / Text b. Tap / New. c. To enter a contact number, make sure that the cursor is flashing in the To field and then do one of the following: – Use the keyboard to enter a phone number. – Select Menu / Add Recipient to select a number from your Contacts. d. Tap in the message area (the cursor will flash) and then enter the text using the keyboard. e. Tap to send the message. • To access your text message folders. a. On the Home screen, select the Text item (th is may show Text Messages: x unread, or No New messages) and then tap again. b. Click the Inbox drop-down arrow. c. Click the required folder to view messages in that folder. Juno Series Handhelds User Guide 4 3 Connecting to an office computer Connect the Juno series handheld to an office computer to transfer information, settings, and files from one device to the other, or to install software onto the handheld. You can connect the handheld to a computer using the USB cable or a Bluetooth wireless link. C CAUTION – When using the USB port at the bottom of the handheld, make sure that it is kept dry. Water damage may cause the USB connection to fail and the handheld will not connect to the office computer. To protect your data, Trimble recommends that you regularly copy import ant data to an offic e computer. Connection management software To install software onto a Win dows e…

Text truncated - open the document above for the full version.

Trimble Navigation Ltd. 935 Stewart Drive, Sunnyvale, CA 94088-3642 U.S.A. Date: Jan. 18, 2012 Subject: Ad Hoc Mode Function Declaration FCC ID: JUP96410 To Whom it may concern, This device is able to be operated on both master and client mode. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Name: Bruce Maule Title: GIS Data Collection Division – Compliance Engineer Tel: +1 408 481-8204 E-mail: [email protected] Date: Jan. 18, 2012

Trimble Navigation Ltd. 935 Stewart Drive, Sunnyvale, CA 94088-3642 U.S.A. Tel: 408 481-8284 ; Fax: 408 481-7866 Jan. 18, 2012 Federal Communications Commission Authorization and Evaluation Division FCC ID：JUP96410 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Bruce Maule Company: Trimble Navigation Ltd. TEL: +1 408 481-8204 FAX: +1 408 481-7371 E-mail: [email protected]

Trimble Navigation Ltd. 935 Stewart Drive, Sunnyvale, CA 94088-3642 U.S.A. Tel: 408 481-8284 ; Fax: 408 481-7866 Jan. 18, 2012 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) Mr. Jason Lin Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Trimble (Brand Name) / TNJ31 (Model Name) FCC ID: JUP96410 Product Name: PDA This authority is subject to the terms and conditions of the Device Development and Supply Agreement between Trimble and Goldtek Technology Co., Ltd. dated November 1st, 2011 (the “Agreement”) as they relate to Products testing, manufacture and certification. This authority becomes effective on the date of this letter and expires on the earlier of: (i) 30 June 2012 (ii) termination of the Agreement or (iii) revocation by the Company. Contact Person: Bruce Maule Company: Trimble Navigation Ltd. E-mail: [email protected]

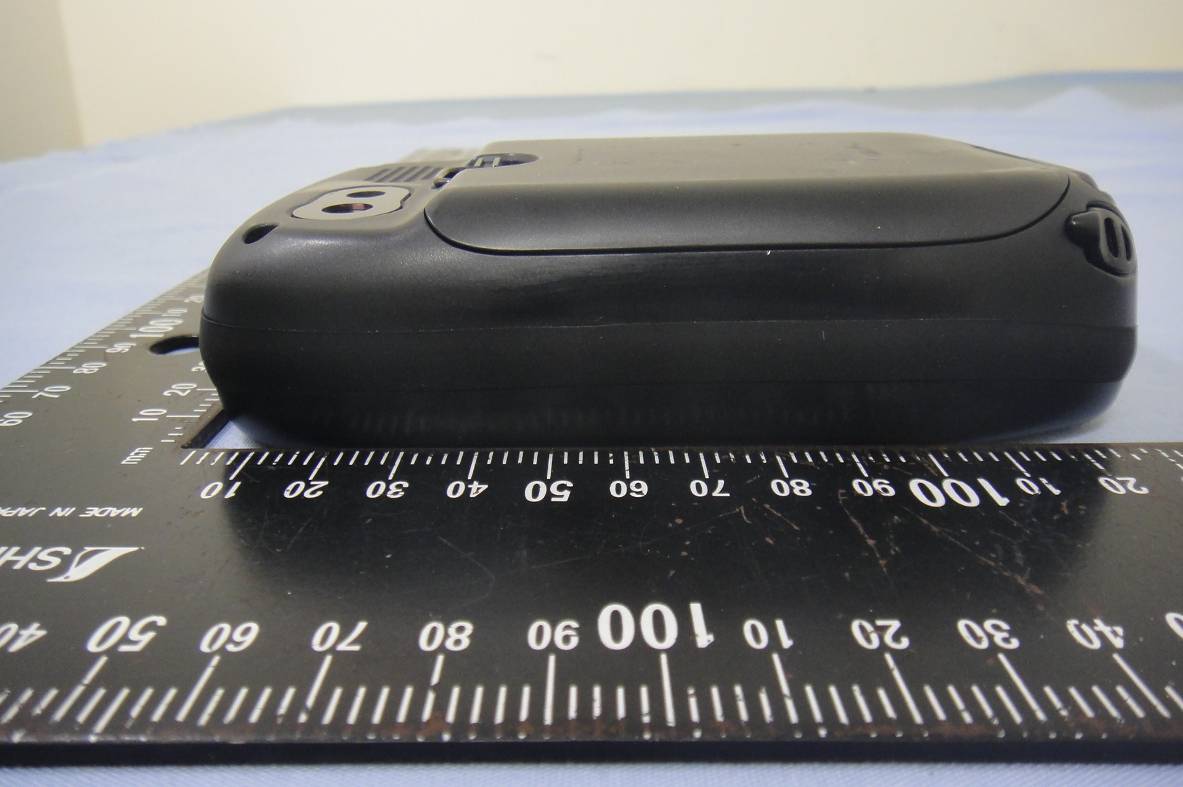

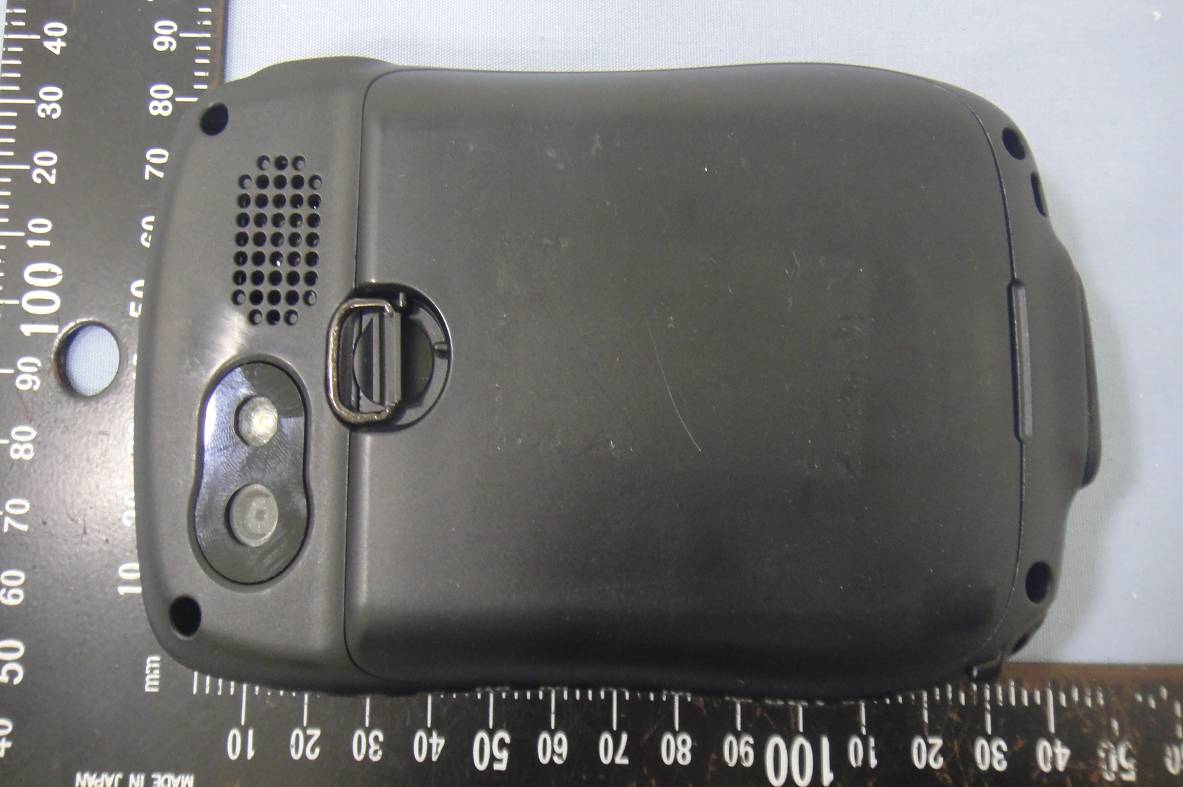

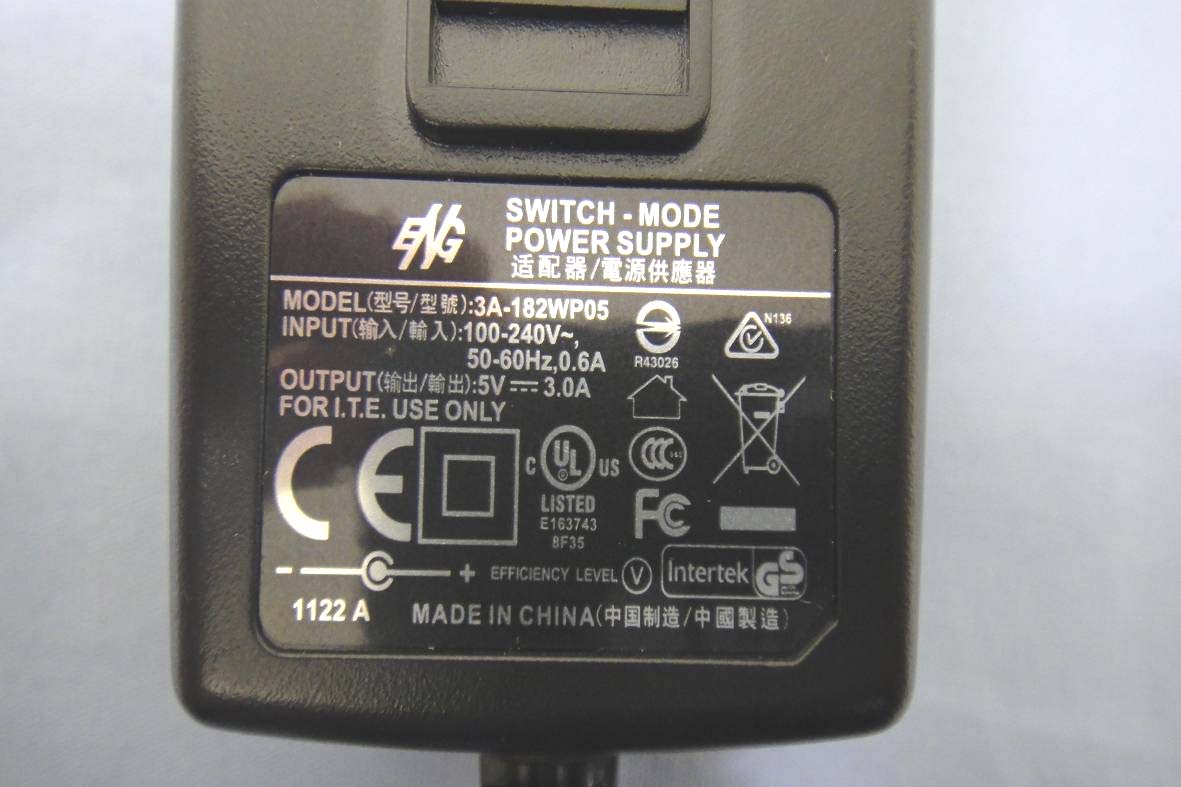

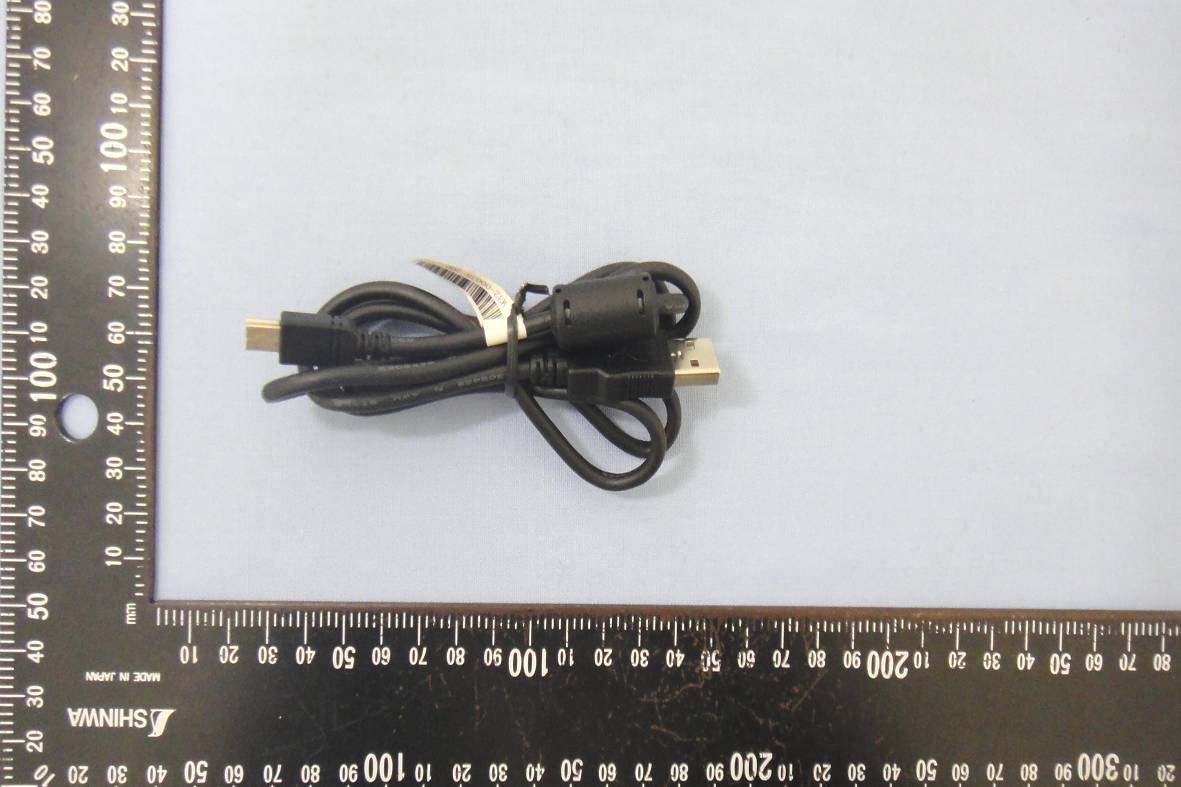

Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 1 / 17 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 2 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 3 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 4 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 5 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 6

Model No. : TNJ32 Part No. : 96420-00 IC : 1756A-96420 FCC ID : JUP96420 Input: DC 5V 3.0A IMEI:XXXXXXXXXXXXXXX Juno 3D Juno 3B Made in Taiwan 台灣製造 Made in Taiwan S/N: TTTTTTTTYYWWXXXXX S/N: TTTTTTTTYYWWXXXXX Model No. ( 型號 ) : TNJ32 掌上型電腦 Input ( 輸入 ) : DC 5V 3.0A CMIIT ID : XXXXXXXXXX Model No. : TNJ31 Part No. : 96410-00 IC : 1756A-96410 FCC ID : JUP96410 Input: DC 5V 3.0A Made in Taiwan This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. N324 10 1177 TA-2010/1514 N324 CZ02 REM-XXX-KCC XXXXXXXX REM-XXX-KCC-XXXXX XXXXXXXX 台灣製造 Made in Taiwan 10 1177 TA-2010/1514 CZ02 Model No. ( 型號 ) : TNJ31 掌上型電腦 Input ( 輸入 ) : DC 5V 3.0A CMIIT ID : XXXXXXXXXX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. T XXXXXXXXXXXX R XXXXXXXXXXXX T XXXXXXXXXXXX

Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 7 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 8 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 9 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 10 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 11 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 12 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 13 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 14 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 15 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 16 Compliance Certification Services Inc. Report No.: T111215005 Date of Issue: January 10, 2012 A1 - 17

Cirocomm Proprietary Information Cirocomm Technology Corp. No.37,Industrial South Road, Kuntien Industrial Park, Kuntien Hsiang, Tainan Hsien, Taiwan 720, R.O.C www.cirocomm.com.tw WIFI/BT Antenna Test Report Prepared for Trimble 【TNJ31 /32】Project Author ET Wang Date 31 th Oct 2011 Cirocomm Proprietary Information Cirocomm Report - TNJ31 / TNJ32 Antenna V3(20111031) Page 2 of 8 Client Information Client Trimble Engineer of Client Project Name TNJ31 / TNJ32 Project Stage □2D Drawing □PCB □Housing ■CNC(EVT) □Soft Tooling □Hot Tooling(DVT) □PVT Antenna Type PIFA Antenna Band 2450MHz Antenna Engineer ET Tuning Note Version Date Revision Description Designer 01 2011.08.02 Version 1 Wesley 02 2011.09.19 Version 2 ET 03 2011.10.31 Version 3 ET 04 05 06 07 Antenna Info LNA Name Material Dimension Feed-In Location PIN Length Cirocomm Proprietary Information Cirocomm Report - TNJ31 / TNJ32 Antenna V3(20111031) Page 3 of 8 1. Test content： WIFI Antenna In TNJ31 / TNJ32 housing pattern measurement 2. Test project： S11 Return Loss 、Impedance、Antenna GAIN、 Radiation Pattern、Efficiency、Average Gain 3. Test setting： Network Analyzer：Agilent E5071C Source Antenna：SATIMO Test Frequency： 2450MHz 4. Test environment： Room temperature ：24.3 °CHumidity：43.9％ 5. Test schematic drawing of setting： Cirocomm Proprietary Information Cirocomm Report - TNJ31 / TNJ32 Antenna V3(20111031) Page 4 of 8 6. Test data： WIFI/BT Antenna In TNJ31 / TNJ32 housing S11 Return Loss Measurement Return Loss：-12.86 dB @2450MHz Cirocomm Proprietary Information Cirocomm Report - TNJ31 / TNJ32 Antenna V3(20111031) Page 5 of 8 XZ-Plane 2450MHz YZ-Plane 2450MHz XY-Plane 2450MHz 1850MHz Peak Gain (dBi) XZ-Plane 0.24 YZ-Plane -1.39 XY-Plane -2.20 Cirocomm Proprietary Information Cirocomm Report - TNJ31 / TNJ32 Antenna V3(20111031) Page 6 of 8 Efficiency： Efficiency：39.84 % @2450MHz Average Gain： Average Gain：-3.99 dBi @2450MHz Cirocomm Proprietary Information Cirocomm Report - TNJ31 / TNJ32 Antenna V3(20111031) Page 7 of 8 Peak Gain： Peak Gain：1.24 dBi @2450MHz 3D Pattern： +X +Y +Z +X +Y +Z Cirocomm Propriety Information Cirocomm Report - TNJ31 / TNJ32 Antenna V3(20111031) Page 8 of 8 7. Photo： Antenna Outline Antenna Position Antenna Environment 8. Test result： 將太盟設計之WIFI天線，放置於客戶TN860整機中，經頻率及 阻抗匹配後，其特性於中心頻率、Return Loss、Band Width、 Antenna Gain、Efficiency等如上述，供客戶參考評估。 WIFI Antenna 3.3nH 6.8nH 0Ω

Date/Time: 2011/08/24 09:01:34 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.92 mho/m; ε r = 50.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3554; ConvF(6.18, 6.18, 6.18); lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn554; Calibrated: 2011/7/26 lPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1052 lMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.4 mW/g Pin=250mW,d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.7 V/m; Power Drift = -0.086 dB Peak SAR (extrapolated) = 26.7 W/kg SAR(1 g) = 13 mW/g; SAR(10 g) = 6.13 mW/g Maximum value of SAR (measured) = 18.4 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.9 mW/g

Compliance Certification Services Inc. IC: 1756A-96410 FCC ID: JUP96410 Report No: T111215005-SFI Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 29 Rev. 00 ANSI/IEEE Std. C95.1-1992 / RSS-102 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C IC Report and Order: SSI/DRB-TP-D01-030 FCC/IC TEST REPORT For PDA Model: TNJ31 Trade Name: Terminal Issued to For FCC Trimble Navigation Ltd. 935 Stewart Drive, Sunnyvale, CA 94088-3642 U.S.A. For IC Trimble Navigation Ltd. 935 Stewart Drive, Sunnyvale California 94085 United States Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien, 248 Taiwan. http://www. ccsrf.com [email protected] Issued Date: January 13, 2012 Compliance Certification Services Inc. IC: 1756A-96410 FCC ID: JUP96410 Report No: T111215005-SFI Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 13, 2012 Initial Issue ALL Peach Chang Compliance Certification Services Inc. IC: 1756A-96410 FCC ID: JUP96410 Report No: T111215005-SFI Page 3 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) .........................................................4 2. EUT DESCRIPTION ..........................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ..........................6 4. DOSIMETRIC ASSESSMENT SETUP ............................................................................................6 4.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................7 4.2 SYSTEM COMPONENTS ............................................................................................................8 5. EVALUATION PROCEDURES......................................................................................................11 6. MEASUREMENT UNCERTAINTY ..............................................................................................15 7. EXPOSURE LIMIT ..........................................................................................................................17 8. EUT ARRANGEMENT....................................................................................................................18 8.1 ANTHROPOMORPHIC HEAD PHANTOM .............................................................................18 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION ............................................................19 8.3 DEFINITION OF THE “TILTED” POSITION...........................................................................20 9. MEASUREMENT RESULTS ..........................................................................................................21 9.1 TEST LIQUIDS CONFIRMATION............................................................................................21 9.2 SYSTEM PERFORMANCE CHECK .........................................................................................23 9.3 EUT TUNE-UP PROCEDURES .................................................................................................24 9.4 SAR MEASUREMENT RESULTS ............................................................................................25 10. EQUIPMENT LIST & CALIBRATION STATUS.....................................................................26 11. FACILITIES ..................................................................................................................................27 12. REFERENCES ..............................................................................................................................27 13. ATTACHMENTS..........................................................................................................................28 Compliance Certification Services Inc. IC: 1756A-96410 FCC ID: JUP96410 Report No: T111215005-SFI Page 4 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: For FCC Trimble Navigation Ltd. 935 Stewart Drive, Sunnyvale, CA 94088-3642 U.S.A. For IC Trimble Navigation Ltd. 935 Stewart Drive, Sunnyvale California 94085 United States Equipment Under Test: PDA Trade Name: Terminal Model Number: TNJ31 Date of Test: January 13, 2012 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD FCC IC FCC OET 65 Supplement C IC RSS-102 Deviation from Applicable Standard None TEST RESULT No non-compliance noted The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in IC RSS-102. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by Reviewed by Jason Lin Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc Compliance Certification Services Inc. IC: 1756A-96410 FCC ID: JUP96410 Report No: T111215005-SFI Page 5 Rev. 00 2. EUT DESCRIPTION Product PDA Model Number TNJ31 Trade Name Terminal Model Discrepancy N/A Frequency Range 802.11…

Text truncated - open the document above for the full version.

'DWH7LPH93$0 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF EBody Front TNJ31  '8771-7\SHPDA6HULDOQD &RPPXQLFDWLRQ6\VWHP,(((E:/$1)UHTXHQF\60+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHGI 60+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ 0HDVXUHPHQW6WDQGDUG'$6< +LJK3UHFLVLRQ$VVHVVPHQW  '$6<&RQILJXUDWLRQ z3UREH(;'96154&RQY) 6.186.186.18  z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ  z(OHFWURQLFV'$(6Q55&DOLEUDWHG27 z3KDQWRP6$07\SH6$096HULDO73 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG )URQW High&+1$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  )URQWHigh&+1=RRP6FDQ 7[7[9 &XEH 0HDVXUHPHQWJULGG[ PPG\ PPG] 3PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW -00G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J  P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  )URQWHigh&+1=RRP6FDQ 7[7[9 &XEH 0HDVXUHPHQWJULGG[ PPG\ PPG] 3PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW -00G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J   P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J 'DWH7LPH1$0 7HVW/DERUDWRU\&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF E%RG\Front TNJ31  '8771-7\SHPDA6HULDOQD &RPPXQLFDWLRQ6\VWHP,(((E:/$1)UHTXHQF\60+]'XW\&\FOH 0HGLXPSDUDPHWHUVXVHGI 60+]ı PKRPİ U  ȡ NJP    3KDQWRPVHFWLRQ)ODW6HFWLRQ 0HDVXUHPHQW6WDQGDUG'$6< +LJK3UHFLVLRQ$VVHVVPHQW  '$6<&RQILJXUDWLRQ z3UREH(;'96154&RQY) 6.186.186.18  z6HQVRU6XUIDFHPP 0HFKDQLFDO6XUIDFH'HWHFWLRQ z(OHFWURQLFV'$(6Q&DOLEUDWHG z3KDQWRP6$07\SH6$096HULDO73 z0HDVXUHPHQW6:'$6<9%XLOG3RVWSURFHVVLQJ6:6(0&$'9%XLOG %DFNHigh&+1$UHD6FDQ [[ 0HDVXUHPHQWJULGG[ PPG\ PP 0D[LPXPYDOXHRI6$5 PHDVXUHG  P:J  %DFNHigh&+1=RRP6FDQ 7[7[9 &XEH 0HDVXUHPHQWJULGG[=PPG\ PPG] 3PP 5HIHUHQFH9DOXH 9P3RZHU'ULIW -0G% 3HDN6$5 H[WUDSRODWHG  :NJ 6$5 J  9P:J6$5 J  P:J 0D[LPXPYDOXHRI6$5 PHDVXUHG  …

Text truncated - open the document above for the full version.
