K3YHNS9201Broadband Satellite IP Modem

Copyright  2005 Hughes Network Systems, LLC. All rights reserved. This publication and its contents are proprietary to Hughes Network Systems, LLC. No part of this publication may be reproduced in any form or by any means without the written permission of Hughes Network Systems, LLC., 11717 Exploration Lane, Germantown, Maryland 20876. Hughes Network Systems, LLC., has made every effort to ensure the correctness and completeness of the material in this document. Hughes Network Systems, LLC., shall not be liable for errors contained herein. The information in this document is subject to change without notice. Hughes Network Systems, LLC. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Trademarks All trademarks, marks, names, or product names referenced in this publication are the property of their respective owners, and Hughes Network Systems, LLC. neither endorses nor otherwise sponsors any such products or services referred to herein. HUGHES and Hughes Network Systems are trademarks of Hughes Network Systems, LLC. INMARSAT is a trademark of the International Mobile Satellite Organization. The Inmarsat LOGO and the trademark BGAN are trademarks of Inmarsat (IP) Company Limited. All trademarks are licensed to Inmarsat Limited. BGAN Terminal User's Guidei SAFETY INFORMATION For your safety and protection, read this entire user manual before you attempt to use the Broadband Global Area Network (BGAN) Satellite Terminal. In particular, read this safety section carefully. Keep this safety information where you can refer to it if necessary. WARNING SYMBOLS USED IN THIS MANUAL WARNING Potential radio Frequency (RF) hazard. Where you see this alert symbol and WARNING heading, strictly follow the warning instructions to avoid injury to eyes or other personal injury. WARNING Where you see this alert symbol and WARNING heading, strictly follow the warning instructions to avoid personal injury. DANGER Electric shock hazard: Where you see this alert symbol and DANGER heading, strictly follow the warning instructions to avoid electric shock injury or death. WARNINGS FOR SATELLITE TERMINAL DO NOT STAND IN FRONT OF THE ANTENNA This device emits radio frequency energy when in the transmit mode. To avoid injury, do not place head or other body parts in front of the satellite antenna when system is operational. Maintain a distance of two meters away from the front of the Satellite Terminal antenna. iiBGAN Terminal User's Guide PROPERLY GROUND THE ANTENNA Failure to properly ground the optional external antenna may result in severe personal injury or death. Do not attempt to ground the optional external antenna unless you have the skills to do so in accordance with local electrical codes. DO NOT OPERATE DURING ELECTRICAL STORMS Operation of the Satellite Terminal during electrical storms may result in severe personal injury or death. Disconnect the Terminal from the computer and store the unit indoors if lightning is anticipated in the area of operation. GENERAL Handle your Satellite Terminal with care. The enclosure is weather resistant per IEC 60529 IP55; however, do not submerge the unit or expose it to severe rain storms. Avoid exposing your Satellite Terminal to extreme hot or cold Terminal is -25ºC to +60ºC. Avoid placing the Terminal close to cigarettes, open flames or any source of heat. Changes or modifications to the Terminal not expressly approved by Hughes Network Systems could void your authority to operate this equipment. Only use a soft damp cloth to clean the Terminal. To avoid impaired Terminal performance, please ensure the unit’s antenna is not damaged or covered with foreign material like paint or labeling. When inserting the USIM/SIM, do not bend the it or damage the contacts in any way. When connecting the interface cables, do not use excessive force. IN THE VICINITY OF BLASTING WORK AND IN EXPLOSIVE ENVIRONMENTS Never use the Satellite Terminal where blasting work is in BGAN Terminal User's Guideiii progress. Observe all restrictions and follow any regulations or rules. Areas with a potentially explosive environment are often, but not always, clearly marked. Do not use the Terminal while at a petrol filling station. Do not use near fuel or chemicals. QUALIFIED SERVICE Do not attempt to disassemble your Satellite Terminal. The unit does not contain consumer-serviceable components. Only qualified service personnel may install or repair equipment. BATTERIES AND ACCESSORIES Use approved batteries (HNS P/N 3003702-0001) and accessories only. Use of non-approved accessories may result in loss of performance, damage to the Satellite Terminal, fire, electric shock or injury. AC Mains power adapter (HNS P/N 3003727-0001) is for indoor use only. It has an indoor operating temperature range of 0ºC to +40ºC and provides an output voltage of 20 VDC. The storage capability of the battery decreases when operated. Battery charging should only be attempted when the temperature is within the range of 0 to 45 degrees C. CONNECTING DEVICES Never connect incompatible products. When connecting the Satellite Terminal to any other device, read the device’s User Manual for detailed safety instructions. ivBGAN Terminal User's Guide PACEMAKERS The various brands and models of cardiac pacemakers available exhibit a wide range of immunity levels to radio signals. Therefore, people who wear a cardiac pacemaker and who want to use a Satellite Terminal should seek the advice of their cardiologist. If, as a pacemaker user, you are still concerned about interaction with the Satellite Terminal, we suggest you follow these guidelines: ƒ Maintain a distance of 30 cm between the Terminal and your pacemaker; ƒ Maintain a distance of two meters from the front of the unit’s antenna; ƒ Refer to your pacemaker product literature for information on your particular device. If you have any reason to suspect …

Text truncated - open the document above for the full version.

TÜV America Inc., TCB Phone: (858) 678 1400 10040 Mesa Rim Road Fax: (858) 546-0364 San Diego, CA 92121 E-mail: [email protected] www.TUVamerica.com/tcb 16. Block Diagram with oscillator frequencies. 2 PMB2208 N+δ CP R SA8028 3V-RX 5V-RX1 RXRFEN 3V-RX3V-RX 5V-RX2 MAX2312-VGC MAX2312-EN RXRFEN 1542.5 MHz 1542.5 MHz 188 MHz (IF SAW) FREQ-DATA-LP FREQ-CLK-LP 100 KHz 100 KHz 5V-RX1 5V-RX1 RX-SYN-LD FREQ-DATA-LP FREQ-CLK-LP RX-RCVR-SYN-CE REF-13MHZ-B 3V-LO 5V-RX-LO 5V-RX-LO RX-LO-LD FREQ-DATA-LP FREQ-CLK-LP RX-LO-SYN-CE REF-13MHZ-C 3V-LO 5V-TX-RX-PLL +26V+6V-TX DRIVER-PC GEM-PA-BIAS 1,2 1626.5- 1660.5 MHz RF2146 (driver) X2 Quadrature combinedPAs Level Shifter +3V-TX2 GEM-PABIASEN-LP GEM-TXPWR1 1626.5- 1660.5 MHz TX IF SAW: 246 MHz 3.6V-TX1 GEM-TXCEN-LP TX-SYN-LD FREQ-DATA-LP FREQ-CLK-LP TX-FREQ-SYN-CE REF-13MHZ-E 3V-LO 5V-TX-LO5V-TX-LO N CP R LMX2306 TX-LO-LD FREQ-DATA-LP FREQ-CLK-LP TX-LO-SYN-CE REF-13MHZ-A 3V-LO 5V-TX-LO 5V-TX-RX-PLL 3V-TX-PLL 5V-RX-LO N CP R LMX2306 +3V-TX2 5V-TX-LO N+δ CP R SA8028 5VCONST AFC-TX-OUT 5VA 3V-RX 3V-RX-EN 3V-LO 3V-LO-EN 5V-TX-RX-PLL 5V-TX1 5V-TX1-EN 3.6V-TX1 5V-TX2 5V-TX2-EN 5V-TX2A 5V-RX1 5V-RX1-EN 5V-RX2 5V-RX2-EN 5V-TX3 5V-TX3-EN 3V-TX 3V-TX-EN I-IF-OUT +/- Q-IF-OUT +/- 376 MHz 1626.5 MHz - 1660.5 MHz 1525 MHz -1559 MHz 492 MHz VCTCXO REF-13MHz (to BB) 3V-RX-PLL TX-IP / IN TX-QP / QN CMY 212 2 MAX2312 Vd GC TX Offset 5V-TX1 4V-TX VPA VPA-EN TX - I P /IN - P R E TX -Q P / Q N -P R E Gate Bias 5V-TX2 5VB +5V_RX_LO_EN 5VC 5VD +5V_RX_LO_EN +5V_TX_LO_EN +5V_TX_LO_EN 3.3V Ref_13MHz_B Ref_13MHz_C Ref_13MHz_E Ref_13MHz_A Ref_13MHz_D To Baseband 5VD 5VD 5VC 5VC 2-pole Ceramic 2-pole Ceramic VGA 5V-TX-LO 3V-TX-PLL +5V_TX_LO_EN 5V-RX-LO 3V-RX-PLL +5V_RX_LO_EN P D (AD8314) +3V-TX PA-PWR-SENSOR-EN GEM-PA-PWR-SENSE (1) Cree or Agrere 10W LDMOS x2 SGA-6589 RF2381 +6V-TX Vgg Vdd Pre-driver 1380.5 - 1414.5 MHz FCB • Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of Group TÜV Süddeutschland.

TÜV America Inc., TCB Phone: (858) 678 1400 10040 Mesa Rim Road Fax: (858) 546-0364 San Diego, CA 92121 E-mail: [email protected] www.TUVamerica.com/tcb This picture shows the EUT dis-assembled into its main parts. The 4 main components are (starting from the left) the satellite antenna, PCB, bottom housing, stand.The PCB is sandwiched between the main antenna and bottom housing. FCB • Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of Group TÜV Süddeutschland. TÜV America Inc., TCB Phone: (858) 678 1400 10040 Mesa Rim Road Fax: (858) 546-0364 San Diego, CA 92121 E-mail: [email protected] www.TUVamerica.com/tcb This picture shows the EUT positioned in its normal operating position, with the stand deployed. The internal antenna is the surface facing the user, and is pointing to the satellite. FCB • Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of Group TÜV Süddeutschland. TÜV America Inc., TCB Phone: (858) 678 1400 10040 Mesa Rim Road Fax: (858) 546-0364 San Diego, CA 92121 E-mail: [email protected] www.TUVamerica.com/tcb FCB • Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of Group TÜV Süddeutschland. This picture shows the UT with its stand stowed, ready for transportation.

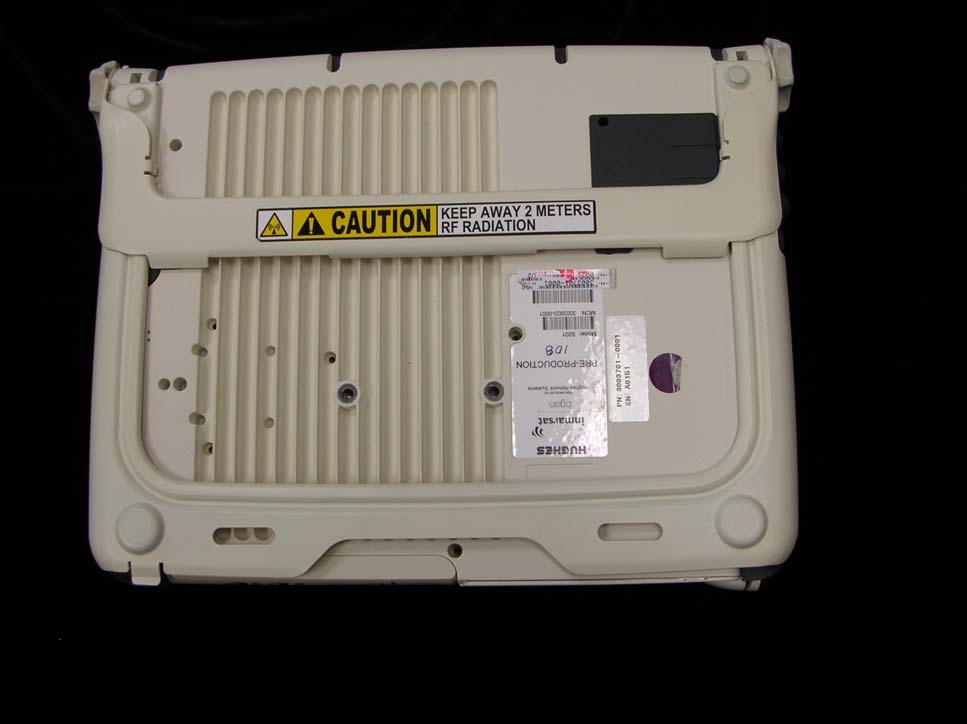

TÜV America Inc., TCB Phone: (858) 678 1400 10040 Mesa Rim Road Fax: (858) 546-0364 San Diego, CA 92121 E-mail: [email protected] www.TUVamerica.com/tcb FCB • Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of Group TÜV Süddeutschland. This picture shows the UT with its stand stowed, ready for transportation. LABEL Assembled in the United States Manufactured by Hughes Network Systems IMEI: XXXXXX-XX-XXXXXX-X MCN: XXXXXXX-XXXX Model: 9201 FCC ID: K3YHNS9201 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 168 I.T.E. 39ET Wi-Fi bgan

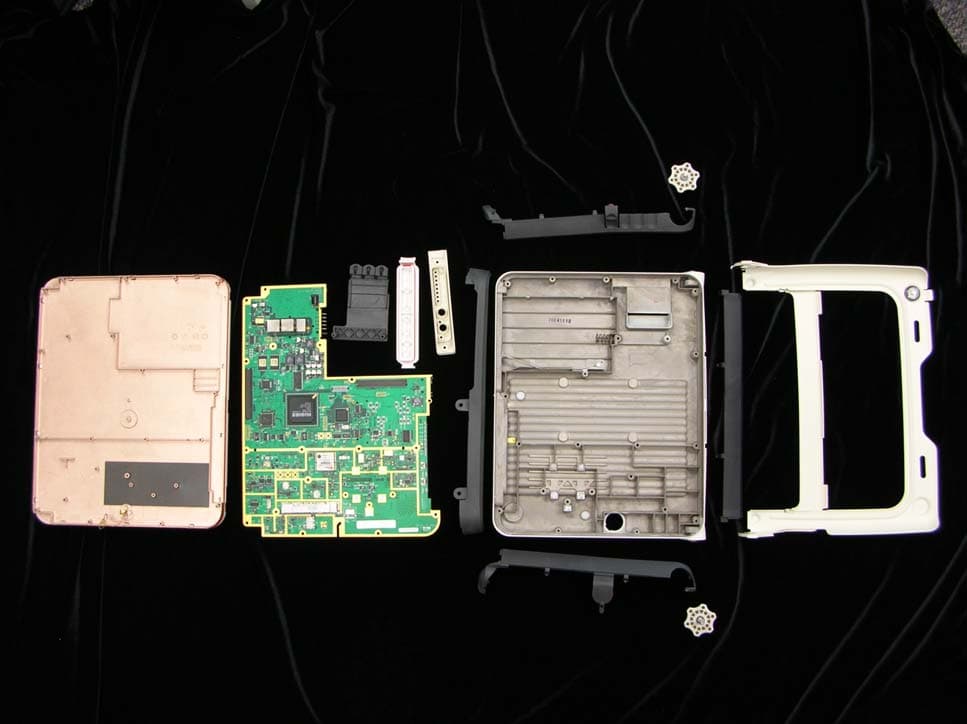

TÜV America Inc., TCB Phone: (858) 678 1400 10040 Mesa Rim Road Fax: (858) 546-0364 San Diego, CA 92121 E-mail: [email protected] www.TUVamerica.com/tcb This picture shows the EUT dis-assembled into its main parts. The 4 main components are (starting from the left) the satellite antenna, PCB, bottom housing, stand.The PCB is sandwiched between the main antenna and bottom housing. FCB • Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of Group TÜV Süddeutschland.

Operating description of the EUT. The HNS 9201 EUT is a High Speed Data and Voice terminal that can be used worldwide with Inmarsat’s I-4 satellites and Ground Gateway System. This allows users to simultaneously send and receive IP packet and circuit switched data via USB, Ethernet, ISDN and Wi-Fi interfaces. The system is the satellite equivalent of a terrestrial 3G network, and allows 3G services to be delivered via a USIM. The EUT contains a satellite radio, control processors, and high gain antenna, integrated into the mechanical housing. This allows it to communicates with the Inmarsat’s I-4 satellites and Ground Gateway System. The EUT’s electroncis circuits and systems are under the control of a Central Processor Unit, which also runs the System Protocol Stack to ensure the EUT communicates correctly with the satellite and Gateway System, and can provide the required data services. The EUT can be used in Semi-Fixed and Portable Environments. It can be installed outside in extreme weather conditions for extended periods of time.

Instructions RD=Component Reference Designator MCN=A part number used internally by HNS. Has format 3XXXXXX-XXXX or 9XXXXXX-XXXX. MPN=Manufacturer's Part Number The worksheet MCN-RD lists the MCN for all components by their reference designator. The worksheet MCN-MPN lists the MPN for all components by their MCN So to find the MPN for a given component, find its MCN from MCN-RD, then search for the MPN in MCN-MPN. Worksheet MCN-RD (Pages 1-39) 3003918-0002rev42 CCA, BGAN Class 1 UT (Eng) Component no.qty Description 3003917-00011 PWB, BGAN, Class 1 UT 3003919 Schematic, BGAN, Class 1 UT 9000072-000218 TRANSISTOR,NPN 2 Q121 3 Q161 4 Q171 5 Q181 11 Q191 12 Q211 13 Q221 14 Q271 16 Q2081 17 Q2101 18 Q2111 19 Q2121 21 Q2291 23 Q2371 24 Q2381 25 Q31 26 Q701 27 Q201 9000077-00023 TRANSISTOR,PNP 2 Q111 5 Q2061 6 Q2071 9000310-01652 DIODE,TUNING,HYPERABRUPT 1 CR21 2 CR31 9002487-01378 DIODE,SWITCHING 200MA 3 CR71 4 CR121 6 CR131 7 CR141 8 CR151 9 CR2201 10 CR2211 11 CR2231 9004011-00032 DIODE,DUAL SWITCHING SOT23 1 CR201 2 CR11 9005935-007010 CAP,TANT CHIP 4.7UF 20% 10V 3 C2971 6 C6361 8 C6531 9 C7711 15 C9641 21 C9651 22 C9881 24 C9891 25 C12881 26 C15341 9005935-01313 CAP,TANT CHIP 10UF 10% 10V 1 C731 5 C2001 6 C7371 9006244-00161 INDUCTOR,CHIP 120NH 10% 1 L421 9006244-00511 INDUCTOR,CHIP 5% 220NH 7 L1421 9006244-01351 INDUCTOR,CHIP 10NH 2% 1 L741 9006495-00156 FILTER,FERRITE CHIP 3A 1206 3 L151 5 L571 6 L921 7 L931 8 L951 9 L971 9006495-00392 FILTER,FERRITE CHIP .1A 0603 1 L591 2 L691 9006642-00071 XFMR,ISOLATION 10BASE-T SMT 1T41 9007941-00072 IC,VOLTAGE REFERENCE 2.5V 0.1% 1 VR61 2 VR71 9008509-00021 COUPLER,DIR,1.5-2.2GHZ,20DB 1 DC51 9009832-00042 TRANSISTOR,PNP 45V SOT-323 1 Q2411 2Q41 9011122-001811 CAP,ELECT LOW-Z 68UF 20% 35V 1 C2051 2 C2451 3 C3011 4 C3101 5 C3521 6 C3531 7 C3581 8 C14191 9 C14201 10 C14221 11 C14231 9010391-00012 IC,PCS LINEAR PA 1.5/2.0GHZ 1U31 2 U221 9010481-00025 DIODE,SCHOTTKY 30V 100MA 2 CR161 3 CR171 10 CR2051 13 CR2191 14 CR2221 9010505-000525 BEAD,FERRITE 1GHZ 1K 100MA 1 L131 2 L141 3 L281 4 L291 5 L391 6 L461 7 L471 8 L511 9 L531 10 L541 11 L551 12 L561 13 L601 14 L611 15 L881 16 L1141 17 L1151 18 L1161 19 L1181 20 L1241 21 L1261 22 L1431 23 L1441 24 L2491 25 L2501 9300103-000028 RESISTOR,0805 1/10W 5% ZERO 1 R181 2 R191 3 R891 4 R971 5 R981 6 R1001 7 R1021 8 R1801 9 R1811 10 R2911 11 R3591 12 R3611 13 R3691 14 R3701 15 R3831 16 R4041 17 R5811 18 R5901 19 R14831 20 R15571 21 R15581 22 R15591 23 R15601 24 R15611 25 R15621 26 R15631 27 R15641 28 R6841 9300103-78028 RESISTOR,0805 1/10W 5% 200 4 R6481 12 R7001 13 R7091 14 R7111 15 R7131 16 R7741 17 R4631 18 R6771 9300103-78042 RESISTOR,0805 1/10W 5% 240 1 R5451 2 R5481 9300104-001232 CAP,CER 1.0UF 10% 10V X7R 1 C841 2 C1761 3 C1941 4 C1991 5 C2031 6 C3591 7 C4181 8 C4361 9 C4391 10 C4471 11 C4831 12 C5351 13 C5371 14 C5381 15 C5391 16 C5401 17 C5411 18 C5431 19 C6321 20 C6741 21 C6751 22 C6931 23 C9751 24 C9761 25 C9771 26 C9781 27 C13631 28 C14031 29 C14371 30 C14581 31 C15711 32 C15761 9300105-00322 CAP,CER NPO 20PF 5% 50V 1 C7281 2 C7291 9300110-00762 RESISTOR,0805 1/10W 1% 59.0 1 R5461 2 R5471 9300178-00056 TRANSISTOR,DIGITAL NPN SOT323 1 Q101 2 Q331 3 Q381 4 Q2431 5Q51 6 Q291 9300291-00351 CAP,CER C0G 5% 330PF 50V 0603 2 C2281 9300291-00717 CAP,CER C0G 1% 22PF 50V 0603 1 C1071 2 C6291 3 C15691 4 C15921 5 C15931 6 C15941 7 C15951 9300291-00906 CAP,CER C0G 5% 1000PF 50V 0603 3 C801 4 C1151 5 C2221 6 C3071 7 C5821 8 C5871 9300292-00632 CAP,X7R 10% 4700PF 50V 0603 1 C1741 2 C1791 9300292-006712 CAP,X7R 10% .01UF 50V 0603 3 C2271 4 C3541 17 C9791 18 C9801 23 C9851 24 C10051 25 C12381 26 C12401 27 C13861 28 C16001 29 C16011 30 C14421 9300292-01165 CAP,X7R 10% .033UF 16V 0603 1 C1131 3 C2381 4 C2391 5 C3811 6 C3821 9300292-0124237 CAP,X7R 10% .1UF 16V 1C61 2 C121 3 C141 4 C171 5 C191 6 C311 7 C321 8 C531 9 C551 10 C581 11 C631 12 C641 13 C651 14 C661 16 C701 17 C861 18 C871 19 C1101 20 C1121 21 C1191 22 C1231 23 C1271 24 C1361 25 C1561 26 C1631 27 C1661 28 C1771 29 C1781 30 C1801 31 C1841 32 C1951 33 C1961 34 C1981 35 C2061 36 C2161 37 C2211 38 C2241 39 C2511 40 C2751 41 C2771 42 C2781 43 C2871 44 C2901 45 C3221 46 C3251 47 C3321 48 C3361 49 C3401 50 C3451 51 C3471 52 C3561 53 C3611 54 C3671 55 C3731 56 C4121 57 C4211 58 C4251 59 C4281 60 C4341 61 C4371 62 C4451 63 C4651 64 C4771 65 C4781 66 C4791 67 C4891 68 C4961 69 C5001 70 C5051 71 C5061 72 C5071 73 C5251 74 C5271 75 C5281 76 C6111 77 C6401 78 C6461 79 C6581 80 C7021 81 C7031 82 C7041 83 C7051 84 C7061 85 C7081 86 C7091 87 C7111 88 C7131 89 C7141 90 C7171 91 C7301 92 C7311 93 C7321 94 C7331 95 C7341 96 C7351 97 C7361 98 C7481 99 C7491 100 C7501 101 C7511 102 C7521 103 C7531 104 C7541 105 C7551 106 C7591 107 C7601 108 C7611 109 C7621 110 C7631 111 C7641 112 C7651 113 C7751 114 C7761 115 C7771 116 C7781 117 C7791 118 C7801 119 C7811 120 C7821 121 C7831 122 C7841 123 C7851 124 C7861 125 C7871 126 C7881 127 C7891 128 C7901 129 C7911 130 C7931 131 C7951 132 C7971 133 C7981 134 C7991 135 C8001 136 C8011 137 C8021 138 C8031 139 C8041 140 C8051 141 C8061 142 C8071 143 C8081 144 C8091 145 C8101 146 C8111 147 C8121 148 C8131 149 C8141 150 C8181 151 C8191 152 C8201 153 C8211 154 C8221 155 C8231 156 C8241 157 C8251 158 C8261 159 C8271 160 C8281 161 C8311 162 C8321 163 C8331 164 C8341 165 C8491 166 C8501 167 C8511 168 C8521 169 C8541 170 C8551 171 C8561 172 C8591 173 C8601 174 C8611 175 C8621 176 C8631 177 C8641 178 C8651 179 C8661 180 C8691 181 C8701 182 C8711 183 C8721 184 C8731 185 C8741 186 C8751 187 C8761 188 C8771 189 C8881 190 C8891 191 C8901 192 C8911 193 C8921 194 C8931 195 C8941 196 C8951 197 C8961 198 C8971 199 C8981 200 C8991 201 C9001 202 C9101 203 C9111 204 C9121 205 C9131 206 C9141 207 C9151 208 C9161 209 C9171 210 C9181 211 C9201 212 C9331 213 C9661 214 C9671 215 C9681 216 C9691 217 C9861 218 C9871 219 C10031 220 C12031 221 C12581 222 C12941 223 C12981 224 C13001 225 C13541 226 C14021 228 C14431 229 C14571 230 C14591 231 C14601 232 C15991 233 C16081 234 C129…

Text truncated - open the document above for the full version.

Report No. SC500226-03A Page 1 of 38 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 MEASUREMENT AND TECHNICAL REPORT HUGHES NETWORK SYSTEMS 10450 Pacific Center Court San Diego, CA 92121 DATE: 14 March 2005 This Report Concerns: Original Grant: X Class II Change: Equipment Type: Satellite IP Modem, Mode HNS9201 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X* (*) FCC Parts 2 and 25, Paragraph(s) 2.1046, 2.1049, 2.1051, 2.1053, 2.1055, 25.202(d), 25.202(f), 25.204, 25.216(h) Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 Report No. SC500226-03A Page 2 of 38 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 - 4 1.1 Product Description 3 1.2 Related Submittal Grant 3 1.3 Tested System Details 3 1.4 Test Methodology 3 1.5 Test Facility 4 2.0 SYSTEM TEST CONFIGURATION 5 2.1 Justification 5 2.2 EUT Exercise Software 5 2.3 Special Accessories 5 2.4 Equipment Modifications 5 2.5 Configuration of Test System 5 3.0 RF POWER OUTPUT EQUIPMENT/DATA 6 - 37 OCCUPIED BANDWIDTH EQUIPMENT/DATA SPURIOUS EMISSIONS AT ANTENNA TERMINAL EQUIPMENT/DATA FIELD STRENGTH OF SPURIOUS RADIATION EQUIPMENT/DATA FREQUENCY STABILITY EQUIPMENT/DATA FIELD STRENGTH OF SPURIOUS EMISSIONS EQUIPMENT/DATA 4.0 ATTESTATION STATEMENT 38 Report No. SC500226-03A Page 3 of 38 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.0 GENERAL INFORMATION 1.1 Product Description None 1.2 Related Submittal Grant None 1.3 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. Test Summary Part 22 Part 2 Summary of Results Test Description Paragraph Number Paragraph Number Low Channel Mid Channel High Channel Pass/Fail RF Power Output 25.204 2.1046 46.09dBm 45.93dBm 45.24dBm PASS Modulation Characteristics 2.1047 N/A N/A N/A Occupied Bandwidth 2.1049 183.0kHz 182.5kHz 183.5kHz PASS Spurious Emissions at Antenna Terminal 25.202(f) 2.1051 All emissions >10dB below limit All emissions >10dB below limit All emissions >10dB below limit PASS Field Strength of Spurious Radiation 25.202(f) 2.1053 All emissions >20dB below requirements. All emissions >20dB below requirements. All emissions >20dB below requirements. PASS Frequency Stability 25.202(d) 2.1055 < .001% variation PASS Field Strength of Spurious Emissions 25.216(h) 2.1053 Highest emission measured = 40.7dBpW (-79.3dBW/MHz) @ 1605MHz PASS Testing was performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8-M1983. Report No. SC500226-03A Page 4 of 38 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.5 Test Facility The open area test site and conducted measurement data were tested by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI C63.4 and are registered with the FCC, 7435 Oakland Mills Road, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. SC500226-03A Page 5 of 38 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 2.0 SYSTEM TEST CONFIGURATION 2.1 Justification The EUT was initially tested for FCC emissions in the following configuration: See Test Setup Photos Exhibit 2.2 EUT Exercise Software None 2.3 Special Accessories None 2.4 Equipment Modifications None 2.5 Configuration of Test System See Test Setup Photos Exhibit Report No. SC500226-03A Page 6 of 38 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 3.0 RF POWER OUTPUT EQUIPMENT/DATA OCCUPIED BANDWIDTH EQUIPMENT/DATA SPURIOUS EMISSIONS AT ANTENNA TERMINAL EQUIPMENT/DATA FIELD STRENGTH OF SPURIOUS RADIATION EQUIPMENT/DATA FREQUENCY STABILITY EQUIPMENT/DATA FIELD STRENGTH OF SPURIOUS EMISSIONS EQUIPMENT/DATA Test Conditions: RF POWER OUTPUT EQUIPMENT/DATA: FCC Part 25.204, 2.1046 OCCUPIED BANDWIDTH EQUIPMENT/DATA: FCC Part 2.1049 SPURIOUS EMISSIONS AT ANTENNA TERMINAL EQUIPMENT/DATA: FCC Part 25.202(f), 2.1051 FIELD STRENGTH OF SPURIOUS RADIATION EQUIPMENT/DATA: FCC Part 25.202(f), 2.1053 FREQUENCY STABILITY EQUIPMENT/DATA: FCC Part 25.202(d), 2.1055 FIELD STRENGTH OF SPURIOUS EMISSIONS EQUIPMENT/DATA: FCC Part 25.216(h), 2.1053 The measurements were performed at the San Diego Testing Facility: † - Test not applicable „ - SR-5, Shielded Room, 16’ x 28’ x 15’, Metal, Semi-Anechoic Chamber Test Equipment Used: Model No. Prop. No. Description Manufacturer Serial No. Cal Date 8594E 6504 Signal Generator Hewlett Packard 3303A0036507/04 BW-N20W5 -- 20 dB Attenuator MCL -- VBU* 85662A 6495 Spectrum Analyzer Hewlett Packard 2542A1209902/05 6843A 6810 PSU Hewlett Packard 3531A0018005/04 -- 6452 Digital Volt Meter Hewlett Packard 2911A5217704/04 T30RC 6225 Environmental Chamber Tenney Environmental 27244-02 05/04 E4440A 7500 Spectrum Analyzer Hewlett Packard MY4336216812/04 AMF-5D-010180-35-10P 719 Preamplifier Miteq 549460 04/04 3115 453 Double Ridge Antenna EMCO 9412-4364 02/05 AA-190-30.00.0 7491 30’ Cable United Microwave Pro -- VBU* AA-190-04-00.0 6788 3’ Cable United Microwave Prod -- VBU* Remarks: One year calibration cycle for all test equipment and sites. (*) Verified Before Use. Report No. SC500226-03A Page 7 of 3…

Text truncated - open the document above for the full version.
