INSTRUCTION MANUAL © B62-1221-00 (K) 09 08 07 06 05 04 03 02 01 00 ALL MODE MULTI-BAND TRANSCEIVER TS-2000 TS-2000X TS-B2000 KENWOOD CORPORATION yrosseccArebmuNtraP ytitnauQ 0002-ST X0002-ST 0002B-ST enohporciMXX-2530-19T11 elbacrewopCDXX-7513-03E11 gulpNIDnip-7XX-1570-70E11 gulpNIDnip-8XX-1580-70E11 gulpNIDnip-31XX-1531-70E11 )A52(esuFXX-1352-50F11 )A4(esuFXX-7204-60F11 teSwercSXX-4202-99N11 034-BMrofrecapSXX-8962-11G44 retlifeniL 1 XX-8041-97L11 dnaBgniniateR 1 XX-7030-16J11 MOR-DCXX-3210-39T–1 launaMnoitcurtsnIXX-2121-26B11 kcolB/citamehcS smargaiD XX-4160-25B XX-6160-25B XX-7160-25B 11 dracytnarraW XX-9640-64B )epyt-K( XX-0130-64B )sepyt-EllA( 11 THANK YOU THANK YOU Thank you for choosing this KENWOOD TS-2000(X)/ TS-B2000 transceiver. It has been developed by a team of engineers determined to continue the tradition of excellence and innovation in KENWOOD transceivers. This transceiver features dual Digital Signal Processing (DSP) units to process IF and AF signals. By taking maximum advantage of DSP technology, the TS-2000(X) gives you enhanced interference reduction capabilities and improves the quality of audio that you transmit without installing additional analog filters. You will notice the differences when you fight QRM and QRN. As you learn how to use this transceiver, you will also find that KENWOOD is pursuing “user friendliness”. For example, each time you change the Menu No. in Menu mode, you will see scrolling messages on the display that tell you what you are selecting. Though user friendly, this transceiver is technically sophisticated and some features may be new to you. Consider this manual to be a personal tutorial from the designers. Allow the manual to guide you through the learning process now, then act as a reference in the coming years. FEATURES • All mode operation from HF to 1.2 GHz (TS-2000/ TS-B2000 Optional) amateur radio band with DSP functions. • Dual high speed Digital Signal Processing (DSP) units. • Adjustable DSP filter frequencies. • High speed Digital Automatic Gain Control (AGC). • A second independent sub-receiver for the 144 MHz and 430 (440) MHz bands (FM and AM mode only). • A built-in Antenna Tuner for HF/ 50 MHz band. • A built-in 9600/ 1200 bps TNC for packet operation. • DX PacketCluster Tune (P.C.T.) for DX hunting. • Instant Satelite communication key. • A razor sharp DSP filter up to 50 Hz for CW operation. SUPPLIED ACCESSORIES After carefully unpacking the transceiver, identify the items listed in the table. We recommend you keep the box and packing material below in case you need to repack the transceiver in the future. 1 E and E2-type only WRITING CONVENTIONS FOLLOWED The writing conventions described below have been followed to simplify instructions and avoid unnecessary repetition. noitcurtsnIoDottahW sserP]YEK[.esaelerdnasserPYEK. sserP ]1YEK[,]2YEK[. sserP1YEK,yliratnemom esaeler1YEKsserpneht, 2YEK. sserP ]2YEK[+]1YEK[. dlohdnasserP1YEKneht, sserp2YEKeromeraerehtfI. dlohdnasserp,syekowtnaht lanifehtlitnunrutniyekhcae .desserpneebsahyek sserP +]YEK[NOREWOP. rewopreviecsnartehthtiW dlohdnasserp,FFOYEK, reviecsnartehtNOnrutneht gnisserpybrewop]REWOP[. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer for technical assistance. FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. NOTICE TO THE USER One or more of the following statements may be applicable for this equipment. MODELS COVERED BY THIS MANUAL The models listed below are covered by this manual. TS-2000: HF/ VHF/ UHF All-mode Multi-band Transceiver TS-2000X: HF/ VHF/ UHF/ 1.2 GHz All-mode Multi-band Transceiver TS-B2000: HF/ VHF/ UHF All-mode Multi-band Transceiver As for TS-B2000, refer to the on-line help how to operate and control the transceiver. Refer to pages 2, 3, and XX for the installation and informations on the connectors. MARKET CODES K-type: The Americas E-type: Europe E2-type: Spain Refer to the Appendix {page XX} for theinformation on available operating frequencies. iii Please observe the following precautions to prevent fire, personal injury, and transceiver damage: • Connect the transceiver only to a power source described in this manual or as marked on the transceiver itself. • Route all power cables safely. Ensure the power cables can neither be stepped upon nor pinched by items placed near or against the cables. Pay particular attention to locations near AC receptacles, AC outlet strips, and points of entry to the transceiver. • Take care not to drop objects or spill liquid into the transceiver through enclosure openings. Metal objects, such as hairpins or needles, inserted into the transceiver may contact voltages resulting in serious electrical shocks. Never permit child…

Text truncated - open the document above for the full version.

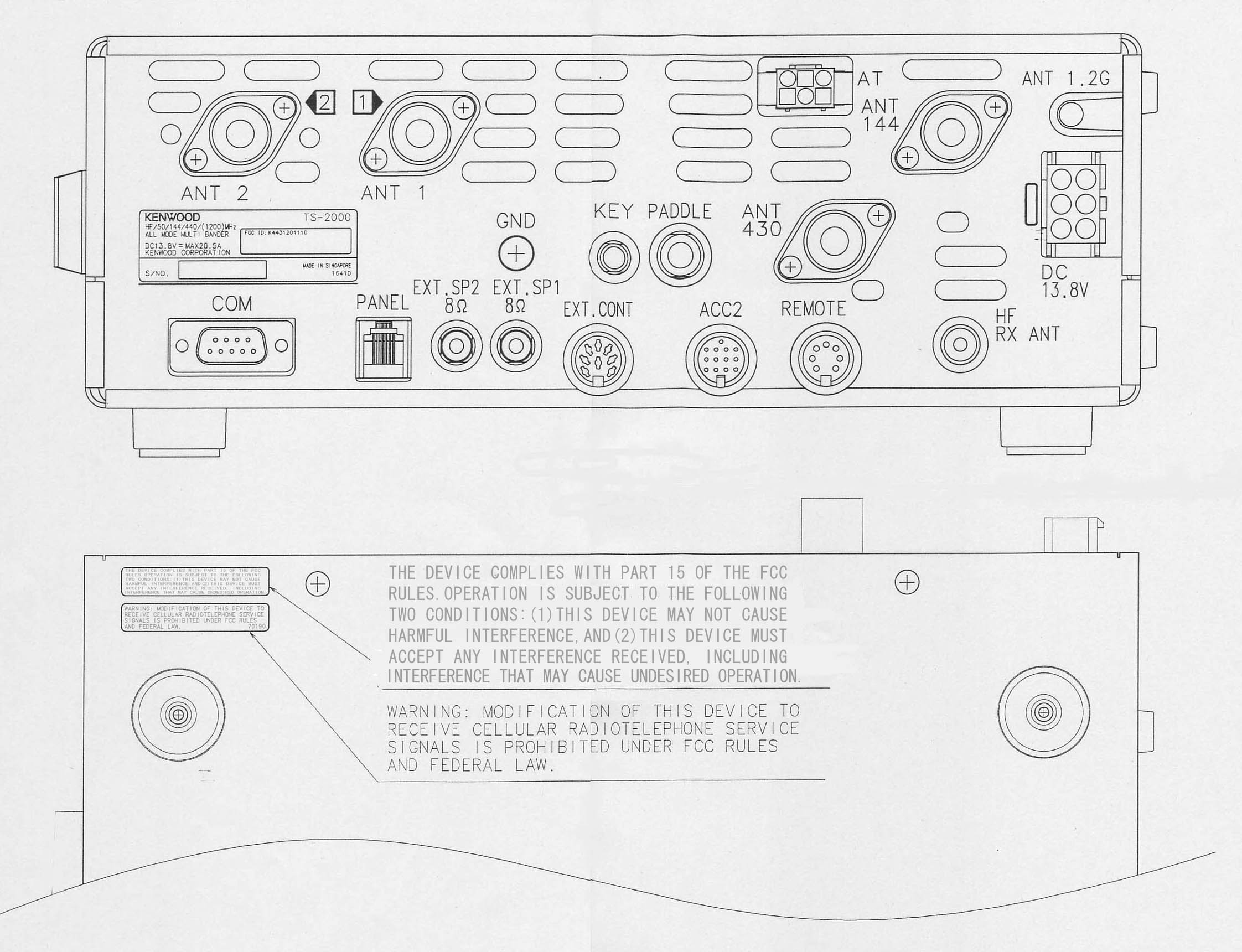

FCC ID : K4431201110 Model Name : TS-2000 Name Plate FCC ID : K4431201110 Model Name : TS-2000X Name Plate FCC ID : K4431201110 Model Name : TS-B2000 Name Plate

Report No.:Z01C-00319 Page 1 of 15 ZACTA Technology Corp. FCC ID: K4431201110 FCC Certification Rev.3.0 T T E E S S T T R R E E P P O O R R T T Report No.: Z01C-00319 Issue Date: September 28, 2000 The device, as descri bed herewith, was tested pursuant to applicable t est procedure indicat ed below and complies with the requirements of; FCC Part15 Subpart B, Class B The EUT complies with section 15.37 “Transition provision for compliance with the rules”. The test results are traceable to international or national standards. Applicant: Kenwood Corporation Communication Equipment Division 1-16-2, Hakusan, Midori-ku Yokohama-shi, Kanagawa 226-8525 Phone: +81-45-939-6254 Fax.: +81-45-939-7096 Equipment under test (EUT) : Scanning Receiver (As PC peripheral) FCC ID: K4431201110 Trade Name: KENWOOD Model Number: TS-2000 / TS-2000X / TS-B2000 Serial Number: N/A EUT Condition: Pre-production Test procedure: ANSI C63.4-1992 Date of test: September 23, 2000 Test place: Site 2 Test results: Complied Zacta Technology Corporation certifies that no party to the application is subject to a denial of federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21U.S.C. 853(a). The results in this report are applicable only to the samples tested. This report shall not be re-produced except in full without the written approval of ZACTA Technology Corporation. Test performed by:Taku ya Osato / EMC engineer Authorized by:Kiyoshi Endo / Manager of Technical Division ZACTA Technology Corporation Yonezawa Testing Center 4149-7 Hachimanpara 5-chome Yonezawa-shi Yamagata 992-1128 Japan Phone: +81-238-28-2880 Fax: +81-238-28-2888 Report No.:Z01C-00319 Page 2 of 15 ZACTA Technology Corp. FCC ID: K4431201110 FCC Certification Rev.3.0 Table of contents Page 1. Equipment description.......................................................................................................................... 3 1.1 EUT information...............................................................................................................................................................3 1.2 Operating flow ..................................................................................................................................................................4 2. Configuration information ................................................................................................................... 5 2.1 Peripheral(s) information..................................................................................................................................................5 2.2 Cable(s) information.........................................................................................................................................................5 2.3 System configuration........................................................................................................................................................7 3. Test procedure ....................................................................................................................................... 8 3.1 Description of Conducted Emission testing......................................................................................................................8 3.2 Test equipment for Conducted emission...........................................................................................................................8 3.3 Description of Radiated emission testing .........................................................................................................................9 3.4 Test equipment for Radiated emission............................................................................................................................10 4. Laboratory description ....................................................................................................................... 11 4.1 Description for Test Site ................................................................................................................................................. 11 4.2 Uncertainty...................................................................................................................................................................... 11 5. Results of the measurements .............................................................................................................. 12 5.1 Results of the measurements ..........................................................................................................................................12 5.2 Deviation from the standard ...........................................................................................................................................12 5.3 Sample of field strength calculation ...............................................................................................................................13 6. Test Data.............................................................................................................................................. 14 Report No.:Z01C-00319 Page 3 of 15 ZACTA Technology Corp. FCC ID: K4431201110 FCC Certification Rev.3.0 1. Equipment description 1.1 EUT information No.EUTCompanyModel No.Serial No.FCC ID/DoCComment 1Scanning receiverKENWOODTS-2000XN/AK4431201110- 2MicrophoneKENWOODMC-43SN/AN/AAccessory 3 Separate remote panel KENWOODRM-2000N/AN/AOption 4SpeakerKENWOODKES-3N/AN/AOption 5SpeakerKENWOODSP-50BN/AN/AOption Max. used frequency 1299.999999MHz Frequency range<Main> 30kHz to 60MHz 142MHz to 152MHz 420MHz to 450MHz 1240MHz to 1300MHz <Sub> 118MHz to 174MHz 220MHz to 512MHz Power ratingsDC +13.8V [EUT is powered from DC power supply. Power supply for DC power supply in testing was AC 120V 60Hz.] Port(s)PHONES jack MIC connector ANT 1 and ANT 2 connectors GND post KEY and PADDLE jacks AT connector ANT 144 connector ANT 430 connector ANT 1.2G con…

Text truncated - open the document above for the full version.

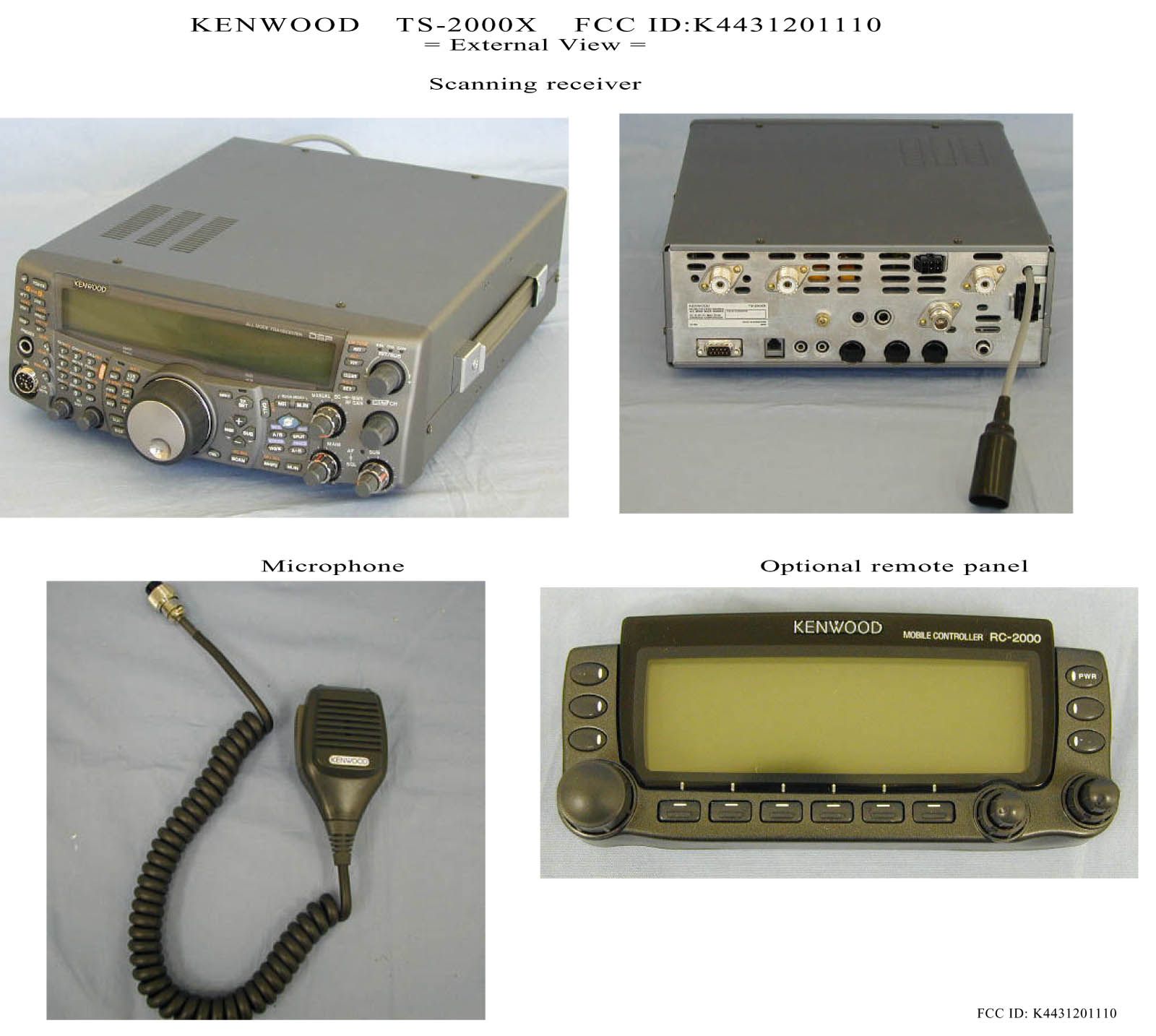

KENWOOD Scanning Receiver (PC peripheral) FCC ID: K4431201110 Conduction Radiation
