May 18th, 2007 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 Attn: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize ETL SEMKO JAPAN K.K. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. This agreement expires one year from the current date. Sincerely, Tamaki Shimamura Communication Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan
May 18th, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NXR-800-K, FCC ID: K44371400. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if you require any additional information. Sincerely, Tamaki Shimamura Communications Equipment Division Kenwood Corporation 1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan
NXR-800-K FCC ID: K44371400 IC: 282F-371400 NXR-800-K4 FCC ID: K44371403 IC: 282F-371403 Front View Rear View NXR-800-K FCC ID: K44371400 IC: 282F-371400 NXR-800-K4 FCC ID: K44371403 IC: 282F-371403 Top View Bottom View NXR-800-K FCC ID: K44371400 IC: 282F-371400 NXR-800-K4 FCC ID: K44371403 IC: 282F-371403 Right View Left View
NXR-800-K FCC ID: K44371400 IC: 282F-371400

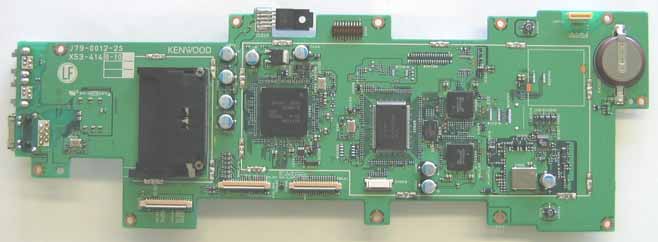

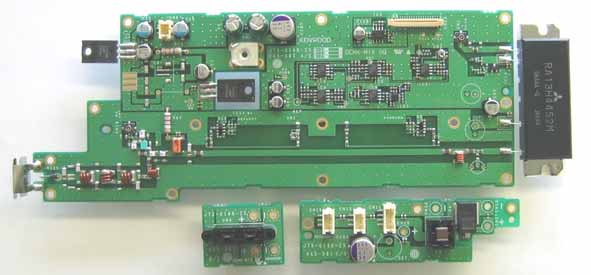

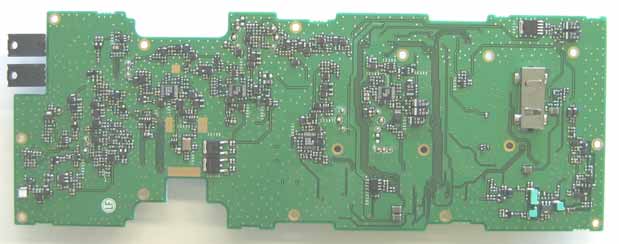

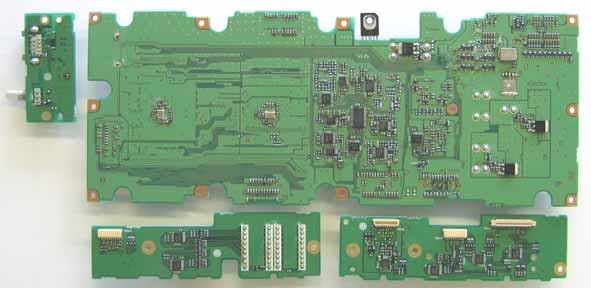

Model: NXR-800-K FCC ID: K44371400 IC: 282F-371400 Control1 Component Side View Control1 Foil Side View Model: NXR-800-K FCC ID: K44371400 IC: 282F-371400 Control2 Component Side View Control2 Foil Side View Model: NXR-800-K FCC ID: K44371400 IC: 282F-371400 RX Component Side View RX Foil Side View Model: NXR-800-K FCC ID: K44371400 IC: 282F-371400 TX Component Side View TX Foil Side View Model: NXR-800-K FCC ID: K44371400 IC: 282F-371400 Final Component Side View Final Foil Side View
Maximum Permissible Exposure (MPE) Evaluation Applicant:Kenwood Corporation Equipmen t:UHF DIGITAL BASE-REPEATER Model No.:NXR-800-K FCC ID:K44371400 IC CN and UP N:282F-371400 MPE Calculations According to the OET Bulletin 65 (Edition 97-01) Where: S=Power density (in appropriate units, e.g. mW/cm 2 ) P=Power input to antenna (in appropriate units, e.g., mW) G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R=Distance to the center of radiation of the antenna (appropriate units, e.g., cm) Tx Frequency=450 to 480 (MHz):FCC 450 to 470 (MHz):IC Maximum peak power =(dBm)(=5W) Antenna gain=(dBi) S=(mW/cm 2 ) P=(mW) (=Maximum peak power x 120% x Dutycycle 50%) G=(numeric) R=(cm) P = Value calculated according to CFR Part 90.205(r) Calculated minimum separation distance from antenna :36.13 (cm) 1.64 36.13 36.99 2.15 0.30 3000.00 S PG R π4 = 2 4R PG S π =
MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antenna. • Antenna Minimum Safe Distance: 60 cm (2 feet), 50% duty Cycle. • Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 60 cm (2 feet) , 50% duty Cycle. • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 60 cm (2 feet) , 50% duty Cycle. You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle
Report No : ESJ-107094 FCC ID :K44371400 IC CN :282F-371400 FALSE TRUE 4 REGULATION :FCC Part 2, 22, 74, 90, 90.210, 95 RSS-119 Issue 9(2007) Kenwood CorporationETL SEMKO Japan K. K. Kashima No.1 Test site 1-16-2, Hakusan, Midori-ku, Yokohama-shiFCC File Number : 934283 Kanagawa, 226-8525 JapanIC File Number : IC-2065A Tel.: +81 45 939 6254 Fax.: +81 45 939 70973-2, Sunayama, Kamisu-shi, Ibaraki-ken 314-0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 URL: www.japan.intertek-etlsemko.com Equipment typeUHF DIGITAL BASE-REPEATER TrademarkKENWOOD Model(s)NXR-800-K Serial No. FCC ID K44371400 IC CN and UPN 282F-371400 Measurement MethodANSI/TIA-603-C-2004 / RSS-119 Issue 9(2007), RSS-Gen Issue 1(2005) No deviation Test ResultComplied Report NumberESJ-107094 Report issue date Approved byTested by Junichi OkadaNaoki Ikeda [Site Manager] This equipment has been shown to be capable of compliance with the applicable standard(s) as indicated in the test report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of ETL SEMKO Japan K. K. The results and statements contained in this report pertain only to the equipment evaluated. Applicant TEST REPORT Testing Laboratory Deviation from standard(s) June 07, 2007 None ETL SEMKO Japan K.K.Page 1 of 44Version 0.1 Report No : ESJ-107094 FCC ID :K44371400 IC CN :282F-371400 TABLE OF CONTENTS Page SECTION 1.GENERAL INFORMATION3 SECTION 2.TEST AND MEASUREMENT DATA5 SECTION 3.INFORMATION ABOUT EUT AND SUPPORT EQUIPMENT(S)6 SECTION 4.MEASUREMENT RESULT9 SECTION 5.TEST DATA 5.1Carrier Output Power (Conducted)10 5.2Unwanted Emissions (Transmitter Conducted)12 5.3Field Strength of Spurious Radiation15 5.4Emission Masks (Occupied Bandwidth)19 5.5Transient Frequency Behavior23 5.6Audio Frequency Response / Audio Low Pass Filter (Voice Input)27 5.7Modulation Limiting30 5.8Frequency Stability (Temperature Variation)34 5.9Frequency Stability (Voltage Variation)37 5.10Receiver Spurious Emissions(Radiated)39 5.11Necessary Bandwidth and Emission Bandwidth43 SECTION 6.VALIDITY OF TEST REPORT44 SECTION 7. DESCRIPTION OF TEST SITE44 APPENDIXPHOTOGRAPHS ETL SEMKO Japan K.K.Page 2 of 44Version 0.1 Report No : ESJ-107094 FCC ID :K44371400 IC CN :282F-371400 SECTION 1. GENERAL INFORMATION Description of Test Item Kind of EUT:UHF DIGITAL BASE-REPEATER Condition of EUT:Prototype Type:Rack Mount type Trademark:KENWOOD Test Performed EUT Received: Test started: Test completed: Temperature:20 to 28 degree C Humidity:45 to 66 % Atmospheric:100.8 to 102.8 kPa Voltage:DC 13.8 V Current:7.5A Maximum Frequency:None Test Tracability Abbreviations AVG = Average April 27, 2007 April 27, 2007 May 29, 2007 Cal Exp. = Calibration Expire VBW = Video Band Width RBW = Resolution Band Width Tracability to national standards of test result is achieved by means of calibration tractability to national or international standards. EUT = Equipment Under Test D.R.G. Antenna = Double Rigid Guide Antenna ETL SEMKO Japan K.K.Page 3 of 44Version 0.1 Report No : ESJ-107094 FCC ID :K44371400 IC CN :282F-371400 In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 90 Sub-part 2.1033 (c)(1) Applicant and Manufacture Information APPLICANT Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan Contact Person:Tamaki Shimamura Manager, Communications Equipment Division MANUFACTURER Company:Kenwood Corporation Address:1-16-2, Hakusan, Midori-ku, Yokohama-shi, Kanagawa, 226-8525 Japan (c)(2) FCC ID FCC ID:K44371400 Model number:NXR-800-K Serial number:None (c)(3) Instruction Manual(S) Instruction manual(s):Please refer to attached Exhibits F (c)(4) Type of Emission Emission Designation:16K0F3E(Wide) / 11K0F3E(Narrow) 8K30F1E(Narrow) / 8K30F1D(Narrow) / 8K30F7W(Narrow) (c)(5) Frequency range Frequency Range:450 to 480 MHz(CFR) / 450 to 470 MHz(RSS) (c)(6) Power Rating Output Power:0.5 to 5 W Type:Continuously Variable (c)(7) Maximum Power Rating Output Power:5 W Other Information Number of Channel:30 Maximum Deviation:5 kHz / 2.5 kHz Frequency Stability:1.5 ppm (Specification) Antenna Impedance:50 Ω Norminal Note ETL SEMKO Japan K.K.Page 4 of 44Version 0.1 Report No : ESJ-107094 FCC ID :K44371400 IC CN :282F-371400 SECTION 2. TEST AND MEASUREMENT DATA All test and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J and Industry Canada as the following individual parts: Test Item Domestic Public Fixed radio Services Non Cellular Public Mobile Services Subpart H - Cellular Radiotelephone Service Alternative technologies and auxiliary service International Fixed Public Radiocommunication service Personal Communications Services Subpart H - Low Power Auxiliary Stations Stations in the Maritime Services Subpart E - general Technical Standards Subpart F - Equipment Authorization for Compulsory Ships Subpart K - Private Coast Stations and Marine Utility Stations Subpart V - Emergency Position Indicating Radiobeacons (EPIRB'S) Subpart W - Global Maritime Distress and Safety System (GMDSS) Subpart X - Voluntary Radio Installations Aviation Services Private Land Mobile radio Services Private Operational - Fixed Microwave Service Subpart A - General Mobile radio Service Subpart C - Radio Control (R/C) radio Service Subpart D - Citizens Band (CB) Radio Service Subpart E -Family radio Service Subpart F -Interactive Video and Data Service (IVDS) Amateur Radio Service Fixed Microwave Service Test Item N.A. N.A. N.A. N.A. N.A. YES N.A. N.A. N.A. N.A. N.A. YES N.A. N.A. N.A. N.A. Tested N.A. YES N.A. Subpart S - Compulsory radiotelephone…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 5 | 22,74,90.210,95A | 450 MHz - 480 MHz | 5 W | 8K30F7W | 1.5 ppm |
